EiKO SIGNAL LED Flood Light & High Bay — 450W — 4000K — 76,185 lm — 120–277V
Available in stock (112)
About this item
About this item
- High Bay Output: Fixed 450W model delivers 76,185 lm at 169 lm/W; the sheet states no legacy-fixture equivalency for this model.
- Distribution Options: EiKO lists separately available 30° and 60° lenses plus 90° and 100° reflectors for the SIGNAL series; the cold-forged aluminum heatsink is part of the fixture.
- Fixed Color Temperature: This ordering model provides fixed 4000K light with CRI >70; it is not field-selectable.
- Controls Ready: The Z10 receptacle simplifies adding controls, and the fixture supports 0–10V dimming. No specific sensor or control platform is identified on the sheet.
- Wet Location Rating: DLC Premium qualified, ETL Listed for wet locations, and IP66 rated. Rebate availability depends on the utility and location.
We process payments securely and do not store credit card information.
Description
Description

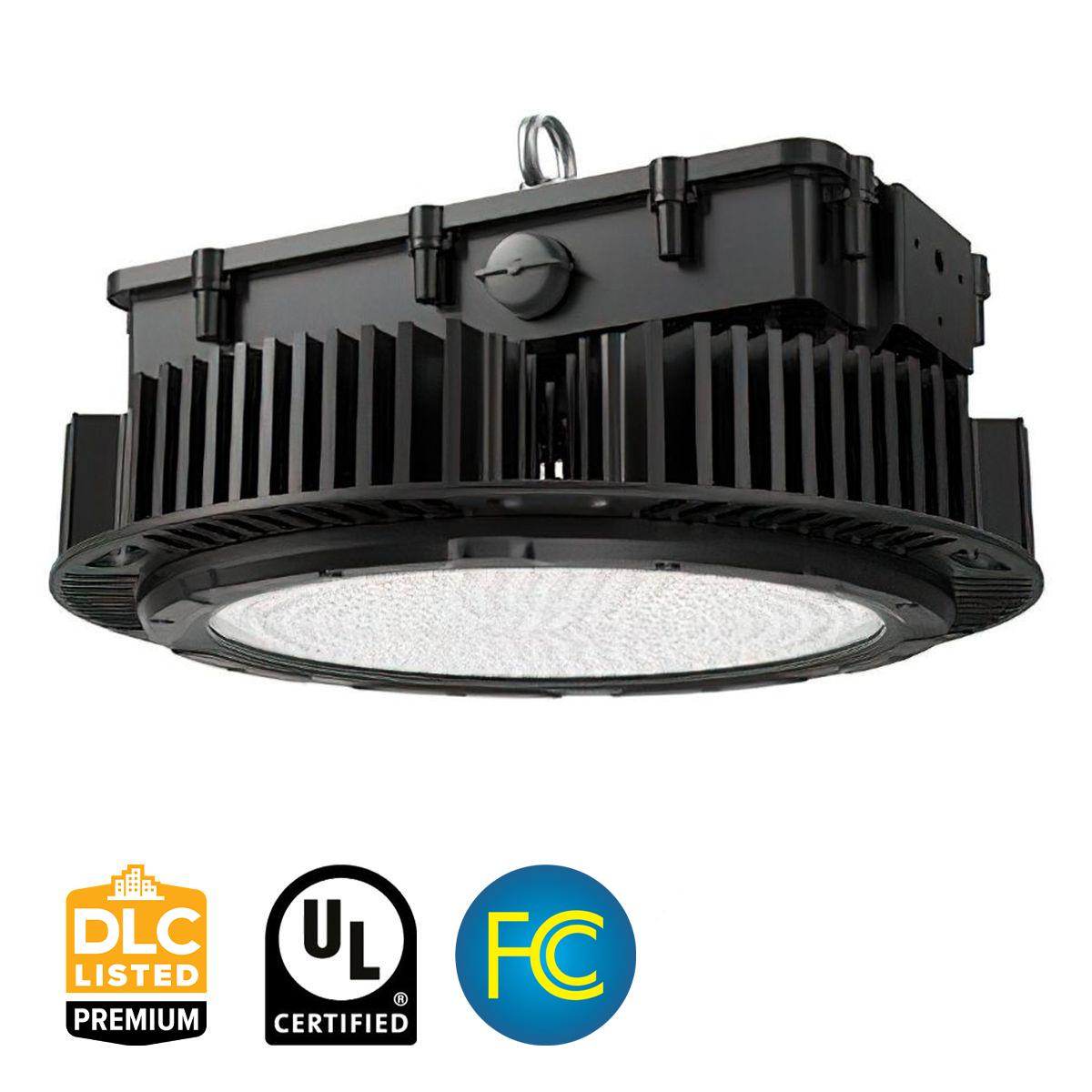

EiKO SIG/450W/740/UD SIGNAL Flood Light and High Bay — 450W — 4000K
The EiKO SIG/450W/740/UD (order code 12345) is a SIGNAL flood light and high bay delivering 76,185 lm at 450W and 4000K. It operates on 120–277V with 0–10V dimming, is IP66 rated and ETL Listed for wet locations, and is DLC Premium qualified. A Z10 receptacle simplifies adding controls.
Key Features
- Fixed Wattage: 450W for this ordering model.
- Lumen Output: 76,185 lm at 4000K.
- Efficacy: 169 lm/W, as listed in the performance summary.
- CRI: >70 for this ordering model.
- Fixed CCT: 4000K.
- Distribution Options: Separate 30° and 60° lenses and 90° and 100° reflectors are listed in the SIGNAL accessories chart.
- Dimming: 0–10V.
- Input Voltage: 120–277V.
- Location and Ingress: ETL Listed for wet locations; IP66 rated.
- Operating Temperature: −40°F (−40°C) to 122°F (50°C).
- 3G Rating: Rated per ANSI C136.31.
- Rated Lifetime: Projected L70 of 100,000 hours; reported L70 >84,000 hours and reported L90 >36,000 hours.
- Warranty: 5-year limited warranty.
- Control Interface: Z10 receptacle simplifies adding controls.
Performance & Light Output
| Wattage | Total Lumens | Efficacy |
|---|---|---|
| 450W | 76,185 lm | 169 lm/W |
The performance summary lists CRI >70 at 4000K for this model. Rated lifetime is projected L70 100,000 hours, reported L70 >84,000 hours, and reported L90 >36,000 hours.
Smart & Control Features
The SIGNAL fixture features a Z10 receptacle that EiKO says simplifies adding controls.
- Fixture Control: The cut sheet also documents 0–10V dimming.
Electrical
Input voltage is 120–277V, with power factor >0.9 and THD <20%. The cut sheet specifies a 10kV driver plus 20kV supplemental surge protection and 0–10V dimming. The fixture ships with 3-ft power and dimming cables.
Construction
Housing & Thermal: Cold-forged aluminum heatsink, die-cast aluminum driver housing with multiple points of entry for wiring, and stainless steel hardware.
Finish: Epoxy e-coat primer and polyester powder coat.
Environmental Sealing: IP66 rated and ETL Listed for wet locations. Operating temperature: −40°F (−40°C) to 122°F (50°C).

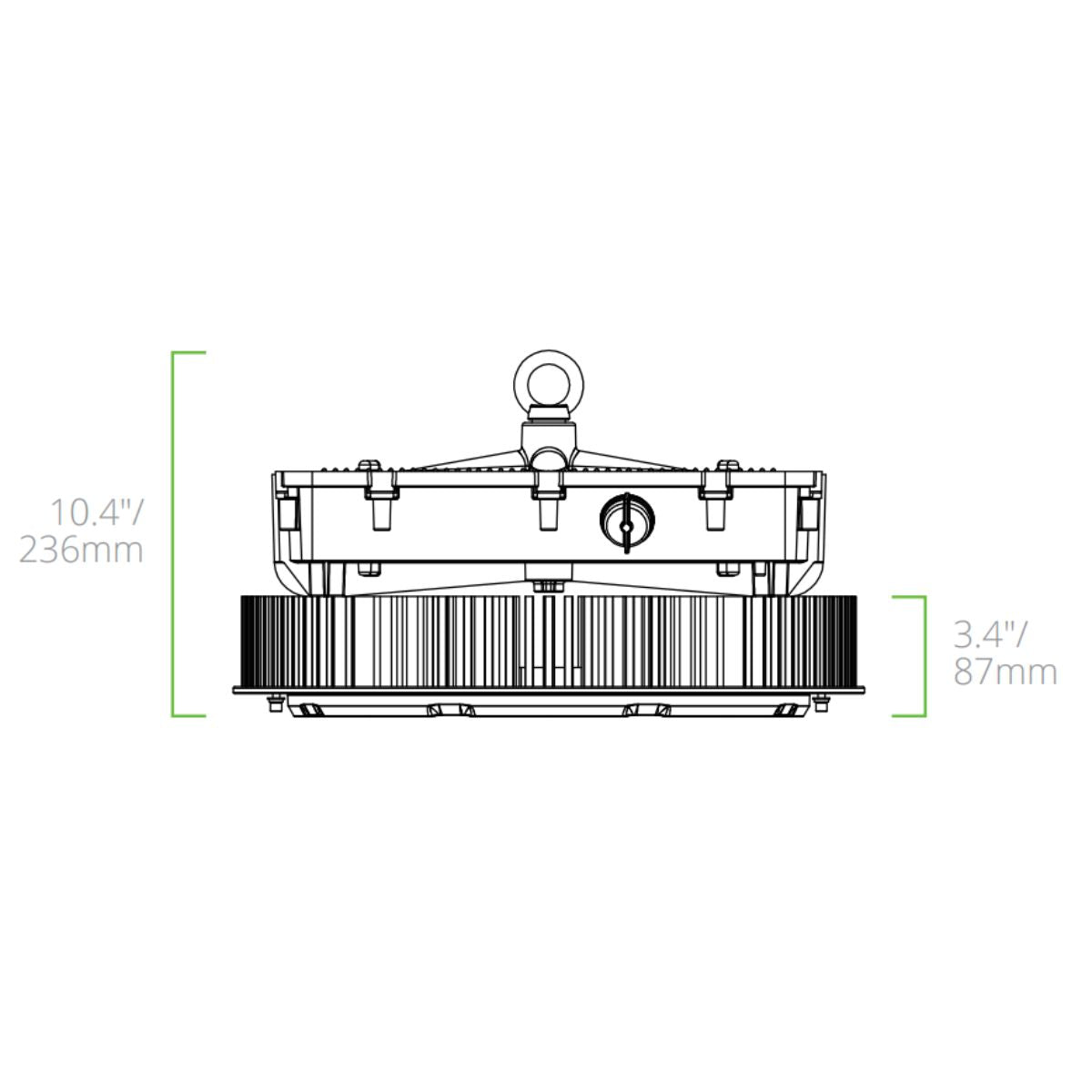

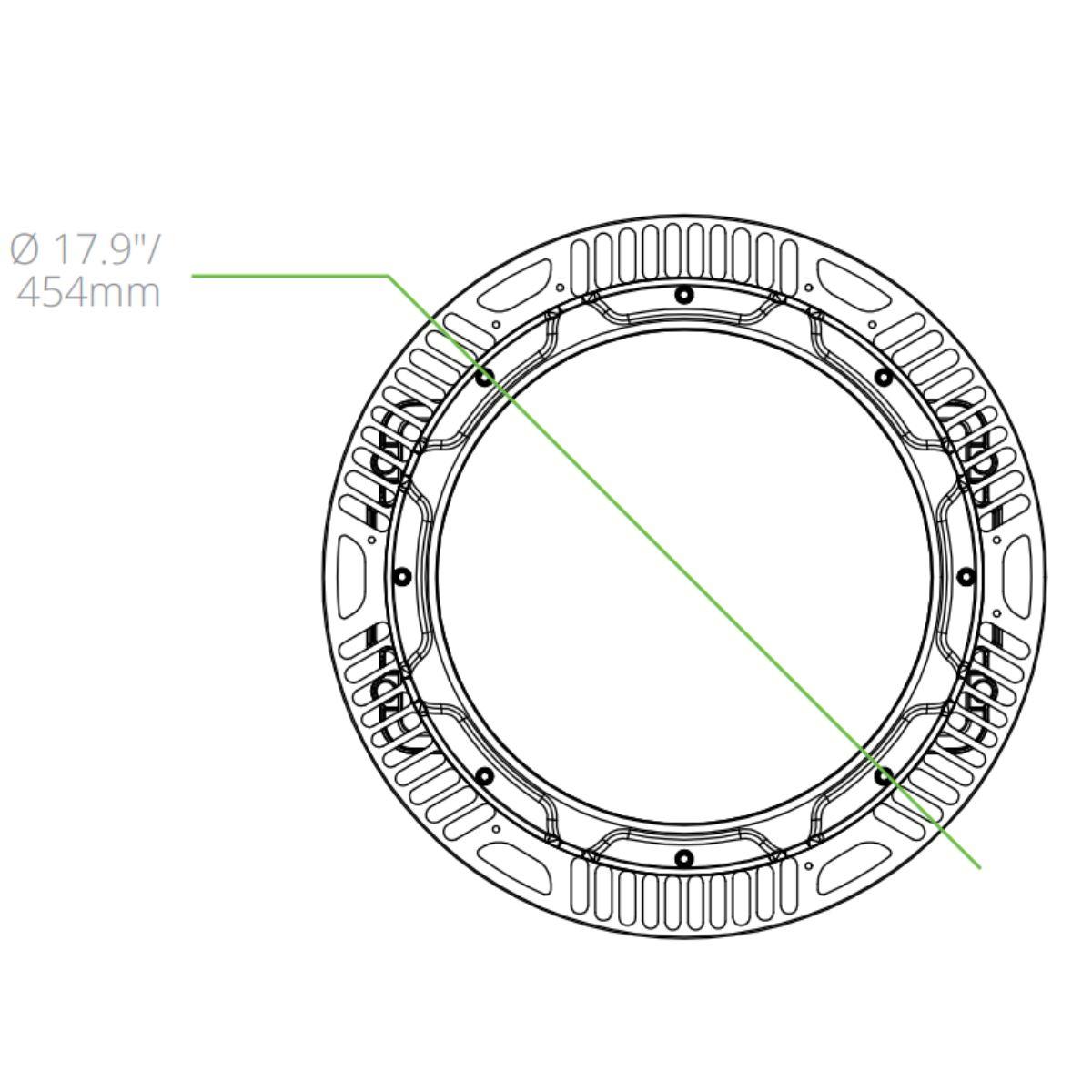

Dimensions & Weight: Base fixture 17.9 in. diameter × 10.4 in. height; 28.2 lb (12.8 kg).
Installation & Mounting
Wiring: Ships with 3-ft power and dimming cables. The die-cast aluminum driver housing has multiple points of entry for wiring.
Accessories Sold Separately:

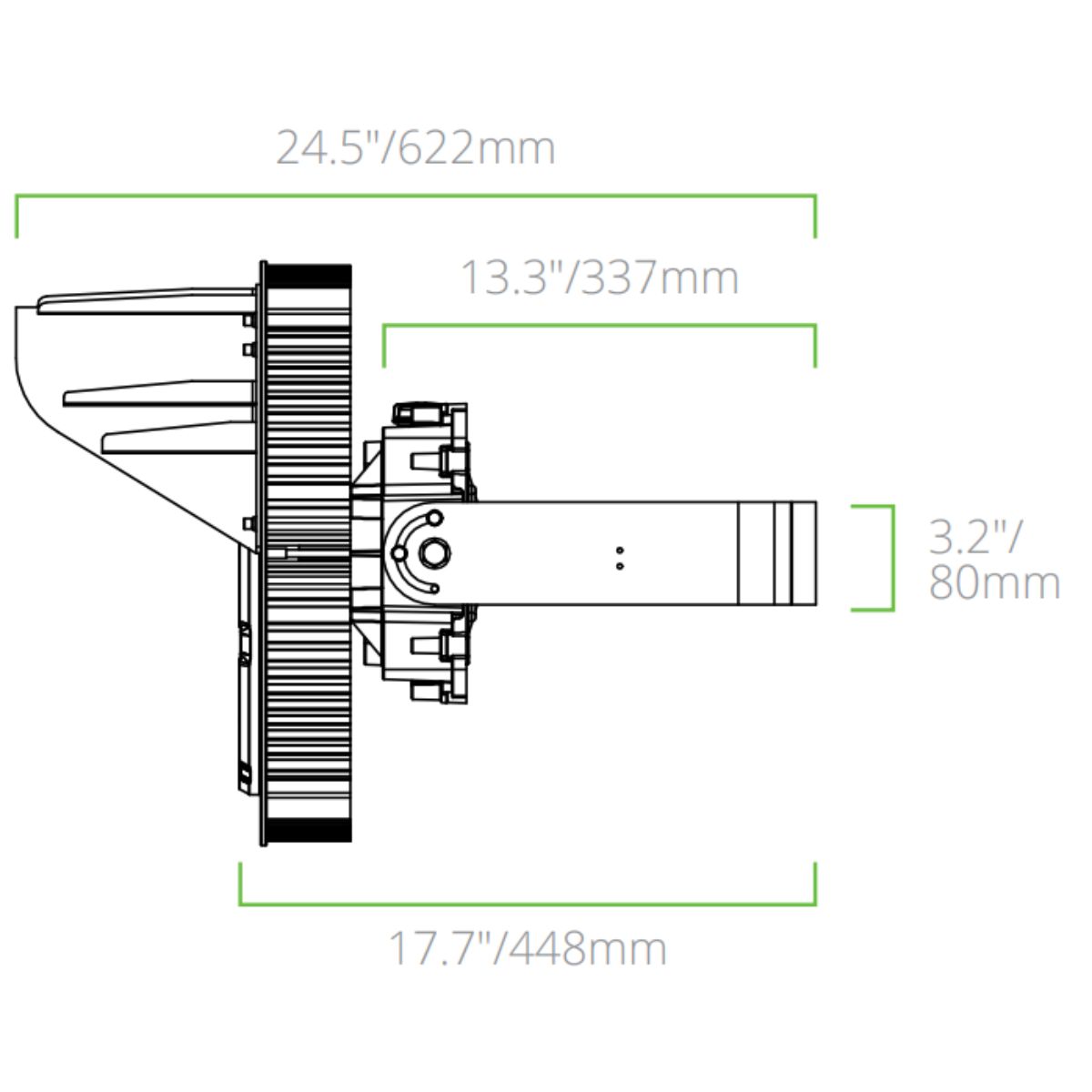

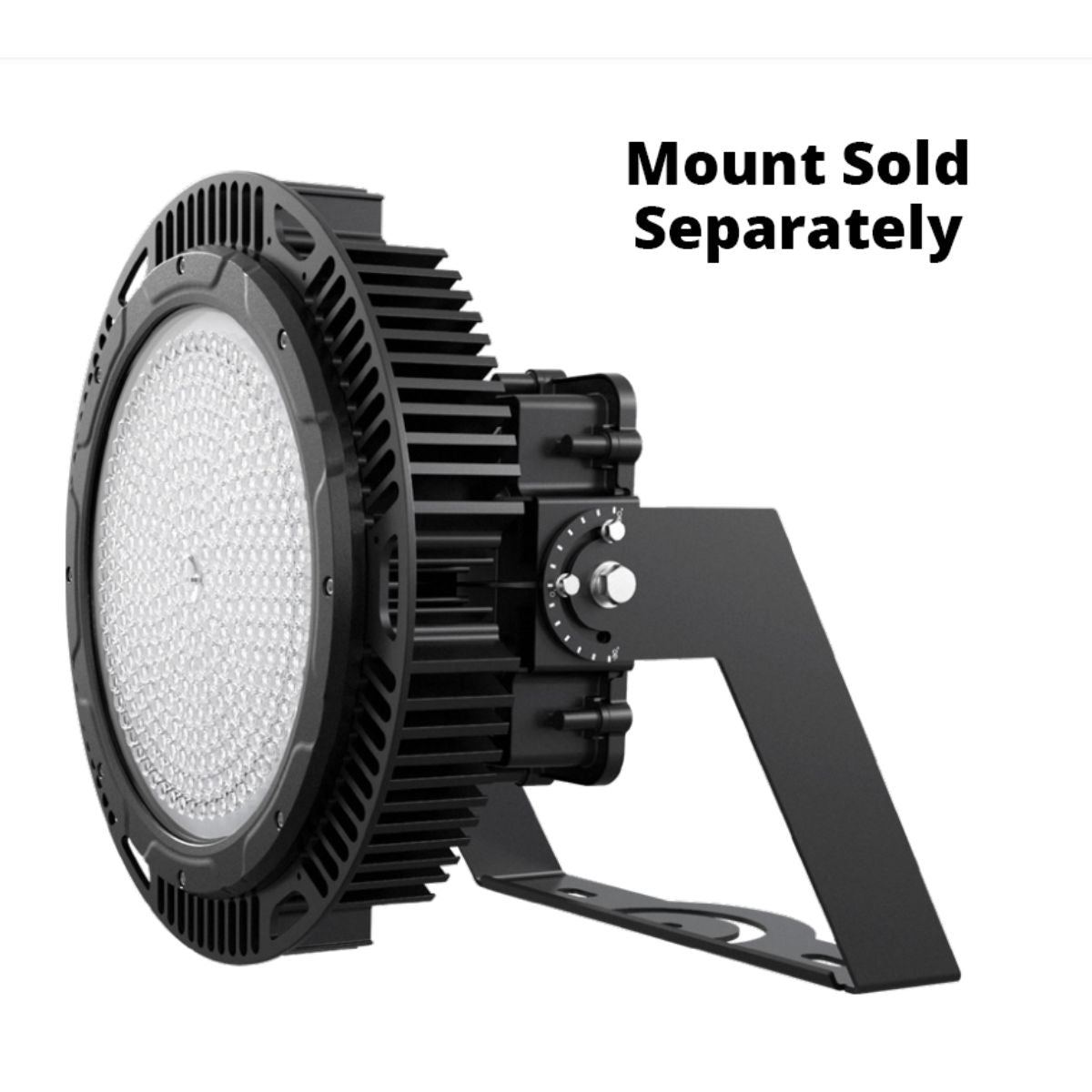

- Yoke mounting bracket: SIG/Y (12360), SIGNAL yoke mounting bracket, sold separately.

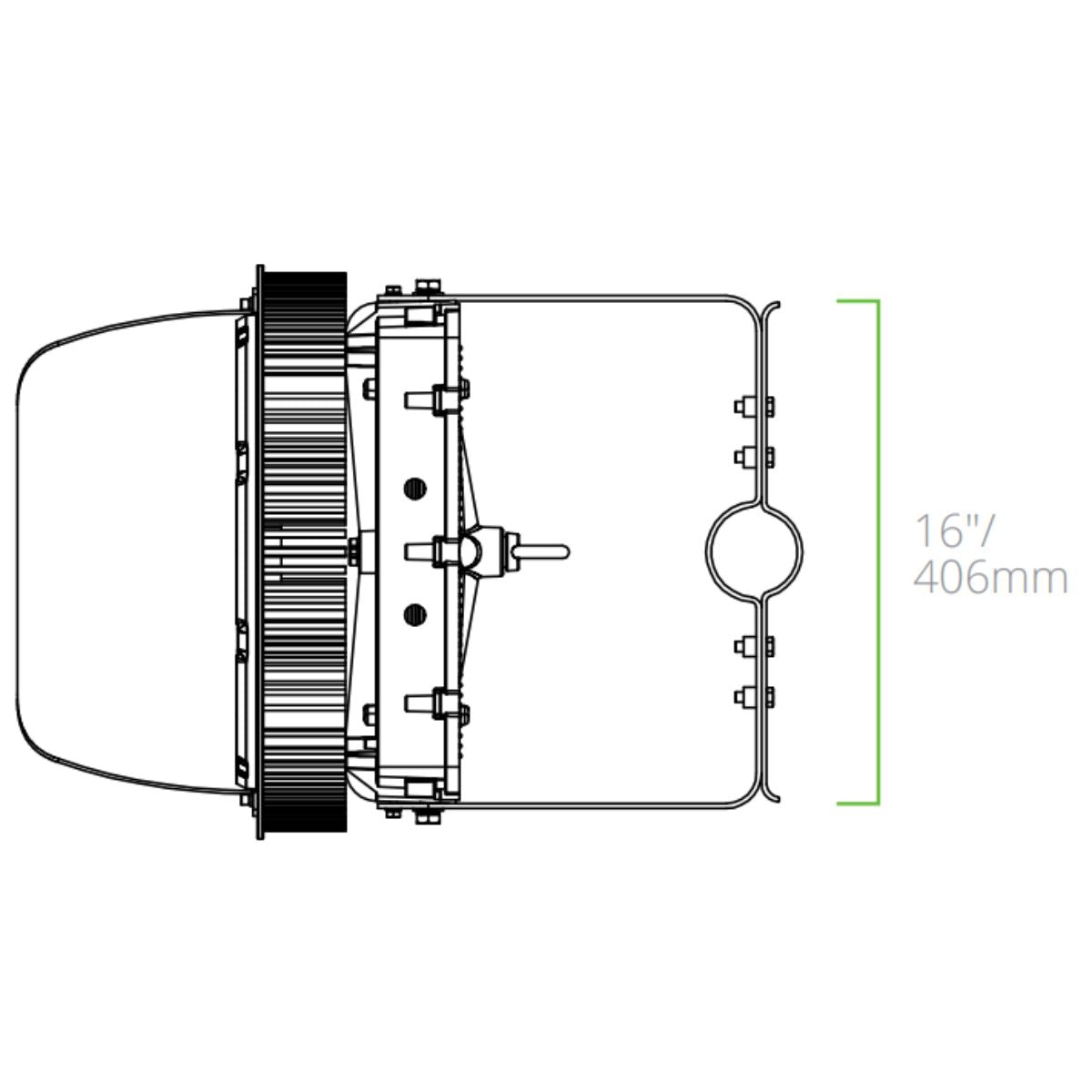

- Slipfitter: SIG/SF (12361), SIGNAL slipfitter for up to 2 3/8 in. pipe, sold separately.
- Surface mount: SIG/SM (12362), SIGNAL surface mount, sold separately.
- 100° reflector: SIG/AL100D (12359), SIGNAL reflector, sold separately.
- 30° lens: SIG-LENS-PC30D (10188), SIGNAL lens, sold separately.
- 60° lens: SIG-LENS-PC60D (10189), SIGNAL lens, sold separately.
- Black visor: SIG-VISOR-BK (10185), SIGNAL visor, sold separately.
- 90° aluminum reflector: SIG-REFLECTOR-AL90D (10190), SIGNAL reflector, sold separately.
Certifications & Rebates
- ETL: Listed for wet locations.
- IP66: Rated for ingress protection.
- 3G: Rated per ANSI C136.31.
- DLC Premium: This ordering model is marked DLC Premium qualified in the performance summary; rebate availability varies by program and location.
Typical Applications
- Warehouses: The documented 76,185 lm output supports high-bay lighting across open warehouse floors.
- Distribution Centers: The separately sold 100° SIGNAL reflector offers a documented distribution option for open areas.
- Manufacturing Plants: Documented 0–10V dimming supports lighting control in manufacturing spaces.
- Outdoor Sports Fields: The wet-location listing and IP66 rating support suitable outdoor flood-light installations.
- High Mast: The 3G rating per ANSI C136.31 supports this manufacturer-listed application.
What's Included
- EiKO SIG/450W/740/UD SIGNAL flood light and high bay.
- 3-ft power cable.
- 3-ft dimming cable.
