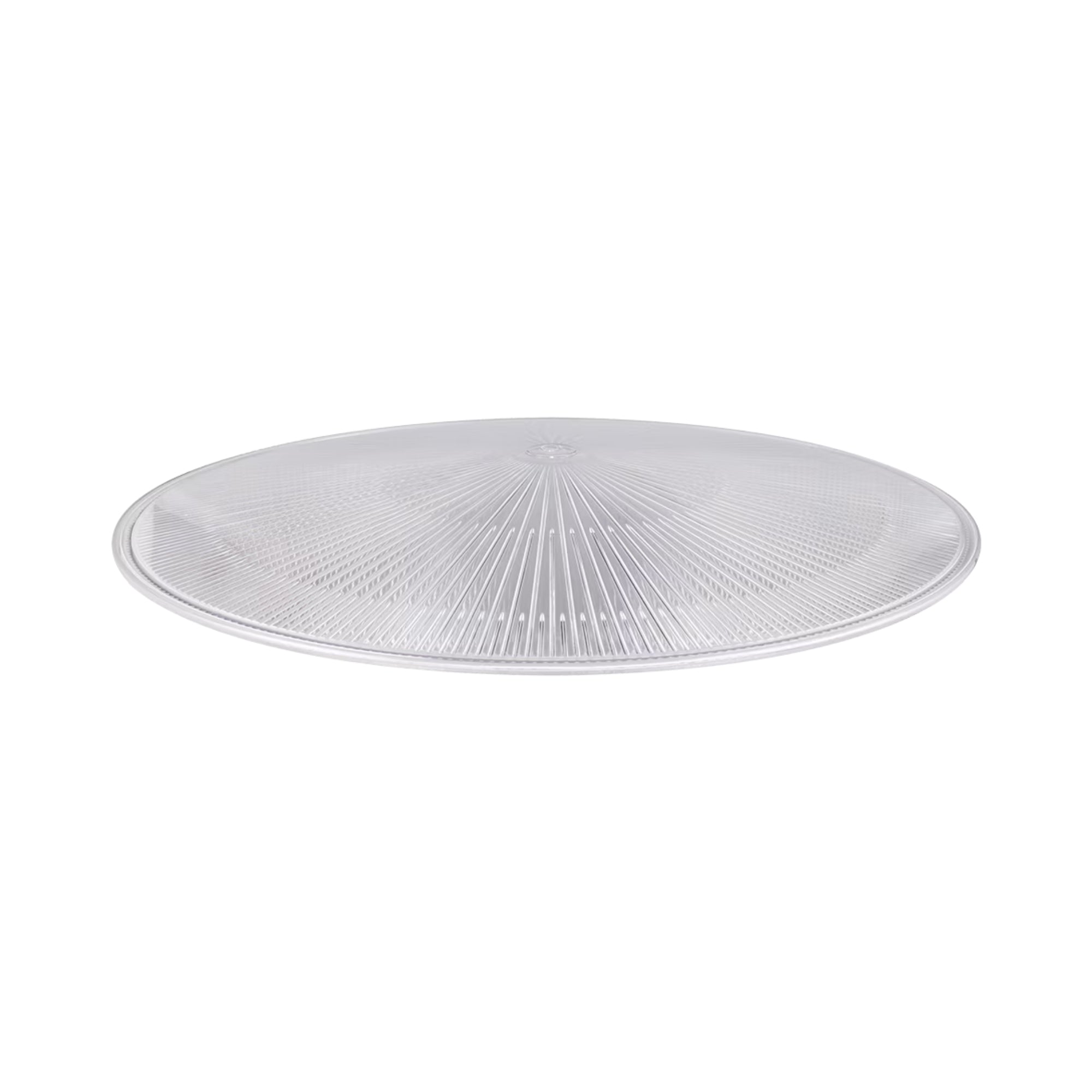

EiKO Cone Lens for REF1-PC-L
In stock
We process payments securely and do not store credit card information.
Description
Description
EiKO BAYE4 Series Cone Lens — 100W-300W Diffusion Accessory
Designed to pair with large prismatic reflectors, the REF1-CL-L lens enclosure minimizes glare for EiKO BAYE4 series LED high bay systems ranging from 100W to 300W on 120-480V lines. This bottom-mount component encloses the optic chamber to disperse up to 45,000 lumens uniformly across the target commercial application.
Key Features
- Compatible Wattages: 100W, 150W, 200W, 240W, 300W.
- Accessory Type: Bottom diffusion cone lens.
- Material: UV-stabilized polycarbonate.
- Voltage Support: 120-277V or 277-480V host fixture input.
- Fixture Compatibility: EiKO BAYE3 and BAYE4 series (with PC reflector).
- Lumen Capacity: Supports output up to 45,000 lumens.
- Environmental Integration: Protects internal optic chamber.
- Operating Temperature: -40°F to 122°F.
Typical Applications
- High-end retail floors requiring zero-glare lighting.
- Commercial grocery stores and wholesale clubs.
- Indoor tennis courts and sports complexes.
- Public exhibition halls and event spaces.
- Low-bay manufacturing floors with highly reflective surfaces.
Performance & Light Output
When combined with the primary prismatic reflector, this cone lens creates a fully enclosed optical chamber that forces light through a secondary diffusion layer. This process nearly eliminates direct diode visibility, drastically lowering glare and producing a highly comfortable, ambient visual environment without severe lumen loss.
Electrical & Controls
This optical barrier operates independently of the host fixture's 120-480V electrical system. Its precise geometric design allows for the seamless function of the central sensor receptacle, ensuring that compatible optional controls can monitor motion and daylight data through the clear central aperture.
Construction & Durability
Constructed from industrial-grade, impact-resistant polycarbonate, this lens resists physical damage from incidental strikes. The material is thermally optimized to handle sustained operations between -40°F and 122°F and features UV stabilization to prevent discoloration over the lifespan of the host fixture.
Installation & Mounting
The cone lens requires an existing polycarbonate reflector for attachment and cannot be mounted directly to the raw fixture housing. It utilizes specialized clips to lock onto the reflector's bottom rim, maintaining secure mechanical stability whether the fixture employs standard suspension or compatible optional mounting accessories (sold separately).
What's Included
- (1) Polycarbonate cone lens
- (1) Attachment clip hardware
