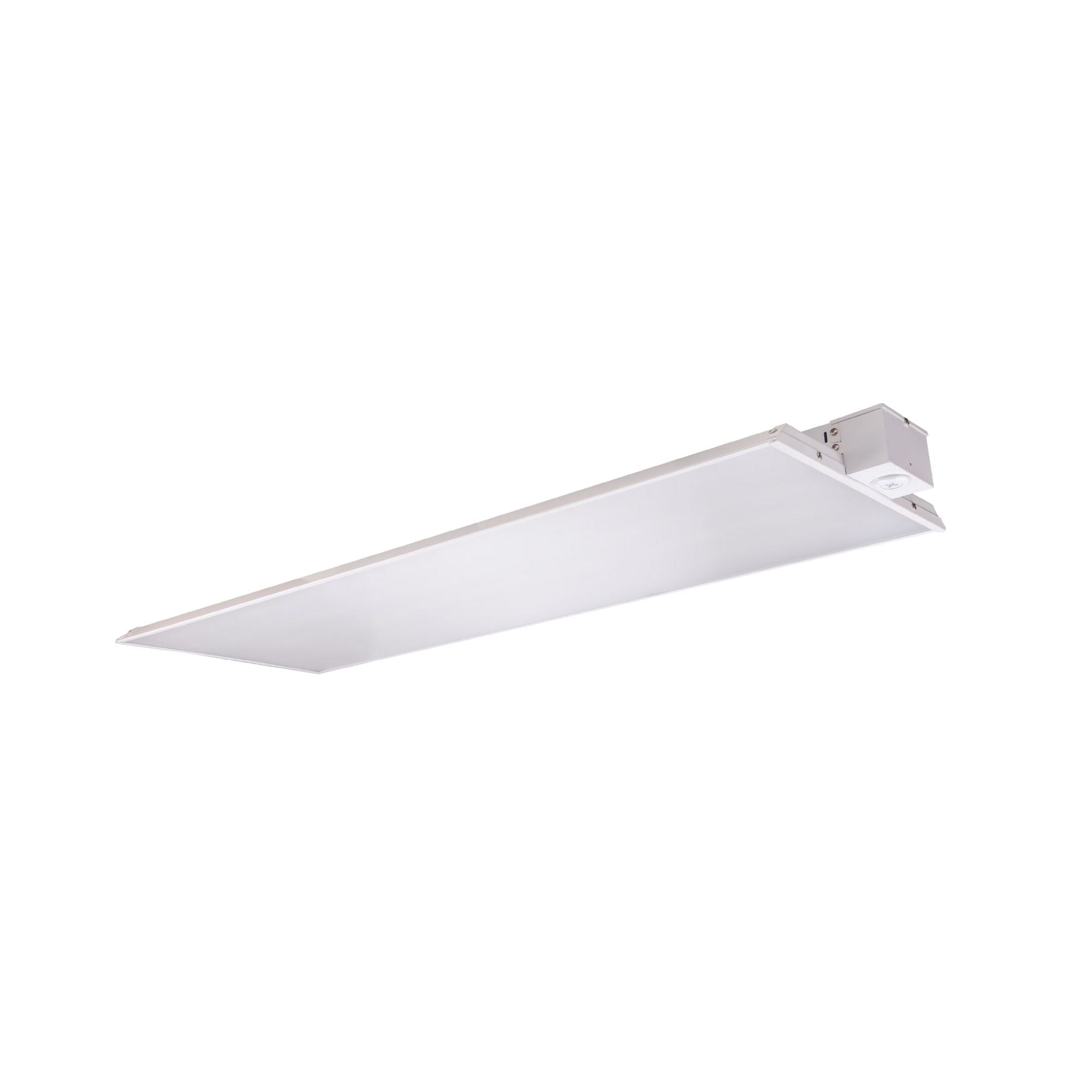

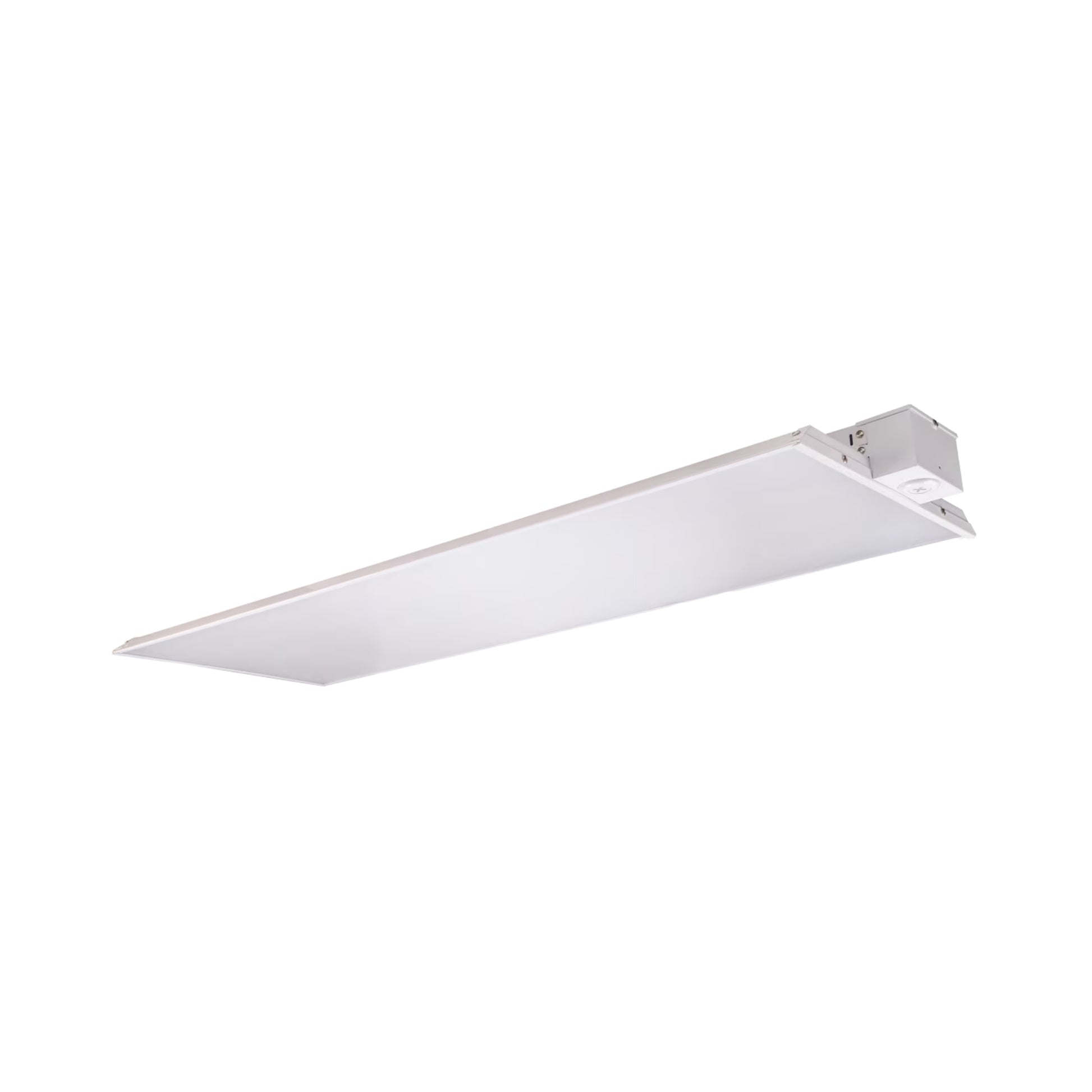

EIKO LHS1-PS440-8FCCT-HDIM Field-Adjustable Linear LED High Bay — 280W / 320W / 380W / 440W Selectable

The EIKO LHS1-PS440-8FCCT-HDIM is EIKO’s highest-output LHS1 series linear high bay — engineered for very high-ceiling commercial and industrial facilities where maximum lumen delivery is the primary requirement. Delivering up to 66,000 lumens at 440W on a universal 120–347V platform, with field-selectable 4000K or 5000K CCT and 0-10V dimming, this fixture is DLC 5.1 Premium Listed and UL Listed — qualifying for utility rebates in most U.S. markets. It replaces up to 1000W–1500W metal halide while cutting energy use by over 65%.

Key Features

• Selectable Wattage: Field-adjustable 280W / 320W / 380W / 440W — set at installation, no tools required
• Selectable CCT: 4000K or 5000K field-selectable at installation
• Maximum Lumen Output: 66,000 lm at 440W — up to 150 lm/W peak efficacy
• CRI: ≥80 for accurate color rendering across all wattage and CCT settings
• Dimming: 0-10V dimming; compatible with field-installed SENA standalone and SENA-WPPA-WH Bluetooth sensors
• Voltage / Driver: Universal 120–347V, 60Hz, Class P driver
• Surge Protection: 6kV integrated surge protection standard
• Location Rating: UL Listed for damp locations
• Operating Temperature: -40°F to +122°F (-40°C to +50°C)
• Rated Life: 100,000 hours L70
• Warranty: 5-year limited warranty
• HID Equivalency: Replaces up to 1000W–1500W metal halide

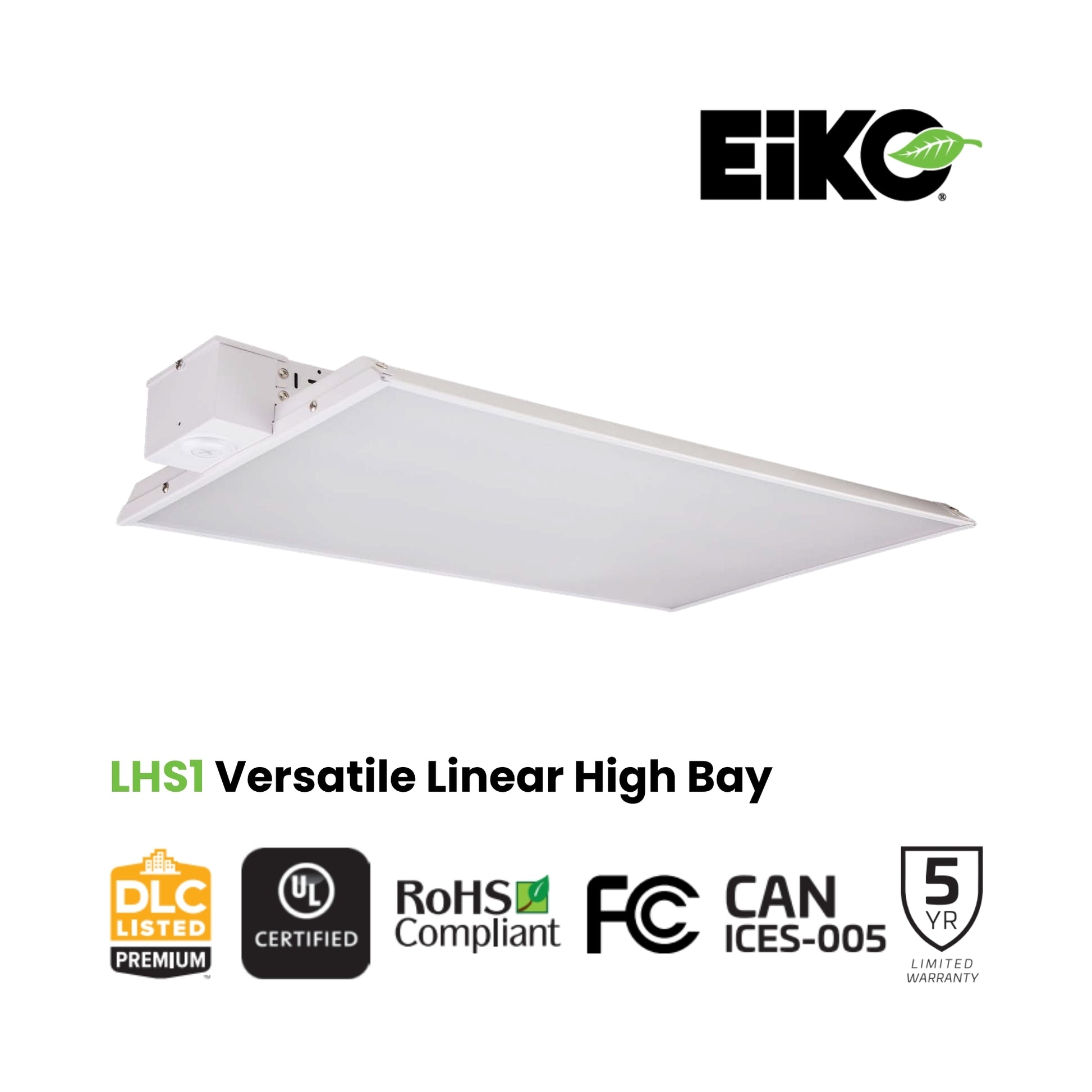

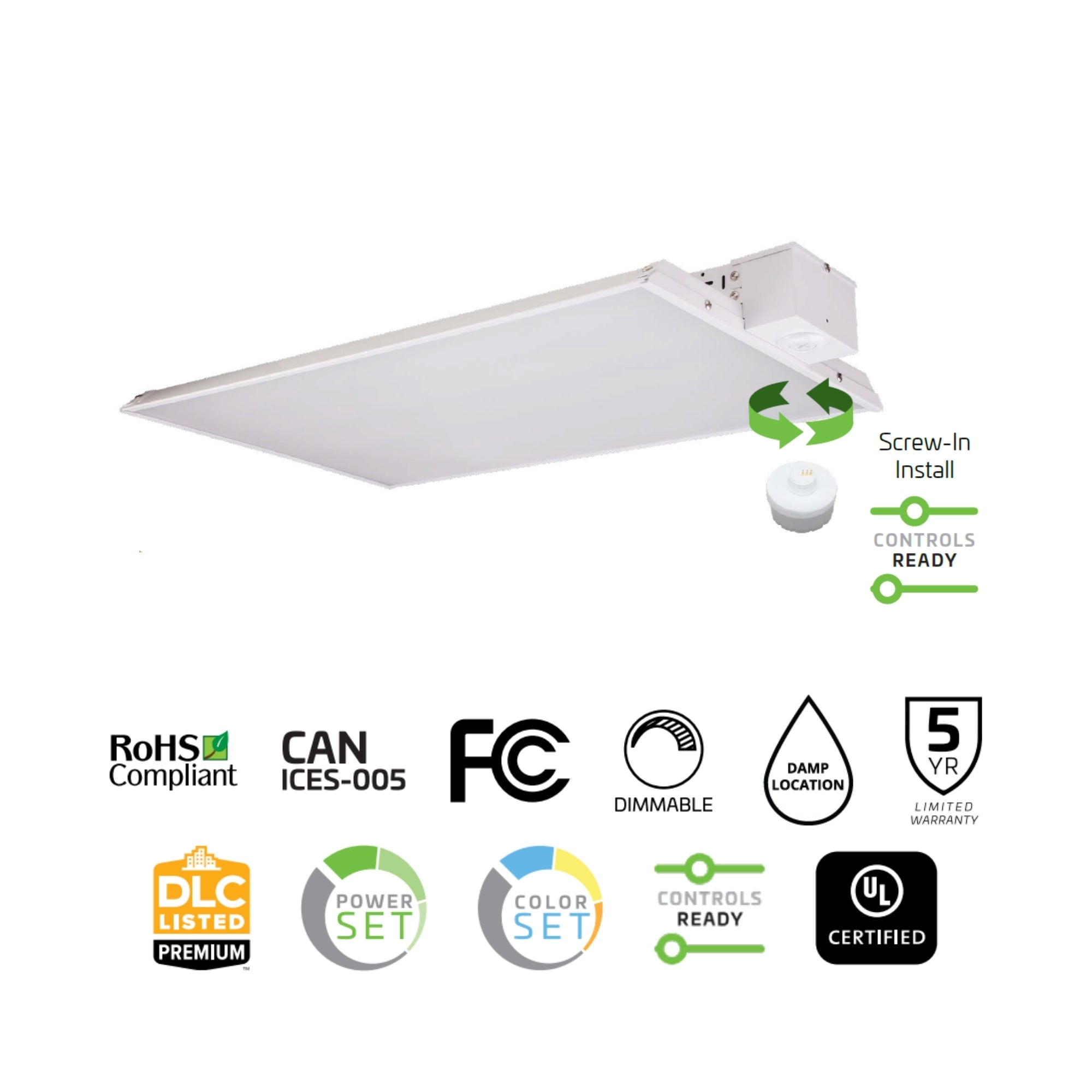

• Certifications: DLC 5.1 Premium, UL Listed, FCC, RoHS Compliant
• Controls Ready: Field-installable screw-in sensor port — no additional wiring required

Performance & Light Output

The LHS1-PS440 delivers the highest lumen output in the LHS1 series across all four wattage steps: At 440W: 66,000 lm (4000K & 5000K / 150 lm/W). At 380W: 57,000 lm (4000K & 5000K / 150 lm/W). At 320W: 48,000 lm (4000K & 5000K / 150 lm/W). At 280W: 42,000 lm (4000K & 5000K / 150 lm/W). CRI ≥80 across all settings. Rated life 100,000 hours L70 per IES TM-21.

Smart & Control Features

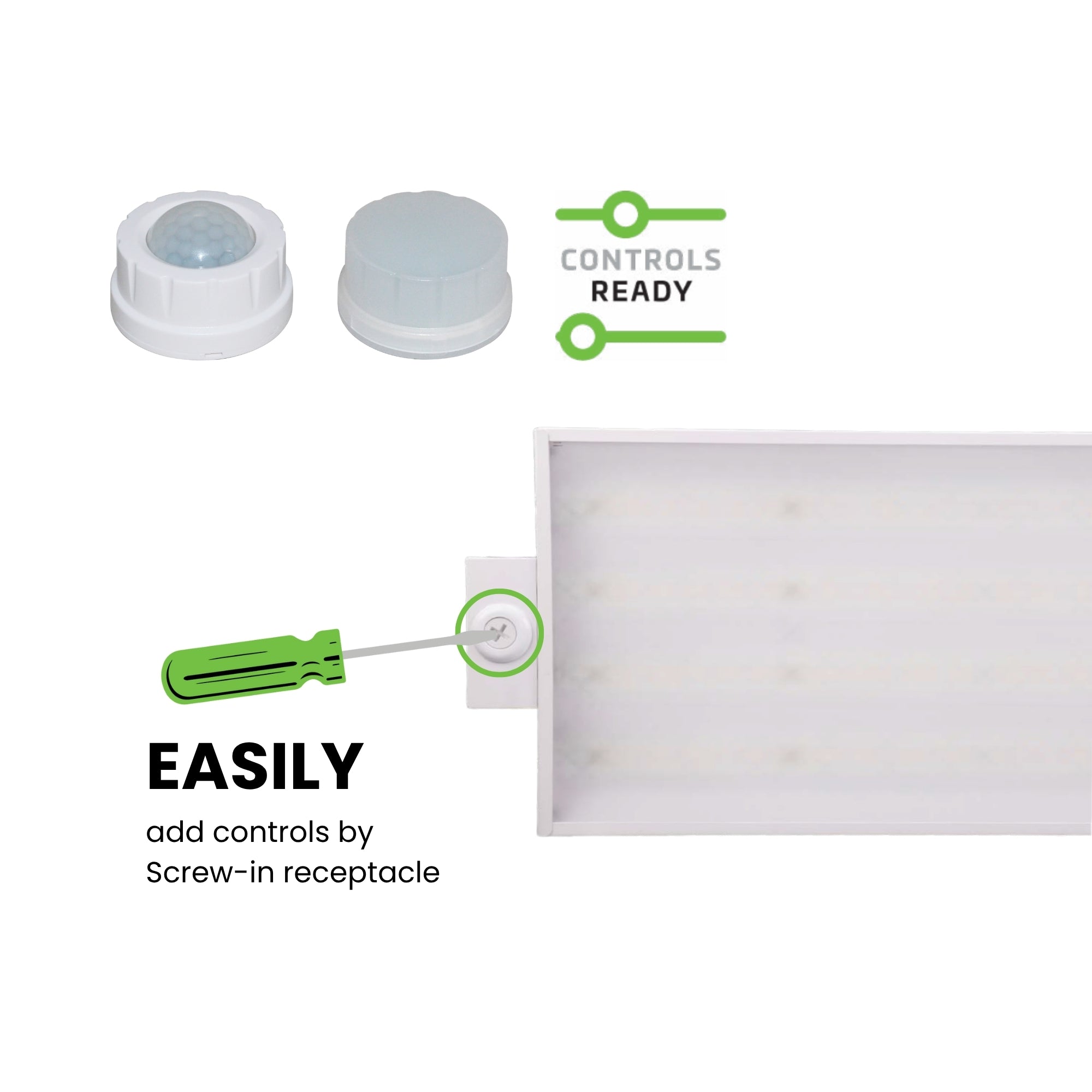

The LHS1-PS440 is Controls Ready — a 1/2" knockout port on the fixture front plate accepts field-installable screw-in sensors without additional wiring.

• Standard Dimming: 0-10V analog dimming
• Standalone PIR Sensor: SEN5A-SPPR-WH — screw-in PIR motion sensor; up to 40 ft mounting height
• Standalone Microwave Sensor: SEN5A-SPMR-WH — screw-in microwave sensor; recommended for obstructed-line-of-sight or high-ceiling applications where PIR coverage may be limited
• Bluetooth Networked Sensor: SEN5A-WPPA-WH — BLE screw-in PIR; enables zone/group control, daylight harvesting, scheduling, and energy monitoring via Silvair App (no hub required)
• Wireless Wall Controllers: PSC-DM-WS-100-BLE-SR (single gang), PSC-DM-1-WS-100-BLE-SR (PIR + vacancy), PSC-DM-WS-400-BLE-SR (4-button) — all 120–277V, Silvair App configured
• Commissioning Tool: SEN5A-ACT for standalone sensor configuration
• Emergency Battery (factory-installed suffix): EB18 (18W, 120–347V), EB40H (40W, 120–347V) — specify at time of order

Electrical

The LHS1-PS440 operates on a universal 120–347V input, 60Hz, Class P driver with 6kV integrated surge protection. Power factor >0.9 and THD <20%. Input watts vary by wattage setting: 280W, 320W, 380W, or 440W nominal. Green technology: mercury-free, UV-free LED source, RoHS compliant. Optional emergency battery backup (EB18, EB40H) factory-installed — specify suffix at time of order. For 277–480V systems, specify LHS1-PS440-8FCCT-VDIM instead.

Construction

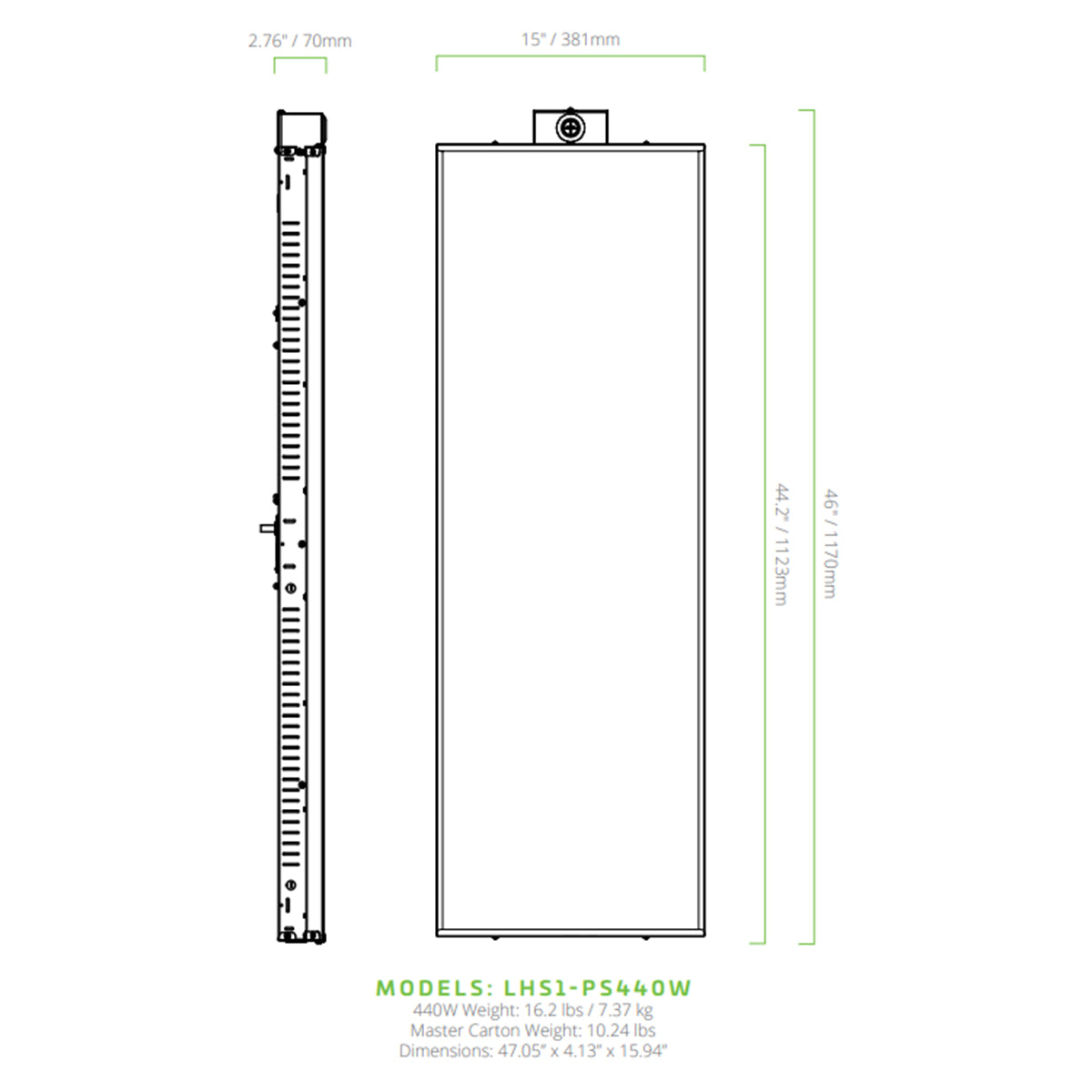

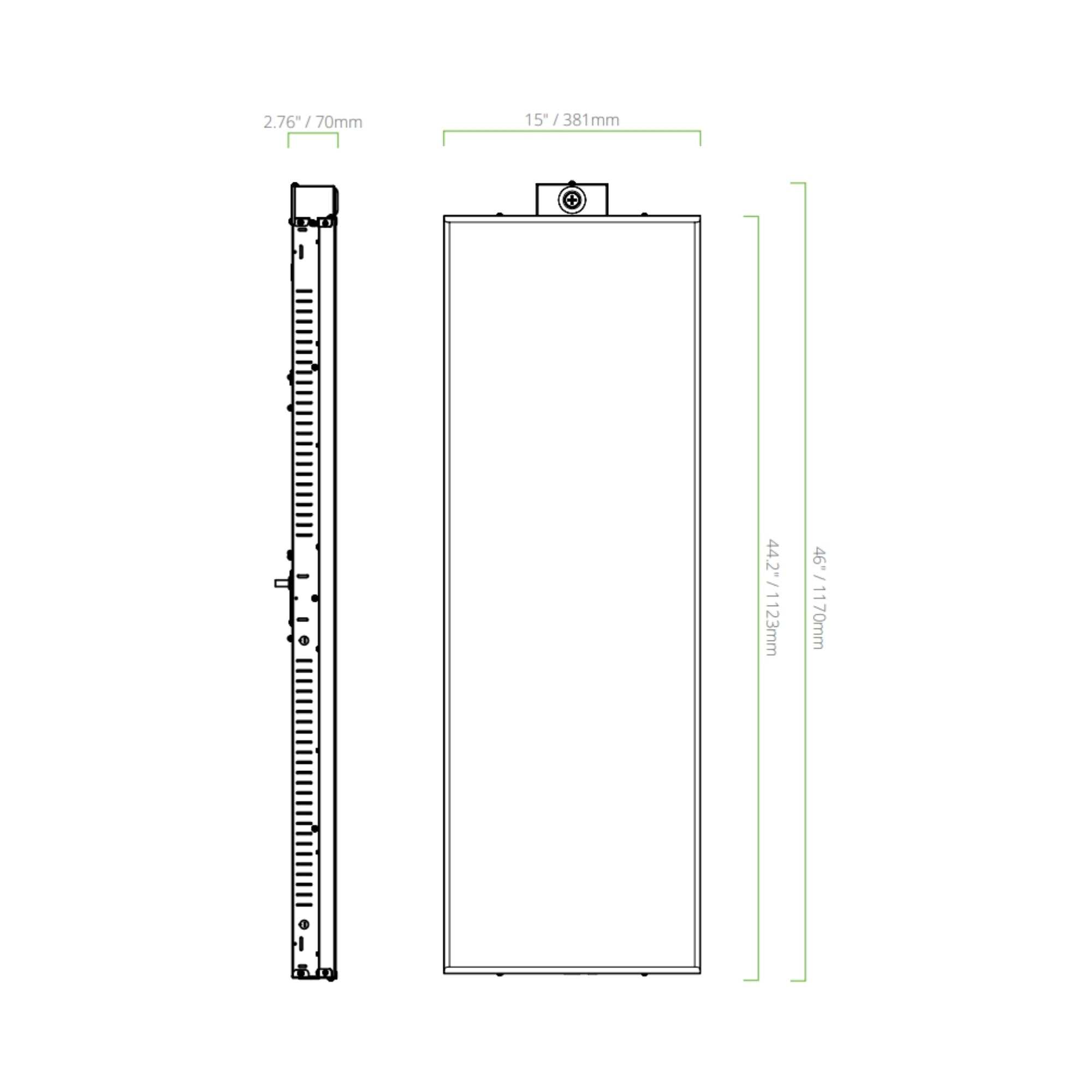

Heavy-gauge steel housing with white powder-coat finish. Diffused polycarbonate lens. Fixture weight: 22.4 lbs. Operating temperature range: -40°F to +122°F (-40°C to +50°C). UL Listed for damp locations.

Installation & Mounting

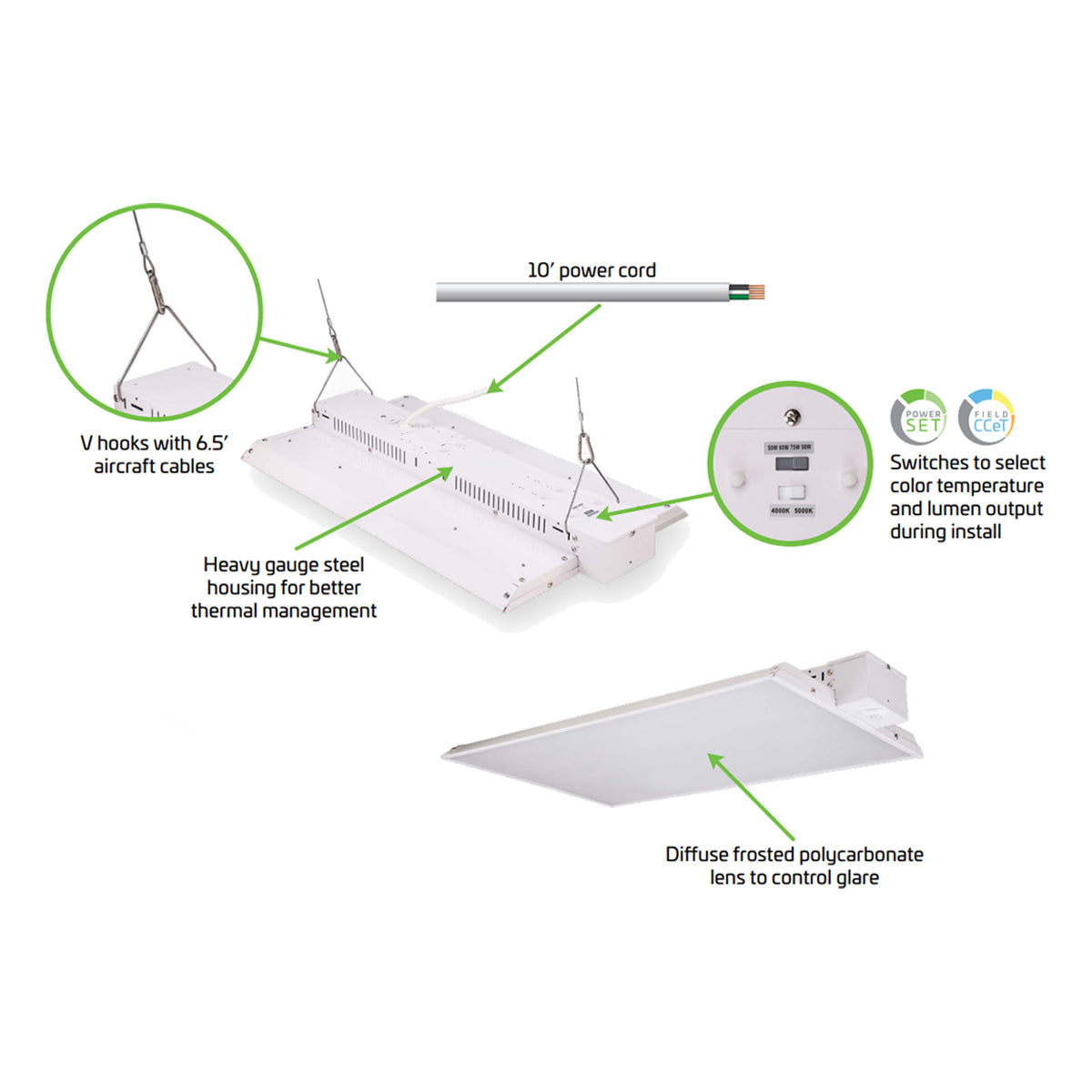

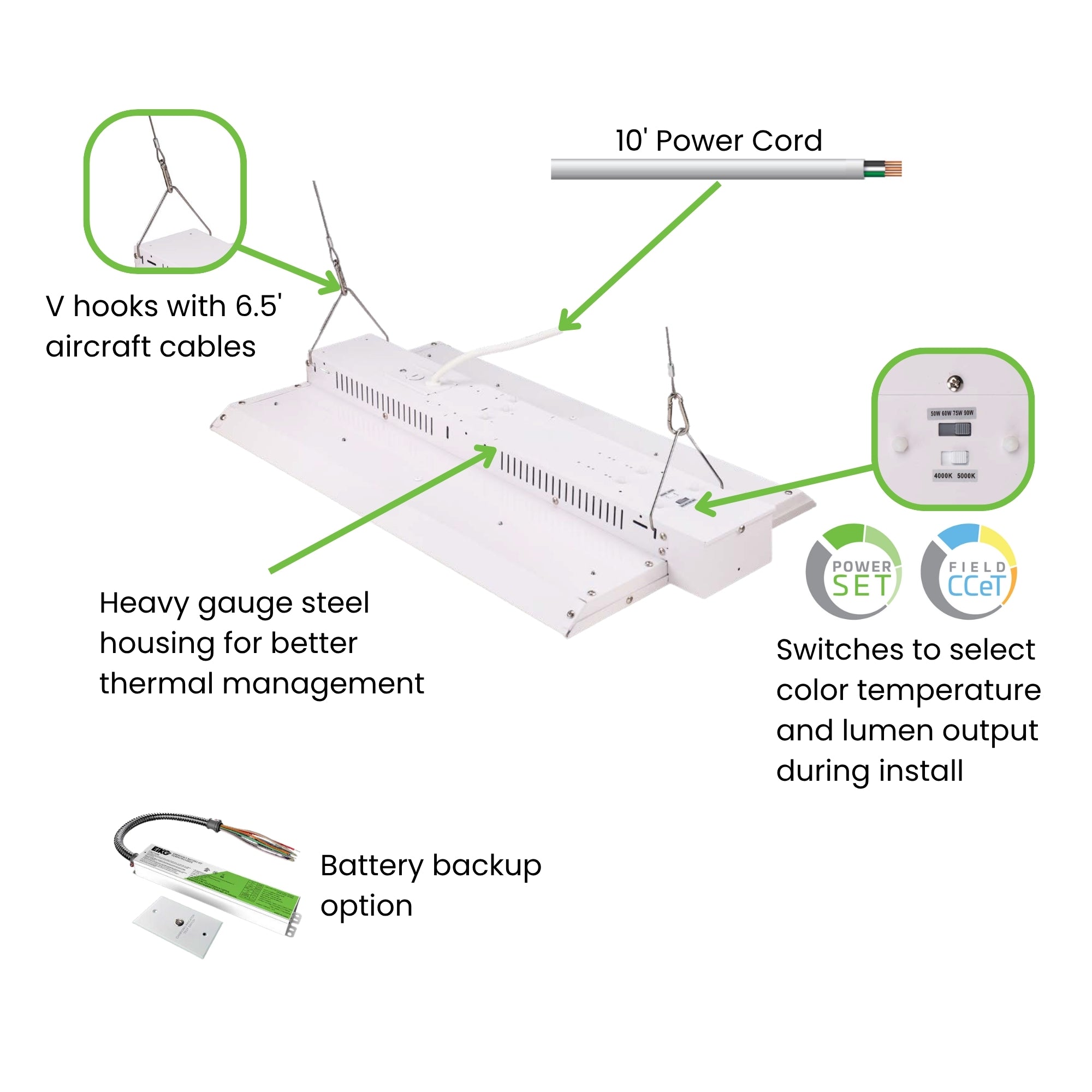

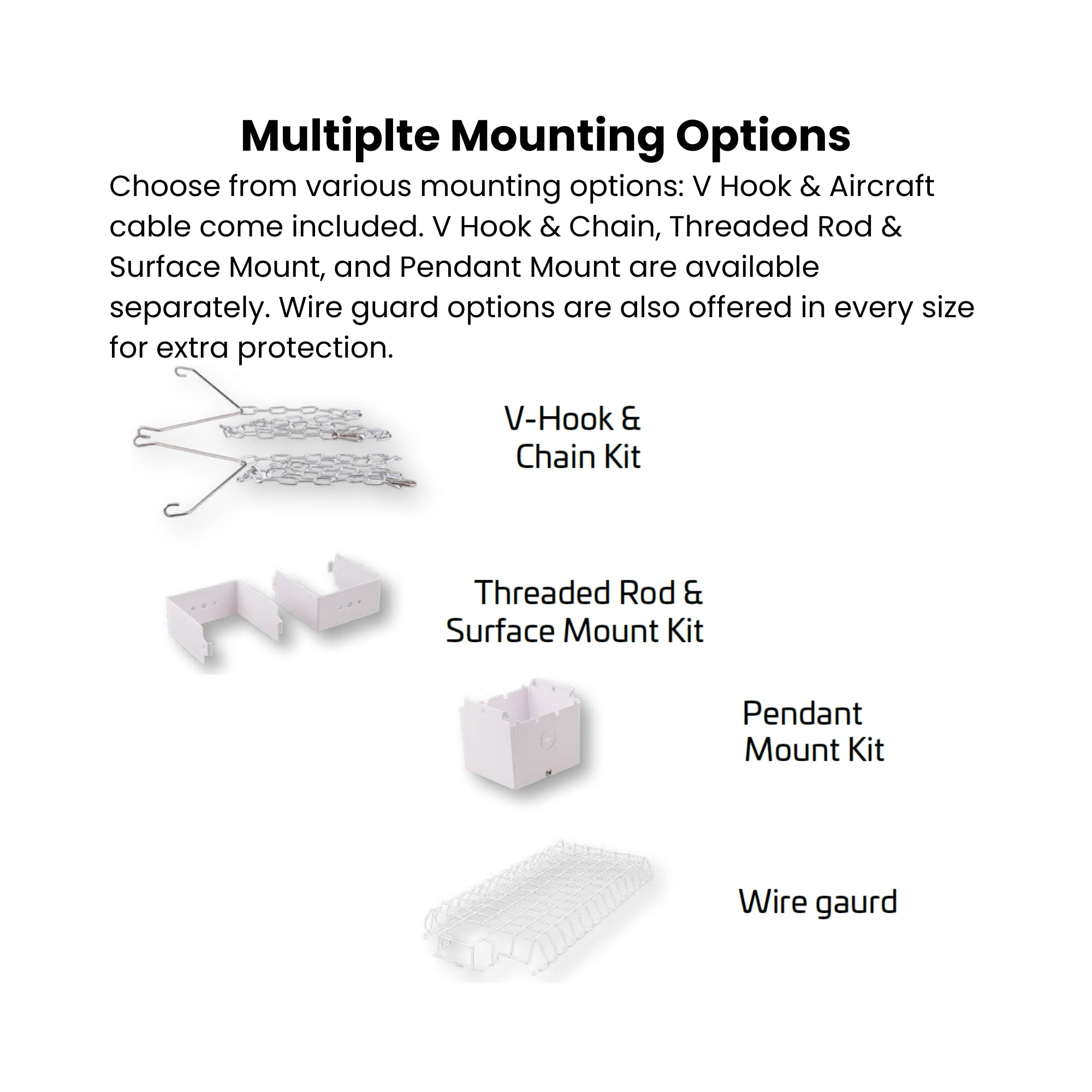

Includes V-hooks and 6.5' aircraft cable for standard pendant mounting. Optional mounting accessories (sold separately):

• V-Hook & Chain Kit: LH1-VCK (order code 13815)
• Pendant Mount Kit: LH1-PMK (order code 13816) — ⚠️ Verify compatibility with battery backup options before ordering
• Threaded Rod & Surface Mount Kit: LH1-TRSMK (order code 13817)
• Wire Guard (sold separately): LHS1-WG-XL — for 380–440W fixtures (sold separately)
• Emergency Battery Bracket: LH1-ZBRK (order code 14383)

Recommended ceiling height: 25–35 ft at 280–320W; 30–50 ft at 380–440W. At 440W and 66,000 lm, this is EIKO’s highest-output LHS1 fixture. For lower ceiling heights (below 25 ft), consider the LHS1-PS160 or LHS1-PS240.

Certifications & Rebates

UL Listed for damp locations. DLC 5.1 Premium Listed — qualifies for utility rebate programs in most U.S. states. Visit designlights.org to confirm available incentives with your local utility. RoHS Compliant. FCC Compliant.

Typical Applications

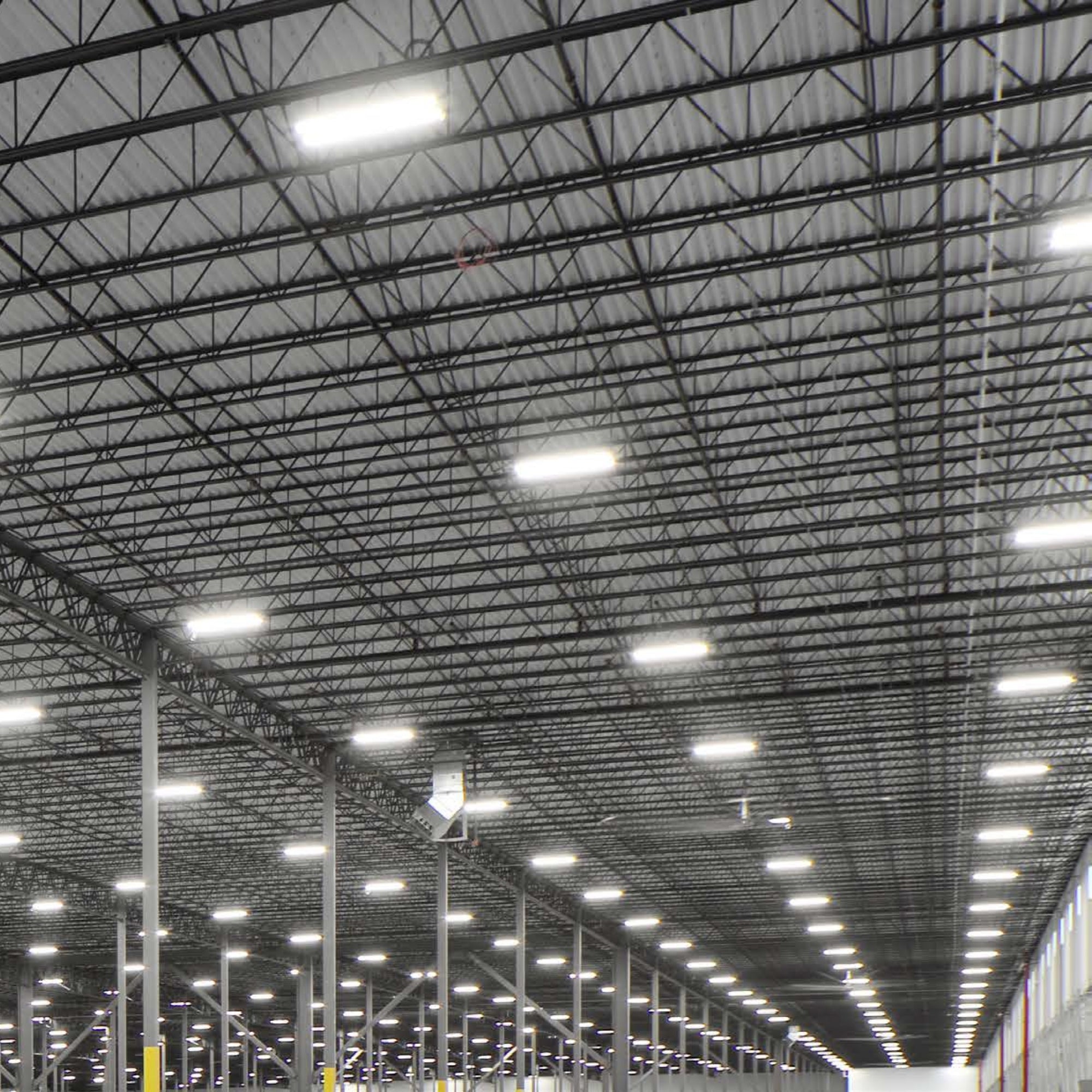

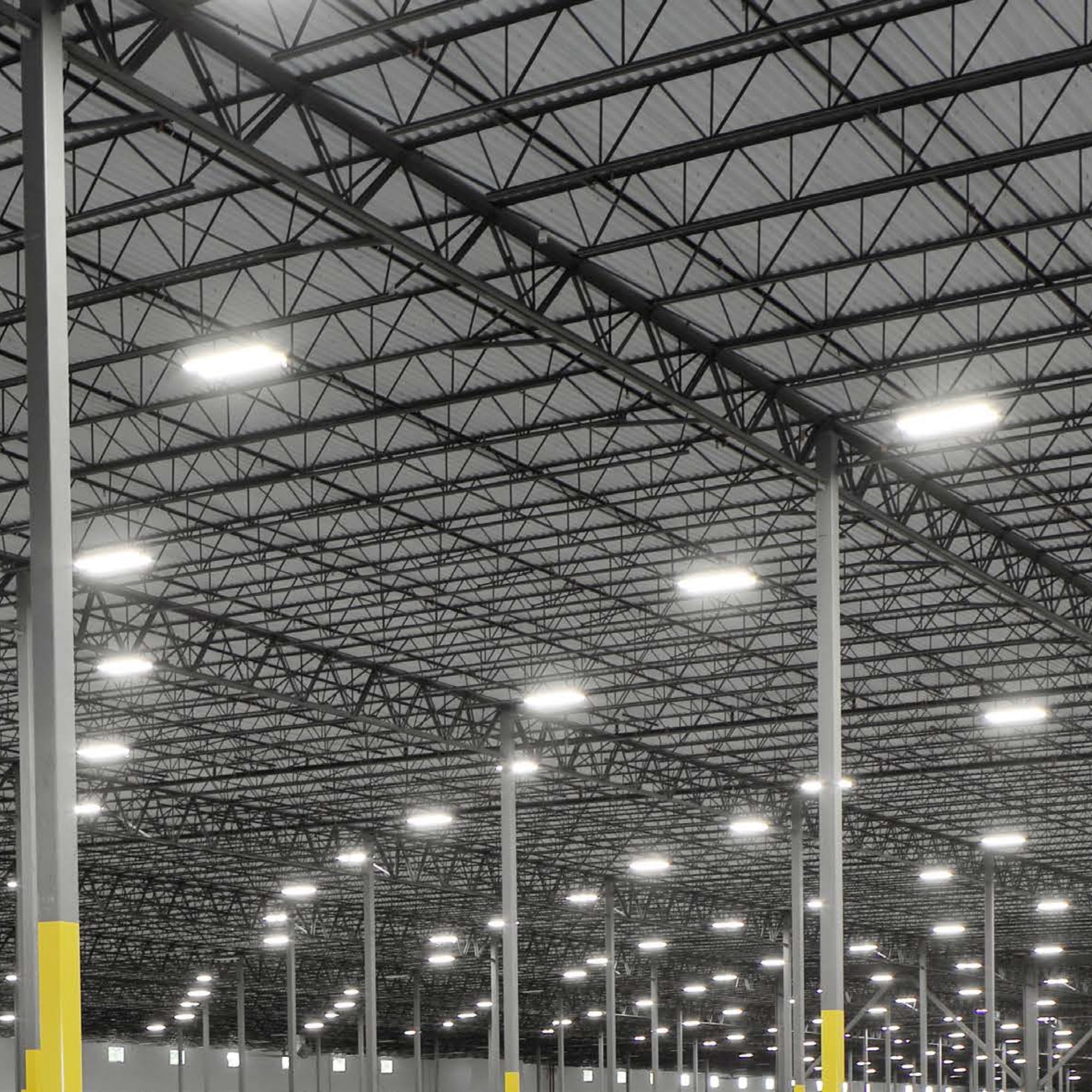

• Very High-Ceiling Warehouses & Distribution Centers: 380–440W setting delivers 57,000–66,000 lm for 30–50 ft ceiling heights — purpose-built for large-span fulfillment centers and bulk storage facilities
• Heavy Manufacturing & Industrial Production Floors: Maximum output and selectable wattage support full-floor illumination across expansive production areas with high-mounting-height requirements
• Gymnasiums & Large Athletic & Recreational Facilities: 66,000 lm and CRI ≥80 provide bright, even coverage for competitive arenas, indoor tracks, and multi-court facilities
• Cold Storage & Refrigerated Distribution: -40°F cold-start rating supports freezer warehouse and refrigerated facility applications at full output with no warm-up delay
• Municipal & Public Works Facilities: DLC Premium certification and 150 lm/W efficacy maximize rebate value and long-term energy savings for government-funded high-bay retrofits
• Aircraft Hangars & Vehicle Maintenance Bays: 50 ft effective ceiling coverage at 440W makes this the right choice for extra-tall vehicle and aircraft maintenance facilities

What’s Included

• EIKO LHS1-PS440-8FCCT-HDIM Linear LED High Bay fixture (1)
• V-Hooks (2)
• 6.5’ aircraft cable
• 10’ 18/3 600V white power cord
