EIKO LHS1-PS320 Linear LED High Bay — 200–320W — 48,000 lm — 120-347V
Available in stock (99)
About this item
About this item
- Up to 48,000 Lumens at 320W — Replaces 750W–1000W Metal Halide: Field-selectable 200/240/280/320W delivers 30,000–48,000 lm at a consistent 150 lm/W — cutting energy use by over 65% vs. legacy HID while meeting or exceeding footcandle targets in high-ceiling environments.
- Field-Selectable 4000K or 5000K CCT: Set color temperature at installation without special tools — 4000K for general warehouse and manufacturing task lighting; 5000K for assembly, inspection, and maximum visual acuity environments with high mounting heights.
- Controls Ready — Screw-In Sensors, No Rewiring: 1/2" knockout port accepts SENA standalone PIR/microwave sensors or SENA-WPPA-WH Bluetooth/Silvair networked sensor — enabling daylight harvesting, occupancy sensing, scheduling, and energy monitoring with no additional wiring.
- DLC 5.1 Premium Listed — Utility Rebate Eligible: DLC Premium certification qualifies this fixture for utility rebate programs in most U.S. markets — reducing net project cost on large-scale high-ceiling retrofits. Confirm available incentives at designlights.org.
- Engineered for 25–40 ft Mounting Heights — Universal 120–347V: 320W max output and 150 lm/W efficacy are optimized for high-bay applications above 25 ft. Universal 120–347V driver covers all North American voltage requirements in a single SKU — no voltage specification required at time of order.
We process payments securely and do not store credit card information.
Description
Description

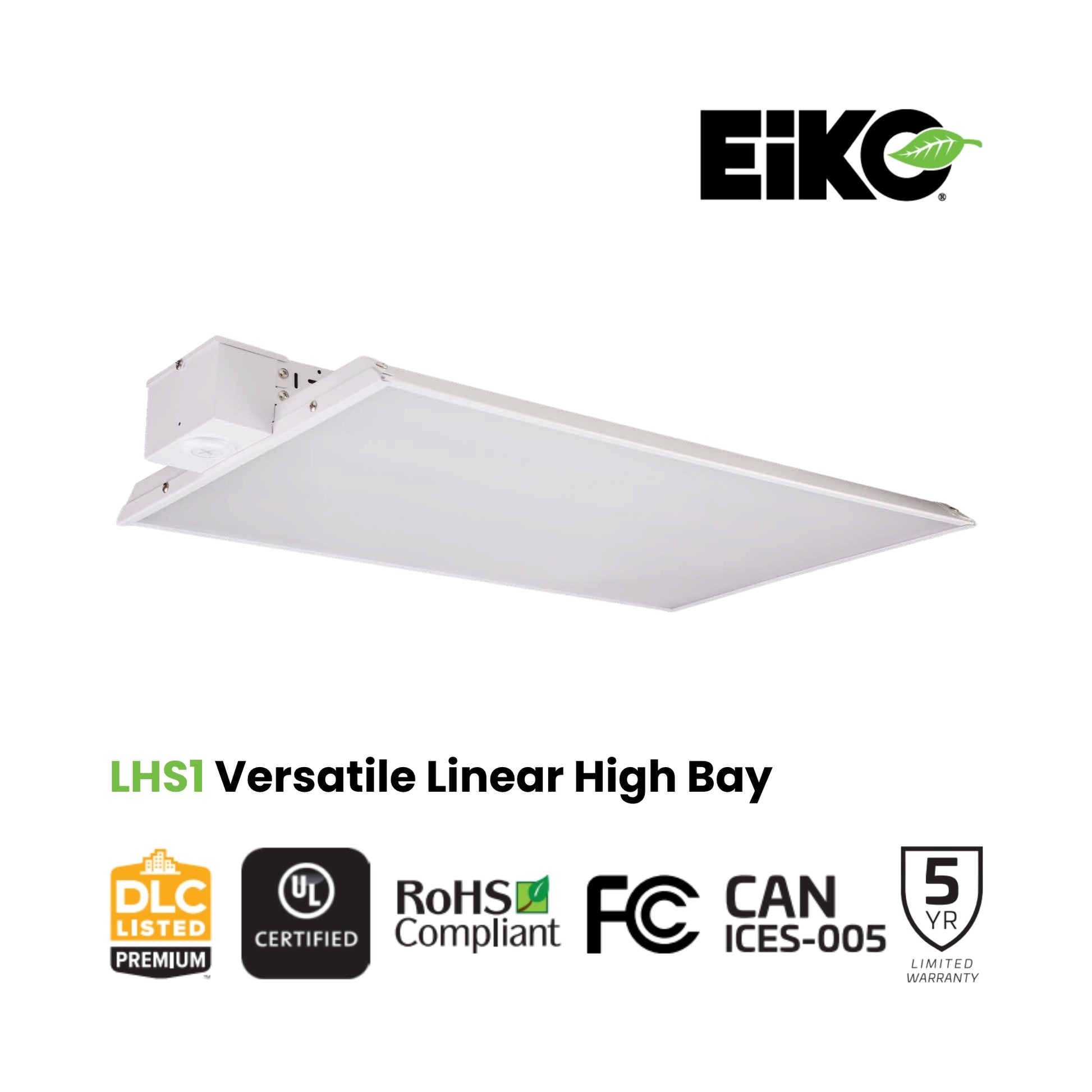

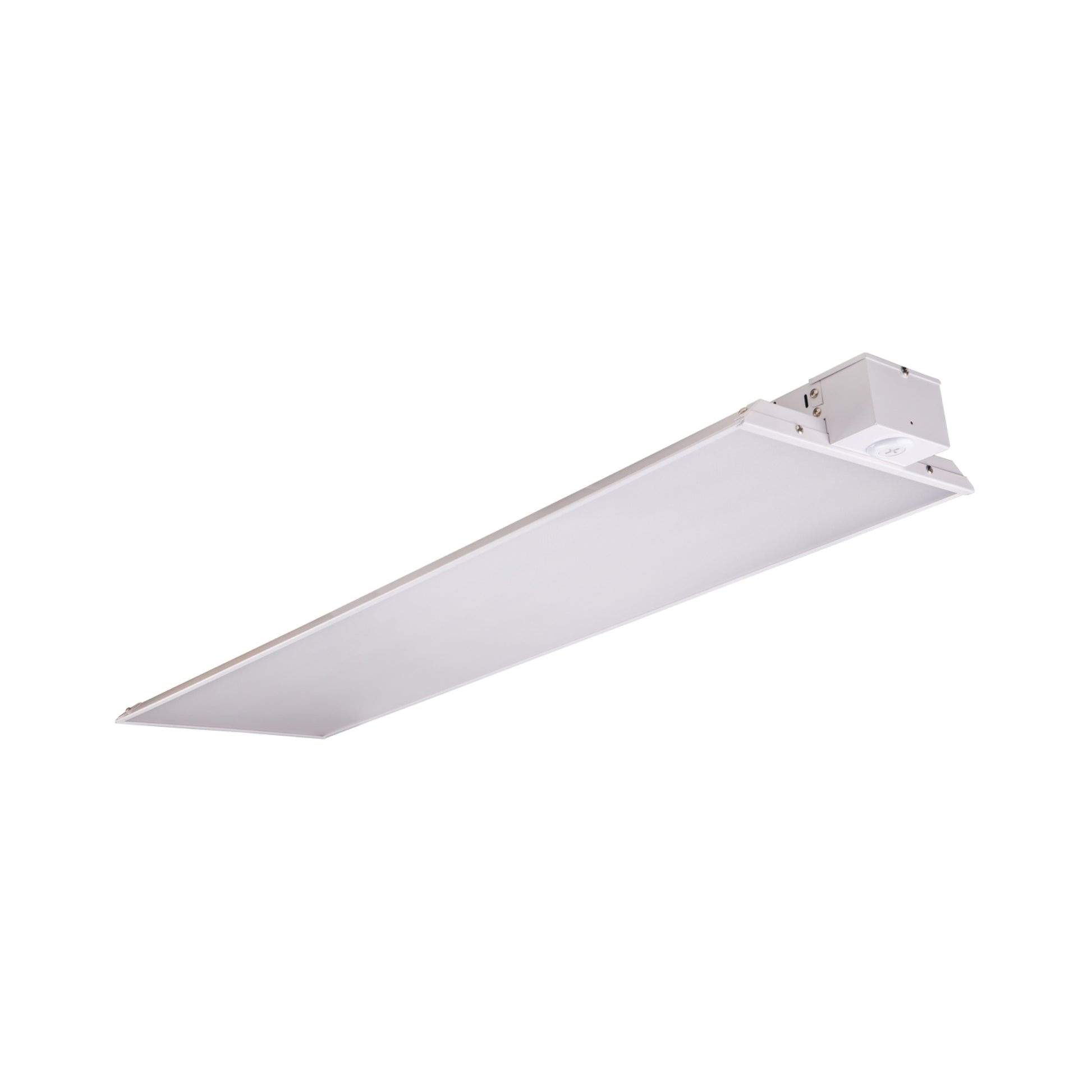

EIKO LHS1-PS320-8FCCT-HDIM Field-Adjustable Linear LED High Bay — 200W / 240W / 280W / 320W Selectable
The EIKO LHS1-PS320-8FCCT-HDIM is a high-output linear LED high bay engineered for large-format, high-ceiling commercial and industrial facilities. Delivering up to 48,000 lumens at 320W on a universal 120–347V platform, with field-selectable 4000K or 5000K CCT and 0-10V dimming, this fixture is DLC 5.1 Premium Listed and UL Listed — qualifying for utility rebates in most U.S. markets. It replaces up to 750W–1000W metal halide while cutting energy use by over 65%.
Key Features
- Selectable Wattage: Field-adjustable 200W / 240W / 280W / 320W — set at installation, no tools required
- Selectable CCT: 4000K or 5000K field-selectable at installation
- Maximum Lumen Output: 48,000 lm at 320W — up to 150 lm/W peak efficacy
- CRI: ≥80 for accurate color rendering across all wattage and CCT settings
- Dimming: 0-10V with dim-to-off capability; compatible with field-installed SENA standalone and SENA-WPPA-WH Bluetooth sensors
- Voltage / Driver: Universal 120–347V, 60Hz, Class P driver
- Surge Protection: 6kV integrated surge protection standard
- Location Rating: UL Listed for damp locations
- Operating Temperature: -40°F to +122°F (-40°C to +50°C)
- Rated Life: 100,000 hours L70
- Warranty: 5-year limited warranty
- HID Equivalency: Replaces up to 750W–1000W metal halide

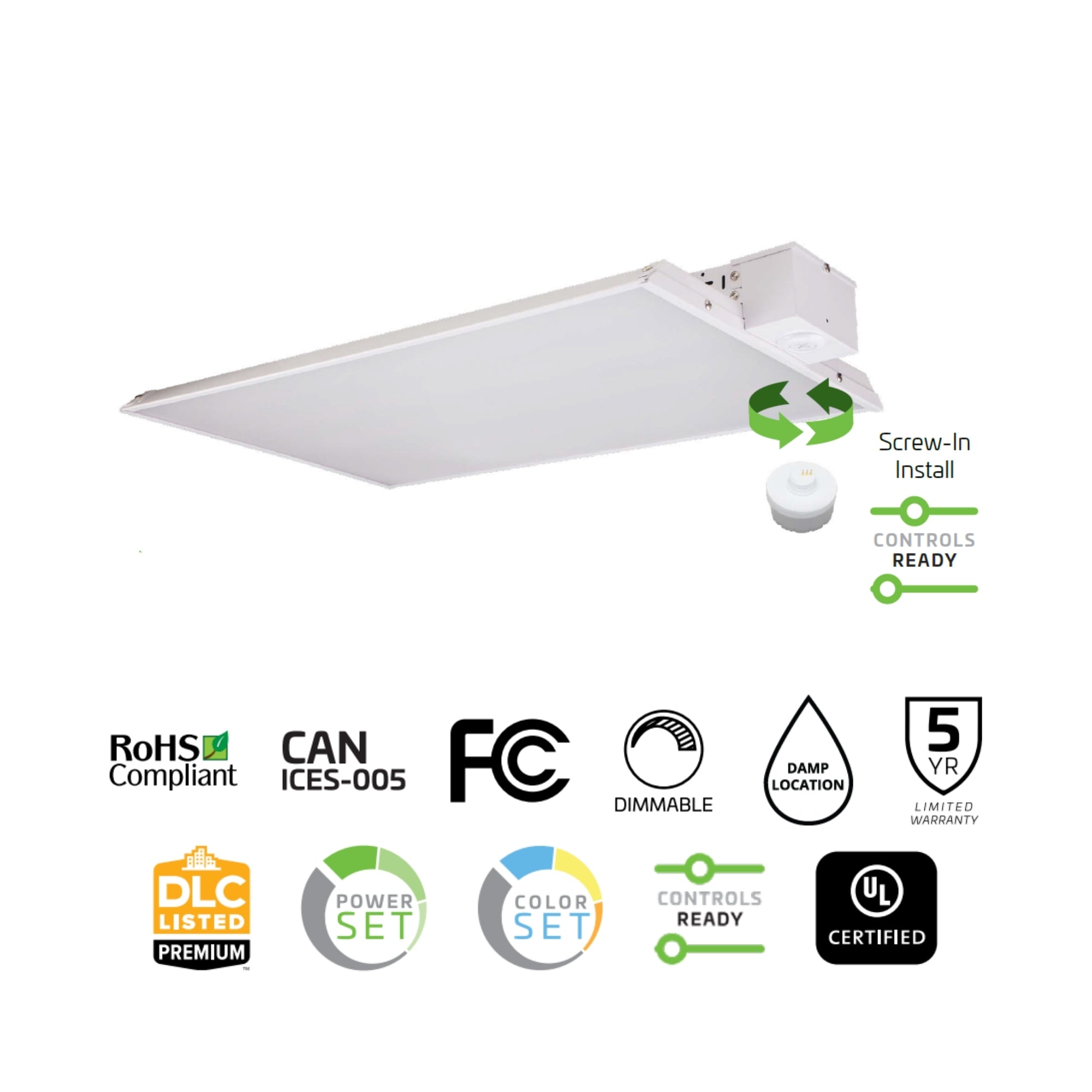

- Certifications: DLC 5.1 Premium, UL Listed, FCC, RoHS Compliant
- Controls Ready: Field-installable screw-in sensor port — no additional wiring required
Performance & Light Output
The LHS1-PS320 delivers a full lumen × wattage output matrix for precise specification: At 320W: 48,000 lm (4000K & 5000K / 150 lm/W). At 280W: 42,000 lm (4000K & 5000K / 150 lm/W). At 240W: 36,000 lm (4000K & 5000K / 150 lm/W). At 200W: 30,000 lm (4000K & 5000K / 150 lm/W). CRI ≥80 across all settings. Rated life 100,000 hours L70 per IES TM-21.
Smart & Control Features

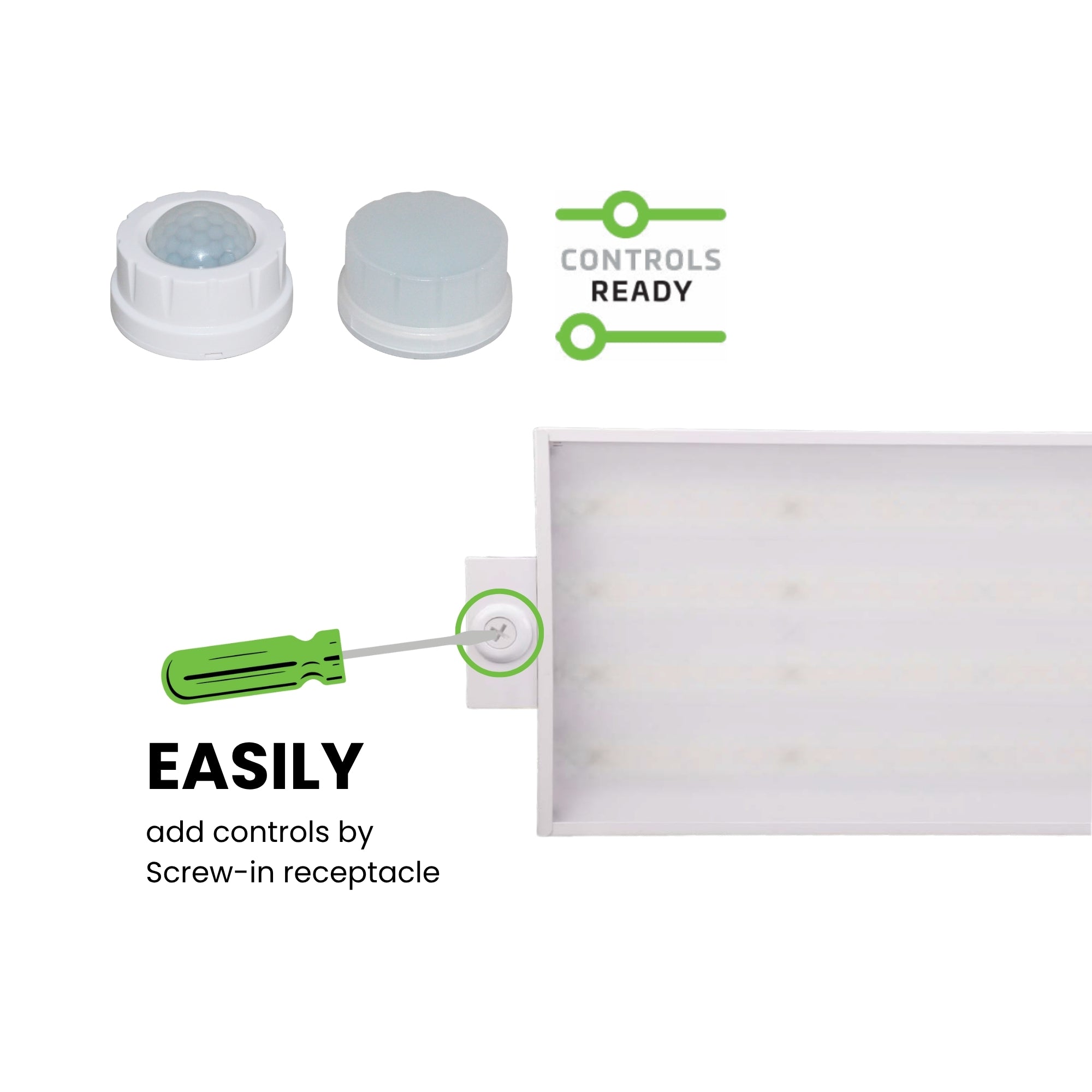

The LHS1-PS320 is Controls Ready — a 1/2" knockout port on the fixture front plate accepts field-installable screw-in sensors without additional wiring.
- Standard Dimming: 0-10V analog dimming with dim-to-off
- Standalone PIR Sensor: SEN5A-SPPR-WH — screw-in PIR motion sensor; up to 40 ft mounting height
- Standalone Microwave Sensor: SEN5A-SPMR-WH — screw-in microwave sensor; recommended for low-temp or obstructed-line-of-sight applications
- Bluetooth Networked Sensor: SEN5A-WPPA-WH — BLE screw-in PIR; enables zone/group control, daylight harvesting, scheduling, and energy monitoring via Silvair App (no hub required)
- Wireless Wall Controllers: PSC-DM-WS-100-BLE-SR (single gang), PSC-DM-1-WS-100-BLE-SR (PIR + vacancy), PSC-DM-WS-400-BLE-SR (4-button) — all 120–277V, Silvair App configured
- Commissioning Tool: SEN5A-ACT for standalone sensor configuration
- Emergency Battery (factory-installed suffix): EB18 (18W, 120–347V), EB40H (40W, 120–347V) — specify at time of order
Electrical
The LHS1-PS320 operates on a universal 120–347V input, 60Hz, Class P driver with 6kV integrated surge protection. Power factor >0.9 and THD <20%. Input watts vary by wattage setting: 200W, 240W, 280W, or 320W nominal. Green technology: mercury-free, UV-free LED source, RoHS compliant. Optional emergency battery backup (EB18, EB40H) factory-installed — specify suffix at time of order.

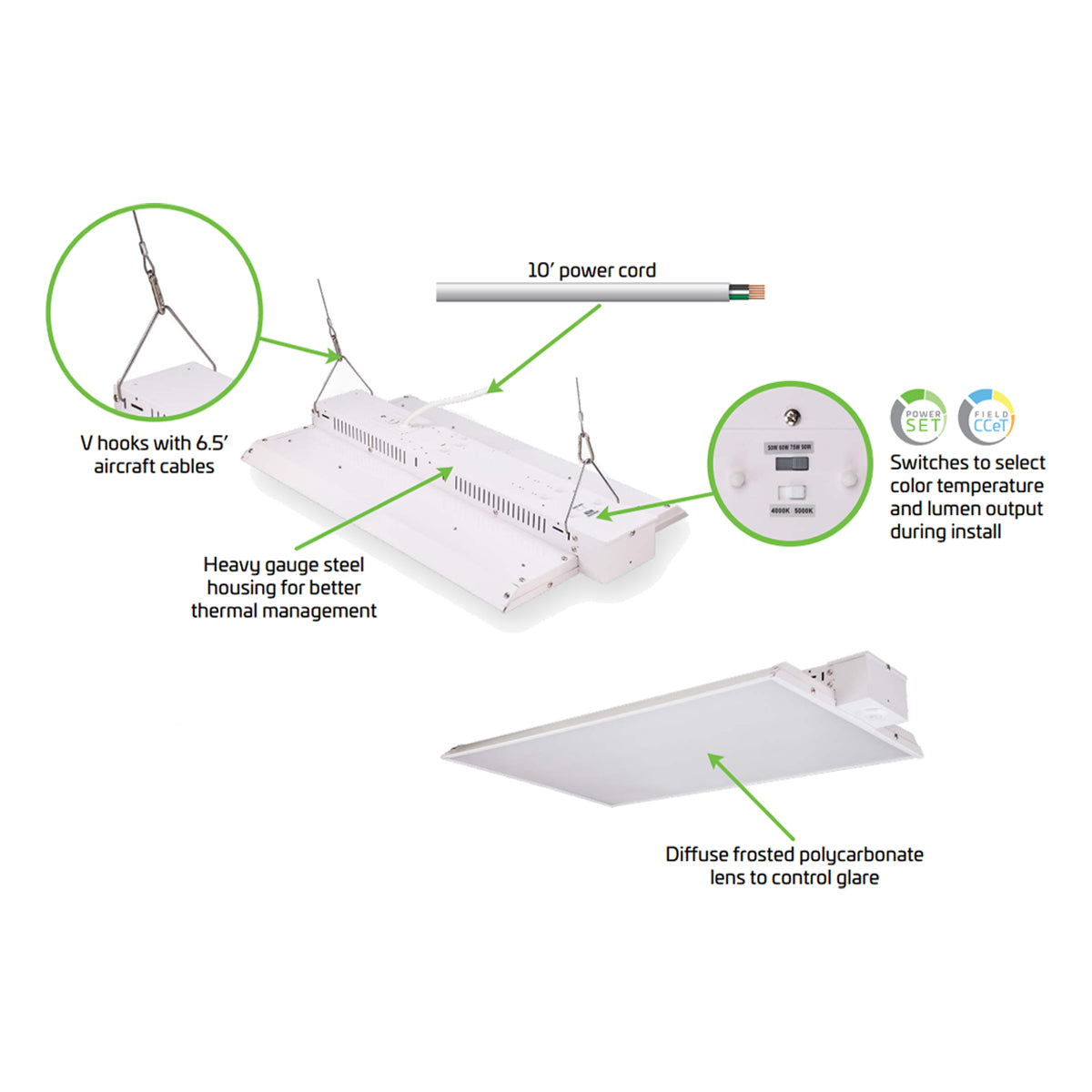

Construction

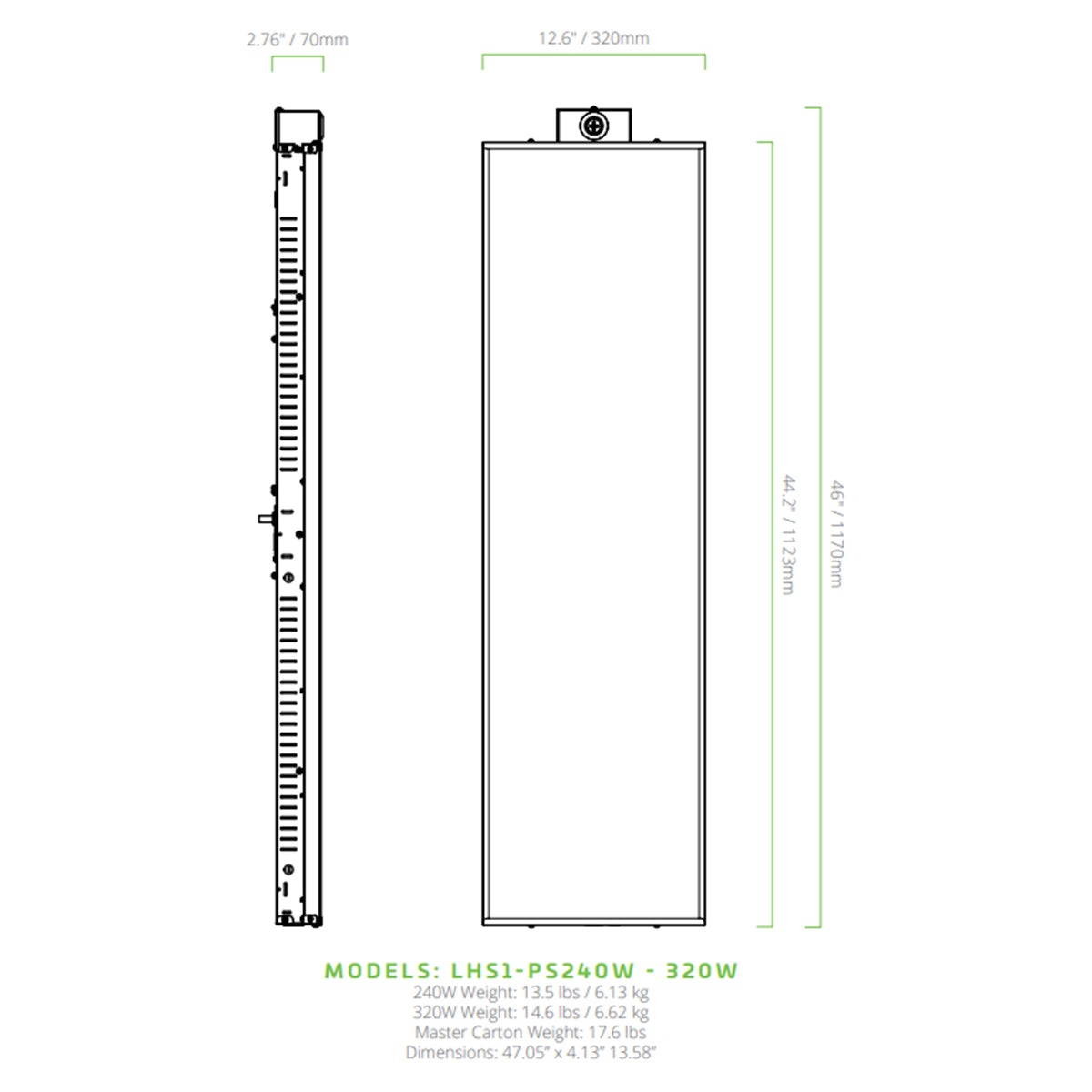

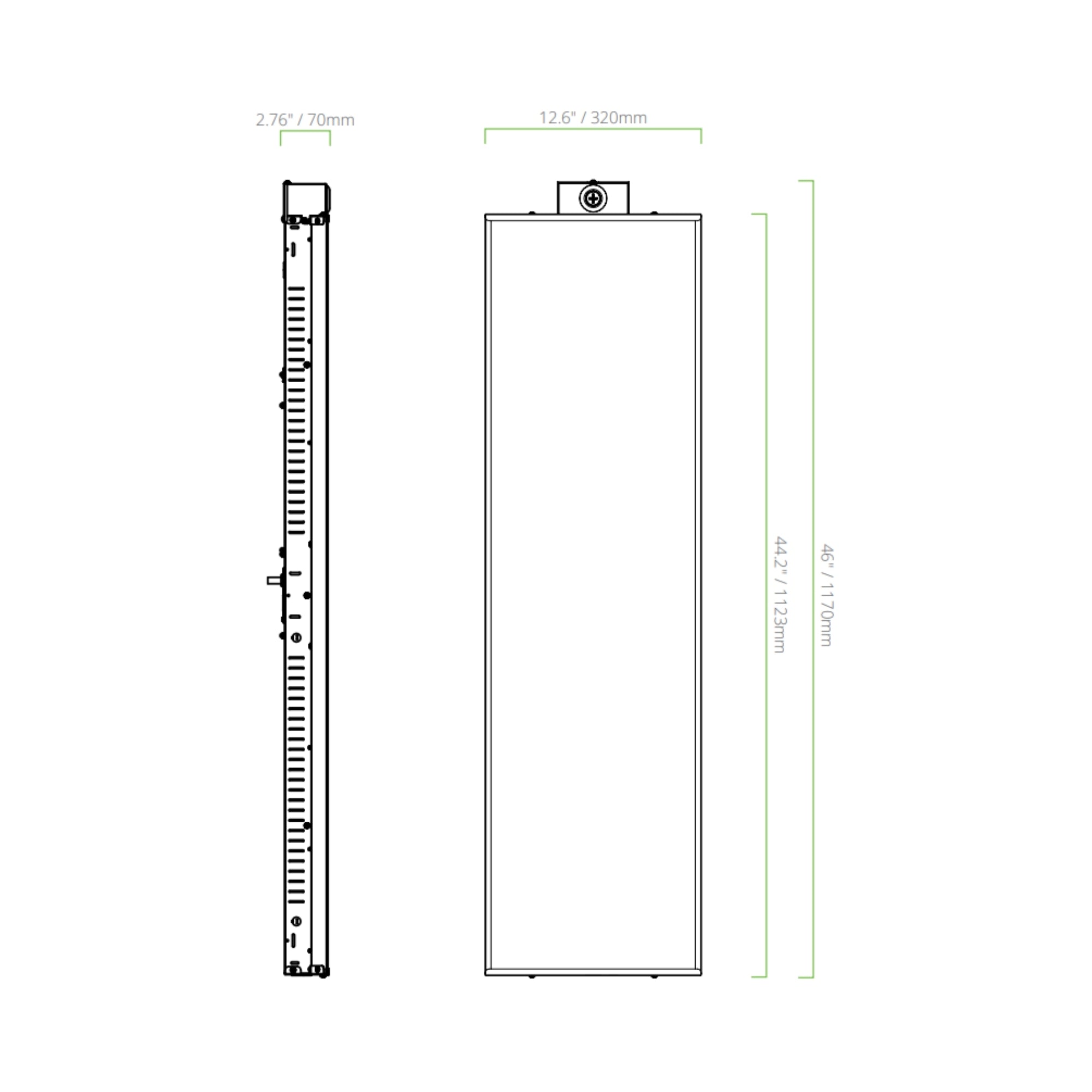

Heavy-gauge steel housing with white powder-coat finish. Diffused polycarbonate lens. Fixture weight: 17.6 lbs. Operating temperature range: -40°F to +122°F (-40°C to +50°C). UL Listed for damp locations.
Installation & Mounting

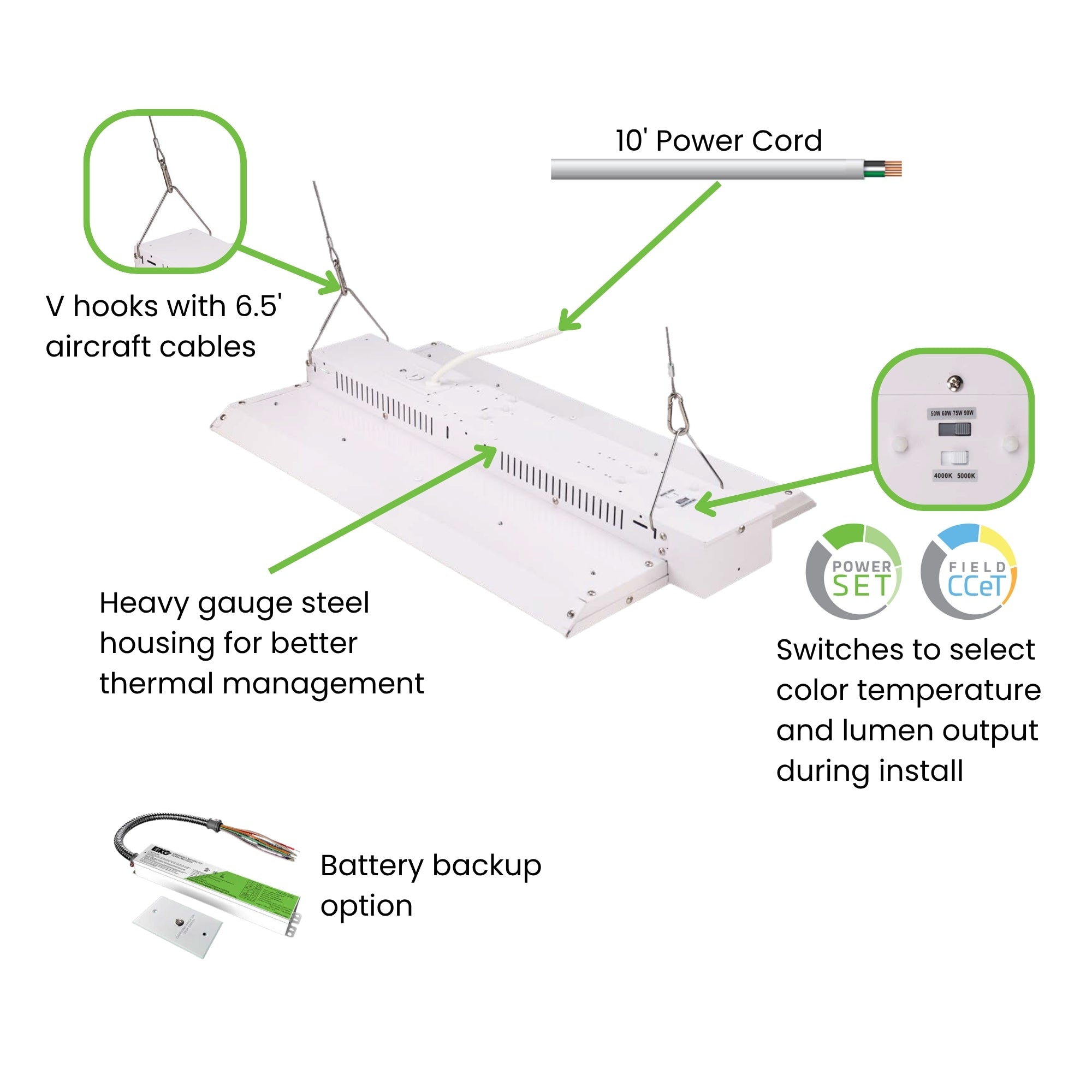

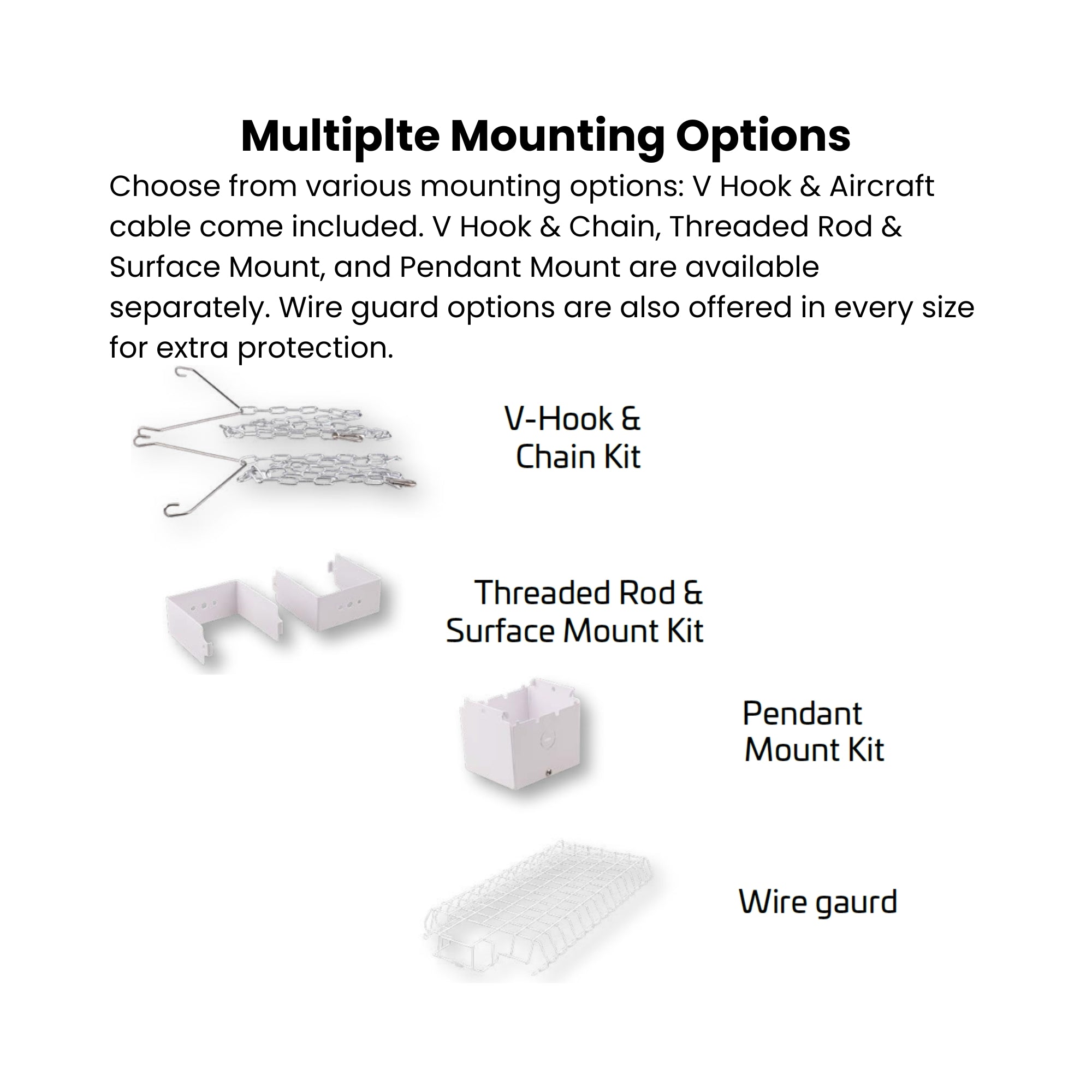

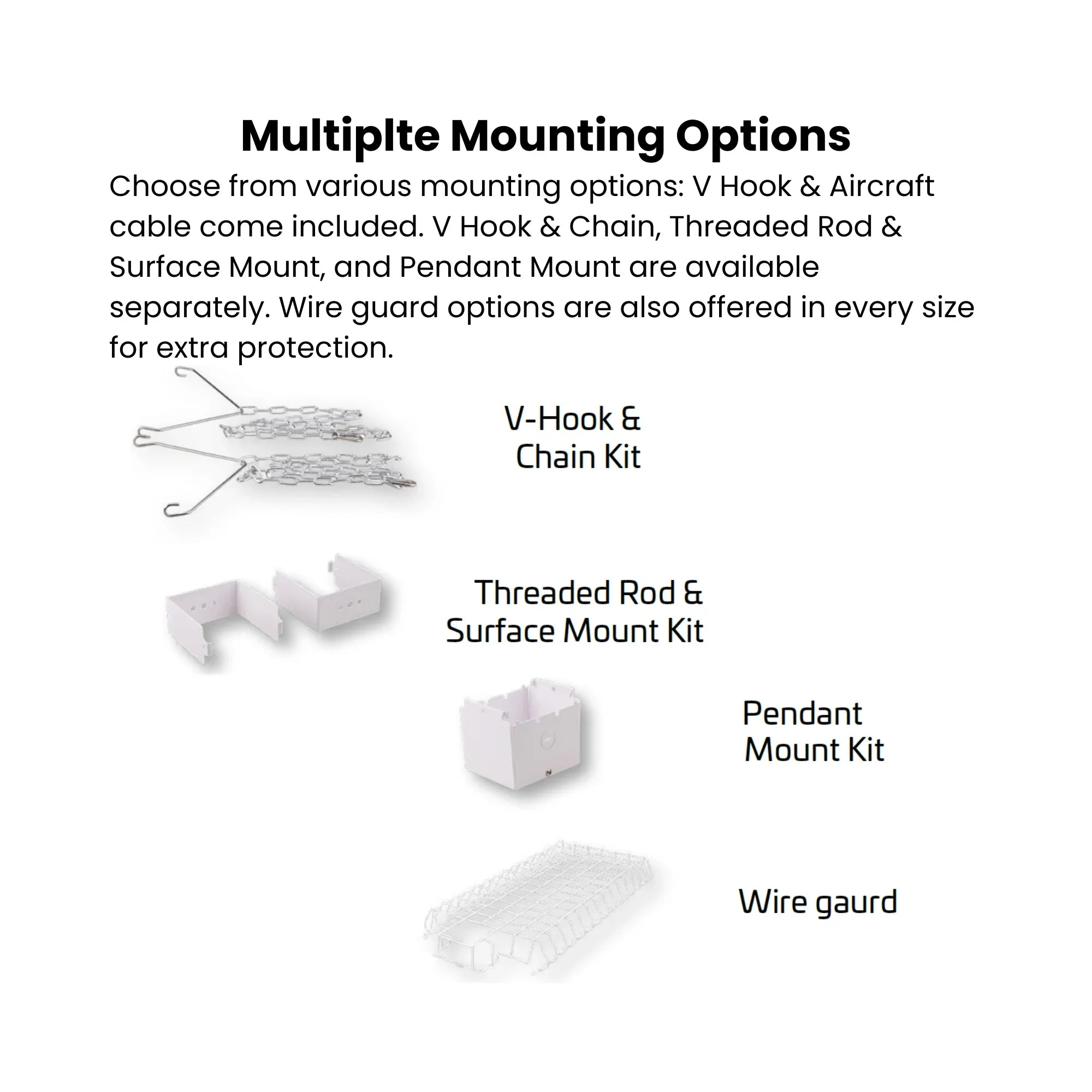

Includes V-hooks and 6.5' aircraft cable for standard pendant mounting. Optional mounting accessories (sold separately):
- V-Hook & Chain Kit: LH1-VCK (order code 13815)
- Pendant Mount Kit: LH1-PMK (order code 13816) — ⚠️ Not compatible with battery backup options on select wattage configurations
- Threaded Rod & Surface Mount Kit: LH1-TRSMK (order code 13817)
- Wire Guard (sold separately): LHS1-WG-L — for 240–320W fixtures (order code 15364)
- Emergency Battery Bracket: LH1-ZBRK (order code 14383)
Recommended ceiling height: 20–30 ft at 200–240W; 25–40 ft at 280–320W. For ceilings below 20 ft, consider the LHS1-PS160. For ceilings above 40 ft or very large footprints, consider the LHS1-PS440.
Certifications & Rebates
UL Listed for damp locations. DLC 5.1 Premium Listed — qualifies for utility rebate programs in most U.S. states. Visit designlights.org to confirm available incentives with your local utility. RoHS Compliant. FCC Compliant.
Typical Applications

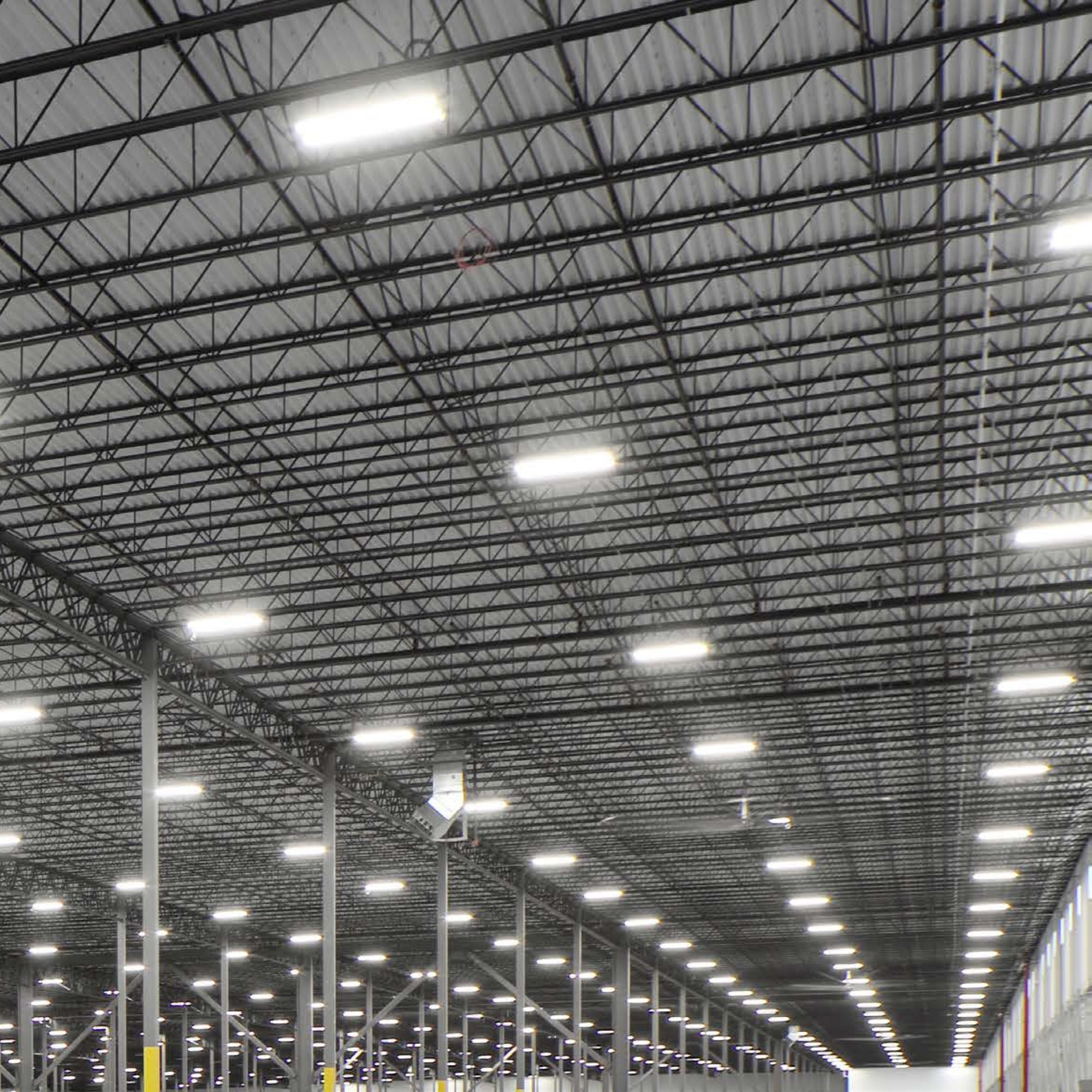

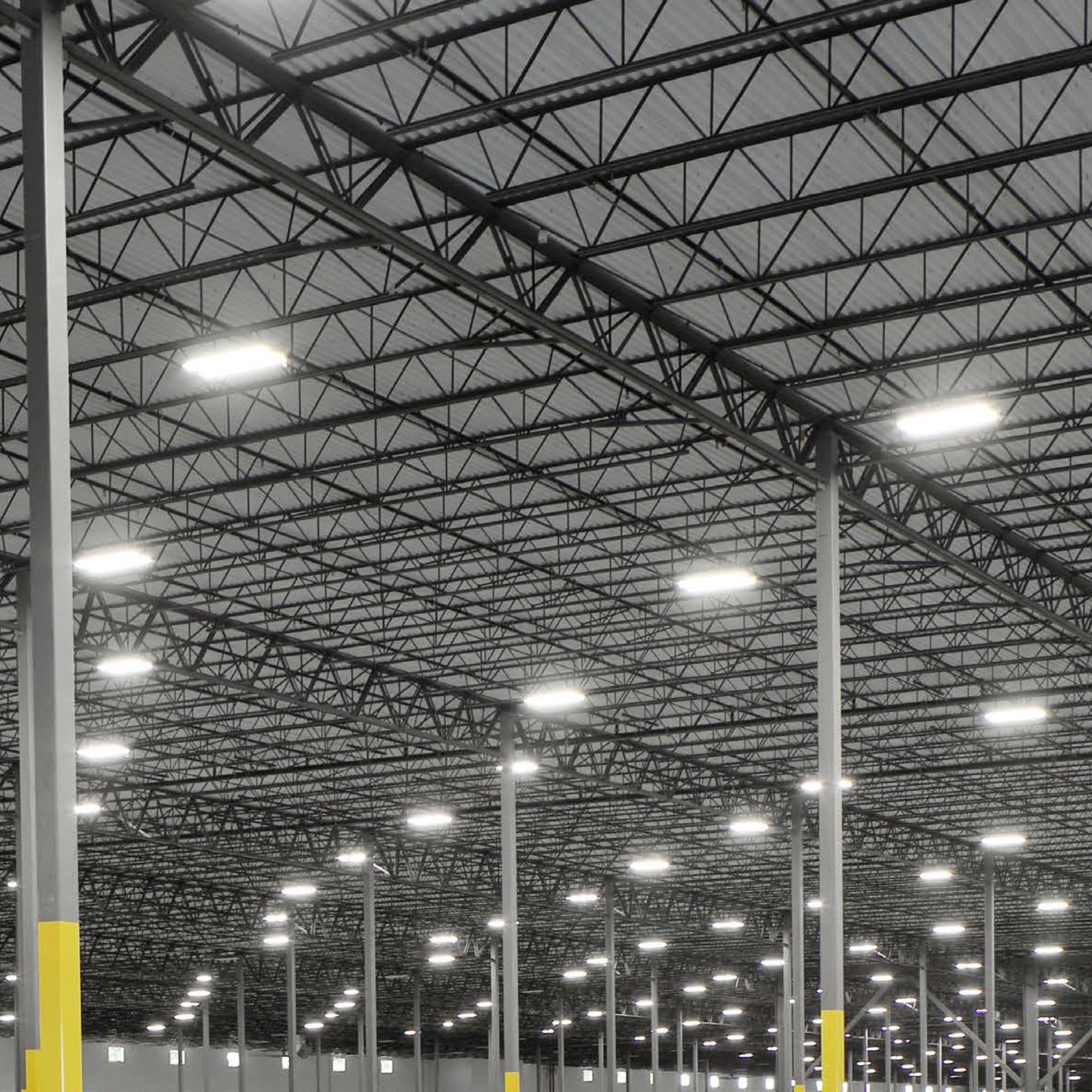

- High-Bay Warehouses & Distribution Centers: 280–320W setting delivers 42,000–48,000 lm for 25–40 ft ceiling heights — ideal for wide-span racking systems and high-throughput fulfillment facilities
- Manufacturing & Heavy Industrial Plants: High lumen output and selectable wattage support zone-specific energy management across large production floor footprints
- Gymnasiums & Large Athletic Facilities: 48,000 lm and CRI ≥80 provide bright, even illumination for competitive and recreational sport environments
- Cold Storage & Refrigerated Distribution: -40°F cold-start rating supports freezer warehouse and refrigerated facility applications at full output
- Municipal & Public Works Facilities: DLC Premium certification and 150 lm/W efficacy maximize rebate value and long-term energy savings for government-funded projects
- Vehicle Maintenance & Fleet Facilities: High-ceiling coverage and 0-10V dimming support both full-task and after-hours reduced lighting scenarios
What’s Included
- EIKO LHS1-PS320-8FCCT-HDIM Linear LED High Bay fixture (1)
- V-Hooks (2)
- 6.5’ aircraft cable
- 10’ 18/3 600V white power cord
