EIKO LHS1 Linear High Bay 36,000 Lumens 150/180/200/240W Selectable 4000K/5000K 120-347V White

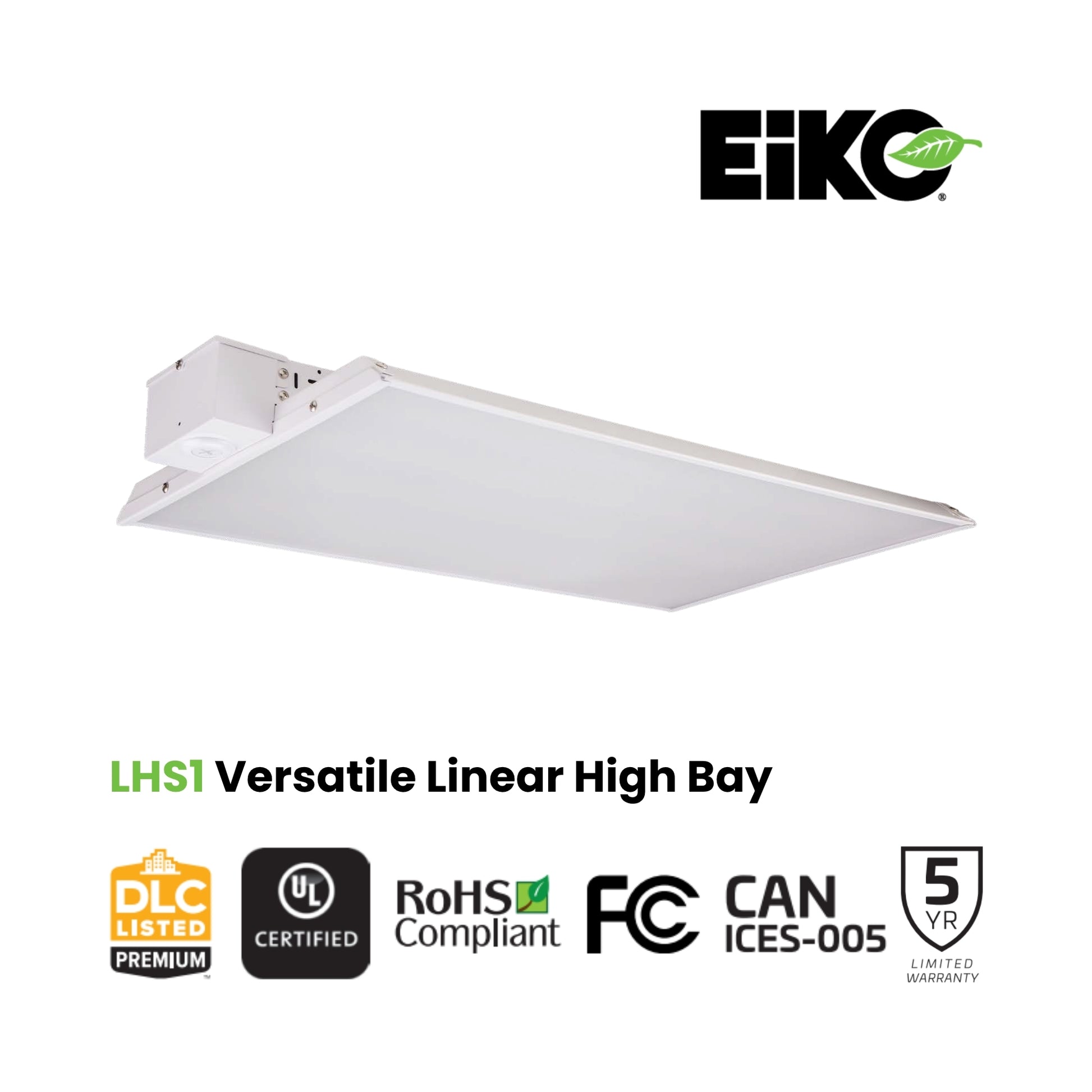

EIKO LHS1-PS240-8FCCT-HDIM LHS1 Linear High Bay LED Light — Field Selectable 150/180/200/240W

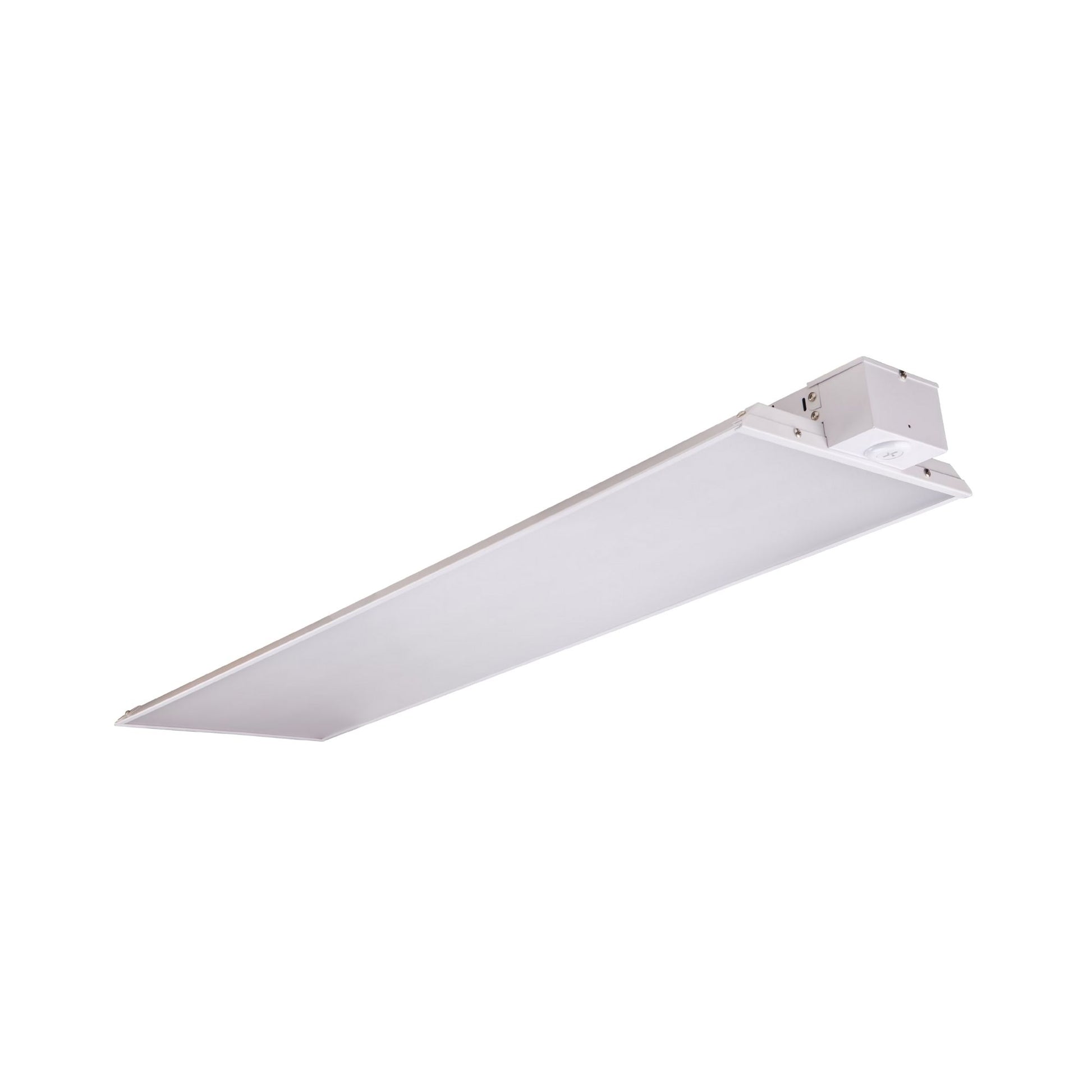

The EIKO LHS1-PS240-8FCCT-HDIM is a field-selectable linear high bay designed for commercial and industrial applications. This fixture provides selectable wattage (150W / 180W / 200W / 240W) and selectable CCT (4000K / 5000K) on a universal 120-347V platform.

Key Features:

• Selectable Wattage: 150W / 180W / 200W / 240W
• Selectable CCT: 4000K / 5000K
• Universal Voltage: 120-347V input
• Dimming: 0-10V dimming with dim-to-off capability
• Light Output: Up to 36,000 lumens
• Rated Life: 100,000+ hours (L70)

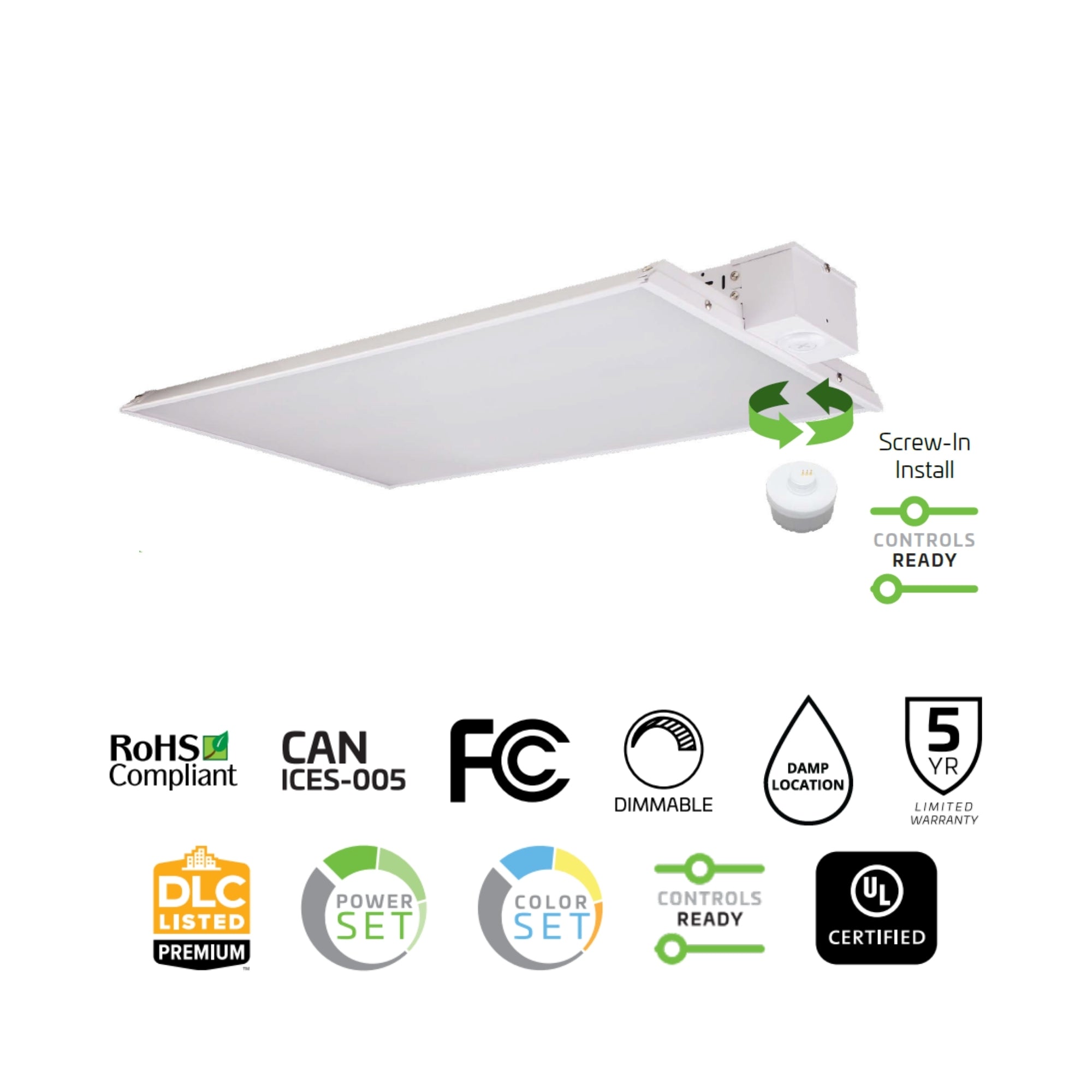

• Certifications: DLC 5.1 Premium, UL Listed, FCC, RoHS
• Mounting: V-hook and aircraft cable included

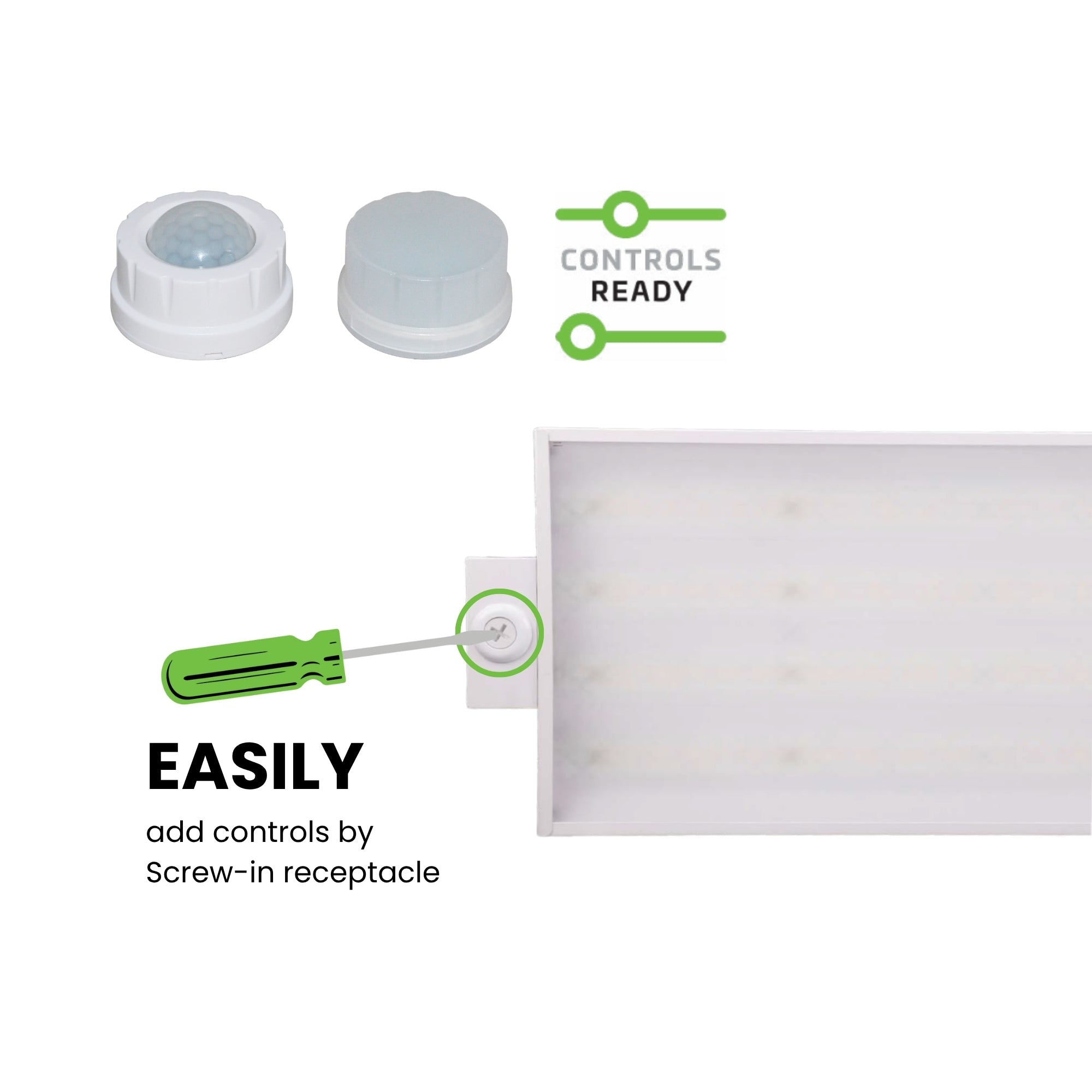

• Controls Compatibility: Controls-ready for motion/daylight sensors
• Surge Protection: 6kV integrated protection

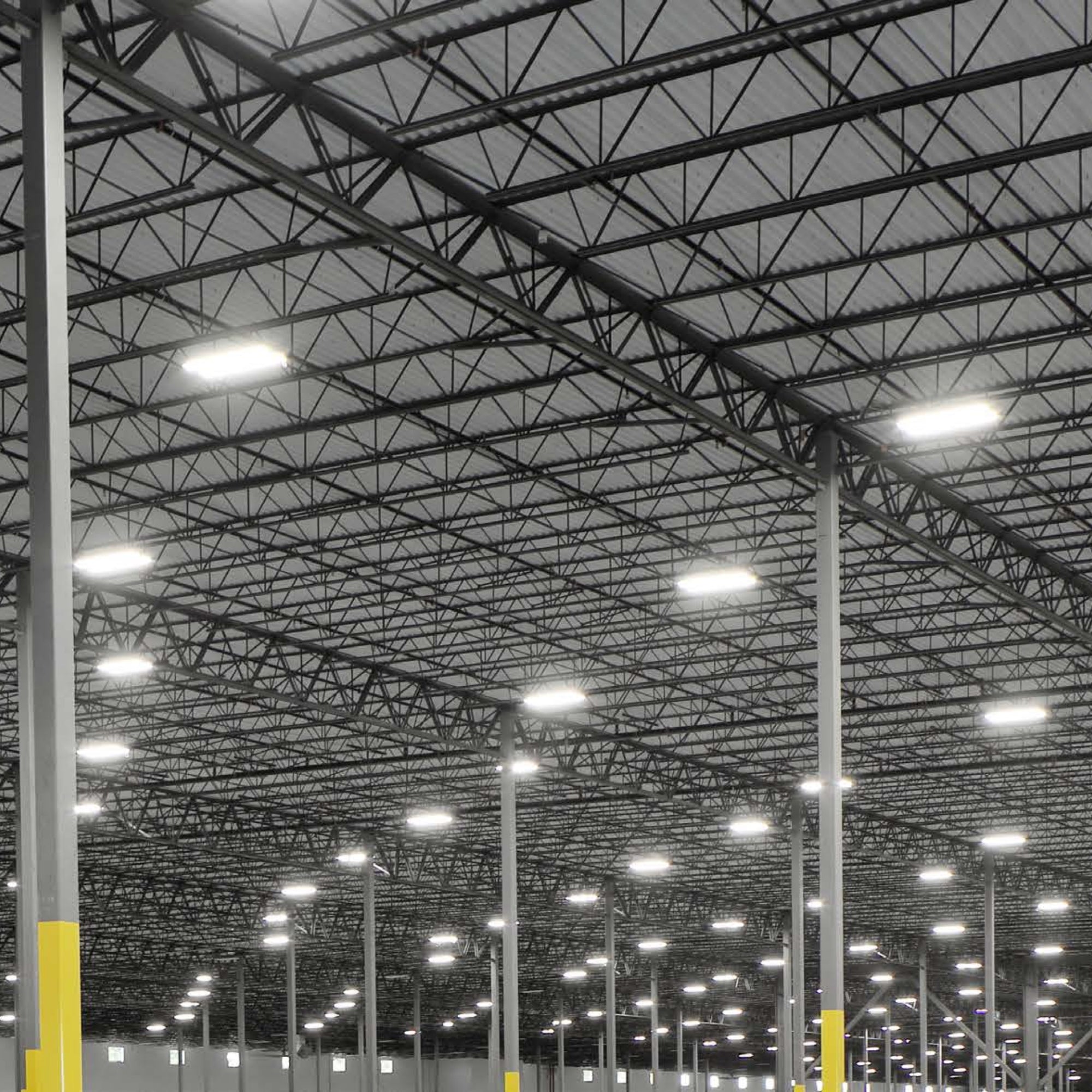

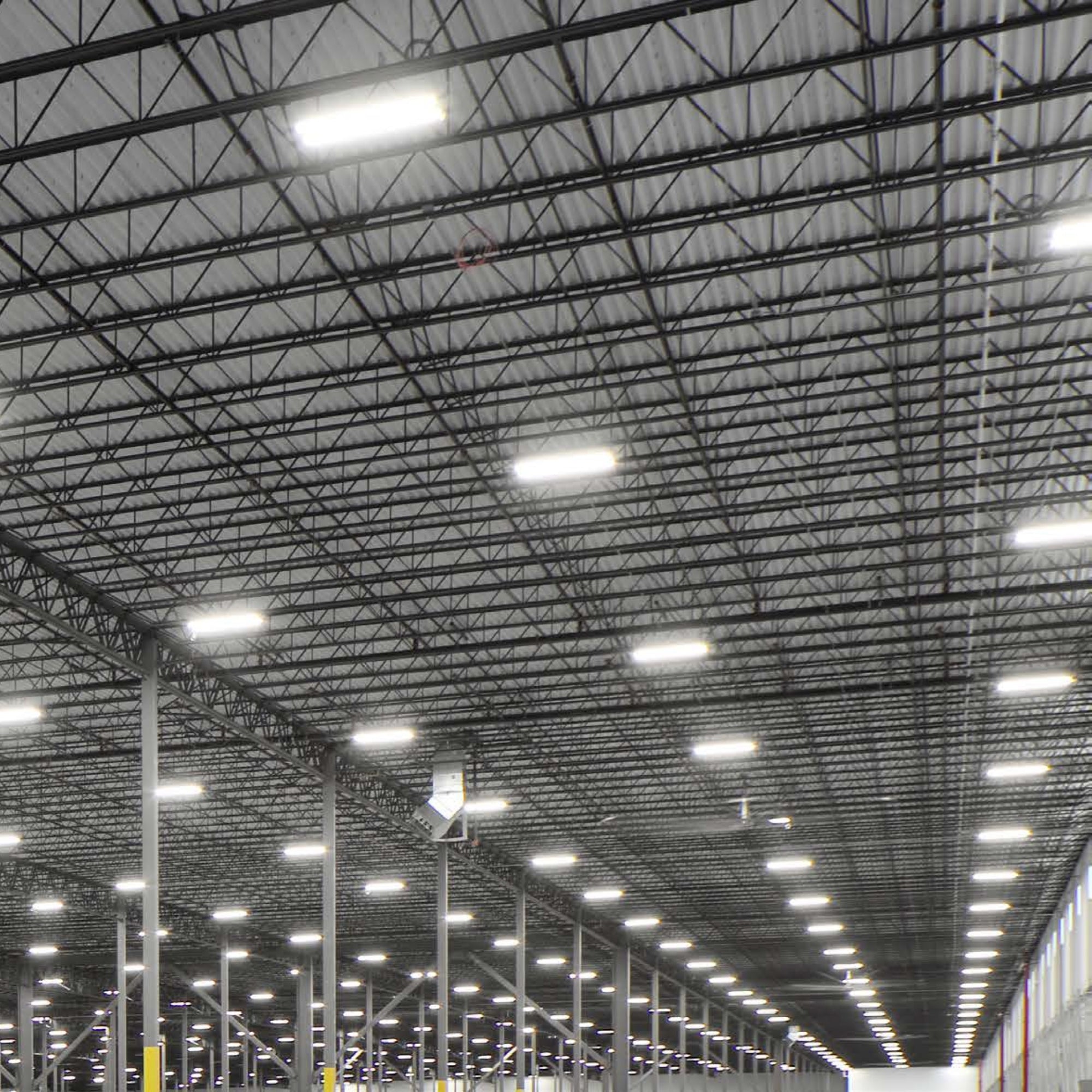

Typical Applications:

• Warehouses
• Distribution centers
• Manufacturing facilities
• Industrial storage areas
• High-bay production floors

Performance & Light Output:
Provides high-output illumination for mounting heights approximately 20–35 feet depending on wattage selection. CRI >80 with wide distribution for open industrial spaces.

Electrical & Controls:
Operates on 120-347V with 0-10V dimming and integrated 6kV surge protection. Compatible with field-installed motion and daylight sensors.

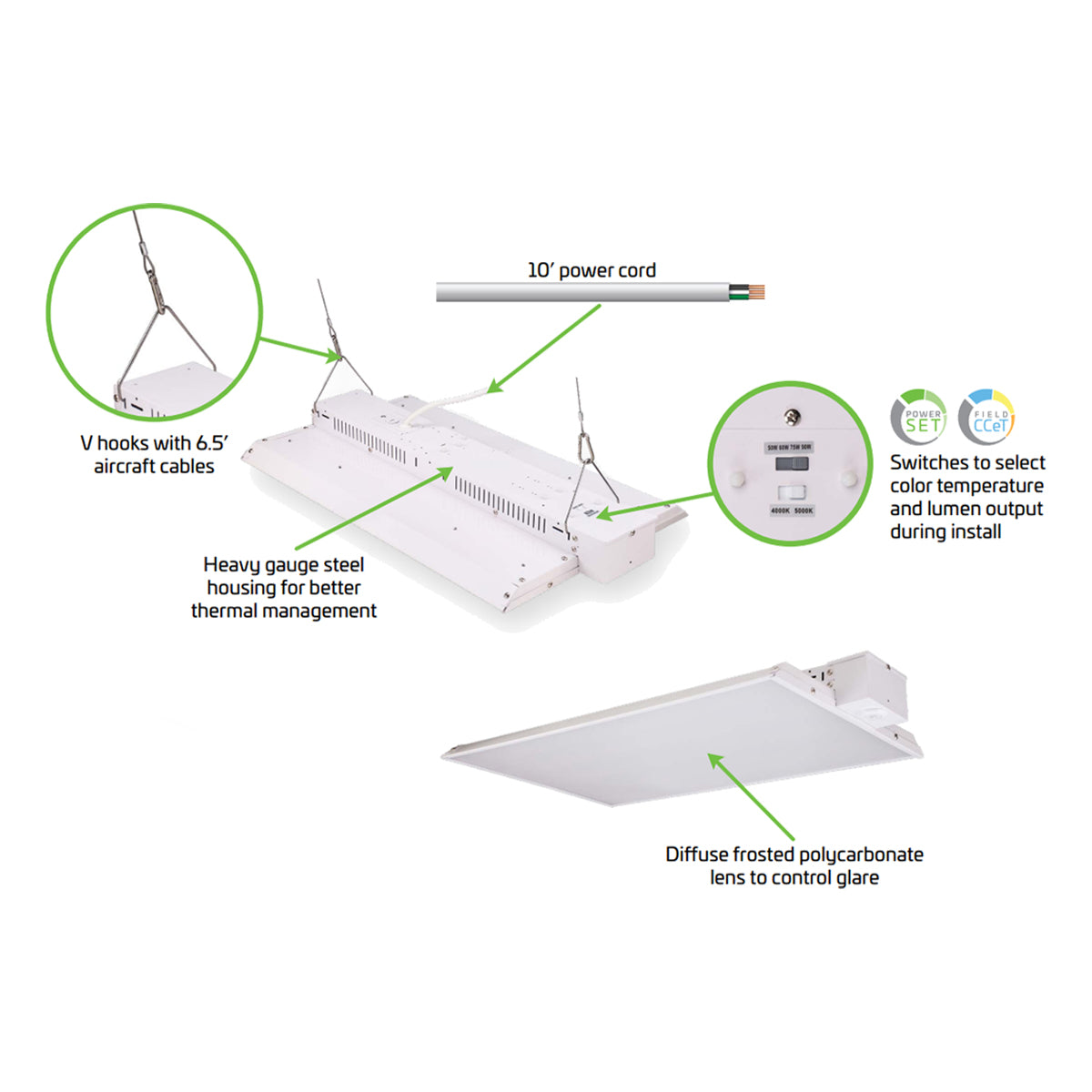

Construction & Durability:
Heavy-gauge steel housing with diffused polycarbonate lens. Rated IP20 for damp locations. Operating temperature -40°F to +122°F.

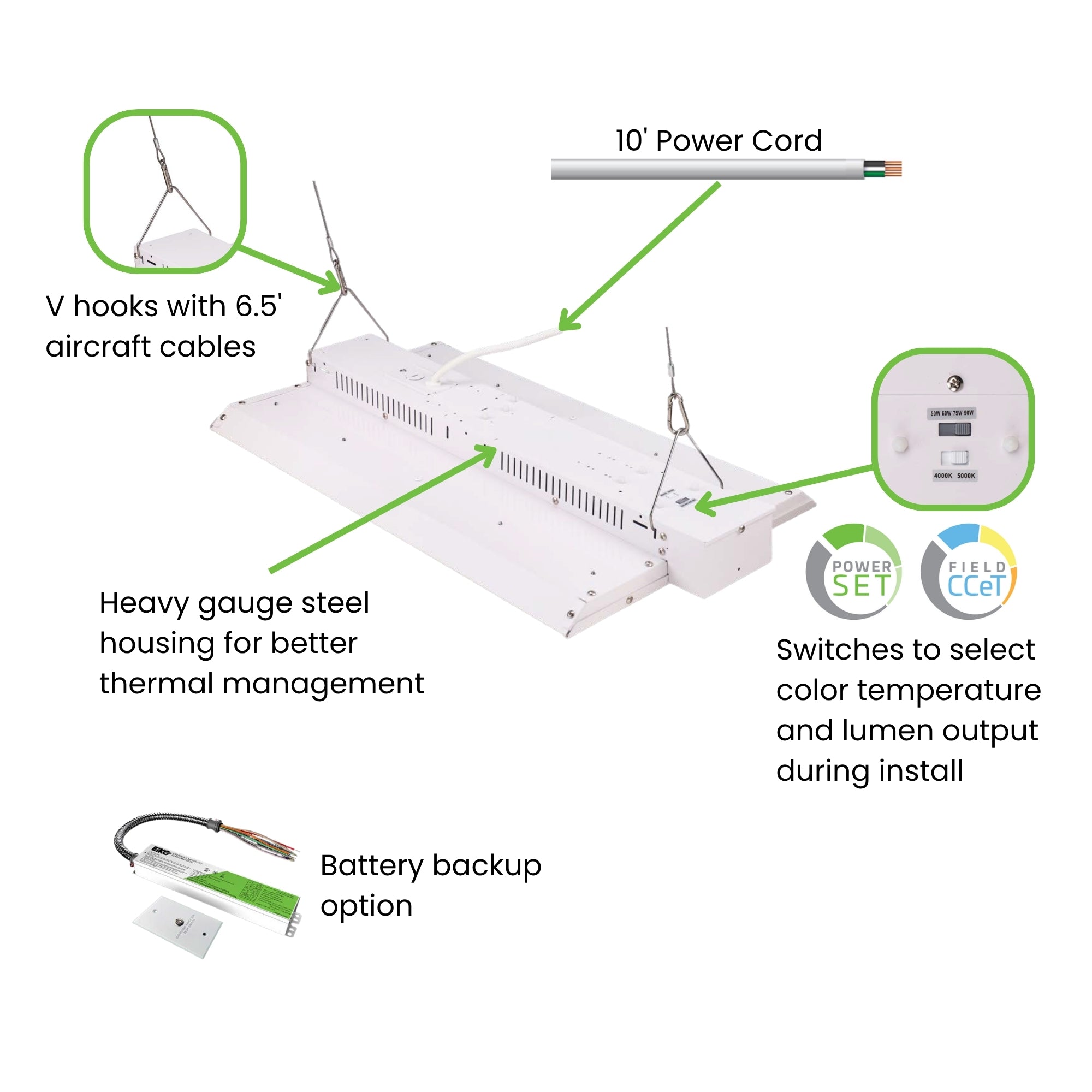

Installation & Mounting:

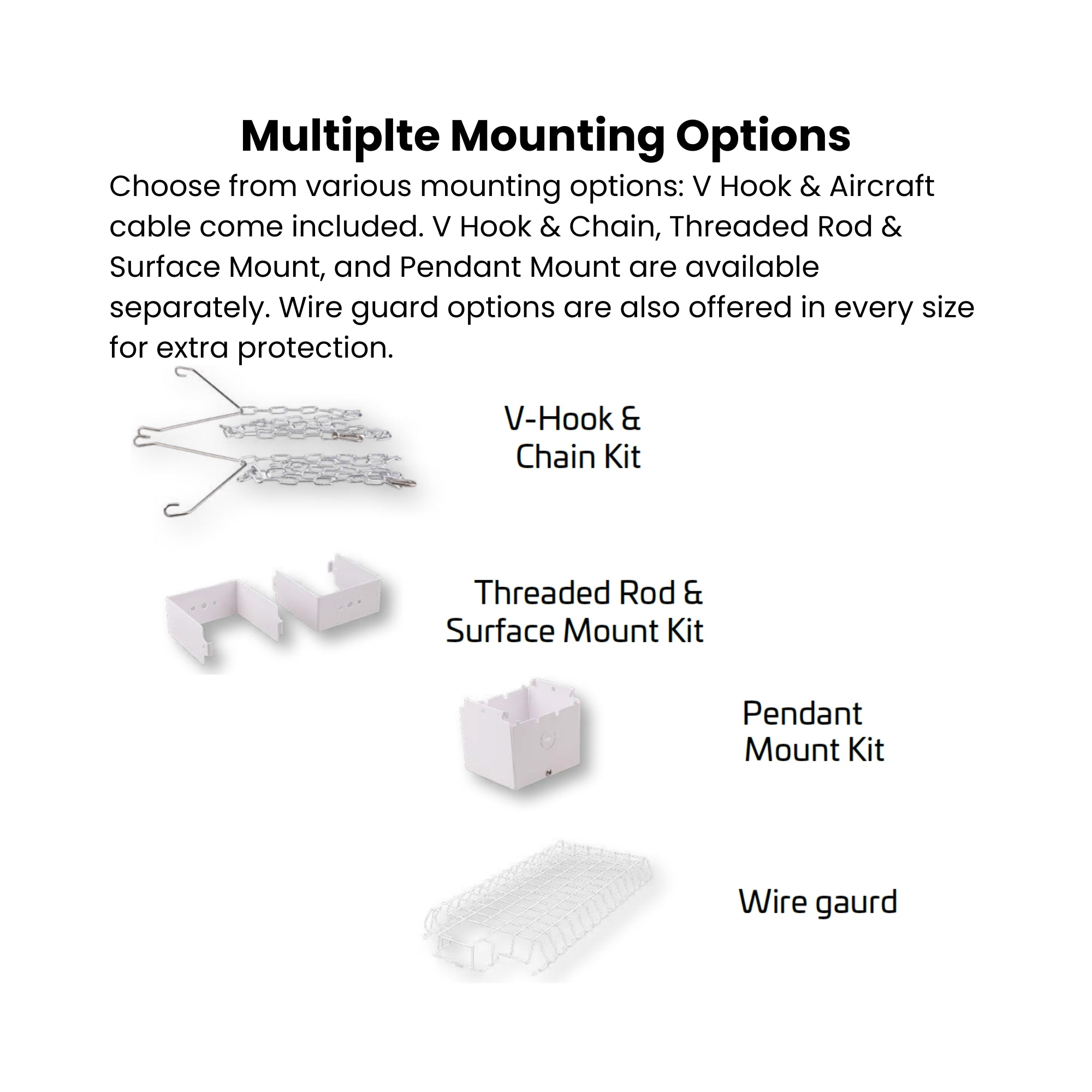

Includes V-hooks and aircraft cable. Surface and pendant mounting kits available.

Accessories:
Optional wire guards, mounting kits, emergency battery units, and field-installable sensor options available.
