EIKO LHS1-PS160 Linear LED High Bay — 90–160W — 24,000 lm — 120-347V
Available in stock (300)
About this item
About this item
- Up to 24,000 Lumens at 160W — Replaces 400W Metal Halide: Field-selectable 90/110/130/160W delivers 13,500–24,000 lm at a consistent 150 lm/W — cutting energy use by over 60% vs. 400W MH with no compromise on light quality.
- Field-Selectable 4000K or 5000K CCT: Set color temperature at installation without special tools — 4000K for warehouse and general task lighting; 5000K for assembly, inspection, and maximum visual acuity environments.
- Controls Ready — Screw-In Sensors, No Rewiring: 1/2" knockout port accepts SENA standalone PIR/microwave sensors or SENA-WPPA-WH Bluetooth/Silvair networked sensor — enabling daylight harvesting, occupancy sensing, scheduling, and energy monitoring with no additional wiring.
- DLC 5.1 Premium Listed — Utility Rebate Eligible: DLC Premium certification qualifies this fixture for utility rebate programs in most U.S. markets — reducing net project cost. Confirm available incentives at designlights.org.
- Universal 120–347V and -40°F Cold-Start Rated: Single SKU covers all North American voltage requirements. -40°F cold-weather start rating makes this fixture suitable for cold storage, freezer warehouses, and refrigerated distribution facilities.
We process payments securely and do not store credit card information.
Description
Description

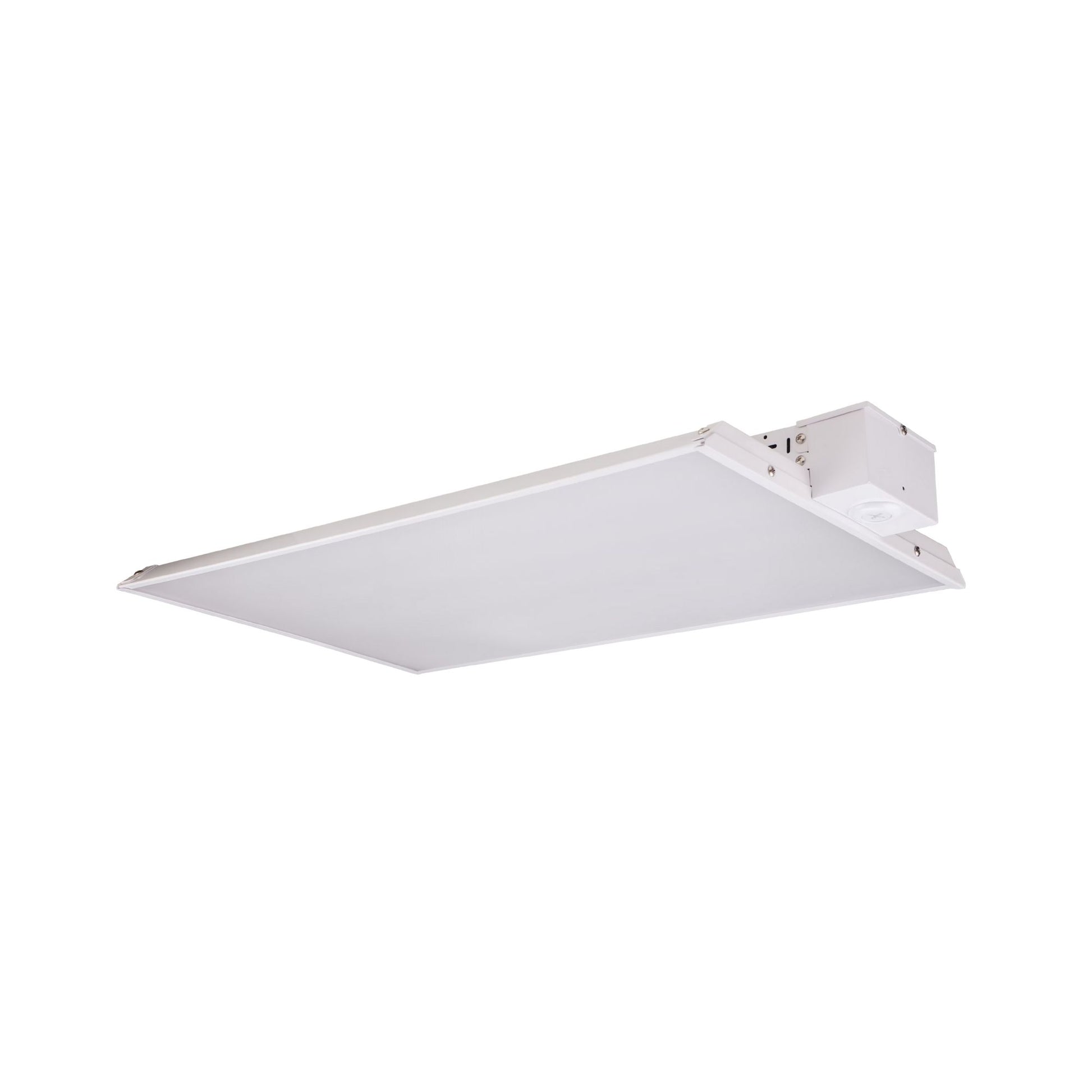

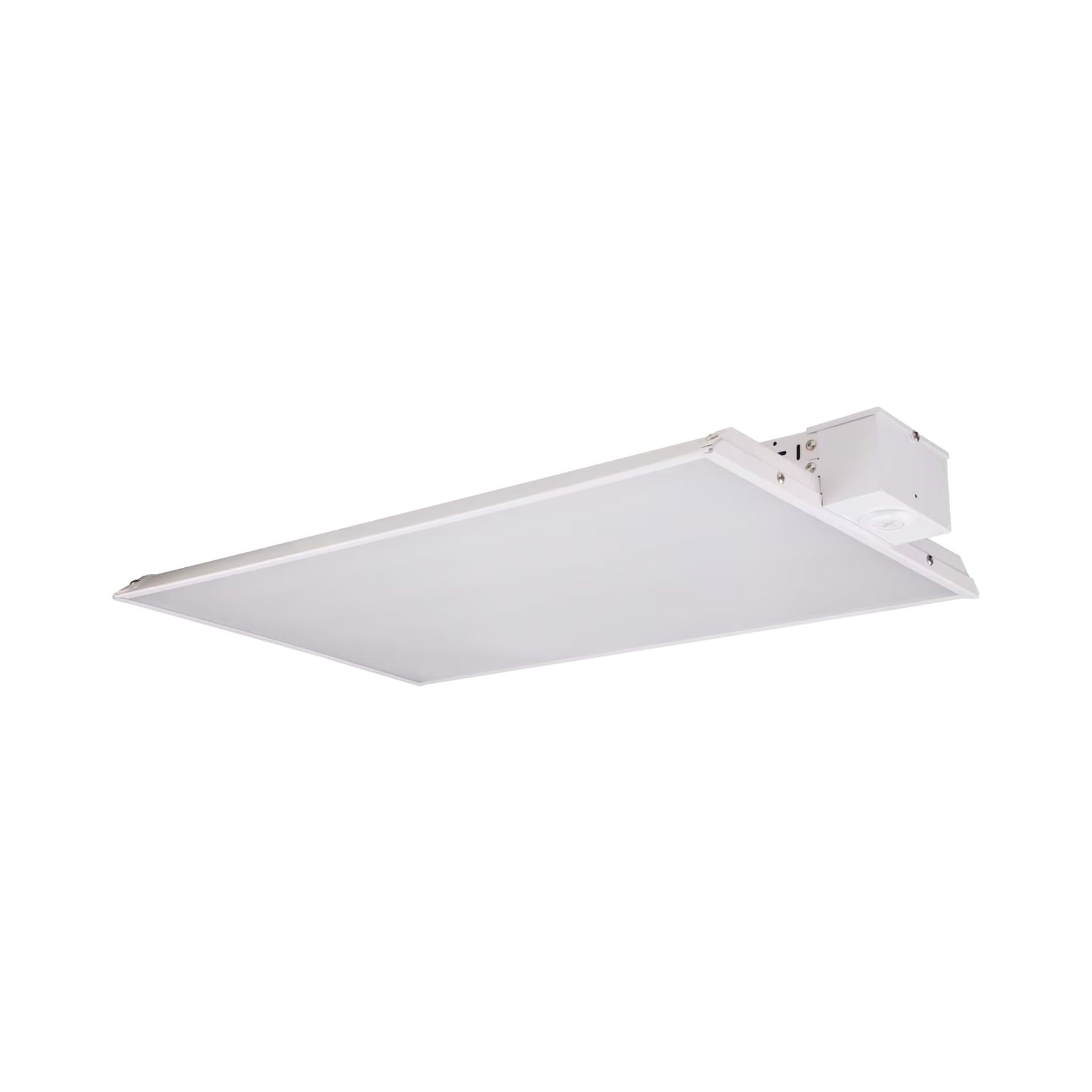

EIKO LHS1-PS160-8FCCT-HDIM Field-Adjustable Linear LED High Bay — 90W / 110W / 130W / 160W Selectable
The EIKO LHS1-PS160-8FCCT-HDIM is a field-adjustable linear LED high bay built for mid-ceiling commercial and industrial applications. Delivering up to 24,000 lumens at 160W on a 120–347V universal platform, with field-selectable 4000K or 5000K CCT and 0-10V dimming, this fixture is DLC Premium Listed and UL Listed — qualifying for utility rebates in most U.S. markets. It replaces up to 400W metal halide while cutting energy use by over 60%.
Key Features
- Selectable Wattage: Field-adjustable 90W / 110W / 130W / 160W — set at installation, no tools required
- Selectable CCT: 4000K or 5000K field-selectable at installation
- Maximum Lumen Output: 24,000 lm at 160W — up to 150 lm/W peak efficacy
- CRI: ≥80 for accurate color rendering across all wattage and CCT settings
- Dimming: 0-10V with dim-to-off capability; compatible with field-installed SENA standalone and SENA-WPPA-WH Bluetooth sensors
- Voltage / Driver: Universal 120–347V, 60Hz, Class P driver
- Surge Protection: 6kV integrated surge protection standard
- Location Rating: UL Listed for damp locations
- Operating Temperature: -40°F to +122°F (-40°C to +50°C)
- Rated Life: 100,000 hours L70
- Warranty: 5-year limited warranty
- HID Equivalency: Replaces up to 400W metal halide / 4xT5HO or 6xT8 fluorescent

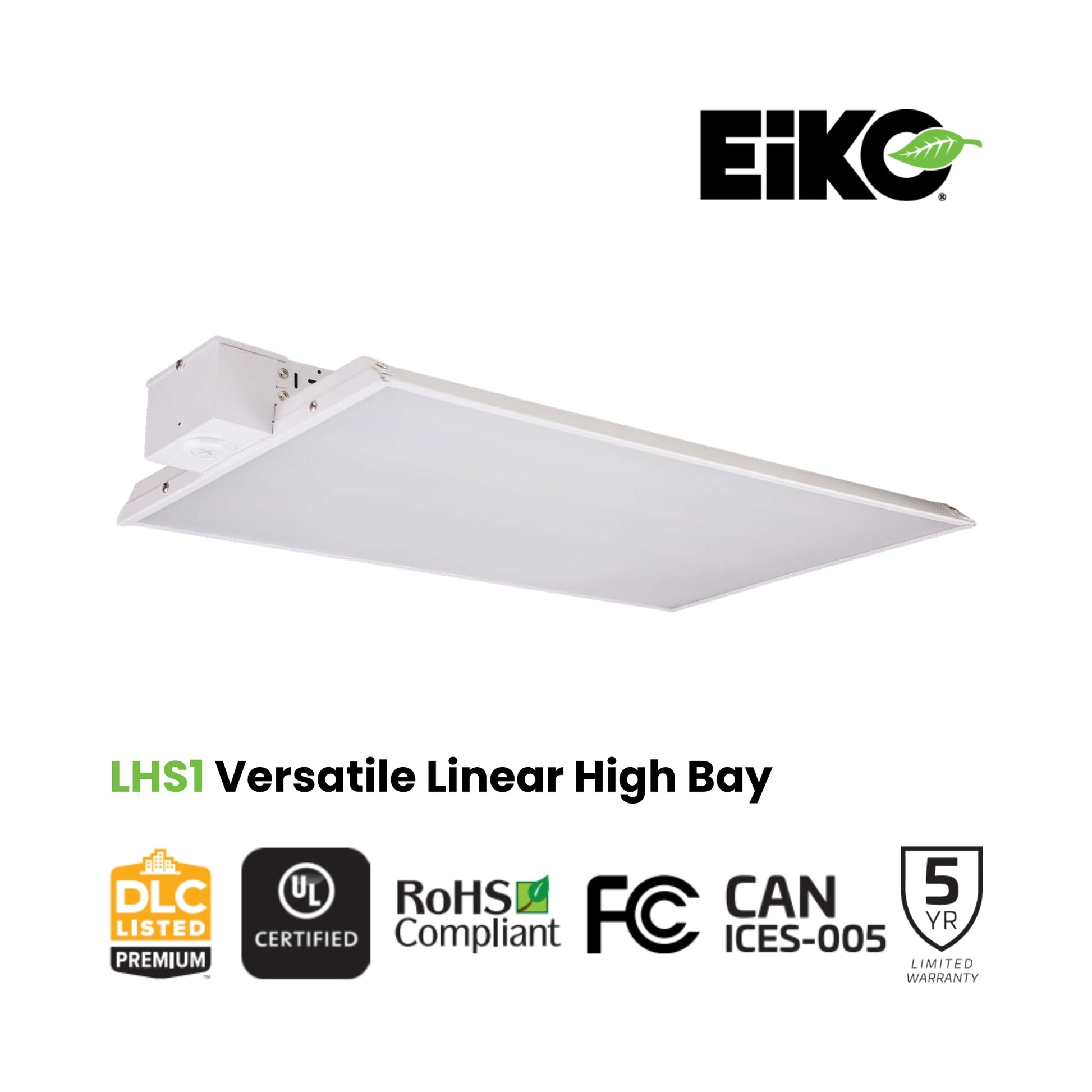

- Certifications: DLC 5.1 Premium, UL Listed, FCC, RoHS Compliant
- Controls Ready: Field-installable screw-in sensor port — no additional wiring required
Performance & Light Output
The LHS1-PS160 delivers a full lumen × wattage output matrix for precise specification: At 160W: 24,000 lm (4000K & 5000K / 150 lm/W). At 130W: 19,500 lm (4000K & 5000K / 150 lm/W). At 110W: 16,500 lm (4000K & 5000K / 150 lm/W). At 90W: 13,500 lm (4000K & 5000K / 150 lm/W). CRI ≥80 across all settings. Rated life 100,000 hours L70 per IES TM-21.
Smart & Control Features

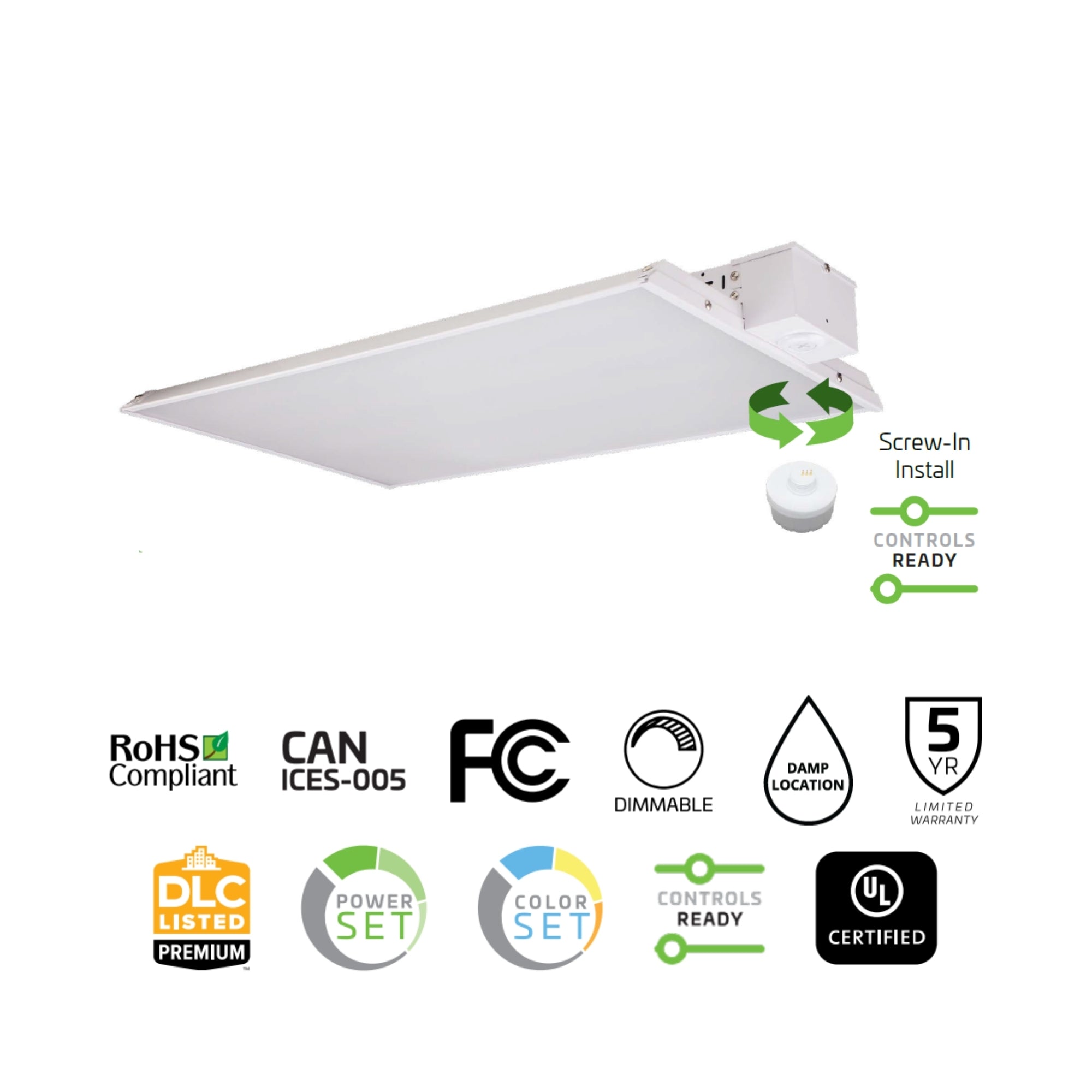

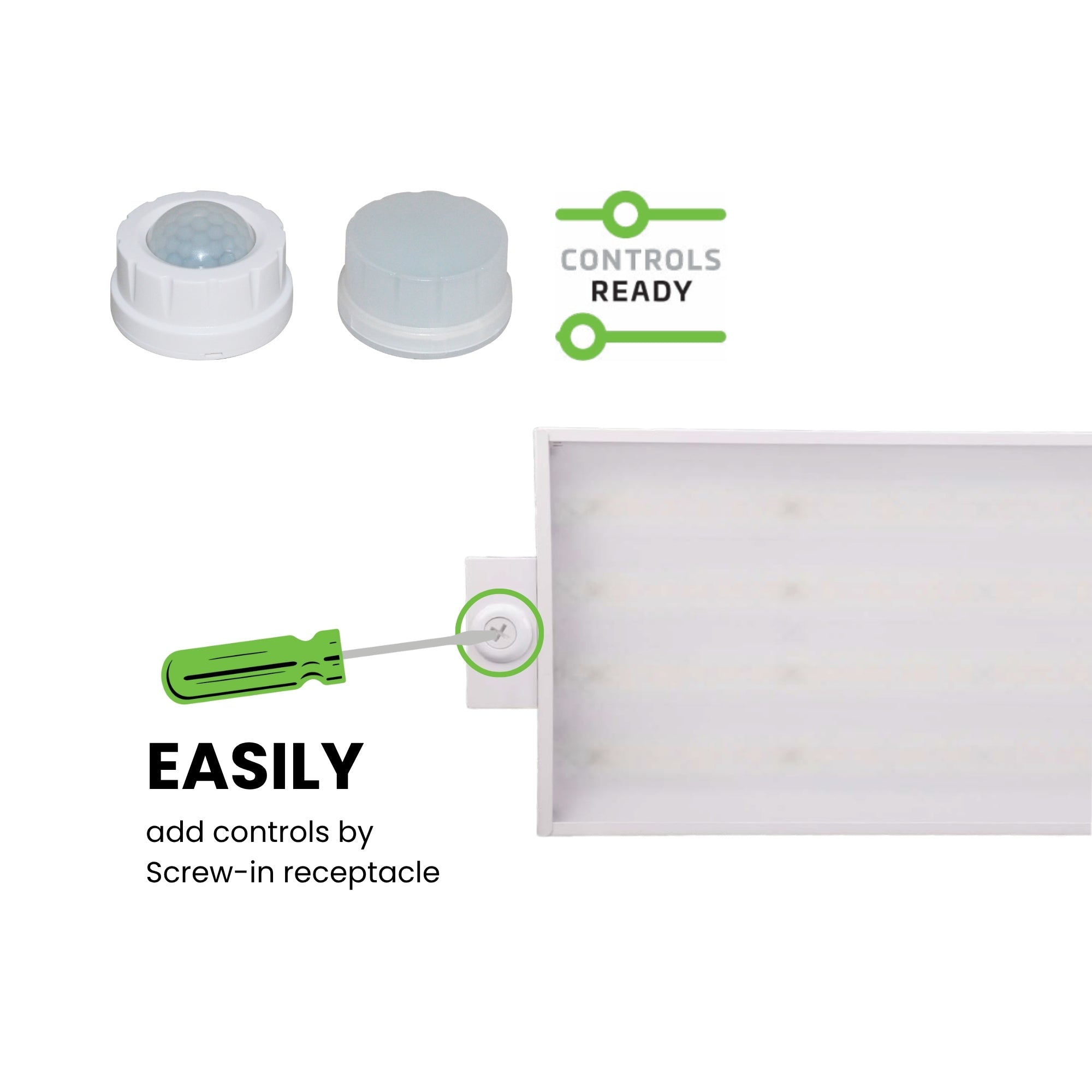

The LHS1-PS160 is Controls Ready — a 1/2" knockout port on the fixture front plate accepts field-installable screw-in sensors without additional wiring.
- Standard Dimming: 0-10V analog dimming with dim-to-off
- Standalone PIR Sensor: SEN5A-SPPR-WH — screw-in PIR motion sensor; ideal for stable temperature environments with direct line of sight; up to 40 ft mounting height
- Standalone Microwave Sensor: SEN5A-SPMR-WH — screw-in microwave sensor; recommended for low-temp applications (e.g. freezers); not recommended for suspended fixtures near moving machinery
- Bluetooth Networked Sensor: SEN5A-WPPA-WH — BLE screw-in PIR; enables zone/group control, daylight harvesting, scheduling, and energy monitoring via Silvair App (no hub required)
- Wireless Wall Controllers: PSC-DM-WS-100-BLE-SR (single gang), PSC-DM-1-WS-100-BLE-SR (PIR + vacancy), PSC-DM-WS-400-BLE-SR (4-button) — all 120–277V, Silvair App configured
- Commissioning Tool: SEN5A-ACT for standalone sensor configuration
- Emergency Battery (factory-installed suffix): EB18 (18W, 120–347V), EB40H (40W, 120–347V) — specify at time of order
Electrical
The LHS1-PS160 operates on a universal 120–347V input, 60Hz, Class P driver with 6kV integrated surge protection. Power factor >0.9 and THD <20%. Input watts vary by wattage setting: 90W, 110W, 130W, or 160W nominal. Green technology: mercury-free, UV-free LED source, RoHS compliant. Optional emergency battery backup (EB18, EB40H) factory-installed — specify suffix at time of order; see EEBE18WHA170S (order code 11675) and EEBE40WHA170S (order code 13574).
Construction

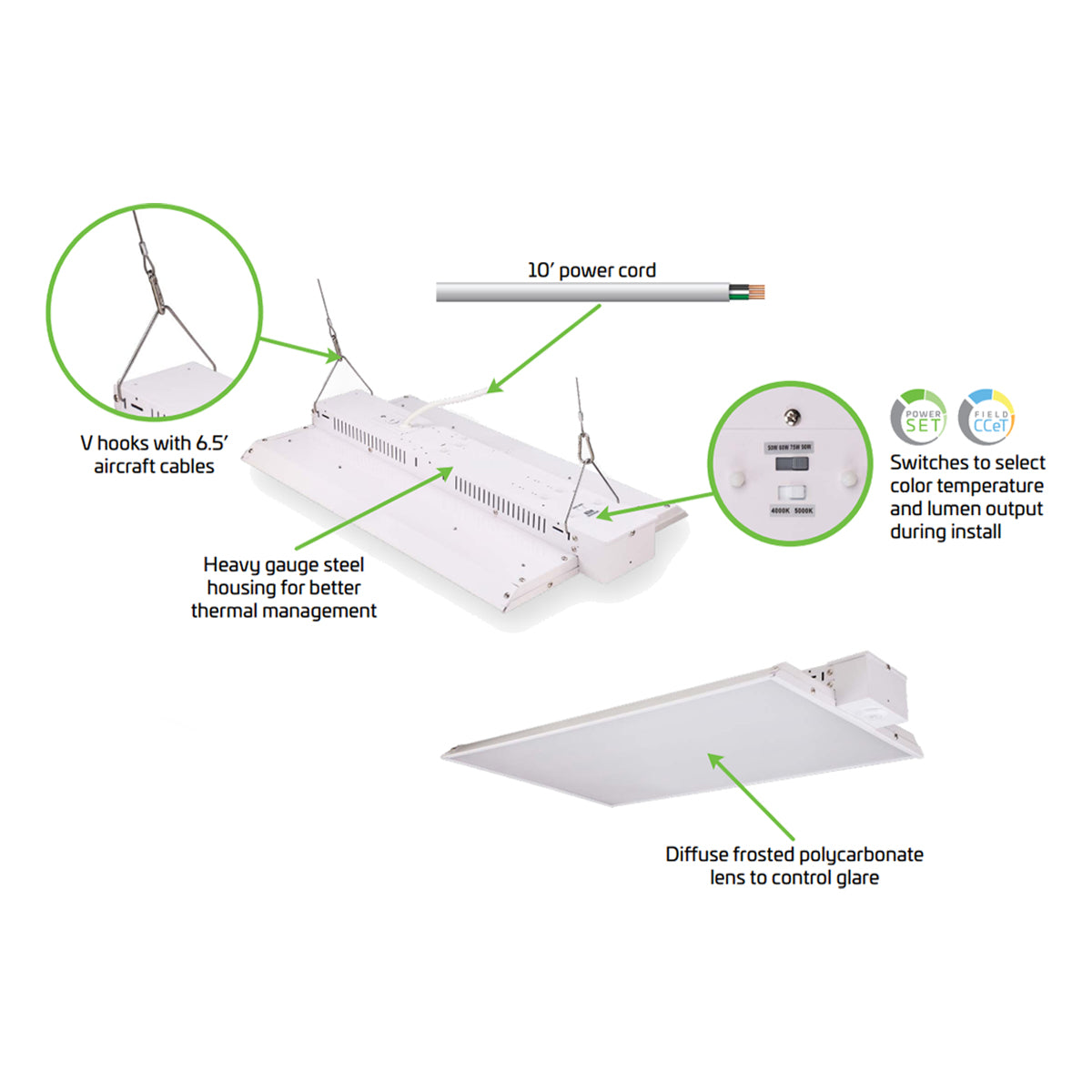

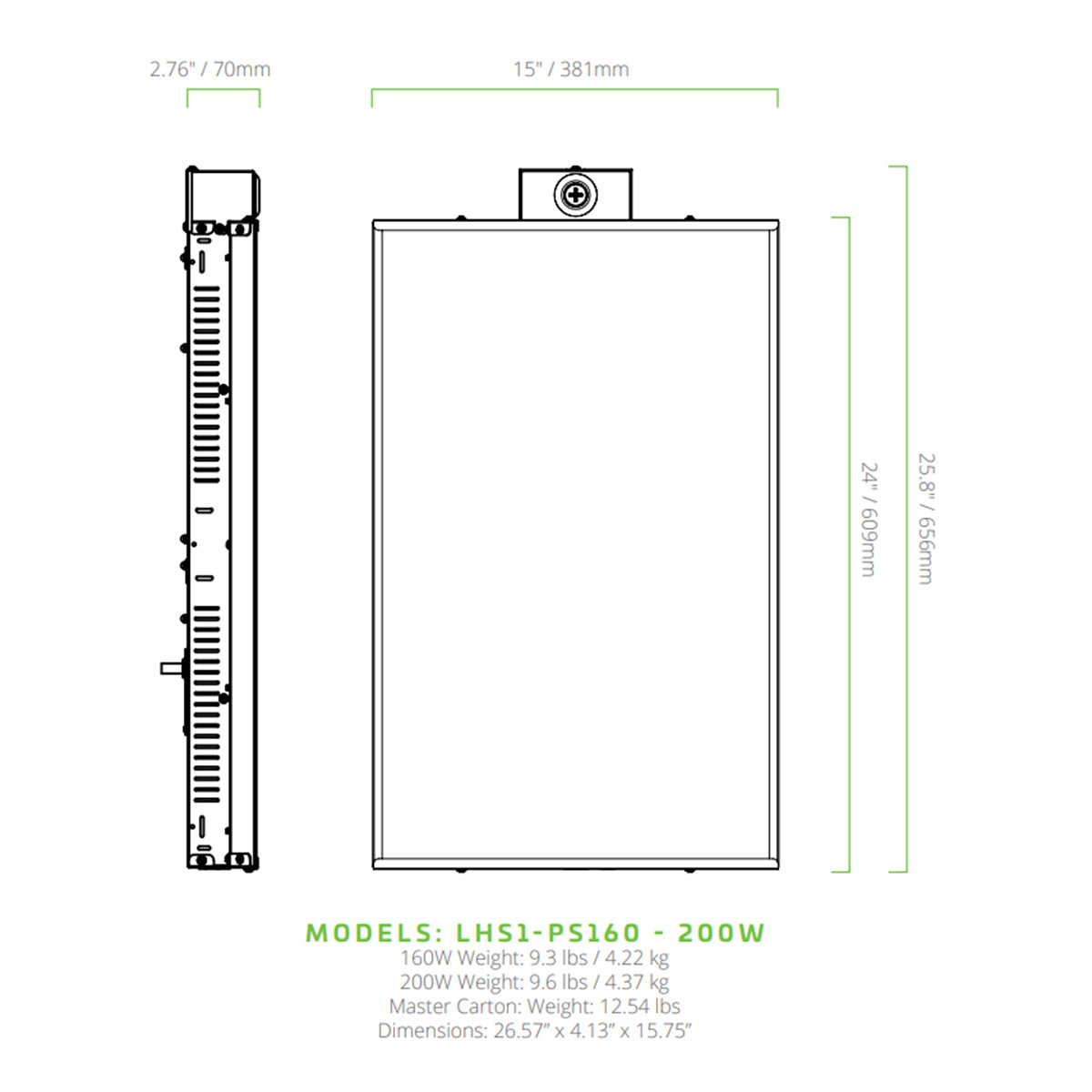

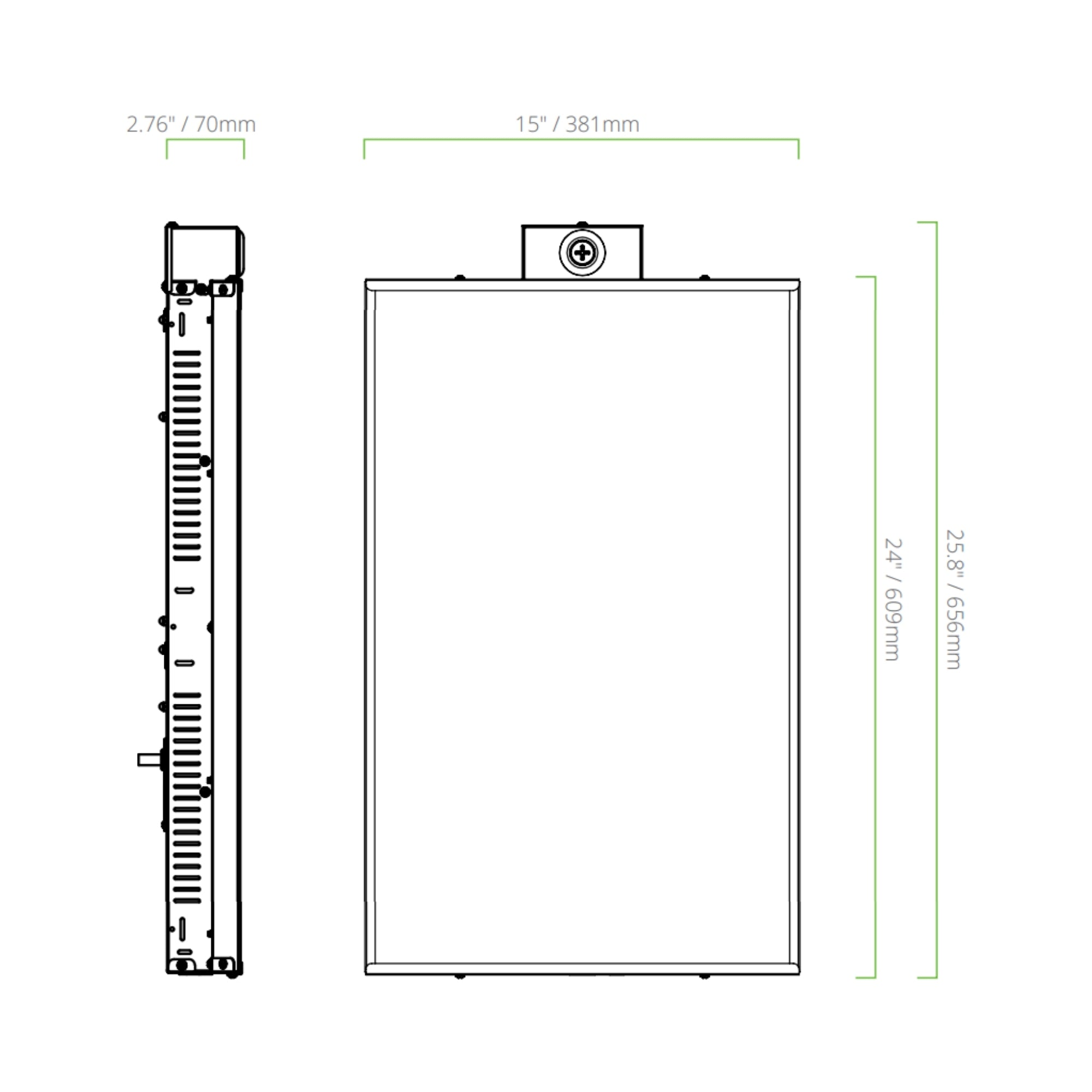

Heavy-gauge steel housing with white powder-coat finish. Diffused polycarbonate lens. Fixture dimensions: 24" × 15" (160W model). Weight: 12.54 lbs. Operating temperature range: -40°F to +122°F (-40°C to +50°C). UL Listed for damp locations.
Installation & Mounting

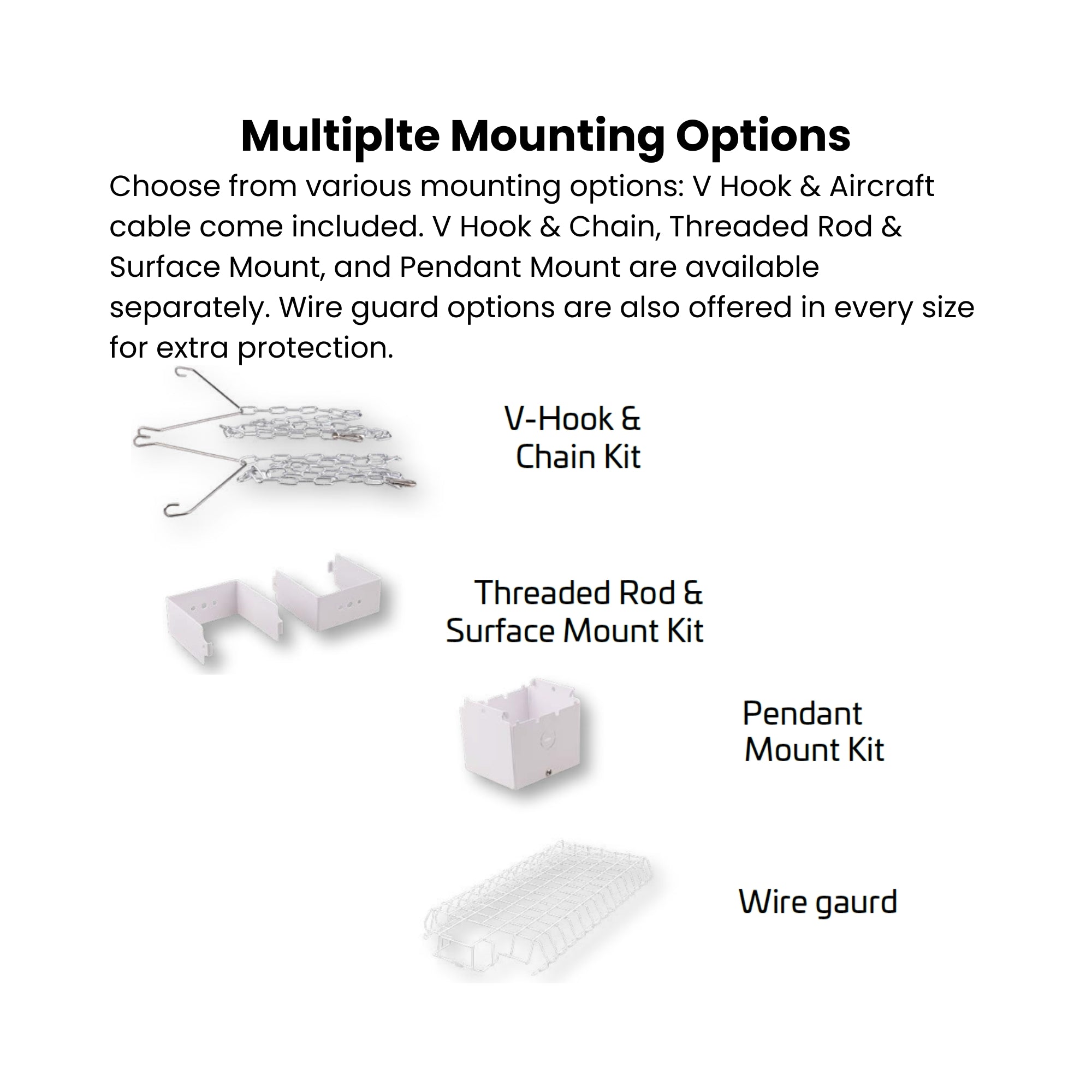

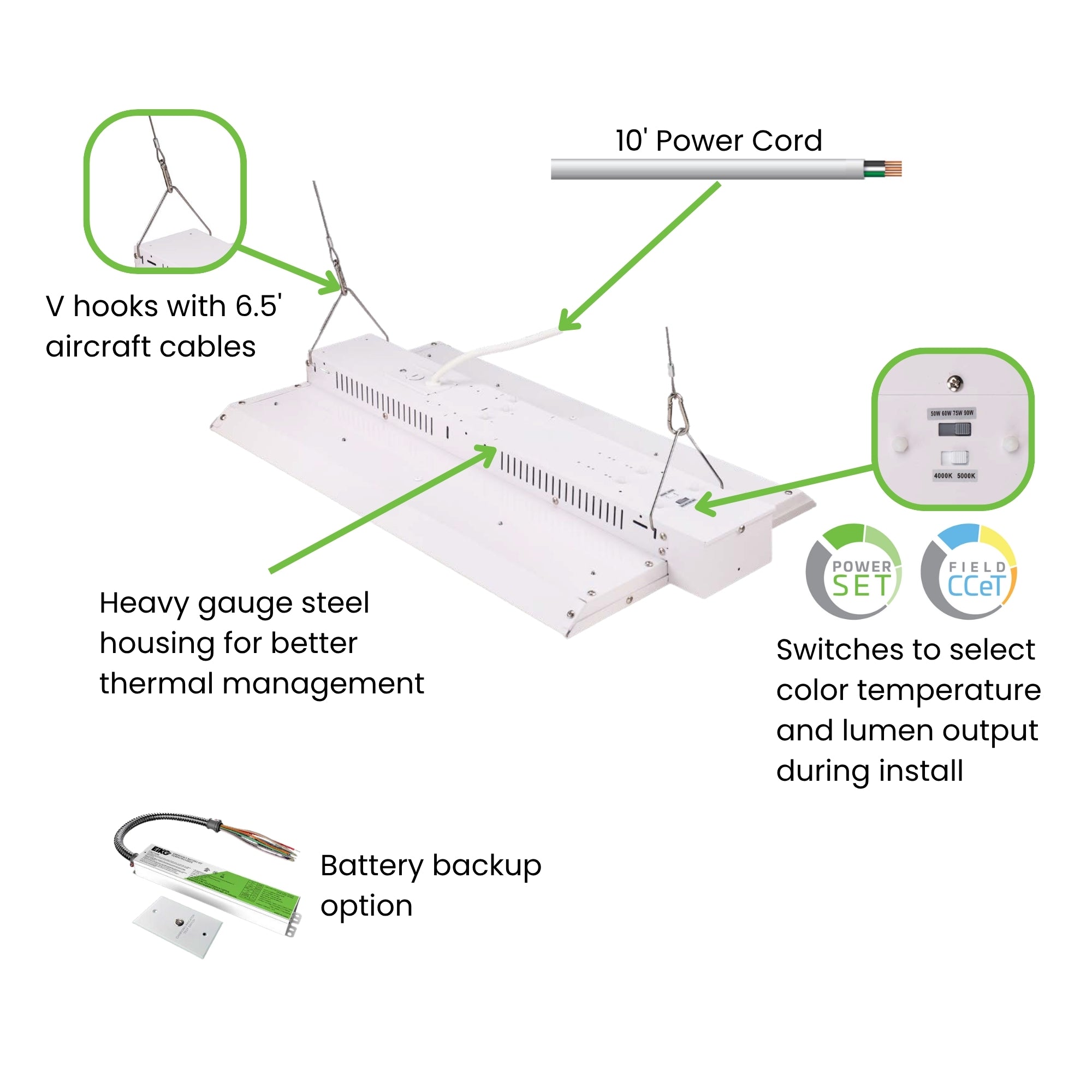

Includes V-hooks and 6.5' aircraft cable for standard pendant mounting. Optional mounting accessories (sold separately):
- V-Hook & Chain Kit: LH1-VCK (order code 13815)
- Pendant Mount Kit: LH1-PMK (order code 13816) — ⚠️ Not compatible with battery backup options on 90W, 160W, and 200W fixtures
- Threaded Rod & Surface Mount Kit: LH1-TRSMK (order code 13817)
- Wire Guard (sold separately): LHS1-WG-M — for 160–200W fixtures (order code 15363)
- Emergency Battery Bracket: LH1-ZBRK (order code 14383) — for mounting EiKO emergency battery packs directly to fixture
Recommended ceiling height: 15–20 ft at 90W; 18–25 ft at 130–160W. For ceilings above 25 ft, consider the LHS1-PS240.
Certifications & Rebates
UL Listed for damp locations. DLC 5.1 Premium Listed — qualifies for utility rebate programs in most U.S. states. Visit designlights.org to confirm available incentives with your local utility. RoHS Compliant. FCC Compliant.
Typical Applications

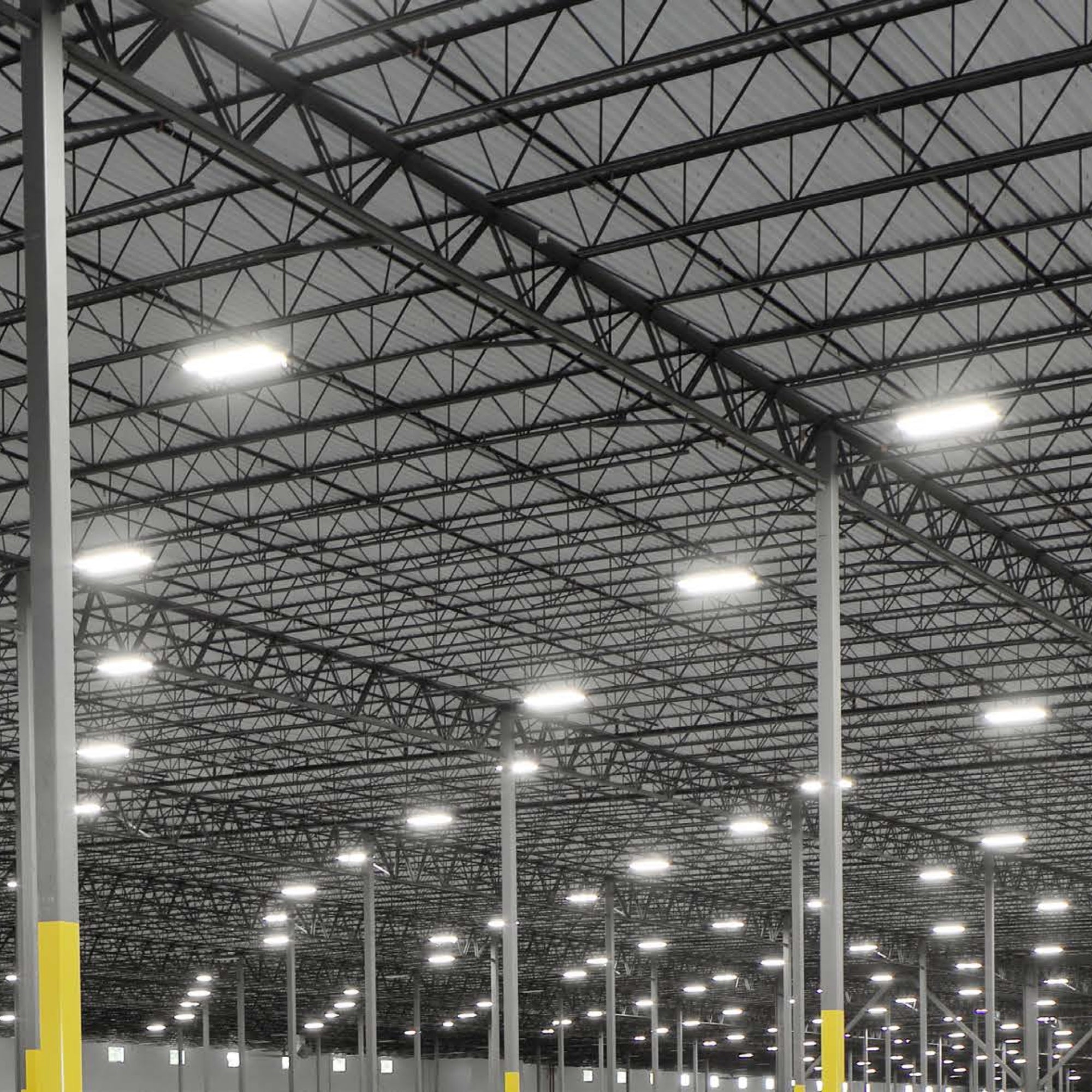

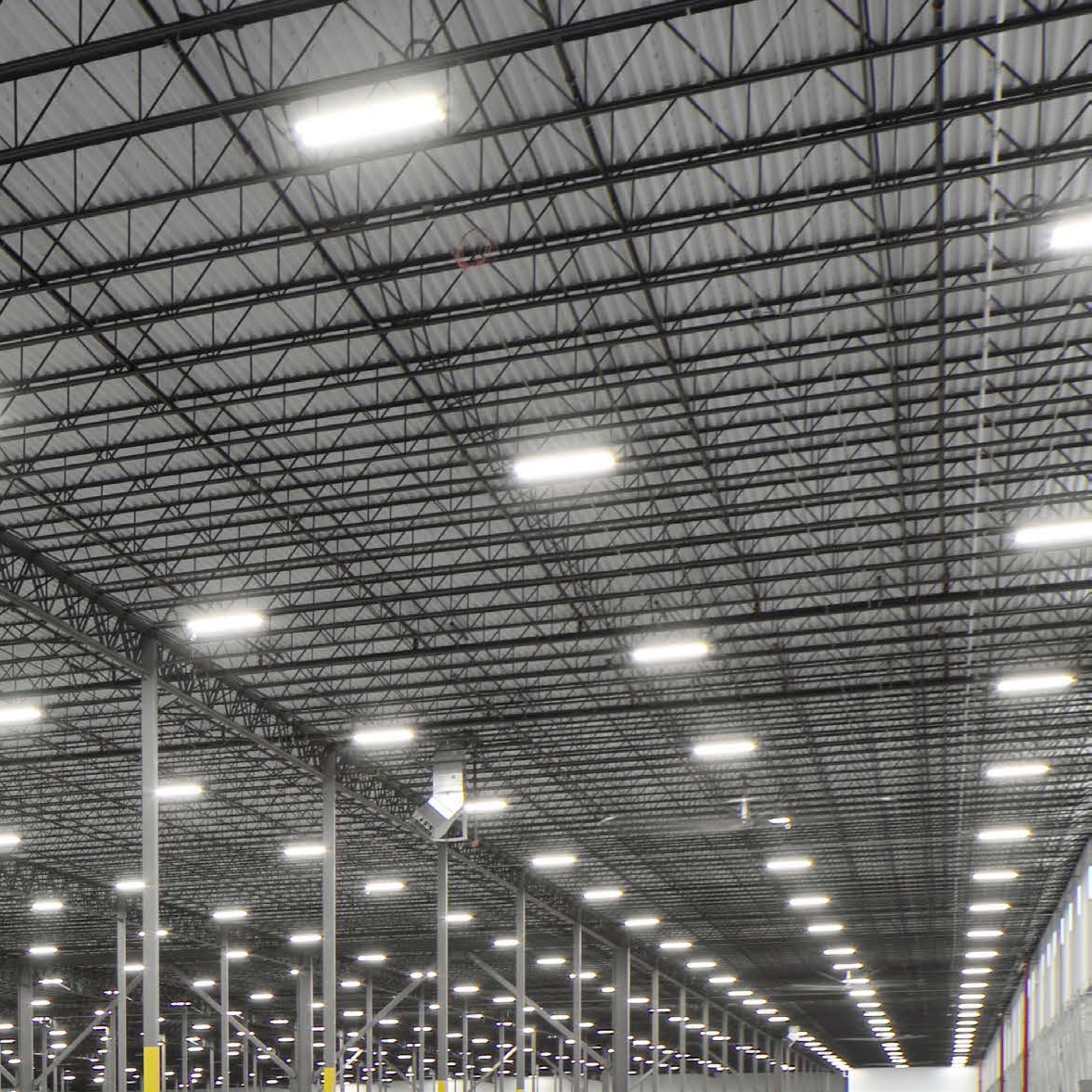

- Warehouses & Distribution Centers: 160W setting delivers 24,000 lm for 18–25 ft ceiling heights — ideal for mid-bay racking aisles
- Manufacturing & Assembly Areas: Selectable CCT and 0-10V dimming support task-specific lighting and energy management
- Gymnasiums & Athletic Facilities: High lumen output and CRI ≥80 provide even, high-quality light for sport and recreational spaces
- Cold Storage & Refrigerated Warehouses: -40°F cold-start rating supports freezer and refrigerated distribution applications
- Light Industrial & Flex Space: 90W low-wattage setting reduces energy load in partially occupied or lower-ceiling zones
- Municipal & Public Works Facilities: DLC Premium certification maximizes utility rebate eligibility to reduce project cost
What's Included
- EIKO LHS1-PS160-8FCCT-HDIM Linear LED High Bay fixture (1)
- V-Hooks (2)
- 6.5' aircraft cable
- 10' 18/3 600V white power cord
