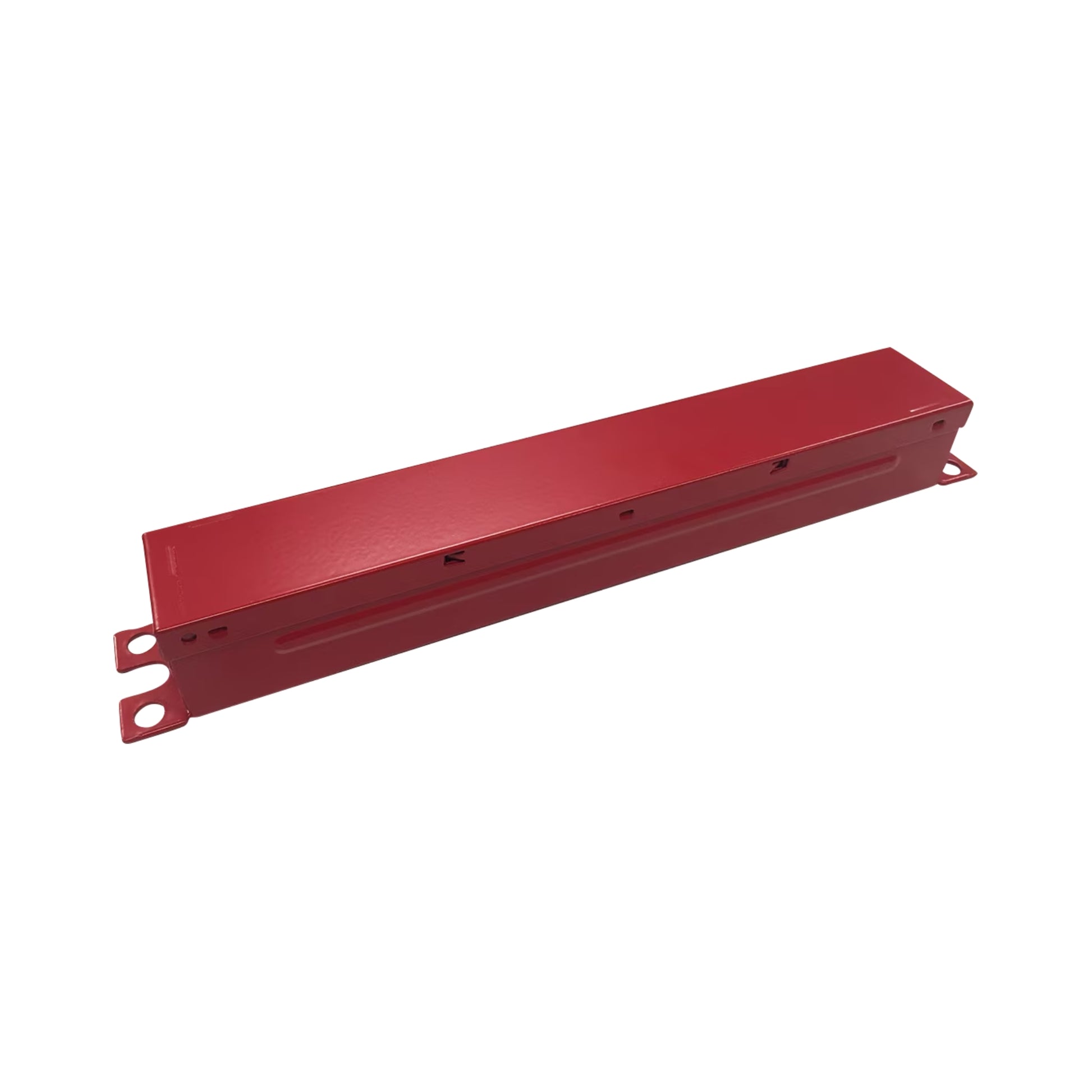

EiKO EMB-CP-5WBT-U 5W Emergency Battery Backup

Equip your commercial or industrial space with the reliable EiKO EMB-CP-5WBT-U, a dedicated 5W Emergency Battery Backup designed exclusively for LED bypass tubes. This robust unit ensures safety during power failures by running on a 120-277V input and delivering a reliable Constant Power output to keep critical illumination active. Built as a non-dimming bare module without an Integrated Junction Box, it does not hold an explicit Class 2 rating but seamlessly integrates into existing fixtures to provide 90 minutes of continuous emergency light.

Key Features

• Power: Provides a steady 5W of constant power output during emergency operation.
• Voltages: Operates efficiently across a universal 120-277V AC input range.
• Dimming: Functions as a non-dimming unit to maintain maximum brightness during outages.
• Minimum Load: No minimum load is specified for this emergency unit.
• Dimensions: Compact profile measuring 9.5 in. L x 1.3 in. W x 1.2 in. H for easy integration.
• Enclosure Type: Bare module design with an attached LED test switch for functional verification.
• IP Rating: UL Listed for Dry locations, making it suitable for conditioned indoor environments.
• Class 2: Not explicitly designated with a Class 2 rating by the manufacturer.
• Certifications: UL Listed, FCC Compliant, and meets CEC Title 20 efficiency standards.

Physical Design & Installation

Constructed with a durable metal enclosure designed for internal fixture mounting, this emergency driver is a bare module intended for use with compatible single and double-ended bypass tubes. It does not include an integrated junction box but features an accessible test button to facilitate regular compliance checks and maintenance.

Dimming & Controls

This specialized emergency battery backup is a non-dimming device engineered specifically to bypass standard controls during a power failure. Upon loss of normal power, it automatically switches to emergency mode, delivering a steady 5W of constant power to the connected bypass tubes without any minimum load requirements.

Performance & Build

Powered by a long-lasting Lithium-Ion battery, this emergency driver provides 90 minutes of dependable backup illumination and features a 24-hour recharge time. It incorporates essential safeguards including short-circuit and overpower protection, and is rated for operating temperatures between 32 degrees F and 122 degrees F in UL Dry locations.

Typical Applications

• Commercial office buildings
• Retail storefronts and supermarkets
• Educational facilities and classrooms
• Healthcare corridors and waiting areas
