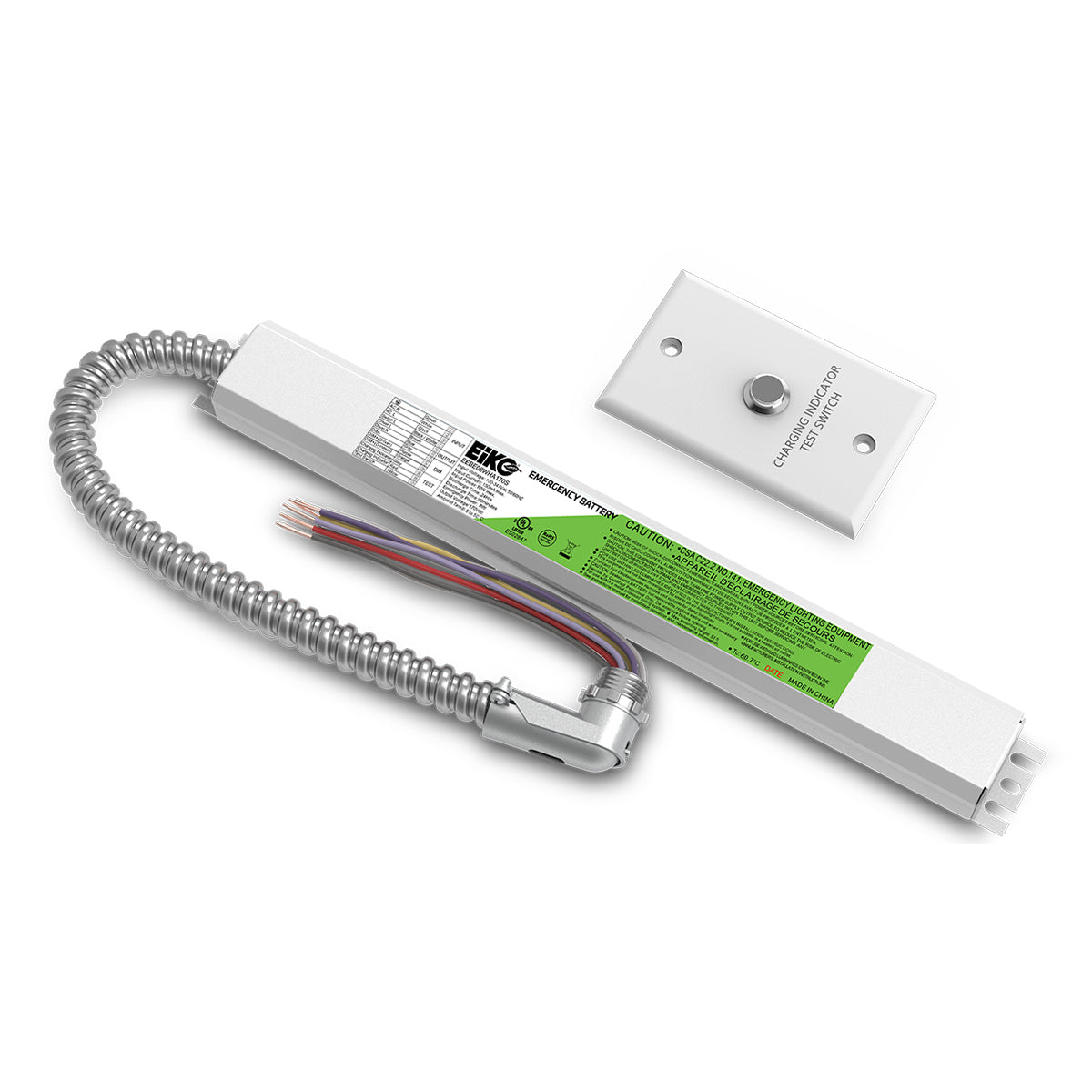

Eiko Emergency Drivers EIKO 11674 8W Emergency Battery Backup — 170V DC

The Eiko EIKO 11674 is an 8W Emergency Battery Backup designed to provide reliable power during emergency situations. With an output voltage of 170V DC, this unit ensures consistent lighting for up to 90 minutes. It operates on a wide input voltage range of 120-347V, making it versatile for various installations. This product is non-dimmable and features a robust metal enclosure, ideal for dry-rated environments.

Key Features

• Power Output: Provides 8 watts of emergency power for reliable lighting.
• Output Voltage: Consistent 170V DC output for emergency lighting needs.
• Input Voltage Range: Compatible with 120-347V, offering flexibility in installation.
• Non-Dimmable: Ensures constant power delivery without dimming capabilities.
• Dimensions: Measures 13.60 in. L x 1.54 in. W x 0.98 in. H, compact for easy installation.
• Enclosure Type: Durable metal construction suitable for dry locations.
• IP Rating: Includes an IP65 rated illuminated test button for remote testing.
• Class 2: Meets Class 2 safety standards for low voltage applications.
• Certifications: UL 924 classified for field installation, ensuring compliance.

Physical Design & Installation

The unit features a sturdy metal enclosure, designed for dry-rated environments, ensuring durability and safety.

Dimming & Controls

This emergency driver is non-dimmable, providing a constant power output during emergencies. It does not require a minimum load for operation.

Performance & Build

Equipped with short circuit, over-voltage, and thermal protection, this unit is UL 924 classified and meets IP65 standards for the test button.

Typical Applications

• Commercial buildings
• Industrial facilities
• Office spaces
• Public areas
