40W LED Emergency Driver, 170VDC Output, For UFO High Bays
Available in stock (100)
About this item
About this item
- Output Voltage: Provides a reliable 170V DC output for consistent emergency lighting.
- Dimming: Supports 0-10V dimming for versatile lighting control.
- Input Voltage: Operates efficiently with a wide input range of 120-347V AC.
- Enclosure: Features a robust aluminum housing with an IP65 rating for wet locations.
- Battery Backup: Ensures 90 minutes of emergency power with self-diagnostic testing capabilities.
We process payments securely and do not store credit card information.
Description
Description

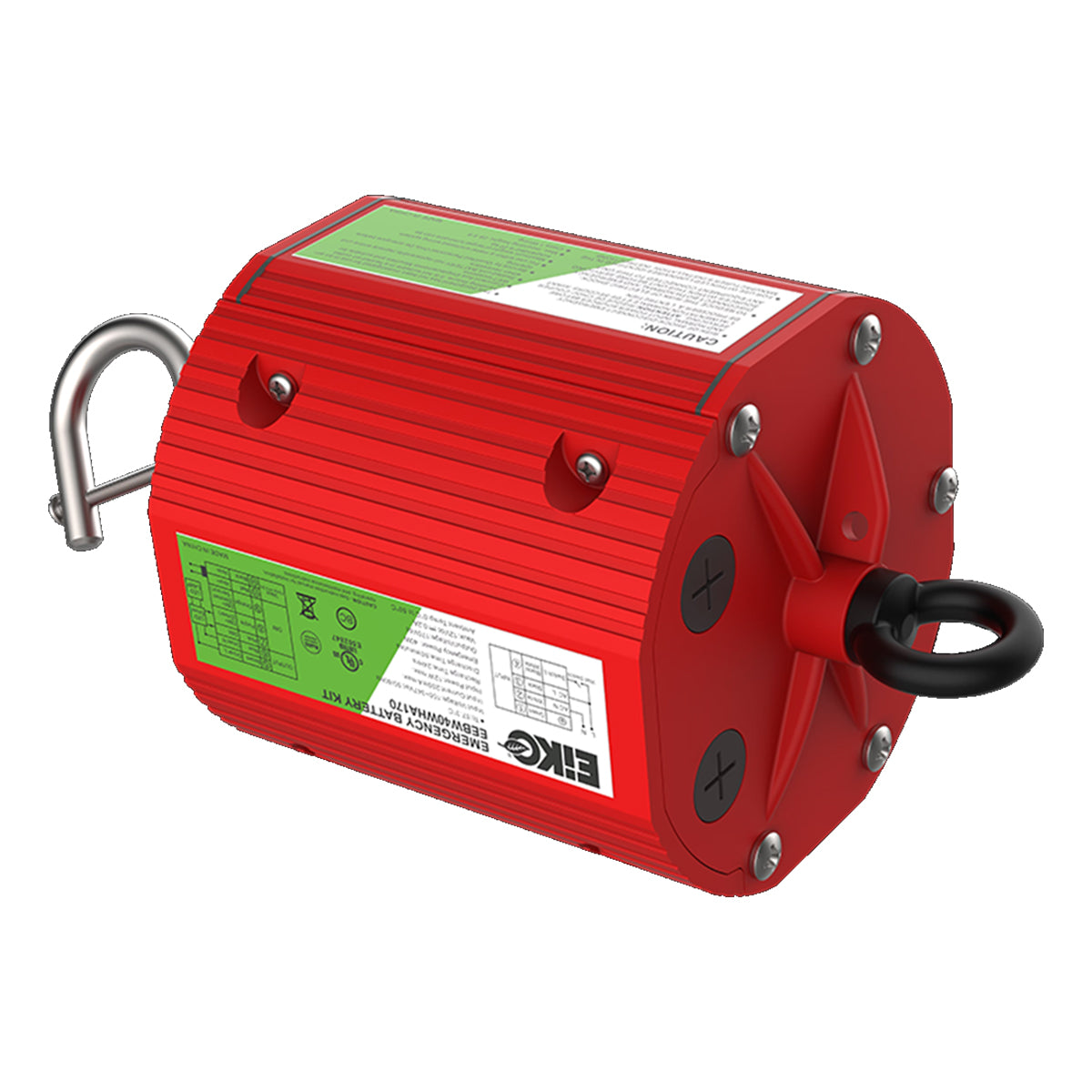

Eiko Emergency EEBW40WHA170 40W Emergency Driver — 170V DC
The Eiko EEBW40WHA170 is a 40W Emergency Driver designed to provide 170V DC output during power outages, ensuring uninterrupted lighting. This driver supports 0-10V dimming and operates within a wide input voltage range of 120-347V AC. It features a Constant Power design for consistent light output and is housed in a durable aluminum enclosure with an IP65 rating, making it suitable for wet locations. The integrated junction box simplifies installation, making it an ideal choice for high bay lighting applications.
Key Features
- Power Output: Delivers 40W of emergency power to ensure reliable lighting during outages.
- Output Voltage: Provides a stable 170V DC output for consistent performance.
- Dimming Capability: Compatible with 0-10V dimming systems for flexible lighting control.
- Input Voltage Range: Operates on 120-347V AC, accommodating various electrical systems.
- Minimum Load: Designed for fixtures up to 320W, ensuring broad compatibility.

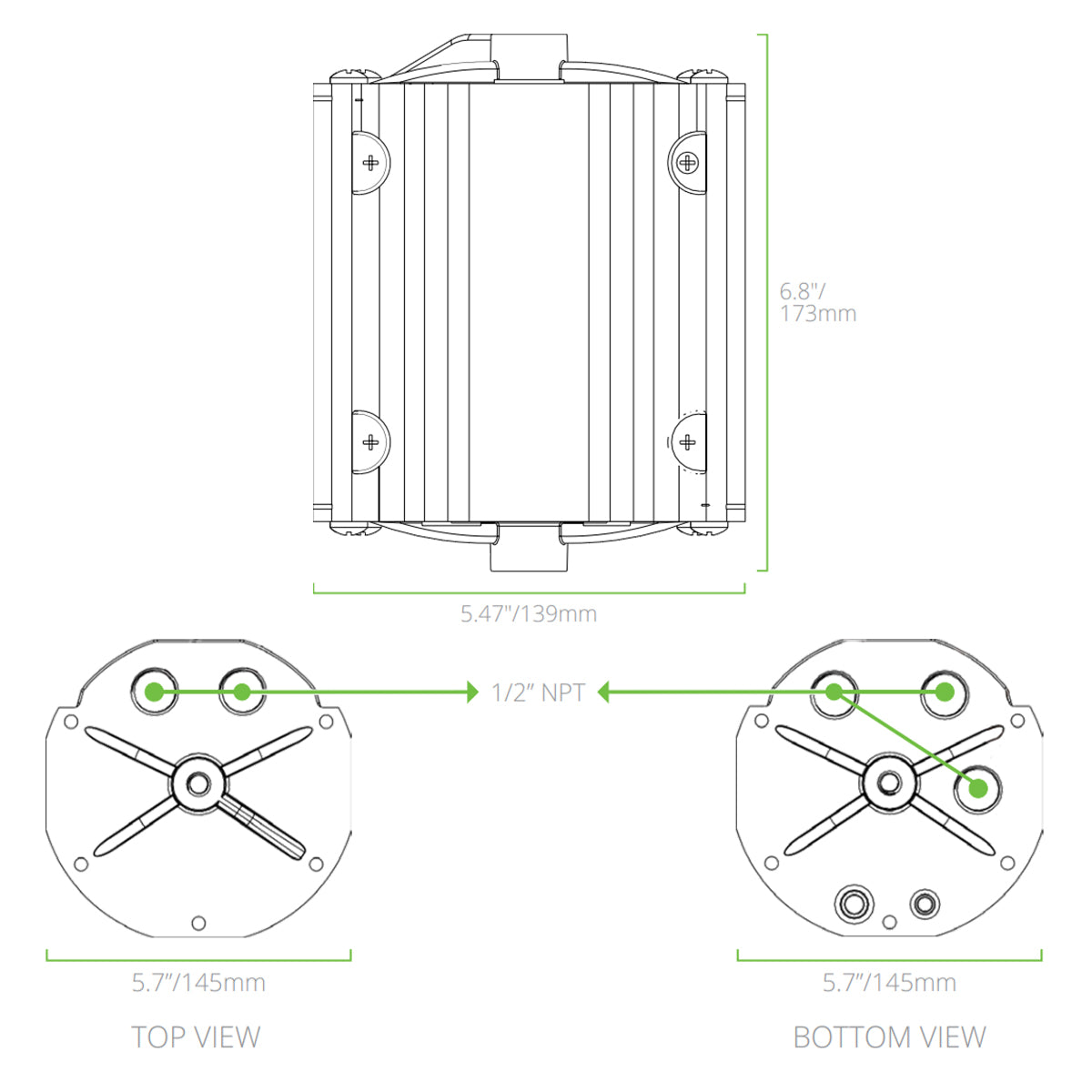

- Dimensions: Compact design measuring 5.47 in. L x 5.70 in. W x 6.80 in. H for easy integration.
- Enclosure Type: Constructed with a robust aluminum housing, featuring an IP65 rating for wet locations.
- IP Rating: IP65 rated, suitable for use in wet environments.
- Class 2 Compliance: Meets Class 2 standards for safe operation.
- Certifications: UL 924, CSA C22.2 NO.141, cULus Listed, FCC and RoHS Compliant.
Physical Design & Installation

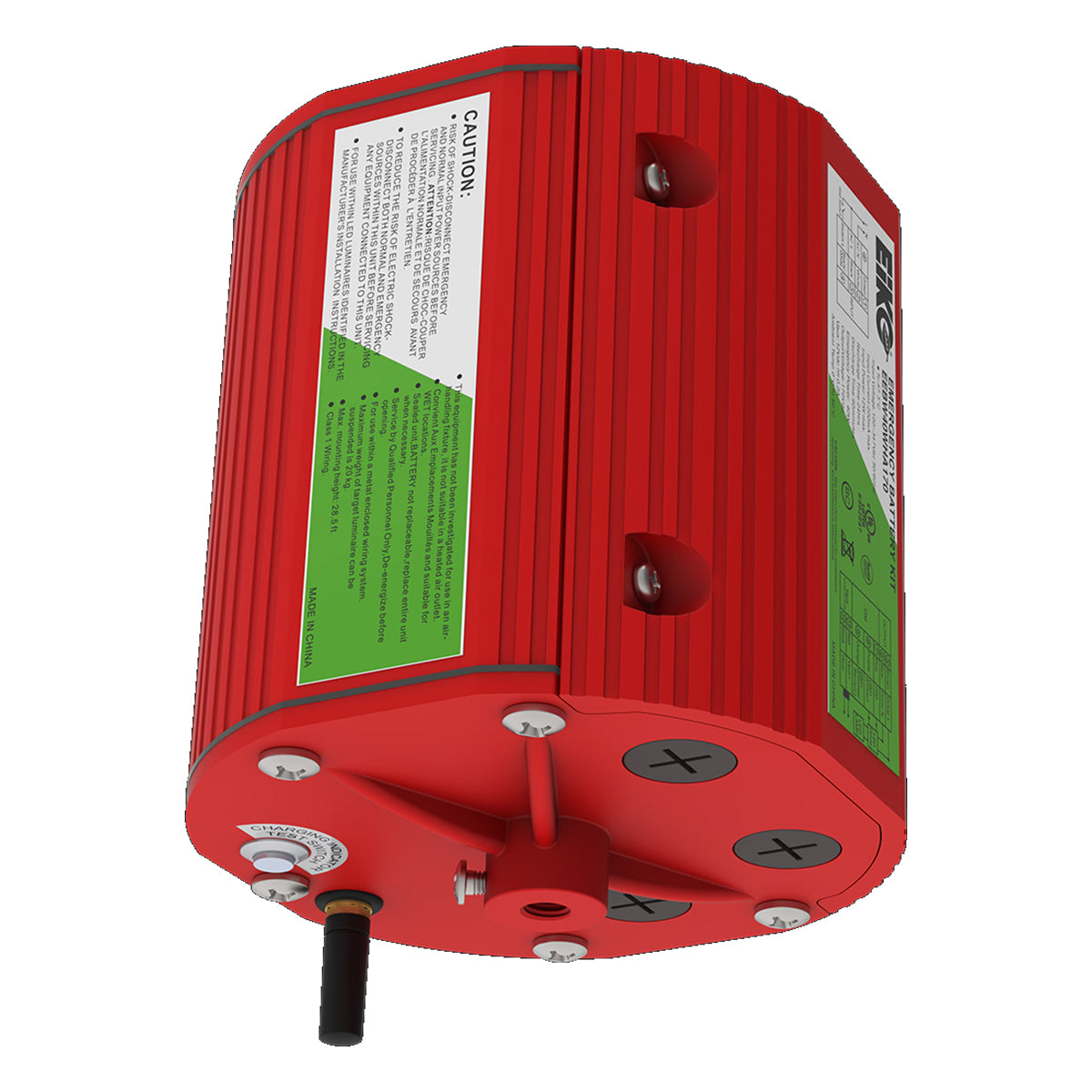

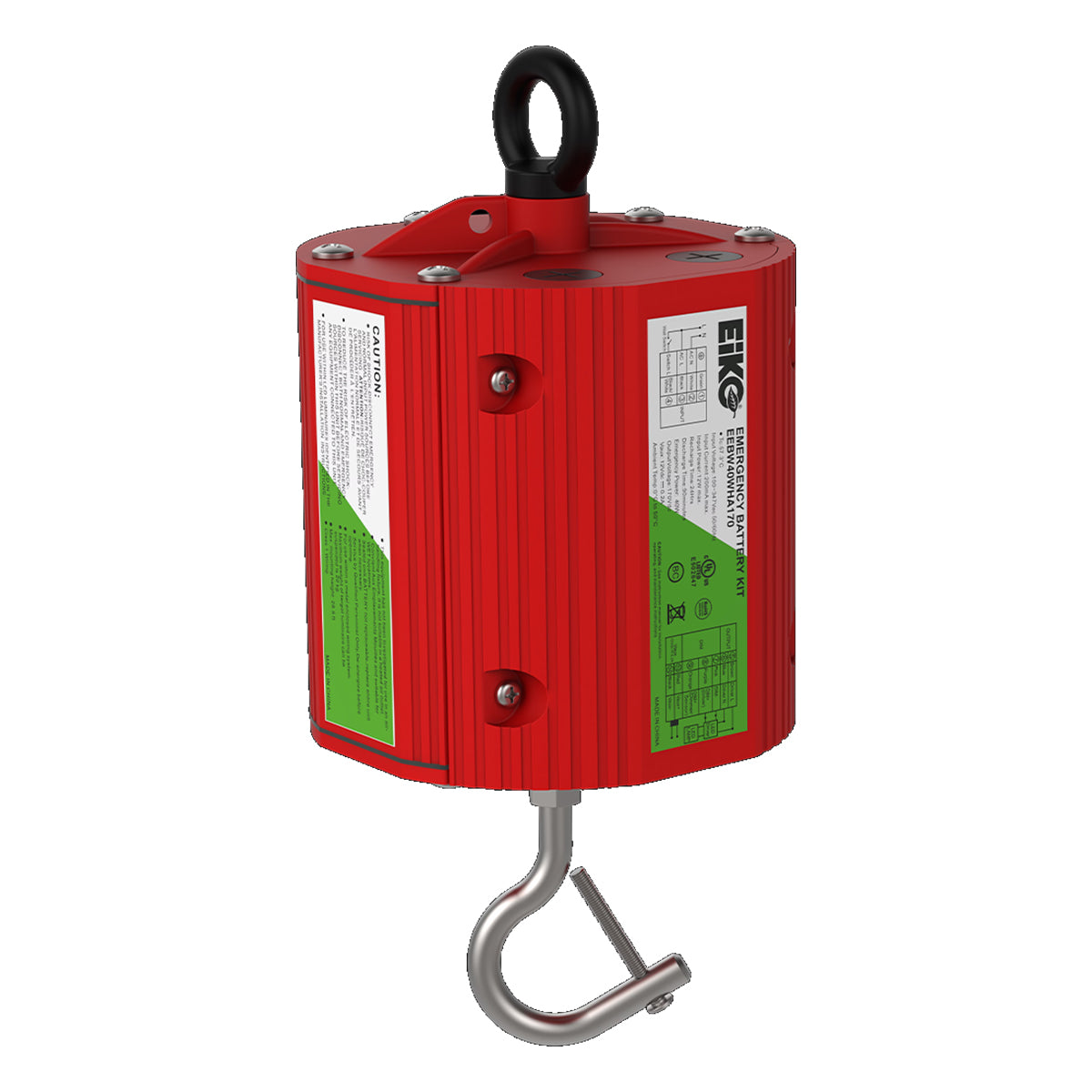

The aluminum housing with a red finish is designed for durability and includes an integrated junction box for streamlined installation. It comes with necessary accessories such as safety cables and cable glands for secure mounting.
Dimming & Controls
Supports 0-10V dimming, allowing for smooth control over lighting levels. The driver is designed to work with fixtures up to 320W, ensuring compatibility with a wide range of lighting systems.
Performance & Build
Equipped with short circuit, over-voltage, and thermal protection features. The driver is IP65 rated, ensuring it can withstand wet conditions and is compliant with Class 2 standards.
Typical Applications
- Warehouses
- Gyms
- Industrial Facilities
- Commercial Spaces
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming protocol does the EEBW40WHA170 support?
What dimming protocol does the EEBW40WHA170 support?
Is there a minimum load requirement for this emergency driver?
Is there a minimum load requirement for this emergency driver?
Does the EEBW40WHA170 include an integrated junction box?
Does the EEBW40WHA170 include an integrated junction box?
What input voltage range does this emergency driver support?
What input voltage range does this emergency driver support?
What is the IP rating of the EEBW40WHA170?
What is the IP rating of the EEBW40WHA170?
