EiKO BP2 Backlit Flat Panel TAA — 20–50W Selectable — 3500K/4000K/5000K
The EiKO BP2 Backlit Flat Panel TAA is a low-profile LED flat panel available in three sizes — 1×4, 2×2, and 2×4 — each with field-selectable wattage via PowerSet and field-selectable color temperature via FieldCCeT. The backlit design delivers direct light without a light guide plate, using a non-yellowing PMMA diffuse lens for consistent, uniform surface illumination. Peak efficacy is 125 lm/W; maximum output is 6,250 lumens (2×4 at 50W). The fixture supports 0–10V dim-to-off, operates on 120–277V, and carries TAA Compliant and DLC Premium designations. Backed by a 5-year limited warranty. All sizes ship at the highest wattage setting and 4000K default. Select your size above for size-specific output and accessories.
Key Features
- PowerSet — Selectable Wattage: Field-selectable wattage at the fixture — 1×4 and 2×2: 40/30/20W; 2×4: 50/40/30W. Ships at highest wattage. No rewiring required.
- FieldCCeT — Selectable CCT: Field-selectable color temperature — 3500K, 4000K, and 5000K. Ships at 4000K default. No tools required.
- Output Range: Up to 6,250 lumens (2×4 at 50W). 1×4 and 2×2 deliver up to 5,000 lm at 40W.
- Peak Efficacy: Up to 125 lm/W across all sizes.
- CRI: >80. Beam angle: 110°.
- Lens & Optics: Backlit design with non-yellowing PMMA diffuse lens — direct light without a light guide plate; optimal uniformity, no yellowing over product lifetime.
- Dimming: 0–10V continuous dimming, dim-to-off. Compatible dimmer required, sold separately.
- Voltage: 120–277V. Surge protection: 1kV. THD: <20%. Power factor: >0.9.
- Operating Temperature: −4°F to 113°F (−20°C to 45°C).
- Location Rating: IC Rated — Damp Location Rated.
- Certifications: UL Listed (US & Canada) — TAA Compliant — DLC Premium — RoHS — FCC — ICES-005 Compliant.
- Rated Life: Estimated L70 100,000 hours.
- Warranty: 5-year limited warranty.
- NLC Compatible: Compatible with EiKO Networked Lighting Controls (NLC) — BLE-based sensor and control ecosystem via Silvair App; field-installed, sold separately.
- Emergency Backup Ready: Compatible with EiKO external emergency battery backup units; field-installed, sold separately.
Performance & Light Output
Lumen output and efficacy by size and wattage setting. All sizes: CRI >80, 125 lm/W peak efficacy, 110° beam angle.
| Size | Wattage | 3500K — Lumens | 4000K — Lumens | 5000K — Lumens |
|---|---|---|---|---|
|

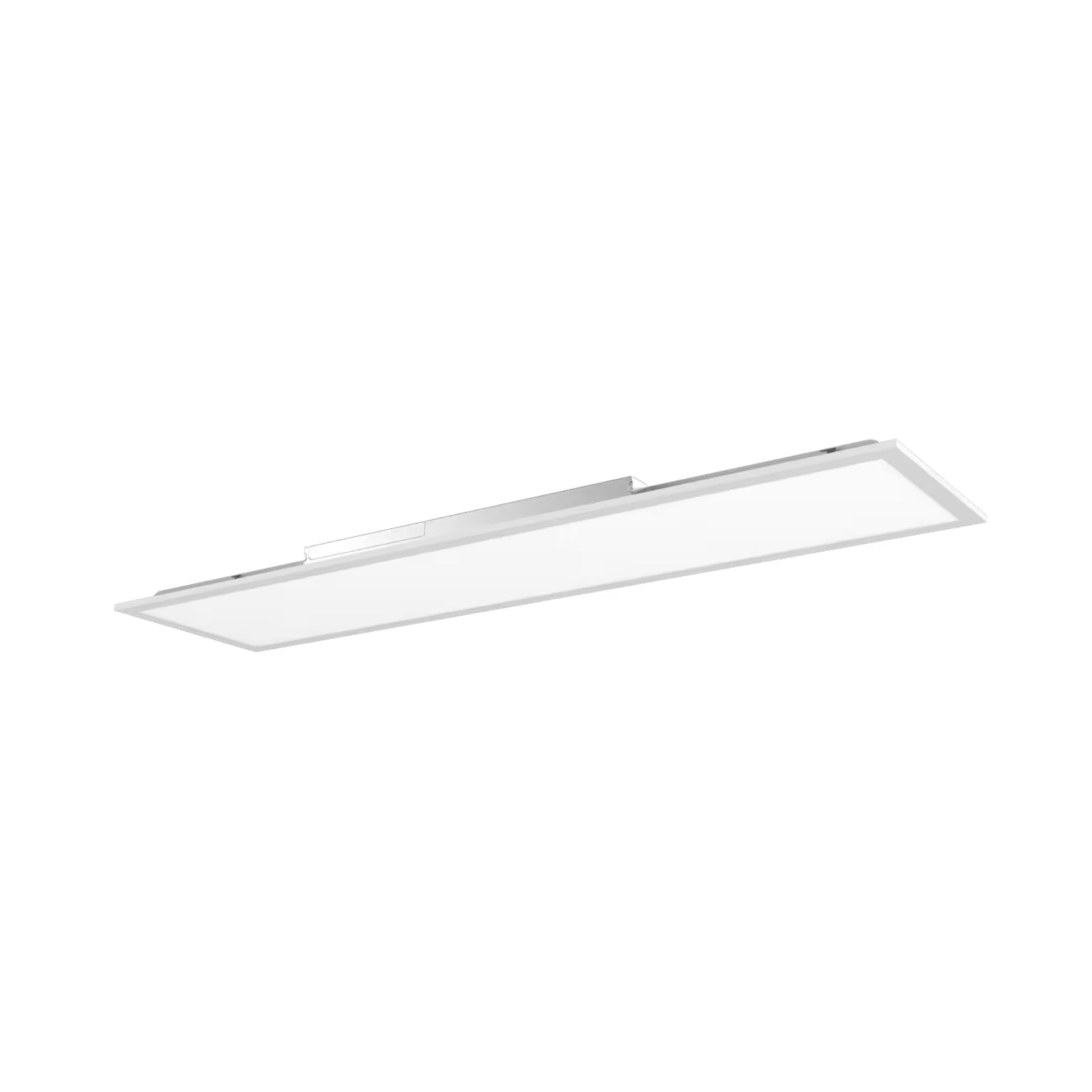

1×4 BP2-14-PS40P-8FCCT-UDIM |
40W | 5,000 lm | ||
| 30W | 3,750 lm | |||
| 20W | 2,500 lm | |||
|

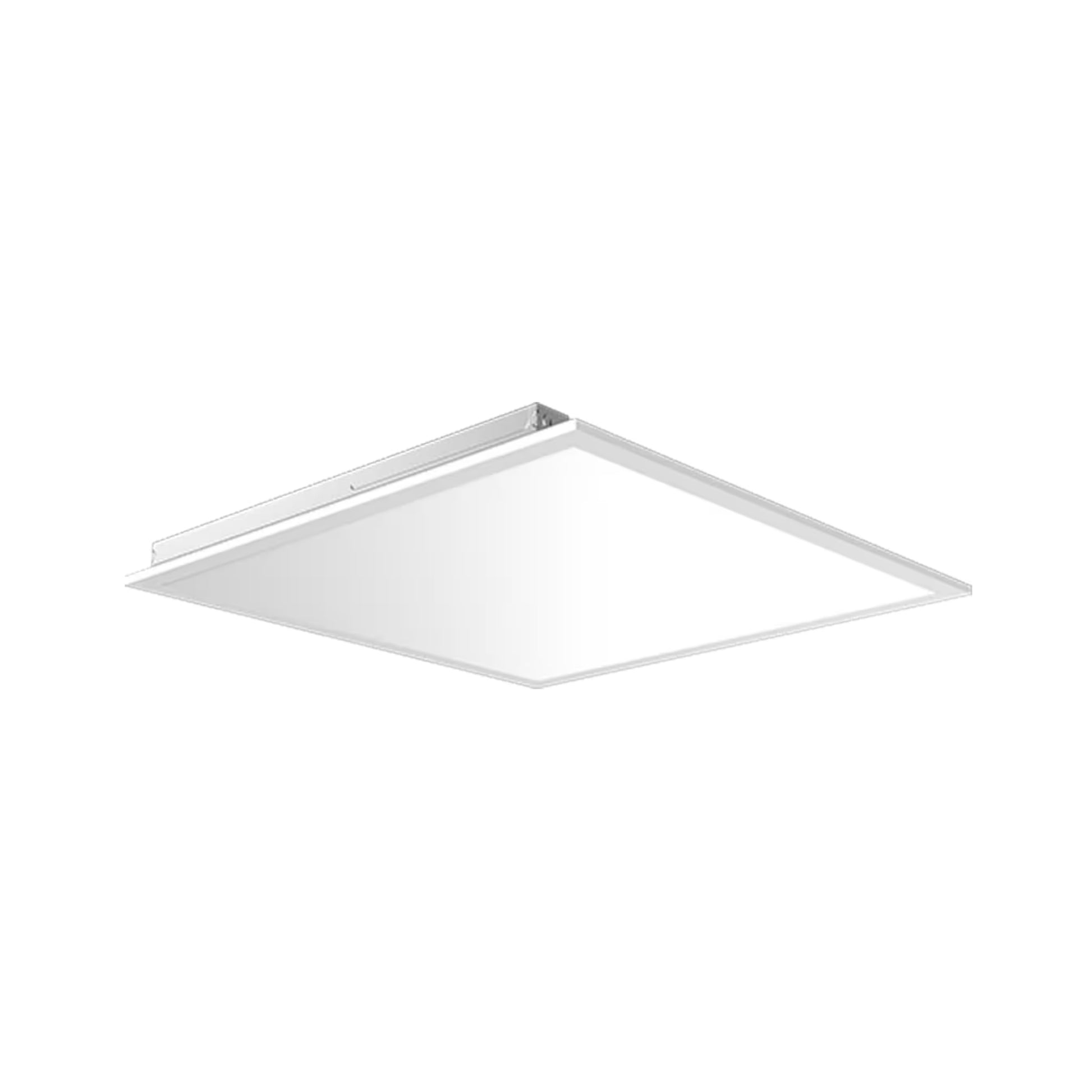

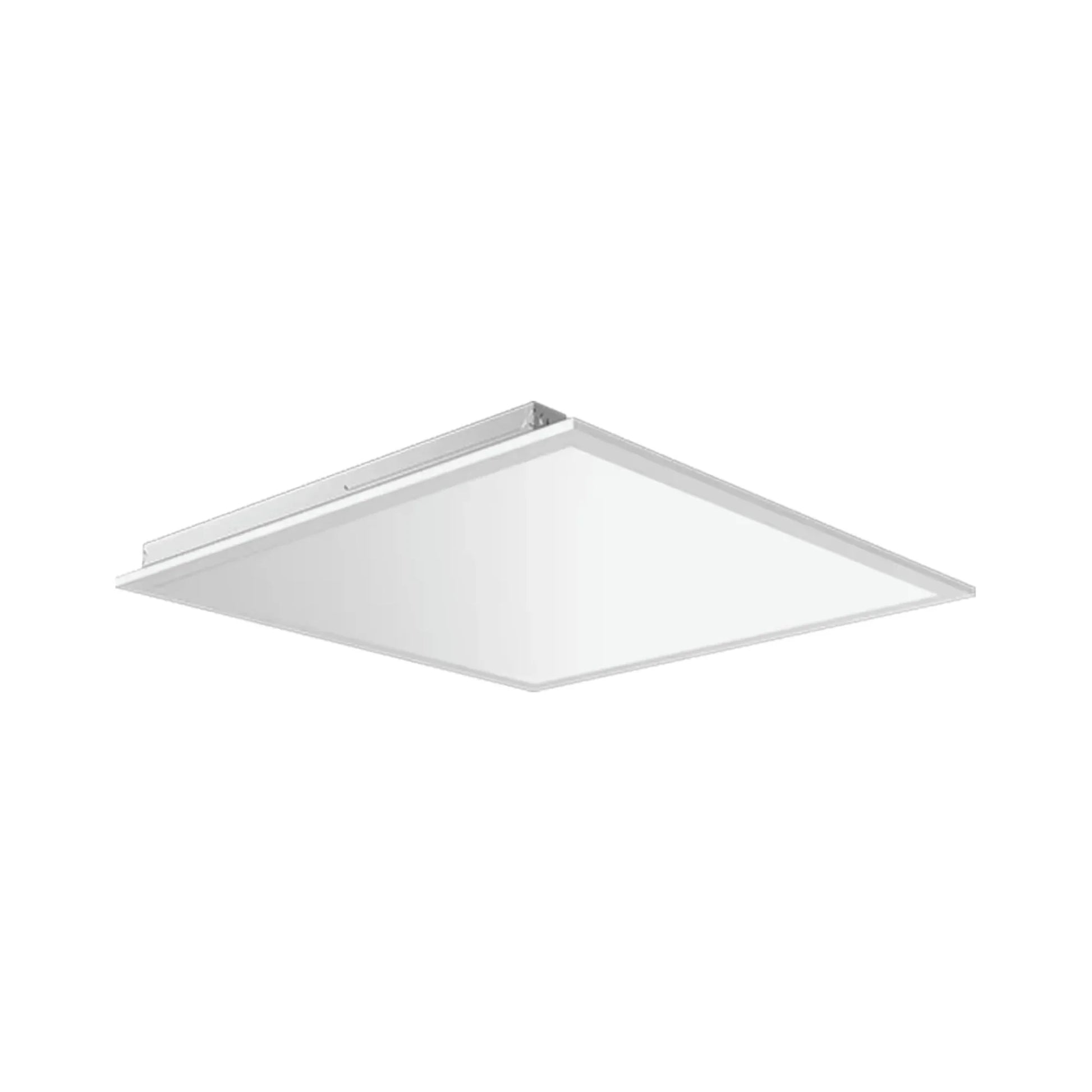

2×2 BP2-22-PS40P-8FCCT-UDIM |
40W | 5,000 lm | ||
| 30W | 3,750 lm | |||
| 20W | 2,500 lm | |||
|
2×4 BP2-24-PS50P-8FCCT-UDIM |
50W | 6,250 lm | ||
| 40W | 5,000 lm | |||
| 30W | 3,750 lm | |||
Note: Lumen output is consistent across 3500K, 4000K, and 5000K CCT settings per spec sheet. All sizes ship at the highest wattage setting and 4000K CCT default. Power factor: >0.9. THD: <20%. Estimated L70: 100,000 hours.
Networked Lighting Controls (NLC) — Field Installed
The BP2 is compatible with EiKO’s BLE-based Networked Lighting Controls ecosystem, configured via the Silvair App. Available field-installed controls and sensors (sold separately):
Sensor & Controller:
- PSC-WCM-450-BLE-SR — BLE TruBlu Wireless Control Module, 120–277V, 16A Relay, 0–10V, 12V AUX 300mA, 100ft range
- SENA-WCPA — BLE PIR Motion sensor, 12–24V, Ceiling Mount, 0–10V, Daylight Harvesting, 12ft, OD3.3″ White Trim (ID2.7″). Requires PSC-WCM-450-BLE-SR power supply.
Wall & Wireless Controllers:
- PSC-DM-WS-100-BLE-SR — BLE TruBlu 120–277V Single Gang Single Button Wall Controller, White
- PSC-DM-I-WS-100-BLE-SR — BLE TruBlu PIR Occupancy/Vacancy Sensor, 120–277V, Single Gang Wall Controller, White
- PSC-DM-WS-400-BLE-SR — BLE TruBlu 4-Button Wall Controller, 120–277V, Single Gang, White
- ESRPB-W-EO — BLE Easyfit by EnOcean wireless self-powered kinetic Single rocker pad, White
- EDRPB-W-EO — BLE Easyfit by EnOcean wireless self-powered kinetic Double rocker pad, White
- SGW-101 — BLE Silvair Gateway SGW-101 by Rigado (Cascade-500); 5-year Silvair warranty and tech support
Electrical
Input voltage: 120–277V. Dimming: 0–10V, dim-to-off. Power factor: >0.9. THD: <20%. Surge protection: 1kV. Operating temperature: −4°F to 113°F (−20°C to 45°C). Mercury-free.
Construction
Housing: White powder-coated aluminum frame. Low-profile depth: 1.41″ / 36mm.
Lens: Non-yellowing PMMA diffuse lens — backlit design delivers direct, uniform light without a light guide plate. No risk of yellowing over product lifetime.
Finish: White.
Location Rating: IC Rated — Damp Location Rated.
Dimensions & Weight:
- 1×4: 47.7″ × 11.9″ × 1.41″ | 4.3 lbs / 1.9 kg
- 2×2: 23.7″ × 23.7″ × 1.41″ | 4.1 lbs / 1.8 kg
- 2×4: 47.7″ × 23.7″ × 1.41″ | 8.0 lbs / 3.6 kg
Installation & Mounting
Standard Mounting: Recessed installation into standard T-grid ceiling systems. IC Rated for installation in insulated ceilings.
Optional Mounting Accessories (Sold Separately, size-specific):
- FP1-SMK-14 — FP1 Surface Mount Kit for 1×4 Flat Panels and Troffers
- FP1-SMK-22 — FP1 Surface Mount Kit for 2×2 Flat Panels and Troffers
- FP1-SMK-24 — FP1 Surface Mount Kit for 2×4 Flat Panels and Troffers
- FP1-RMK-14 — FP1 Recessed Mount Kit for 1×4 Flat Panels and Troffers
- FP1-RMK-22 — FP1 Recessed Mount Kit for 2×2 Flat Panels and Troffers
- FP1-RMK-24 — FP1 Recessed Mount Kit for 2×4 Flat Panels and Troffers
Optional Emergency Battery Backup (Sold Separately, field install only):
- EEBE08WHA170S — EiKO External Emergency Battery 8W, 120–347V, 170VDC Single Flex-Conduit, CEC Compliant
- EEBE18WHA170S — EiKO External Emergency Battery 18W, 100–347V, 170VDC Single Flex-Conduit, CEC Compliant
- EEBE-FTB — EEBE Flat Test Button and Indicator for Panel Light and Downlight (optional)
Certifications & Rebates
- UL Listed — US & Canada
- TAA Compliant — eligible for U.S. government and GSA procurement
- DLC Premium Qualified — qualifies for the highest tier of utility rebate programs. Visit designlights.org and search the catalog number for your size to verify rebate eligibility. DLC IDs are size-specific (Premium and Low Bay tiers available per size).
- RoHS Compliant
- FCC Compliant
- ICES-005 Compliant
Typical Applications
- Corporate offices and conference rooms — PowerSet wattage and FieldCCeT color tuning allow on-site adjustment without re-ordering across all three sizes
- Government and institutional facilities — TAA Compliant for U.S. government and GSA procurement; DLC Premium qualification maximizes utility rebate returns
- Healthcare environments — IC and damp rated with PMMA lens providing consistent, even illumination suited to clinical and exam-room applications
- Retail and showroom spaces — backlit panel design delivers uniform, shadow-free illumination; 2×4 delivers up to 6,250 lm for large-format ceiling grids
- Educational facilities — FieldCCeT supports varied classroom lighting needs; 120–277V covers standard U.S. electrical systems
- General purpose and fluorescent retrofit — replaces 2×32W 4ft T8 (1×4), 2×17W 2ft T8 (2×2), or 4×32W 4ft T8 (2×4) with selectable wattage and CCT
What’s Included
- EiKO BP2 LED backlit flat panel fixture — size per selection — White
