EiKO BP2-24-PS50P-8FCCT-UDIM Backlit Flat Panel TAA — 2×4 — 50/40/30W Selectable — 3500K/4000K/5000K — White

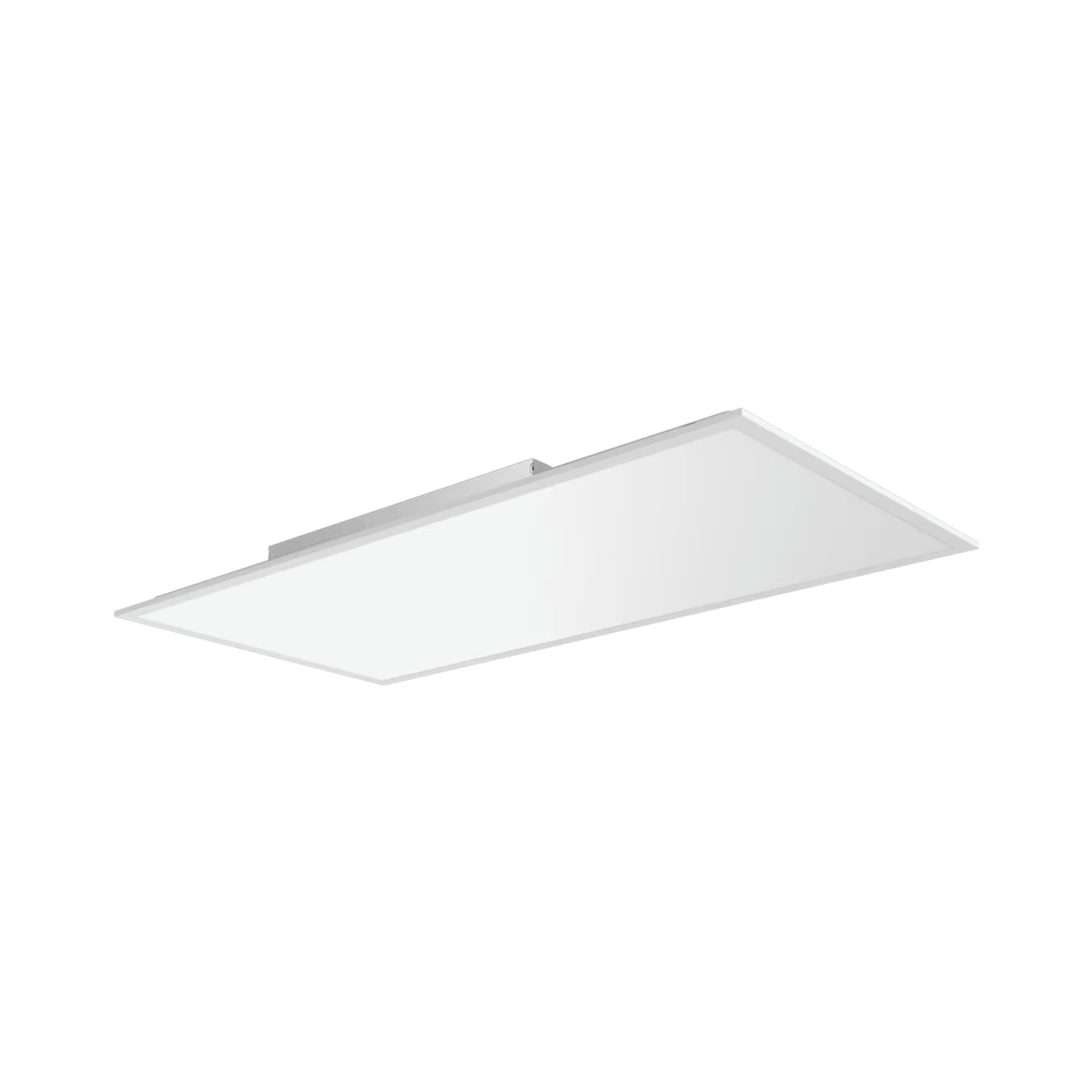

The EiKO BP2-24-PS50P-8FCCT-UDIM is a 2×4 LED backlit flat panel with field-selectable wattage via PowerSet and field-selectable color temperature via FieldCCeT. Wattage is selectable between 50W, 40W, and 30W; color temperature is selectable between 3500K, 4000K, and 5000K. Maximum output is 6,250 lumens at 50W with 125 lm/W peak efficacy. The fixture supports 0–10V dim-to-off, operates on 120–277V, is IC Rated and Damp Location Rated, and is backed by a 5-year limited warranty. TAA Compliant and DLC Premium Qualified. Ships at 50W and 4000K default.

Key Features

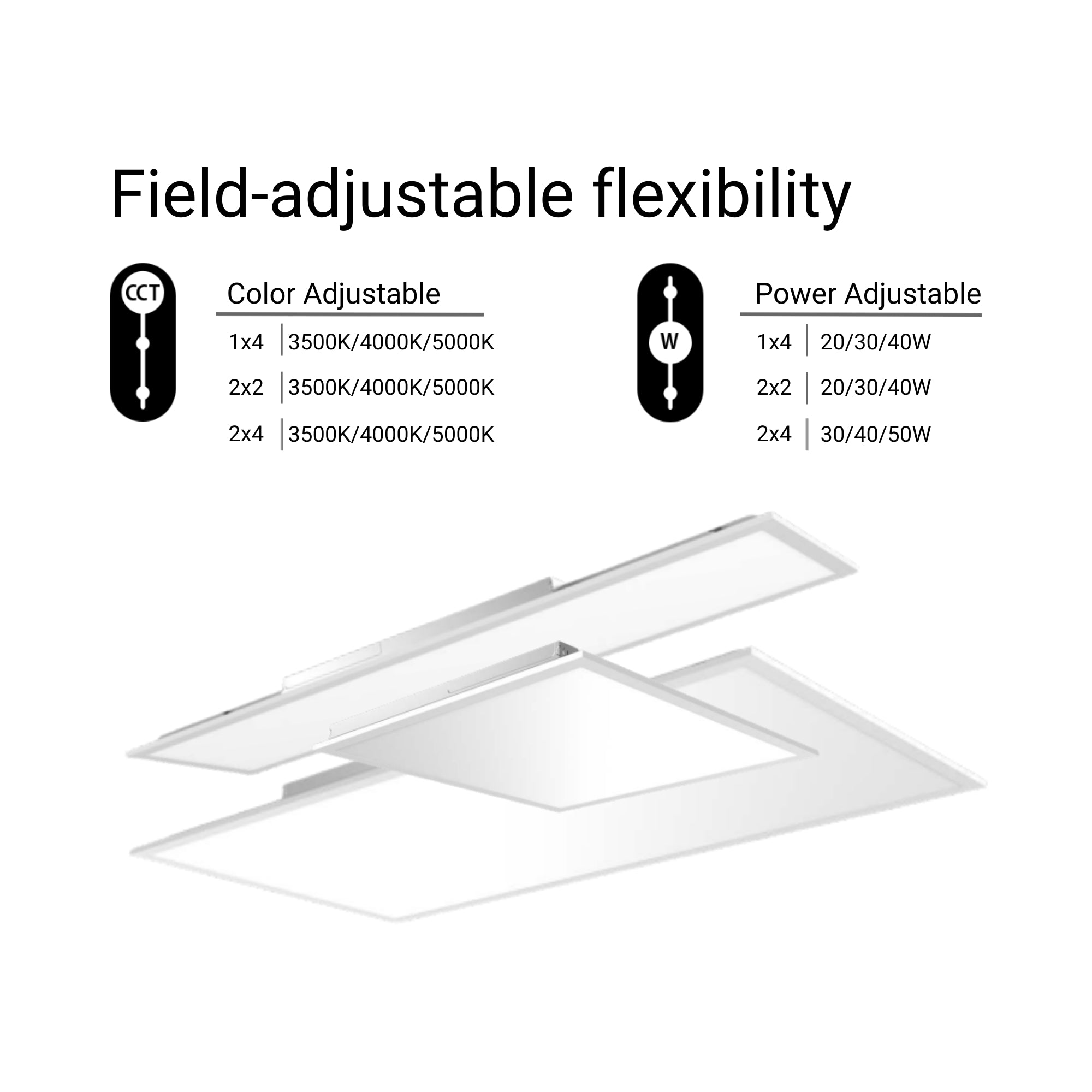

• PowerSet — Selectable Wattage: Field-selectable between 50W, 40W, and 30W at the fixture. Ships at 50W. No rewiring required.
• Wattage Equivalency: Replaces 4×32W 4ft T8 fluorescent systems with significant energy savings across all three wattage settings.
• Maximum Lumen Output: 6,250 lumens at 50W.
• Peak Efficacy: 125 lm/W.
• CRI: >80. Beam angle: 110°.
• FieldCCeT — Selectable CCT: Field-selectable between 3500K, 4000K, and 5000K at the fixture. Ships at 4000K default. No tools required.
• Lens & Optics: Backlit design with non-yellowing PMMA diffuse lens — direct light without a light guide plate; optimal uniformity, no risk of yellowing over product lifetime.
• Dimming: 0–10V continuous dimming, dim-to-off. Compatible dimmer required, sold separately.
• Voltage: 120–277V universal input. Surge protection: 1kV. THD: <20%. Power factor: >0.9.
• Location Rating: IC Rated — Damp Location Rated.

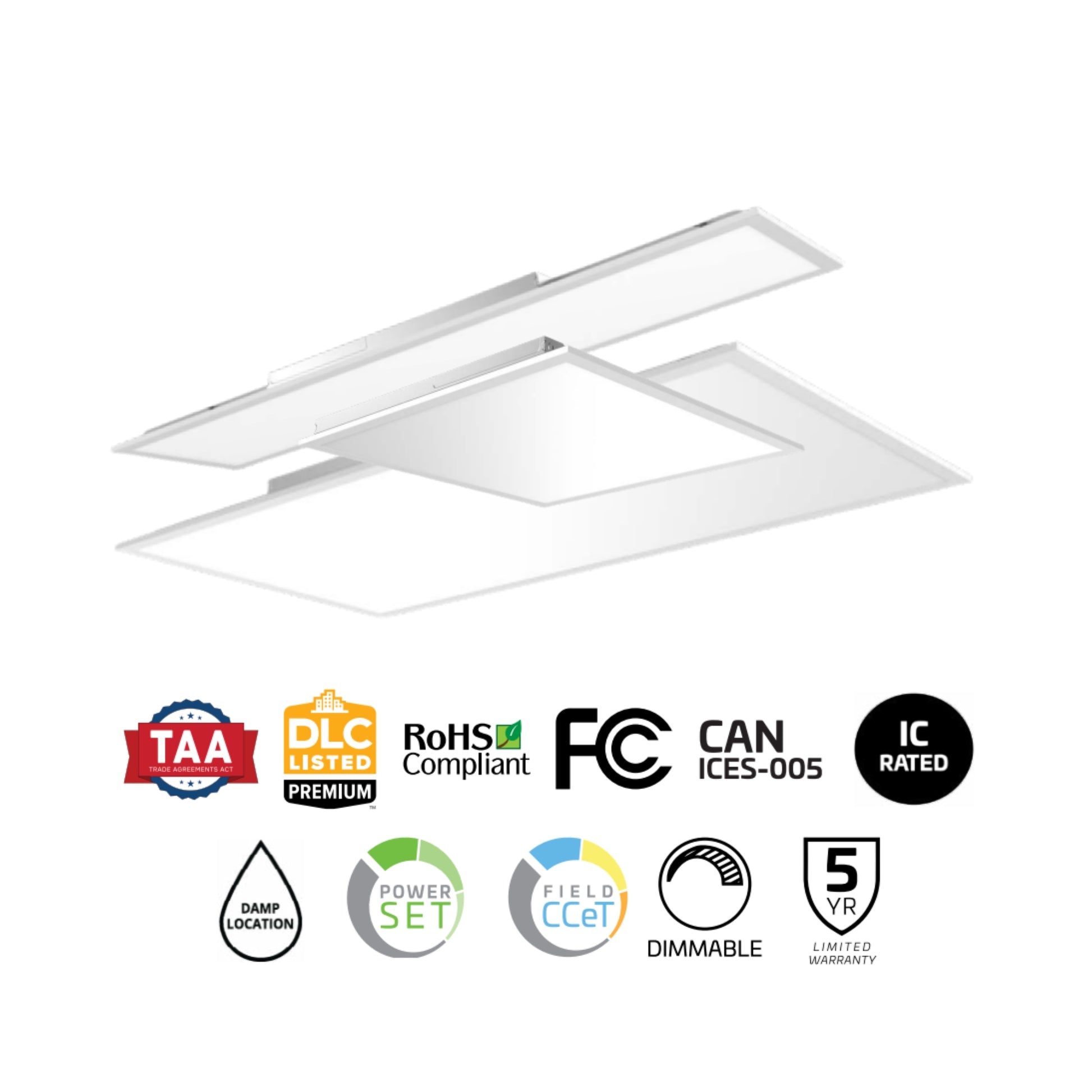

• Certifications: UL Listed (US & Canada) — TAA Compliant — DLC Premium — RoHS — FCC — ICES-005 Compliant.
• Rated Life: Estimated L70 100,000 hours.
• Warranty: 5-year limited warranty.
• NLC Compatible: Compatible with EiKO Networked Lighting Controls (NLC) — BLE-based ecosystem via Silvair App; field-installed, sold separately.
• Emergency Backup Ready: Compatible with EiKO external emergency battery backup units; field-installed, sold separately.

Performance & Light Output

Lumen output by wattage setting. Lumen output is consistent across 3500K, 4000K, and 5000K CCT settings per spec sheet.

CRI: >80. Beam angle: 110°. Power factor: >0.9. THD: <20%. Estimated L70: 100,000 hours.

Smart & Control Features

The BP2-24 supports 0–10V continuous dimming, dim-to-off. It is compatible with EiKO’s BLE-based Networked Lighting Controls (NLC) ecosystem, configured via the Silvair App. All controls are field-installed and sold separately.

Sensor & Controller:

• PSC-WCM-450-BLE-SR — BLE TruBlu Wireless Control Module, 120–277V, 16A Relay, 0–10V, 12V AUX 300mA, 100ft range
• SENA-WCPA — BLE PIR Motion sensor, 12–24V, Ceiling Mount, 0–10V, Daylight Harvesting, 12ft, OD3.3″. Requires PSC-WCM-450-BLE-SR power supply.

Wall & Wireless Controllers:

• PSC-DM-WS-100-BLE-SR — BLE TruBlu Single Gang Single Button Wall Controller, 120–277V, White
• PSC-DM-I-WS-100-BLE-SR — BLE TruBlu PIR Occupancy/Vacancy Sensor Wall Controller, 120–277V, Single Gang, White
• PSC-DM-WS-400-BLE-SR — BLE TruBlu 4-Button Wall Controller, 120–277V, Single Gang, White
• ESRPB-W-EO — BLE Easyfit by EnOcean wireless self-powered kinetic Single rocker pad, White
• EDRPB-W-EO — BLE Easyfit by EnOcean wireless self-powered kinetic Double rocker pad, White
• SGW-101 — BLE Silvair Gateway by Rigado (Cascade-500); 5-year Silvair warranty

Electrical

Input voltage: 120–277V. Dimming: 0–10V, dim-to-off. Power factor: >0.9. THD: <20%. Surge protection: 1kV. Operating temperature: −4°F to 113°F (−20°C to 45°C). Mercury-free.

Construction

Housing: White powder-coated aluminum frame. Low-profile depth: 1.41″ / 36mm.

Lens: Non-yellowing PMMA diffuse lens — backlit design delivers direct, uniform light without a light guide plate. No risk of yellowing over product lifetime.

Finish: White.

Environmental & Safety: IC Rated — Damp Location Rated.

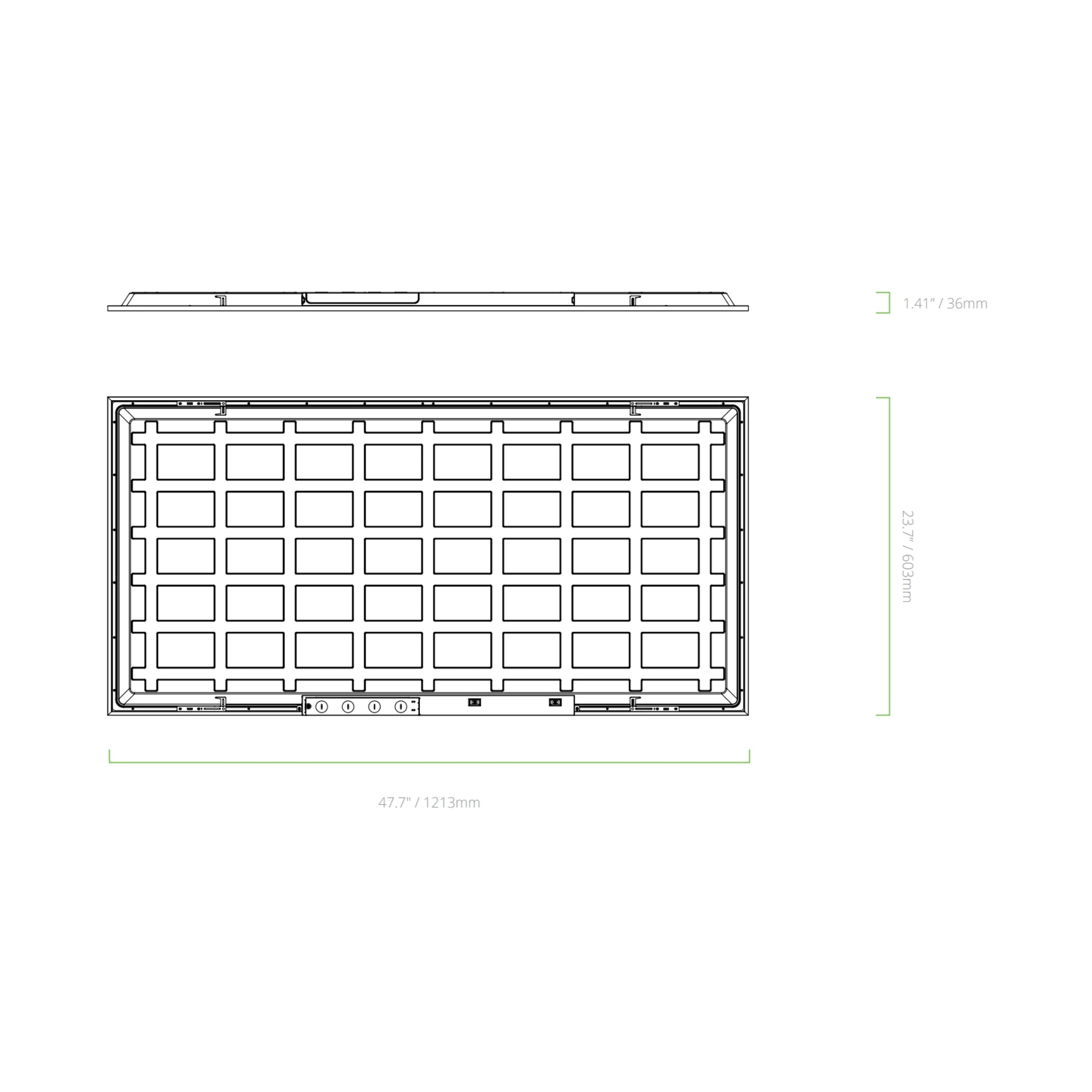

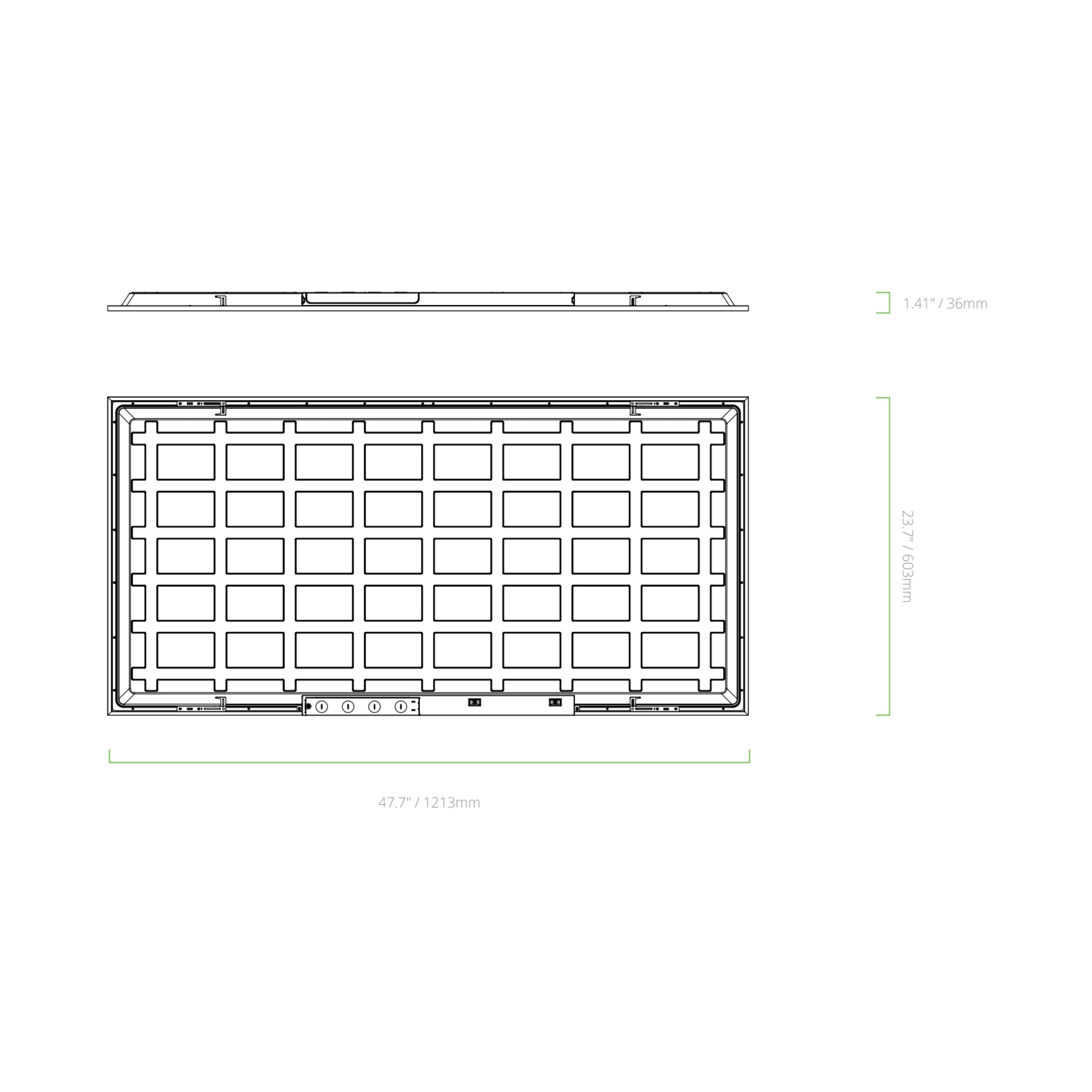

Dimensions: 47.7″ L × 23.7″ W × 1.41″ H (1213mm × 603mm × 36mm). Net weight: 8.0 lbs / 3.6 kg.

Installation & Mounting

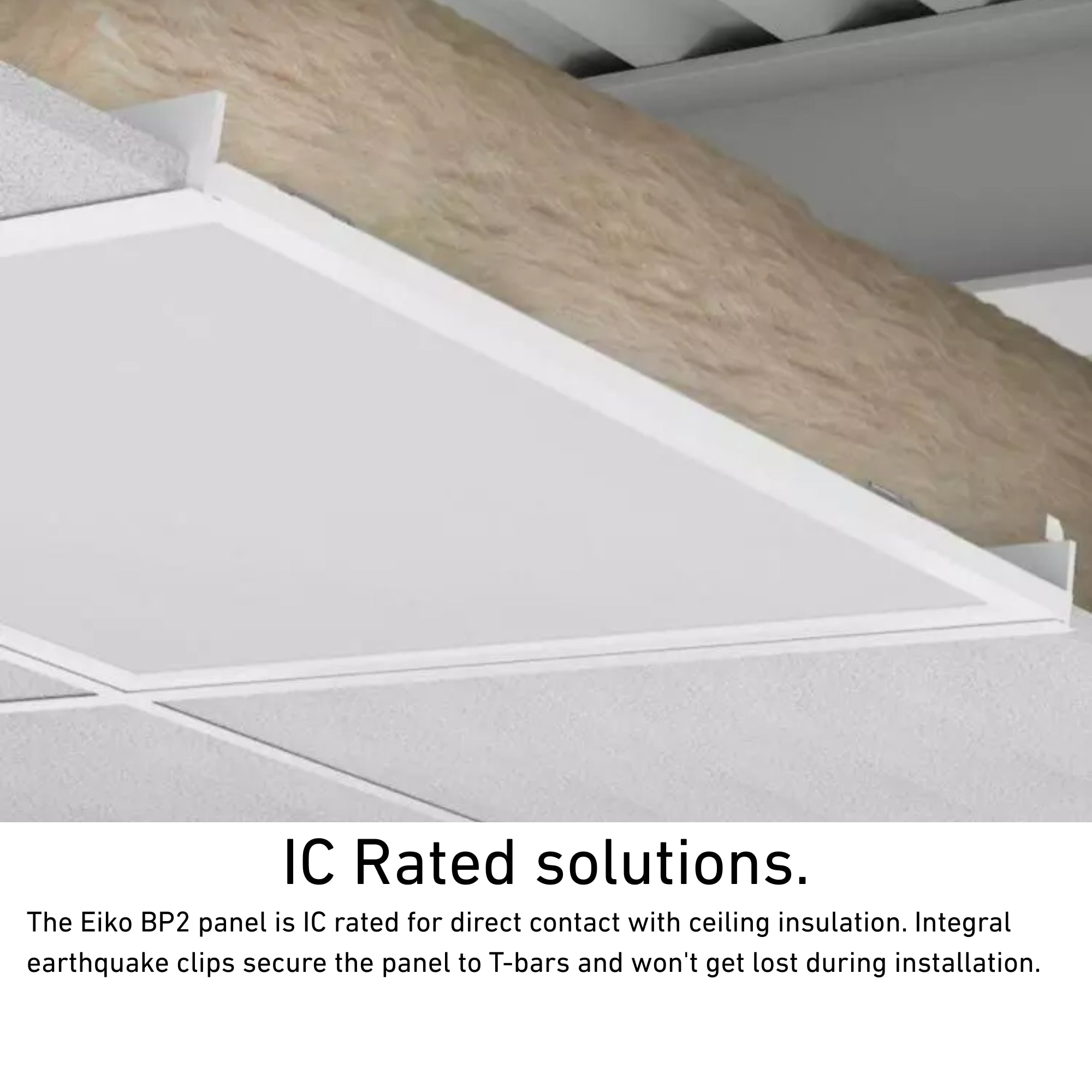

Standard Mounting: Recessed installation into standard 2×4 T-grid ceiling systems. IC Rated for installation in insulated ceilings.

Optional Mounting Accessories (Sold Separately):

• FP1-SMK-24 — FP1 Surface Mount Kit for 2×4 Flat Panels and Troffers
• FP1-RMK-24 — FP1 Recessed Mount Kit for 2×4 Flat Panels and Troffers

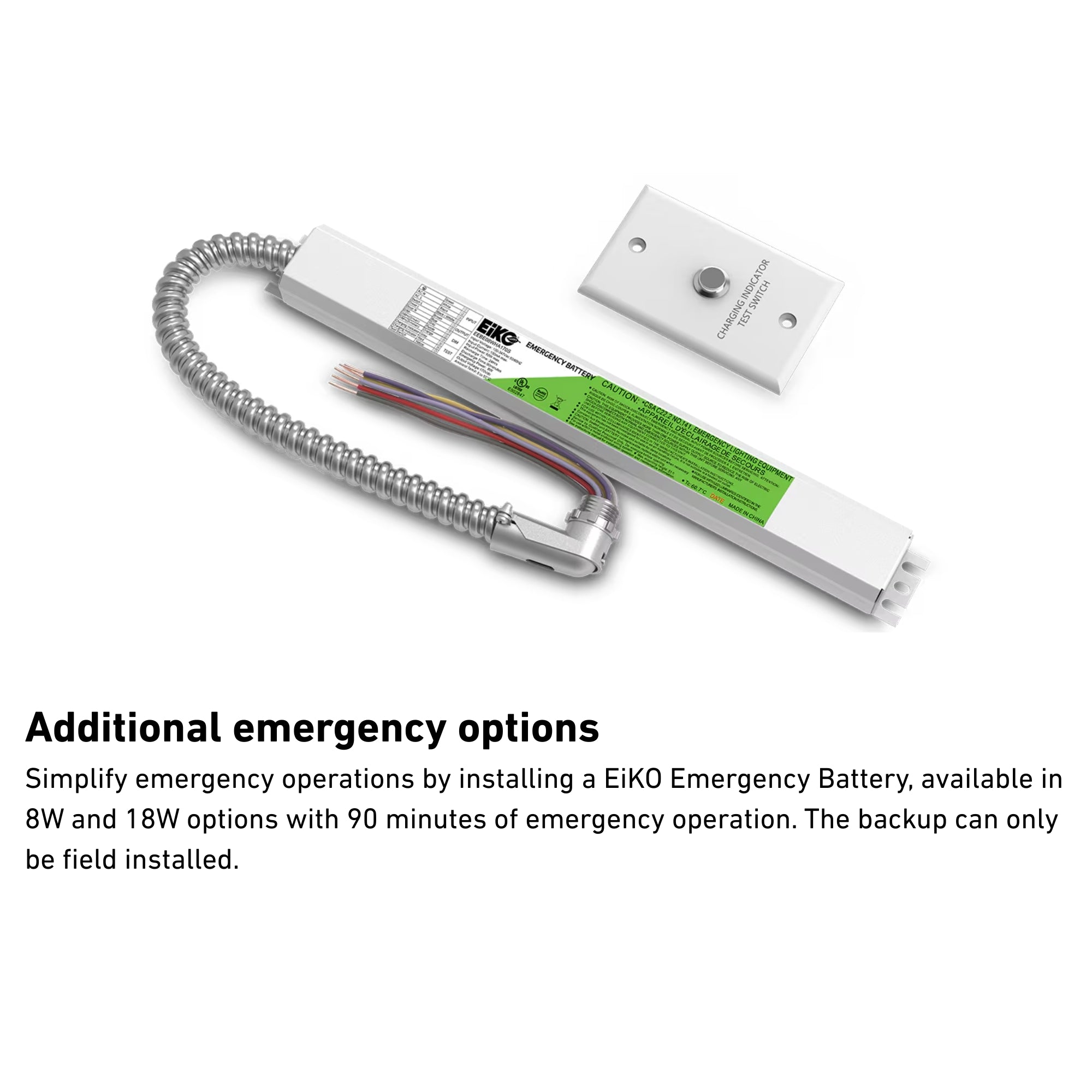

Optional Emergency Battery Backup (Sold Separately, field install only):

• EEBE08WHA170S — EiKO External Emergency Battery 8W, 120–347V, 170VDC, CEC Compliant
• EEBE18WHA170S — EiKO External Emergency Battery 18W, 100–347V, 170VDC, CEC Compliant
• EEBE-FTB — EEBE Flat Test Button and Indicator (optional)

Certifications & Rebates

• UL Listed — US & Canada; IC Rated and Damp Location Rated
• TAA Compliant — eligible for U.S. government and GSA procurement
• DLC Premium Qualified — qualifies for the highest tier of utility rebate programs. To verify rebate eligibility with your utility provider, visit designlights.org and search catalog number 15369.
• RoHS Compliant
• FCC Compliant
• ICES-005 Compliant

Typical Applications

• Corporate offices and open-plan workspaces — PowerSet wattage and FieldCCeT CCT allow on-site tuning between 30W and 50W and 3500K to 5000K without re-ordering
• Government and institutional facilities — TAA Compliant for U.S. government and GSA procurement; DLC Premium qualification supports utility rebate returns on large-scale installations
• Healthcare and clinical environments — IC and Damp Location Rated with non-yellowing PMMA lens providing consistent, even illumination for large exam rooms and open clinical areas

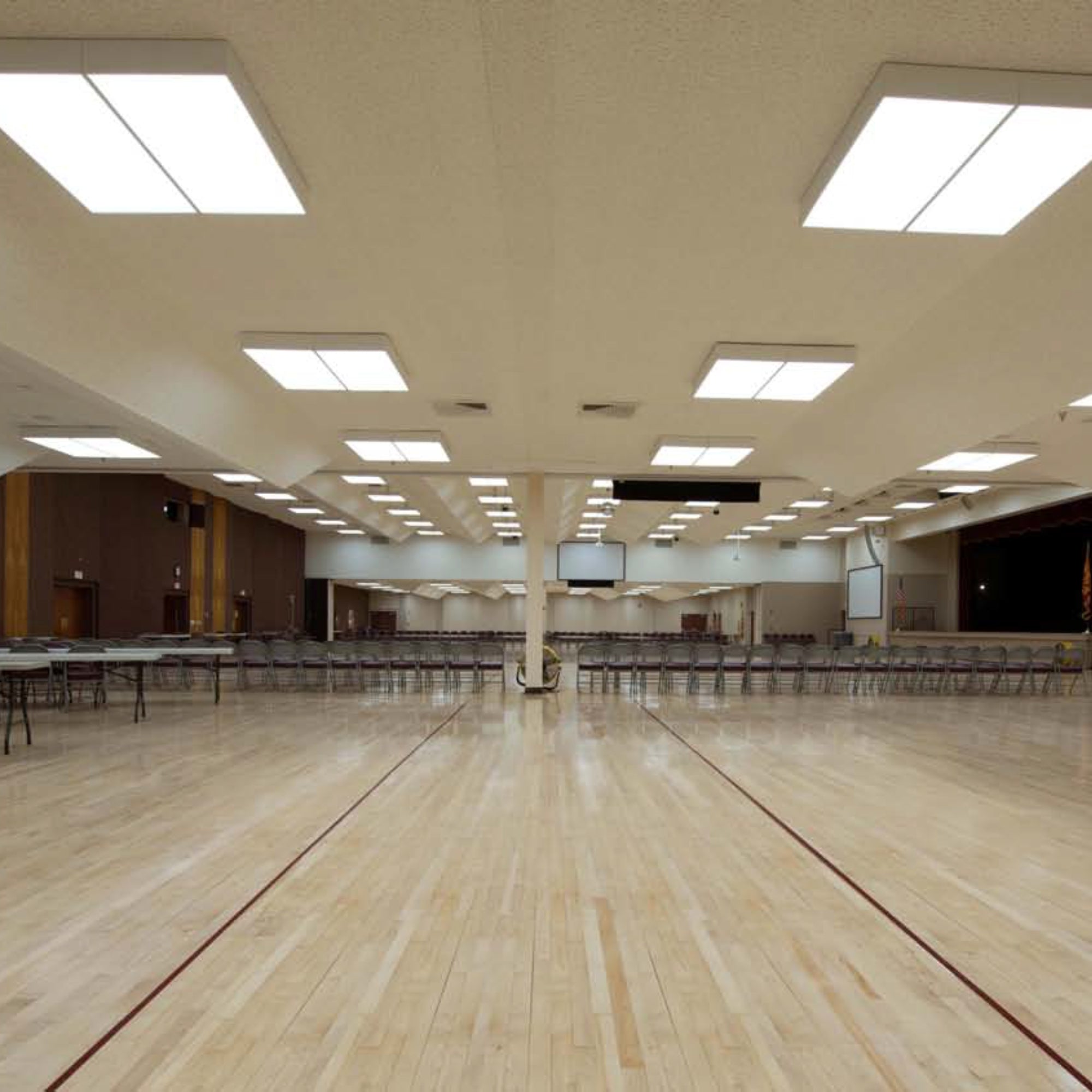

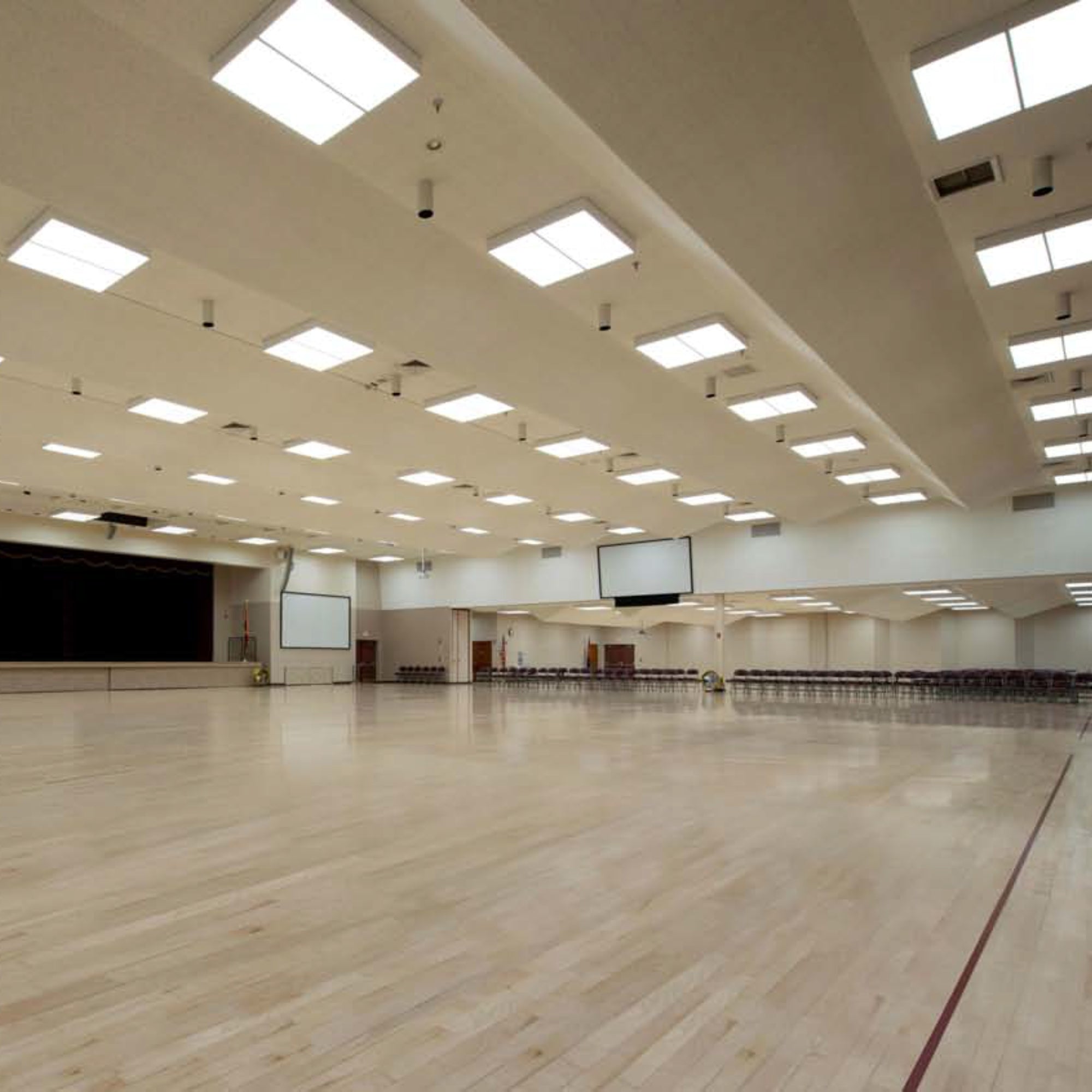

• Educational facilities — 6,250 lm maximum output suits high-ceiling gymnasiums and large classrooms; FieldCCeT supports varied task lighting needs
• Fluorescent retrofit projects — replaces 4×32W 4ft T8 systems; field-selectable wattage and CCT reduce SKU count; 5-year warranty and L70 100,000-hour life support long-term reliability

What’s Included

• EiKO BP2-24-PS50P-8FCCT-UDIM LED backlit flat panel fixture — 2×4 — White
