1x4 LED Flat Panel Light, 5000 Lumens, 40W, 35K/40K/50K, 120-277V
1x4 LED Flat Panel Light, 5000 Lumens, 40W, 35K/40K/50K, 120-277V
In stock
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Dual Selectable Wattage & CCT: Field-adjustable 20W/30W/40W and 3500K/4000K/5000K settings—one SKU for multiple applications
- High-Efficacy Backlit Design: Up to 5000 lumens at 125 lm/W with low-profile construction ideal for shallow plenum spaces
- DLC Premium Listed & TAA Compliant: Qualifies for maximum utility rebates with L70 life of 100,000 hours and 5-year warranty
- Universal Voltage & 0-10V Dimming: 120-277V input with smooth, flicker-free dimming down to off
- EIKO Quality: Premium aluminum frame with non-yellowing PMMA diffuse lens, cULus listed, IC rated, damp location rated
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

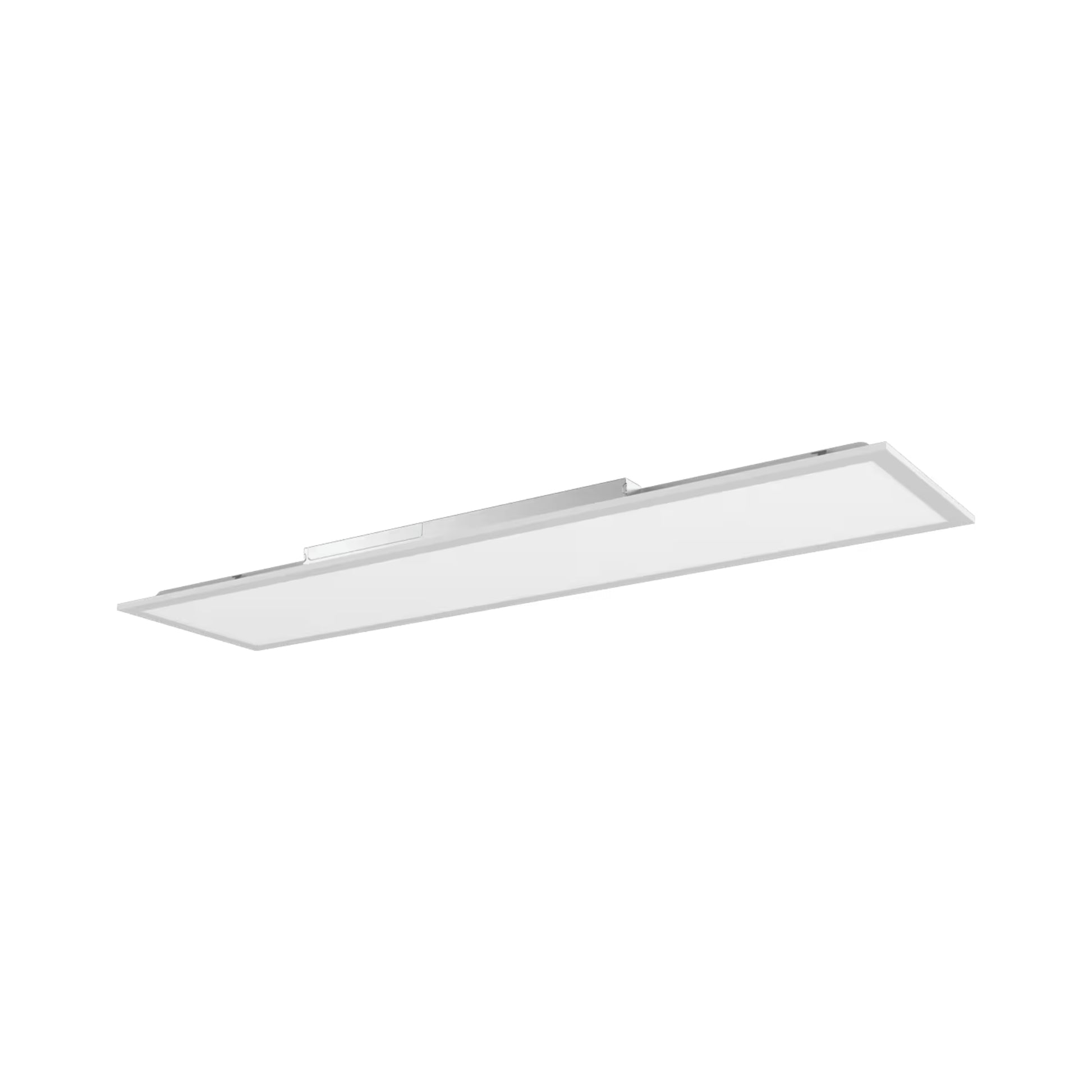

EIKO BP2-14-PS40P-8FCCT-UDIM LED Backlit Panel
The EIKO BP2-14-PS40P-8FCCT-UDIM is a dual-selectable 1'x4' LED backlit flat panel offering exceptional installation flexibility with field-adjustable wattage (20W, 30W, or 40W) and color temperature (3500K, 4000K, or 5000K). Delivering up to 5000 lumens at 125 lm/W efficacy, this low-profile backlit design features 0-10V dimming, universal 120-277V input, and TAA compliance. Ideal for offices, schools, healthcare facilities, retail spaces, and commercial applications requiring energy-efficient, uniform lighting without light guide plates.
EIKO BP2-14-PS40P-8FCCT-UDIM Features
- Dual Selectable Wattage & FieldCCT: Field-adjustable 20W/30W/40W and 3500K/4000K/5000K settings allow one SKU to serve multiple applications and design requirements
- High-Efficacy Performance: Delivers up to 5000 lumens with 125 lm/W efficacy, providing superior illumination with exceptional energy savings
- DLC Premium Listed: Qualifies for maximum utility rebates and incentives with DesignLights Consortium Premium certification

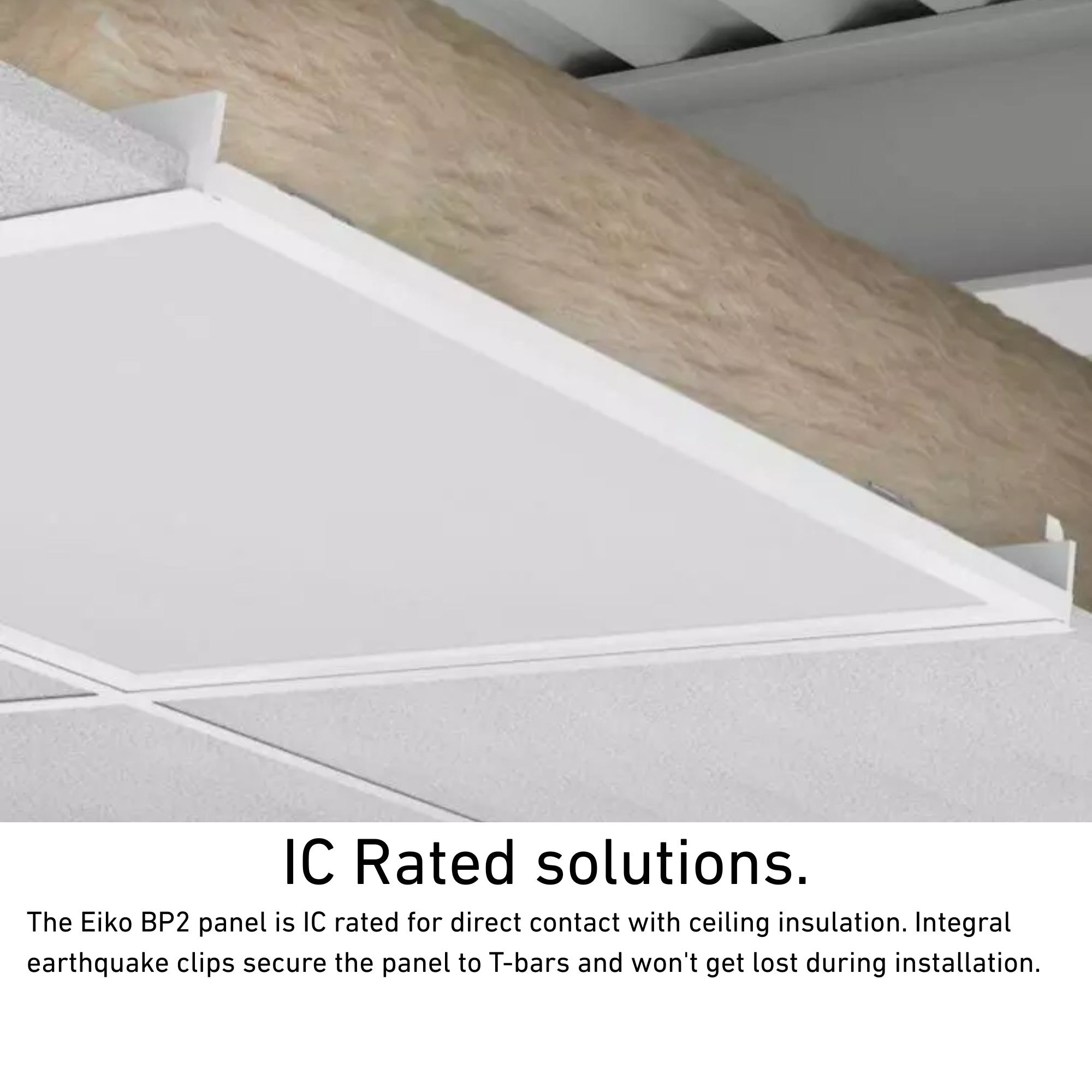

- Backlit Design: Low-profile backlit construction provides direct light without requiring a light guide plate, ideal for shallow plenum spaces
- 0-10V Dimming: Smooth, flicker-free dimming down to off with compatible controls for precise light level management
- Universal Voltage: 120-277V input accommodates commercial and industrial electrical systems without additional transformers
- Premium Construction: White powder-coated aluminum frame with non-yellowing PMMA diffuse lens ensures optimal light uniformity and long-lasting aesthetics
- TAA Compliant: Meets Trade Agreements Act requirements for government and institutional projects

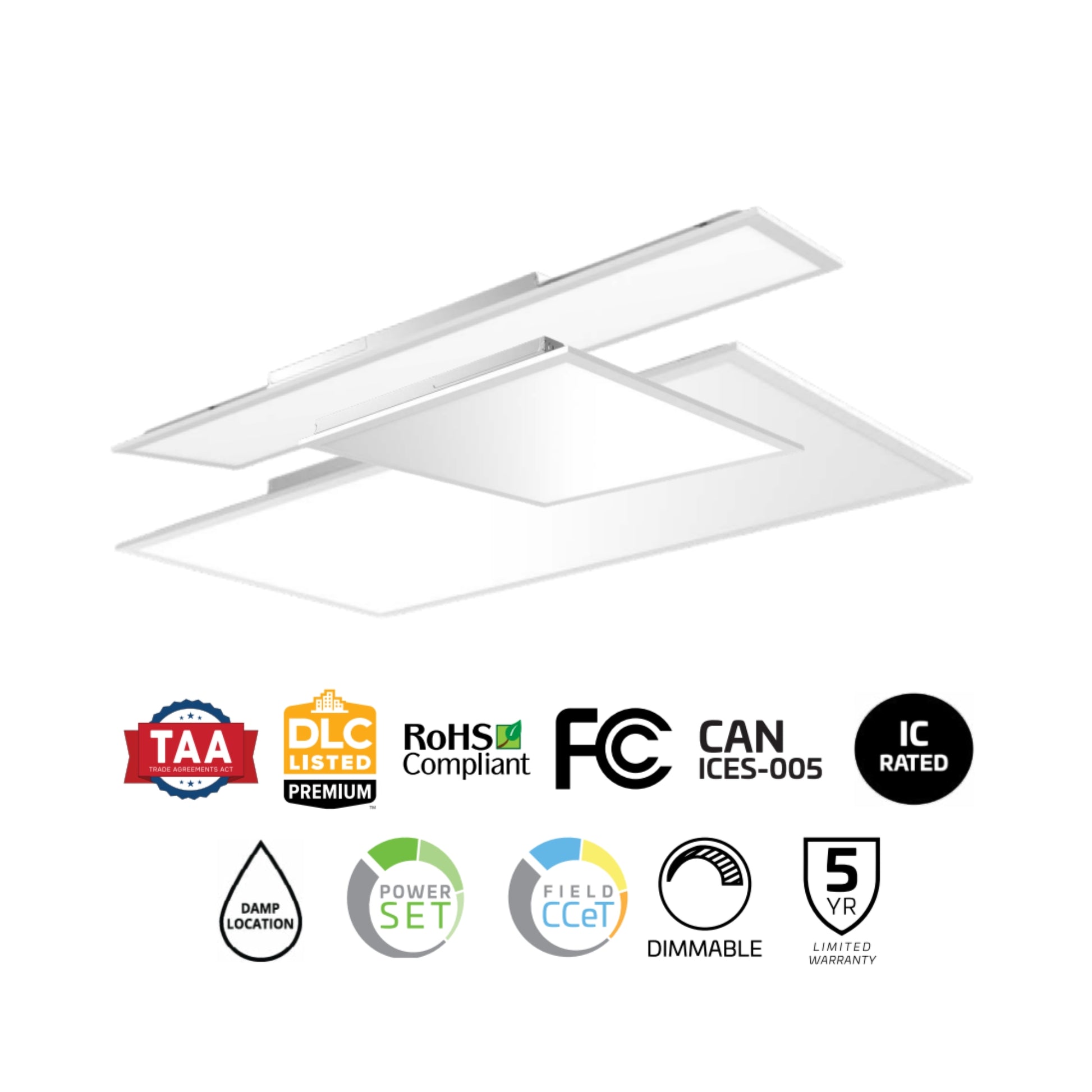

- Multiple Certifications: UL listed for US & Canada, RoHS compliant, FCC compliant, ICES-005 compliant, IC rated for insulation contact, damp location rated
- Long Life & Warranty: L70 rated life of 100,000 hours with 5-year limited warranty

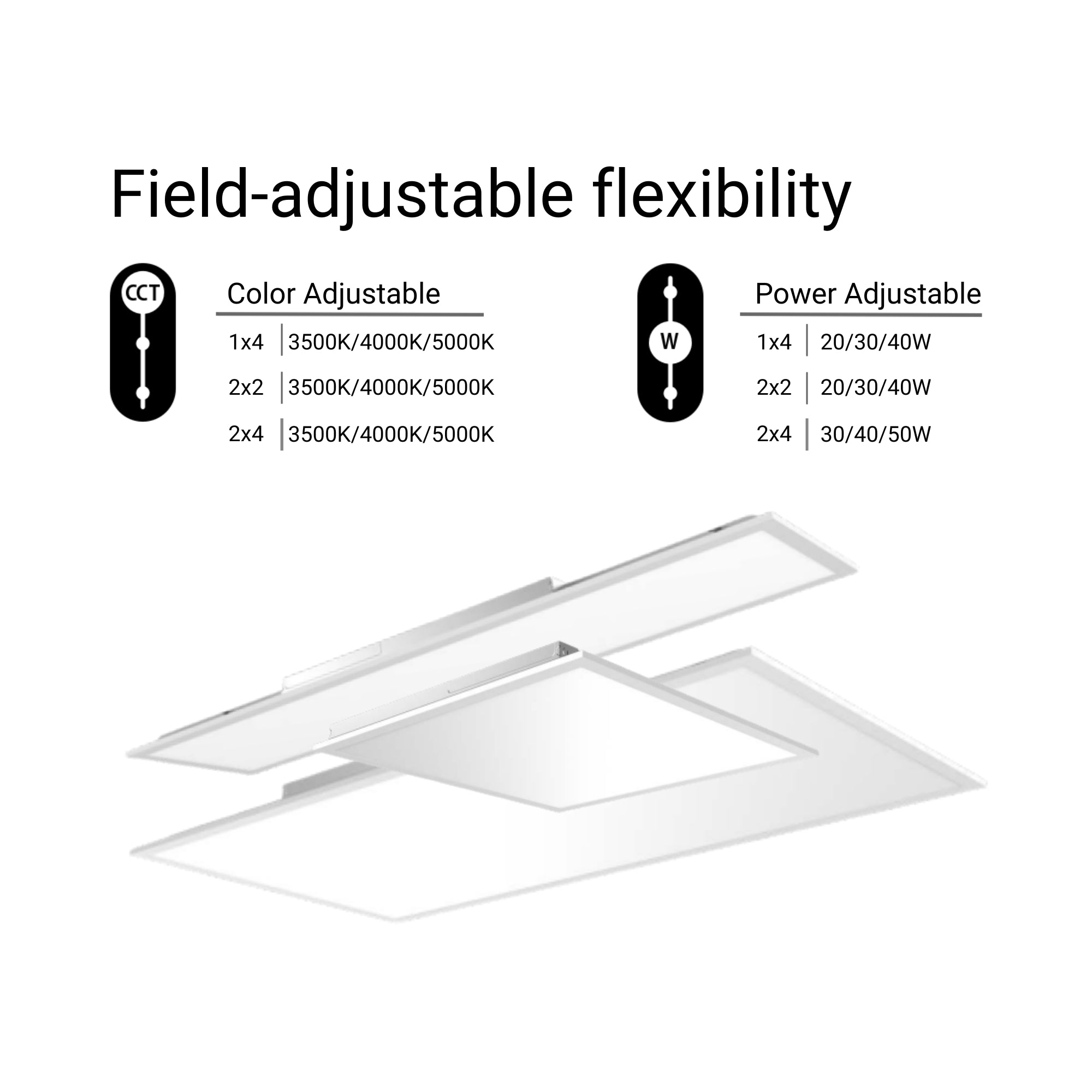

Dual Selectable Technology
EIKO's PowerSet and FieldCCT features allow contractors and facility managers to stock one product for multiple applications, reducing inventory complexity and ensuring the right light output and color temperature for every space.
Wattage Options:
- 20W: 2500 lumens (125 lm/W)
- 30W: 3750 lumens (125 lm/W)
- 40W: 5000 lumens (125 lm/W)
CCT Options:
- 3500K: Warm white for hospitality, retail, and residential-style commercial spaces
- 4000K: Neutral white for offices, schools, and general commercial applications
- 5000K: Bright white for healthcare, industrial, and task-intensive environments
Energy Efficiency & Rebates
DLC Premium Listed for maximum utility rebate eligibility, the BP2 series delivers exceptional energy savings with high efficacy up to 125 lm/W. With an L70 rated life of 100,000 hours and operating temperature range of -4°F to 113°F (-20°C to 45°C), this panel is engineered for long-term performance and minimal maintenance costs.
Why Choose EIKO
EIKO is a trusted leader in commercial LED lighting solutions, offering innovative, energy-efficient products backed by industry-leading warranties. The BP2-14-PS40P-8FCCT-UDIM represents premium backlit panel technology, combining selectable performance, TAA compliance, and DLC Premium certification to deliver exceptional value for commercial, institutional, and government lighting projects.
Why Buy From Us: We are an authorized EIKO dealer offering genuine products, expert support, and fast shipping to ensure your project's success.
Specifications
Specifications

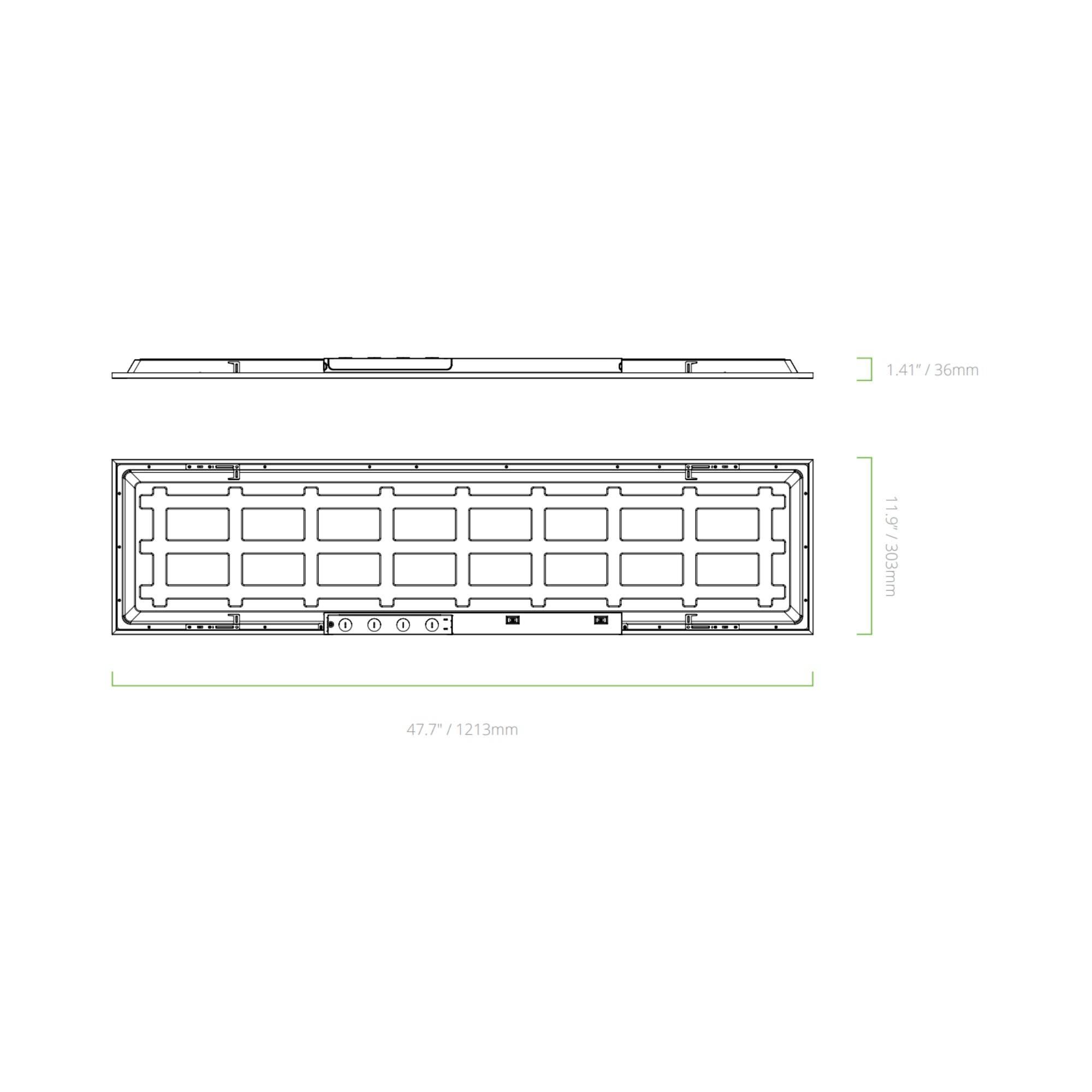

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
