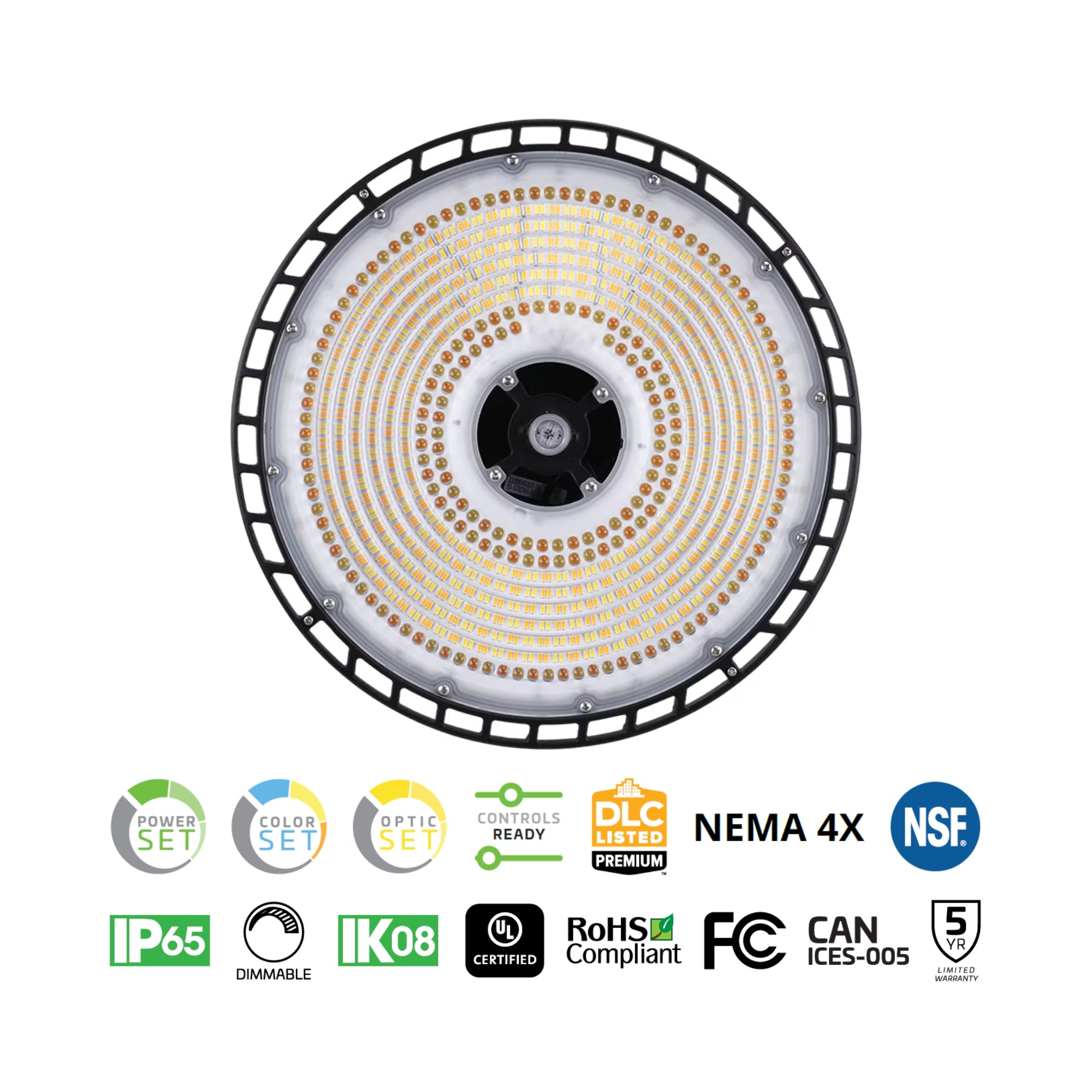

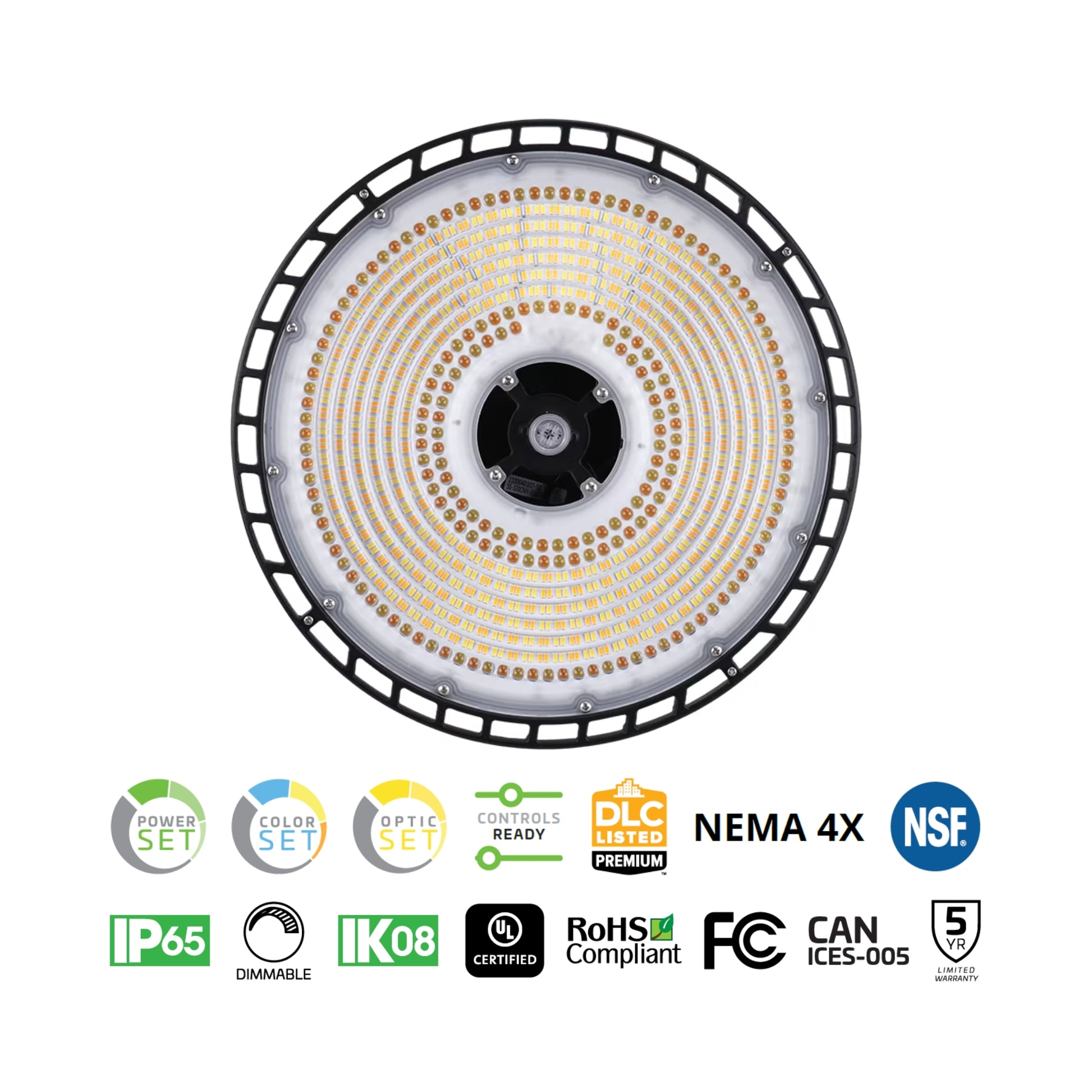

EiKO PS300 PowerSET UFO LED High Bay — 300/240/200W Selectable — 3500K/4000K/5000K — 120-347V — Matte Black

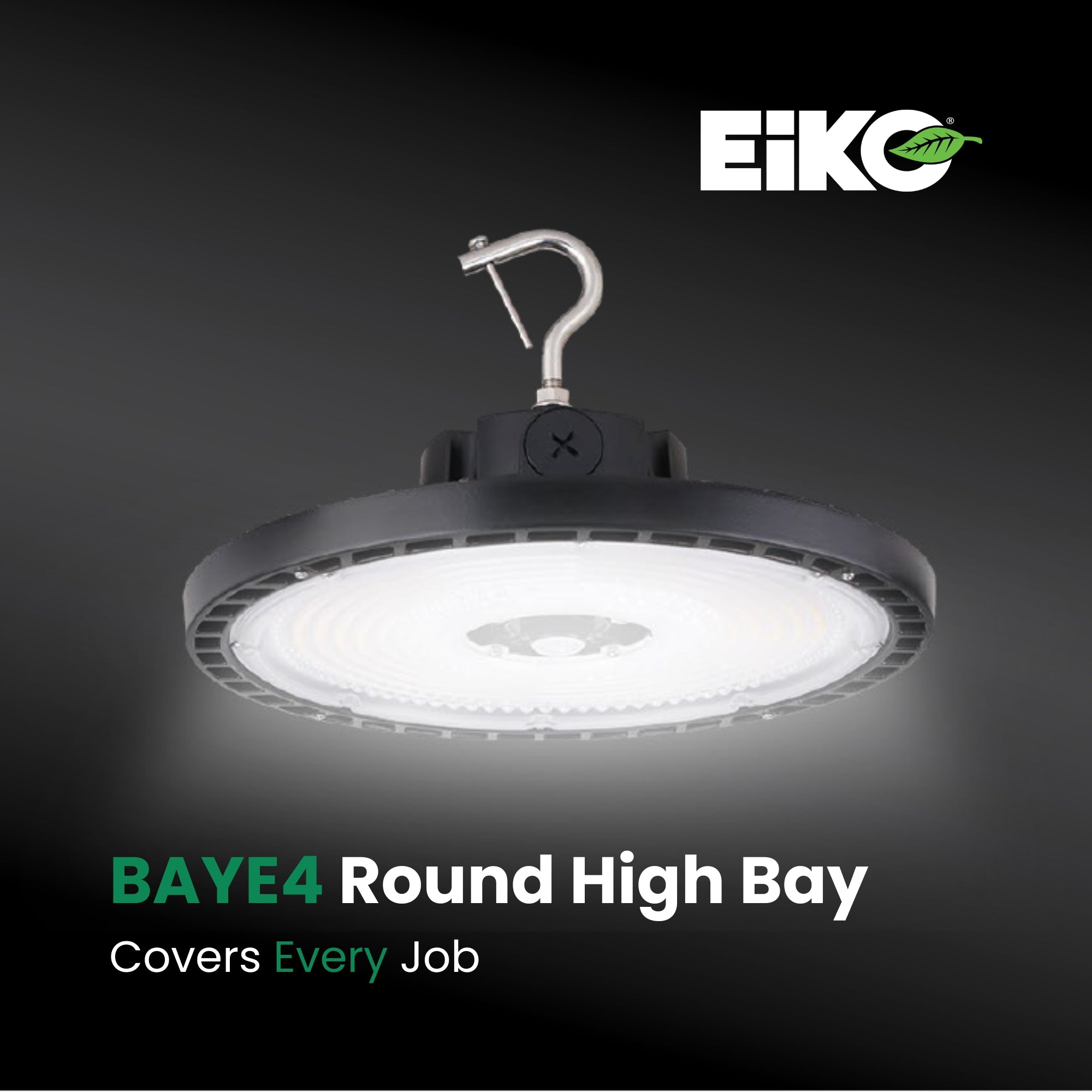

The EiKO BAYE4-PS300-OS-8FCCT-HDIM is a commercial round BAYE4 UFO LED high bay engineered to deliver up to 45,000 lumens with field-adjustable 300W / 240W / 200W PowerSET settings and switchable 3500K / 4000K / 5000K ColorSET color temperatures. Operating on 120-347V electrical systems with 0–10V continuous dimming, this luminaire provides energy-efficient replacement for conventional HID and fluorescent high bay fixtures. Built with an IP65 wet location and NSF rating alongside a UL Certification, it features an innovative 3-axis selectability including an onboard OpticSET beam angle adjustment switch.

Key Features

• Selectable Wattage: 300W / 240W / 200W — field-adjustable via onboard PowerSET dip switch
• Wattage Equivalency: Replaces conventional HID and fluorescent fixtures for direct energy savings
• Maximum Lumen Output: 45,000 lm at 300W
• CRI: >80 color rendering across all settings
• Selectable CCT: 3500K / 4000K / 5000K — field-adjustable via onboard ColorSET dip switch
• Lens & Optics: OpticSET beam angle selection of 60° and 90° distributions
• Dimming: 0–10V continuous dimming standard
• Voltage: 120-347V AC, 50/60Hz
• Location Rating: UL Certified for wet locations; IP65 ingress rated
• Operating Temperature: −40°F (−40°C) to 122°F (50°C) ambient range
• Certifications: UL Certified, NSF Certified, IK08 Impact Rated, RoHS Compliant, ICES-005
• Rated Life: L70 >100,000 hours
• Warranty: 5-year limited warranty — EiKO
• Sensor Compatibility: Sensor receptacle with cover accepts plug-and-play controls without internal wiring

Lens & Optics

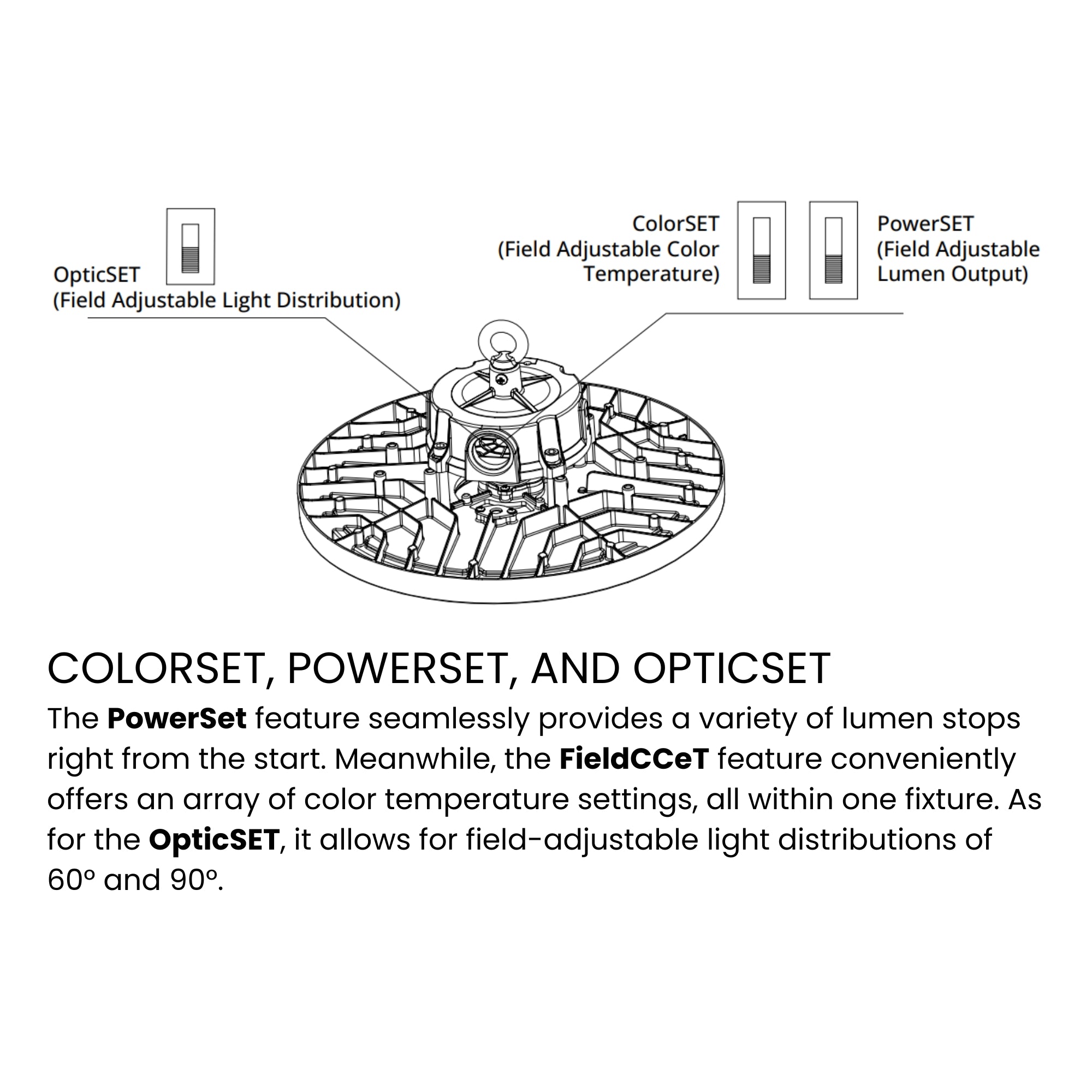

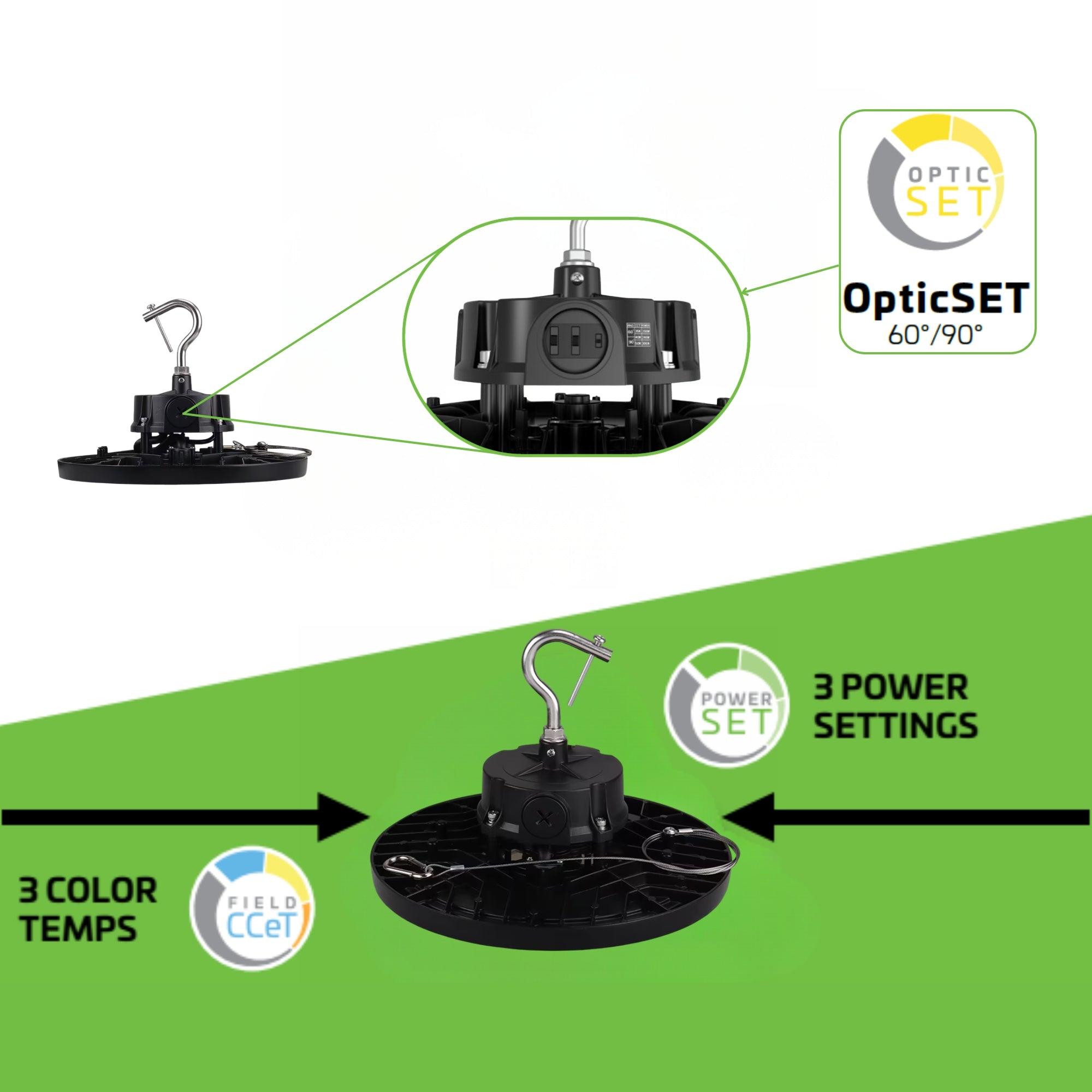

The OpticSET optical system provides field-adjustable beam distributions on the job site without tools or rewiring. The built-in beam selection switch allows installers to instantly toggle between two distinct distributions:

• 60° Narrow Optic: Concentrates beam distribution for narrow racking aisles, focused task areas, and elevated mounting heights.
• 90° Standard Optic: Delivers balanced, uniform beam distribution for open warehouse floors, staging areas, and general open-ceiling commercial layouts.

Optional aluminum reflectors, prismatic reflectors, and cone lenses are available separately (see Installation & Mounting).

Smart & Control Features

The BAYE4 series supports modular sensing and automated facility lighting control:

• 0–10V Continuous Dimming (Standard): Standard dimming control compatible with commercial 0–10V dimmers.
• Sensor Compatibility (Accessory): Accepts field-installable screw-in PIR and microwave occupancy sensors via the integrated receptacle.

Compatible plug-and-play sensors include the SEN5A-SPPR-WH (PIR) and SEN5A-SPMR-WH (Microwave) — sold separately. Field sensor adjustments can also be managed using an optional handheld wireless commissioning tool (catalog # SEN5A-ACT, sold separately).

Electrical

Powered by a constant current driver operating on 120-347V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor >0.90 and Total Harmonic Distortion (THD) <20%. Integrated 6kV surge protection protects internal electronics against transient voltage spikes designed to ANSI standards for industrial environments. Includes pre-wired 0–10V dimming leads. Factory-equipped with a 6-foot power and dimming cord. RoHS compliant.

Construction

Housing & Thermal: Robust die-cast aluminum housing engineered for maximum thermal dissipation to preserve lumen maintenance across the 100,000-hour rated lifespan.

Lens & Optics: Features a durable IK08 impact-resistant polycarbonate lens.

Finish: Commercial powder coat paint finish in Matte Black.

Environmental Sealing: IP65 rated and UL Certified for wet locations, providing a sealed barrier resistant to dust and moisture ingress. Ambient operating temperature range: −40°F (−40°C) to 122°F (50°C).

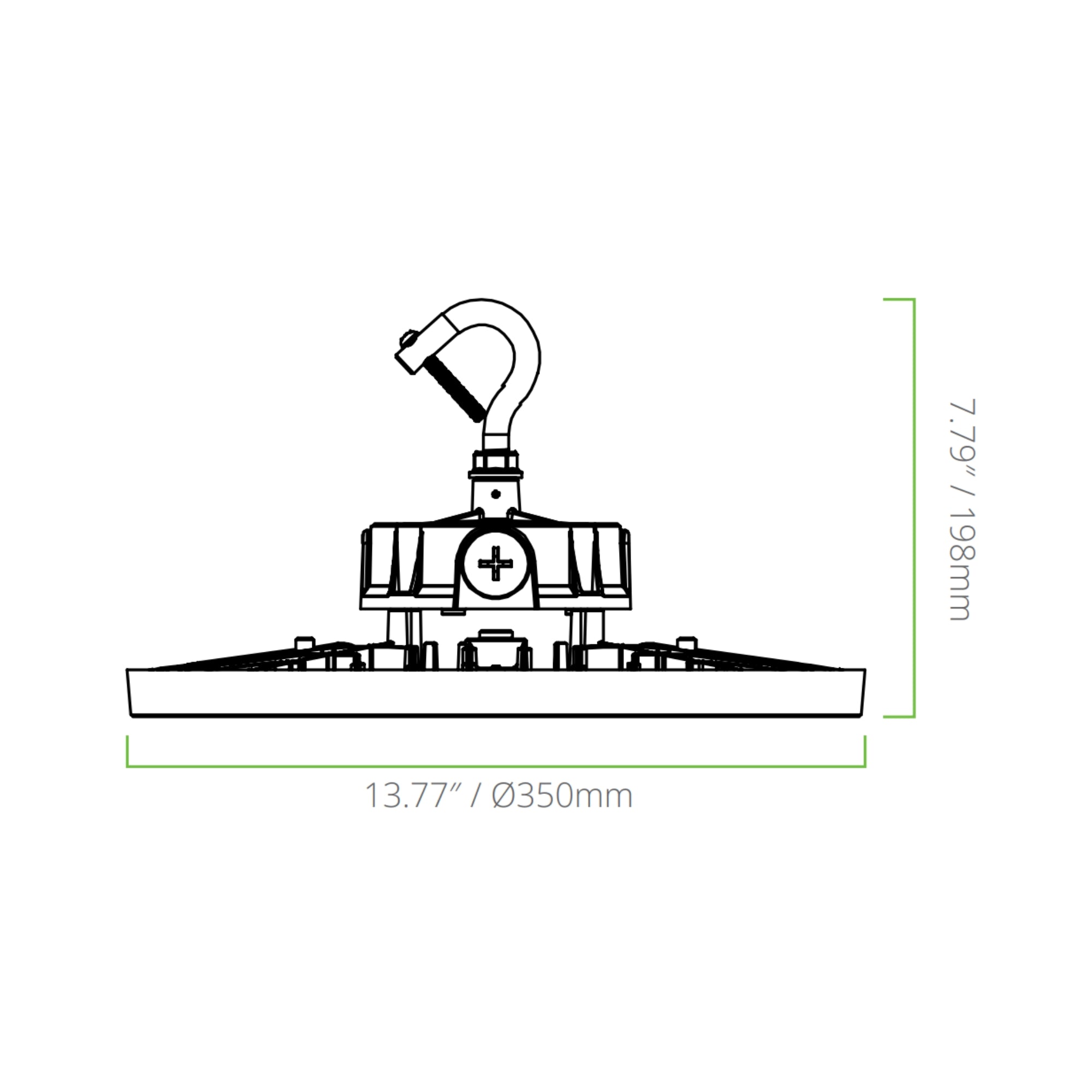

Dimensions: 13.77" Dia.

Installation & Mounting

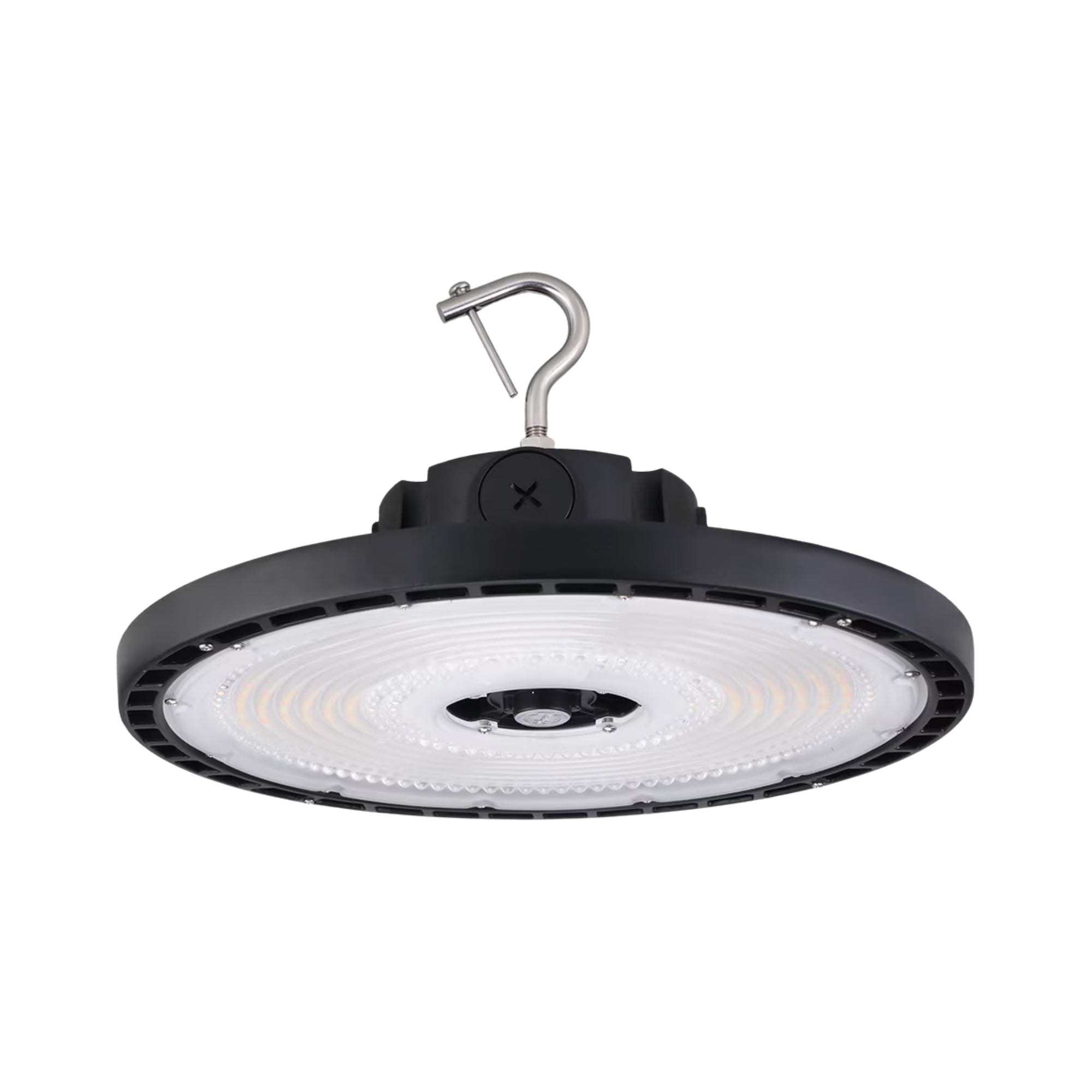

Standard Hardware: Ships standard with an installation hook accessory for quick suspension mounting.

Mounting Options: Compatible with rigid pendant mounting via an M10 to 3/4" pipe adapter (sold separately) and direct surface mounting via a dedicated yoke bracket (sold separately).

Wiring: Includes a factory-installed 6-foot power and dimming cord.

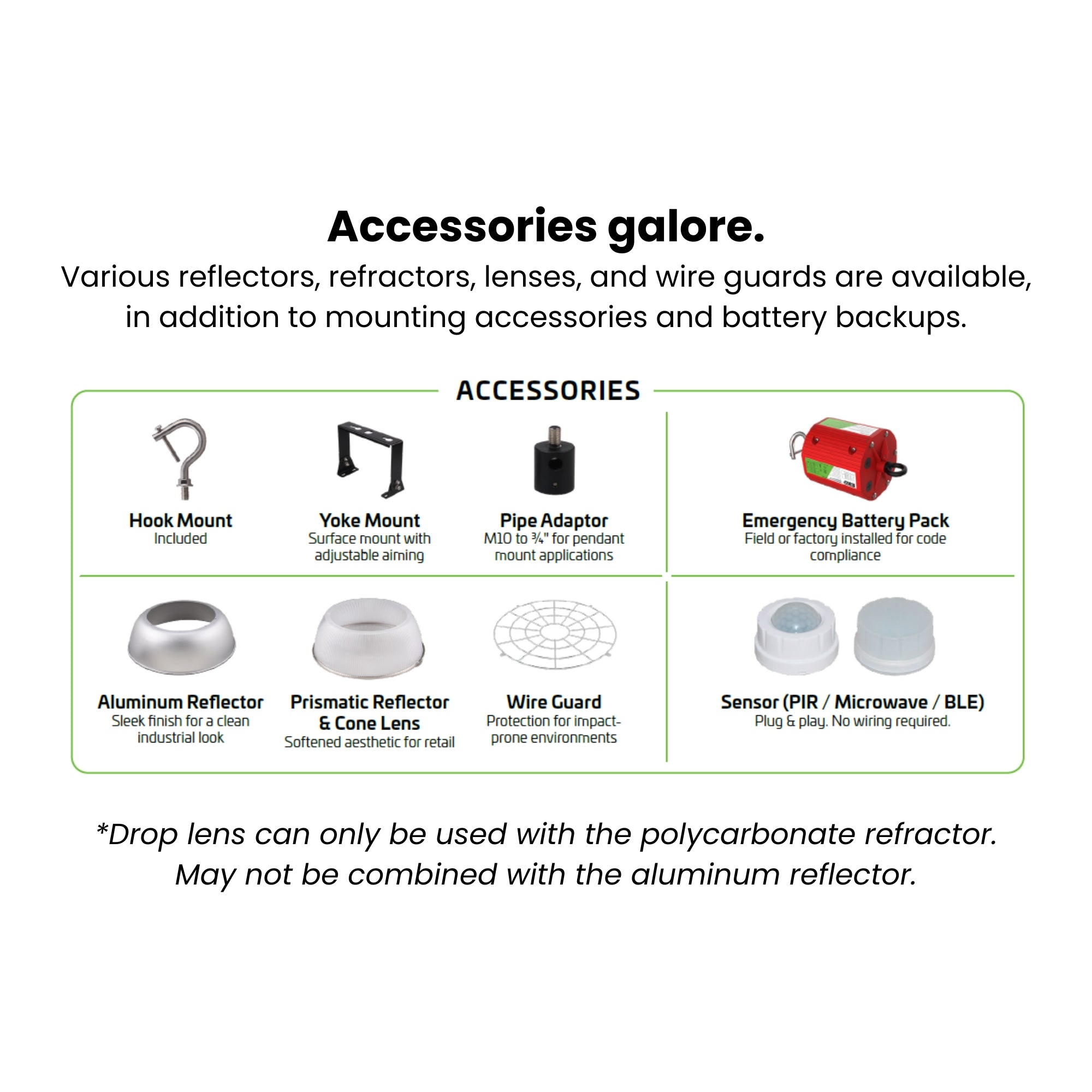

Accessories (Sold Separately):

• Mounting Brackets: Yoke Mount Bracket | Pipe Adaptor M10 to 3/4"
• Reflectors & Lenses: Aluminum Reflector | Prismatic Reflector & Cone Lens
• Wire Guards: Protective Wire Guard
• Emergency Battery Backup: 40W AC Emergency Battery Backup (Note: internal rewiring required when paired with controls)
• Sensors & Controls: Microwave Sensor | PIR Sensor | Commissioning Tool

Certifications & Rebates

• UL Certified: Certified for wet locations per UL standards for commercial luminaires
• NSF Certified: Certified by public health and safety for splash zones and food processing environments
• RoHS Compliant: Manufactured free of lead, mercury, and hazardous heavy metals

Typical Applications

• Food Processing & Washdown — NSF certification and IP65 sealing support strict sanitation and hose-down requirements

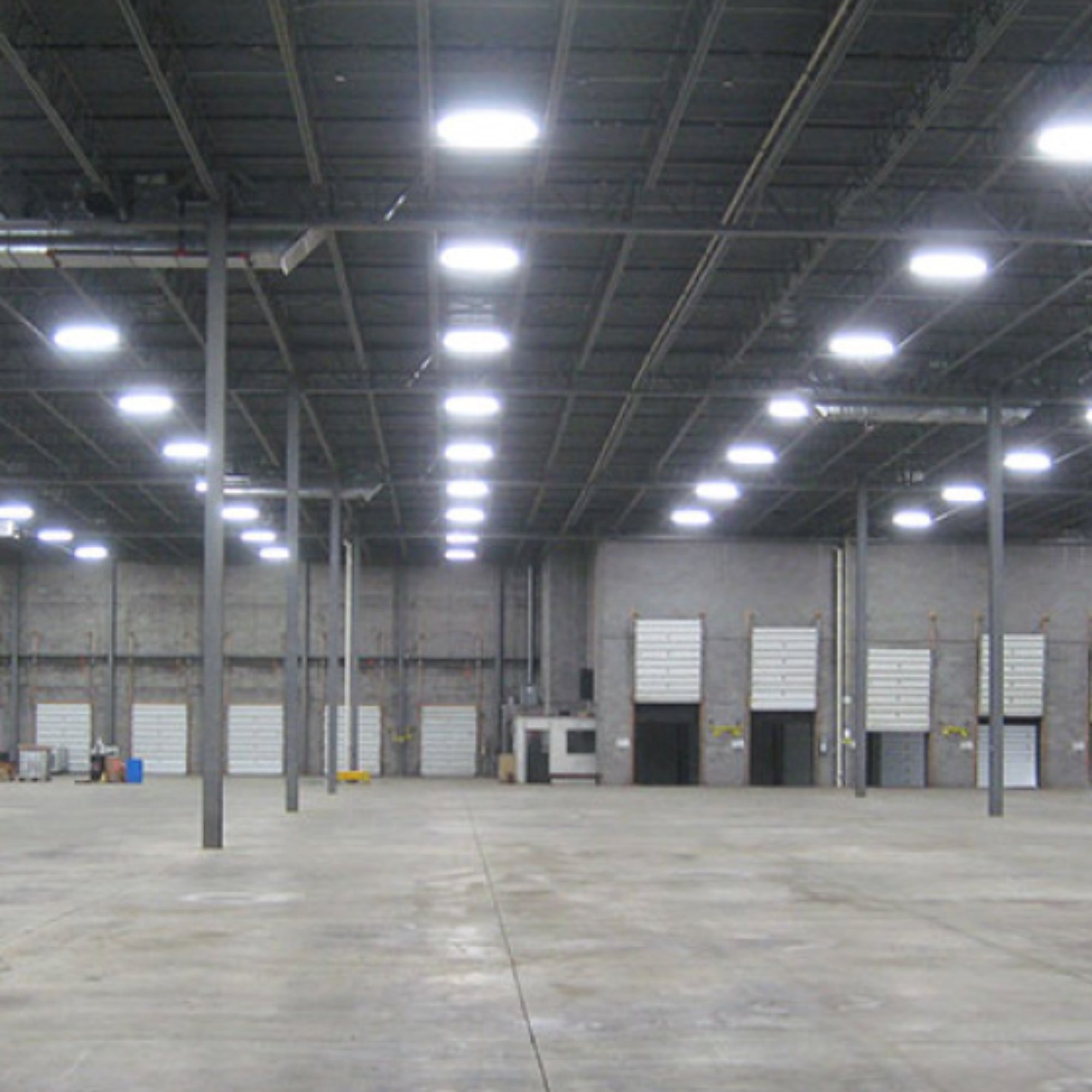

• Warehouses & Distribution Centers — replaces conventional HID and fluorescent systems for direct energy savings

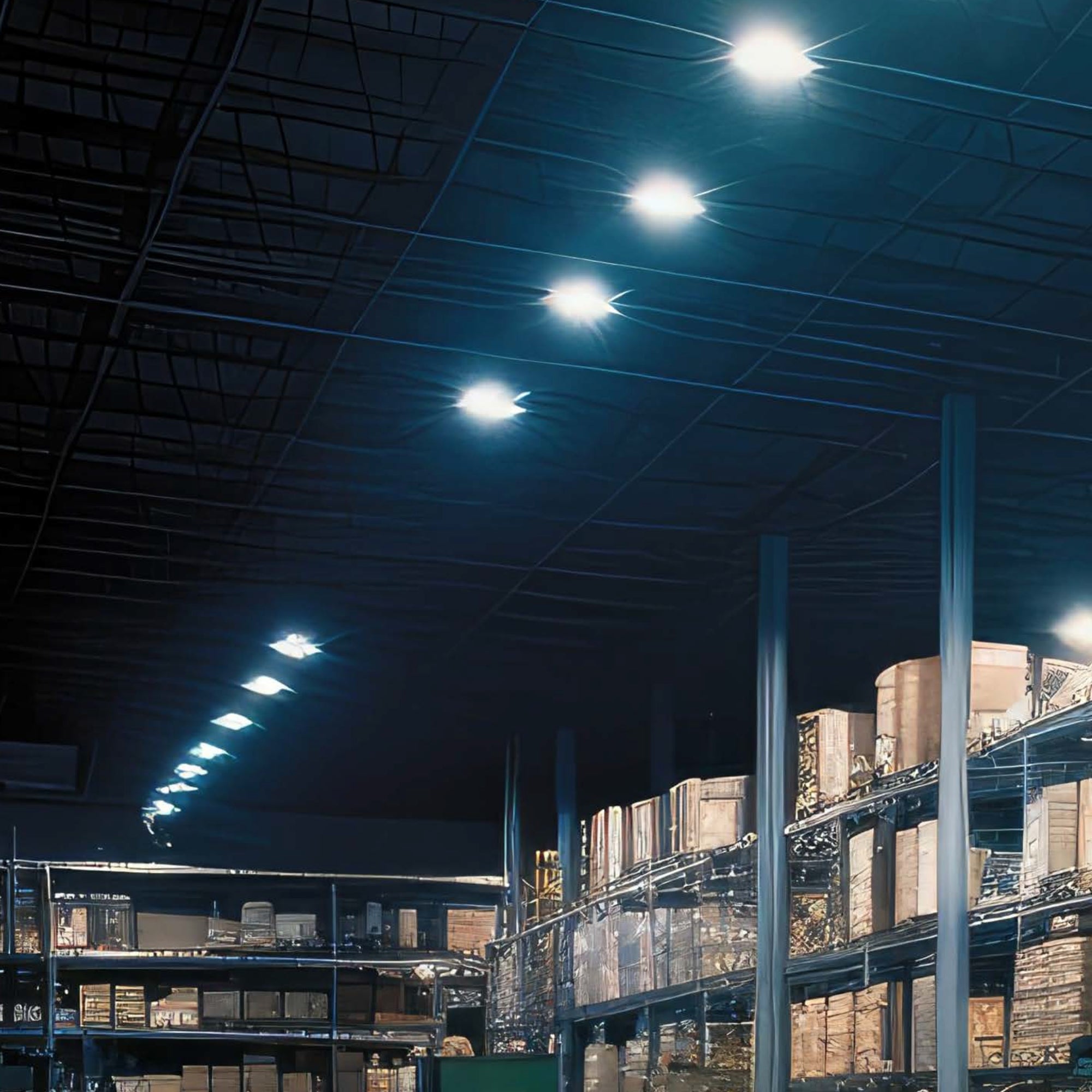

• Aisle Racking & Logistics Corridors — OpticSET 60° setting concentrates illumination along narrow storage rows to eliminate wasted vertical spill
• Gymnasiums & Athletic Facilities — IK08 impact-resistant PC lens provides robust durability against mechanical impacts

What's Included

• EiKO BAYE4-PS300-OS-8FCCT-HDIM UFO LED High Bay — Matte Black
• Installation hook
• Factory-installed 6-foot power and dimming cord
• Installation and operation instructions
