EiKO BAYE4-PS240 PowerSET UFO LED High Bay — 240W / 200W / 150W Selectable — 3500K / 4000K / 5000K — 120–347V — Black
Available in stock (100)
About this item
About this item

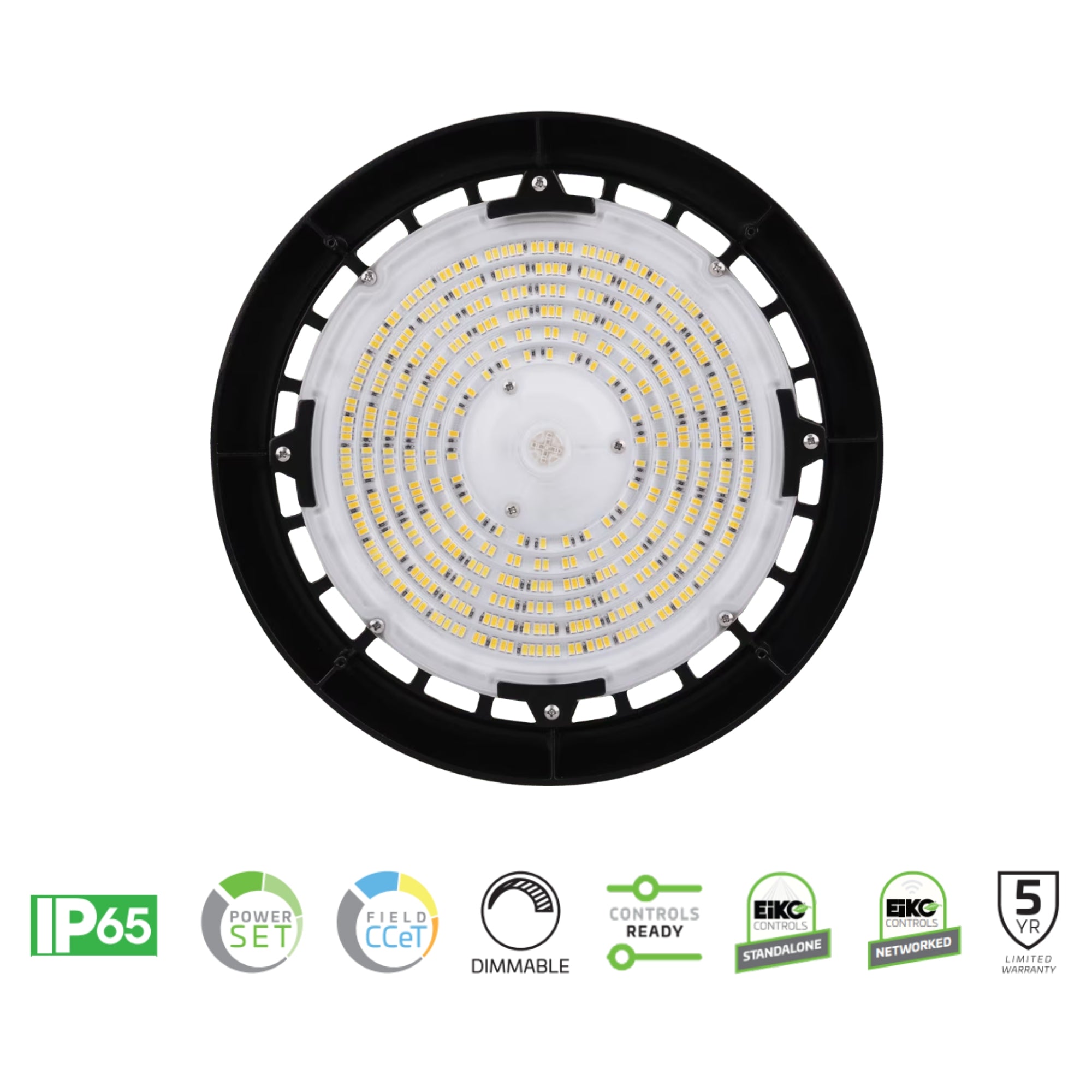

- PowerSET + ColorSET + OpticSET — 3 DIP-Switch Selectable Parameters: 240W / 200W / 150W wattage, 3500K / 4000K / 5000K CCT, and 60° / 90° beam — field-configurable via DIP switches from a single Black UFO SKU in a 12.6" housing.
- 36,000 lm at 240W — >100,000 Hour L70 Rated Life: Mid-tier output for 20–30 ft ceiling heights with exceptional rated life — over double the 50,000-hour rating common on competing platforms.
- IP65 + NSF Certified + IK08: Rated for wet, damp, and dry environments. NSF certified for food-safe applications. IK08 impact-resistant polycarbonate lens with die-cast aluminum housing.
- 120–347V Universal Input: Covers U.S. commercial and Canadian 347V distribution. For 277–480V, specify BAYE4-PS240-OS-8FCCT-VDIM (order code 15867). White finish: order code 16459.

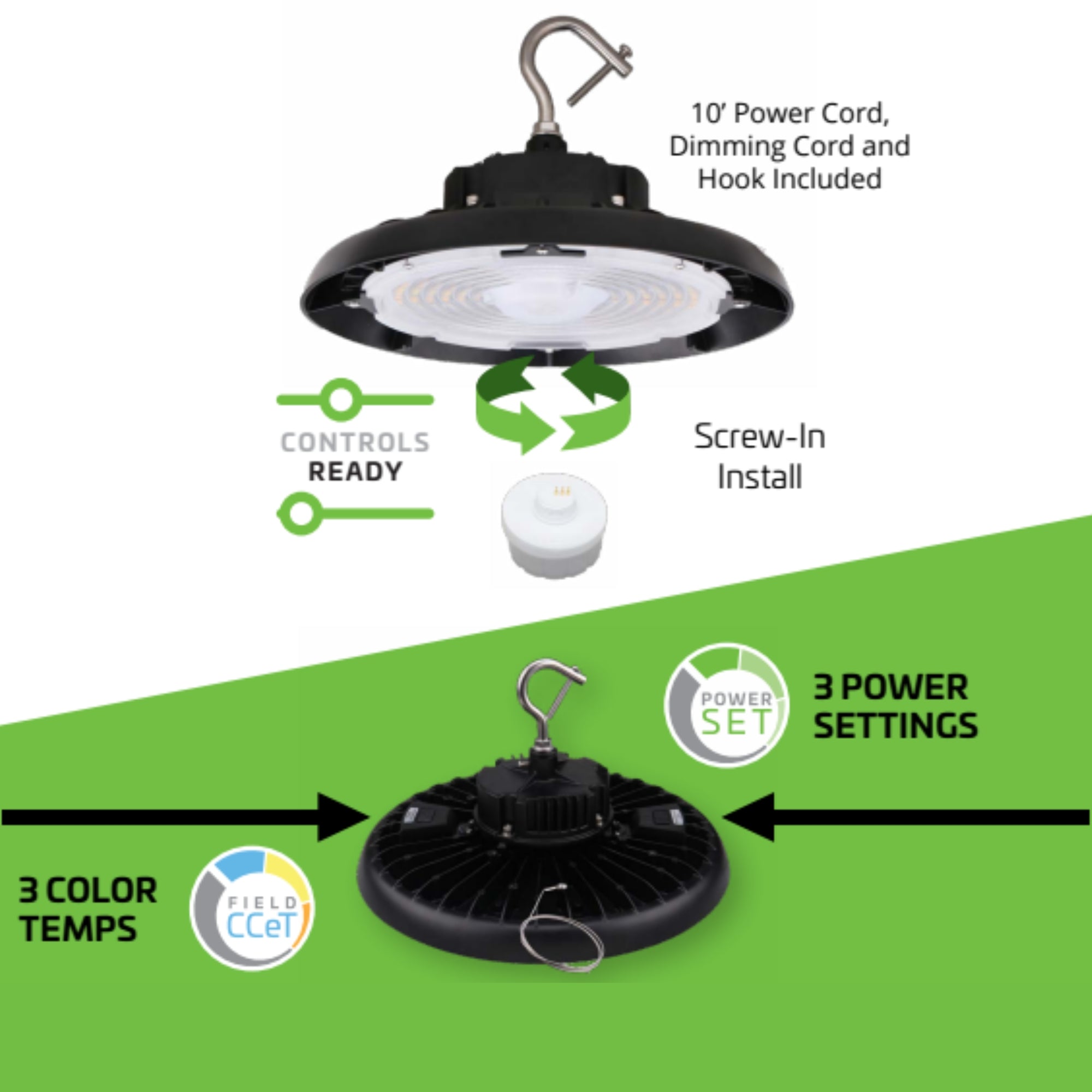

- Controls Ready — Sensor Receptacle + Smart Network Compatible: Field sensor receptacle standard. SEN5A PIR/microwave sensors, SEN5A-ACT commissioning tool, and SENA-WPPA-WH BLE networked sensor (Silvair App) all sold separately.
We process payments securely and do not store credit card information.
Description
Description

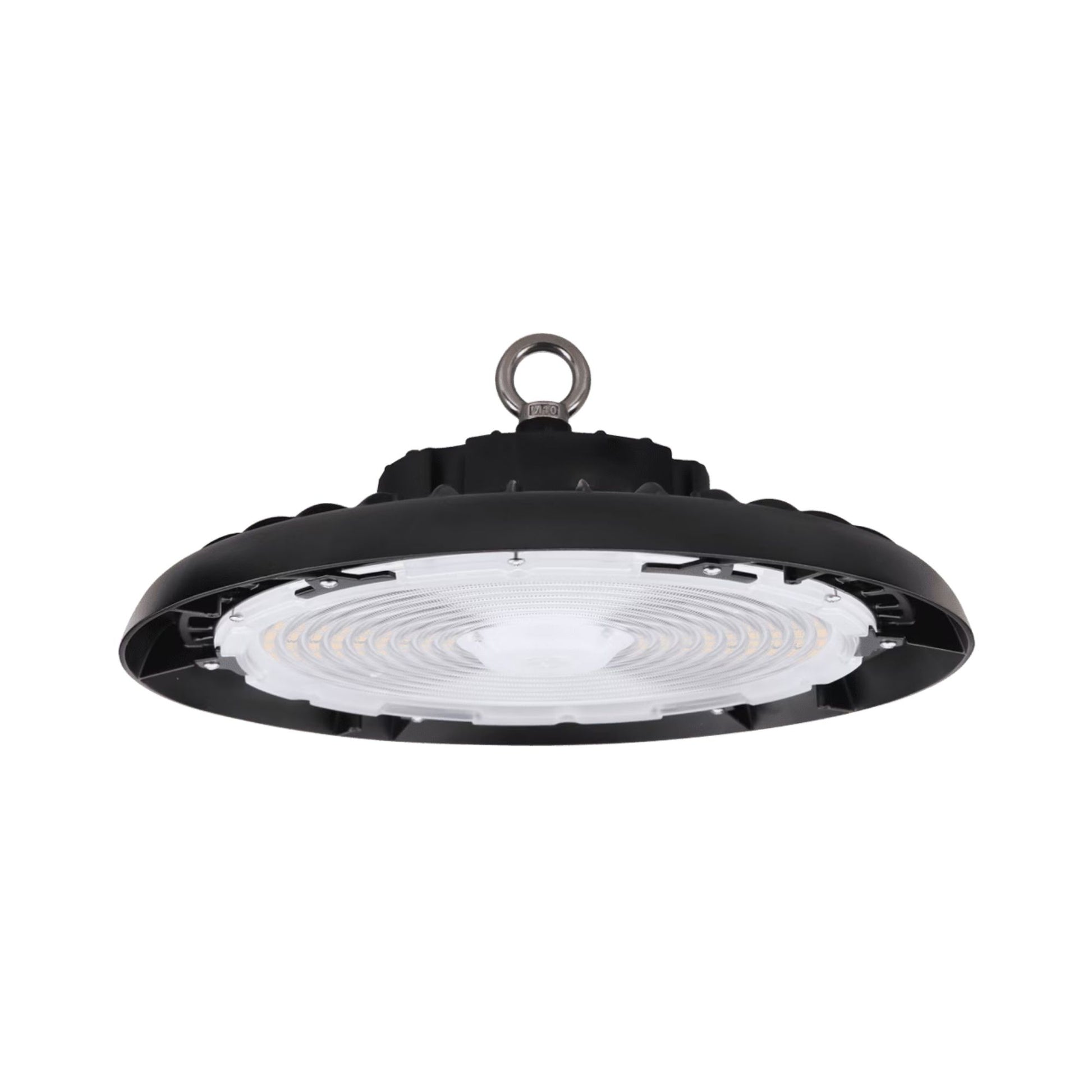

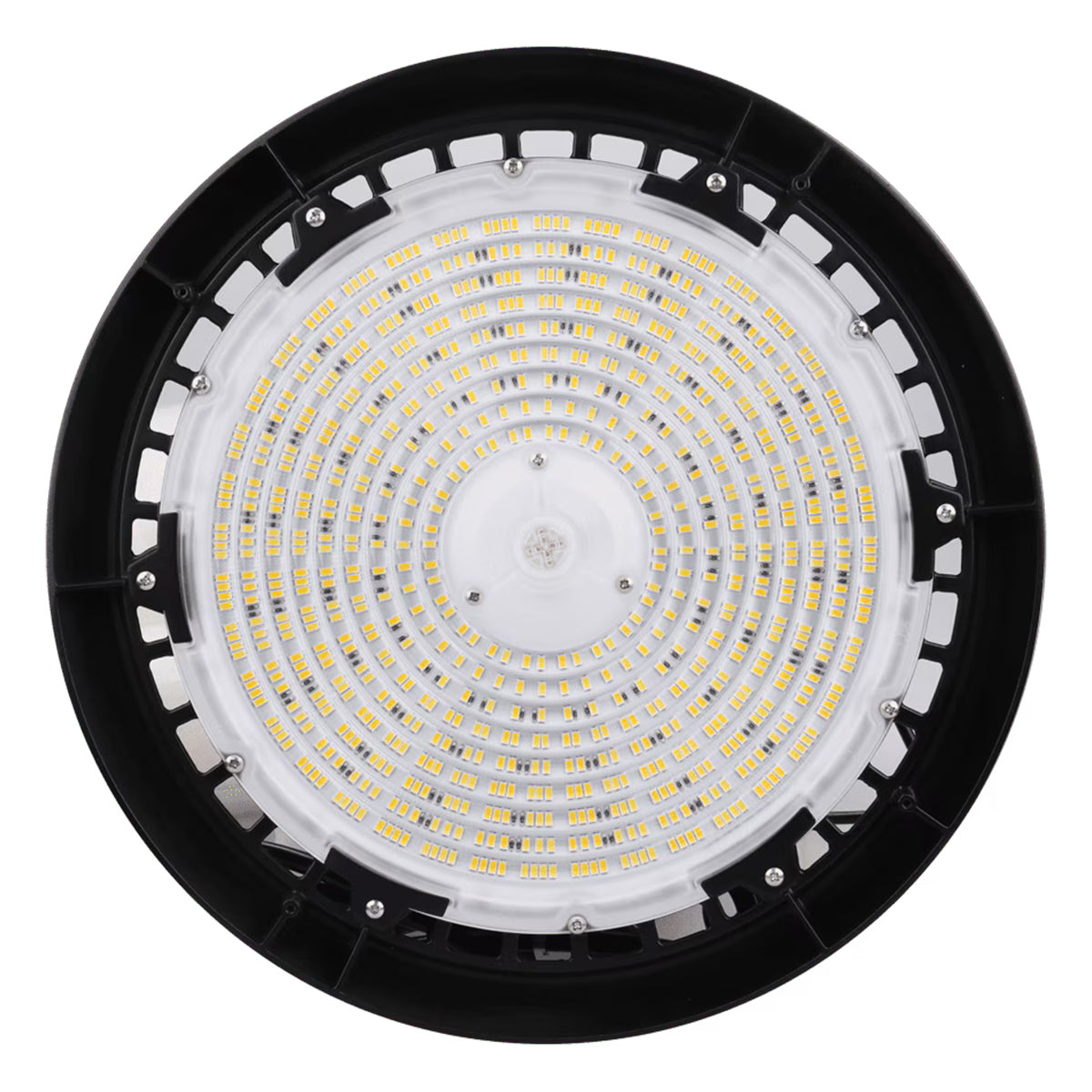

The EiKO BAYE4-PS240 (order code 15866, model BAYE4-PS240-OS-8FCCT-HDIM) is the mid-output Black finish model in EiKO’s BAYE4 Round LED High Bay family. PowerSET field-selectable wattage (240W / 200W / 150W), ColorSET field-selectable CCT (3500K / 4000K / 5000K), and OpticSET field-selectable beam (60° / 90°) are set via DIP switches before installation. Delivers up to 36,000 lumens. CRI 80+. Universal 120–347V input. IP65. IK08. NSF certified. UL listed for wet, damp, and dry locations. 6kV surge protection to ANSI standards. Rated life >100,000 hours L70. 5-year limited warranty. 6ft power and dimming cord included. Hook mount included.
Key Features

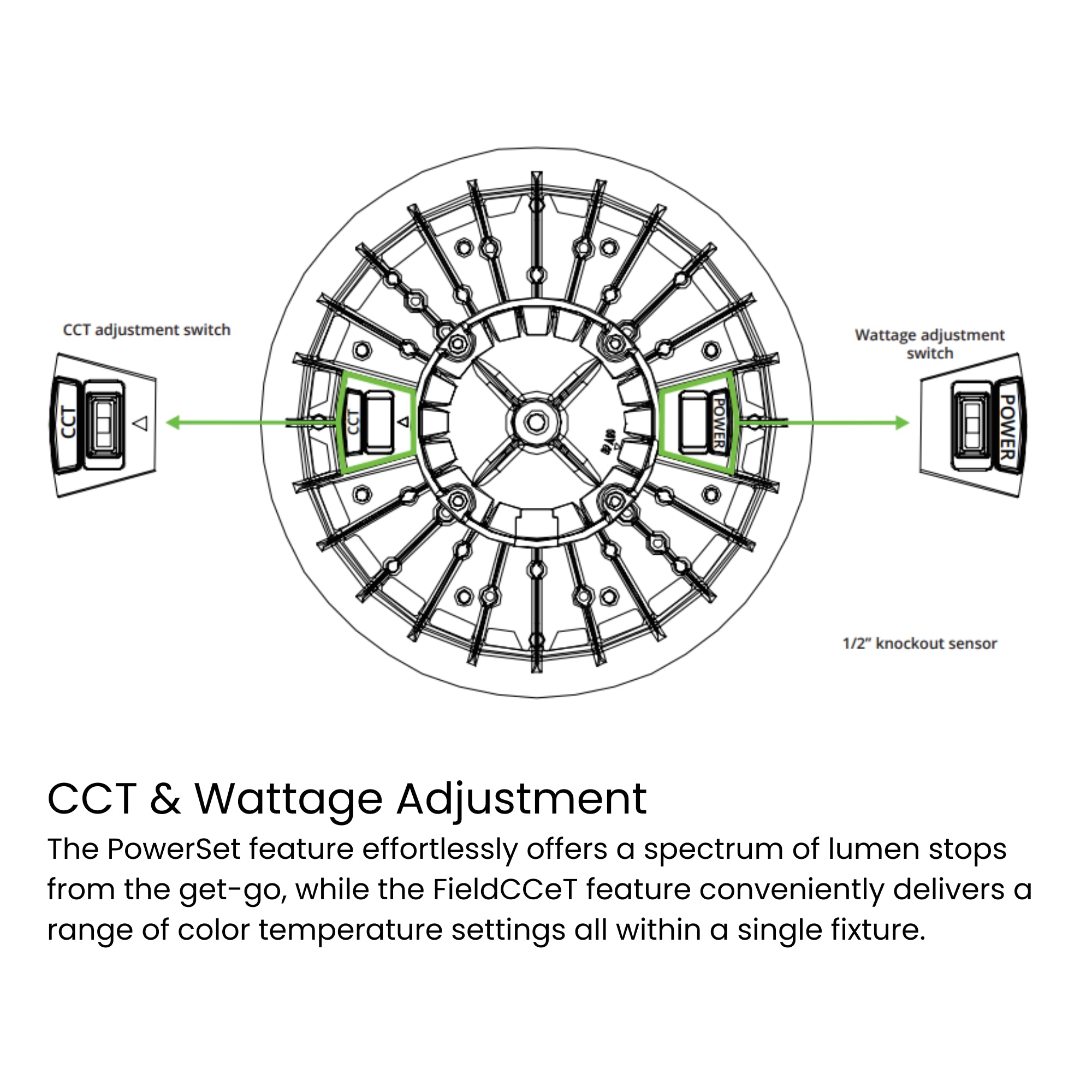

- PowerSET Field-Selectable Wattage: 240W / 200W / 150W — set via DIP switch before installation
- ColorSET Field-Selectable CCT: 3500K / 4000K / 5000K — set via DIP switch before installation
- OpticSET Field-Selectable Beam: 60° / 90° — set via DIP switch before installation
- Maximum Lumen Output: 36,000 lm (240W)
- Lumen Range: 24,000–36,000 lm across all wattage settings
- CRI: 80+
- Dimming: 0–10V continuous
- Voltage: 120–347V AC, 50/60 Hz
- IP Rating: IP65
- IK Rating: IK08
- NSF Certified: Yes
- Location Rating: Suitable for wet, damp, and dry environments
- Surge Protection: 6kV (ANSI rated)
- Power Factor: >0.9
- THD: <20%
- Ambient Operating Temperature: -40°F to 122°F (-40°C to 50°C)
- Housing: Die-cast aluminum
- Lens: Polycarbonate (PC) — IK08 impact resistant
- Finish: Matte Black
- Sensor Receptacle: Yes — with cover for field sensor installation
- Controls Ready: Yes
- Cord: 6ft power and dimming cord included
- Mounting: Hook mount included
- Diameter: 12.6" (320mm)
- Height: 7.72" (196mm)
- Rated Life: >100,000 hours L70
- Warranty: 5-year limited
- Green Technology: RoHS compliant
Performance & Light Output
OpticSET beam: 60° or 90°. At 240W: 36,000 lm. At 200W: 31,000 lm. At 150W: 24,000 lm. ColorSET CCT: 3500K / 4000K / 5000K. CRI 80+. Rated life >100,000 hours L70. White finish equivalent: BAYE4-PS240-OS-8FCCT-HDIM-WH (order code 16459).
Smart & Control Features
Sensor receptacle with cover standard. Compatible sensors (sold separately):
- SEN5A-SPPR-WH (13861): Stand-alone PIR Motion Sensor; 12–24V; Screw-in; 0–10V; Daylight Harvesting; 8–40ft; IP65
- SEN5A-SPMR-WH (13859): Stand-alone Microwave Motion Sensor; 12–24V; Screw-in; 0–10V; Daylight Harvesting; 8–40ft; IP65
- SEN5A-ACT (13344): Commissioning Tool for SEN5A sensors
- SENA-WPPA-WH (13865): BLE PIR Motion Sensor; networked via Silvair App
Electrical
120–347V AC, 50/60 Hz. 0–10V dimming. PF: >0.9. THD: <20%. Surge: 6kV ANSI. For 277–480V systems, specify BAYE4-PS240-OS-8FCCT-VDIM (order code 15867). RoHS compliant.
Construction

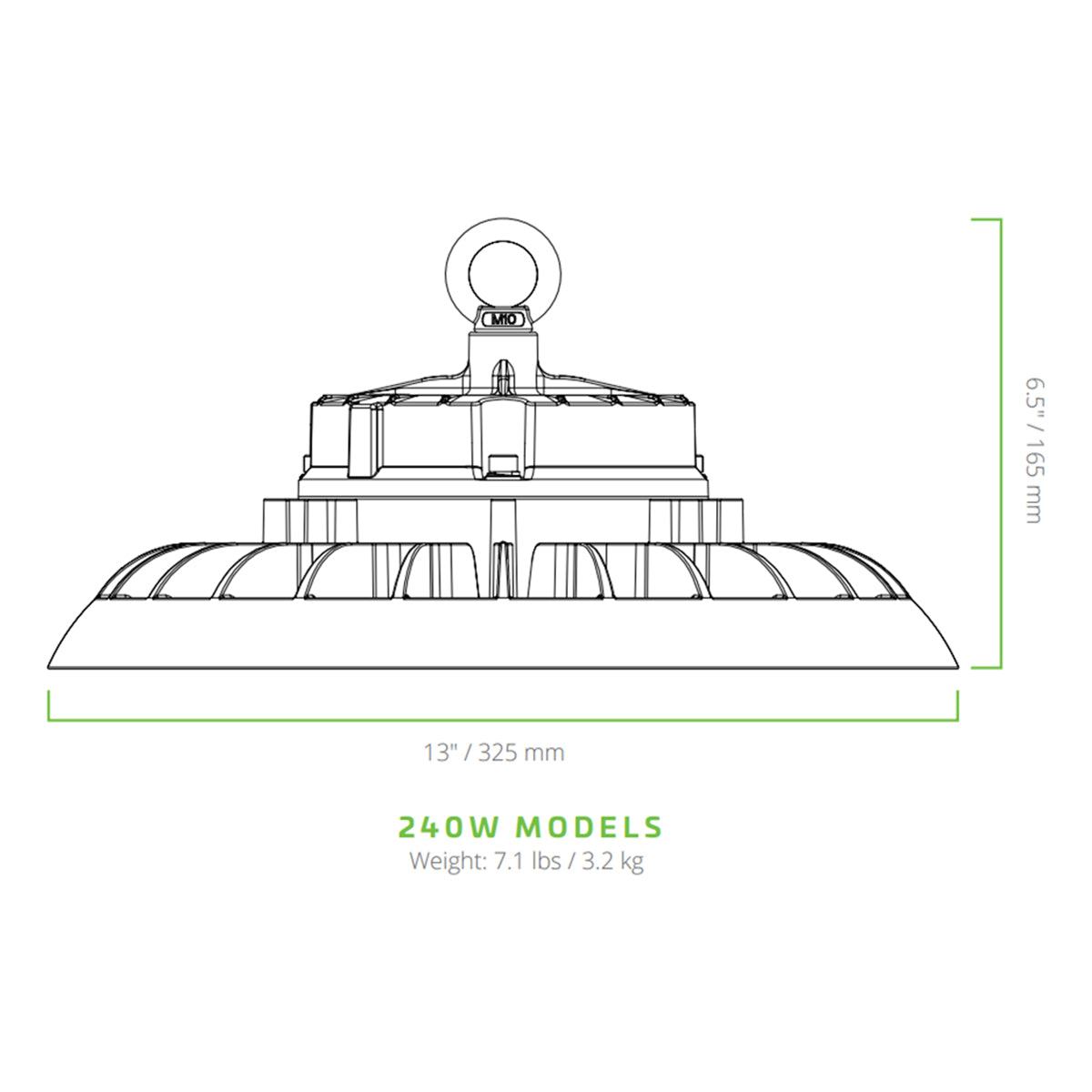

Die-cast aluminum housing with IK08 polycarbonate lens. IP65. Matte Black. Diameter: 12.6" (320mm). Height: 7.72" (196mm). 6ft cord included.
Installation & Mounting

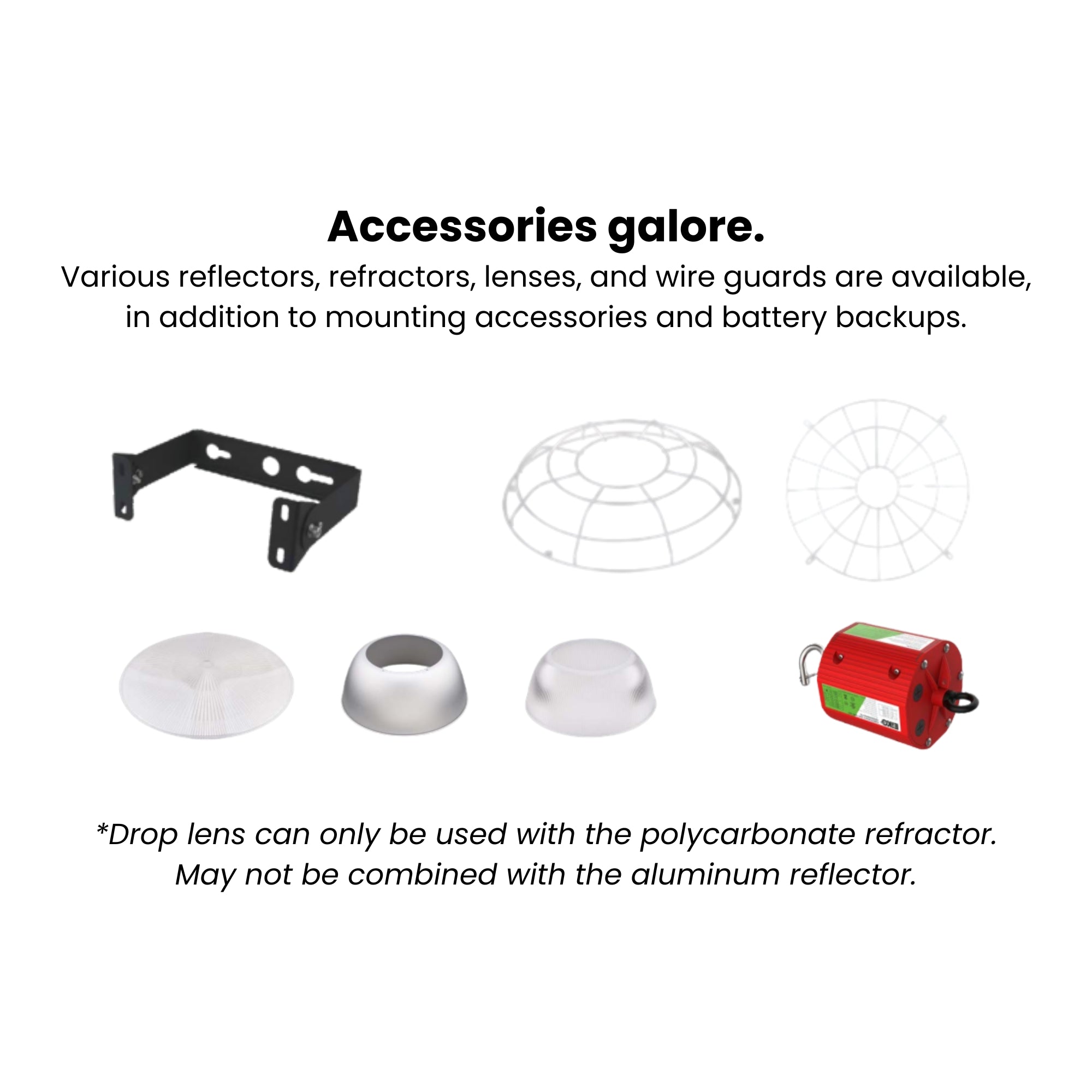

Hook mount included. Optional accessories (sold separately):
- HOOK-M10 (14212): Mounting Hook M10; BAYE4 PS150–PS300
- BAYE3-YK-S (14304): Mounting Yoke; BAYE4 PS150–PS300
- PA-M10-34 (14311): Pipe Adaptor M10 to 3/4"; BAYE4 PS150–PS300
- WG2-M (16463): Wire Guard; for BAYE4-PS240
- REF1-AL-M (14320): Aluminum Reflector; for BAYE4-PS240
- REF1-PC-M (14316): Prismatic Reflector; for BAYE4-PS240
- REF1-CL (14318): Cone Lens; compatible with REF1-PC-M
- EEBW40WHA170 (12901): EIKO 40W Emergency Battery Backup; 100–347VAC; CEC Compliant
- RC-001 (13293): Remote Control for EEBW Battery Pack
Certifications & Rebates
UL Certified — wet, damp, and dry locations. IP65. IK08. NSF Certified. FCC. CAN ICES-005. RoHS. DLC listing: verify at designlights.org by model number BAYE4-PS240-OS-8FCCT-HDIM.
Typical Applications

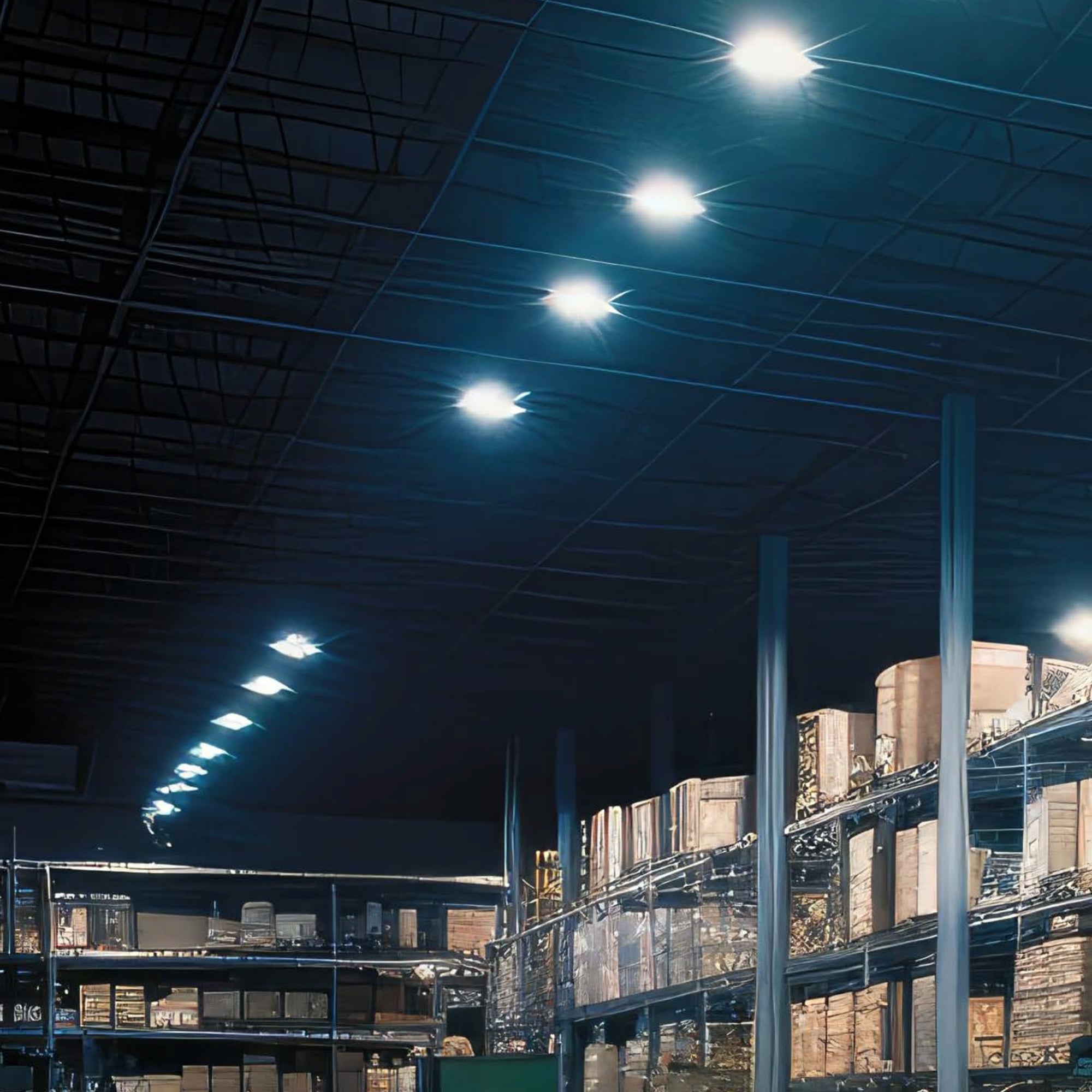

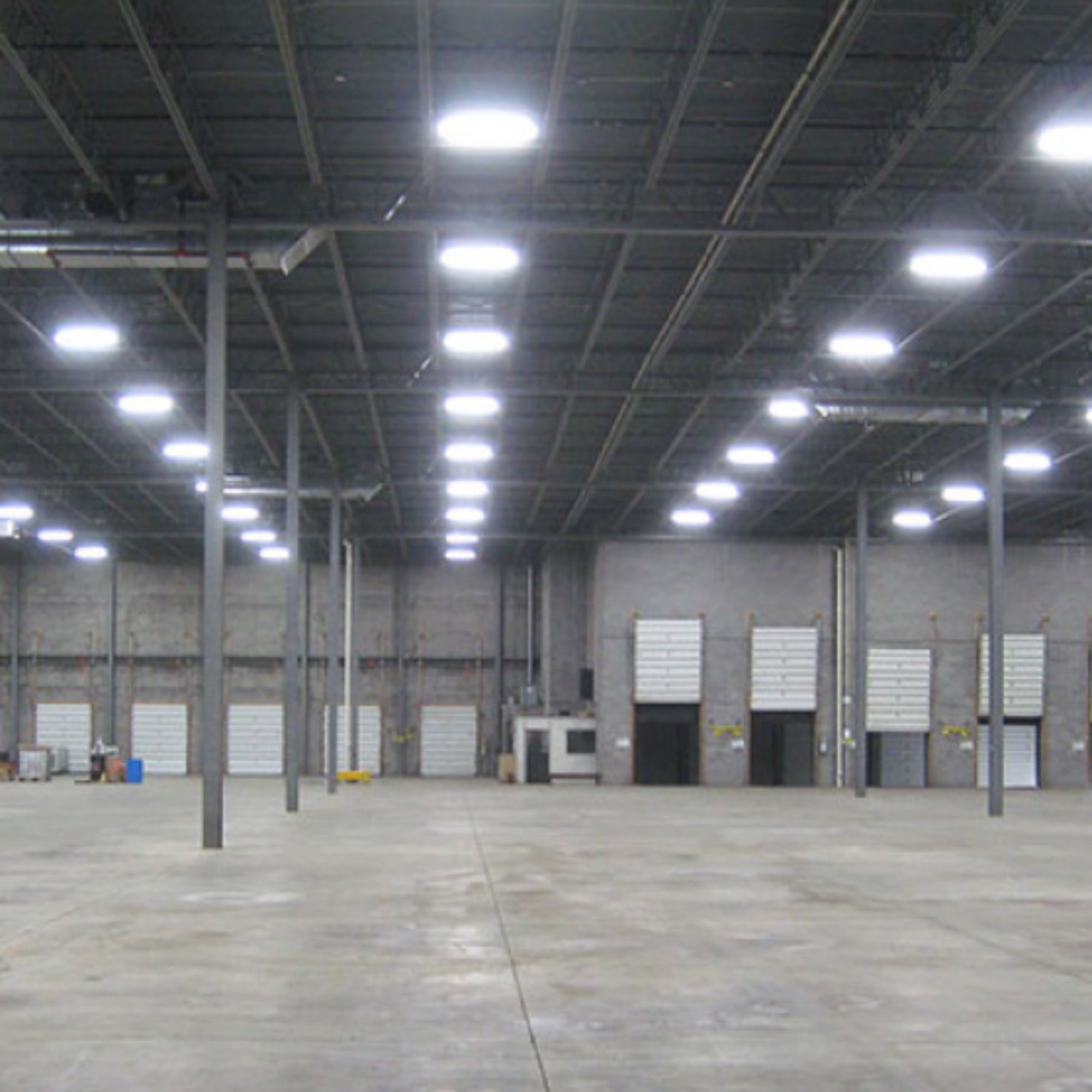

- Warehouses — Mid-to-High Ceiling: 36,000 lm at 240W for ceiling heights approximately 20–30 ft; 60° for aisle or 90° for general coverage
- Gymnasiums & Indoor Recreational Facilities: High output with selectable beam for multi-court gymnasiums and large rec centers
- Manufacturing Plants: 6kV ANSI surge and IP65 for industrial production floors; NSF for food-adjacent environments
- Distribution Centers: Up to 36,000 lm covers large-footprint facilities; PowerSET adjusts to zone requirements
- Service Repair Centers: ColorSET CCT (3500K / 4000K / 5000K) adapts to inspection and task lighting needs
- Food-Safe Environments: NSF certified; IP65 for washdown-adjacent areas
What's Included
- EiKO BAYE4-PS240 Round LED High Bay — Matte Black
- 6ft Power and Dimming Cord
- Hook Mount
