EiKO BAYE4-PS150 PowerSET UFO LED High Bay — 150W / 120W / 100W Selectable — 3500K / 4000K / 5000K — 120–347V — White
Available in stock (100)
About this item
About this item
- PowerSET + ColorSET + OpticSET — 3 DIP-Switch Selectable Parameters — White Finish: 150W / 120W / 100W wattage, 3500K / 4000K / 5000K CCT, and 60° / 90° beam — identical optical platform to the Black model (15862) in matte White powder coat for reflective or aesthetic-sensitive installations.
- 22,500 lm at 150W — >100,000 Hour L70 Rated Life: Up to 22,500 lm with a rated life more than double most competing UFO high bay platforms. Ideal for facilities prioritizing long maintenance intervals.
- IP65 + NSF Certified + IK08 — Wet, Damp, and Dry Locations: IP65 and NSF certified for food-safe and general industrial environments. IK08 impact protection with die-cast aluminum housing.
- 120–347V Universal Input — U.S. and Canadian Voltage Compatible: Covers standard U.S. commercial through Canadian 347V distribution. For 277–480V systems, specify BAYE4-PS150-OS-8FCCT-VDIM (order code 15865).

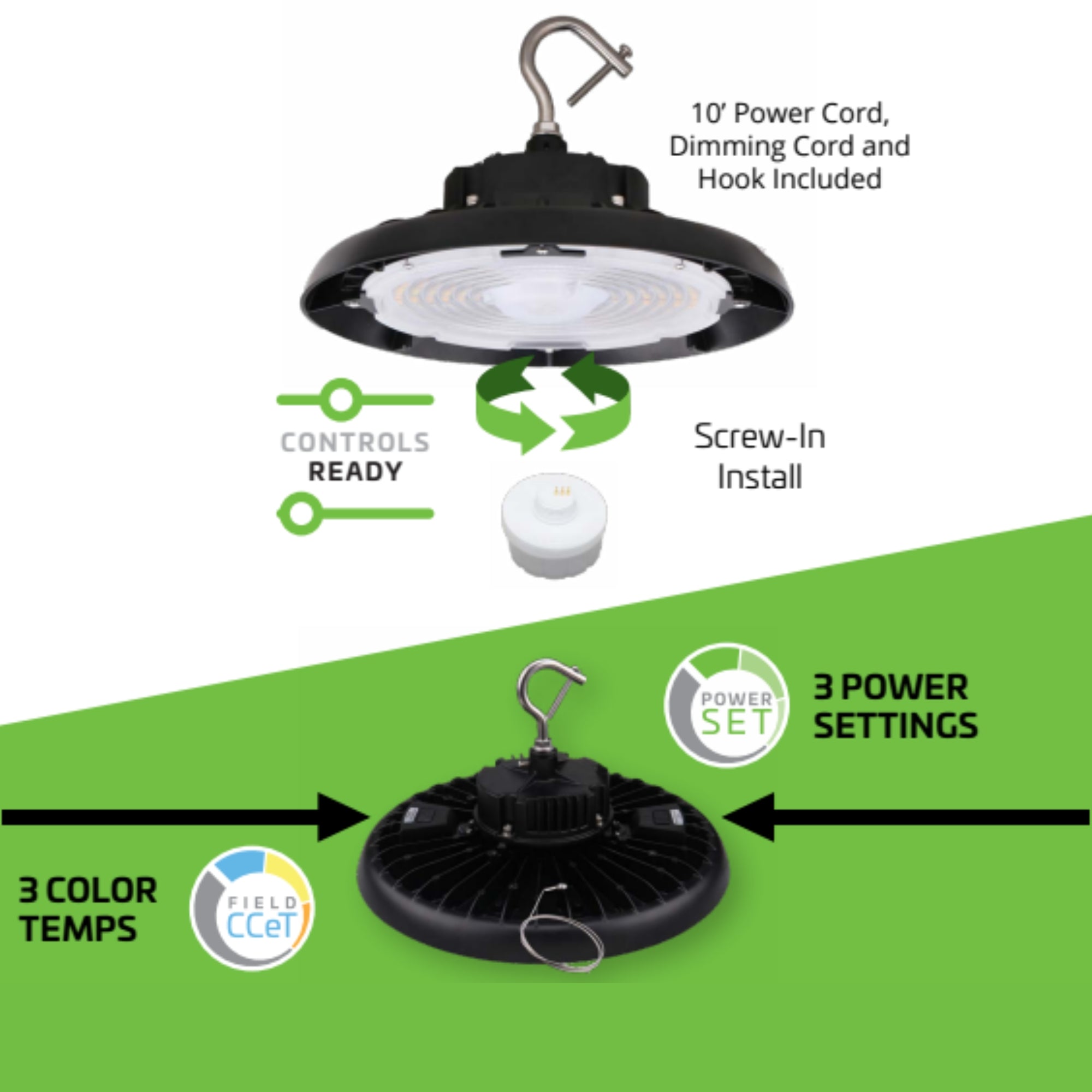

- Controls Ready — Sensor Receptacle Included — Smart Network Compatible: Field-installable sensor receptacle standard. Compatible with SEN5A PIR/microwave sensors and SENA-WPPA-WH BLE networked sensor (Silvair App). All sold separately.
We process payments securely and do not store credit card information.
Description
Description

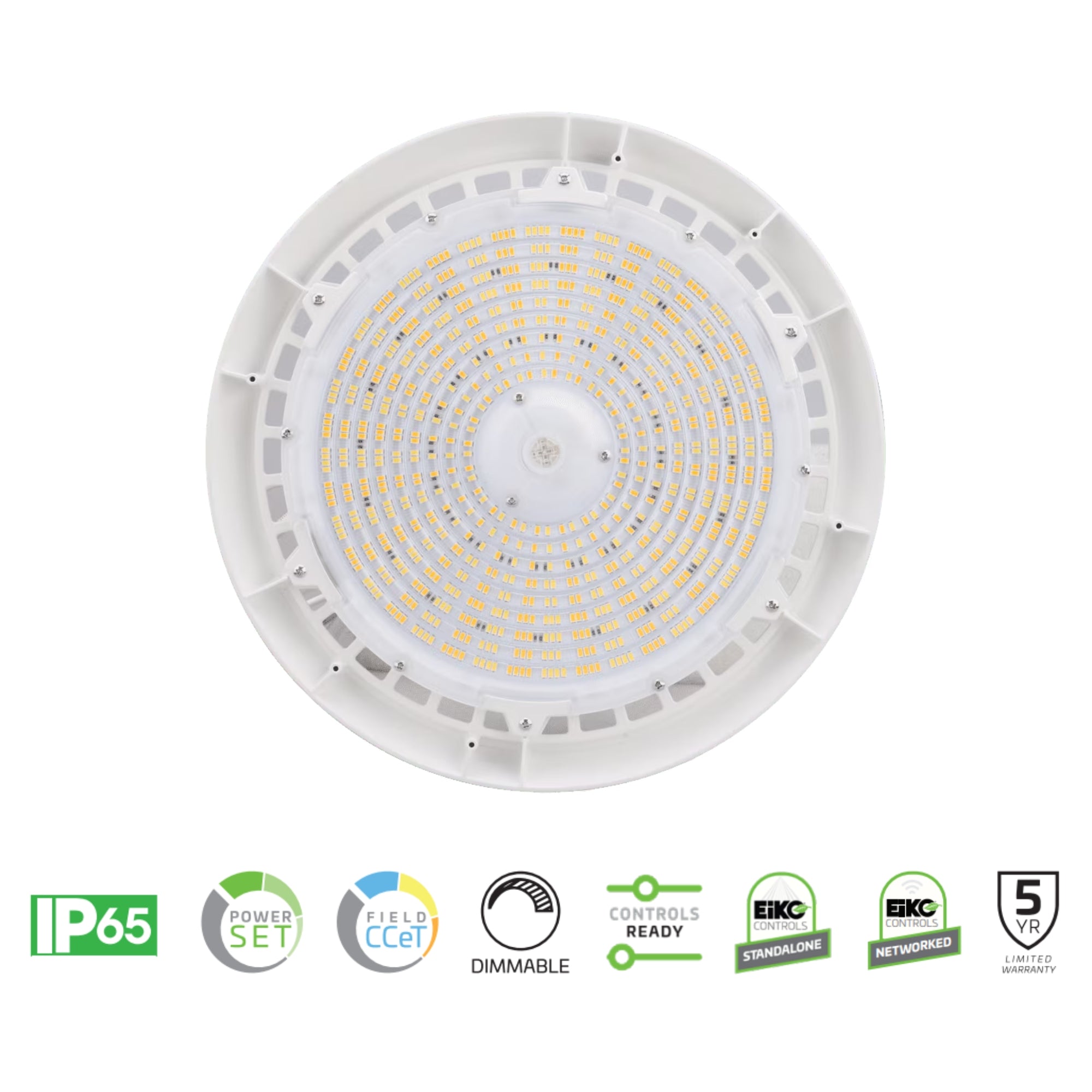

The EiKO BAYE4-PS150 White (order code 16458, model BAYE4-PS150-OS-8FCCT-HDIM-WH) is the White finish variant of EiKO’s BAYE4-PS150 Round LED High Bay — identical optical platform and specifications to the Black model (order code 15862), in a matte White powder coat finish. PowerSET field-selectable wattage (150W / 120W / 100W), ColorSET field-selectable CCT (3500K / 4000K / 5000K), and OpticSET field-selectable beam distribution (60° / 90°) are set via DIP switches before installation. Delivers up to 22,500 lumens. CRI 80+. Universal 120–347V input. IP65. IK08. NSF certified. UL listed for wet, damp, and dry locations. 6kV surge protection to ANSI standards. Rated life >100,000 hours L70. 5-year limited warranty. 6ft power and dimming cord included. Hook mount included.
Key Features

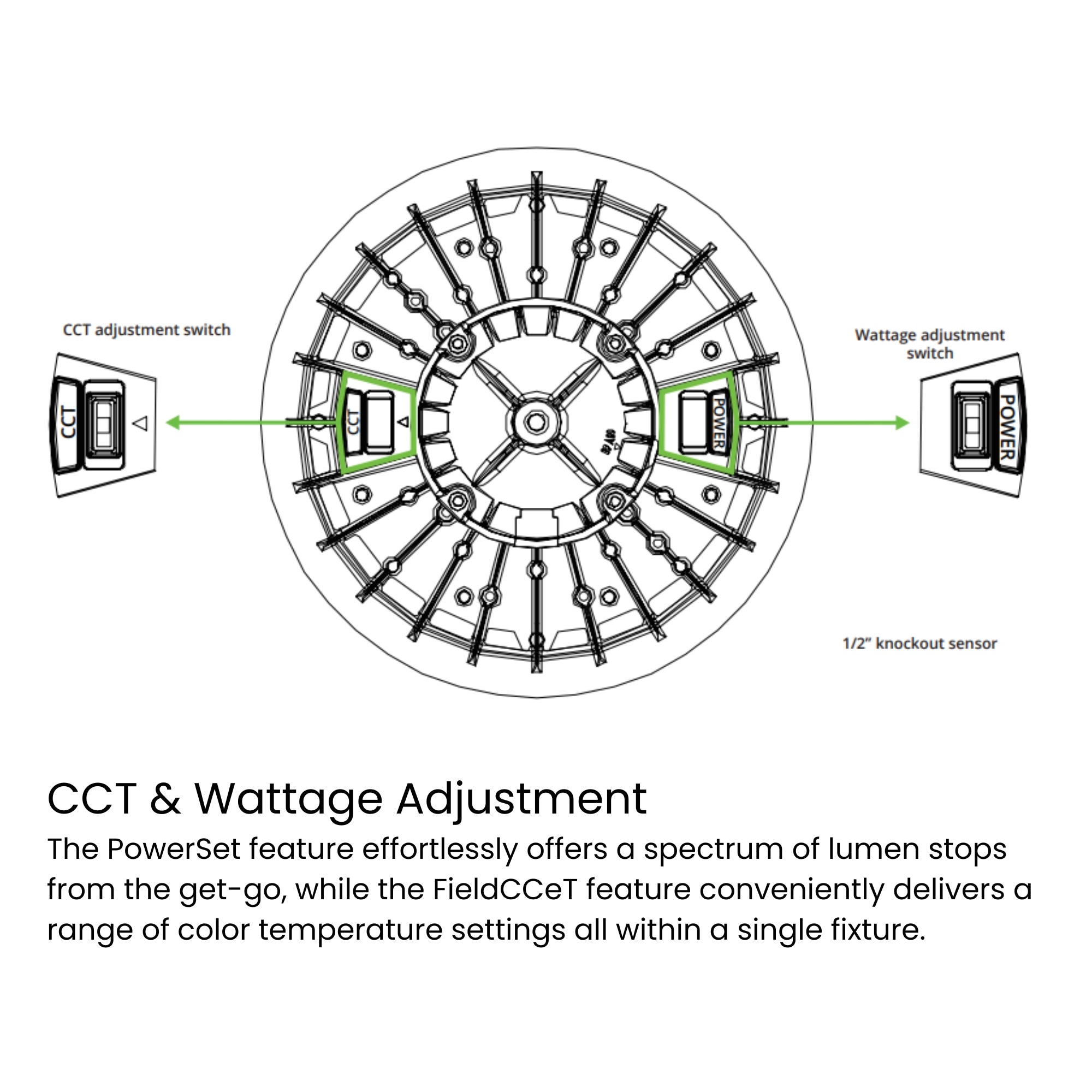

- PowerSET Field-Selectable Wattage: 150W / 120W / 100W — set via DIP switch before installation
- ColorSET Field-Selectable CCT: 3500K / 4000K / 5000K — set via DIP switch before installation
- OpticSET Field-Selectable Beam: 60° / 90° — set via DIP switch before installation
- Maximum Lumen Output: 22,500 lm (150W)
- Lumen Range: 16,000–22,500 lm across all wattage settings
- CRI: 80+
- Dimming: 0–10V continuous
- Voltage: 120–347V AC, 50/60 Hz
- IP Rating: IP65
- IK Rating: IK08
- NSF Certified: Yes
- Location Rating: Suitable for wet, damp, and dry environments
- Surge Protection: 6kV (ANSI rated)
- Power Factor: >0.9
- THD: <20%
- Ambient Operating Temperature: -40°F to 122°F (-40°C to 50°C)
- Housing: Die-cast aluminum
- Lens: Polycarbonate (PC) — IK08 impact resistant
- Finish: Matte White
- Sensor Receptacle: Yes — with cover for field sensor installation
- Controls Ready: Easy integration with sensors, controls, and smart lighting networks
- Cord: 6ft power and dimming cord included
- Mounting: Hook mount included
- Diameter: 10.83" (275mm)
- Height: 7.72" (196mm)
- Rated Life: >100,000 hours L70
- Warranty: 5-year limited
- Green Technology: RoHS compliant
Performance & Light Output
OpticSET beam: 60° (narrower, higher vertical footcandles) or 90° (wider general coverage). At 150W: 22,500 lm. At 120W: 18,600 lm. At 100W: 16,000 lm. ColorSET CCT: 3500K / 4000K / 5000K. CRI 80+. Rated life >100,000 hours L70. Black finish equivalent: BAYE4-PS150-OS-8FCCT-HDIM (order code 15862).
Smart & Control Features
Sensor receptacle with cover standard — accepts field-installable screw-in sensors. Compatible sensors and controls (sold separately):
- SEN5A-SPPR-WH (13861): Stand-alone PIR Motion Sensor; 12–24V; Screw-in; 0–10V; Daylight Harvesting; 8–40ft; White; IP65
- SEN5A-SPMR-WH (13859): Stand-alone Microwave Motion Sensor; 12–24V; Screw-in; 0–10V; Daylight Harvesting; 8–40ft; White; IP65
- SEN5A-ACT (13344): Commissioning Tool for SEN5A sensors
- SENA-WPPA-WH (13865): BLE PIR Motion Sensor; networked via Silvair App
Electrical
120–347V AC, 50/60 Hz. 0–10V continuous dimming. PF: >0.9. THD: <20%. Surge: 6kV ANSI. For 277–480V systems, specify BAYE4-PS150-OS-8FCCT-VDIM (order code 15865). RoHS compliant.
Construction
Robust die-cast aluminum housing with IK08 impact-resistant polycarbonate lens. IP65. Matte White powder coat finish. Diameter: 10.83" (275mm). Height: 7.72" (196mm). Sensor receptacle with cover. 6ft cord included.
Installation & Mounting

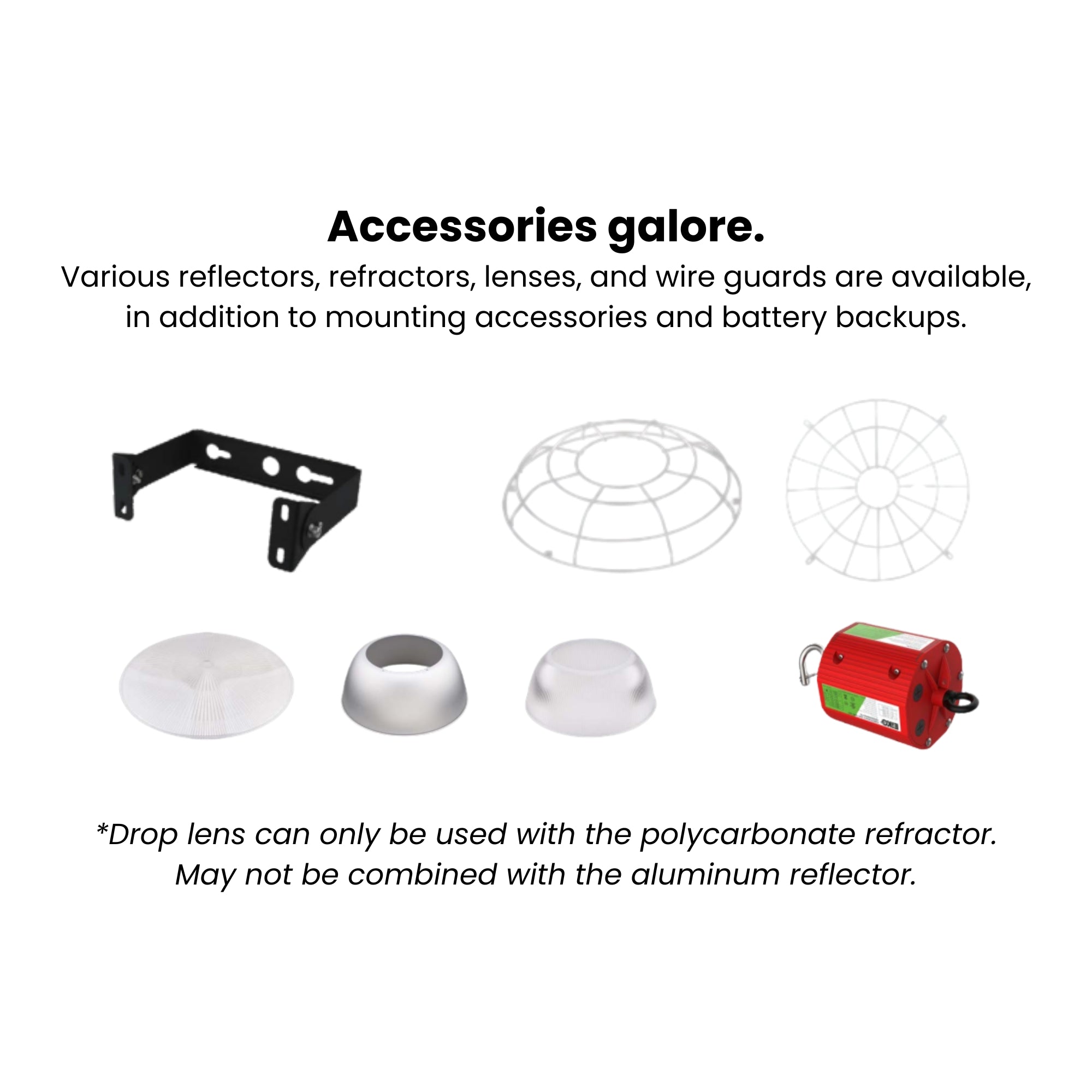

Hook mount included. Optional accessories (sold separately):
- HOOK-M10 (14212): Mounting Hook M10; BAYE4 PS150–PS300
- BAYE3-YK-S (14304): Mounting Yoke; BAYE4 PS150–PS300
- PA-M10-34 (14311): Pipe Adaptor M10 to 3/4"; BAYE4 PS150–PS300
- WG1-S (14308): Wire Guard; for BAYE4-PS150
- REF1-AL-S (14319): Aluminum Reflector; for BAYE4-PS150
- REF1-PC-S (14315): Prismatic Reflector; for BAYE4-PS150
- REF1-CL (14318): Cone Lens; compatible with REF1-PC-S
- EEBW40WHA170 (12901): EIKO 40W Emergency Battery Backup; 100–347VAC; CEC Compliant
- RC-001 (13293): Remote Control for EEBW Battery Pack
Certifications & Rebates
UL Certified — wet, damp, and dry locations. IP65. IK08. NSF Certified. FCC. CAN ICES-005. RoHS. DLC listing: verify at designlights.org by model number BAYE4-PS150-OS-8FCCT-HDIM-WH.
Typical Applications

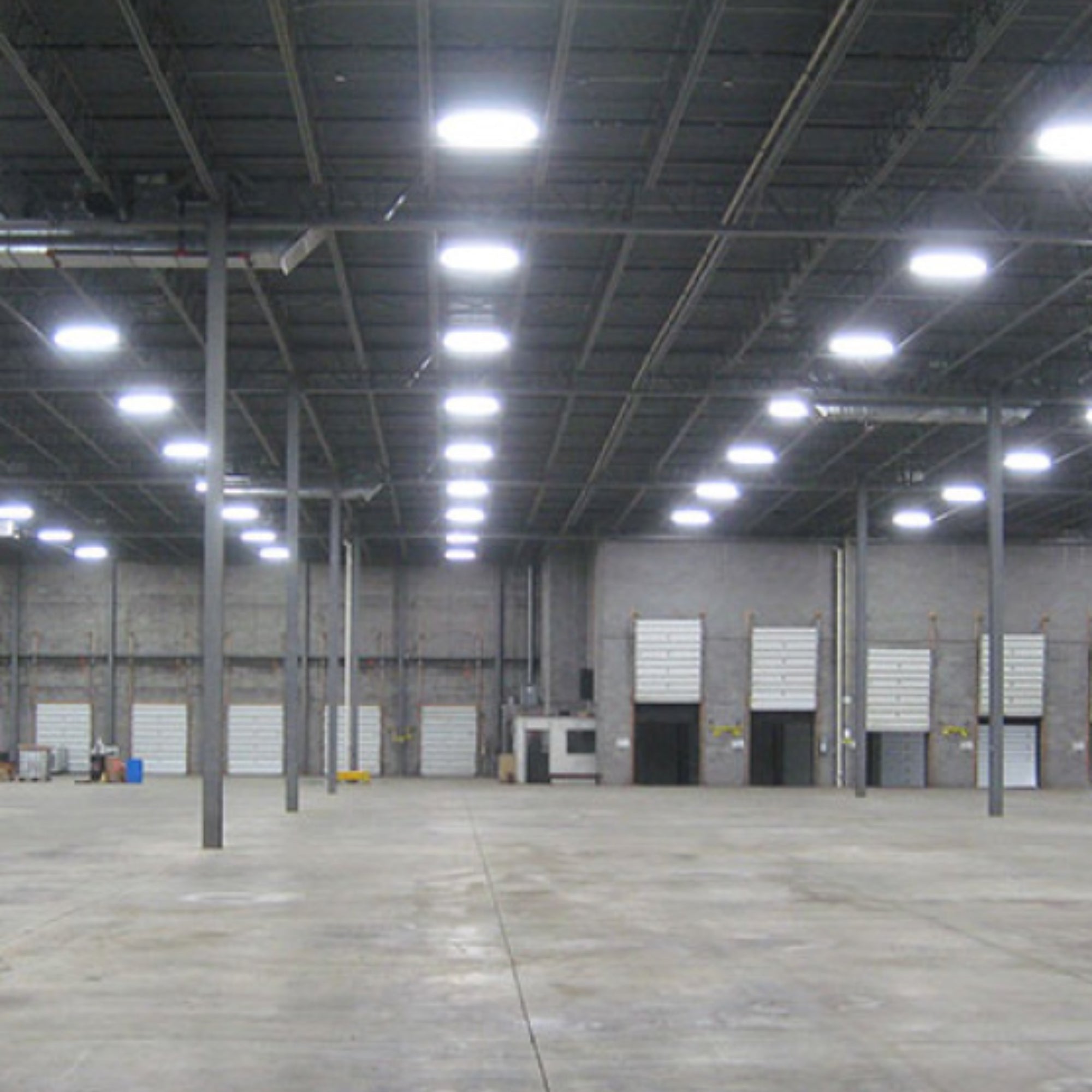

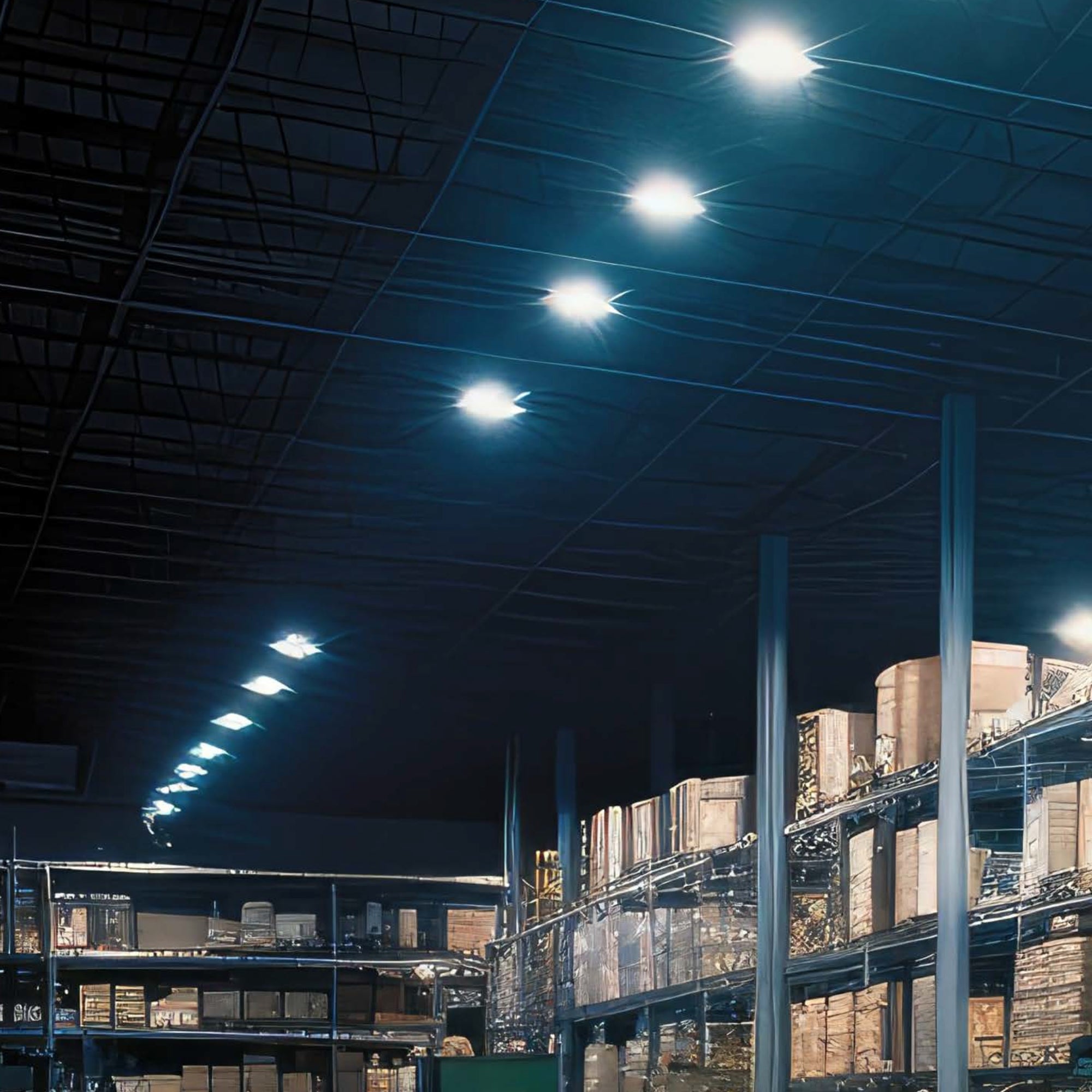

- Warehouses — General & Aisle Lighting: 60° or 90° OpticSET beam for aisle or wide coverage; White finish for reflective ceiling installations
- Gymnasiums & Indoor Recreational Facilities: White finish suits aesthetic-sensitive gym and recreation center environments
- Manufacturing Plants: 6kV ANSI surge and IP65 for industrial environments; White finish for high-reflectance installations
- Distribution Centers: PowerSET optimizes energy use per zone; White finish maximizes reflected light contribution
- Service Repair Centers: ColorSET CCT (3500K / 4000K / 5000K) adapts to inspection and task requirements
- Food-Safe Environments: NSF certified for food processing, commercial kitchens, and public health applications
What's Included
- EiKO BAYE4-PS150 Round LED High Bay — Matte White
- 6ft Power and Dimming Cord
- Hook Mount
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What are PowerSET, ColorSET, and OpticSET?
What are PowerSET, ColorSET, and OpticSET?
Is this fixture NSF certified, and what environments is it rated for?
Is this fixture NSF certified, and what environments is it rated for?
What voltage range does this fixture support?
What voltage range does this fixture support?
How does the White finish compare to the Black model, and when should I choose White?
How does the White finish compare to the Black model, and when should I choose White?
What is the rated life of the BAYE4-PS150?
What is the rated life of the BAYE4-PS150?
