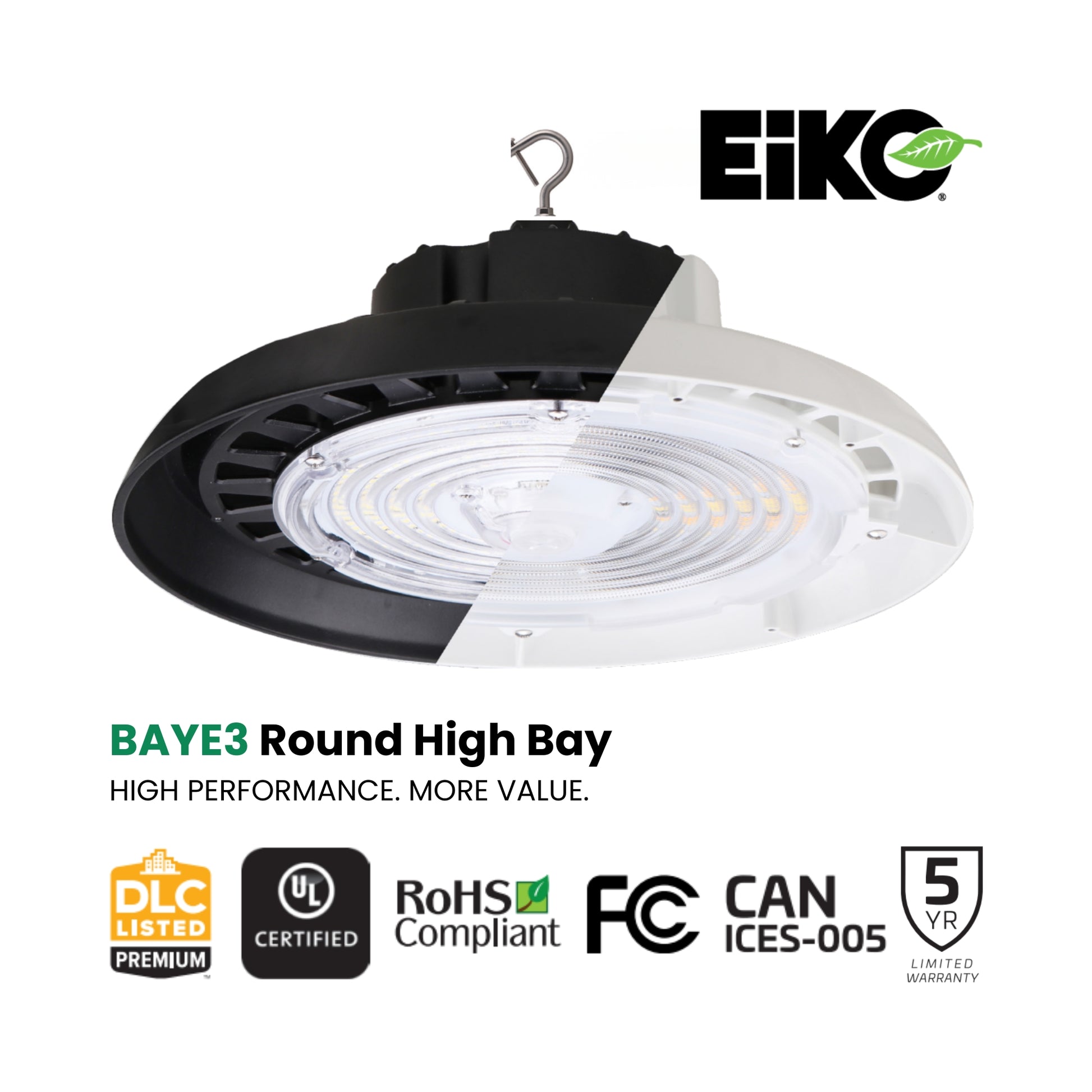

EiKO BAYE4-PS150 PowerSET UFO LED High Bay — 150W / 120W / 100W Selectable — 3500K / 4000K / 5000K — 120–347V — Black
Available in stock (100)
About this item
About this item

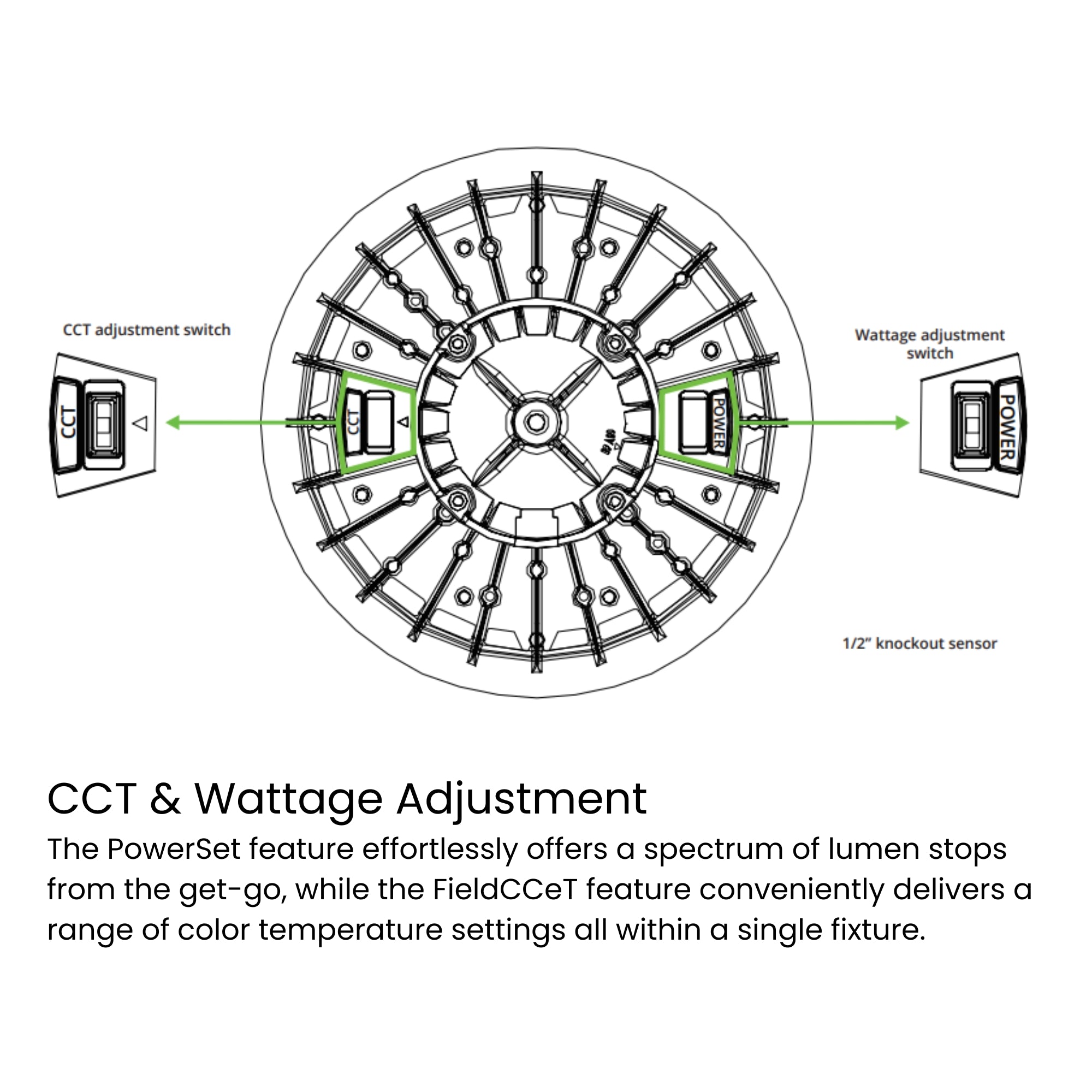

- PowerSET + ColorSET + OpticSET — 3 DIP-Switch Selectable Parameters: 150W / 120W / 100W wattage, 3500K / 4000K / 5000K CCT, and 60° / 90° beam — all field-configurable via DIP switches before installation from a single Black UFO SKU.
- 22,500 lm at 150W — >100,000 Hour L70 Rated Life: Up to 22,500 lm with a rated life more than double most competing UFO high bay platforms. Ideal for facilities prioritizing long maintenance intervals.
- IP65 + NSF Certified + IK08 — Wet, Damp, and Dry Locations: IP65 and NSF certified for food-safe, washdown-adjacent, and general industrial environments. IK08 impact protection with die-cast aluminum housing.
- 120–347V Universal Input — U.S. and Canadian Voltage Compatible: Covers standard U.S. commercial through Canadian 347V distribution. For 277–480V systems, specify BAYE4-PS150-OS-8FCCT-VDIM (order code 15865).
- Controls Ready — Sensor Receptacle Included — Smart Network Compatible: Field-installable screw-in sensor receptacle standard. Compatible with SEN5A standalone PIR/microwave sensors and SENA-WPPA-WH BLE networked sensor via Silvair App (all sold separately).
We process payments securely and do not store credit card information.
Description
Description

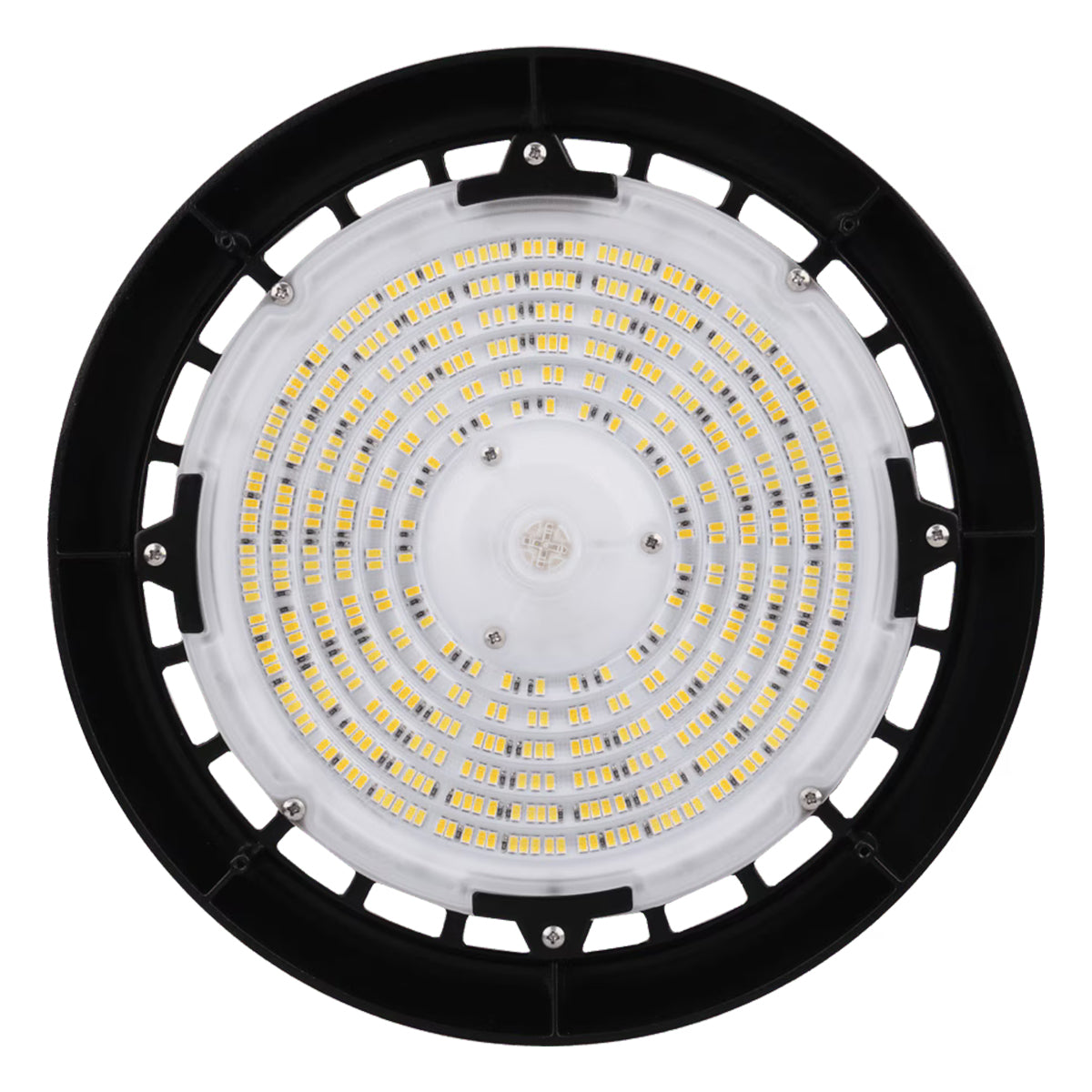

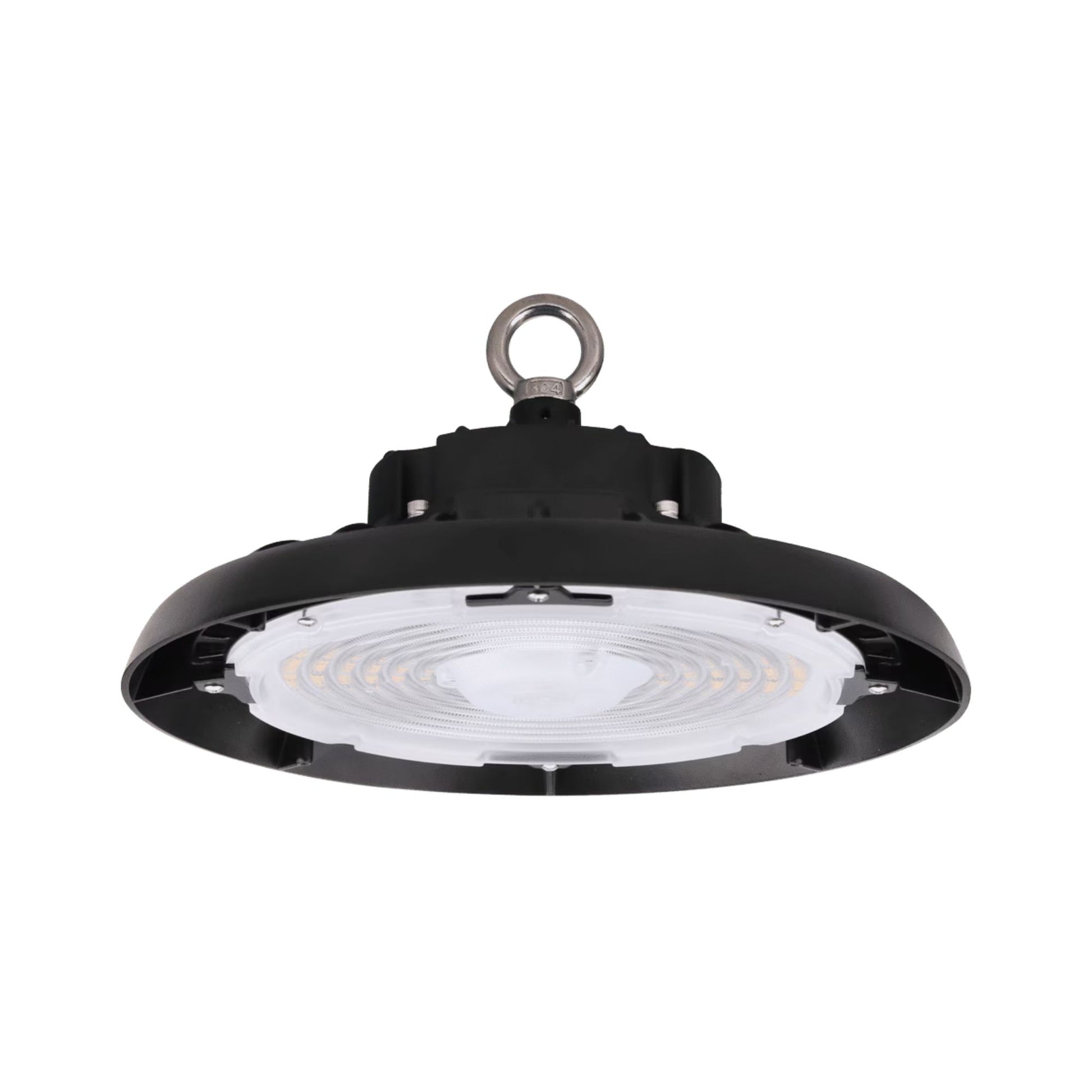

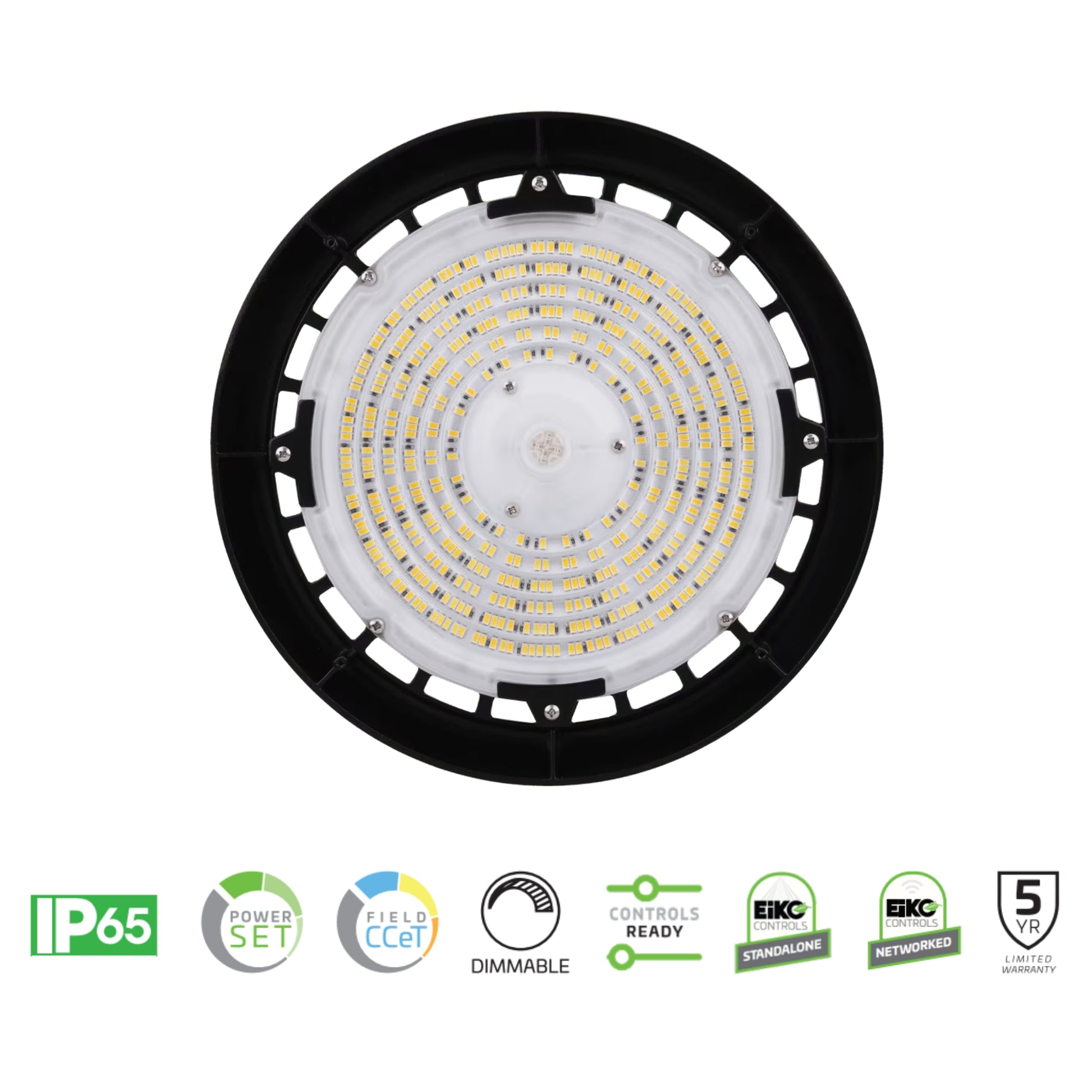

The EiKO BAYE4-PS150 (order code 15862, model BAYE4-PS150-OS-8FCCT-HDIM) is the lower-output Black finish model in EiKO’s BAYE4 Round LED High Bay family. PowerSET field-selectable wattage (150W / 120W / 100W), ColorSET field-selectable CCT (3500K / 4000K / 5000K), and OpticSET field-selectable beam distribution (60° / 90°) are all set via DIP switches before installation. Delivers up to 22,500 lumens. CRI 80+. Universal 120–347V input. IP65. IK08. NSF certified. UL listed for wet, damp, and dry locations. 6kV surge protection to ANSI standards. Rated life >100,000 hours L70. 5-year limited warranty. 6ft power and dimming cord included. Hook mount included.
Key Features
- PowerSET Field-Selectable Wattage: 150W / 120W / 100W — set via DIP switch before installation
- ColorSET Field-Selectable CCT: 3500K / 4000K / 5000K — set via DIP switch before installation
- OpticSET Field-Selectable Beam: 60° / 90° — set via DIP switch before installation
- Maximum Lumen Output: 22,500 lm (150W)
- Lumen Range: 16,000–22,500 lm across all wattage settings
- CRI: 80+
- Dimming: 0–10V continuous
- Voltage: 120–347V AC, 50/60 Hz
- IP Rating: IP65
- IK Rating: IK08
- NSF Certified: Yes
- Location Rating: Suitable for wet, damp, and dry environments
- Surge Protection: 6kV (ANSI rated)
- Power Factor: >0.9
- THD: <20%
- Ambient Operating Temperature: -40°F to 122°F (-40°C to 50°C)
- Housing: Die-cast aluminum
- Lens: Polycarbonate (PC) — IK08 impact resistant
- Finish: Matte Black
- Sensor Receptacle: Yes — with cover for field sensor installation
- Controls Ready: Easy integration with sensors, controls, and smart lighting networks
- Cord: 6ft power and dimming cord included
- Mounting: Hook mount included

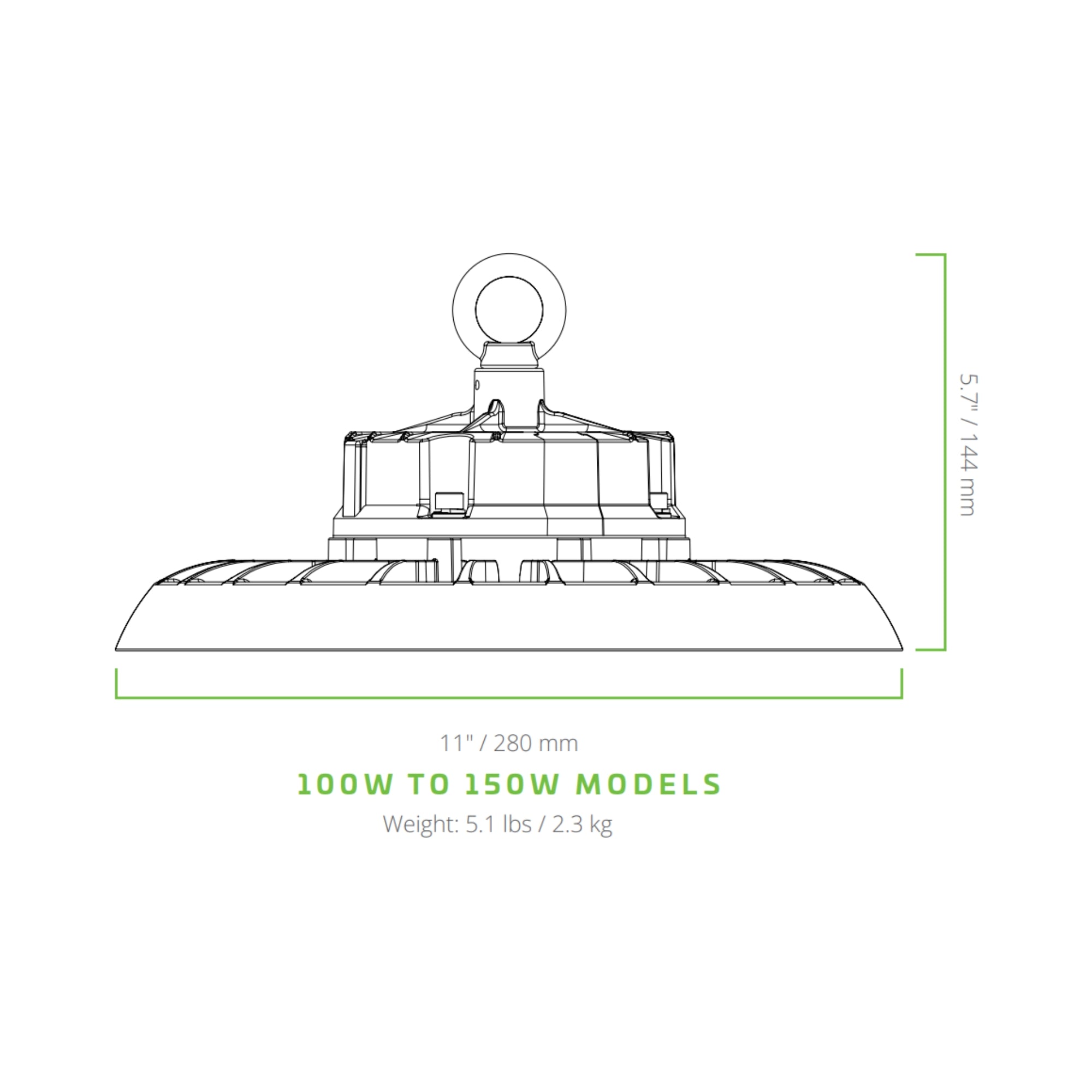

- Diameter: 10.83" (275mm)
- Height: 7.72" (196mm)
- Rated Life: >100,000 hours L70
- Warranty: 5-year limited
- Green Technology: RoHS compliant
Performance & Light Output
OpticSET beam: 60° (narrower, higher vertical footcandles) or 90° (wider general coverage) — set via DIP switch. At 150W: 22,500 lm. At 120W: 18,600 lm. At 100W: 16,000 lm. ColorSET CCT: 3500K / 4000K / 5000K. CRI 80+. Rated life >100,000 hours L70. White finish equivalent: BAYE4-PS150-OS-8FCCT-HDIM-WH (order code 16458).
Smart & Control Features

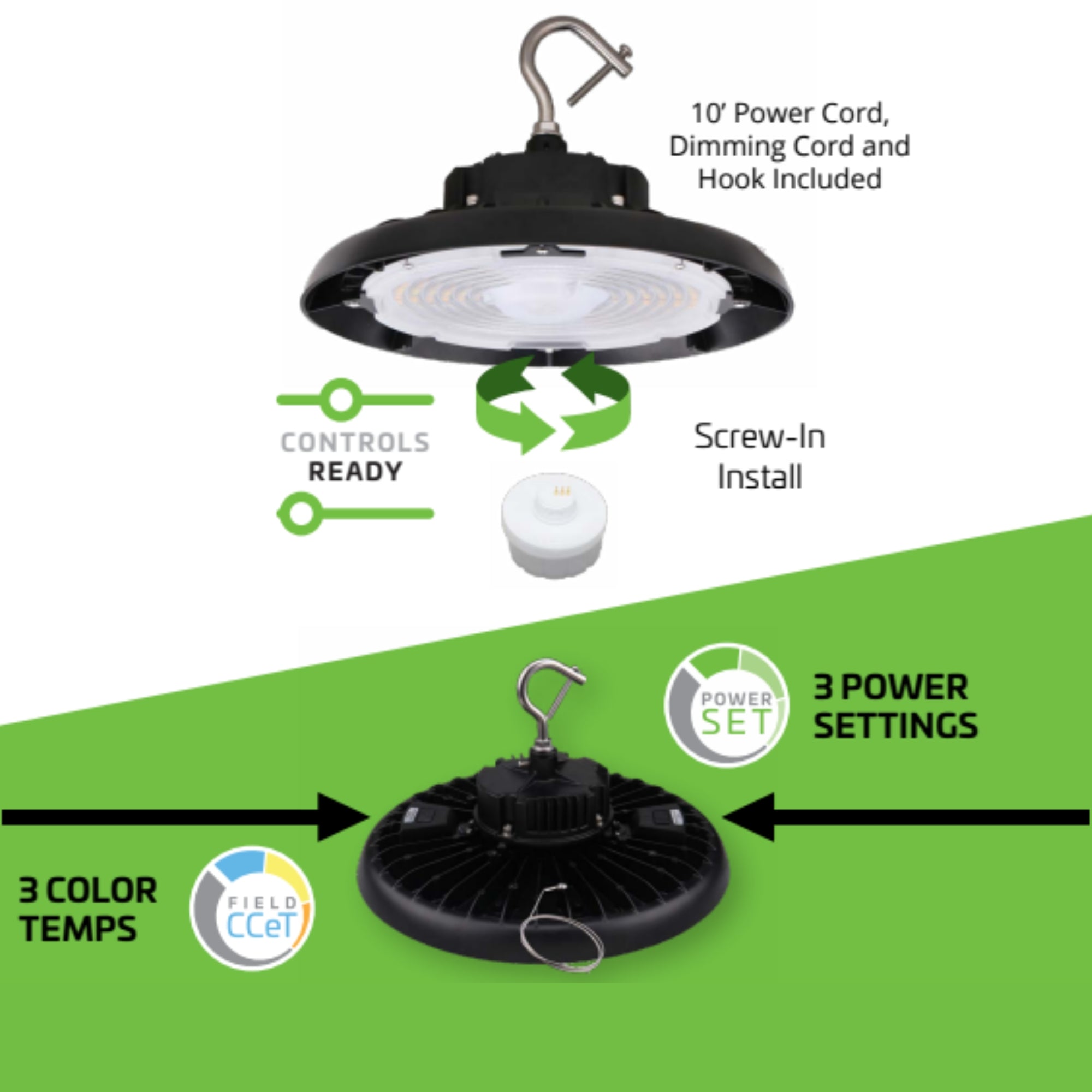

Sensor receptacle with cover standard — accepts field-installable screw-in sensors. Compatible sensors and controls (sold separately):
- SEN5A-SPPR-WH (13861): Stand-alone PIR Motion Sensor; 12–24V; Screw-in; 0–10V; Daylight Harvesting; 8–40ft; White; IP65 — parameters set by SEN5A-ACT
- SEN5A-SPMR-WH (13859): Stand-alone Microwave Motion Sensor; 12–24V; Screw-in; 0–10V; Daylight Harvesting; 8–40ft; White; IP65 — parameters set by SEN5A-ACT
- SEN5A-ACT (13344): Commissioning Tool for SEN5A sensors
- SENA-WPPA-WH (13865): BLE PIR Motion Sensor; 12–24V; Screw-in; 0–10V; Daylight Harvesting; 8–40ft; White; IP65 — parameters set by Silvair App (networked)
Standard 0–10V continuous dimming.
Electrical
120–347V AC, 50/60 Hz. 0–10V continuous dimming. Power Factor: >0.9. THD: <20%. Surge protection: 6kV to ANSI standards for industrial environments. For 277–480V systems, see BAYE4-PS150-OS-8FCCT-VDIM (order code 15865). RoHS compliant.
Construction

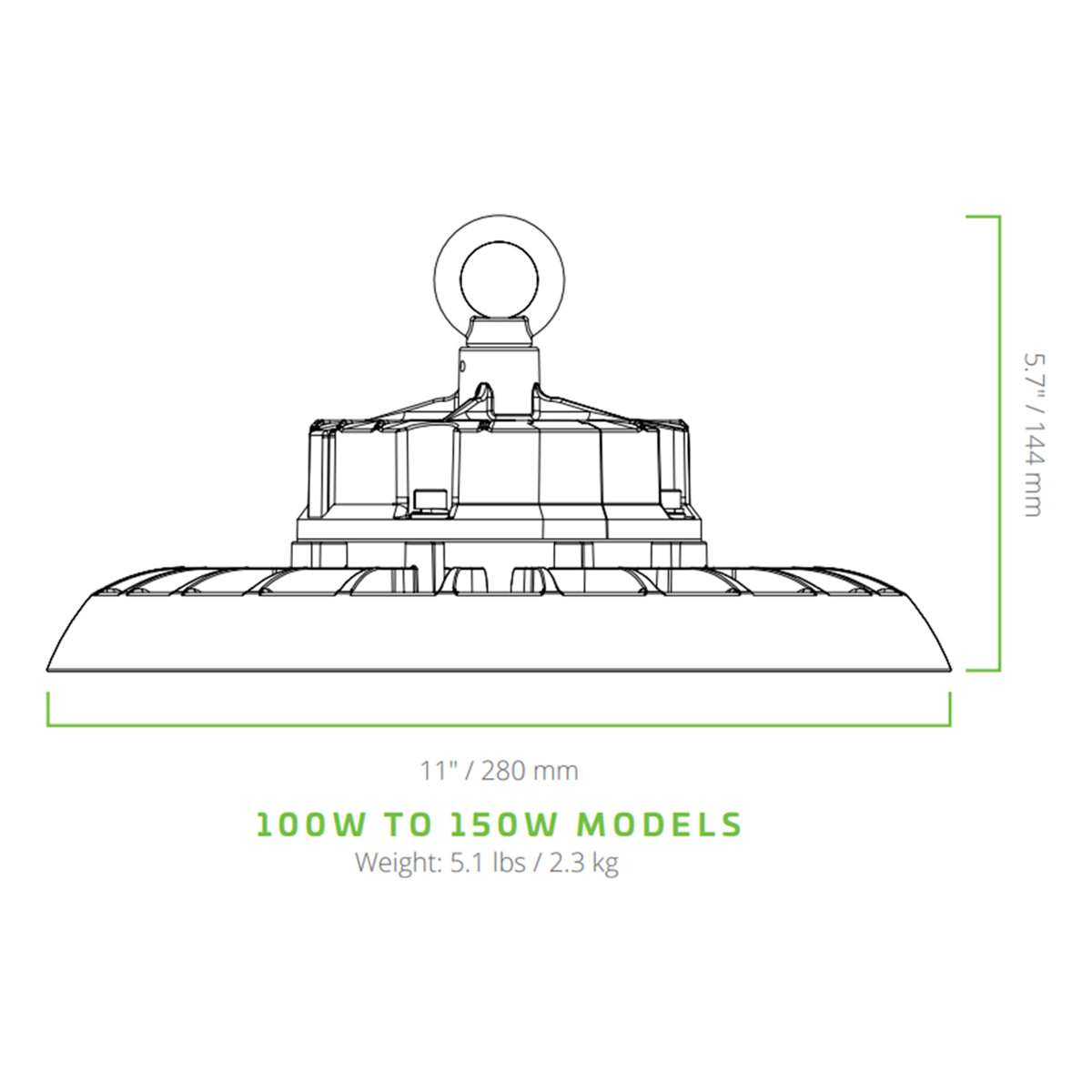

Robust die-cast aluminum housing with IK08 impact-resistant polycarbonate lens. IP65 rated. Matte Black powder coat finish. Diameter: 10.83" (275mm). Height: 7.72" (196mm). Sensor receptacle with cover. 6ft power and dimming cord included.
Installation & Mounting

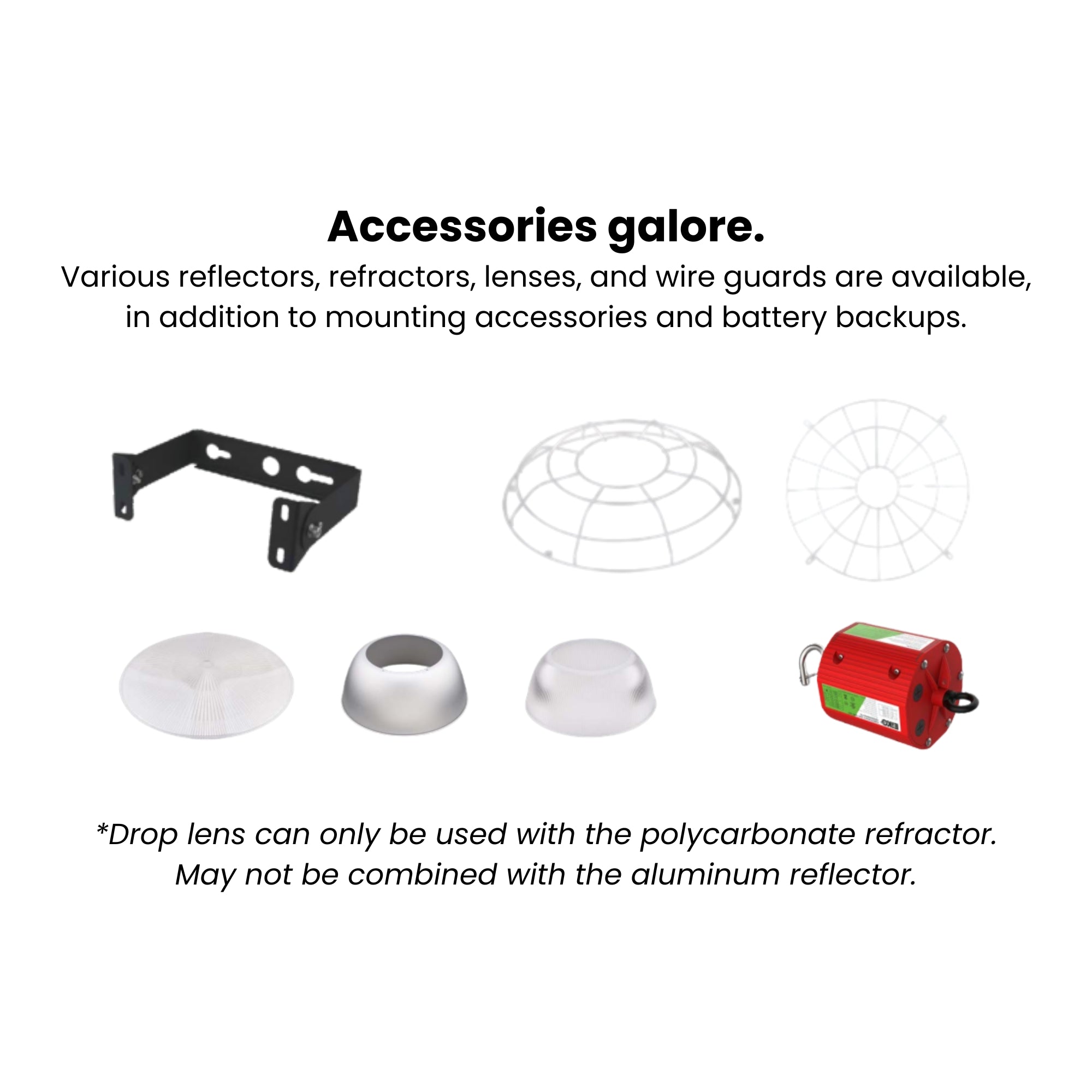

Hook mount included. Optional mounting solutions and accessories (sold separately):
- HOOK-M10 (14212): Mounting Hook M10; for BAYE4 PS150–PS300
- BAYE3-YK-S (14304): Mounting Yoke; for BAYE4 PS150–PS300
- PA-M10-34 (14311): Pipe Adaptor M10 to 3/4"; for BAYE4 PS150–PS300
- WG1-S (14308): Wire Guard; for BAYE4-PS150
- REF1-AL-S (14319): Aluminum Reflector; for BAYE4-PS150
- REF1-PC-S (14315): Prismatic Reflector; for BAYE4-PS150
- REF1-CL (14318): Cone Lens; compatible with REF1-PC-S
- EEBW40WHA170 (12901): EIKO 40W Emergency Battery Backup; 100–347VAC; Hook mounting; CEC Compliant
- RC-001 (13293): Remote Control for EEBW Battery Pack (optional)
Certifications & Rebates
UL Certified — suitable for wet, damp, and dry locations. IP65. IK08. NSF Certified. IP65. FCC certified. CAN ICES-005 compliant. RoHS compliant. DLC listing status: verify current listing at designlights.org by model number BAYE4-PS150-OS-8FCCT-HDIM.
Typical Applications

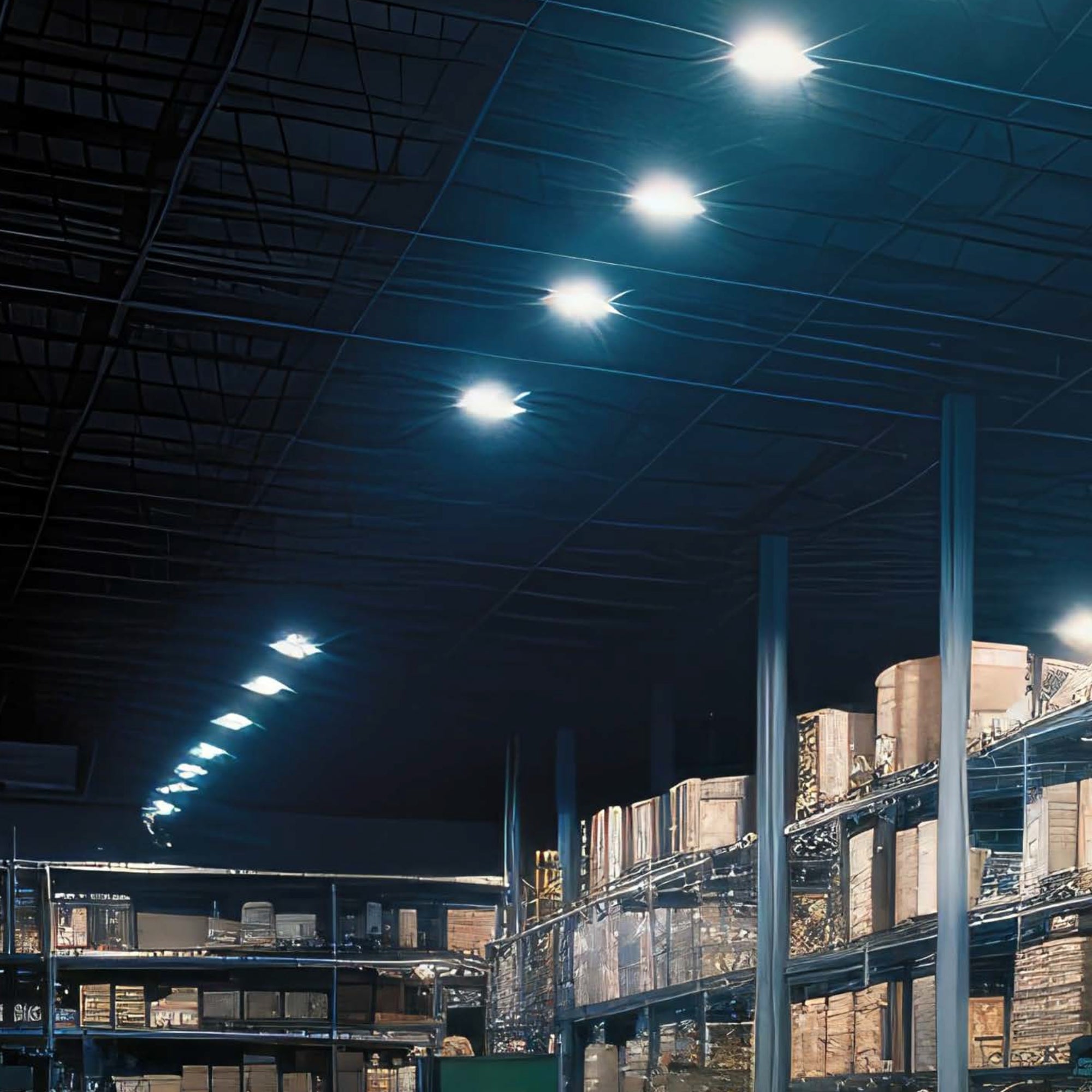

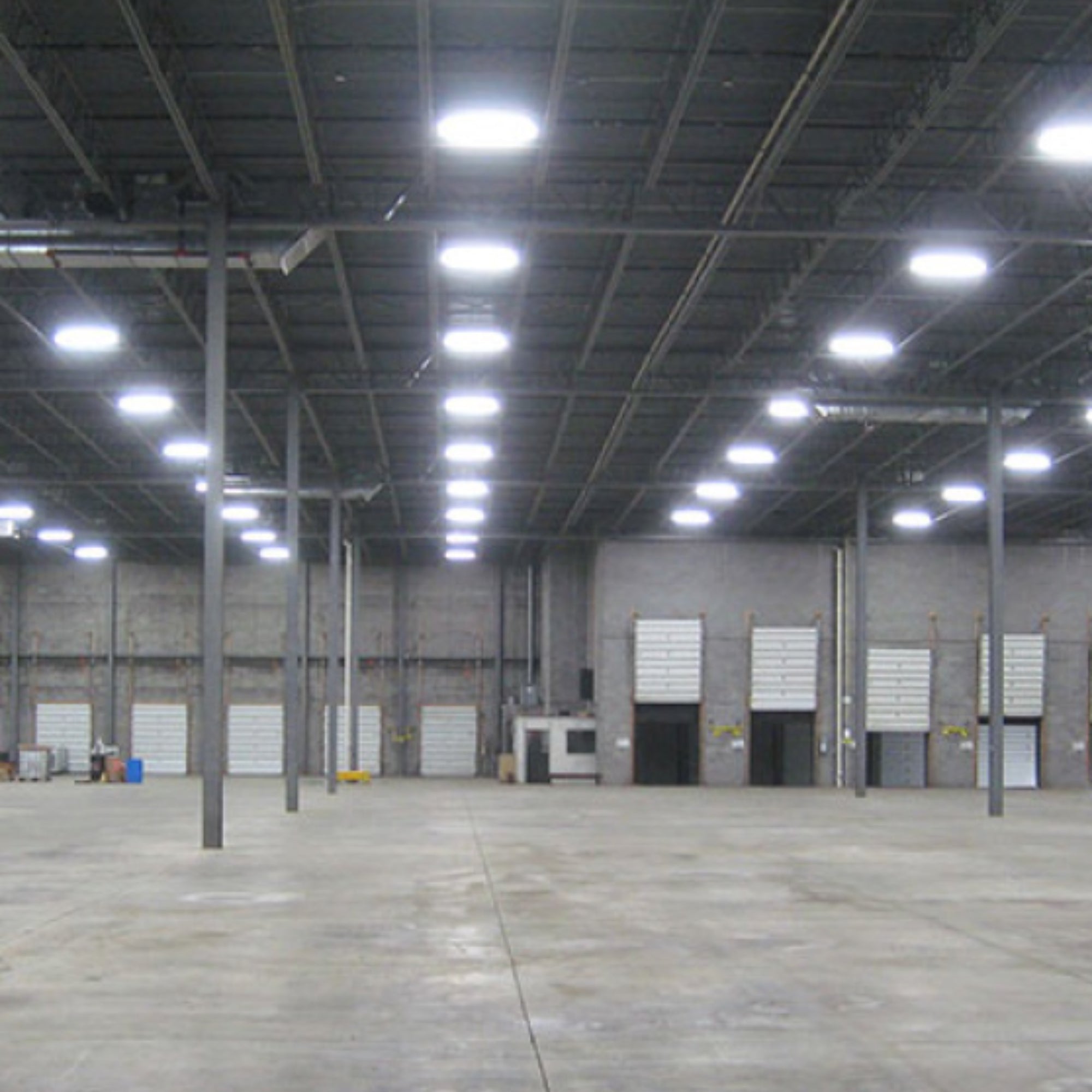

- Warehouses — General & Aisle Lighting: 60° beam for aisle concentration; 90° for wide general coverage at lower ceiling heights; 100–150W right-sizes output for 15–25 ft ceilings
- Gymnasiums & Indoor Recreational Facilities: Compact 10.83" UFO footprint with selectable beam for court and activity zone coverage
- Manufacturing Plants: 6kV ANSI surge protection and IP65 for industrial environments
- Distribution Centers: PowerSET wattage selectability optimizes energy consumption to task zone requirements
- Service Repair Centers: ColorSET CCT selectability (3500K / 4000K / 5000K) adapts light quality to inspection and task needs
- Food-Safe Environments: NSF certified for food processing, commercial kitchens, and public health applications
What's Included
- EiKO BAYE4-PS150 Round LED High Bay — Matte Black
- 6ft Power and Dimming Cord
- Hook Mount
