VLM 60W 24VDC LED Driver with Lo-Pro Mini Junction Box, PWM Dimming, 120-277V
Available in stock (200)
About this item
About this item
- Output Power: 60W at 24V DC
- Dimming: PWM compatible
- Input Voltage: 120-277V
- Enclosure: Optional UL-listed junction box
- Protection: IP65 rated for wet locations
We process payments securely and do not store credit card information.
Description
Description

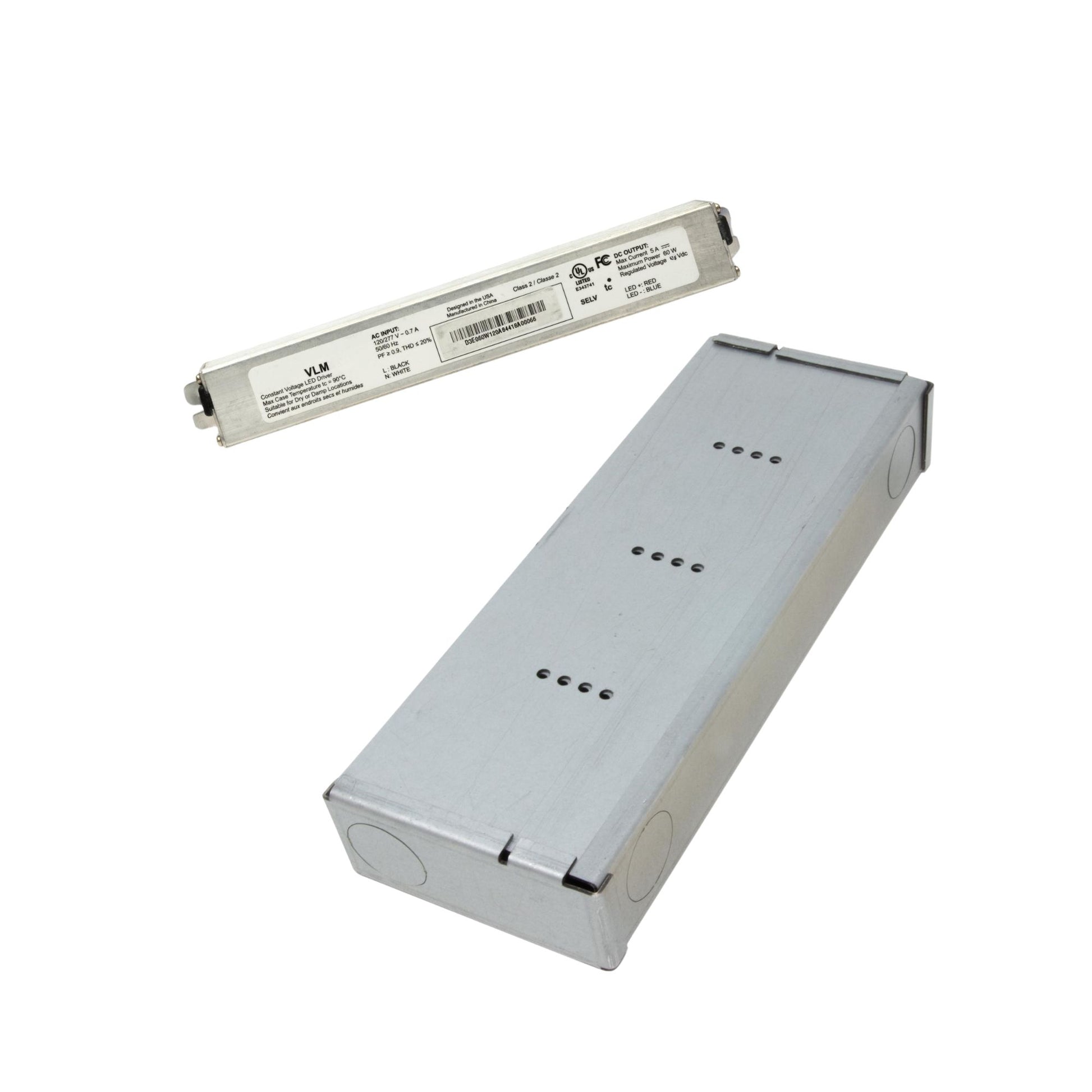

Diode LED VLM Series 60W Driver — 24V DC
The Diode LED VLM60W-24-LPM is a 60W constant voltage LED Driver designed for 24V DC output applications. It supports PWM dimming and operates on a wide input voltage range of 120-277V. This driver is Class 2 rated and features an optional UL-listed junction box for enhanced installation flexibility.
Key Features
- Power: 60W
- Input Voltage: 120-277V
- Output Voltage: 24V DC
- Dimming: PWM
- Minimum Load: No minimum load required

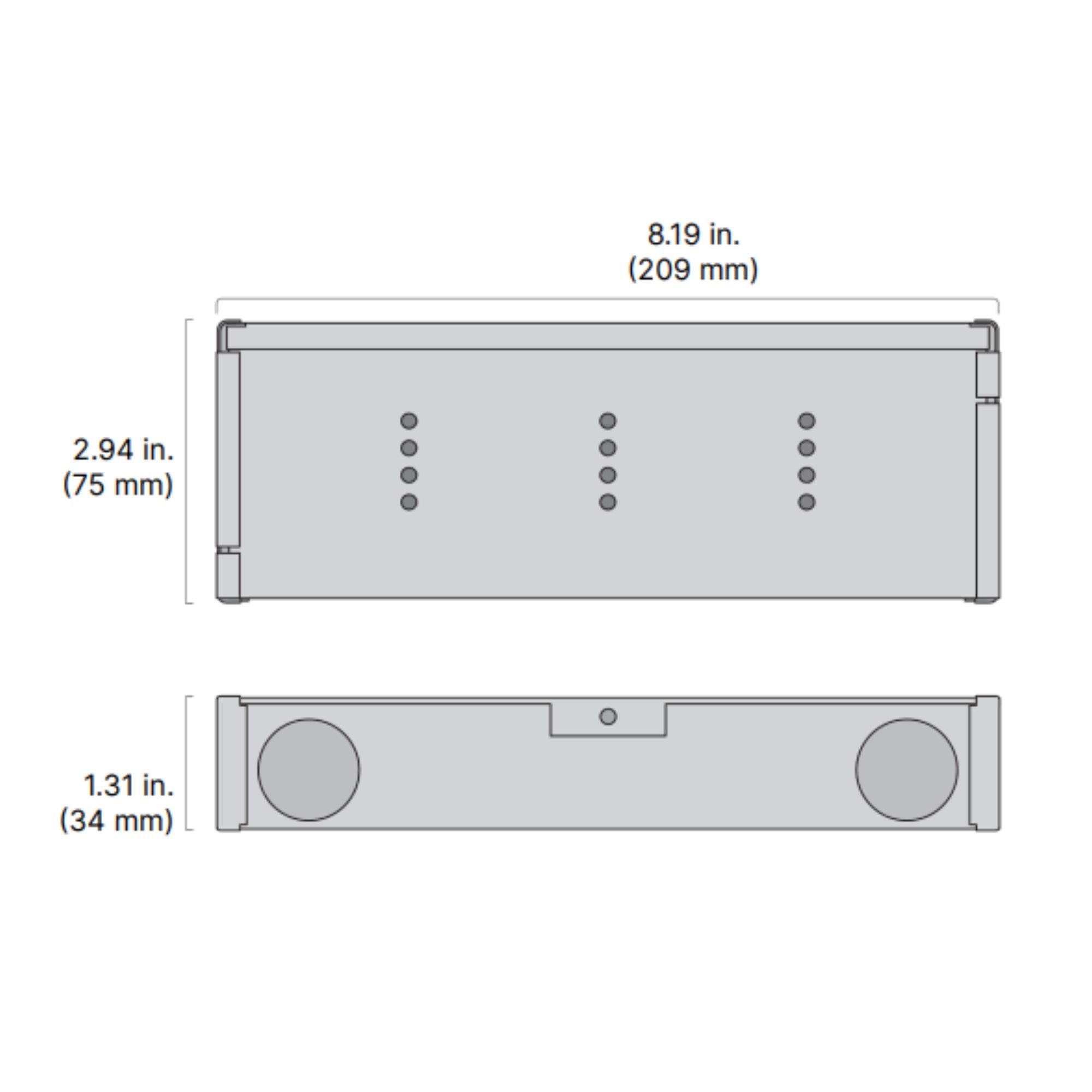

- Dimensions: 8.19 in. L x 2.94 in. W x 1.31 in. H

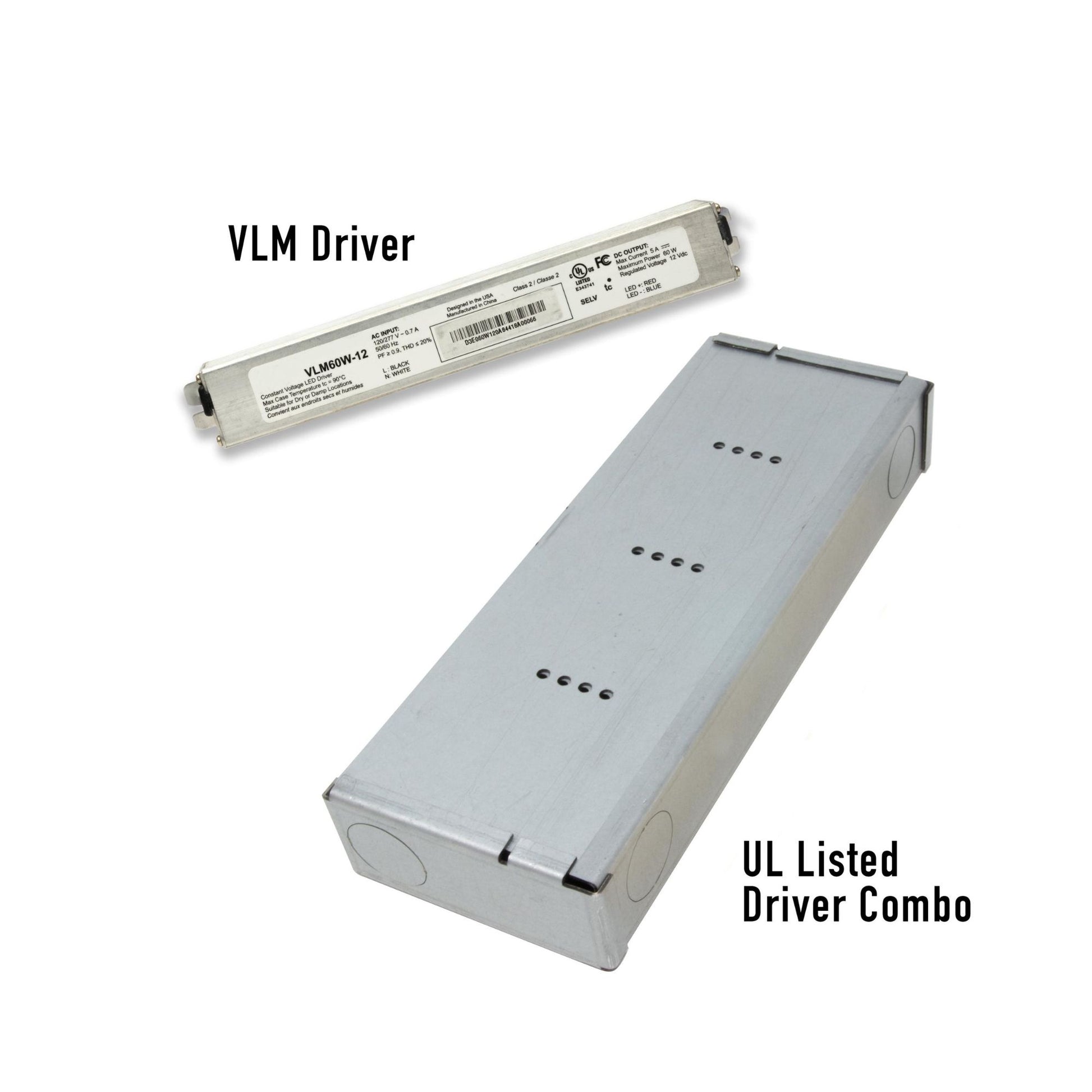

- Enclosure Type: Optional UL-listed junction box
- IP Rating: IP65
- Class 2: Yes
- Certifications: cULus, CAN/CSA
Physical Design & Installation

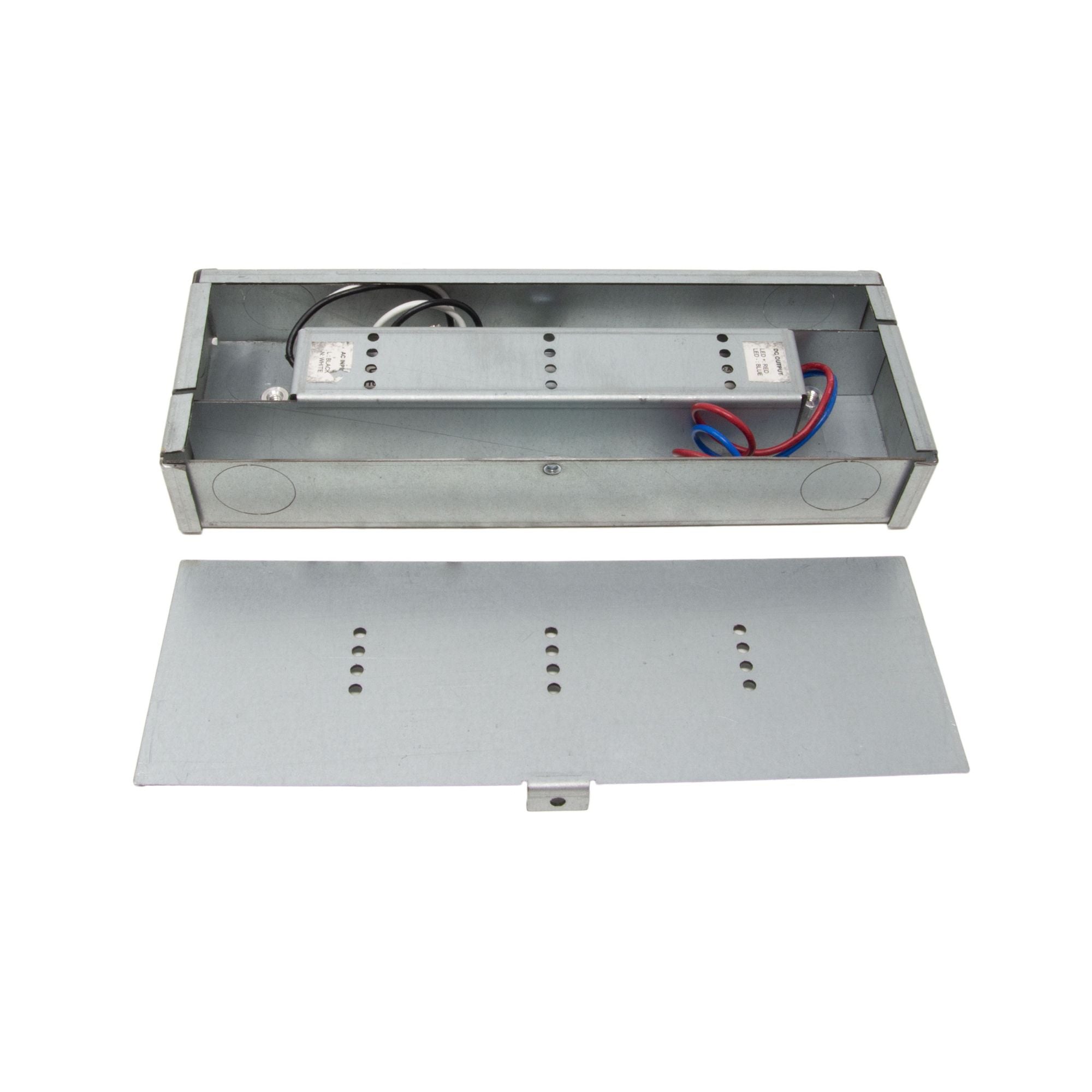

The driver is housed in a compact form factor with an optional UL-listed junction box for secure and compliant installations.
Dimming & Controls
Compatible with PWM dimming systems, the driver requires no minimum load for operation, ensuring smooth dimming performance.
Performance & Build
Features include short circuit, over-voltage, and thermal protection. The driver is IP65 rated for wet locations and complies with Class 2 standards.
Typical Applications
- Outdoor lighting
- Architectural lighting
- Signage
- Residential and commercial installations
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming protocol does the VLM60W-24-LPM support?
What dimming protocol does the VLM60W-24-LPM support?
Is there a minimum load requirement for this driver?
Is there a minimum load requirement for this driver?
Does the VLM60W-24-LPM include a junction box?
Does the VLM60W-24-LPM include a junction box?
What input voltage range does the VLM60W-24-LPM accept?
What input voltage range does the VLM60W-24-LPM accept?
What is the IP rating of the VLM60W-24-LPM?
What is the IP rating of the VLM60W-24-LPM?
