VLM 60 Watts, 24VDC LED Driver, PWM Dimming, 120-277V
Available in stock (200)
About this item
About this item
- Output Voltage: 24V DC
- Dimming: PWM compatible
- Input Voltage: 120-277V
- Enclosure: Optional UL-listed junction box
- Protection: Auto reset hiccup circuit breakers
We process payments securely and do not store credit card information.
Description
Description

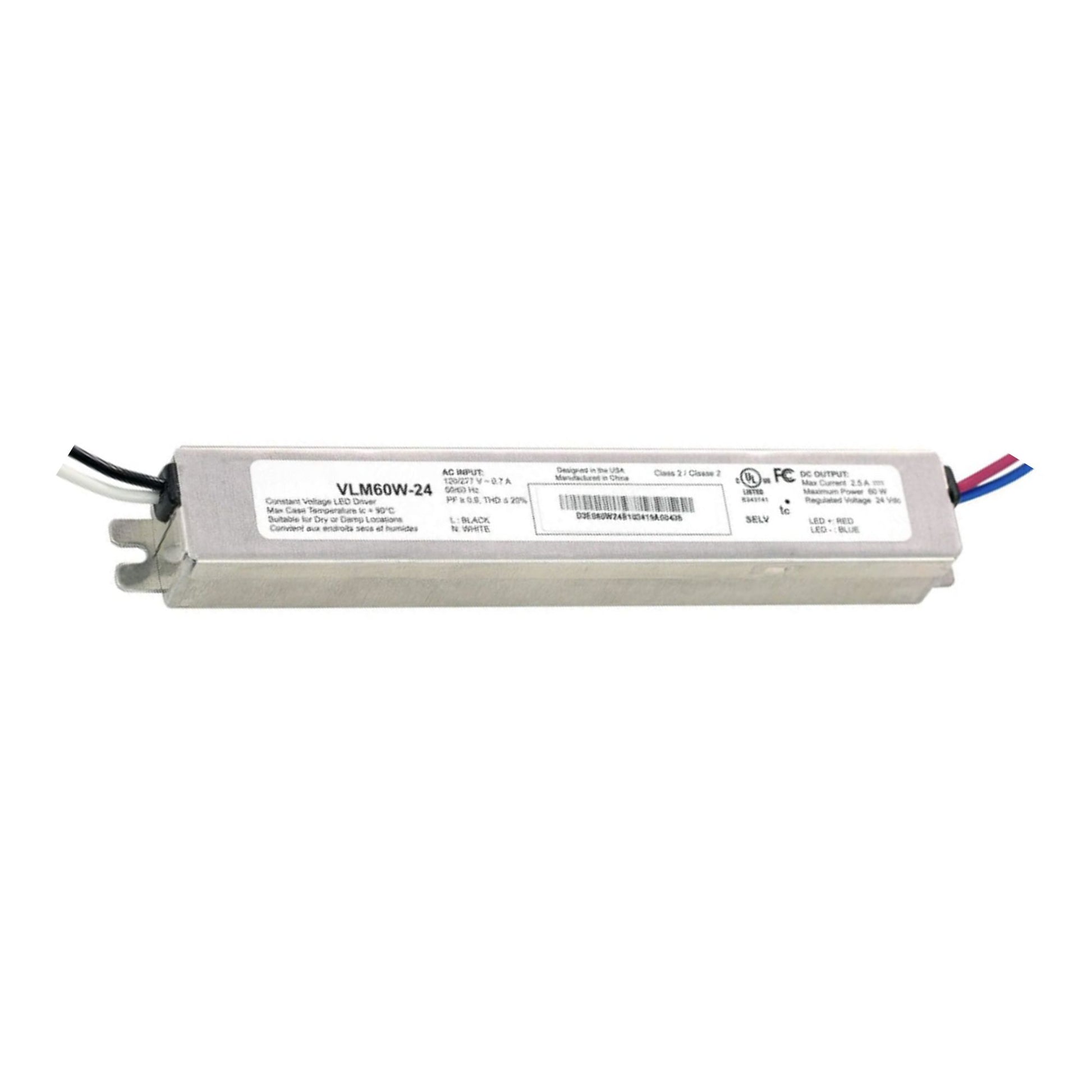

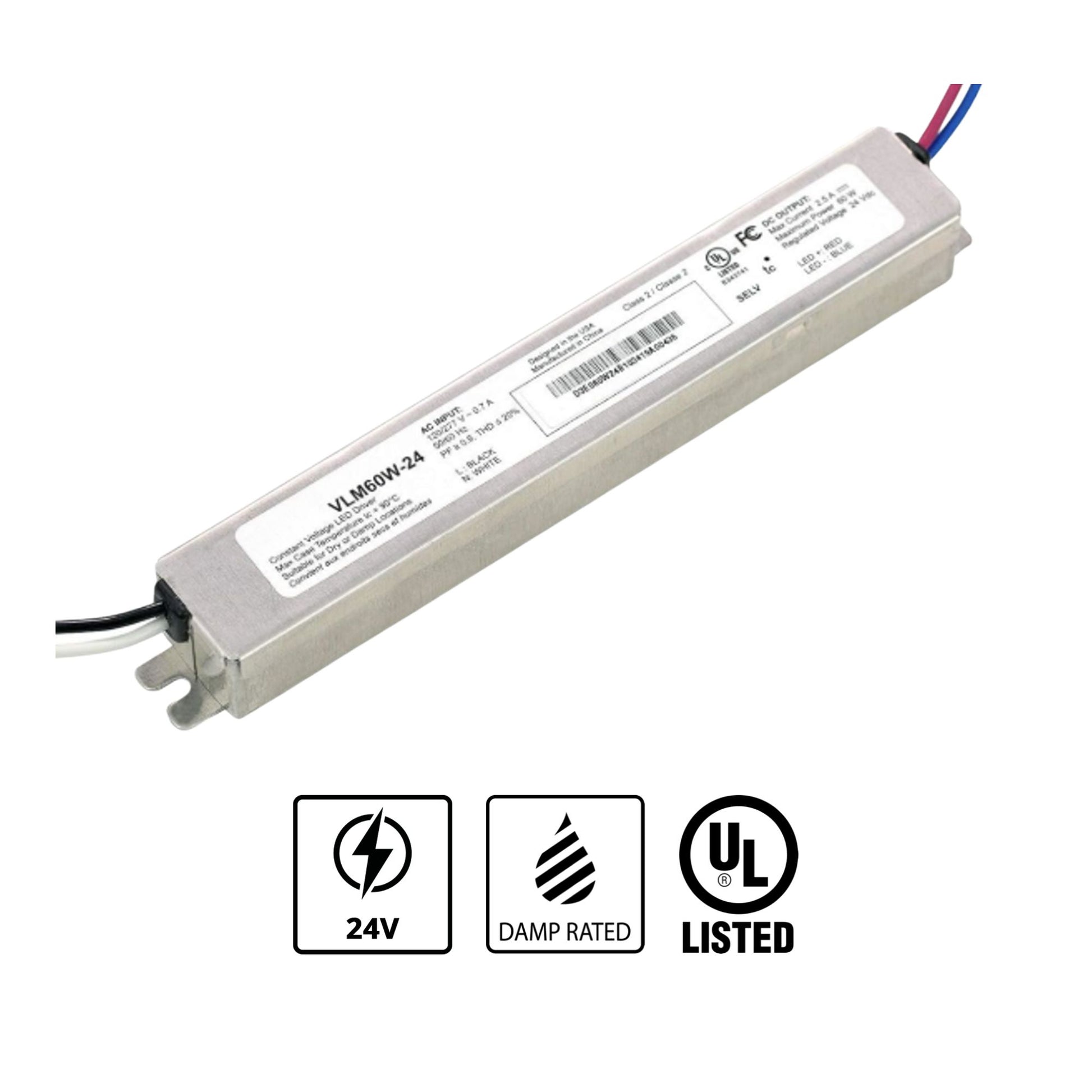

Diode LED VLM Series 60W Driver — 24V DC
The Diode LED VLM60W-24 is a 60W Constant Voltage Driver designed for 24V DC applications. It operates with an input voltage range of 120-277V and supports PWM dimming for precise lighting control. This driver is Class 2 rated and offers an optional UL-listed junction box for enhanced safety and installation flexibility.
Key Features
- Power: 60W
- Input Voltage: 120-277V
- Output Voltage: 24V DC
- Dimming: PWM compatible
- Minimum Load: No minimum load required

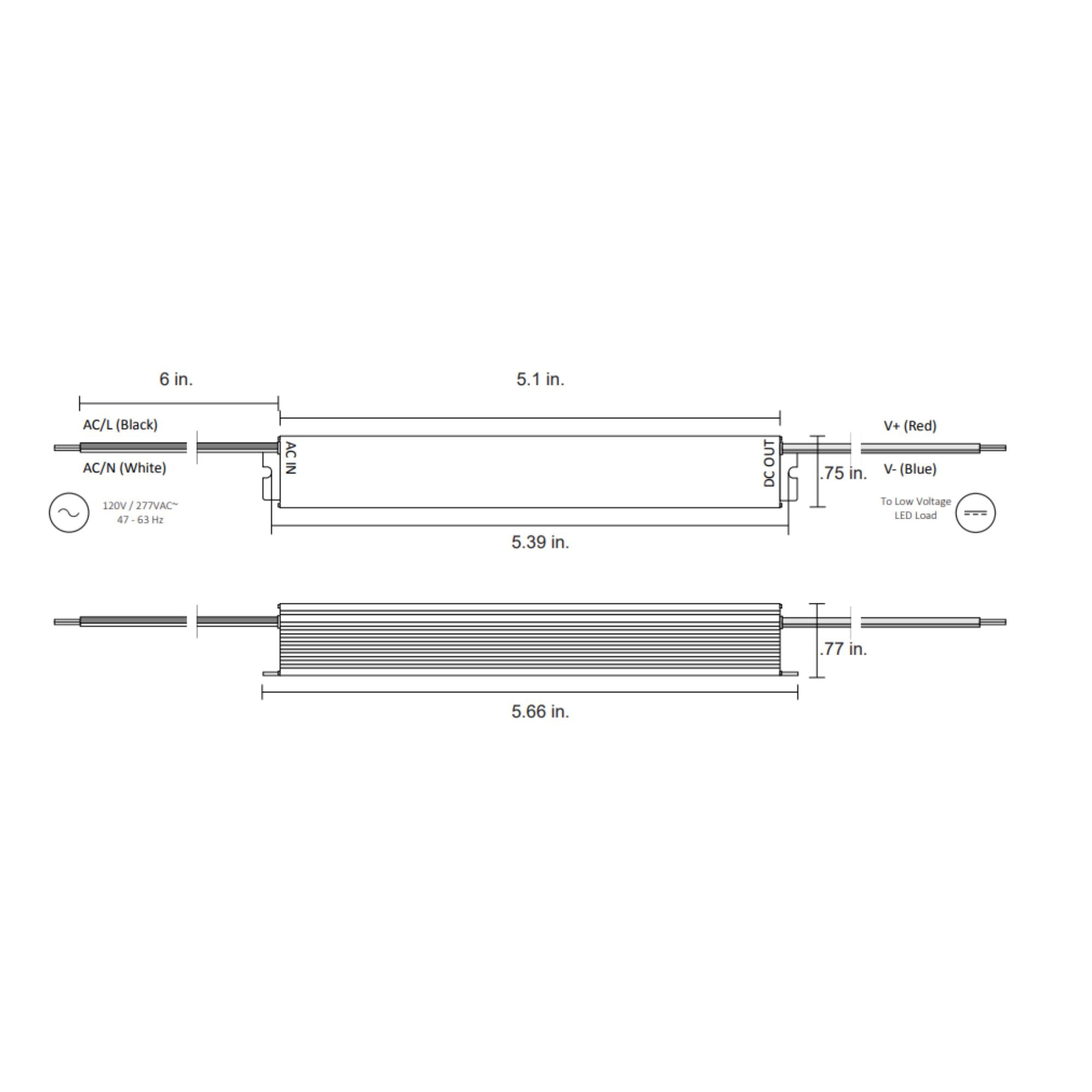

- Dimensions: 5.1 in. L x 0.75 in. W x 0.77 in. H
- Enclosure Type: Optional UL-listed junction box
- IP Rating: Damp Rated
- Class 2: Yes
- Certifications: cULus, CAN/CSA
Physical Design & Installation
The driver features a compact design with an optional UL-listed junction box for secure installation. It is suitable for indoor and damp locations.
Dimming & Controls
Compatible with PWM dimming systems, the driver requires no minimum load for smooth operation, making it versatile for various lighting setups.
Performance & Build
Equipped with auto reset hiccup circuit breakers, the driver ensures protection against short circuits and over-voltage conditions. It is Class 2 compliant and damp rated.
Typical Applications
- Commercial lighting
- Residential lighting
- Architectural lighting
- Retail displays
Specifications
