VLM 96W 24VDC LED Driver with Lo-Pro Mini Junction Box, PWM Dimming, 120-277V
In stock
About this item
About this item
- Output Voltage: 24V DC for consistent power supply
- Dimming: PWM dimming for precise control
- Input Voltage: Universal 120-277V for versatile installation
- Enclosure: Integrated Junction Box for easy wiring
- Protection: IP65 rated for wet locations
We process payments securely and do not store credit card information.
Description
Description

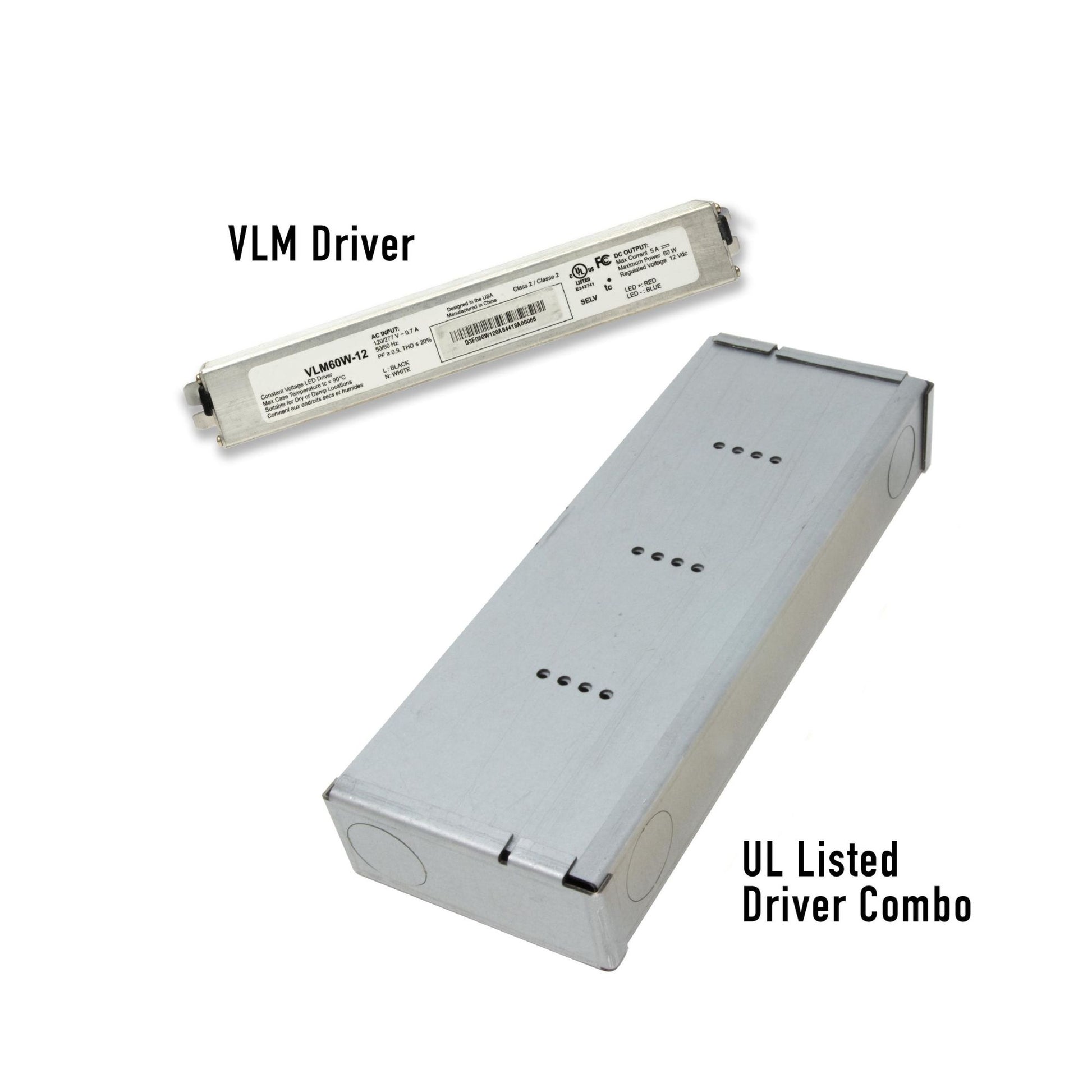

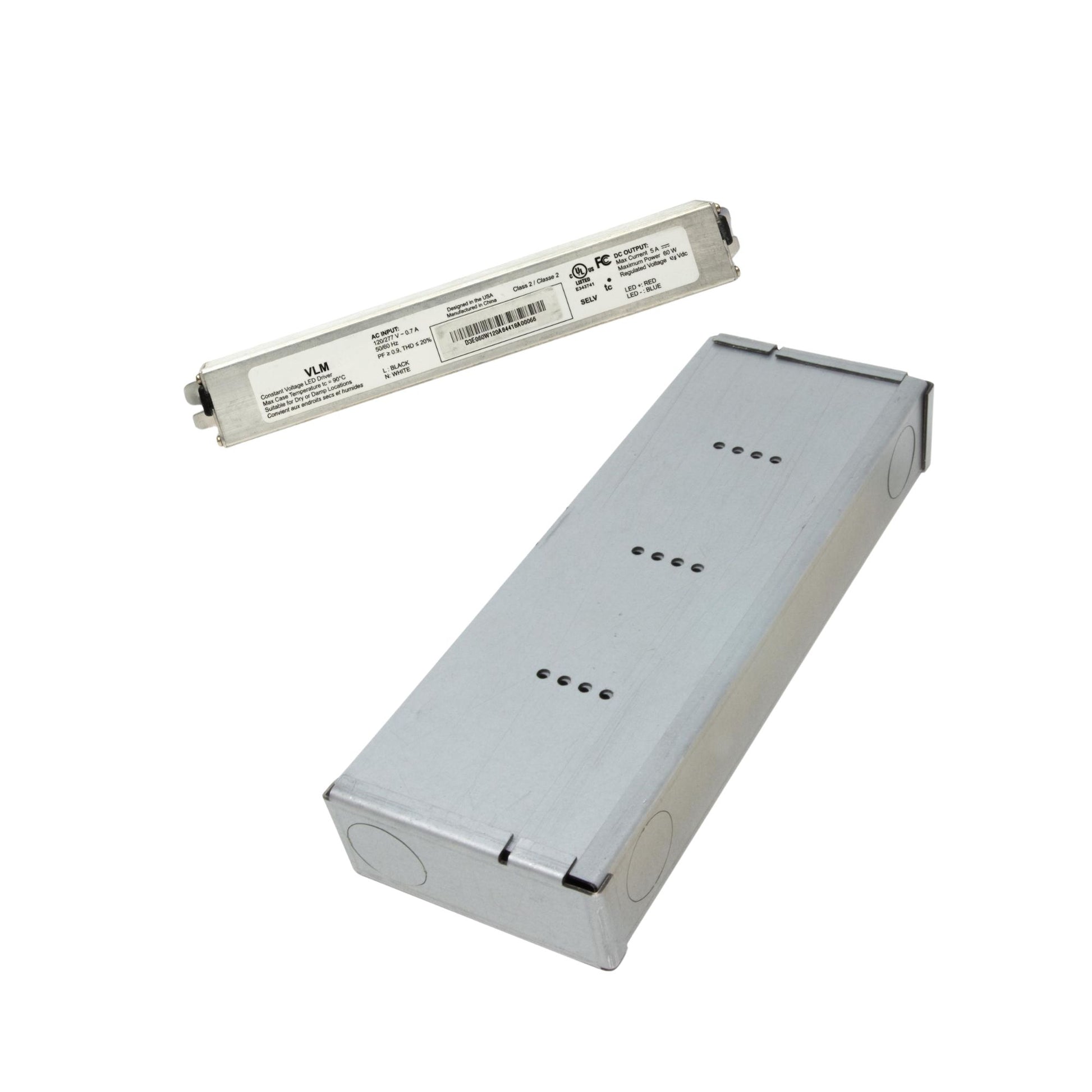

Diode LED VLM 96W Driver — 24V
The Diode LED VLM100W-24-LPM is a 96W constant voltage LED Driver designed to deliver a stable 24V DC output. It supports PWM dimming and operates on a universal input voltage range of 120-277V. This driver is Class 2 rated and features an Integrated Junction Box for streamlined installation.
Key Features
- Power: 96W maximum load
- Input Voltage: 120-277V AC
- Output Voltage: 24V DC
- Dimming: PWM compatible
- Minimum Load: No minimum load required
- Dimensions: 8.19 in. L x 2.94 in. W x 1.31 in. H
- Enclosure Type: Integrated Junction Box
- IP Rating: IP65 for wet locations
- Class 2: Yes
- Certifications: cULus, CAN/CSA
Physical Design & Installation

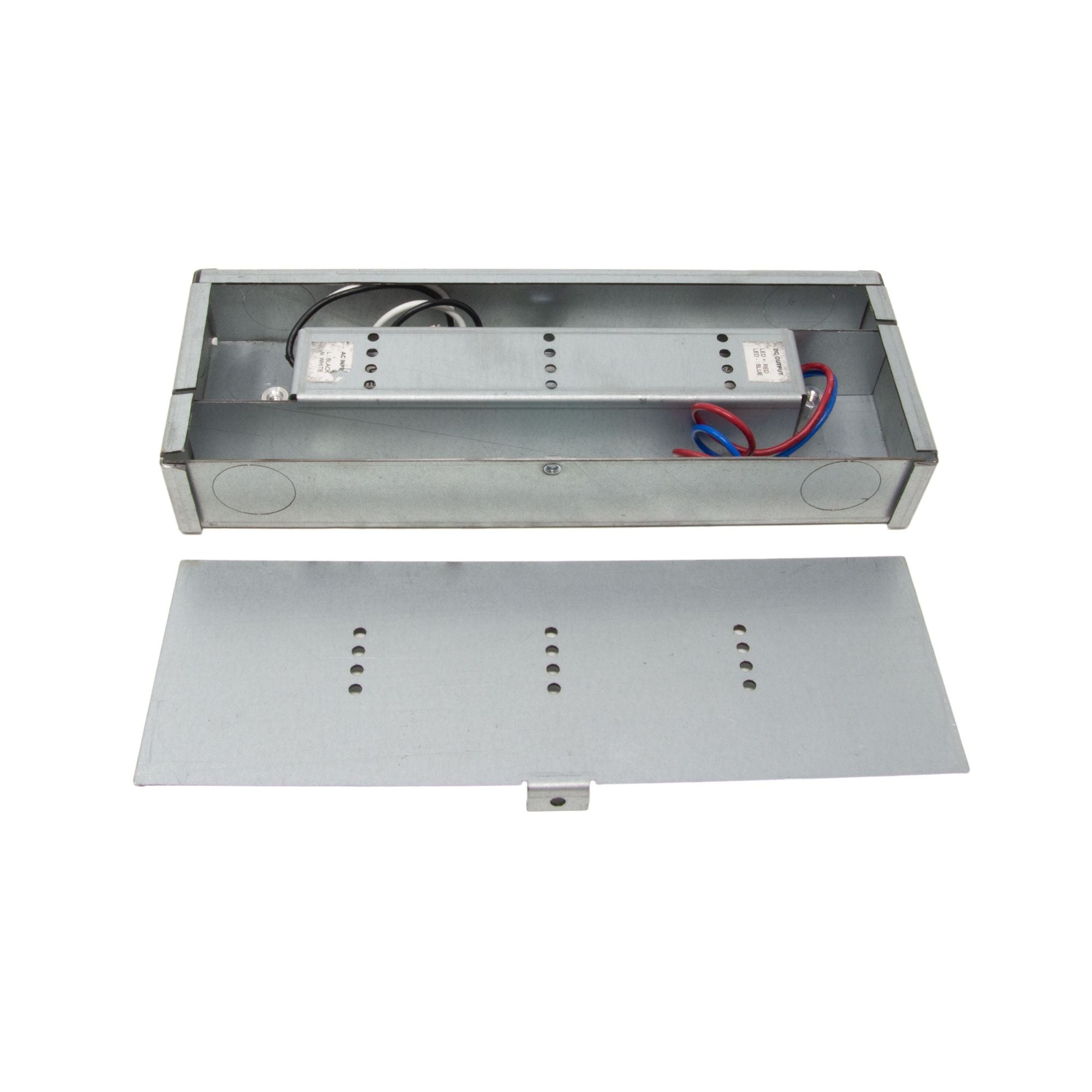

The driver is housed in a durable enclosure with an integrated junction box, facilitating easy and secure wiring connections. Its compact design allows for installation in tight spaces.
Dimming & Controls
This driver supports PWM dimming, compatible with various low-voltage dimmers including REIGN, TOUCHDIAL, DMX, and Casambi systems. It requires no minimum load for smooth dimming performance.
Performance & Build
Equipped with auto-reset hiccup circuit breakers, this driver offers protection against short circuits and over-voltage. It is IP65 rated, ensuring reliable performance in wet conditions, and complies with Class 2 standards.
Typical Applications
- Outdoor lighting installations
- Commercial LED strip lighting
- Architectural lighting projects
- Residential LED lighting systems
Specifications
Specifications

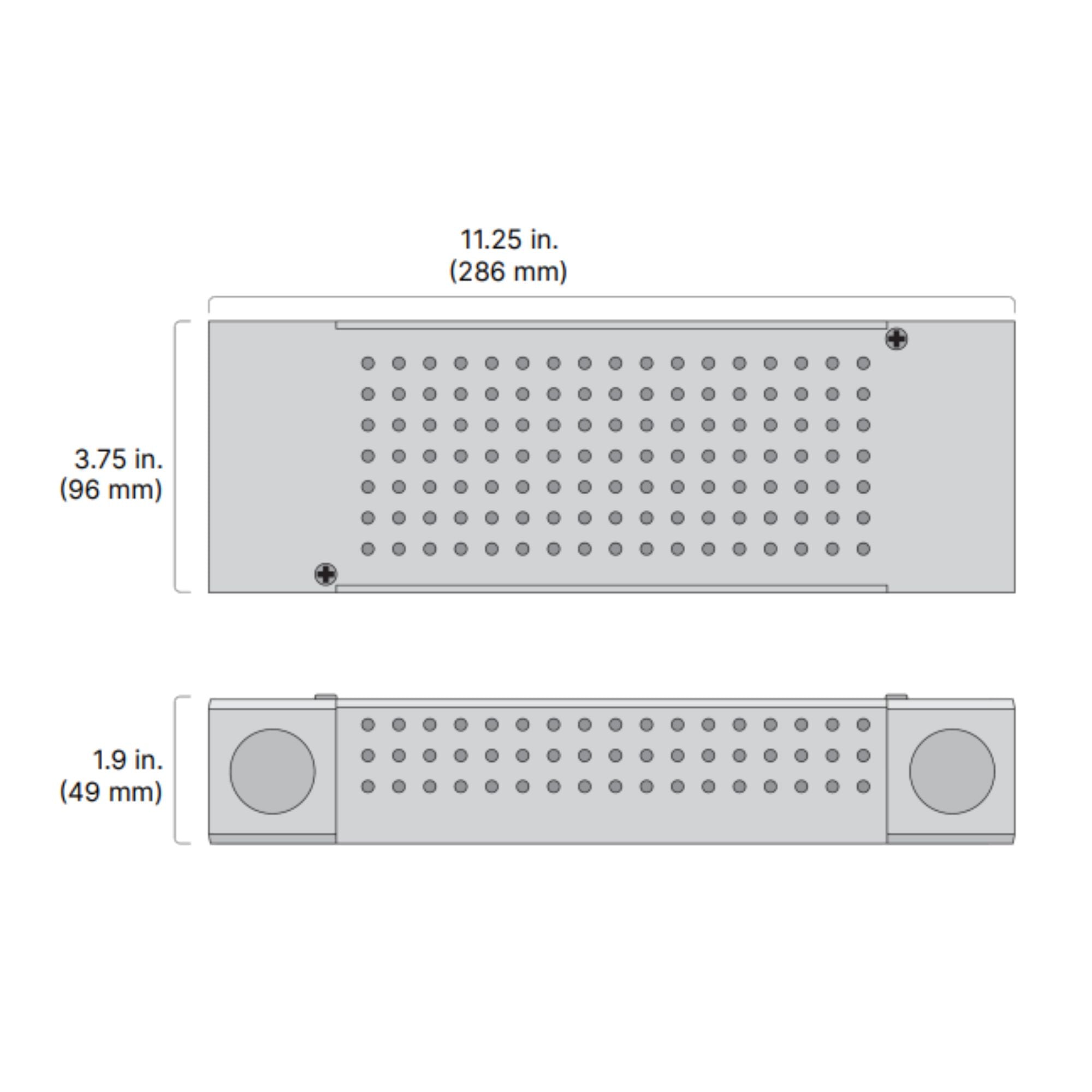

Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
