VLM 96 Watts, 24VDC LED Driver, PWM Dimming, 120-277V
Available in stock (100)
About this item
About this item
- Output Voltage: 24V DC for consistent power delivery
- Dimming: PWM dimming for smooth light control
- Input Voltage: 120-277V for versatile installation
- Enclosure: Optional UL-listed junction box available
- Protection: Auto Reset Hiccup for circuit protection
We process payments securely and do not store credit card information.
Description
Description

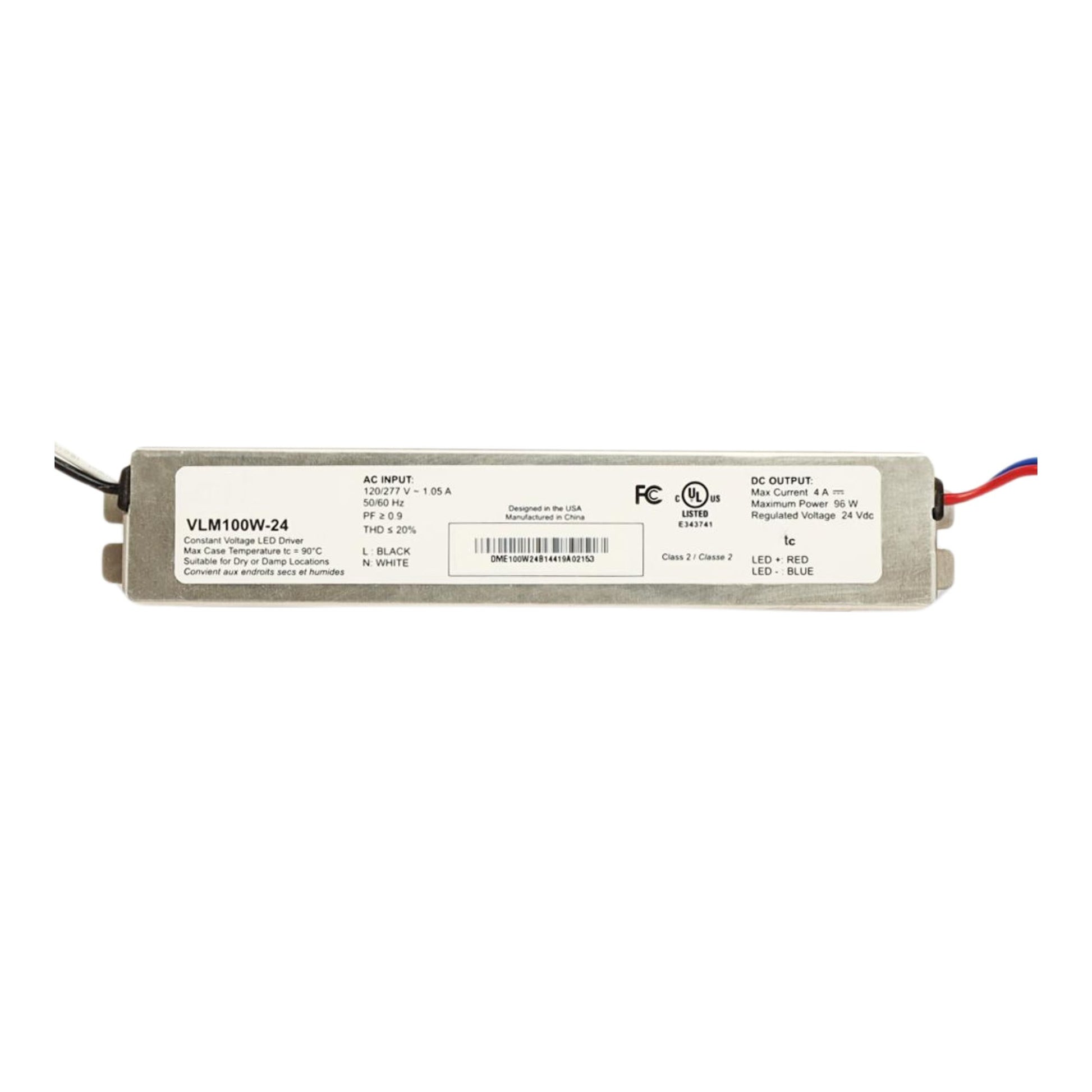

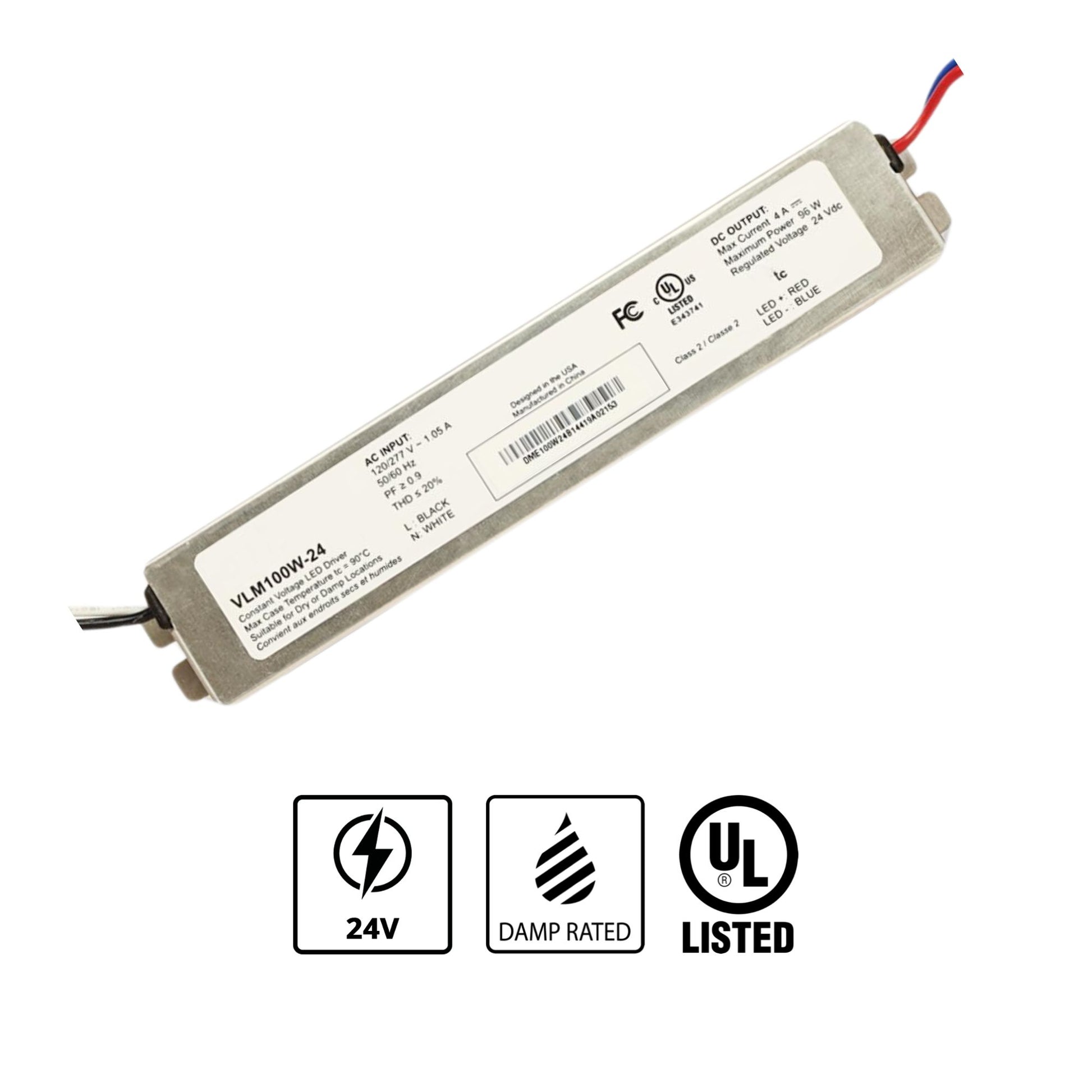

Diode LED VLM Series 96W Driver — 24V DC
The Diode LED VLM100W-24 is a 96W Constant Voltage Driver designed for 24V DC applications. It operates with an input voltage range of 120-277V and supports PWM dimming for precise light control. This driver is Class 2 rated and offers an optional UL-listed junction box for enhanced installation flexibility.
Key Features
- Power: 96W
- Input Voltage: 120-277V
- Output Voltage: 24V DC
- Dimming: PWM
- Minimum Load: No Minimum Load

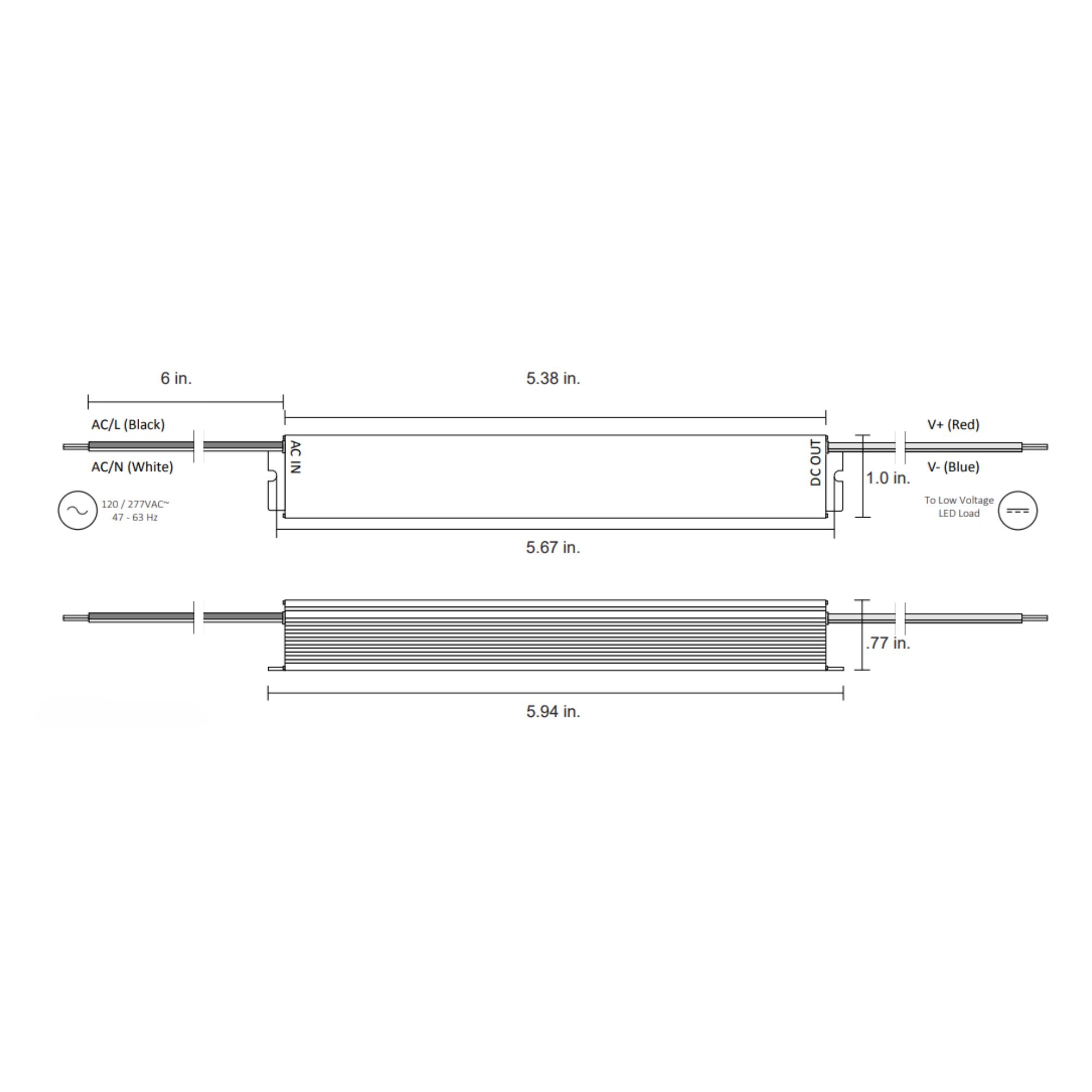

- Dimensions: 5.38 in. L x 1 in. W x 0.77 in. H
- Enclosure Type: Optional UL-listed junction box
- IP Rating: Damp Rated
- Class 2: Yes
- Certifications: cULus, CAN/CSA

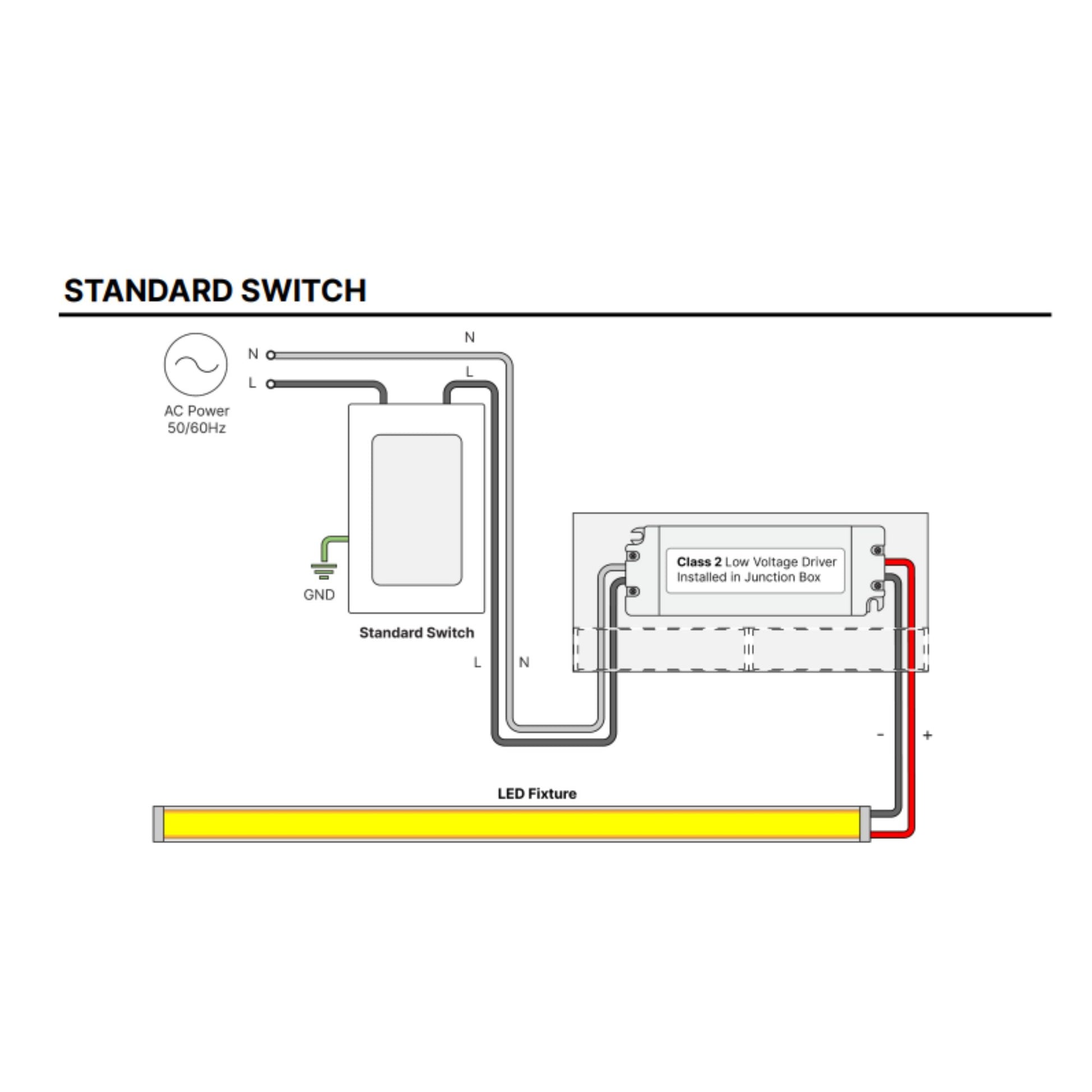

Physical Design & Installation
The driver features a compact design with an optional UL-listed junction box for easy installation. It is suitable for indoor and damp locations.
Dimming & Controls
Compatible with PWM dimming systems, the driver requires no minimum load for operation, ensuring flexibility in various lighting setups.
Performance & Build
Equipped with auto reset hiccup for circuit protection, the driver is Class 2 compliant and damp rated, ensuring reliable performance in various environments.
Typical Applications
- Commercial lighting
- Residential lighting
- Architectural lighting
- Retail displays
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming protocol does the VLM100W-24 support?
What dimming protocol does the VLM100W-24 support?
Is there a minimum load requirement for the VLM100W-24?
Is there a minimum load requirement for the VLM100W-24?
Does the VLM100W-24 include a junction box?
Does the VLM100W-24 include a junction box?
What input voltage range does the VLM100W-24 operate on?
What input voltage range does the VLM100W-24 operate on?
What is the IP rating of the VLM100W-24?
What is the IP rating of the VLM100W-24?
