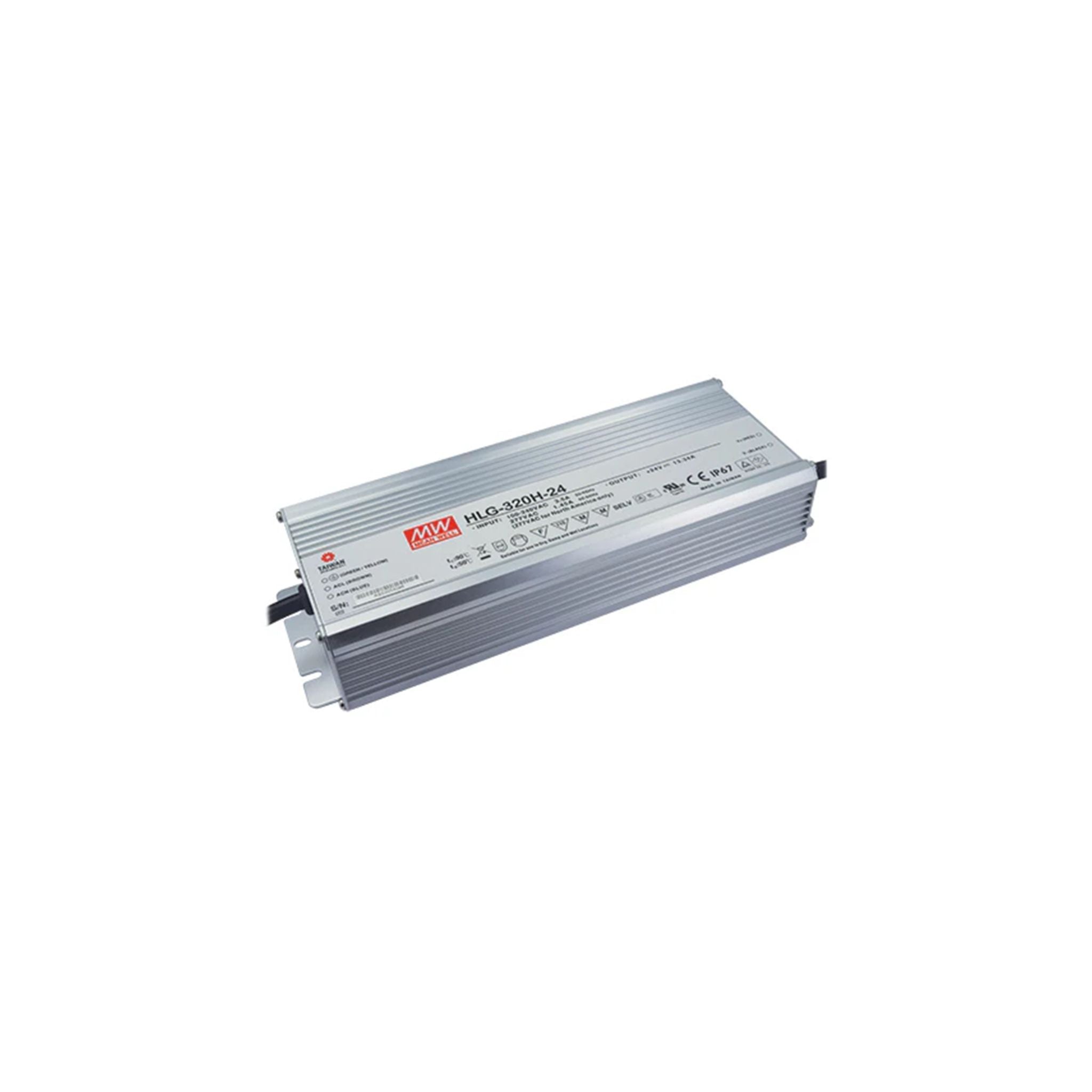

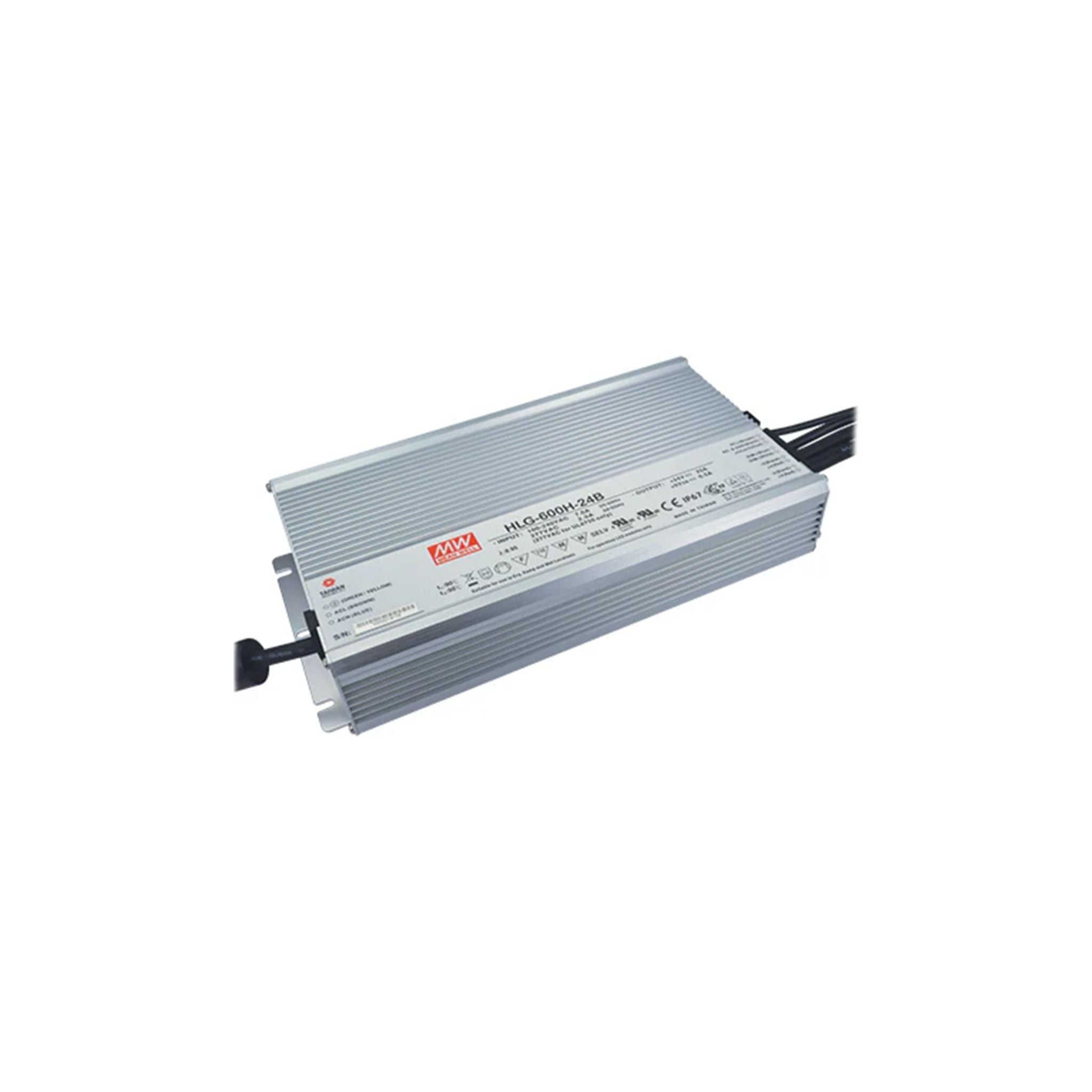

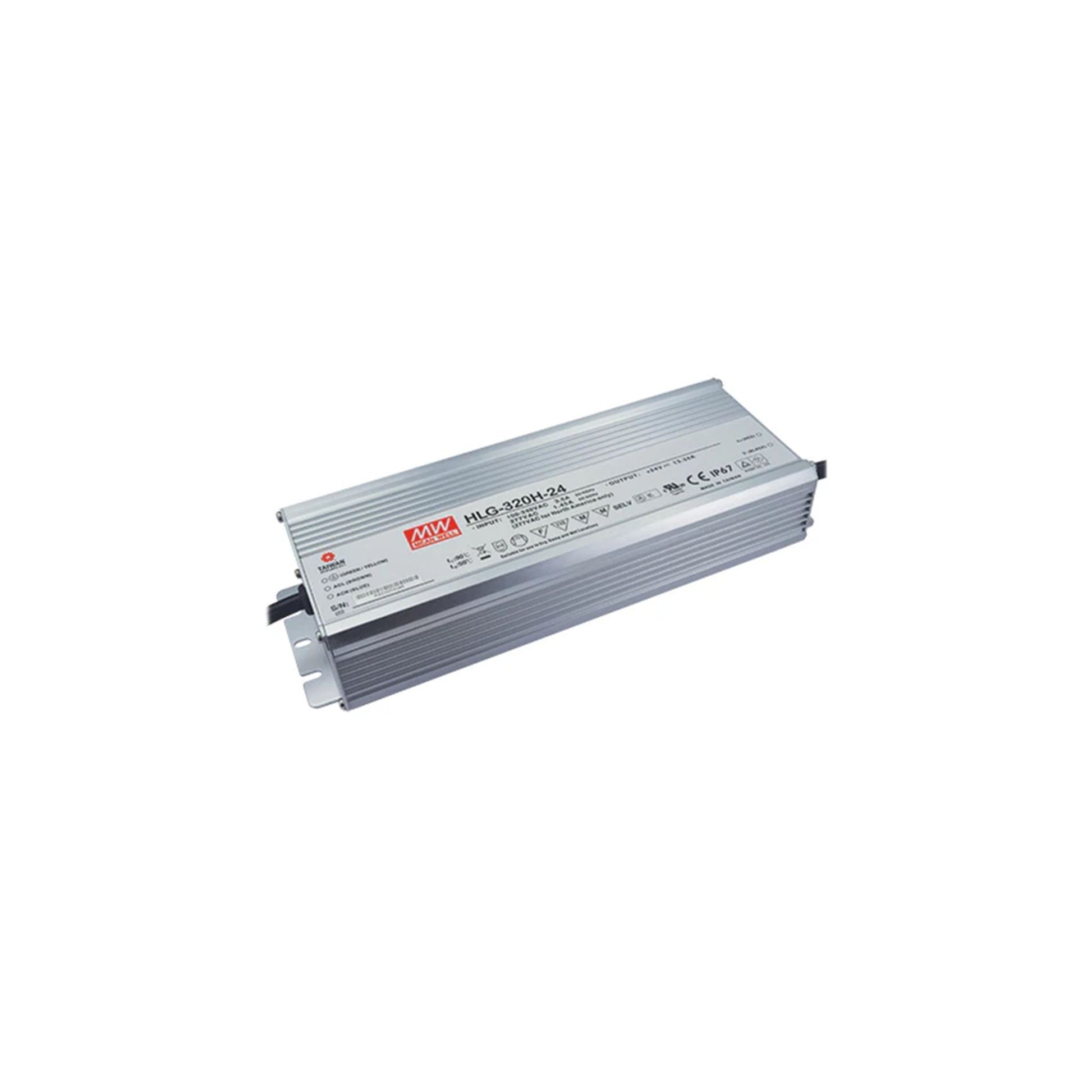

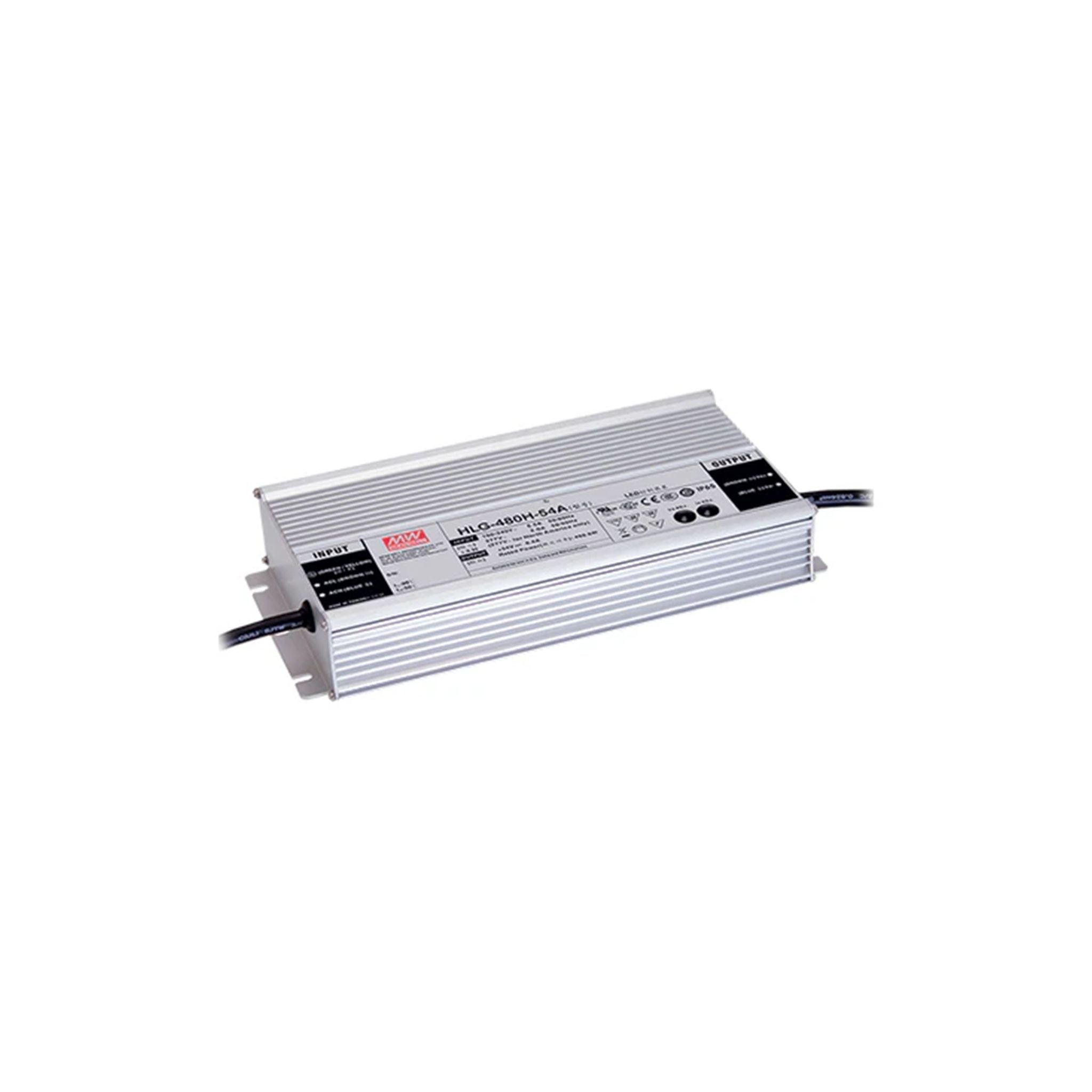

Diode LED HLG Series MEAN WELL LED Driver — 24VDC | 150W to 600W
The Diode LED HLG Series features MEAN WELL's industry-trusted LED power supplies, available in 24VDC constant voltage configurations ranging from 150W to 600W. Designed for high-efficiency, reliable operation across demanding commercial and architectural lighting applications, these drivers feature active Power Factor Correction (PFC), a wide universal 120–277V AC input, and a robust IP65-rated aluminum enclosure for indoor and outdoor use. Select models offer dimmable operation; non-dimmable options are also available for fixed-output applications.
Key Features
- Wattage Range: Available in 150W, 240W, 320W, 480W, and 600W to suit a wide variety of project loads.
- Constant Voltage Output: Stable 24VDC output for reliable LED tape and strip lighting performance.
- Universal Input Range: Accepts 120–277V AC 50/60Hz for residential and commercial applications worldwide.
- Active PFC: Built-in active Power Factor Correction for energy-efficient operation and code compliance.
- IP65 Wet Rated: Aluminum enclosure rated IP65 for outdoor, damp, and wet location installations.
- Multiple Protection Mechanisms: Includes short circuit, over-voltage, over-temperature, and over-current protection for long-term reliability.
- Dimmable & Non-Dimmable Options: Choose dimmable (480W, 600W) or non-dimmable (150W, 240W, 320W) configurations based on project requirements.
- 5-Year Warranty: Backed by Diode LED's 5-year limited warranty.
Physical Design & Installation
The HLG Series features a rugged IP65-rated aluminum housing engineered for efficient heat dissipation and long-term durability in harsh environments. These are bare module drivers suitable for mounting in protected areas or custom enclosures. No integrated junction box is included. Wire input and output connections allow for flexible field installation.
Dimming & Controls
Dimmable models (480W and 600W) are compatible with standard dimming systems, including 0-10V and PWM dimming protocols. A minimum load of 20% is recommended for optimal dimming performance. Non-dimmable models (150W, 240W, 320W) are ideal for fixed-output lighting installations where dimming control is not required.
Performance & Build
Input: 120–277V AC 50/60Hz with active PFC. Output: 24VDC constant voltage. IP65 rated for wet locations. Comprehensive protection: short circuit, over-voltage, over-temperature, and over-current. Certifications: UL Listed. 5-Year limited warranty.
Typical Applications
- Outdoor and wet location LED tape lighting
- Large-scale commercial and architectural lighting
- High-output linear LED strip systems
- Landscape and signage illumination
- Industrial and commercial interior lighting
