OMNIDRIVE 96W 12V Omnidrive Electronic Dimmable LED Driver, 120VAC
Available in stock (100)
About this item
About this item
- Output Voltage: 24V DC
- Dimming: Compatible with select dimmers
- Input Voltage: 120V
- Enclosure: IP67 rated for wet locations
- Protection: Short circuit and over current protection
We process payments securely and do not store credit card information.
Description
Description

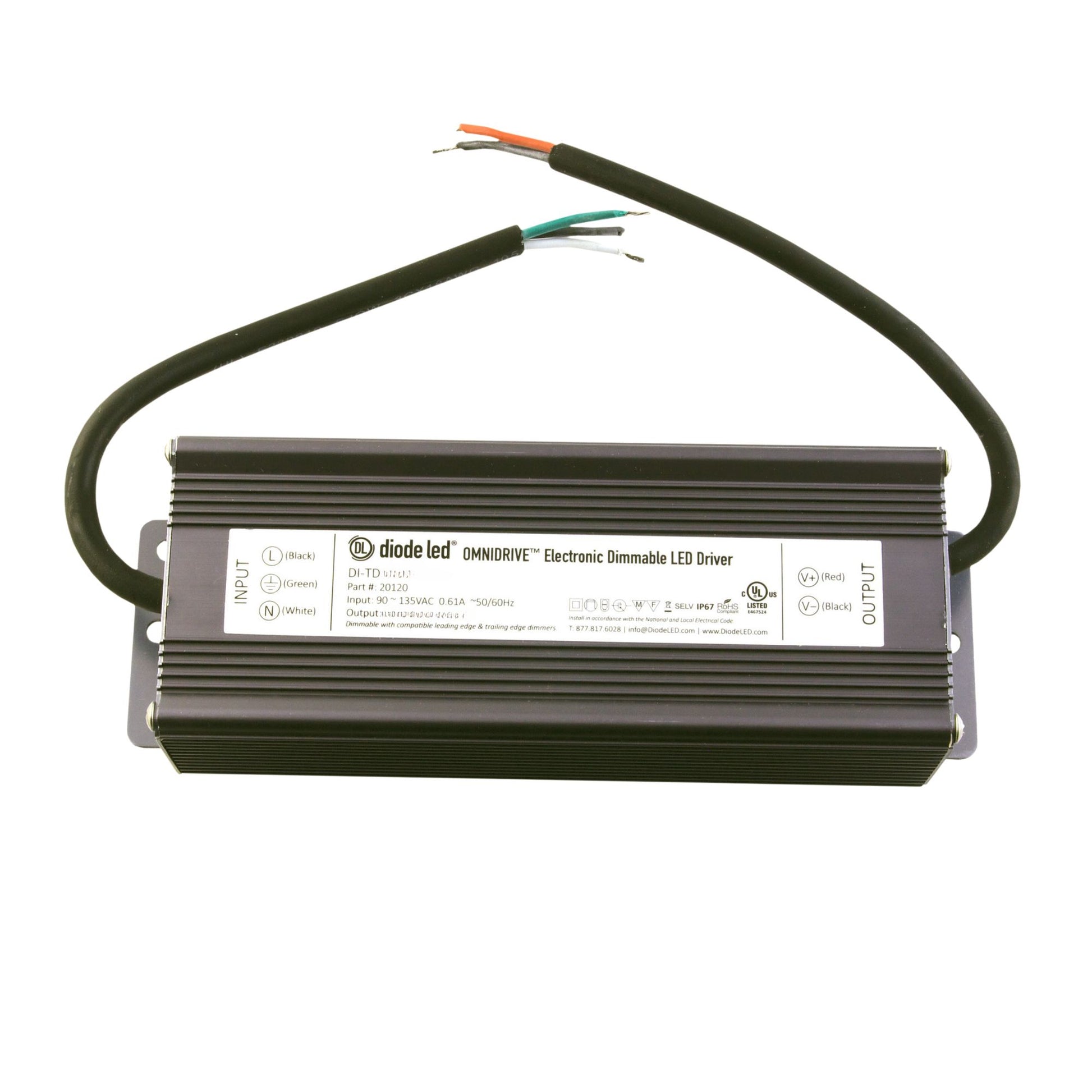

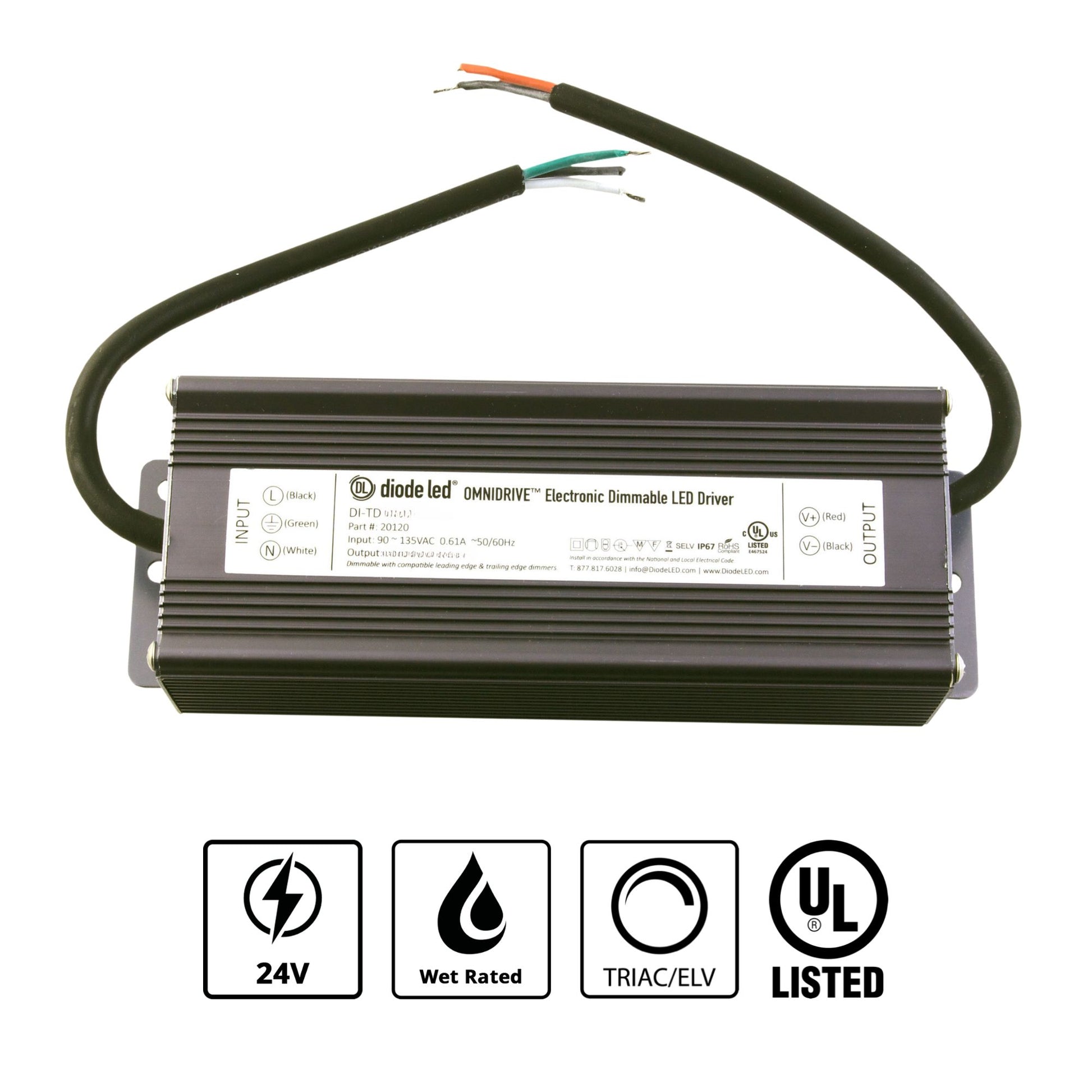

Diode LED OMNIDRIVE 96W Driver — 24V DC
The DI-TD-24V-96W is a high-performance 96W constant voltage LED Driver designed for both indoor and outdoor applications. It operates at an input voltage of 120V and delivers a consistent 24V DC output. This driver is dimmable with compatible dimmers and is Class 2 compliant, ensuring safe operation. The unit is housed in an IP67 rated enclosure, making it suitable for wet locations.
Key Features
- Power: 96W
- Input Voltage: 120V
- Output Voltage: 24V DC
- Dimming: Compatible with select dimmers
- Minimum Load: 60% for dimming

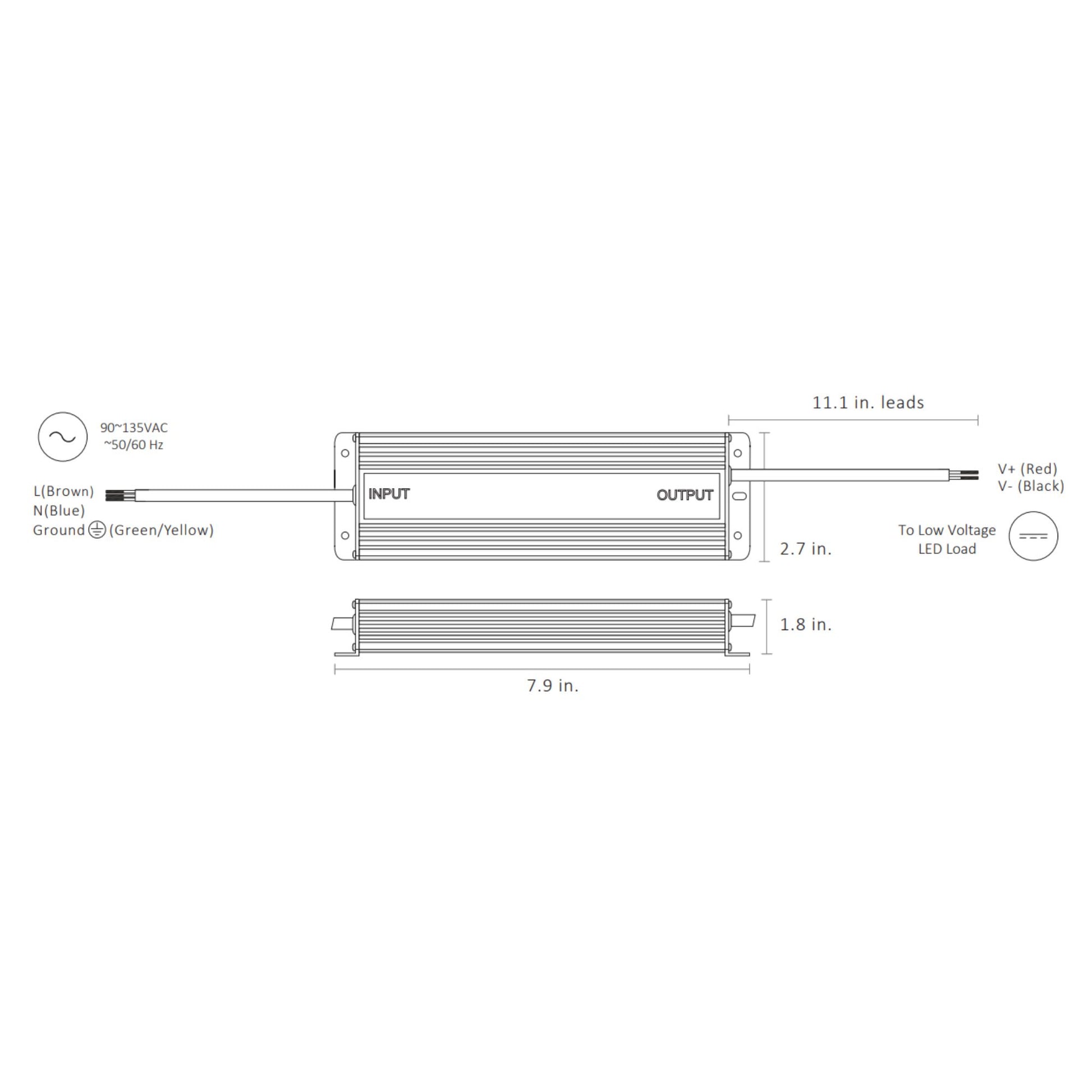

- Dimensions: 7.9 in. L x 2.7 in. W x 1.8 in. H
- Enclosure Type: IP67 rated
- Class 2: Yes
- Certifications: cULus, UL # E499308
Physical Design & Installation
The driver features a robust design with an IP67 rated enclosure, ensuring durability in wet environments. It is cooled by free-air convection.
Dimming & Controls
This driver supports dimming with compatible systems, requiring a minimum load of 60% for optimal performance. It is not compatible with PWM controls.
Performance & Build
Equipped with short circuit and over current protection, the driver ensures reliable performance. It is Class 2 compliant and suitable for wet locations.
Typical Applications
- Outdoor lighting installations
- Commercial LED systems
- Residential LED applications
- Architectural lighting projects
