OMNIDRIVE 120W 12V Omnidrive Electronic Dimmable LED Driver, 120VAC
Available in stock (100)
About this item
About this item
- Output Voltage: 24V DC for consistent power delivery
- Universal Dimming: Compatible with various dimming systems
- Input Voltage: 120V for standard installations
- Enclosure: IP67 rated for wet locations
- Protection Features: Short circuit and over current protection
We process payments securely and do not store credit card information.
Description
Description

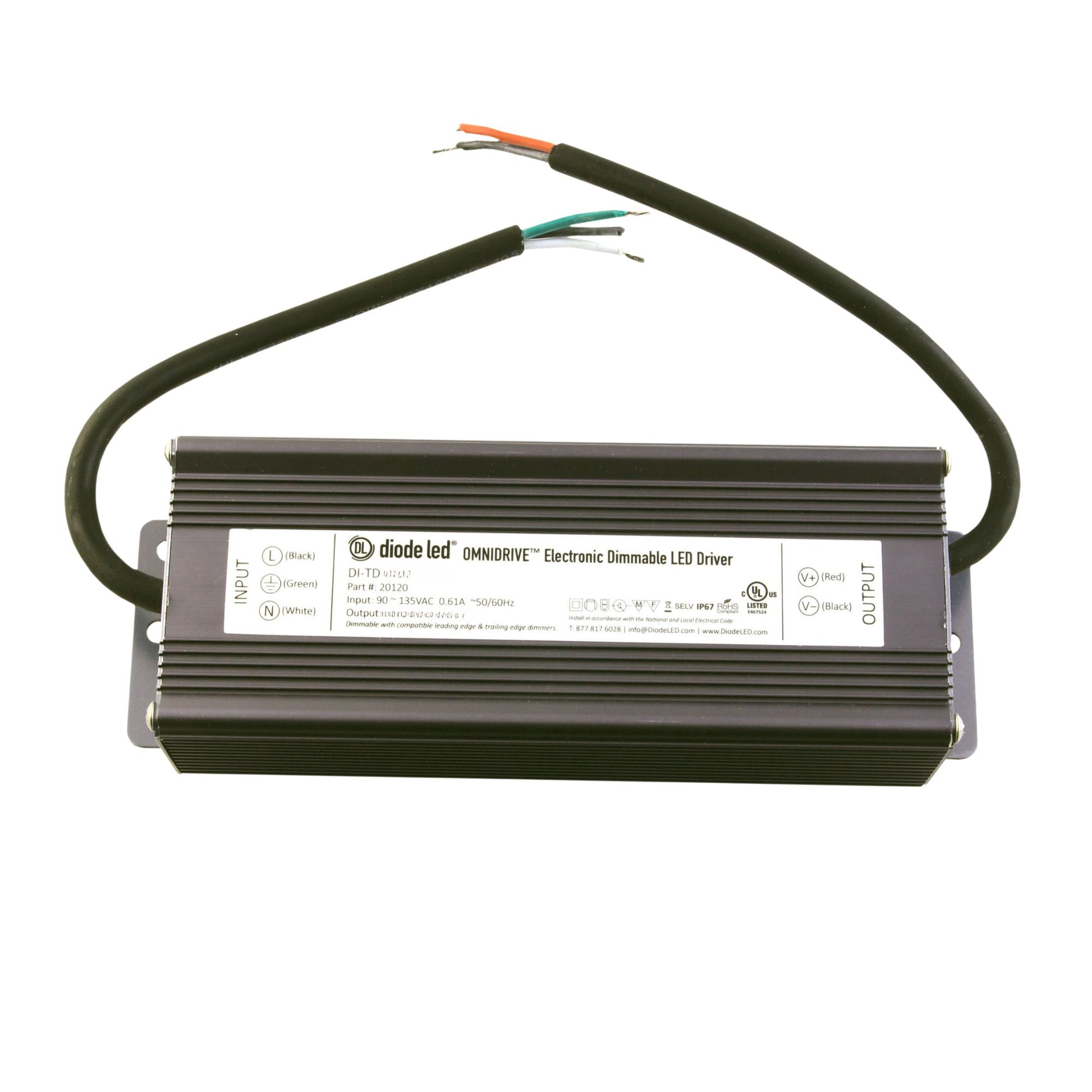

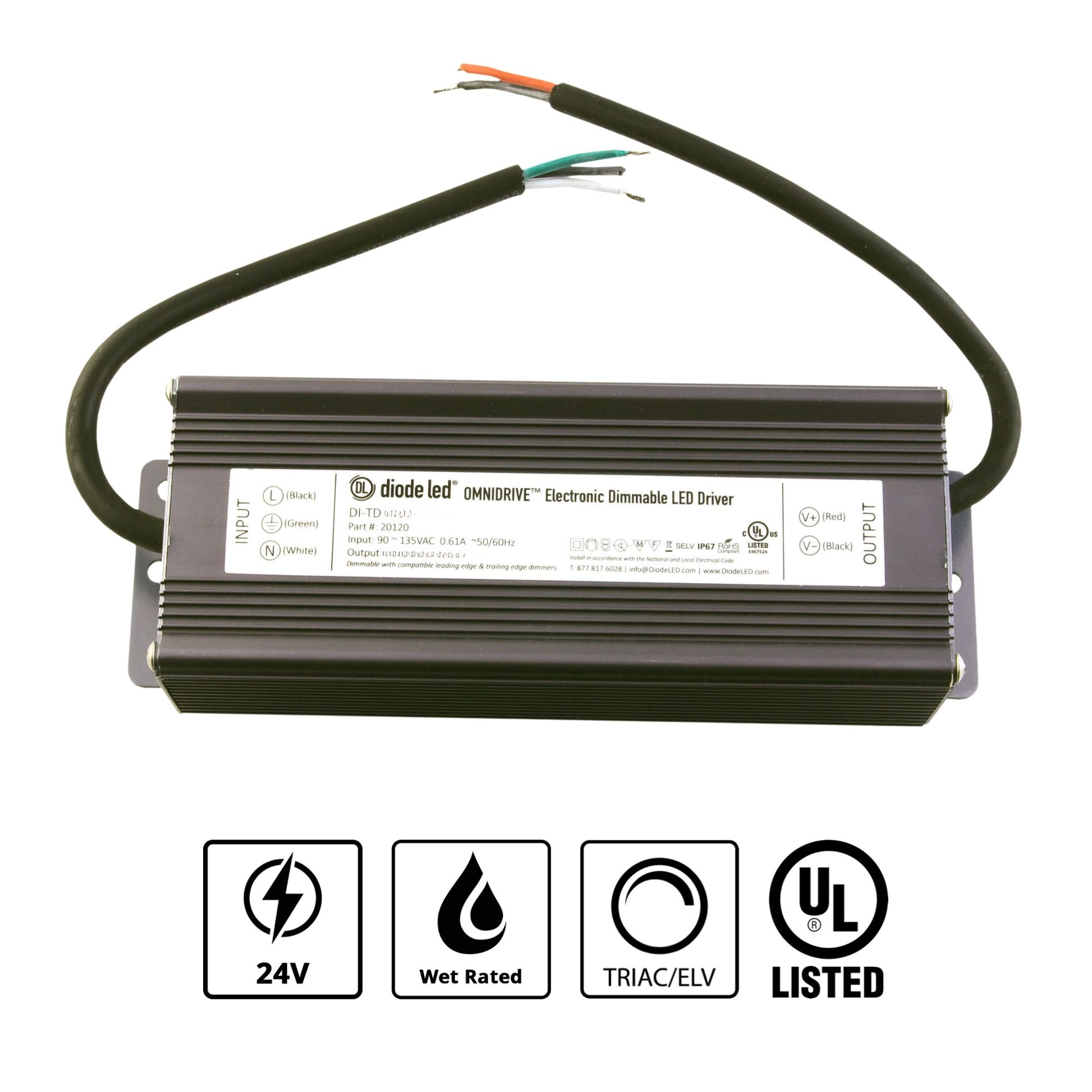

Diode LED OMNIDRIVE 120W Driver — 24V DC
The Diode LED DI-TD-24V-120W is a high-performance 120W LED Driver delivering a consistent 24V DC output. It operates with an input voltage of 120V and supports universal dimming protocols, making it versatile for various lighting applications. This model is Class 2 compliant and features an IP67 rated enclosure, suitable for both indoor and outdoor installations.
Key Features
- Power: 120W
- Input Voltage: 120V
- Output Voltage: 24V DC
- Dimming: Universal dimming compatibility
- Minimum Load: 60% for dimming

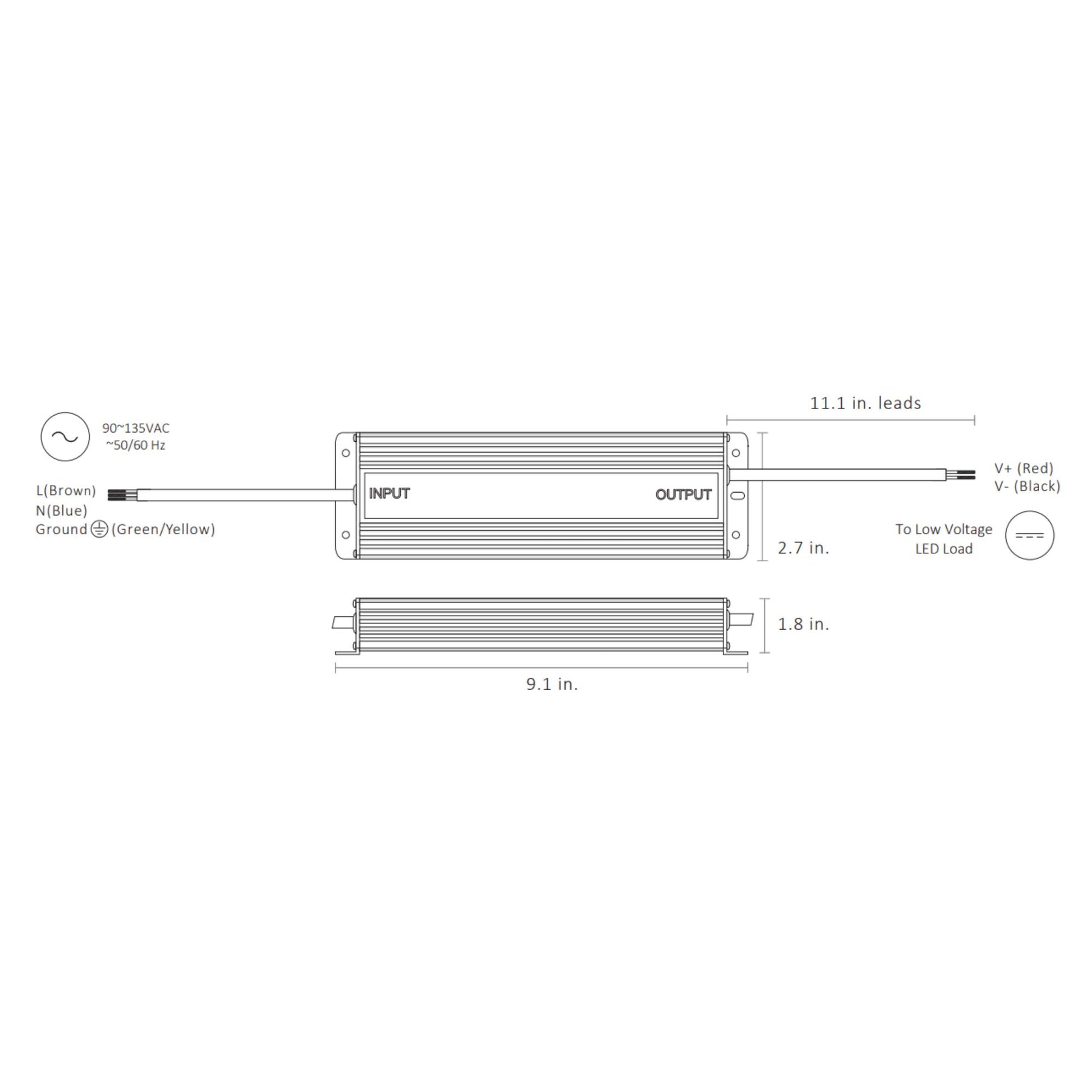

- Dimensions: 9.1 in. L x 2.7 in. W x 1.8 in. H
- Enclosure Type: IP67 rated
- Class 2: Yes
- Certifications: cULus, UL, CSA
Physical Design & Installation
The driver features a robust enclosure that is IP67 rated, ensuring protection against dust and water ingress, making it ideal for wet locations.
Dimming & Controls
Compatible with a range of dimming systems, this driver requires a minimum load of 60% for optimal dimming performance.
Performance & Build
Equipped with short circuit and over current protection, the driver ensures reliable operation and longevity. It is Class 2 compliant and suitable for demanding environments.
Typical Applications
- Outdoor lighting installations
- Commercial LED applications
- Residential lighting systems
- Architectural lighting projects
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming systems are compatible with the DI-TD-24V-120W?
What dimming systems are compatible with the DI-TD-24V-120W?
Is there a minimum load requirement for dimming?
Is there a minimum load requirement for dimming?
Does the DI-TD-24V-120W include an integrated junction box?
Does the DI-TD-24V-120W include an integrated junction box?
What input voltage does the DI-TD-24V-120W require?
What input voltage does the DI-TD-24V-120W require?
What is the IP rating of the DI-TD-24V-120W?
What is the IP rating of the DI-TD-24V-120W?
