OMNIDRIVE 80W 12V Omnidrive Electronic Dimmable LED Driver, 120VAC
Available in stock (200)
About this item
About this item
- Output Voltage: 12V DC
- Dimming: Compatible with listed dimmers
- Input Voltage: 120V
- Enclosure: IP67 Rated for wet locations
- Protection: Short circuit and over current protection
We process payments securely and do not store credit card information.
Description
Description

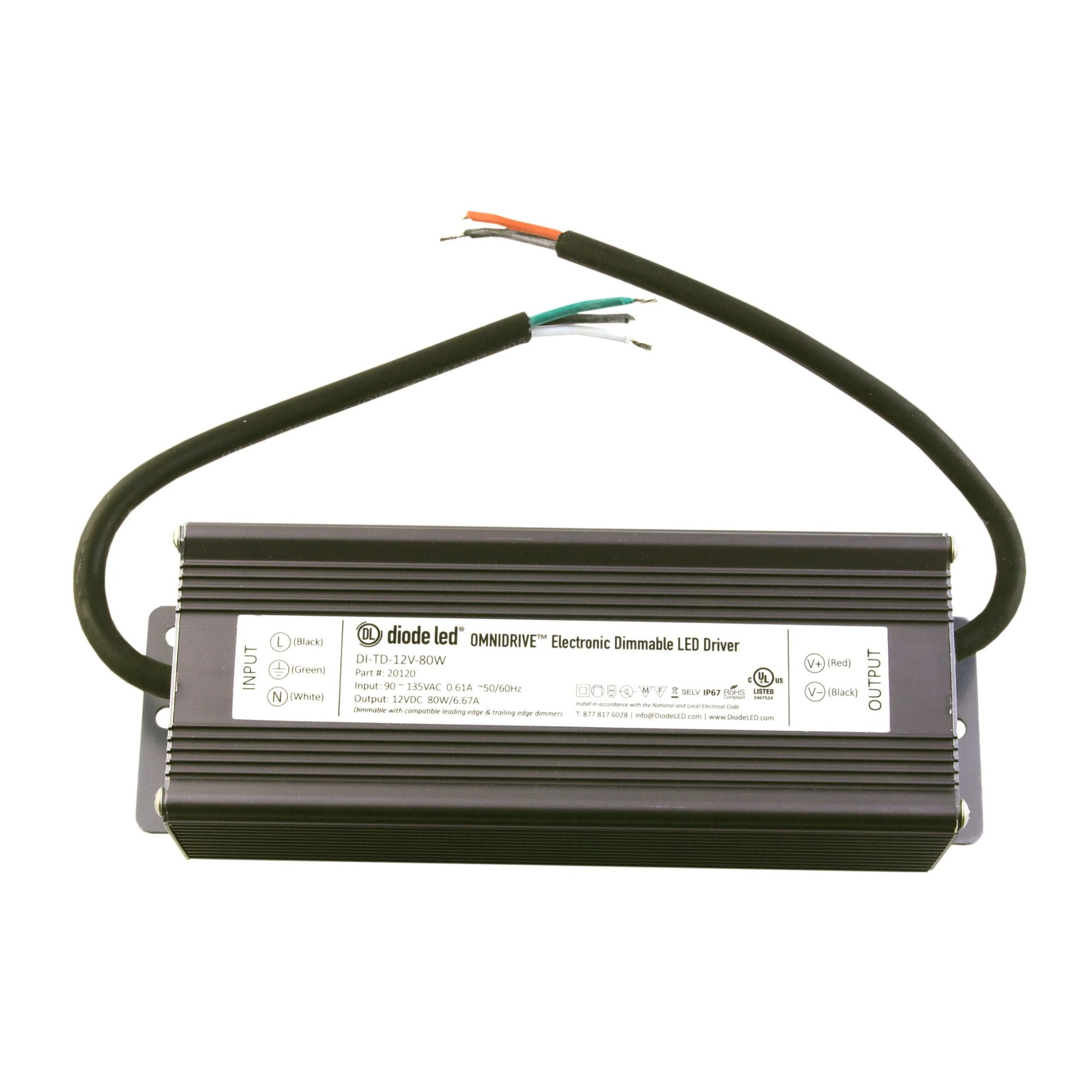

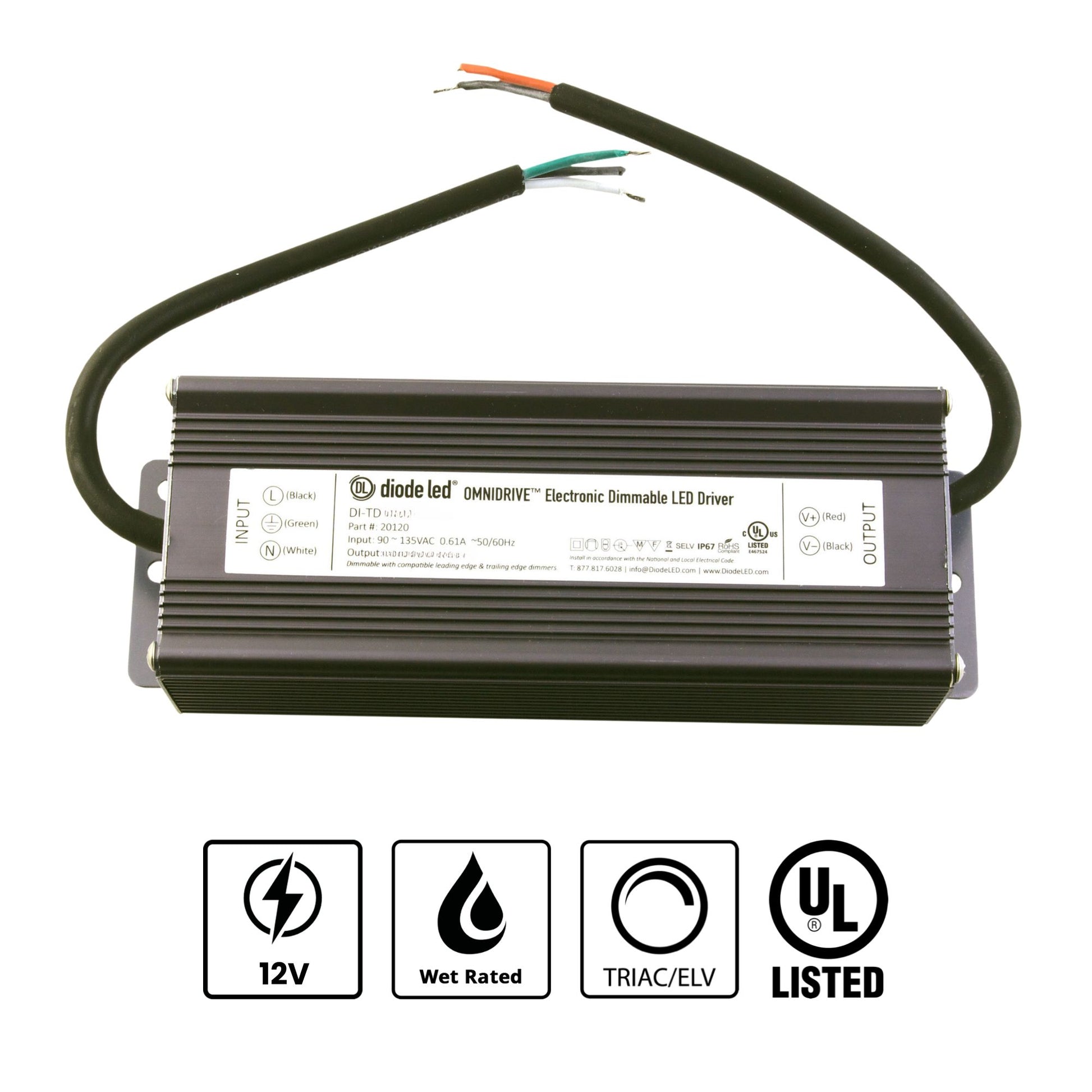

Diode LED OMNIDRIVE 80W Driver — 12V DC
The Diode LED DI-TD-12V-80W is an 80W constant voltage LED Driver designed for 12V DC applications. It operates with an input voltage of 120V and provides a reliable 12V DC output. This driver supports dimming with compatible dimmers, making it versatile for various lighting setups. It is IP67 rated, ensuring suitability for both indoor and outdoor wet locations.
Key Features
- Power: 80W
- Input Voltage: 120V
- Output Voltage: 12V DC
- Dimming: Compatible with listed dimmers
- Minimum Load: 60% for dimmable installations

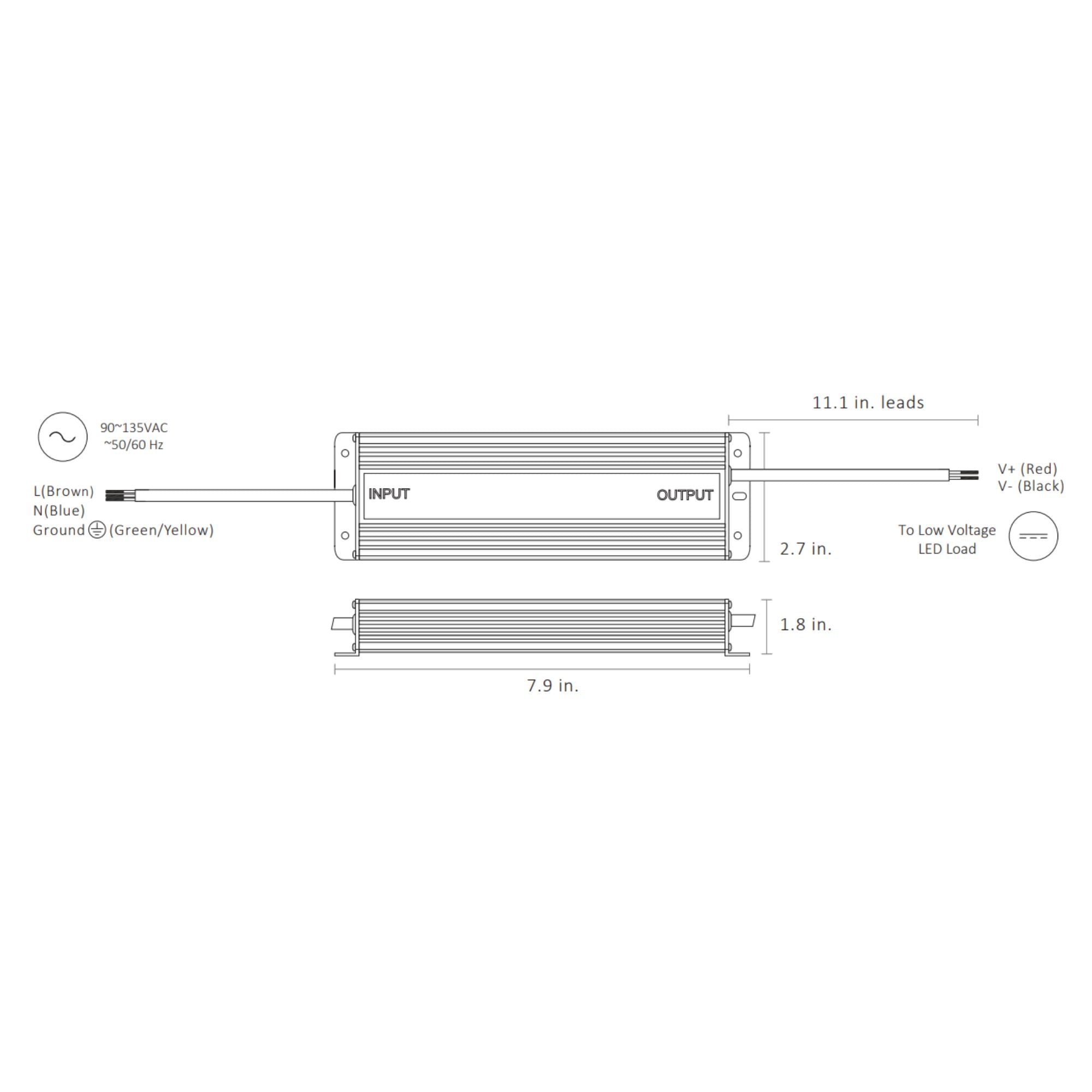

- Dimensions: 7.9 in. L x 2.7 in. W x 1.8 in. H
- Enclosure Type: IP67 Rated
- Class 2: Yes
- Certifications: cULus Listed, UL # E499308
Physical Design & Installation
The driver features a robust design with cooling by free-air convection. It is housed in a durable enclosure suitable for wet locations, ensuring reliable performance in various environments.
Dimming & Controls
This driver supports dimming with compatible systems, excluding PWM controls. Ensure a minimum load of 60% for optimal dimming performance.
Performance & Build
Equipped with short circuit and over current protection, the driver ensures safety and reliability. It is Class 2 compliant and IP67 rated for wet locations.
Typical Applications
- Outdoor lighting installations
- Wet location applications
- Commercial lighting projects
- Residential lighting systems
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the DI-TD-12V-80W driver compatible with all dimmers?
Is the DI-TD-12V-80W driver compatible with all dimmers?
What is the minimum load requirement for dimming?
What is the minimum load requirement for dimming?
Does the DI-TD-12V-80W include an integrated junction box?
Does the DI-TD-12V-80W include an integrated junction box?
What input voltage does the DI-TD-12V-80W support?
What input voltage does the DI-TD-12V-80W support?
What is the IP rating of the DI-TD-12V-80W driver?
What is the IP rating of the DI-TD-12V-80W driver?
