OMNIDRIVE 120W 12V Omnidrive Electronic Dimmable LED Driver, 120VAC
Available in stock (201)
About this item
About this item
- Output Voltage: 12V DC for consistent LED performance
- Dimming: Multi-Protocol for versatile control
- Input Voltage: 120V for standard installations
- Enclosure: IP67 rated for wet locations
- Protection: Short circuit and over current protection
We process payments securely and do not store credit card information.
Description
Description

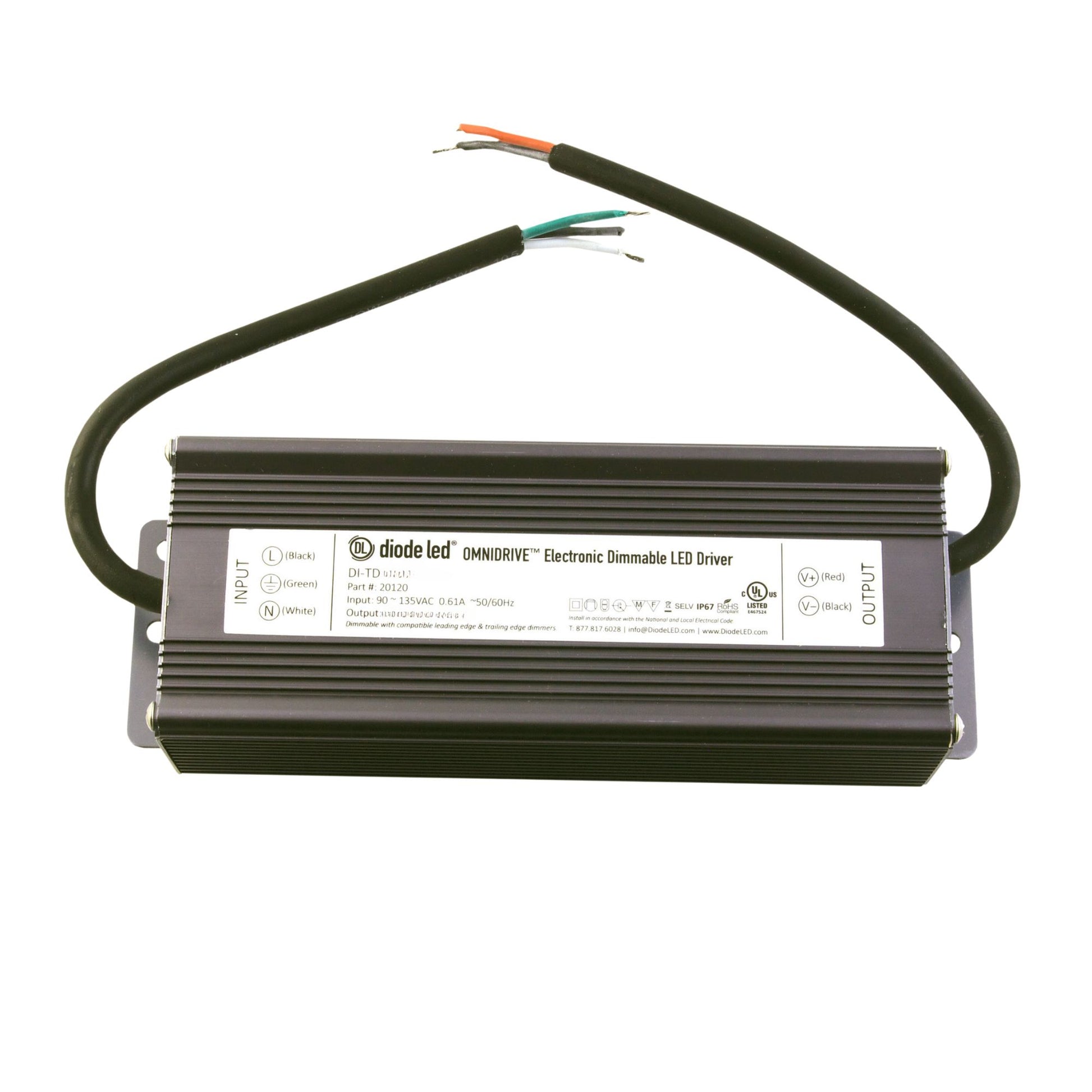

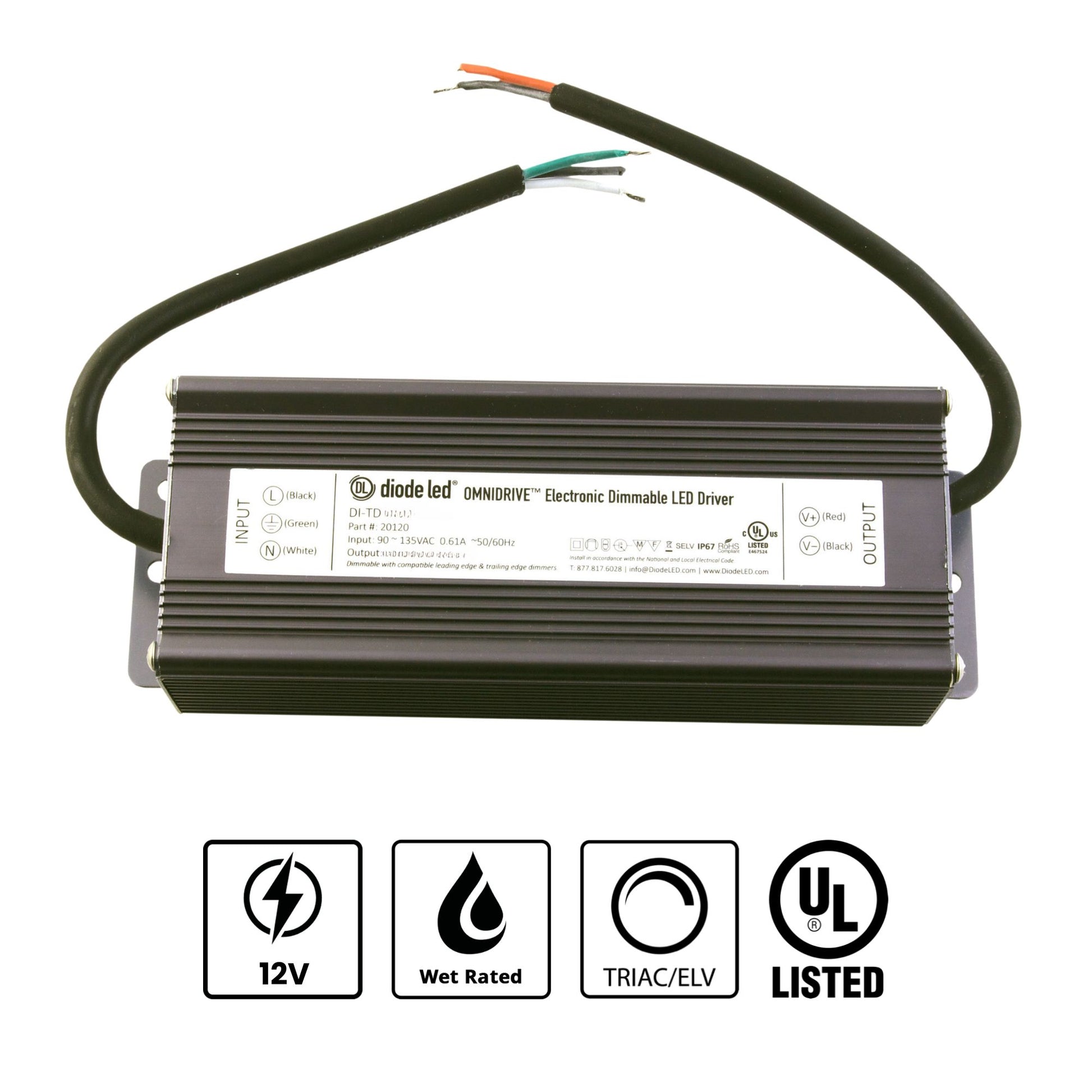

Diode LED OMNIDRIVE 120W Driver — 12V DC
The Diode LED DI-TD-12V-120W is a high-performance LED Driver designed to deliver 120W of power at 12V DC. It operates on an input voltage of 120V and features Multi-Protocol dimming for flexible lighting control. This driver is not Class 2 rated and is housed in an IP67 rated enclosure, making it suitable for both indoor and outdoor installations.
Key Features
- Power: 120W
- Input Voltage: 120V
- Output Voltage: 12V DC
- Dimming: Multi-Protocol
- Minimum Load: 60% for dimmable installations

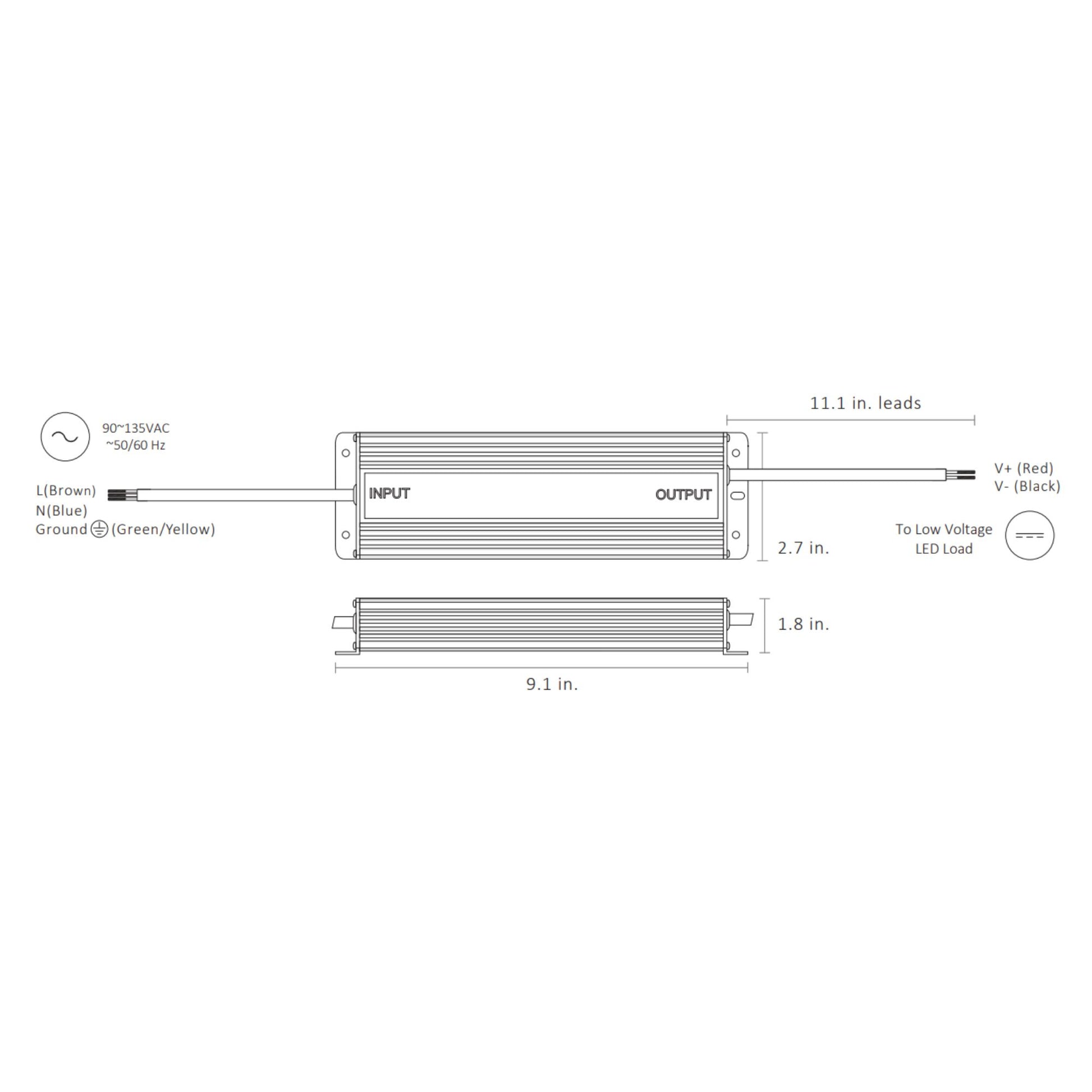

- Dimensions: 9.1 in. L x 2.7 in. W x 1.8 in. H
- Enclosure Type: IP67 rated
- Class 2: No
- Certifications: cULus Listed
Physical Design & Installation
The driver features a robust design with an IP67 rated enclosure, ensuring durability in wet locations. It is cooled by free-air convection.
Dimming & Controls
Compatible with a range of dimming systems, the driver supports Multi-Protocol dimming. A minimum load of 60% is required for smooth dimming performance.
Performance & Build
Equipped with short circuit and over current protection, the driver ensures reliable operation. It is not Class 2 compliant but is cULus listed for safety.
Typical Applications
- Outdoor lighting
- Commercial installations
- Residential lighting
- Wet location applications
