OMNIDRIVE X 60W 12VDC LED Dimmable Driver with Junction Box, 120-277V
Available in stock (199)
About this item
About this item
- Output Voltage: 12V DC
- Dimming: ELV, TRIAC, 0-10V
- Input Voltage: 120-277V
- Enclosure: Integrated Junction Box
- Protection: Short circuit, over-voltage, thermal
We process payments securely and do not store credit card information.
Description
Description
Diode LED OMNIDRIVE X 60W Driver — 12V DC

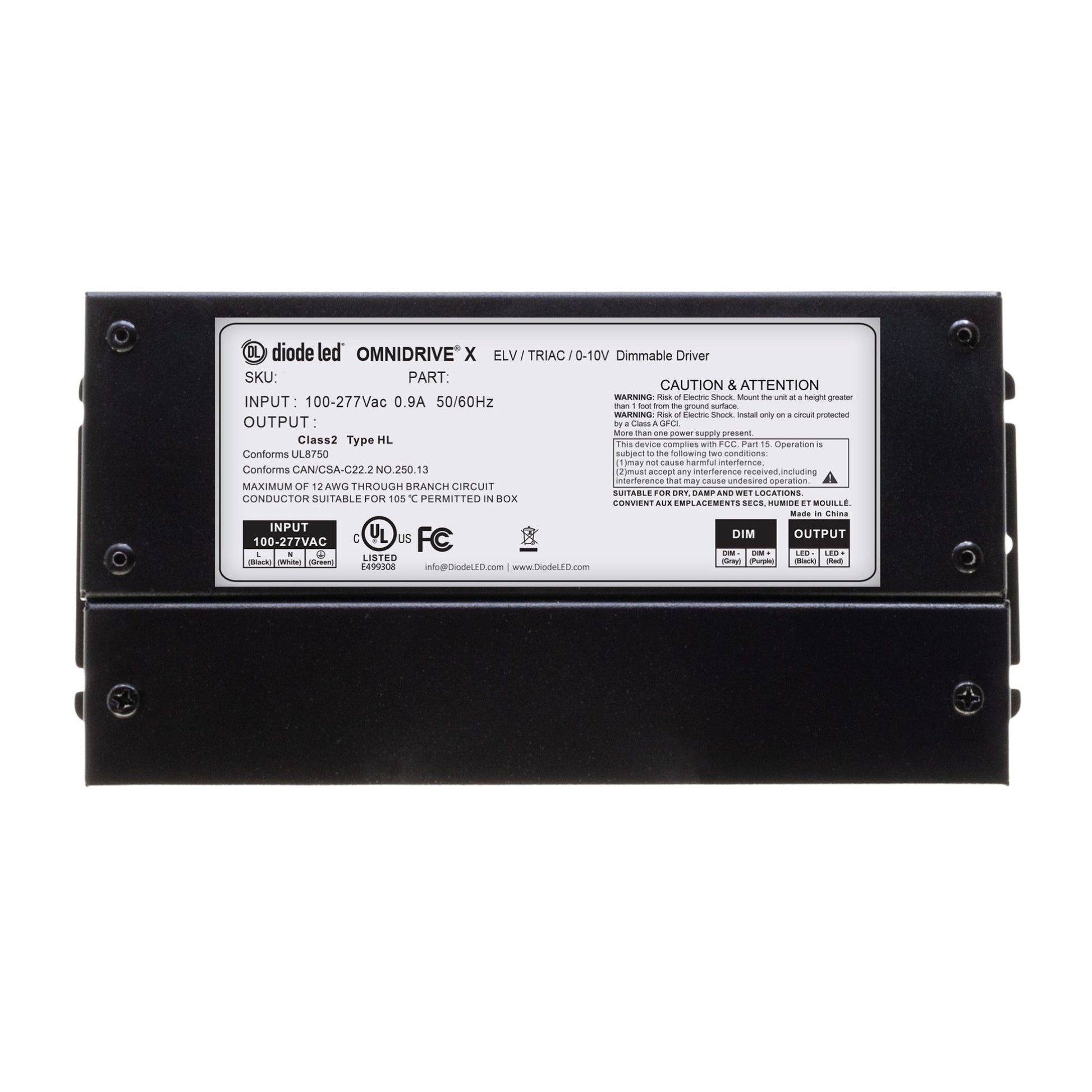

The DI-ODX-12V60W-J is a 60W constant voltage LED Driver providing 12V DC output. It supports universal input voltage from 120-277V and features multi-protocol dimming, including ELV, TRIAC, and 0-10V systems. This driver is Class 2 rated and comes with an Integrated Junction Box for outdoor installations.
Key Features
- Power: 60W
- Input Voltage: 120-277V
- Output Voltage: 12V DC
- Dimming: ELV, TRIAC, 0-10V
- Minimum Load: No Minimum Load

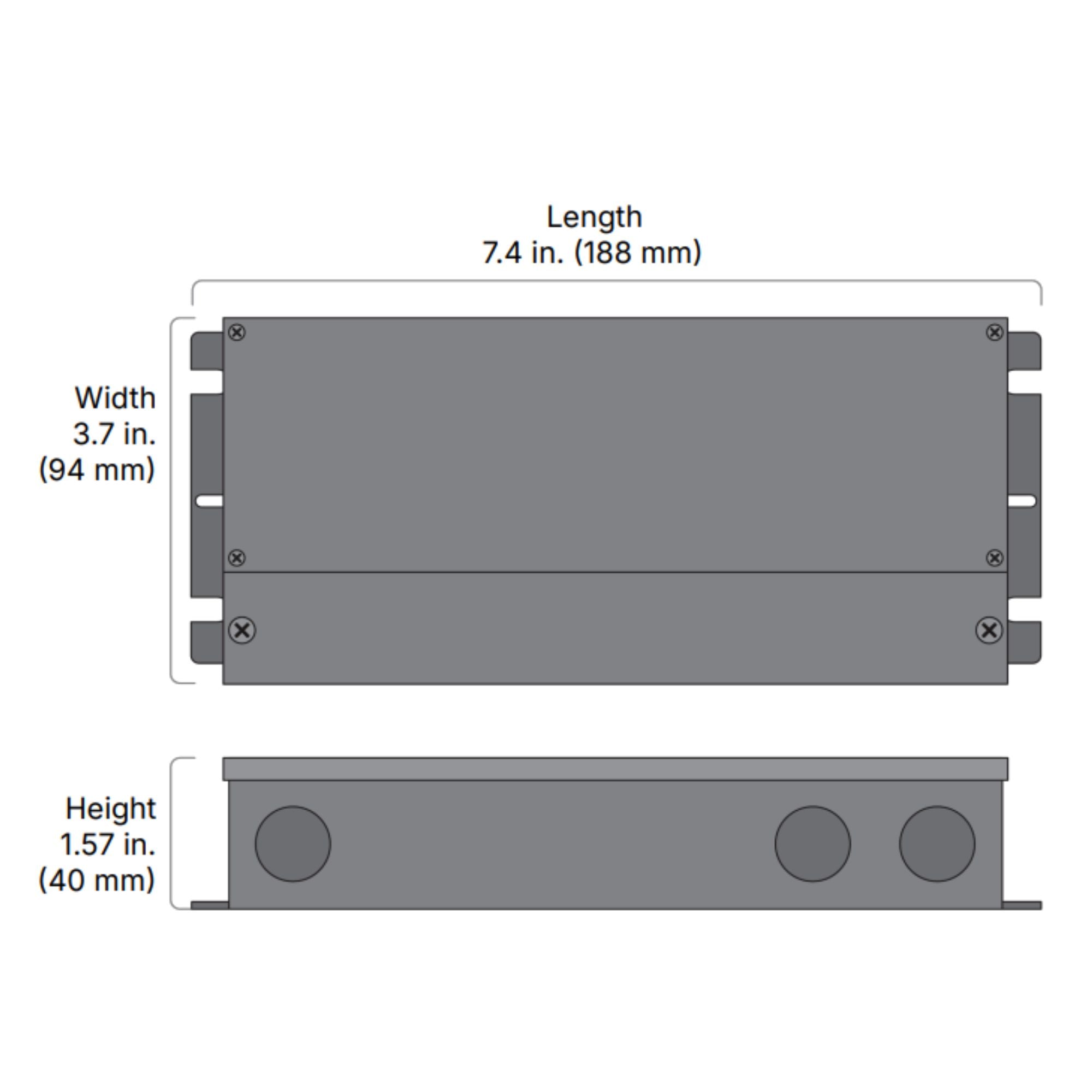

- Dimensions: 7.4 in. L x 3.7 in. W x 1.57 in. H
- Enclosure Type: Integrated Junction Box
- IP Rating: NEMA 3R
- Class 2: Yes
- Certifications: cULus, UL, FCC
Physical Design & Installation

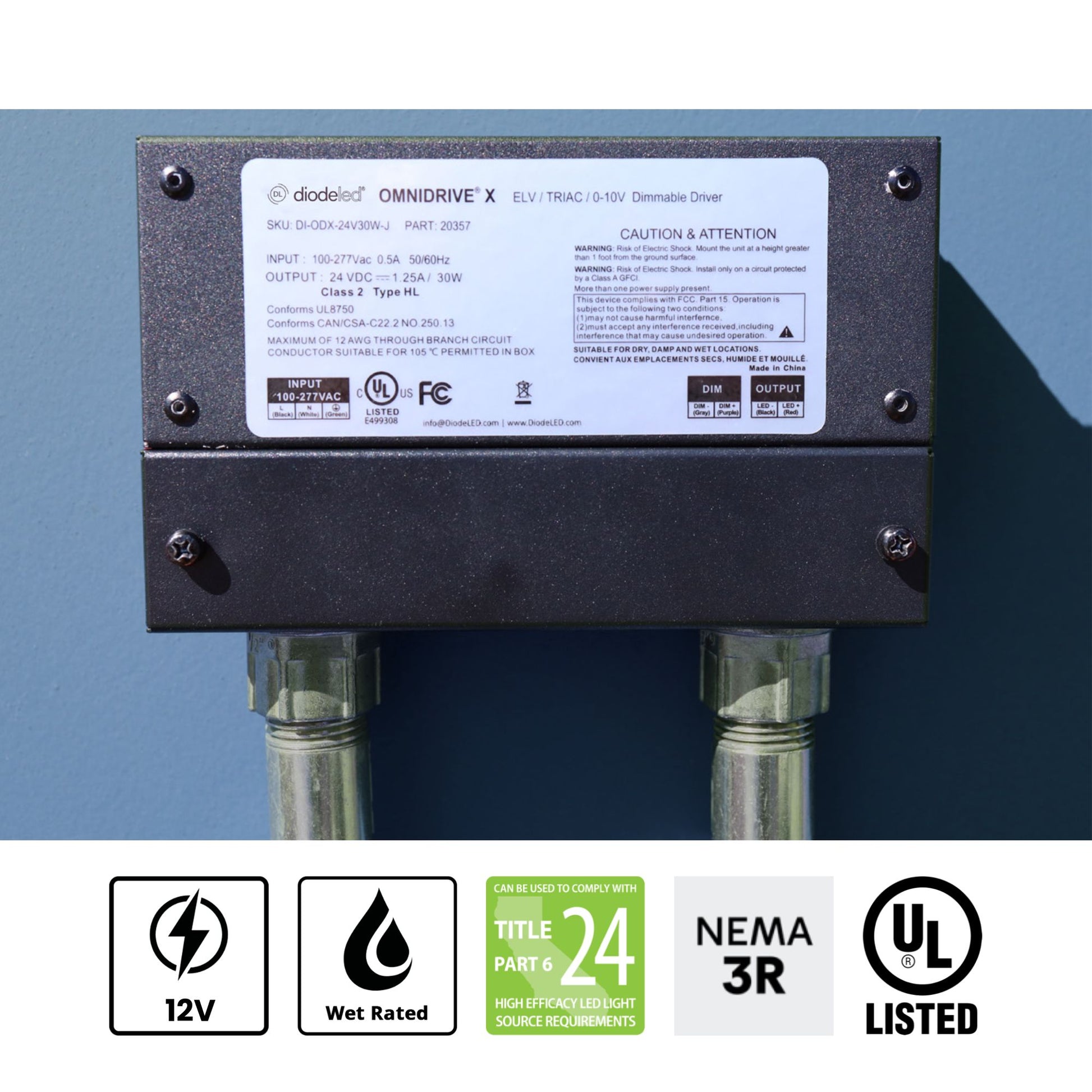

The driver features a robust enclosure with an integrated junction box, suitable for outdoor and wet locations, ensuring reliable performance in various environments.
Dimming & Controls

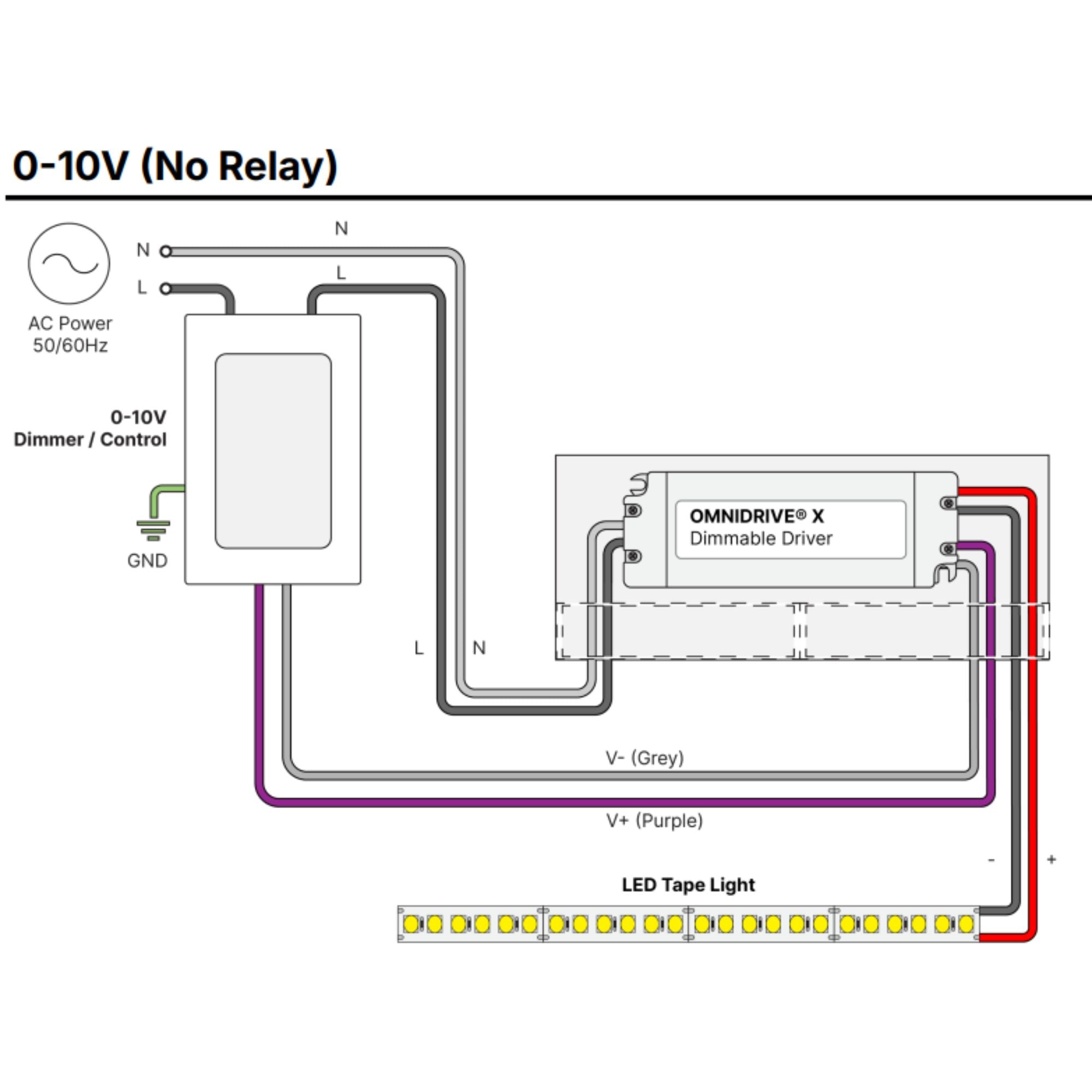

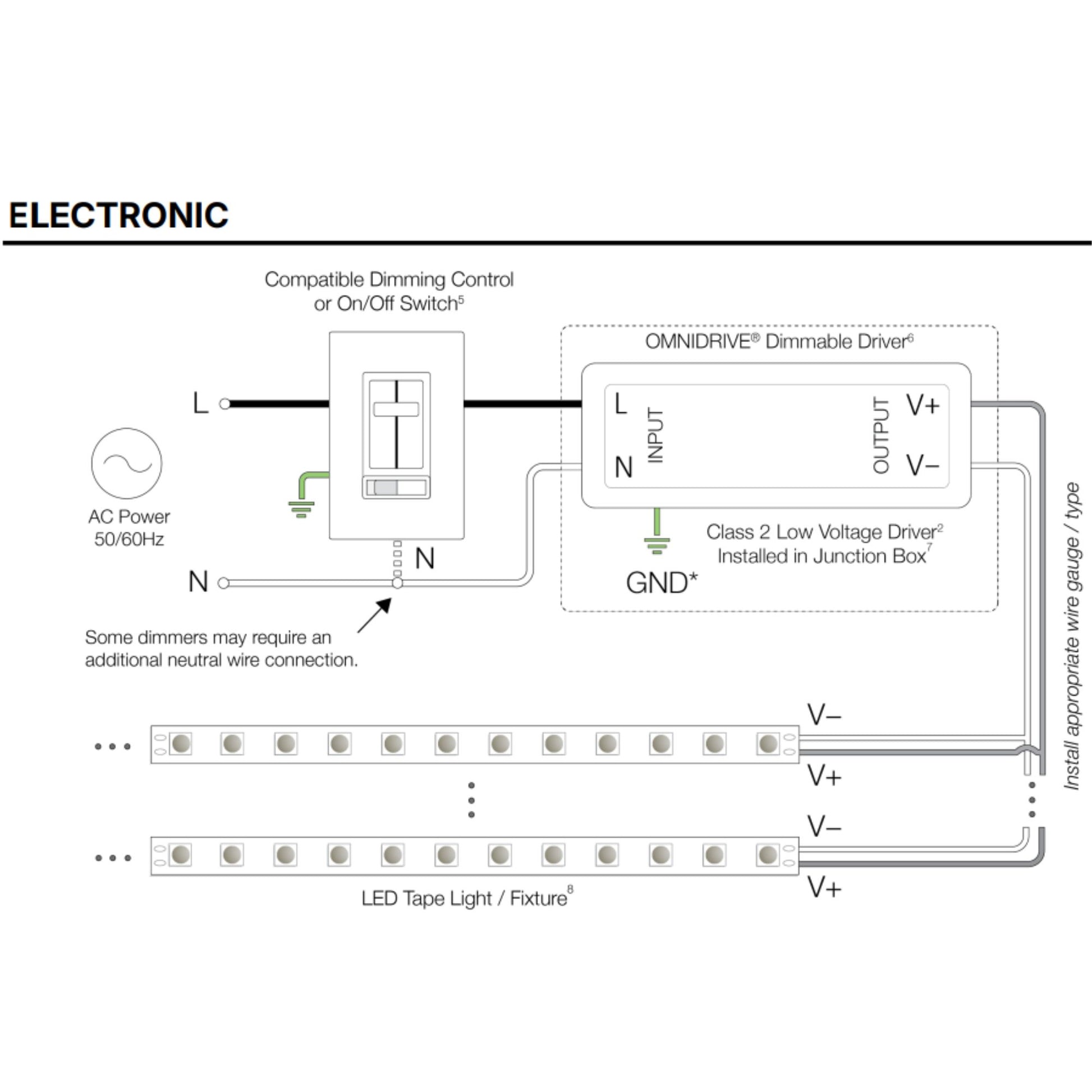

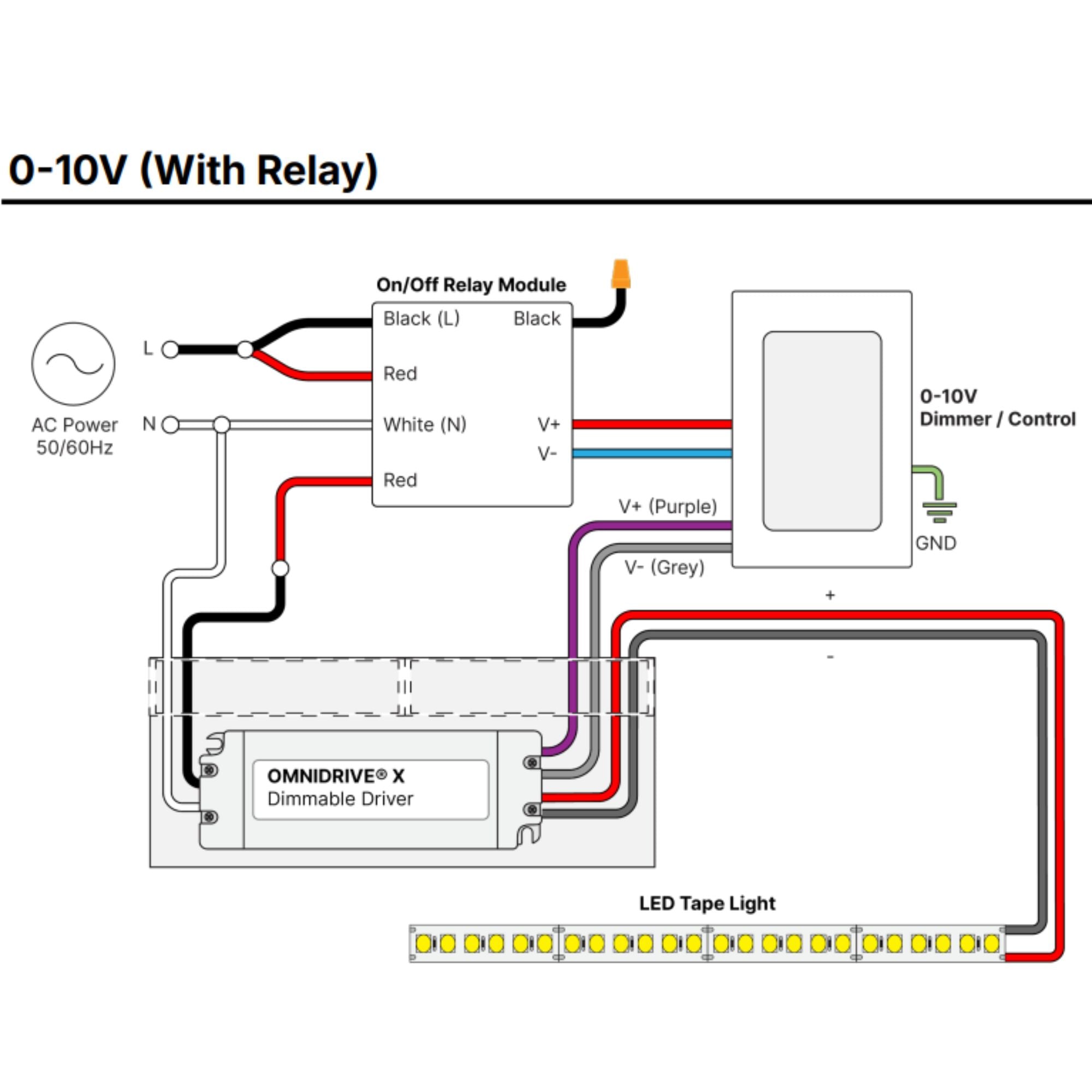

Compatible with ELV, TRIAC, and 0-10V dimming systems, this driver offers versatile dimming capabilities with no minimum load requirement.
Performance & Build
Equipped with short circuit, over-voltage, and thermal protection, the driver ensures safe and efficient operation, compliant with Class 2 standards and NEMA 3R rating.
Typical Applications
- Outdoor lighting
- Landscape lighting
- Architectural lighting
- Signage
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming protocols are supported by the DI-ODX-12V60W-J?
What dimming protocols are supported by the DI-ODX-12V60W-J?
Is there a minimum load requirement for the DI-ODX-12V60W-J?
Is there a minimum load requirement for the DI-ODX-12V60W-J?
Does the DI-ODX-12V60W-J include an integrated junction box?
Does the DI-ODX-12V60W-J include an integrated junction box?
What is the input voltage range for the DI-ODX-12V60W-J?
What is the input voltage range for the DI-ODX-12V60W-J?
What is the IP rating of the DI-ODX-12V60W-J?
What is the IP rating of the DI-ODX-12V60W-J?
