OMNIDRIVE X 30W 12VDC LED Dimmable Driver with Junction Box, 120-277V
Available in stock (202)
About this item
About this item
- Output Voltage: 12V DC for consistent power
- Dimming: Multi-Protocol (ELV, TRIAC, 0-10V)
- Input Voltage: Universal 120-277V
- Enclosure: Integrated Junction Box for outdoor use
- Protection: Automatic recovery after fault conditions
We process payments securely and do not store credit card information.
Description
Description

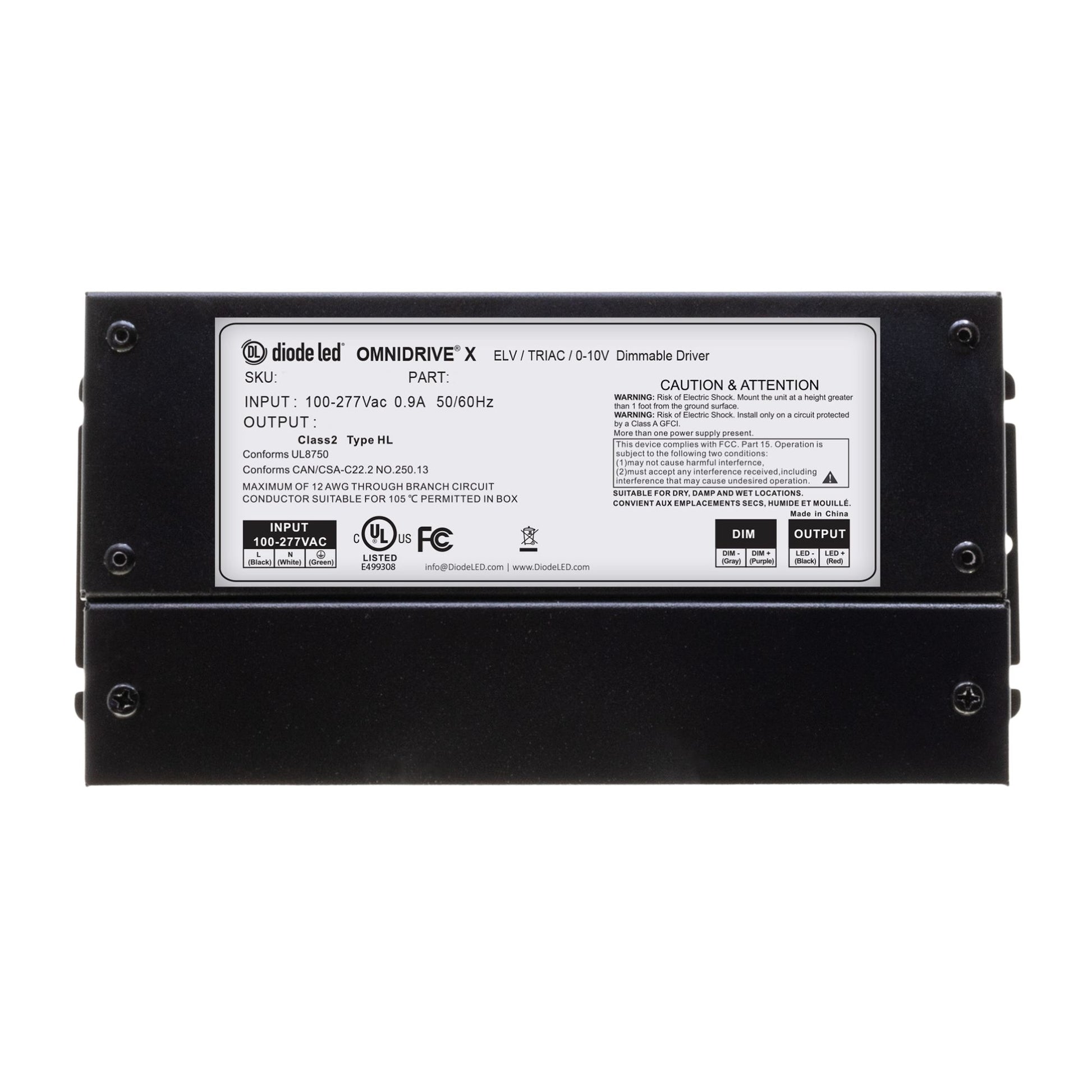

Diode LED OMNIDRIVE X 30W Driver — 12V DC
The Diode LED DI-ODX-12V30W-J is a versatile 30W LED Driver delivering 12V DC output. It supports multi-protocol dimming including ELV, TRIAC, and 0-10V systems, making it ideal for a range of lighting applications. This Class 2 rated driver features a robust Integrated Junction Box for secure outdoor installations.
Key Features
- Power: 30W
- Input Voltage: 120-277V
- Output Voltage: 12V DC
- Dimming: ELV, TRIAC, 0-10V
- Minimum Load: No minimum load required

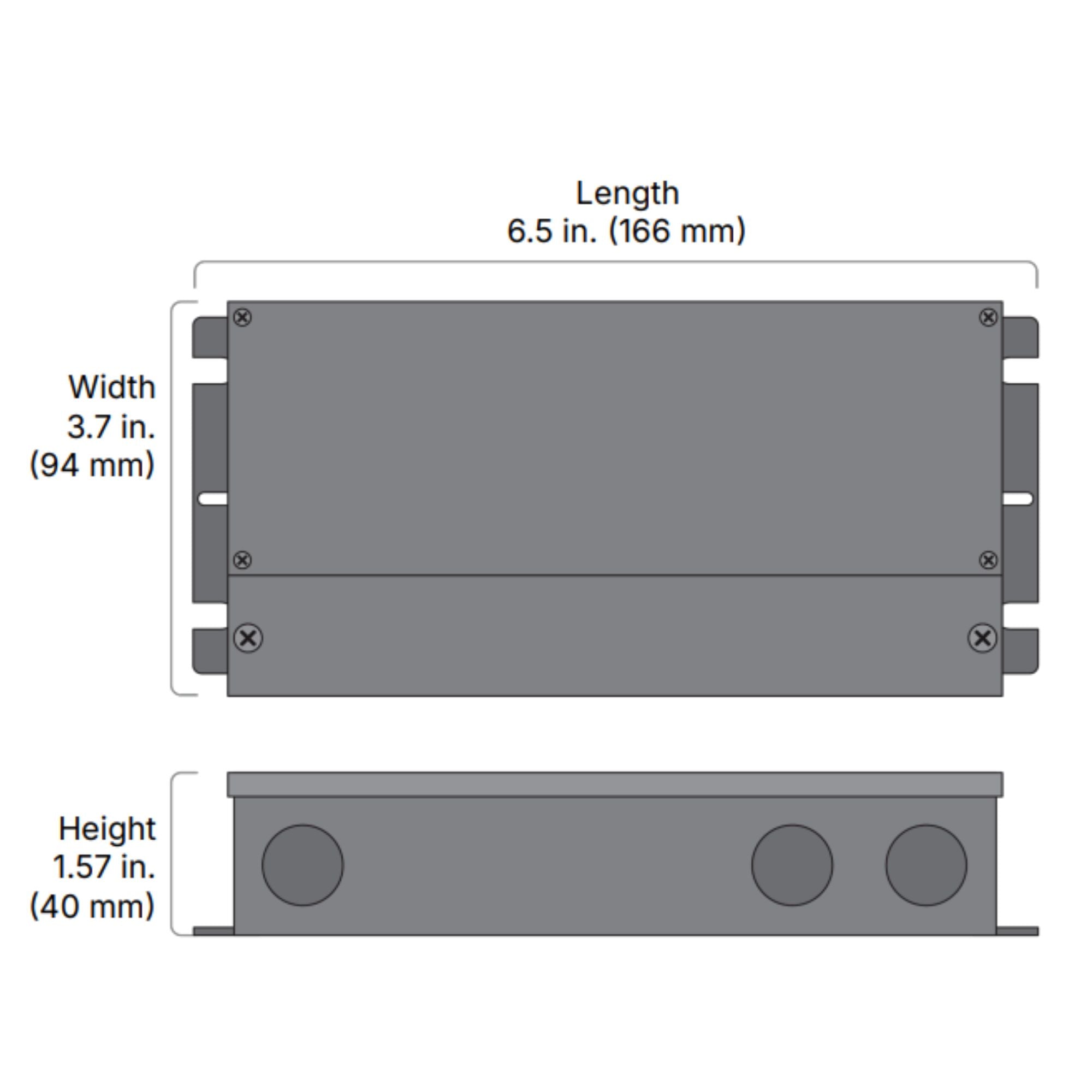

- Dimensions: 6.5 in. L x 3.7 in. W x 1.57 in. H
- Enclosure Type: Integrated Junction Box
- IP Rating: NEMA 3R
- Class 2: Yes
- Certifications: cULus, UL, FCC
Physical Design & Installation

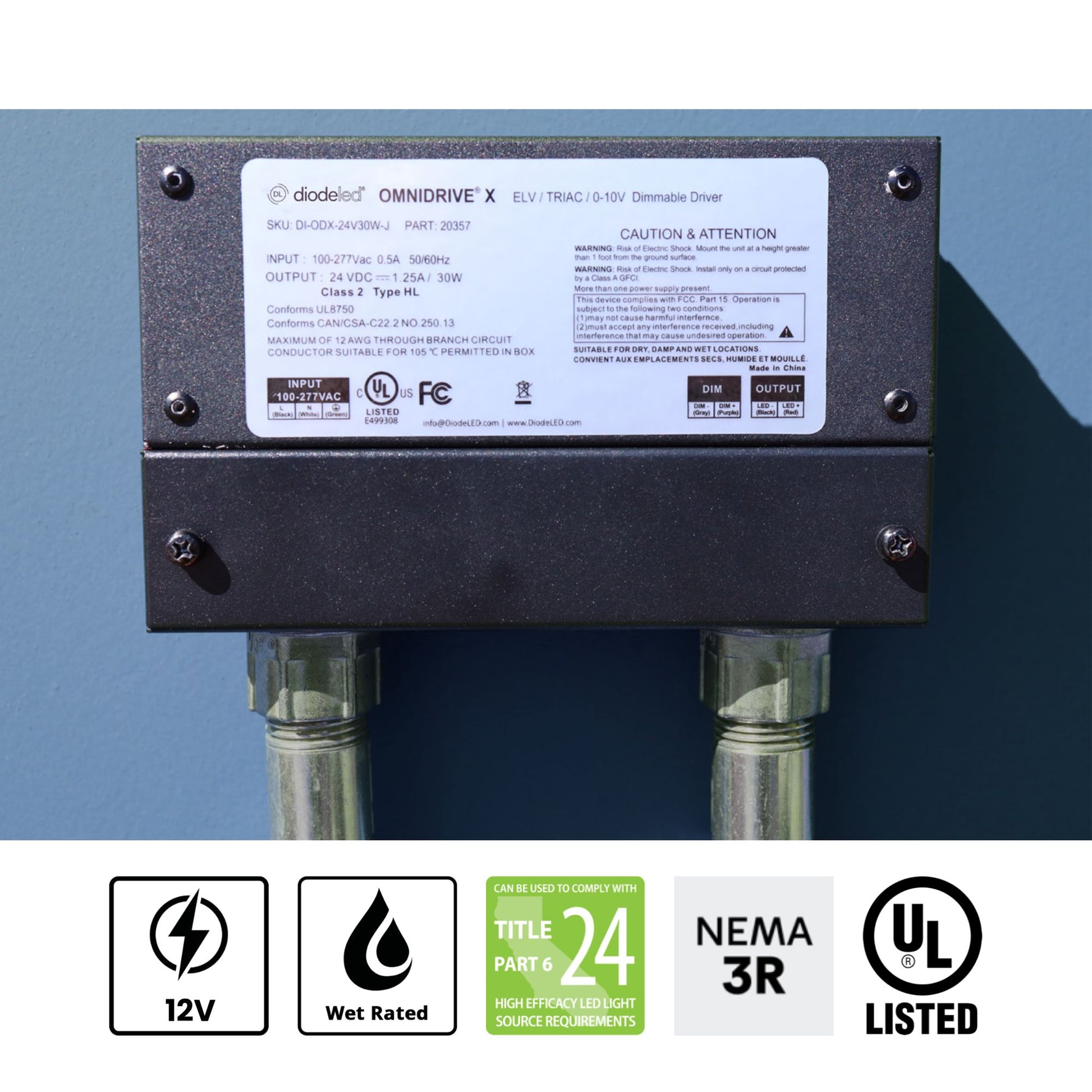

The driver is housed in a durable enclosure with an Integrated Junction Box, suitable for wet locations, ensuring reliable performance in outdoor settings.
Dimming & Controls

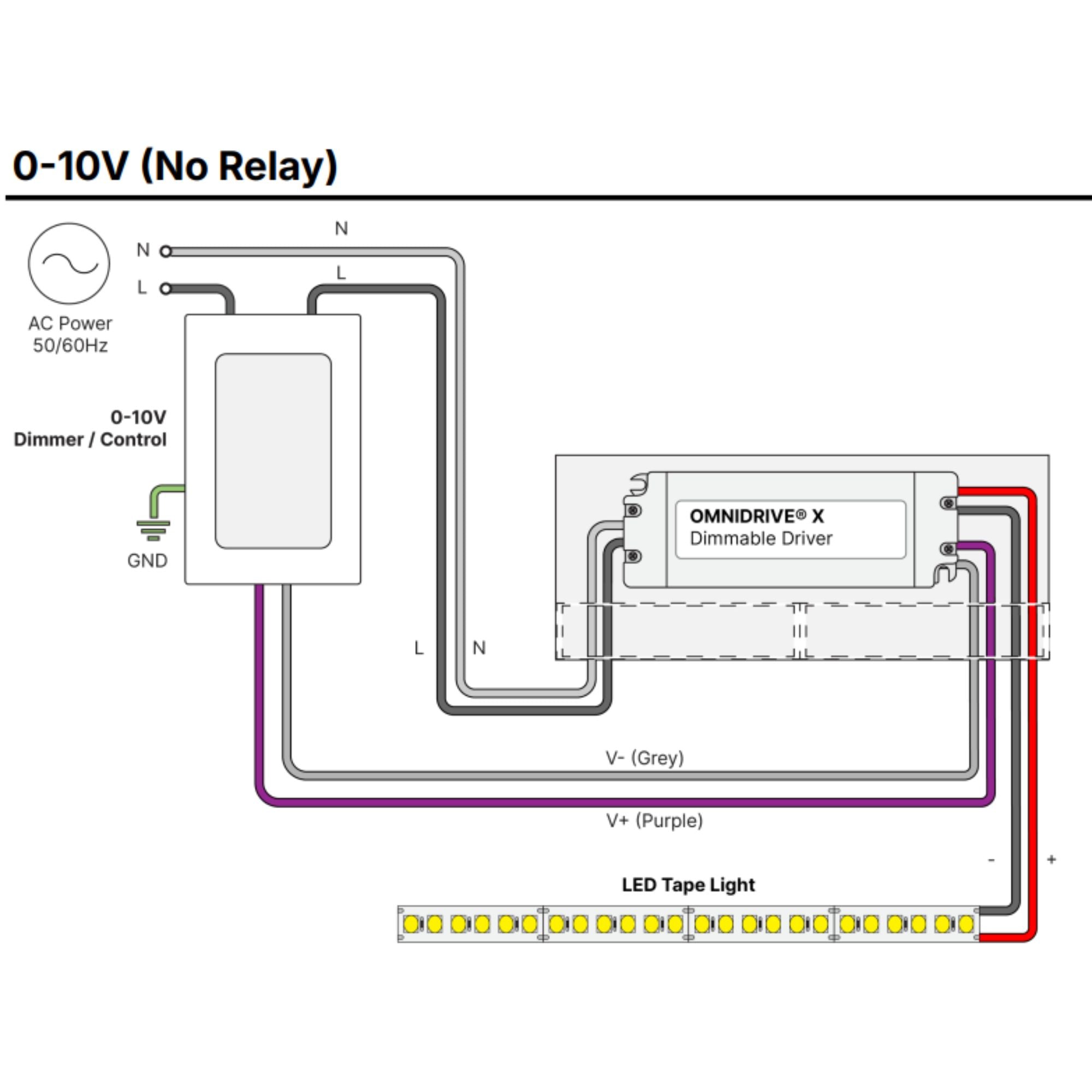

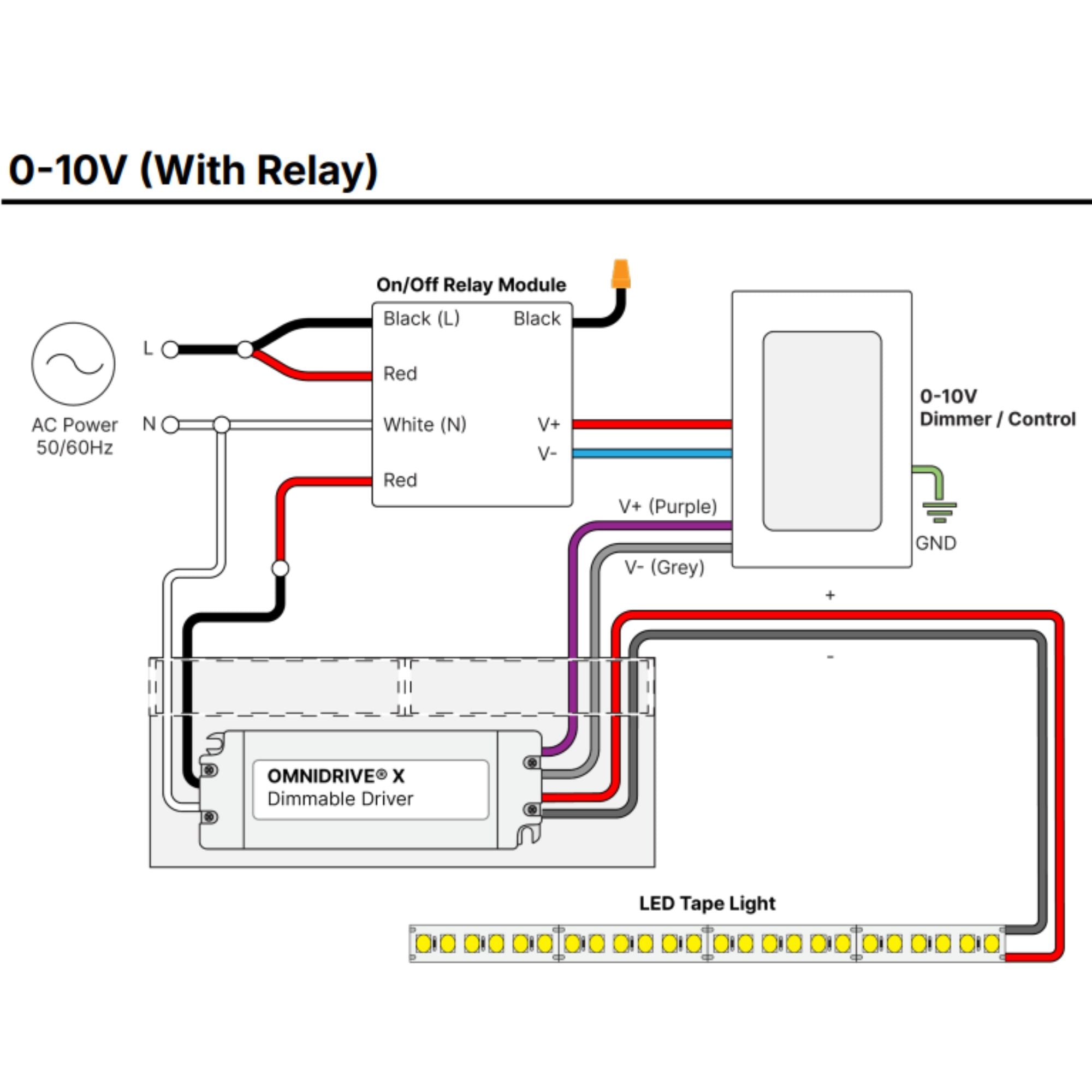

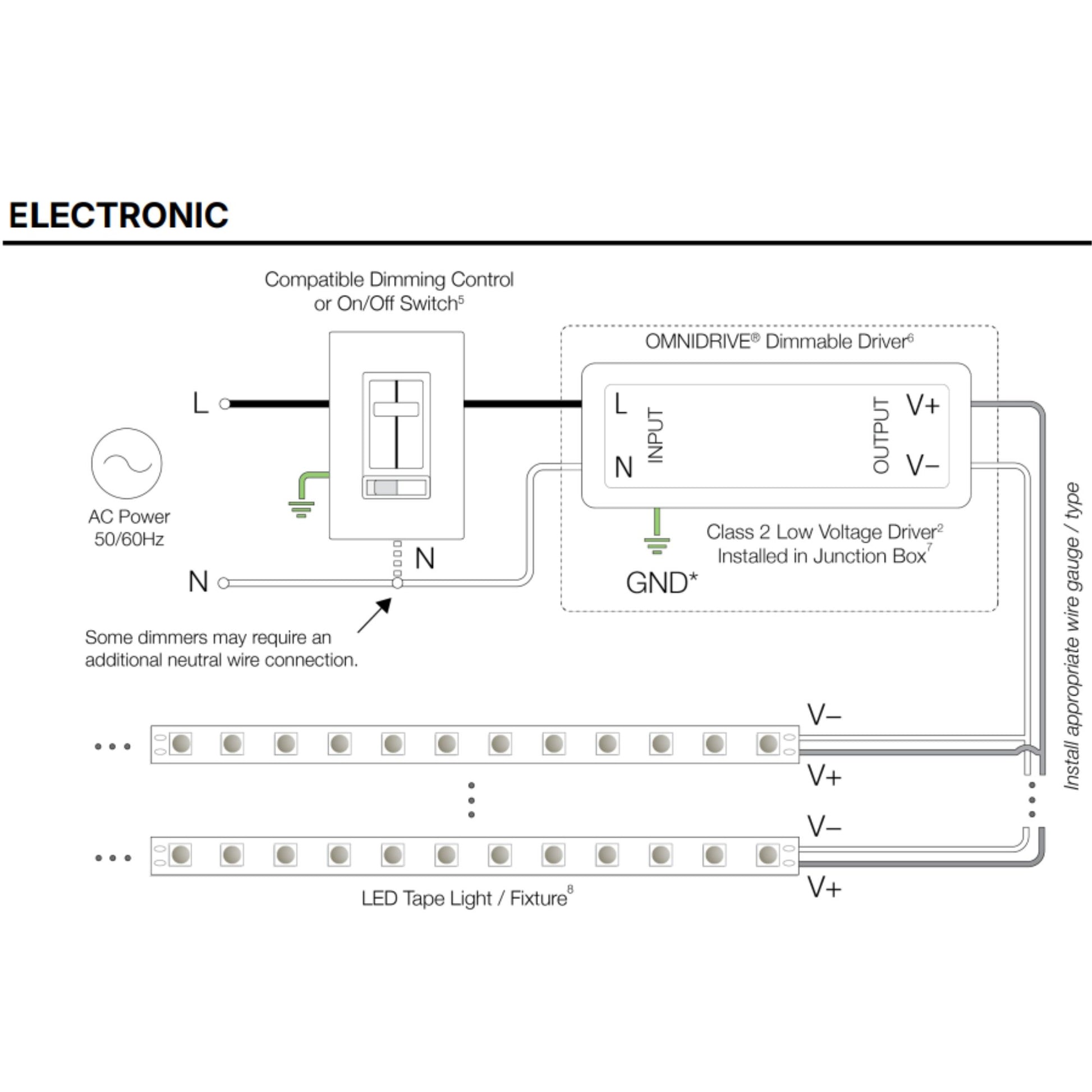

Compatible with ELV, TRIAC, and 0-10V dimming systems, this driver offers seamless dimming capabilities without a minimum load requirement.
Performance & Build
Features include automatic recovery from short circuit and over-voltage conditions, ensuring long-lasting performance. Rated for Class 2 compliance and NEMA 3R for outdoor use.
Typical Applications
- Outdoor lighting installations
- Architectural lighting
- Commercial lighting systems
- Residential landscape lighting
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming protocols are compatible with the DI-ODX-12V30W-J?
What dimming protocols are compatible with the DI-ODX-12V30W-J?
Is there a minimum load requirement for this driver?
Is there a minimum load requirement for this driver?
Does the DI-ODX-12V30W-J include a junction box?
Does the DI-ODX-12V30W-J include a junction box?
What input voltage does the DI-ODX-12V30W-J accept?
What input voltage does the DI-ODX-12V30W-J accept?
What is the IP rating of the DI-ODX-12V30W-J?
What is the IP rating of the DI-ODX-12V30W-J?
