OMNIDRIVE X 200W 12VDC LED Dimmable Driver with Junction Box, 120-277V
Available in stock (200)
About this item
About this item
- Output Voltage: 12V DC for consistent power delivery
- Multi-Protocol Dimming: Supports ELV, TRIAC, and 0-10V systems
- Input Voltage: Universal 120-277V for versatile installation
- Enclosure: Integrated Junction Box for outdoor use
- Protection: Automatic recovery from fault conditions
We process payments securely and do not store credit card information.
Description
Description

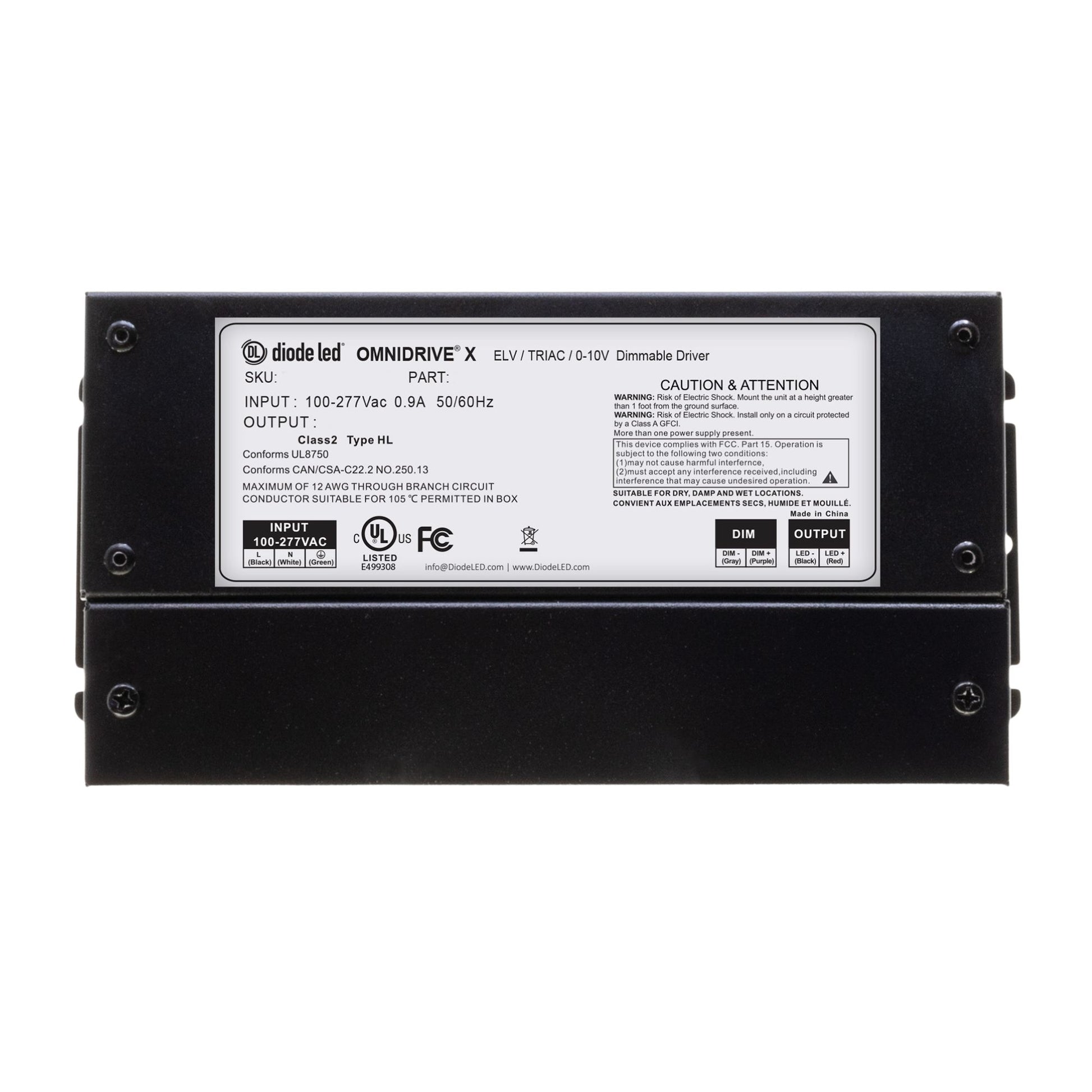

Diode LED OMNIDRIVE X 200W Driver — 12V DC
The DI-ODX-12V200W-J is a high-performance 200W constant voltage LED Driver designed for 12V DC applications. It features a universal input voltage range of 120-277V and supports multi-protocol dimming including ELV, TRIAC, and 0-10V systems. This model is not Class 2 rated and comes with an Integrated Junction Box, making it suitable for outdoor installations.
Key Features
- Power: 200W maximum load
- Input Voltage: 120-277V AC
- Output Voltage: 12V DC
- Dimming: ELV, TRIAC, 0-10V
- Minimum Load: No minimum load required

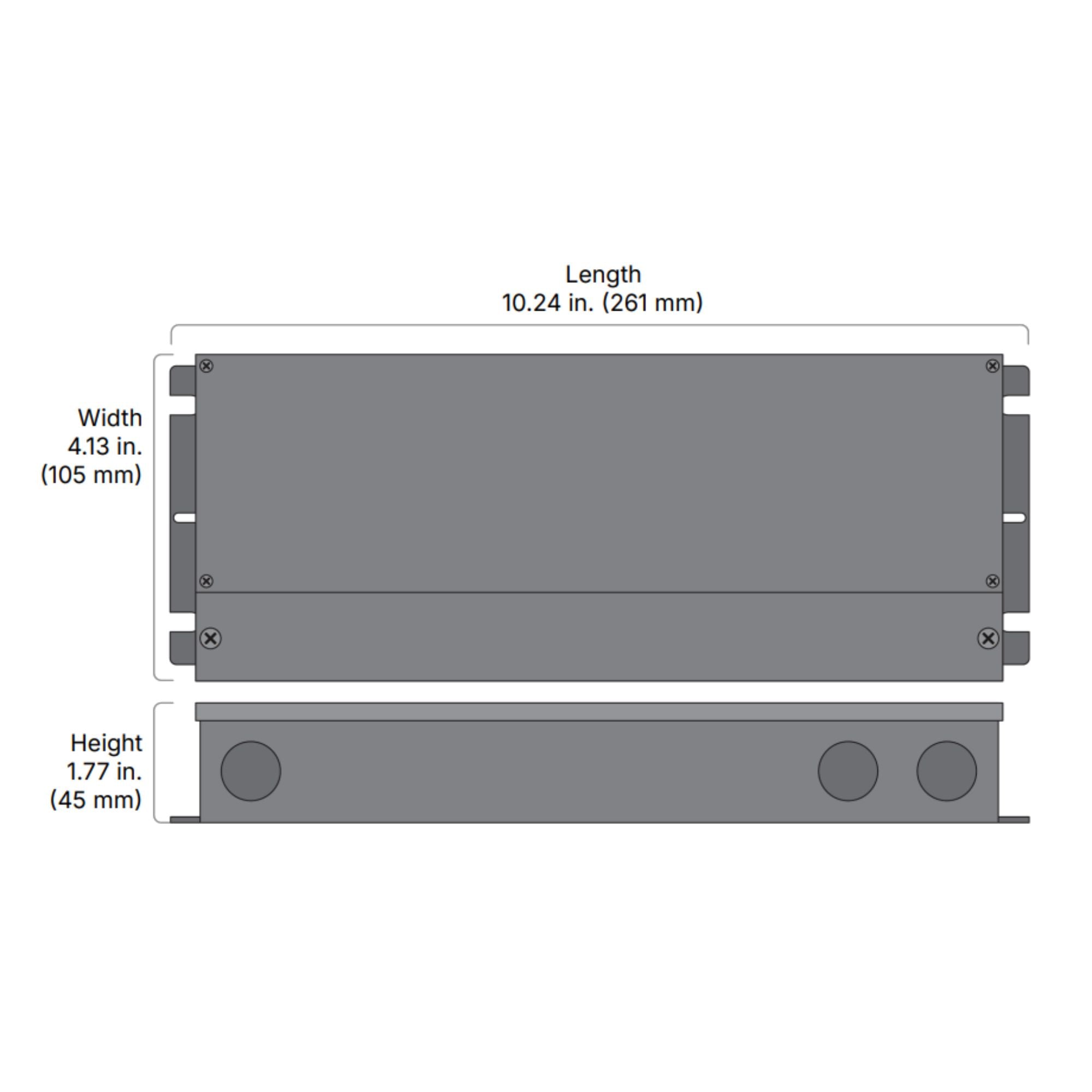

- Dimensions: 10.24 in. L x 4.13 in. W x 1.77 in. H
- Enclosure Type: Integrated Junction Box
- IP Rating: NEMA 3R
- Certifications: cULus Listed, FCC Compliant
Physical Design & Installation

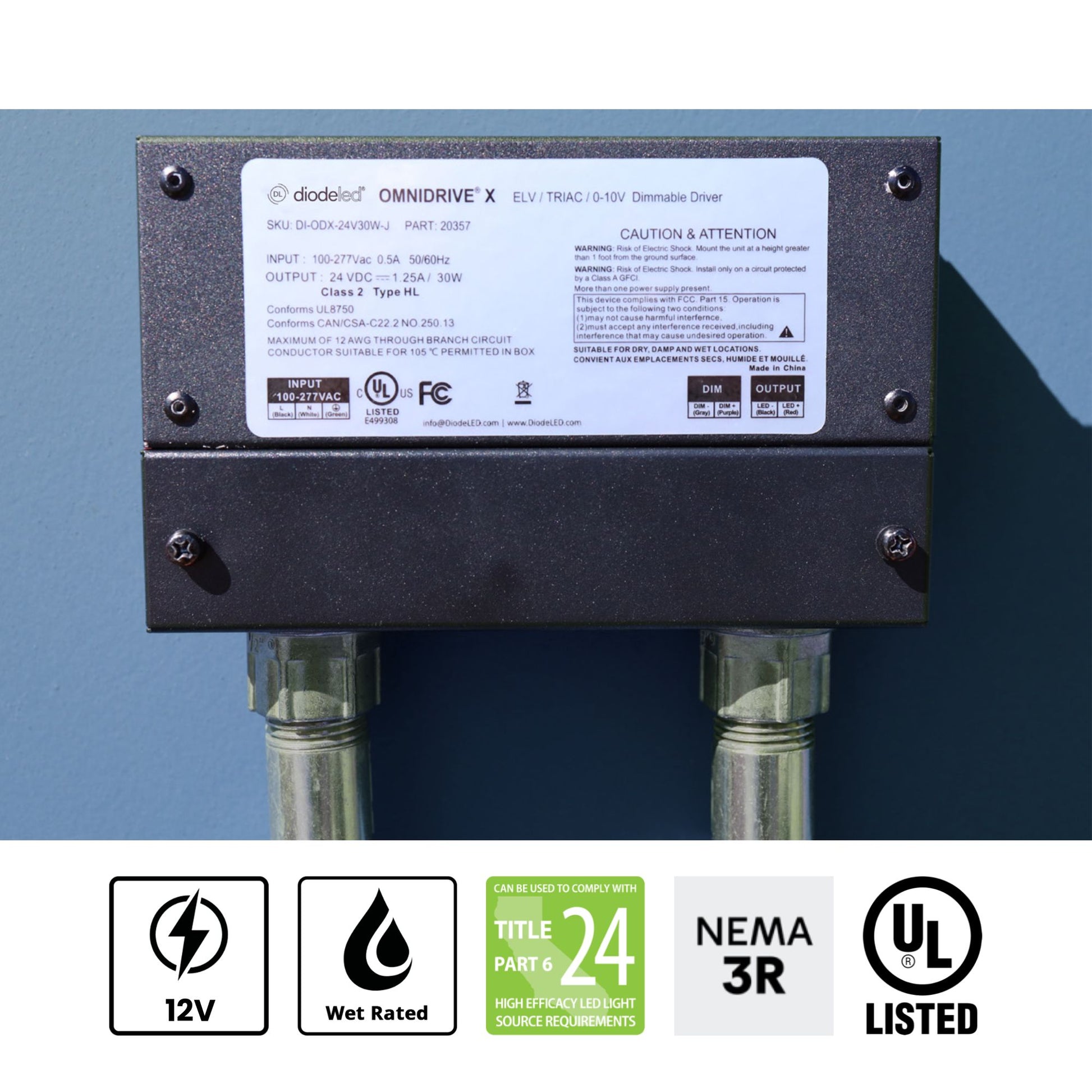

The driver features a robust design with an aluminum enclosure and an integrated junction box, ensuring durability and ease of installation in outdoor environments.
Dimming & Controls

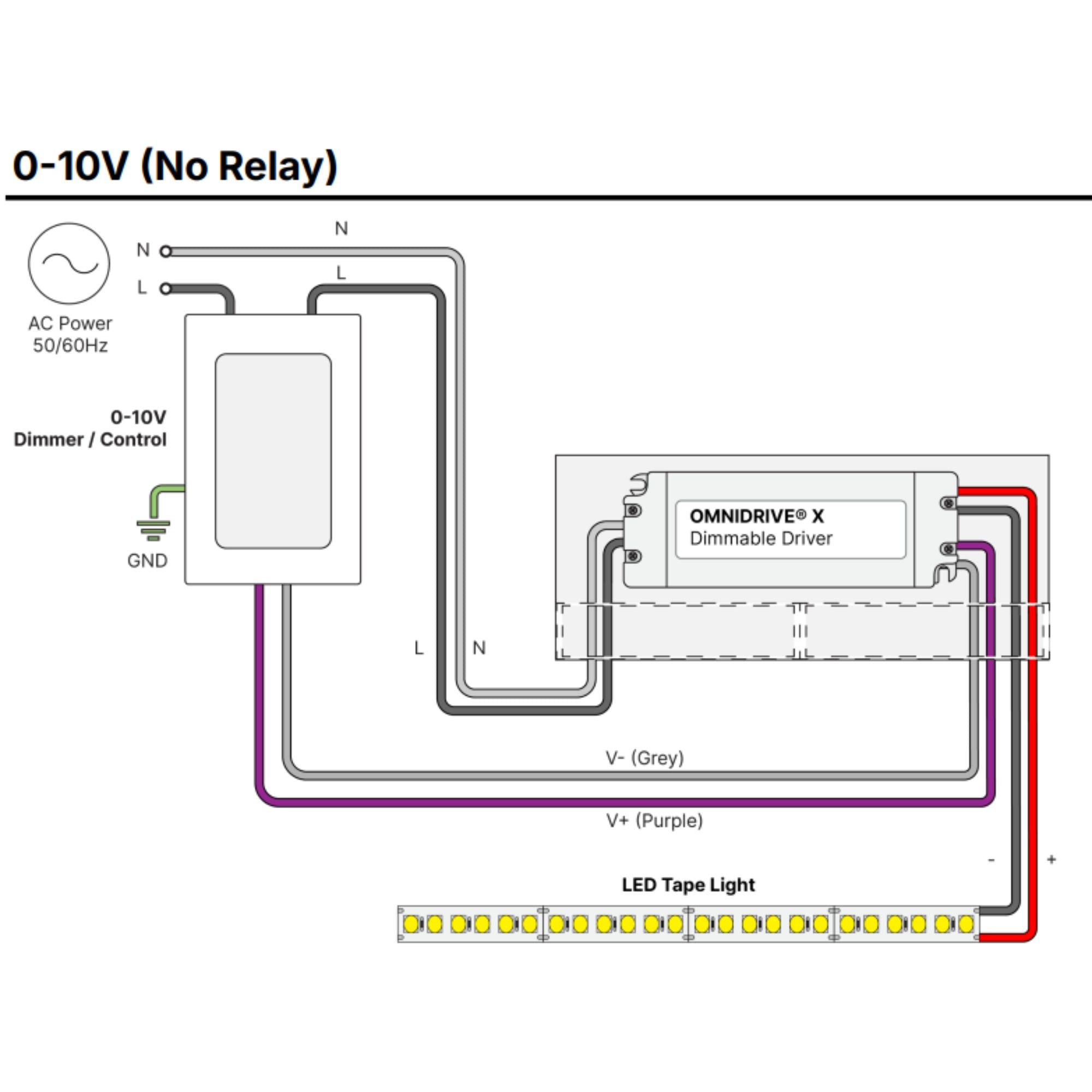

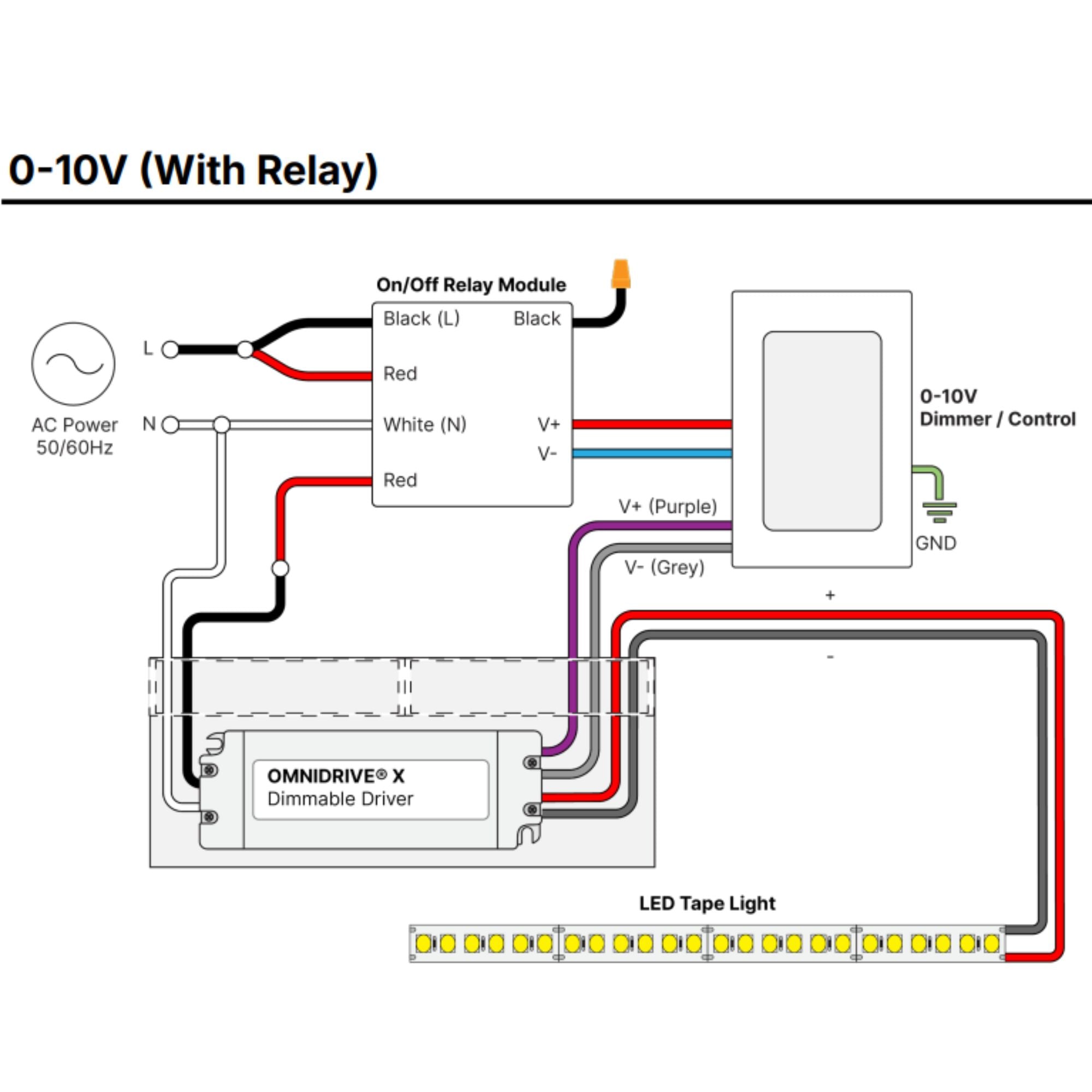

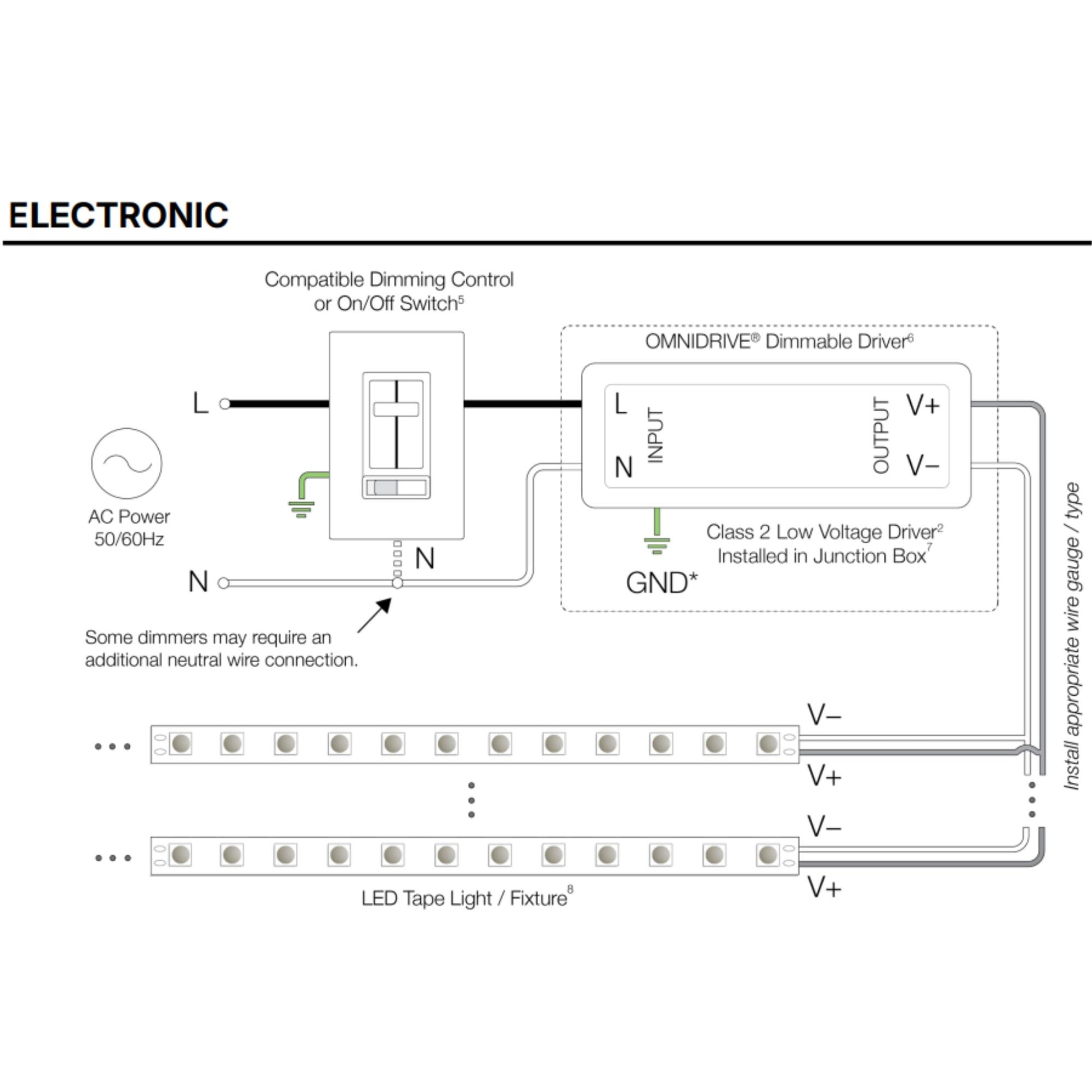

Compatible with ELV, TRIAC, and 0-10V dimming systems, this driver offers flexibility in lighting control without requiring a minimum load.
Performance & Build
Equipped with automatic recovery from short circuit and over-voltage conditions, this driver ensures reliable performance. It is NEMA 3R rated for wet locations.
Typical Applications
- Outdoor lighting installations
- Architectural lighting
- Landscape lighting
- Commercial lighting projects
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming protocols are supported by the DI-ODX-12V200W-J?
What dimming protocols are supported by the DI-ODX-12V200W-J?
Is there a minimum load requirement for this driver?
Is there a minimum load requirement for this driver?
Does the DI-ODX-12V200W-J include a junction box?
Does the DI-ODX-12V200W-J include a junction box?
What is the input voltage range for this driver?
What is the input voltage range for this driver?
What is the IP rating of the DI-ODX-12V200W-J?
What is the IP rating of the DI-ODX-12V200W-J?
