OMNIDRIVE X 120W 12VDC LED Dimmable Driver with Junction Box, 120-277V
Available in stock (200)
About this item
About this item
- Output Voltage: 12V DC
- Dimming: ELV, TRIAC, and 0-10V
- Input Voltage: 120-277V
- Enclosure: Integrated Junction Box
- Protection: Automatic recovery after fault
We process payments securely and do not store credit card information.
Description
Description
Diode LED OMNIDRIVE X 120W Driver — 12V DC
The Diode LED DI-ODX-12V120W-J is a high-performance 120W constant voltage LED Driver designed for versatile dimming applications. It operates with an input voltage range of 120-277V and provides an output of 12V DC. This driver supports multi-protocol dimming including ELV, TRIAC, and 0-10V systems, ensuring compatibility with a wide range of dimmers. The unit features an Integrated Junction Box for secure and convenient installation.
Key Features
- Power: 120W
- Input Voltage: 120-277V
- Output Voltage: 12V DC
- Dimming: ELV, TRIAC, 0-10V
- Minimum Load: No Minimum Load

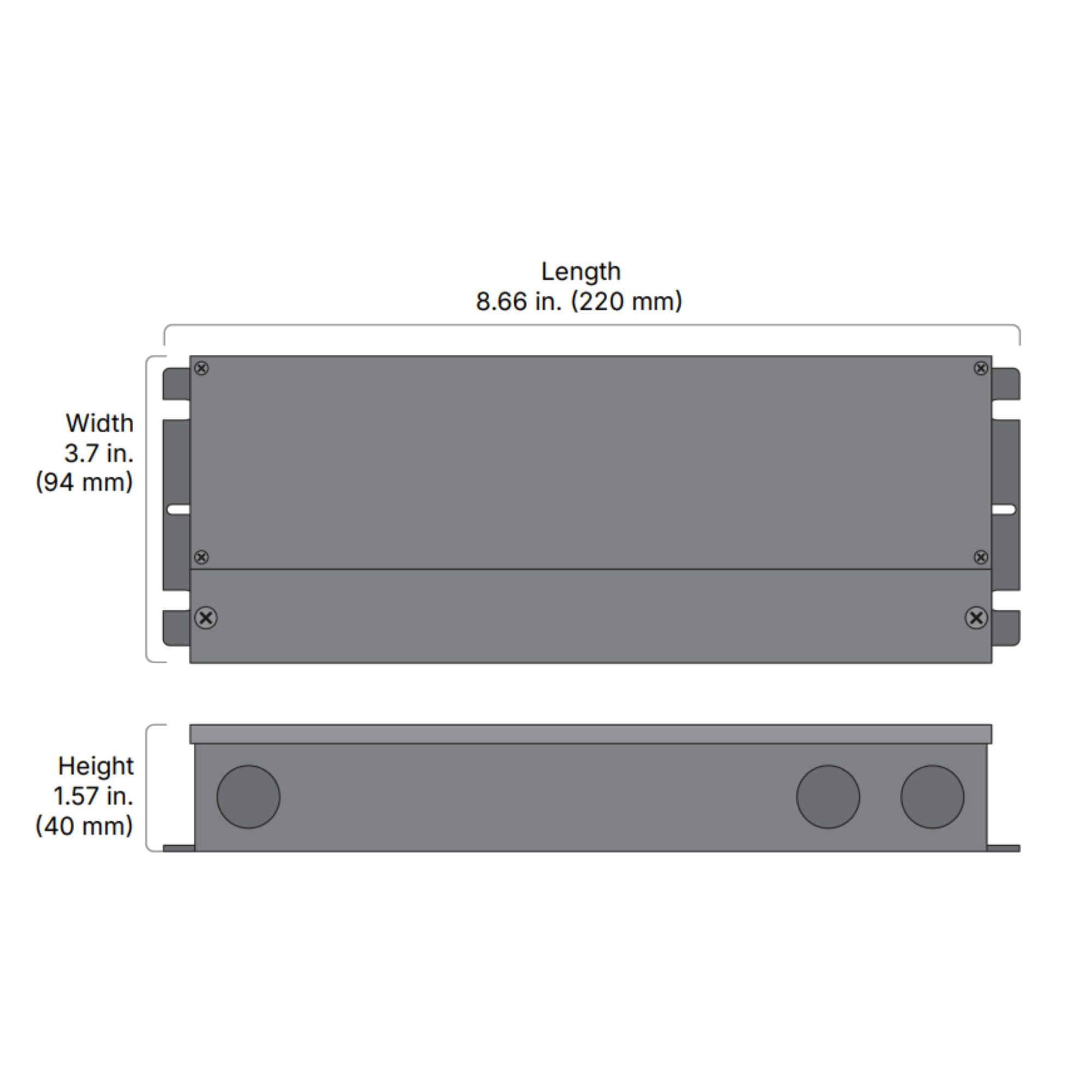

- Dimensions: 8.66 in. L x 3.7 in. W x 1.57 in. H
- Enclosure Type: Integrated Junction Box
- IP Rating: NEMA 3R
- Certifications: cULus, UL 1310, FCC Part 15
Physical Design & Installation

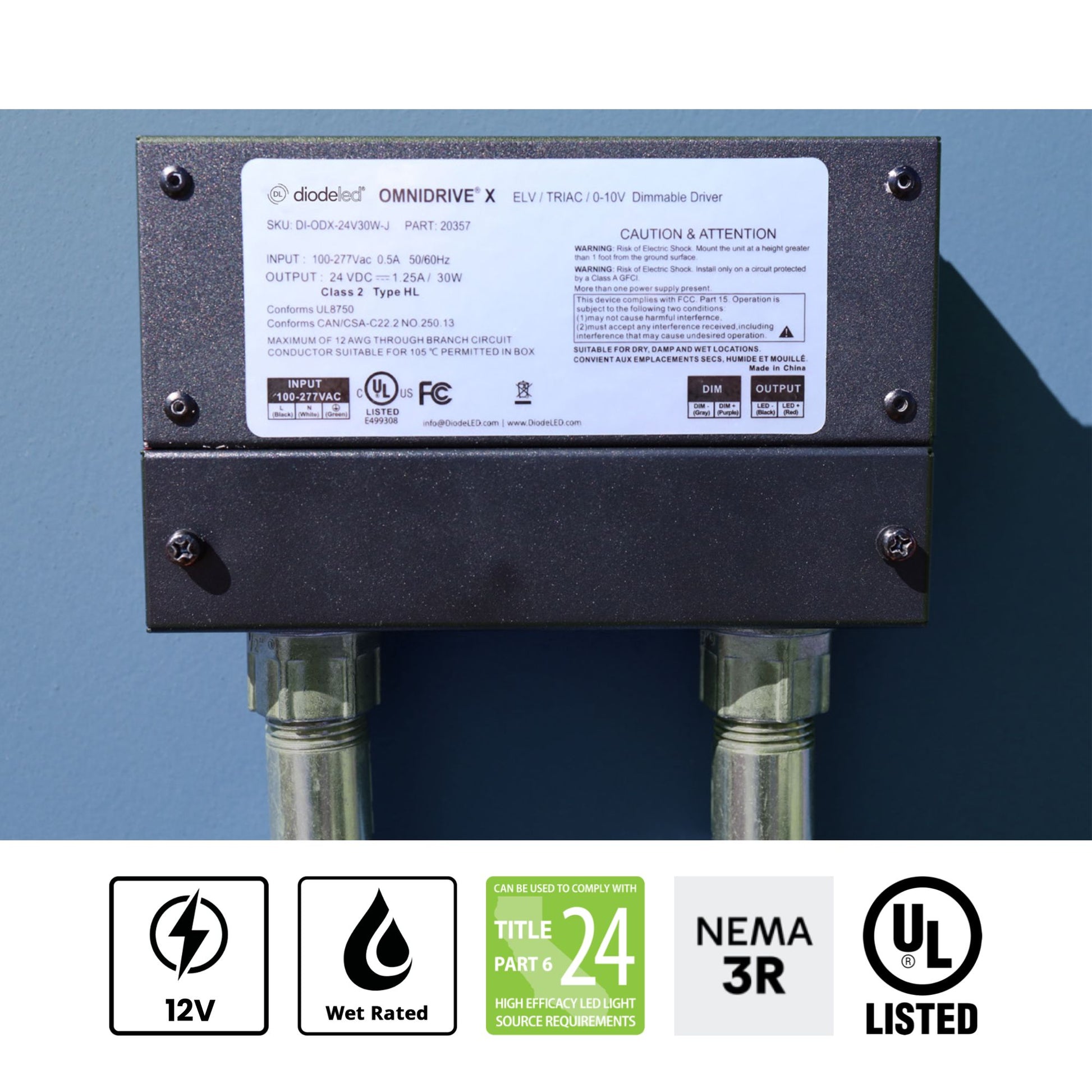

The driver is housed in a robust enclosure with an integrated junction box, suitable for outdoor and wet locations, rated NEMA 3R.
Dimming & Controls
Compatible with ELV, TRIAC, and 0-10V dimming systems, this driver offers seamless dimming to dark with no minimum load requirement.
Performance & Build
Features automatic recovery from short circuit and over-voltage conditions, ensuring reliable operation. It is not Class 2 rated.
Typical Applications
- Outdoor lighting
- Architectural lighting
- Signage
- Landscape lighting
