OMNIDRIVE X 100W 12VDC LED Dimmable Driver with Junction Box, 120-277V
Available in stock (200)
About this item
About this item
- Output Voltage: 12V DC
- Dimming: ELV, TRIAC, and 0-10V
- Input Voltage: 120-277V
- Enclosure: Integrated Junction Box
- Protection: Automatic recovery after fault
We process payments securely and do not store credit card information.
Description
Description

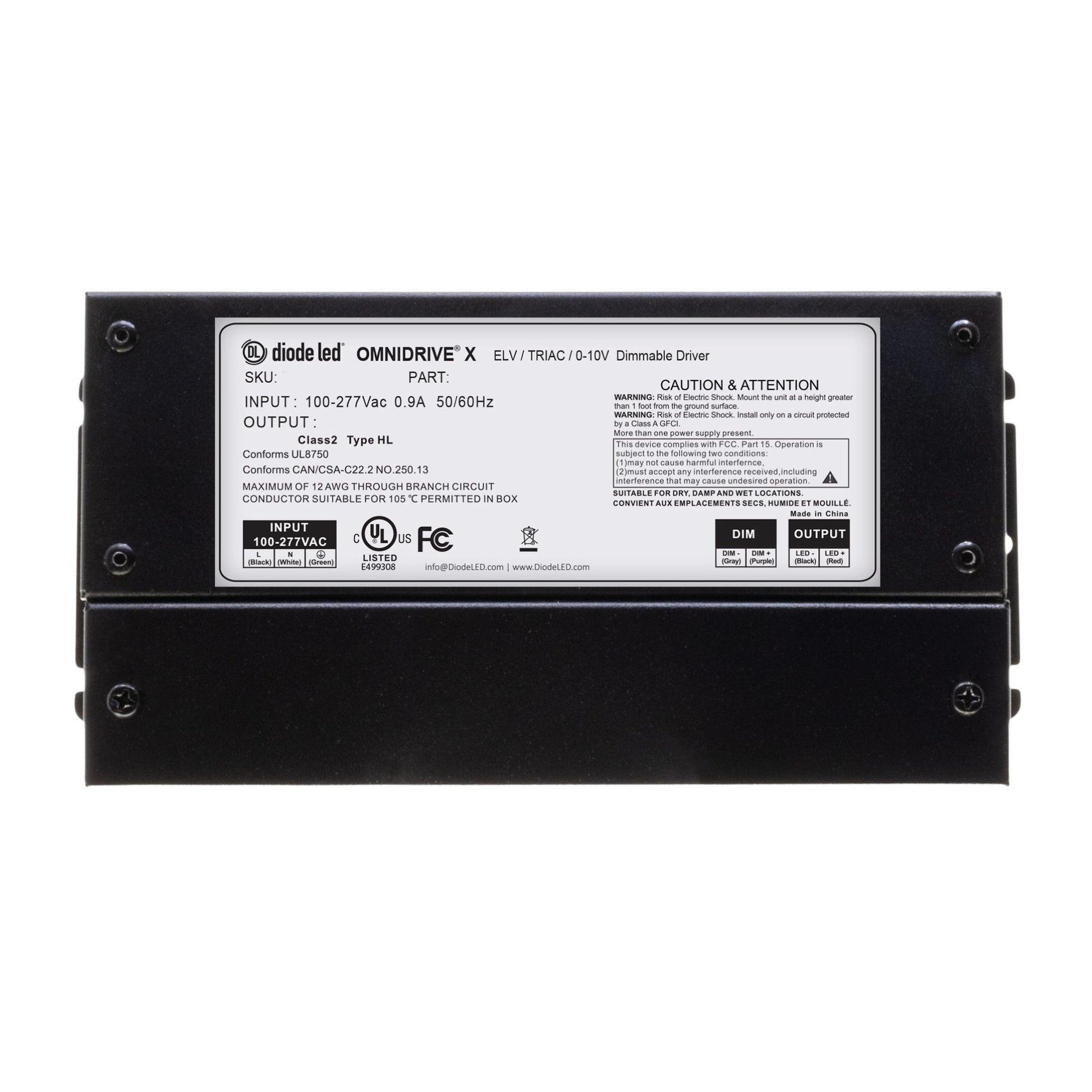

Diode LED OMNIDRIVE X 100W Driver — 12V DC
The Diode LED DI-ODX-12V100W-J is a 100W constant voltage LED Driver with an output of 12V DC. It features a universal input voltage range of 120-277V and supports multi-protocol dimming including ELV, TRIAC, and 0-10V systems. This driver is not Class 2 rated and includes an Integrated Junction Box for outdoor installations.
Key Features
- Power: 100W
- Input Voltage: 120-277V
- Output Voltage: 12V DC
- Dimming: ELV, TRIAC, 0-10V
- Minimum Load: No Minimum Load

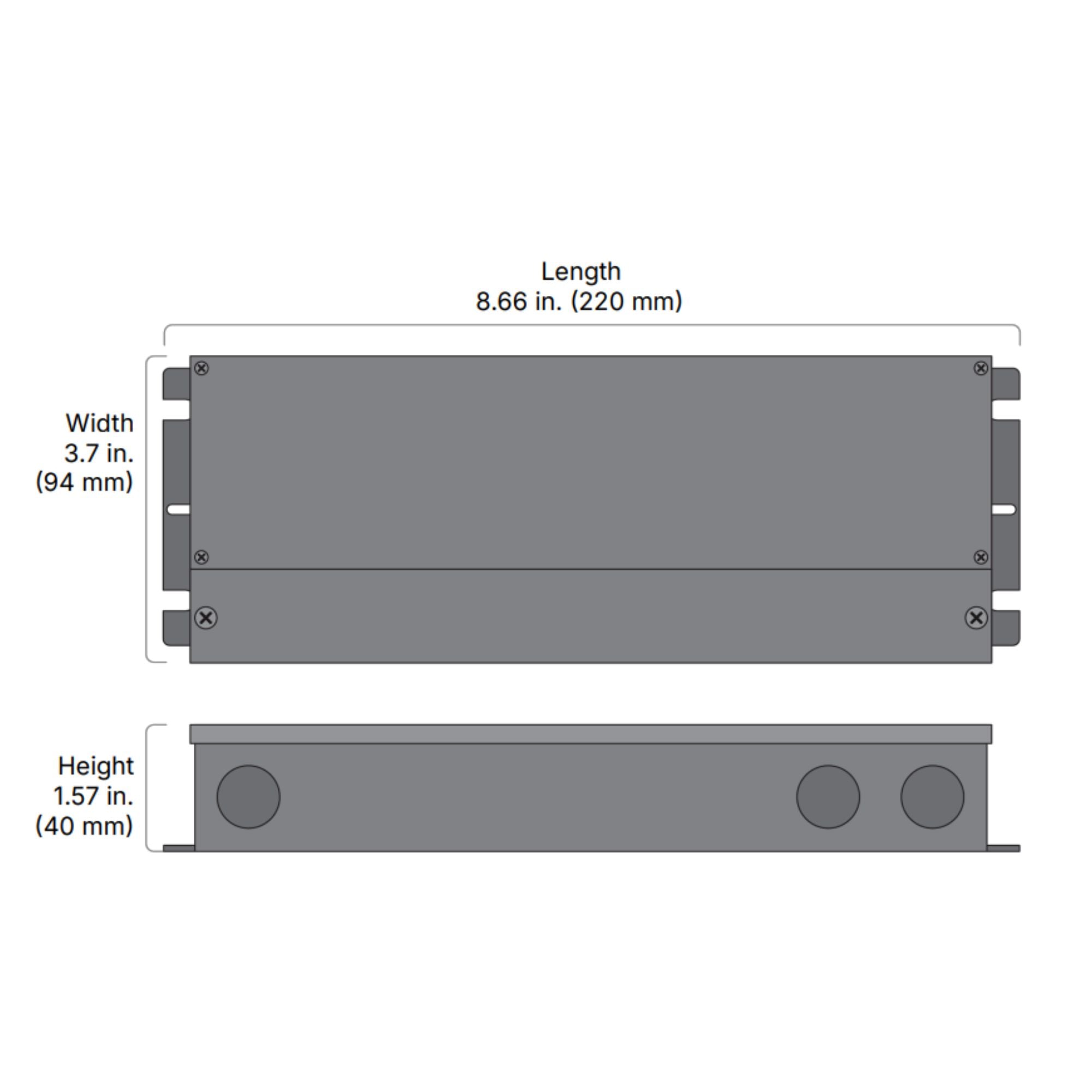

- Dimensions: 8.66 in. L x 3.7 in. W x 1.57 in. H
- Enclosure Type: Integrated Junction Box
- IP Rating: NEMA 3R
- Certifications: cULus, UL #E499308
- Warranty: 5 Year Limited
Physical Design & Installation

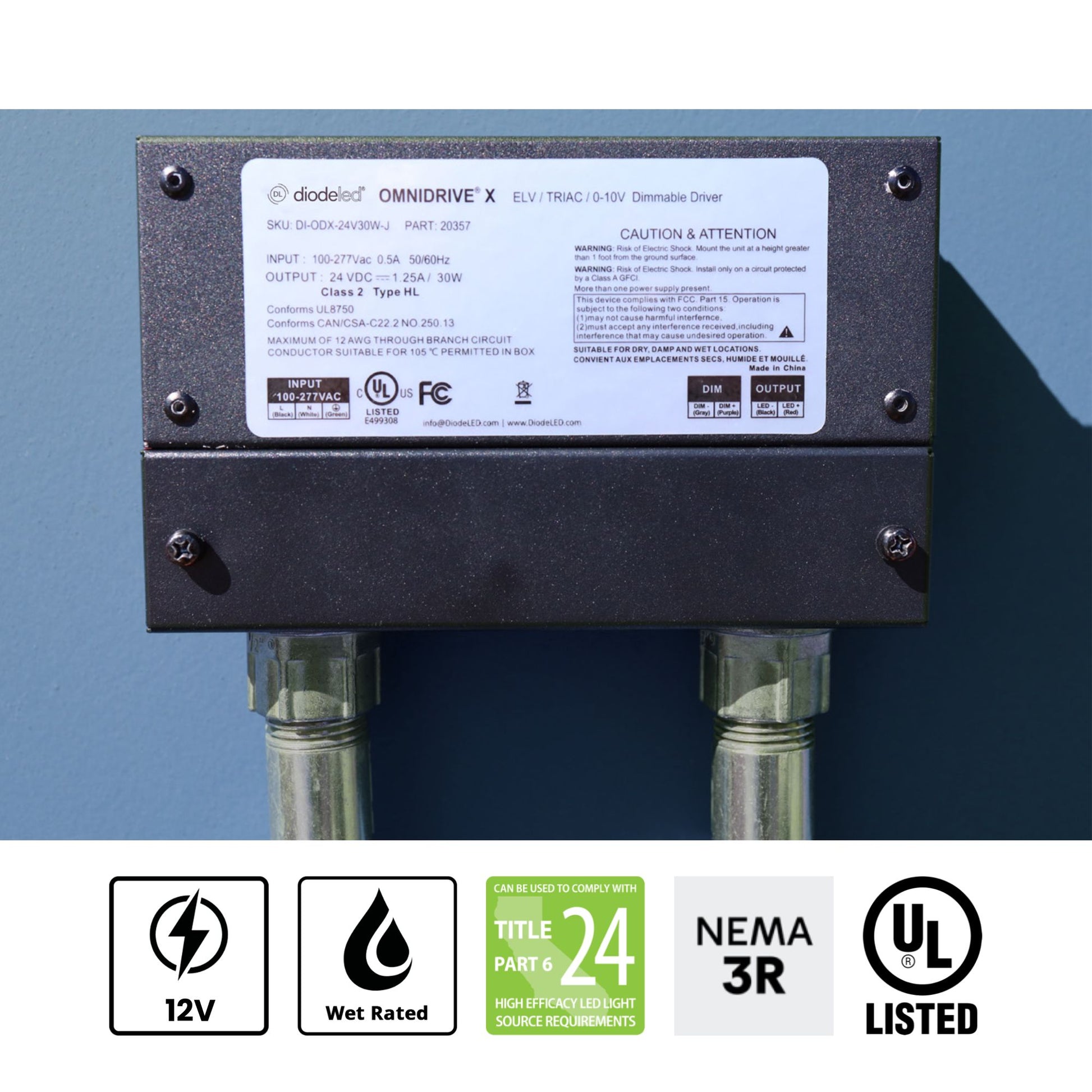

The driver is housed in a durable enclosure with an integrated junction box, suitable for outdoor and wet locations.
Dimming & Controls

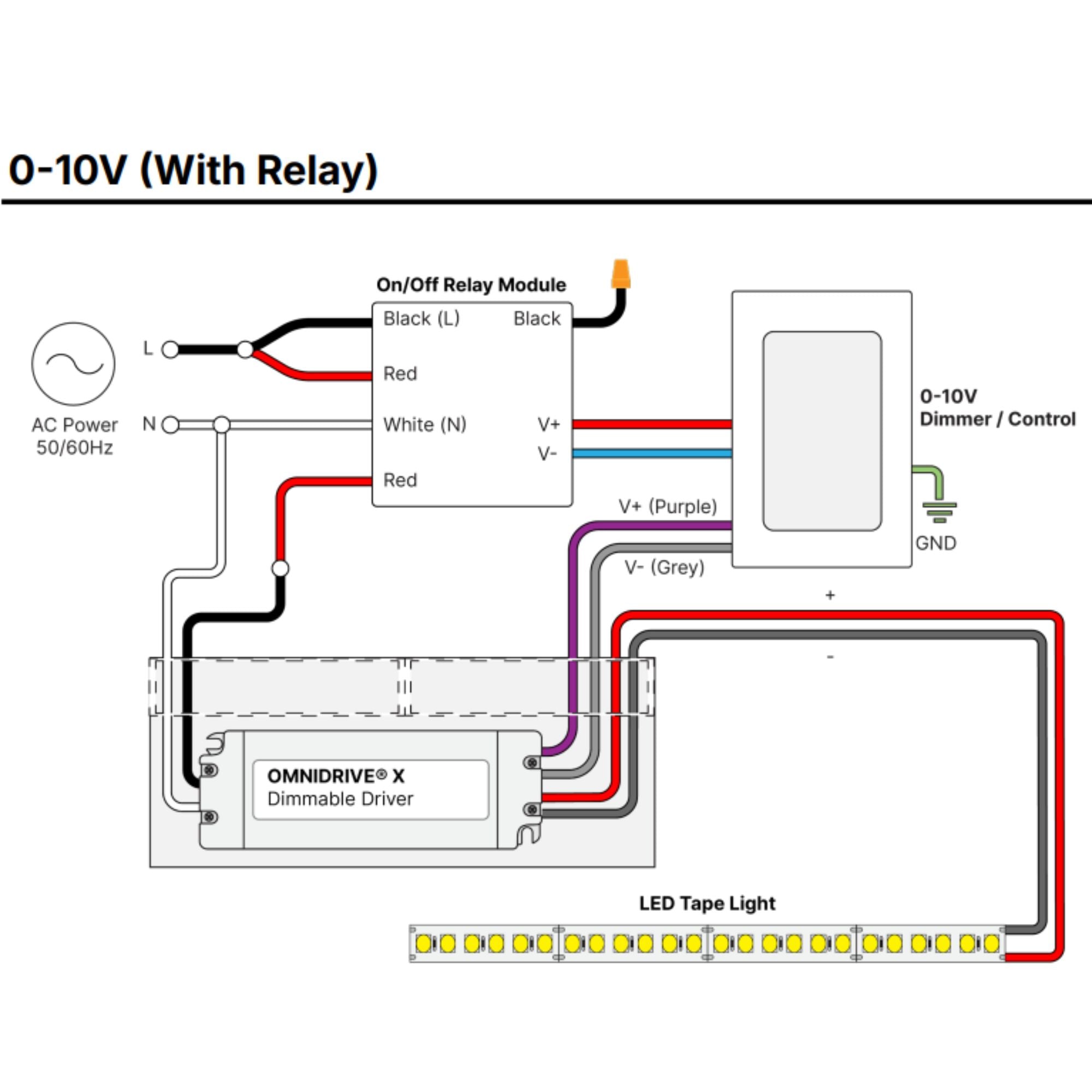

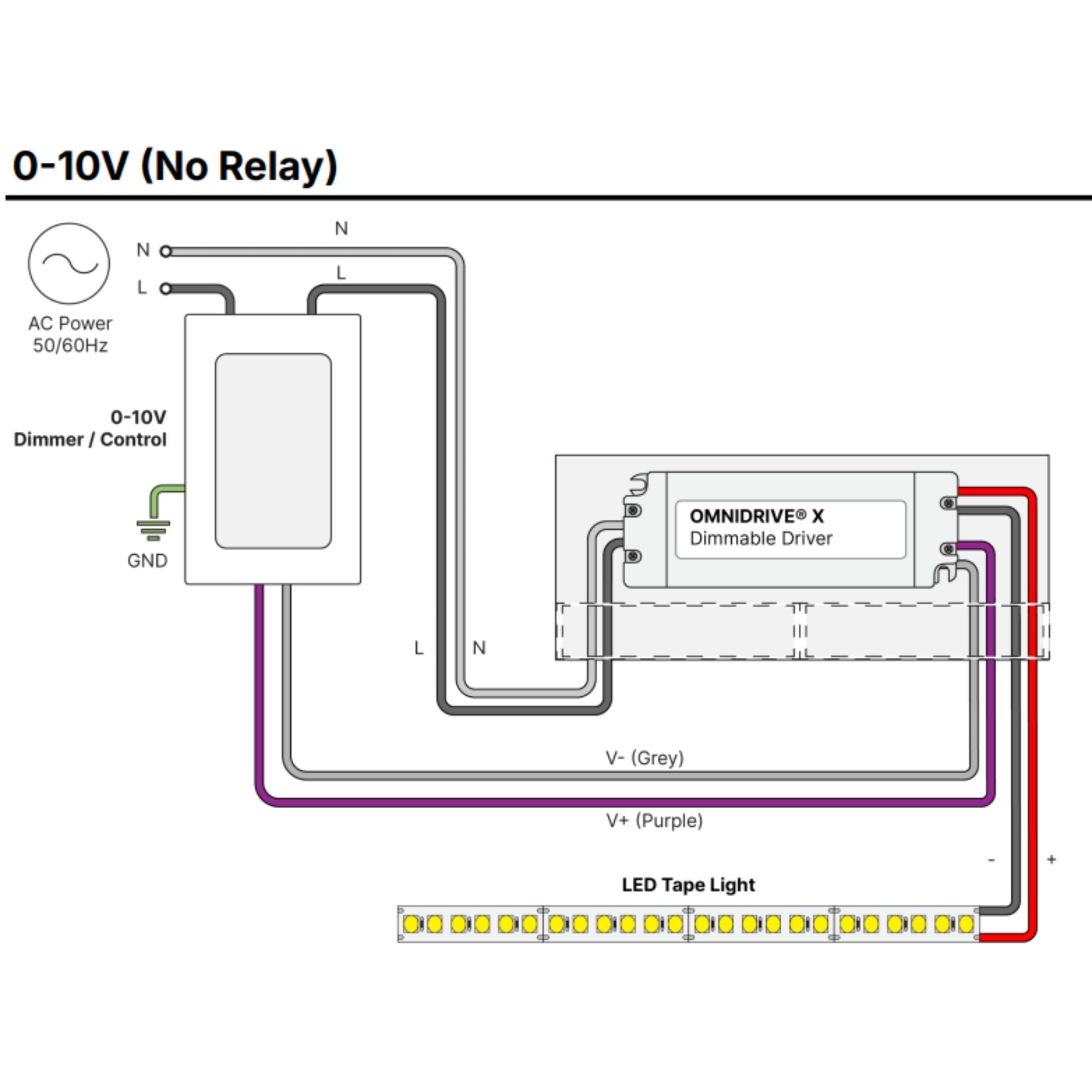

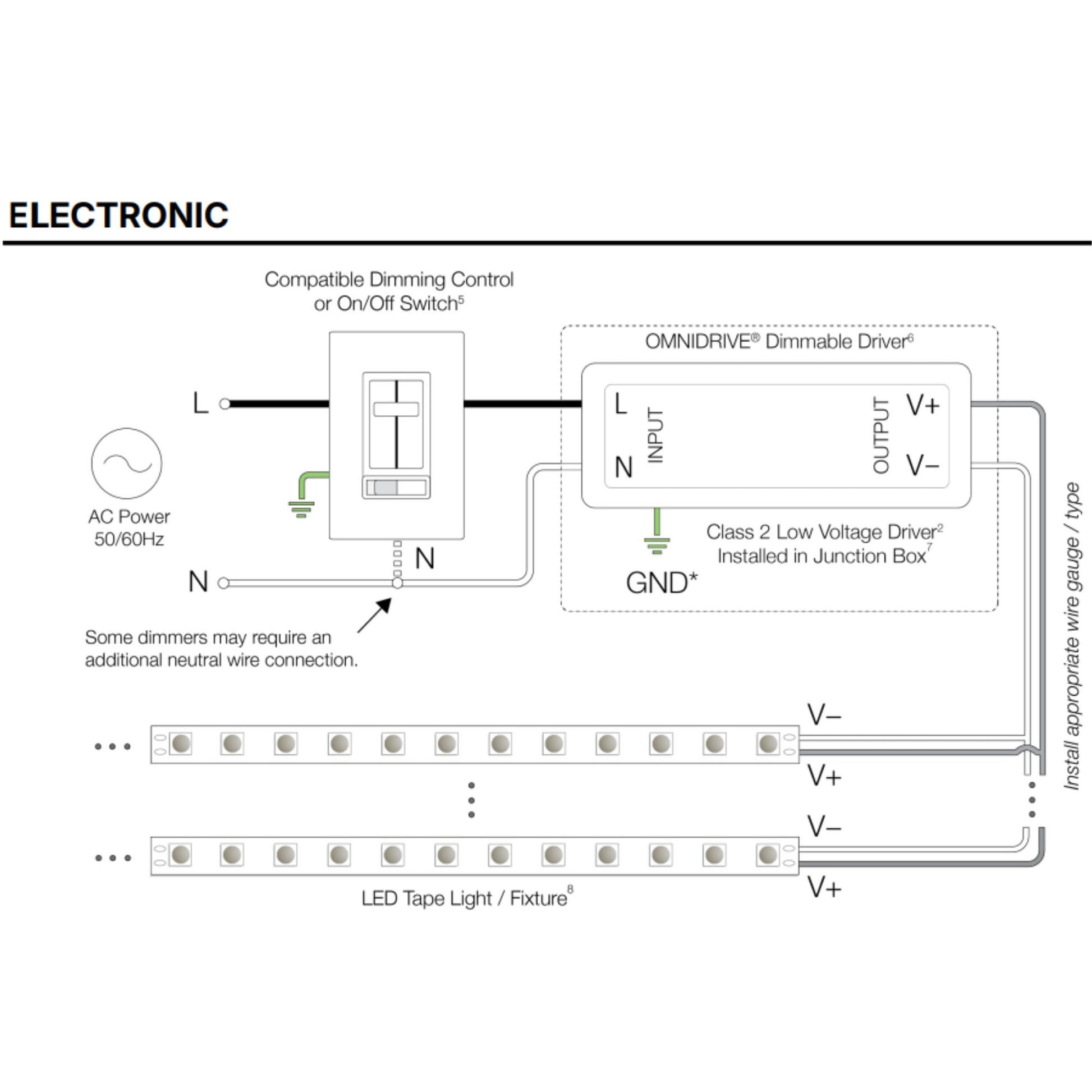

Compatible with ELV, TRIAC, and 0-10V dimming systems, this driver offers flexibility in lighting control with no minimum load requirement.
Performance & Build
Features automatic recovery from short circuit and over-voltage conditions. Rated for NEMA 3R environments.
Typical Applications
- Outdoor Lighting
- Landscape Lighting
- Architectural Lighting
- Signage
