MikroDIM 60 Watts 24VDC LED Driver and LO-PRO Junction Box, ELV Dimming
Available in stock (100)
About this item
About this item
- Output Voltage: 24V DC
- Dimming: ELV Dimming
- Input Voltage: 120V
- Enclosure: Compact design
- Protection: Short Circuit Protection
We process payments securely and do not store credit card information.
Description
Description

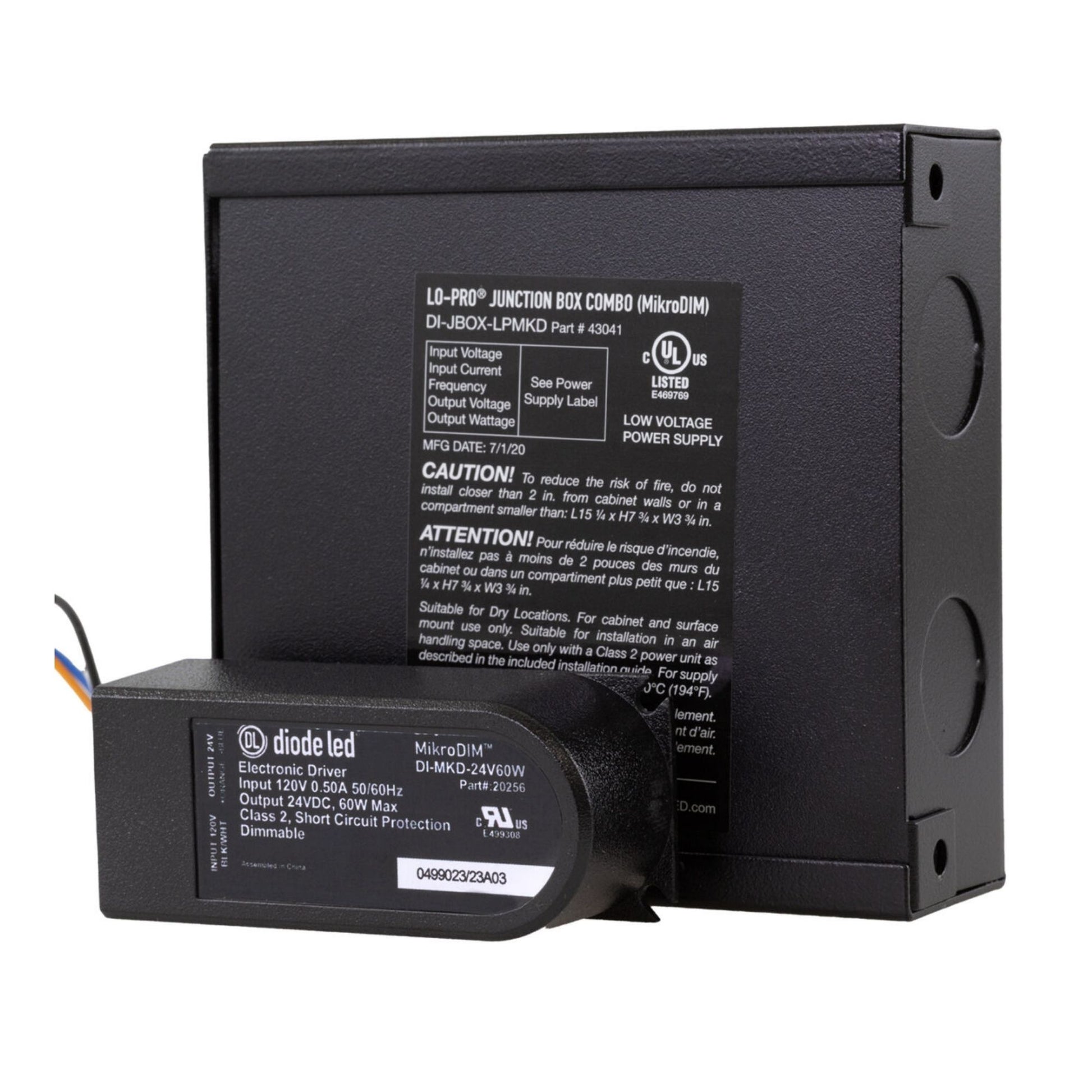

Diode LED MikroDIM 60W Driver — 24V DC
The Diode LED DI-MKD60W-24-LPMKD is a 60-watt LED Driver designed for 24V DC output. It operates on a 120V input and supports ELV Dimming with no minimum load requirement. This Constant Voltage driver is Class 2 rated and features a compact enclosure.
Key Features
- Power: 60W
- Input Voltage: 120V
- Output Voltage: 24V DC
- Dimming: ELV Dimming
- Minimum Load: No minimum load

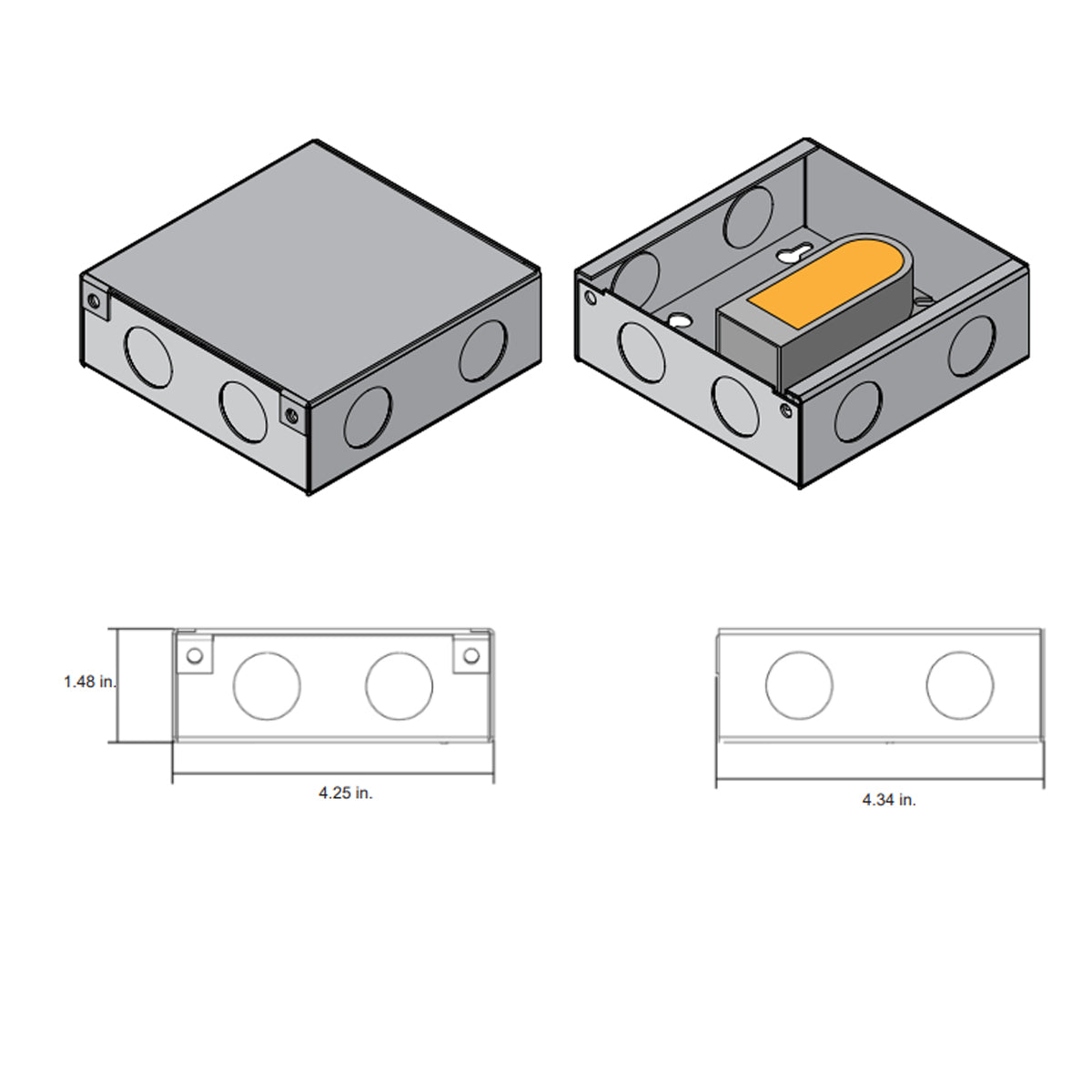

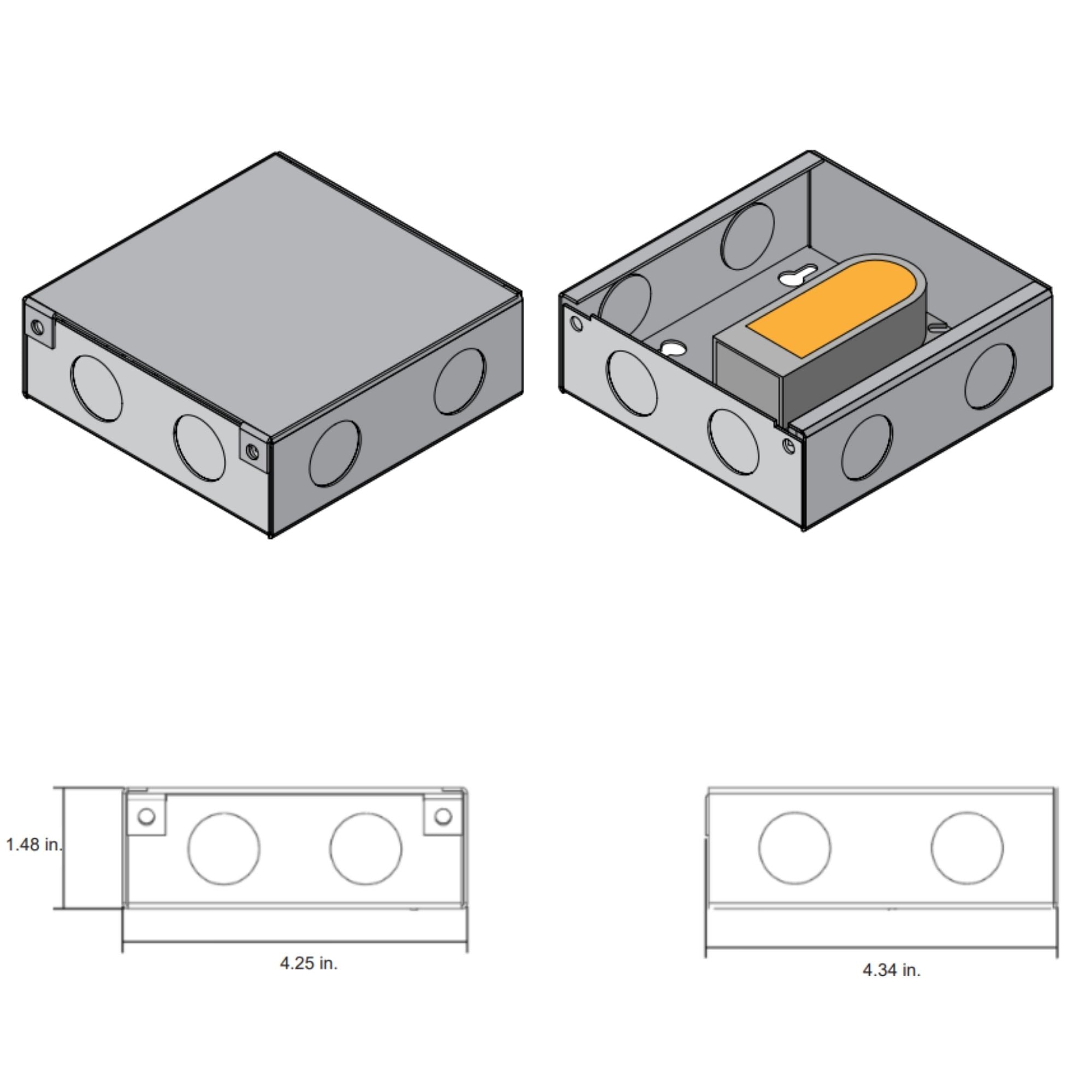

- Dimensions: 4.34 in. L x 4.25 in. W x 1.48 in. H
- Enclosure Type: Compact design
- IP Rating: IP20
- Class 2: Yes
- Certifications: cULus, CE
Physical Design & Installation
The driver features a compact design suitable for indoor installations. It does not include an integrated junction box.
Dimming & Controls

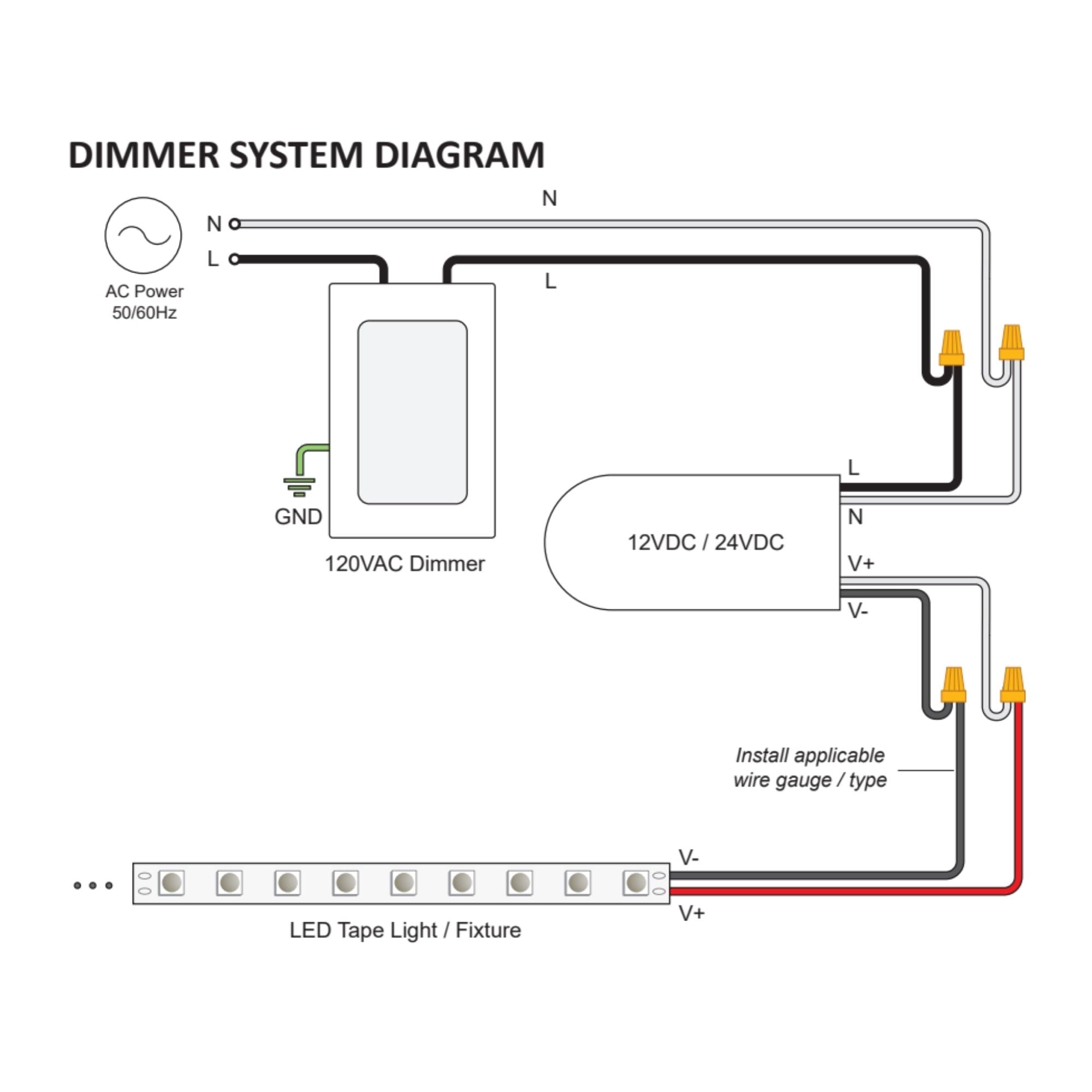

Compatible with ELV dimming systems, this driver operates efficiently with no minimum load requirement, ensuring smooth dimming performance.
Performance & Build
Equipped with short circuit protection, the driver is Class 2 compliant and rated for indoor damp locations with an IP20 rating.
Typical Applications
- Residential lighting
- Commercial lighting
- Retail displays
- Architectural lighting
