MikroDIM 60 Watts 12VDC LED Driver and LO-PRO Junction Box, ELV Dimming
Available in stock (199)
About this item
About this item
- Output Voltage: 12V DC
- Dimming: ELV Dimming
- Input Voltage: 120V
- Enclosure: Compact Design
- Protection: Short Circuit Protection
We process payments securely and do not store credit card information.
Description
Description

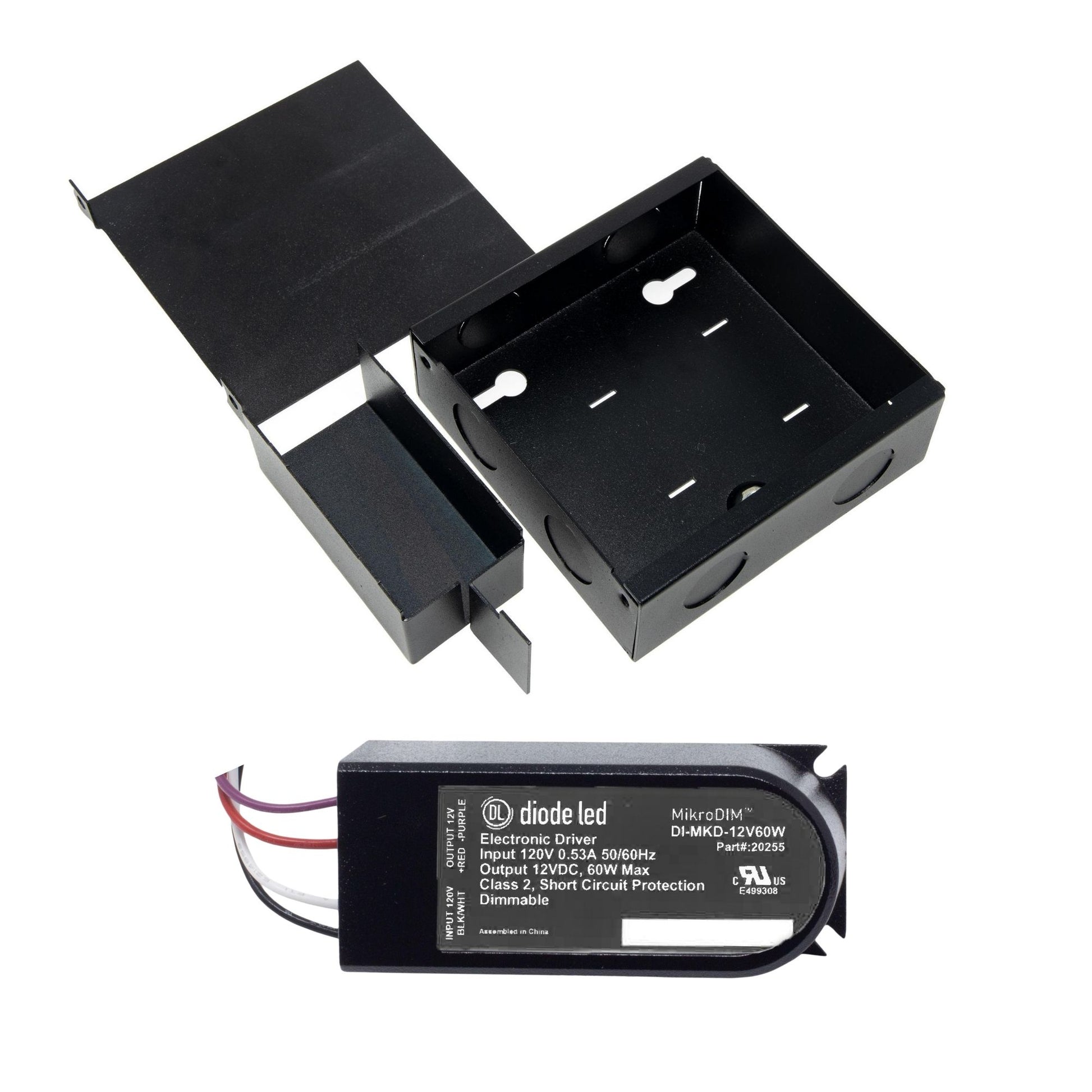

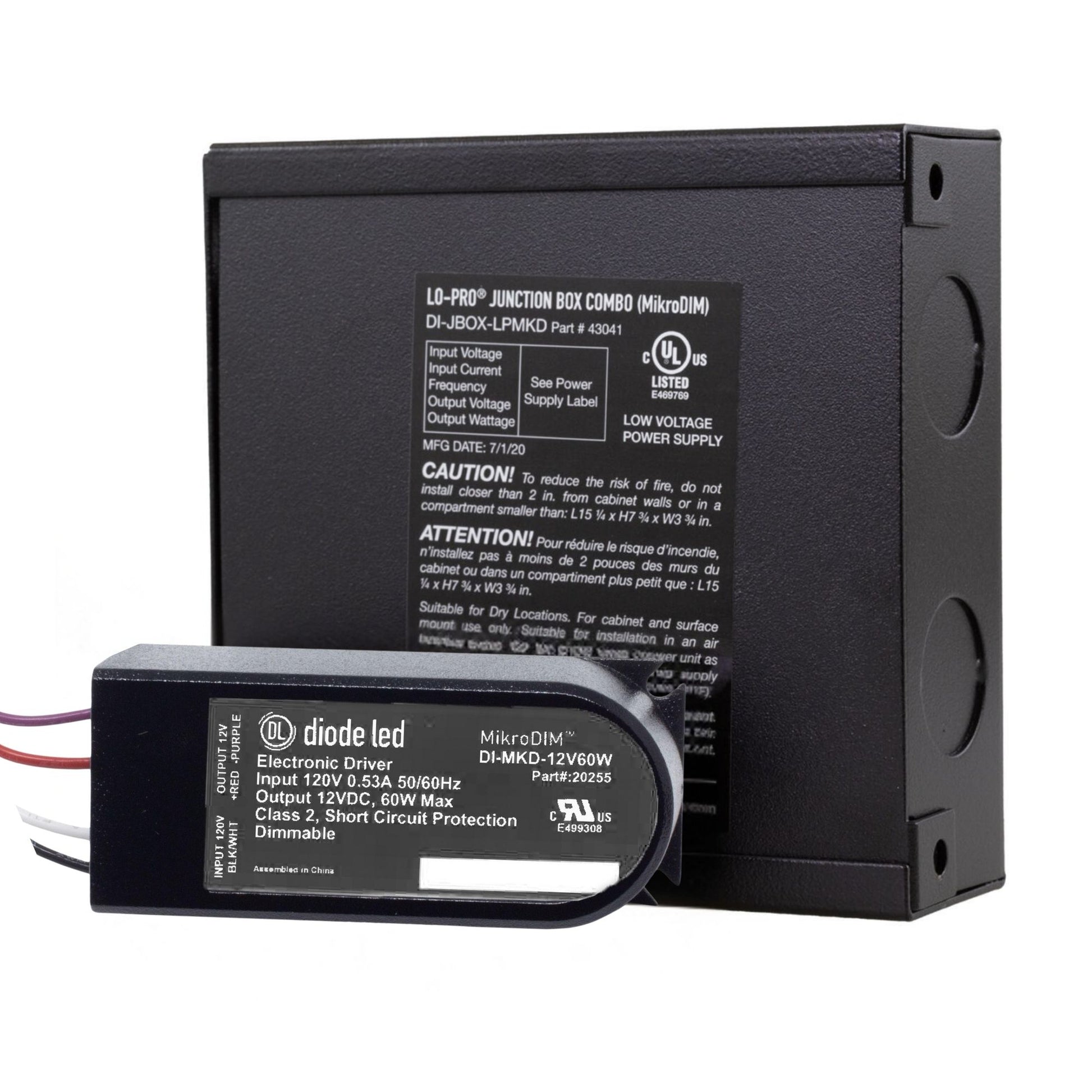

Diode LED MikroDIM 60W Driver — 12V DC
The Diode LED DI-MKD60W-12-LPMKD is a 60-watt constant voltage LED Driver designed for 12V DC output. It operates on a 120V input and features ELV Dimming for smooth lighting control. This driver is Class 2 rated and comes in a compact design.
Key Features
- Power: 60W
- Input Voltage: 120V
- Output Voltage: 12V DC
- Dimming: ELV
- Minimum Load: No minimum load

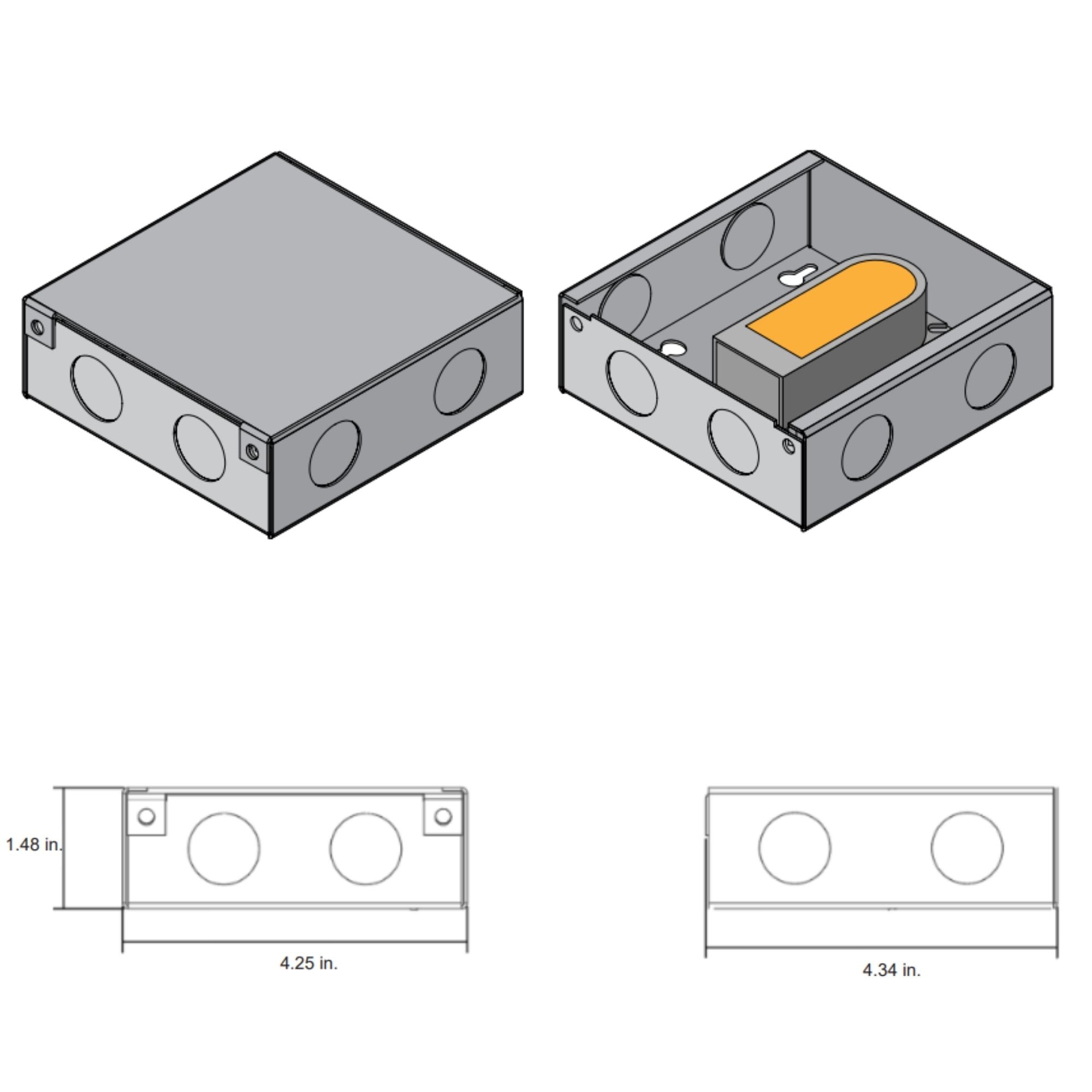

- Dimensions: 4.34 in. L x 4.25 in. W x 1.48 in. H
- Enclosure Type: Compact Design
- IP Rating: IP20
- Class 2: Yes
- Certifications: cULus, CE
Physical Design & Installation
The driver features a compact design suitable for indoor installations. It does not include an integrated junction box.

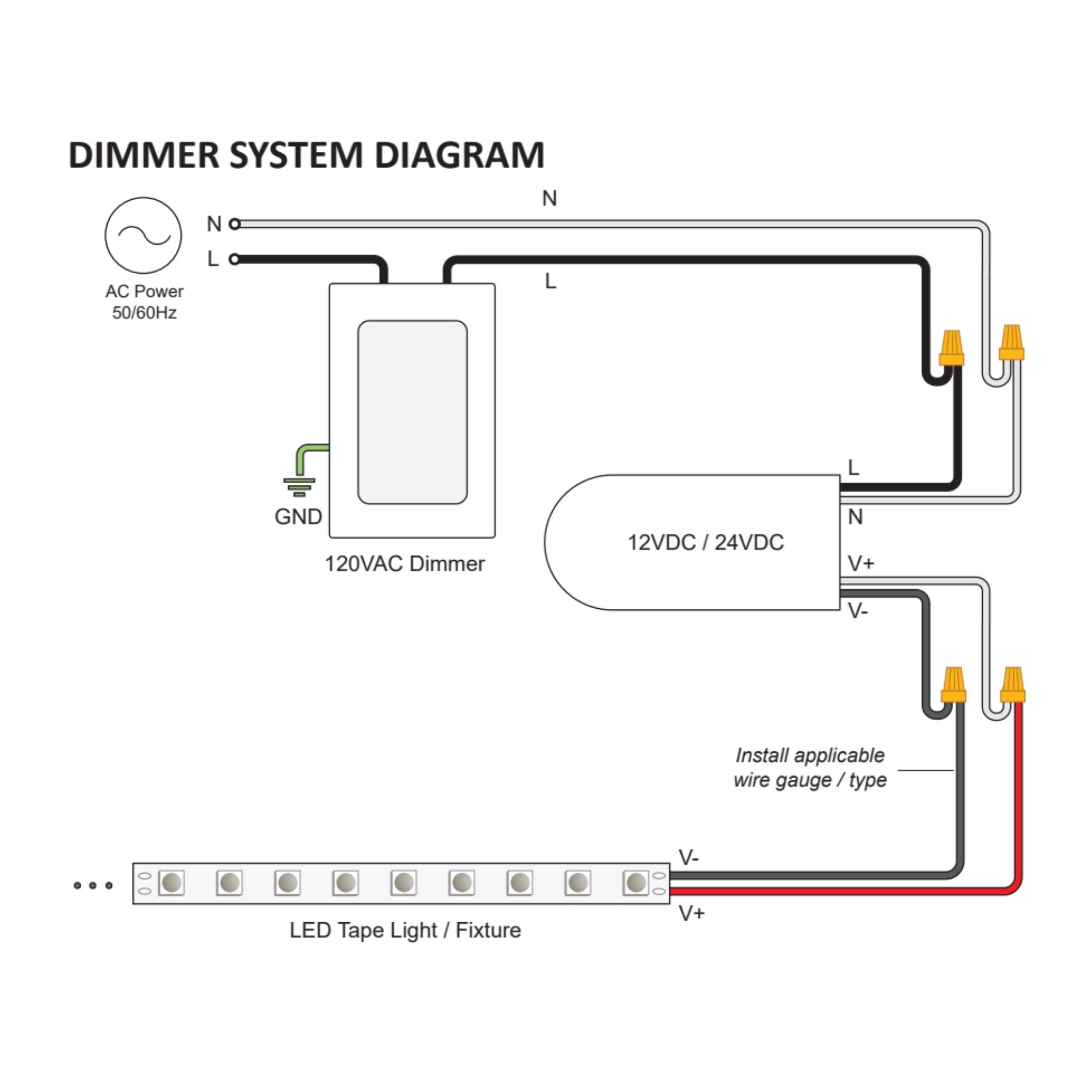

Dimming & Controls
Compatible with ELV dimming systems, this driver requires no minimum load for operation.
Performance & Build
Equipped with short circuit protection, the driver is Class 2 compliant and rated IP20 for indoor use.
Typical Applications
- Residential Lighting
- Commercial Lighting
- Retail Displays
- Accent Lighting
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming protocol does the DI-MKD60W-12-LPMKD support?
What dimming protocol does the DI-MKD60W-12-LPMKD support?
Is there a minimum load requirement for this driver?
Is there a minimum load requirement for this driver?
Does the DI-MKD60W-12-LPMKD include an integrated junction box?
Does the DI-MKD60W-12-LPMKD include an integrated junction box?
What is the input voltage for the DI-MKD60W-12-LPMKD?
What is the input voltage for the DI-MKD60W-12-LPMKD?
What is the IP rating of the DI-MKD60W-12-LPMKD?
What is the IP rating of the DI-MKD60W-12-LPMKD?
