MikroDIM Electronic Dimmable Driver, 60 Watts 24VDC
Available in stock (106)
About this item
About this item
- Output Voltage: 24V DC for consistent power delivery
- Dimming: ELV dimming for smooth light control
- Input Voltage: 120V for standard installations
- Enclosure: Compact design without integrated junction box
- Protection: Short circuit protection for safety
We process payments securely and do not store credit card information.
Description
Description
Diode LED MikroDIM 60W Driver — 24V DC
The Diode LED DI-MKD-24V60W is a 60W LED Driver designed to deliver a constant 24V DC output. This driver operates on a 120V input and supports ELV dimming, making it ideal for various lighting applications. It is Class 2 rated, ensuring safe and reliable performance. The driver features a compact design, though it does not include an integrated junction box.
Key Features
- Power: 60W
- Input Voltage: 120V
- Output Voltage: 24V DC
- Dimming: ELV
- Minimum Load: No minimum load required

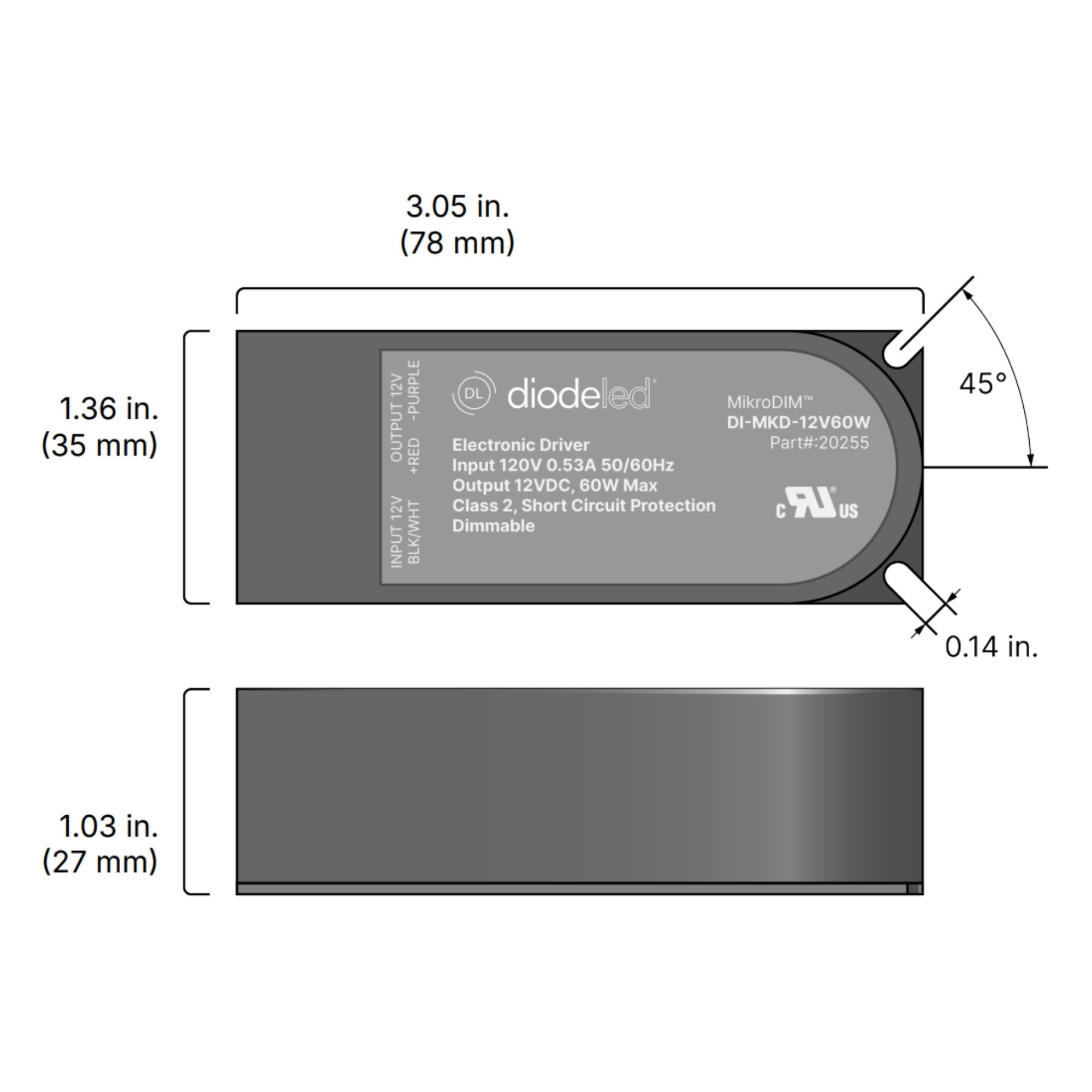

- Dimensions: 3.05 in. L x 1.36 in. W x 1.03 in. H
- Enclosure Type: Compact design
- IP Rating: IP20
- Class 2: Yes
- Certifications: cULus, CE
Physical Design & Installation
The driver features a compact design suitable for indoor installations. It does not include an integrated junction box, allowing for flexible installation options.
Dimming & Controls
Compatible with ELV dimming systems, this driver provides smooth dimming capabilities without a minimum load requirement.
Performance & Build
Equipped with short circuit protection, the driver ensures safe operation. It is Class 2 compliant and rated for indoor damp locations with an IP20 rating.
Typical Applications
- Residential lighting
- Commercial lighting
- Architectural lighting
- LED tape lights
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming protocol does the DI-MKD-24V60W support?
What dimming protocol does the DI-MKD-24V60W support?
Is there a minimum load requirement for the DI-MKD-24V60W?
Is there a minimum load requirement for the DI-MKD-24V60W?
Does the DI-MKD-24V60W include an integrated junction box?
Does the DI-MKD-24V60W include an integrated junction box?
What is the input voltage for the DI-MKD-24V60W?
What is the input voltage for the DI-MKD-24V60W?
What is the IP rating of the DI-MKD-24V60W?
What is the IP rating of the DI-MKD-24V60W?
