Description

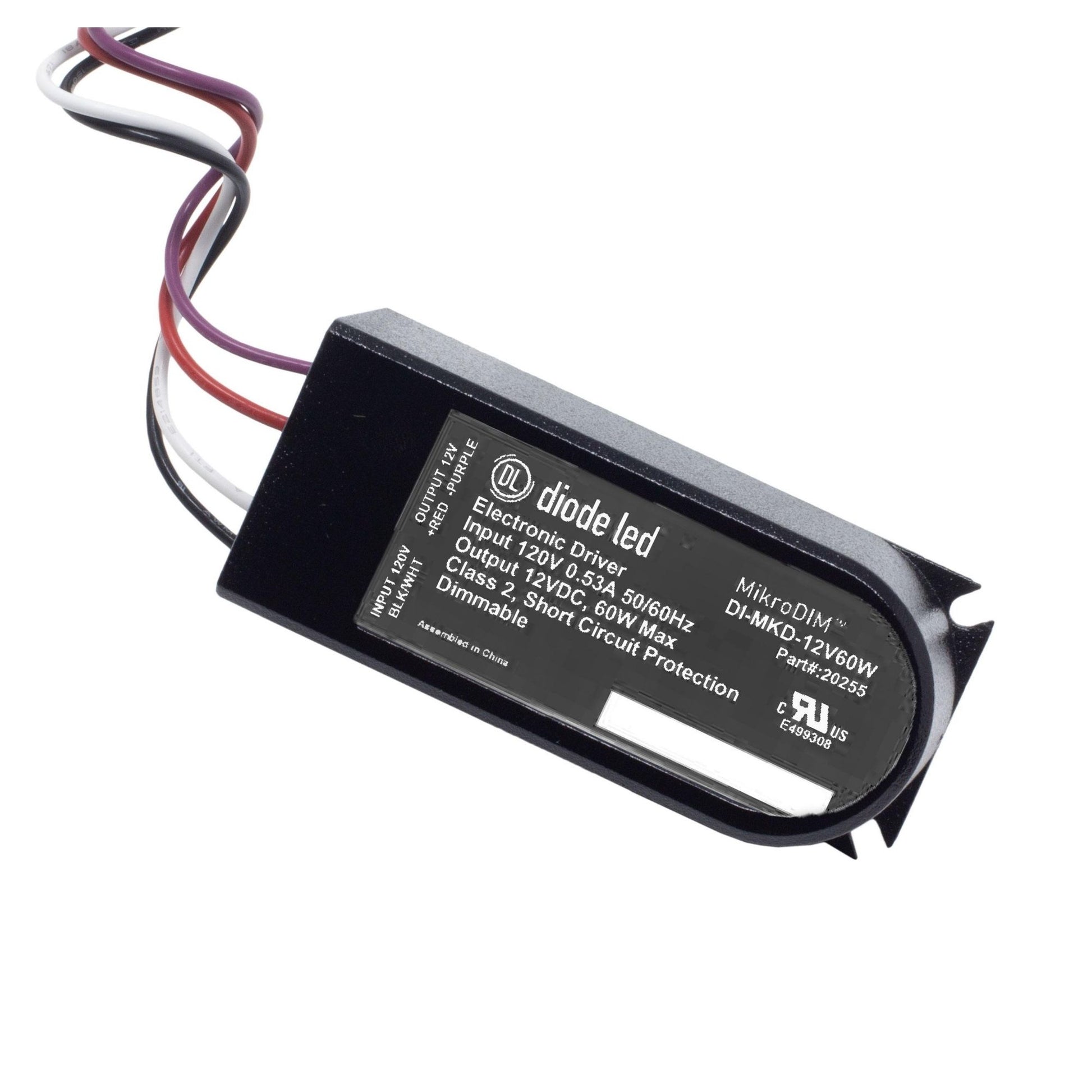

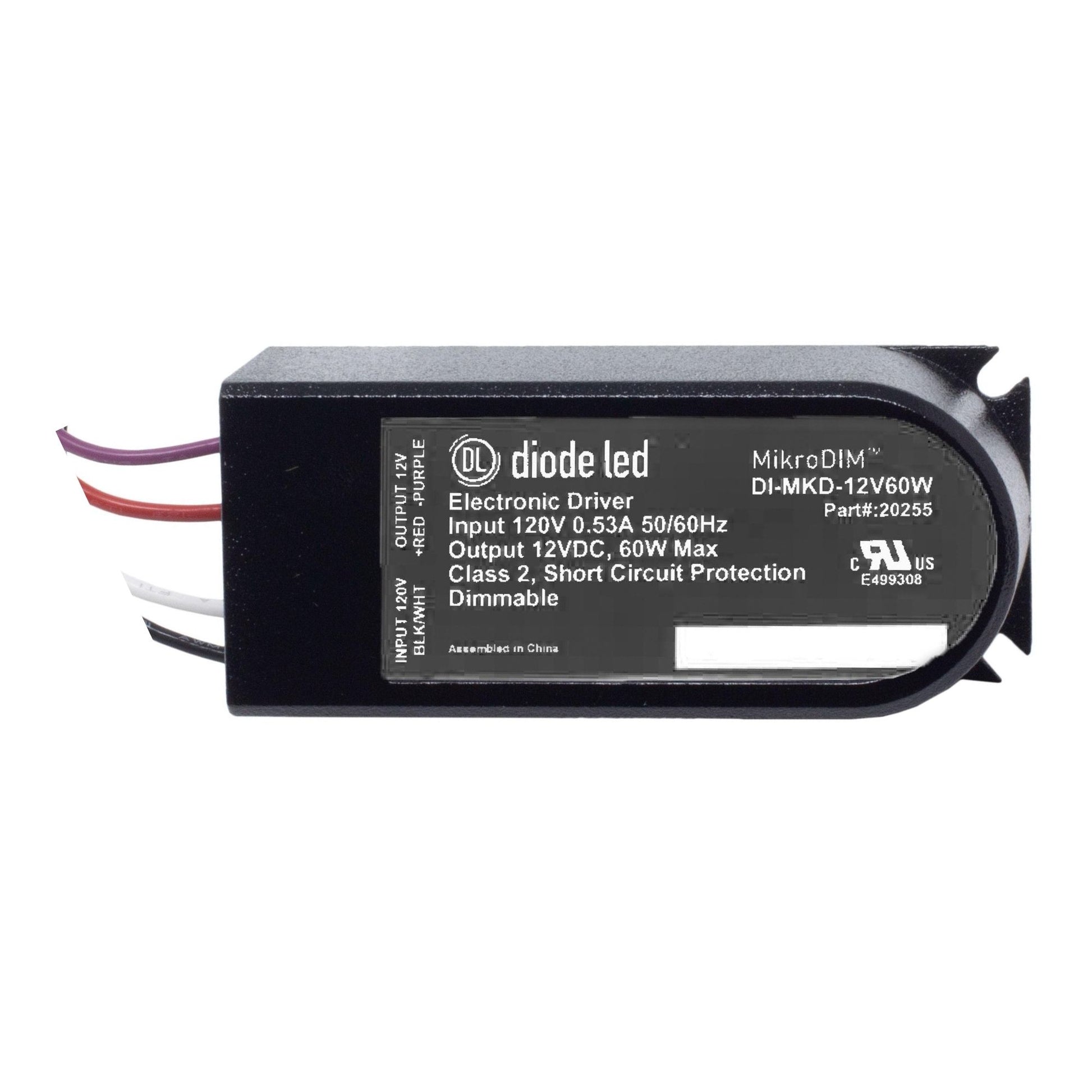

Introducing the DI-MKD-12V60W, the ultimate solution for your LED lighting needs. This compact, dimmable power supply is packed with features that make it stand out from the rest. With no minimum load requirement, it's perfect for any lighting setup. The state-of-the-art design of this LED driver is patented, ensuring top-notch performance and reliability. Built-in short circuit protection guarantees safety, while industry-leading dimming performance allows you to create the perfect ambiance in any space. Whether you're illuminating a residential or commercial area, the DI-MKD-12V60W is the ideal choice. Don't settle for subpar lighting solutions - invest in quality and efficiency with this exceptional LED driver. Illuminate your world with confidence and style.

Specifications

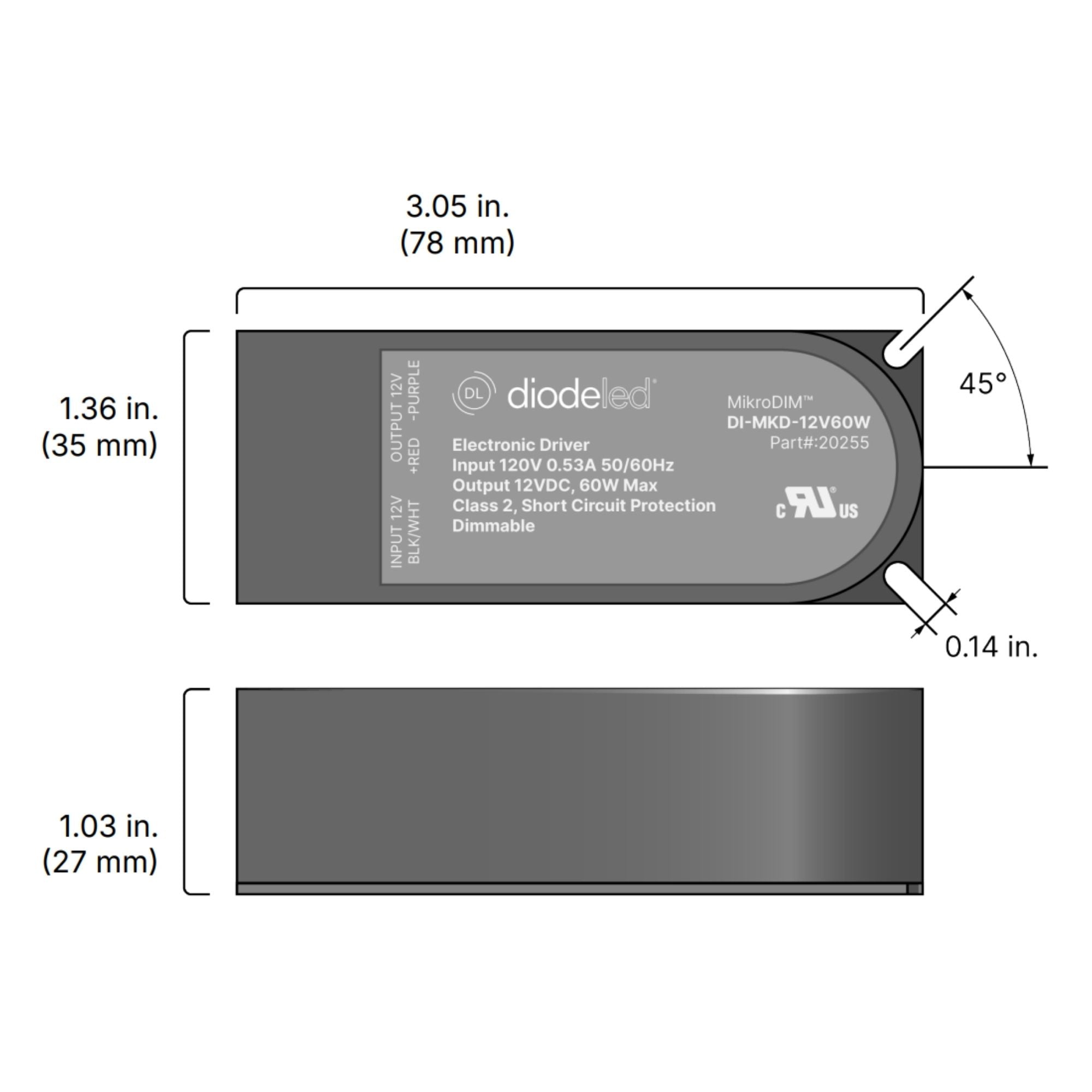

Dimensions

Length/Depth
3.05 in
Width/Diameter
1.36 in
Height
1.03 in
Weight
1.2 lb

Characteristics & Features

Dimmable
Yes

Electrical Information

Voltage
120V
Output Voltage
12V DC
Wattage Rating
60.0W

Item Details

SKU
DI-MKD-12V60W
Brand
Diode LED
Family
MikroDIM
UPC
848333026751

Warranty & Certifications

Product Warranty
5 Years
Product Rating
Class 2, Damp Rated

Frequently Asked Questions

What is an LED driver?

An LED driver is the essential power supply for modern, energy-efficient LED lighting. It converts your building's high-voltage AC power into the low-voltage DC power that LEDs need to operate. It regulates the power, protecting the sensitive LED chips from fluctuations that could cause them to flicker or fail prematurely.

What is a light ballast?

A light ballast is the traditional power supply for fluorescent and HID (High-Intensity Discharge) lamps. If you have older tube lighting, you have a ballast. It provides a burst of high voltage to get the lamp started and then controls the electrical current to keep it running steadily.

How do I choose the right wattage for my LED driver?

To ensure safety and longevity, it's best to follow the "80% Rule." Add up the total wattage of all the lights you will connect to the driver, then choose a driver with a maximum wattage rating that is at least 20% higher. For example, if your lights total 80 watts, you should select an LED driver rated for 100 watts or more.

What is the difference between a constant current and a constant voltage driver?

The key difference is what they keep stable. A constant current driver maintains a fixed output current (e.g., 700mA) while letting the voltage change. A constant voltage driver maintains a fixed output voltage (e.g., 12V or 24V) while the current varies. Use constant current for high-power LEDs and constant voltage for fixtures like LED strip lights.

How do I know if I need to replace my fluorescent light ballast?

Common signs of a failing light ballast include your lights flickering, making an audible humming or buzzing sound, taking a long time to turn on, or not turning on at all. If you've already tried replacing the bulbs and the problem persists, the ballast is the most likely cause.
