Diode LED LO-PRO Panel Recessed Mount Junction Box — 24VDC

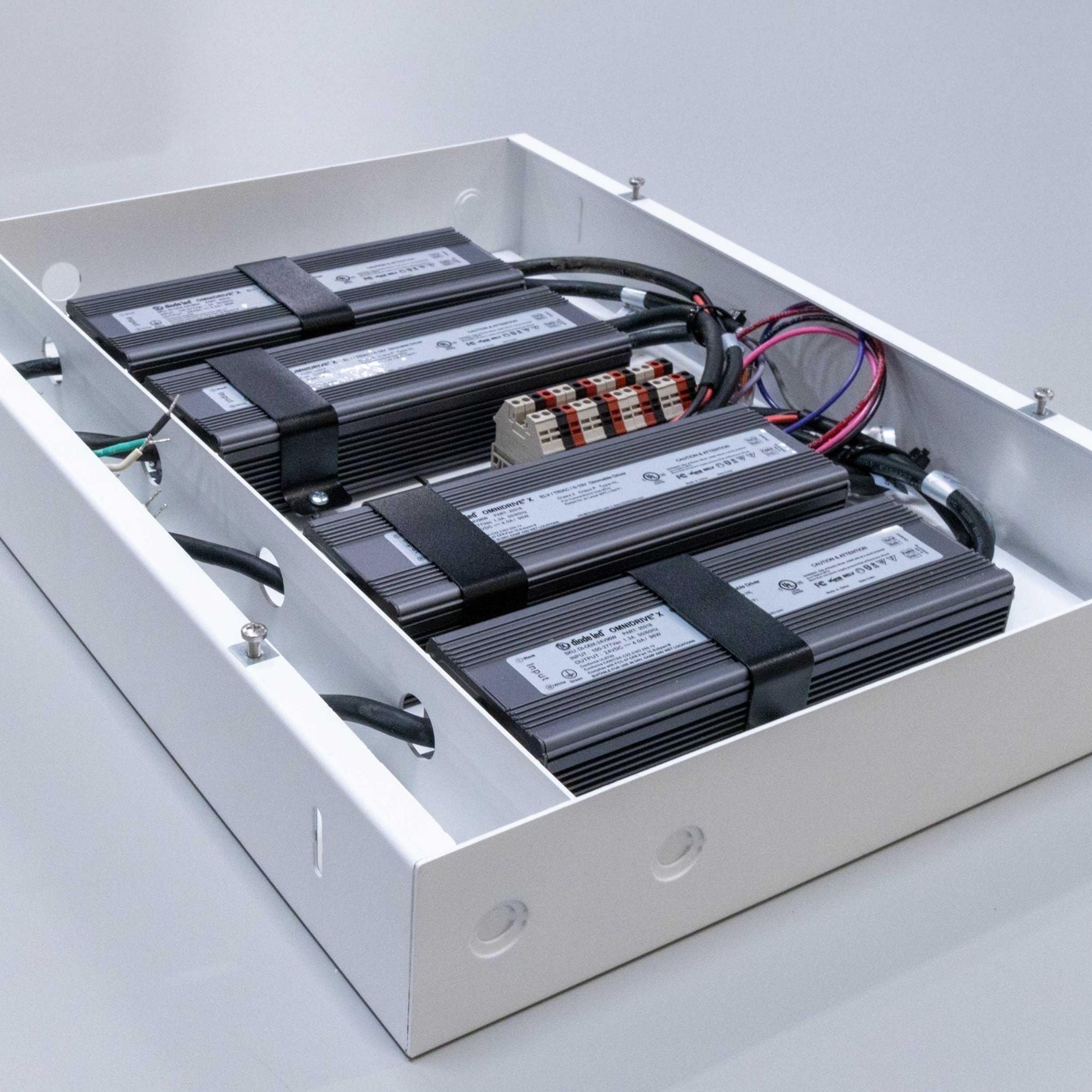

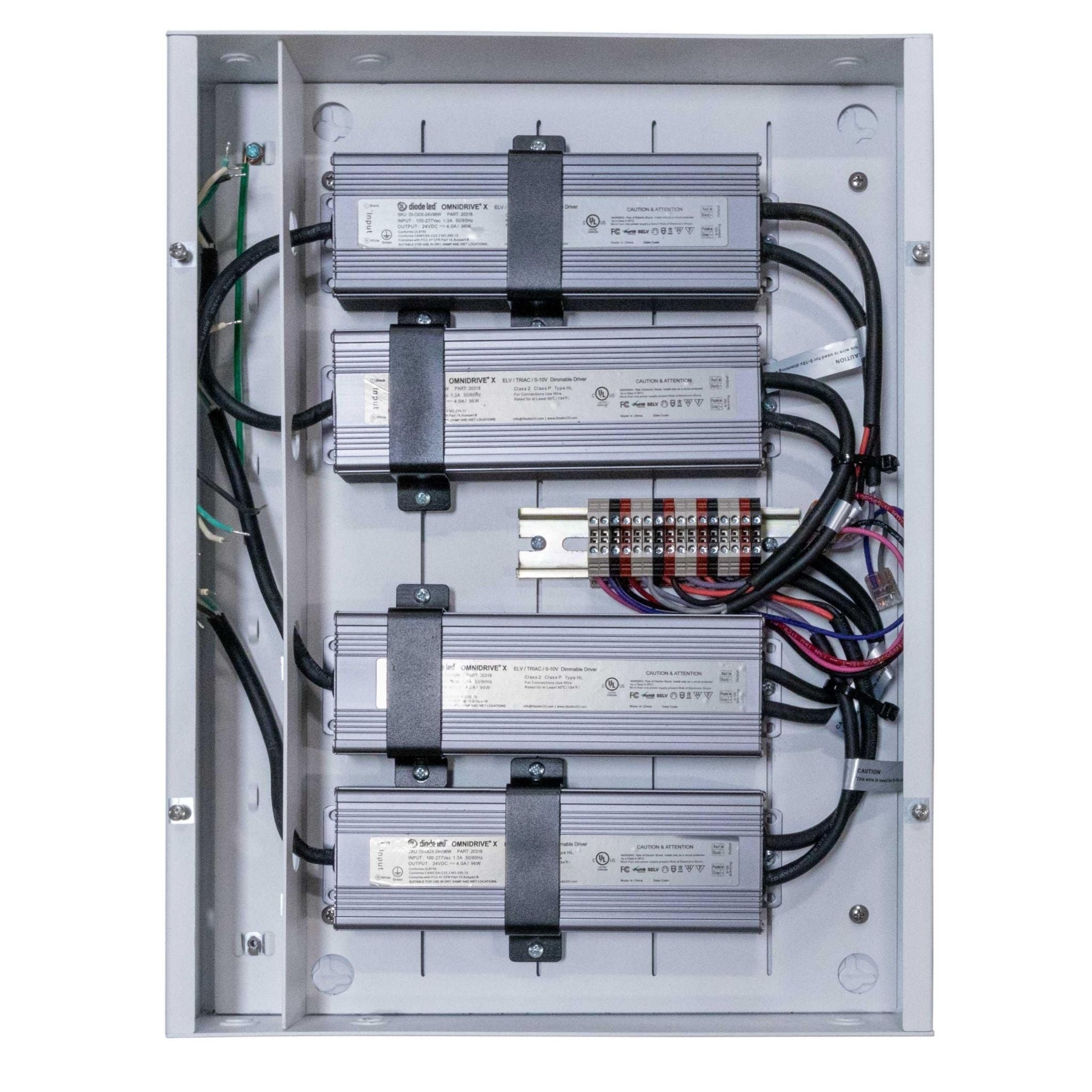

The Diode LED DI-JBOX-PANEL-R-43818B is a pre-configured LO-PRO Panel Junction Box engineered for flush recessed-mount installations. Designed for flush-wall installations where aesthetics matter, this commercial-grade enclosure comes fully loaded across all four internal positions with 24V 96W OMNIDRIVE X Drivers (providing a total capacity of 384W). It offers a concealed, code-compliant high-voltage wire management system with smooth dimming capability.
Key Features
- Total Capacity: 384W (4 x 96W Drivers)
- Output Voltage: 24VDC (Per Driver)
- Input Voltage: 120-277VAC
- Dimming: Dimmable (OMNIDRIVE X Electronic / Phase-Cut / 0-10V)
- Mounting Type: Recessed Mount
- Positions Populated: 4 Positions (4x 24V 96W OMNIDRIVE X Drivers)
- Enclosure Type: NEMA Type 1 / Steel Panel Junction Box
- Certifications: UL Listed Enclosure Assembly
Physical Design & Installation

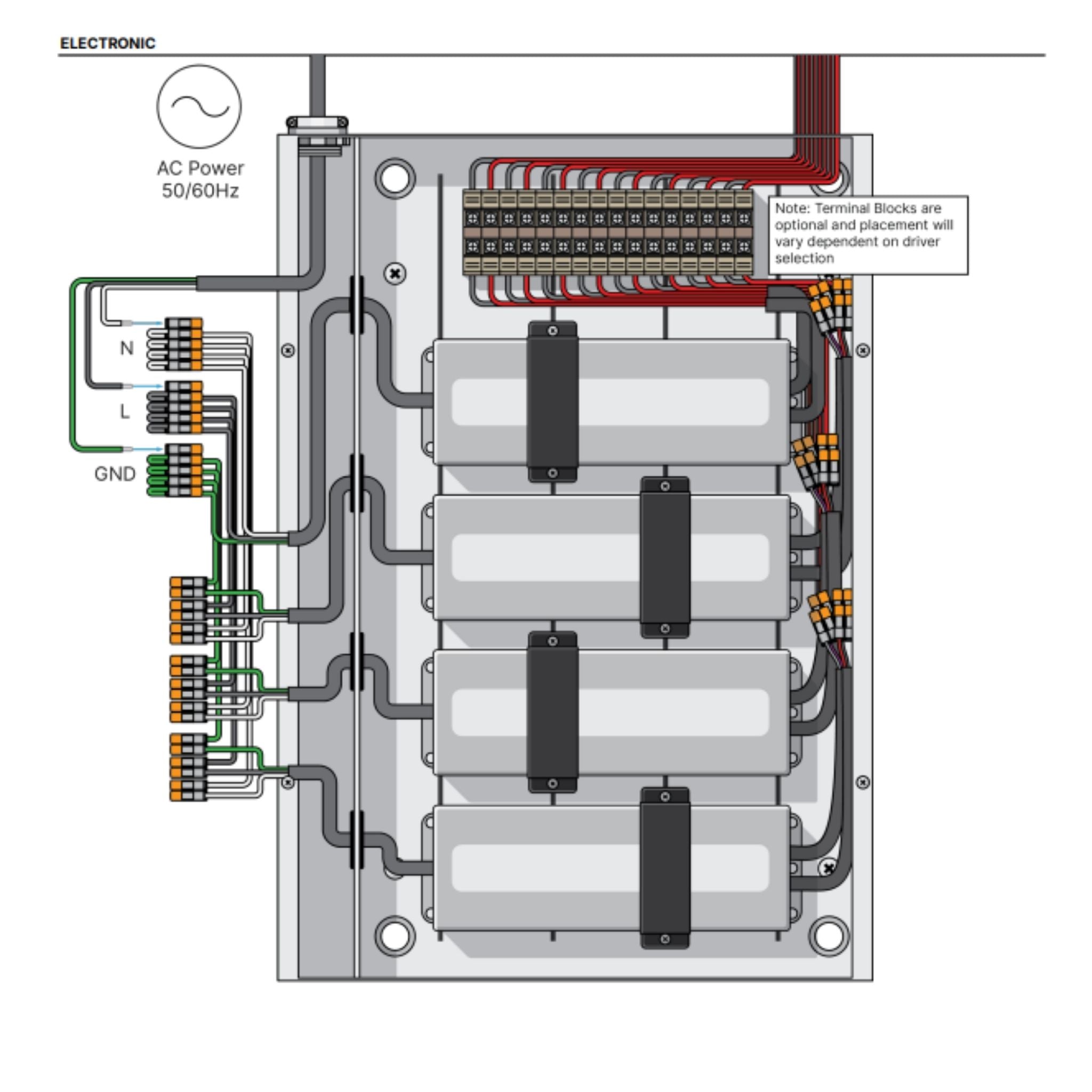

Engineered for seamless architectural integration, this recessed-mount panel sits flush within drywall studs or wall cavities. Its low-profile design hides power equipment inside the wall cavity while keeping wiring organized and serviceable through a clean front cover. Built-in knockouts simplify conduit routing during rough-in installation.
Dimming & Controls
Equipped with four 24V 96W OMNIDRIVE X drivers, the DI-JBOX-PANEL-R-43818B supports universal dimming options, including Forward Phase (TRIAC), Reverse Phase (ELV), and 0-10V control systems. Each driver functions independently, enabling customized control across up to four distinct lighting zones with continuous, flicker-free dimming.
Performance & Build
Built to professional standards, this recessed steel enclosure protects internal drivers against dust and physical damage while ensuring thermal efficiency. Integrated circuit protection protects connected low-voltage LED fixtures against short circuits, over-voltage, and thermal overload.
Typical Applications
- Flush-mounted architectural tape lighting systems
- High-end residential and commercial wall-cavity driver storage
- Multi-zone cove, under-cabinet, and accent lighting setups
Specifications
Specifications

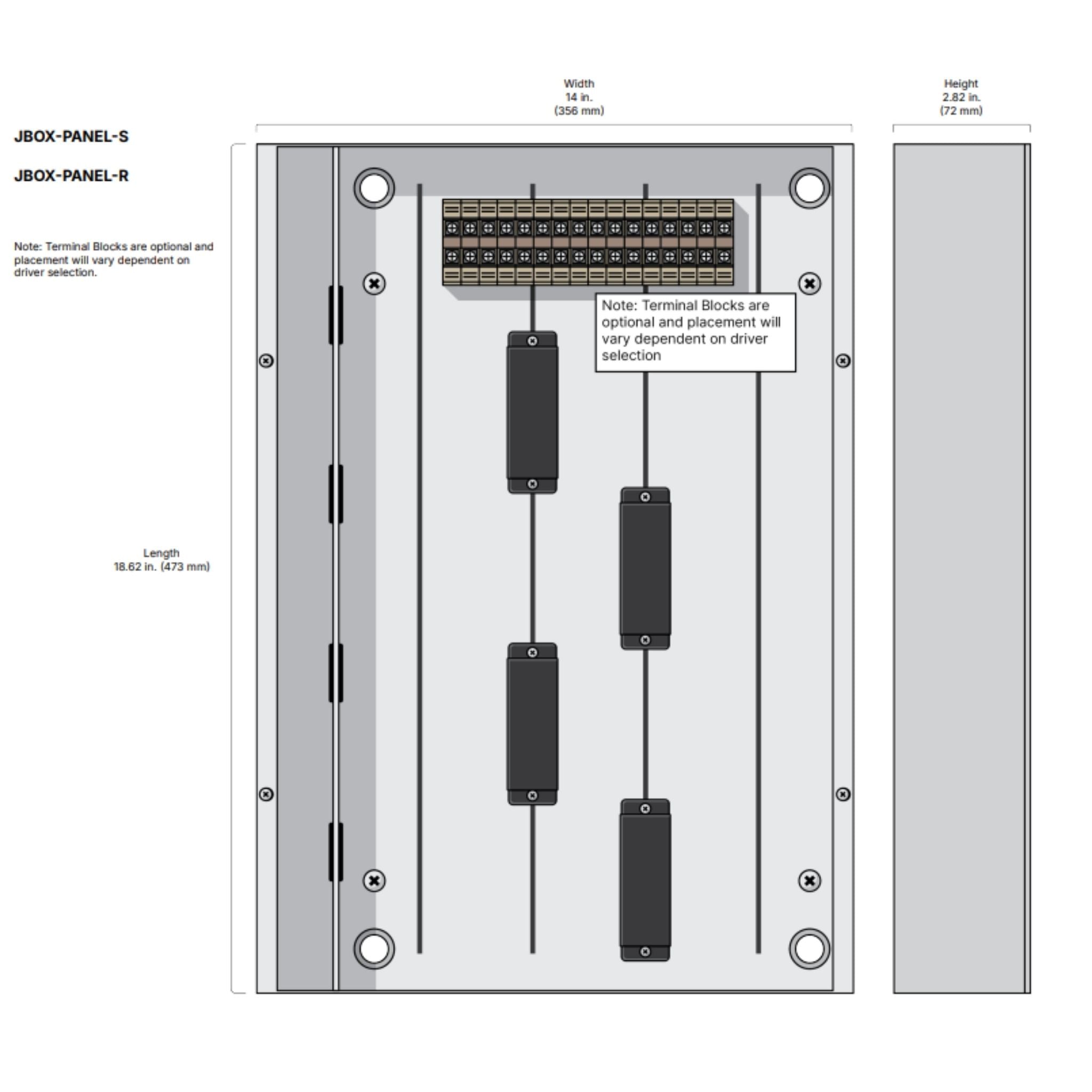

Dimensions
