DMX Decoder with 24VDC LED Driver, 96 Watts, 4 Channel RGBW, 120-277V
Available in stock (200)
About this item
About this item
- Output Voltage: 24V DC for consistent power delivery
- Dimming: DMX protocol for precise control
- Input Voltage: 120-277V for versatile installations
- Enclosure: Optional integrated junction box available
- Protection: IP20 rated for dry indoor locations
We process payments securely and do not store credit card information.
Description
Description
Diode LED DMX 96W Driver — 24V DC

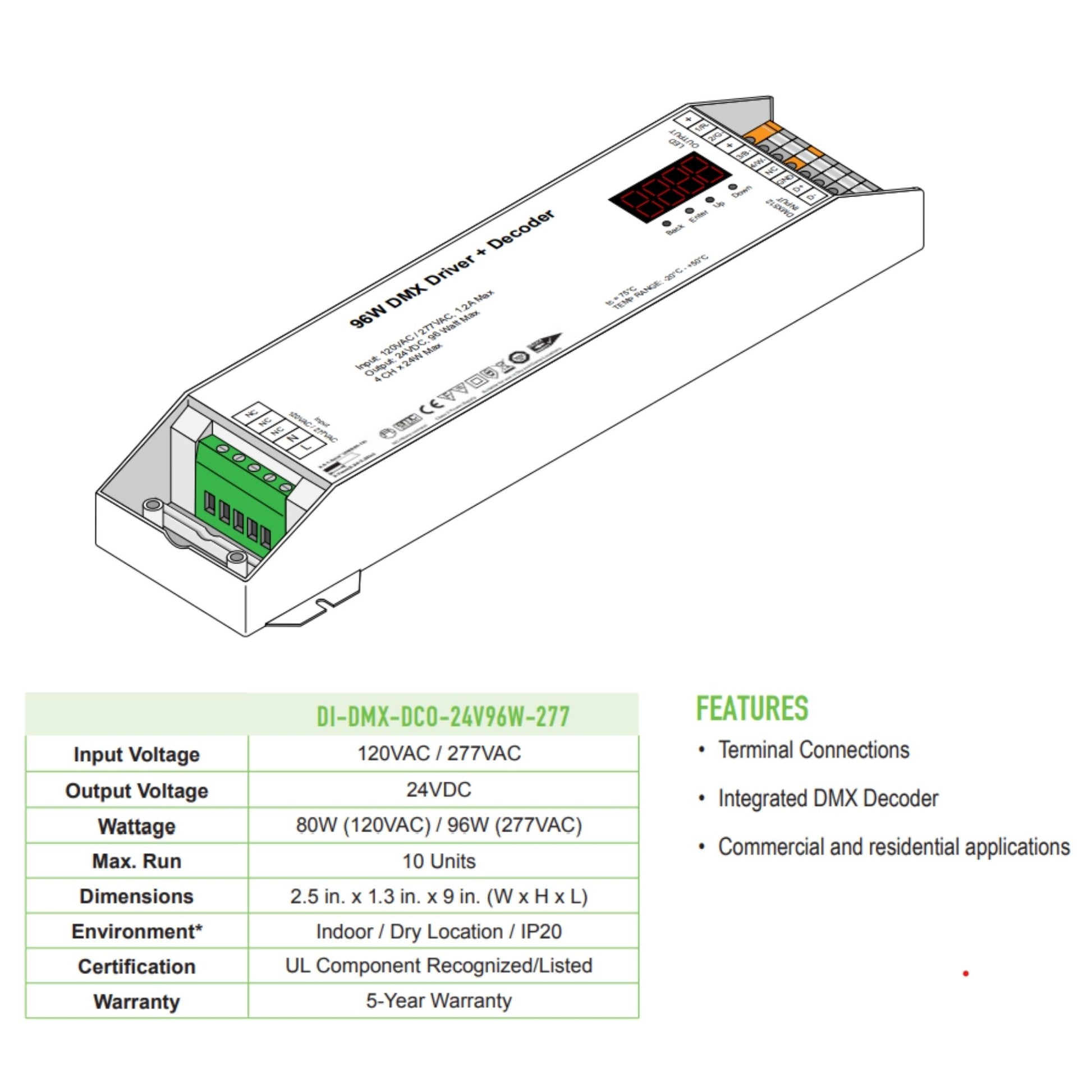

The Diode LED DI-DMX-DCO-24V96W-277 is a 96-watt constant voltage LED Driver designed for 24V DC output. It supports a wide input voltage range of 120-277V and features DMX dimming for advanced lighting control. This model is suitable for indoor use in dry locations and offers an optional Integrated Junction Box for streamlined installation.
Key Features
- Power: 96W maximum output
- Input Voltage: 120-277V
- Output Voltage: 24V DC
- Dimming: DMX protocol
- Dimensions: 9 in. L x 2.5 in. W x 1.3 in. H
- Enclosure Type: Optional integrated junction box
- IP Rating: IP20
- Class 2: Yes
- Certifications: UL Recognized
Physical Design & Installation

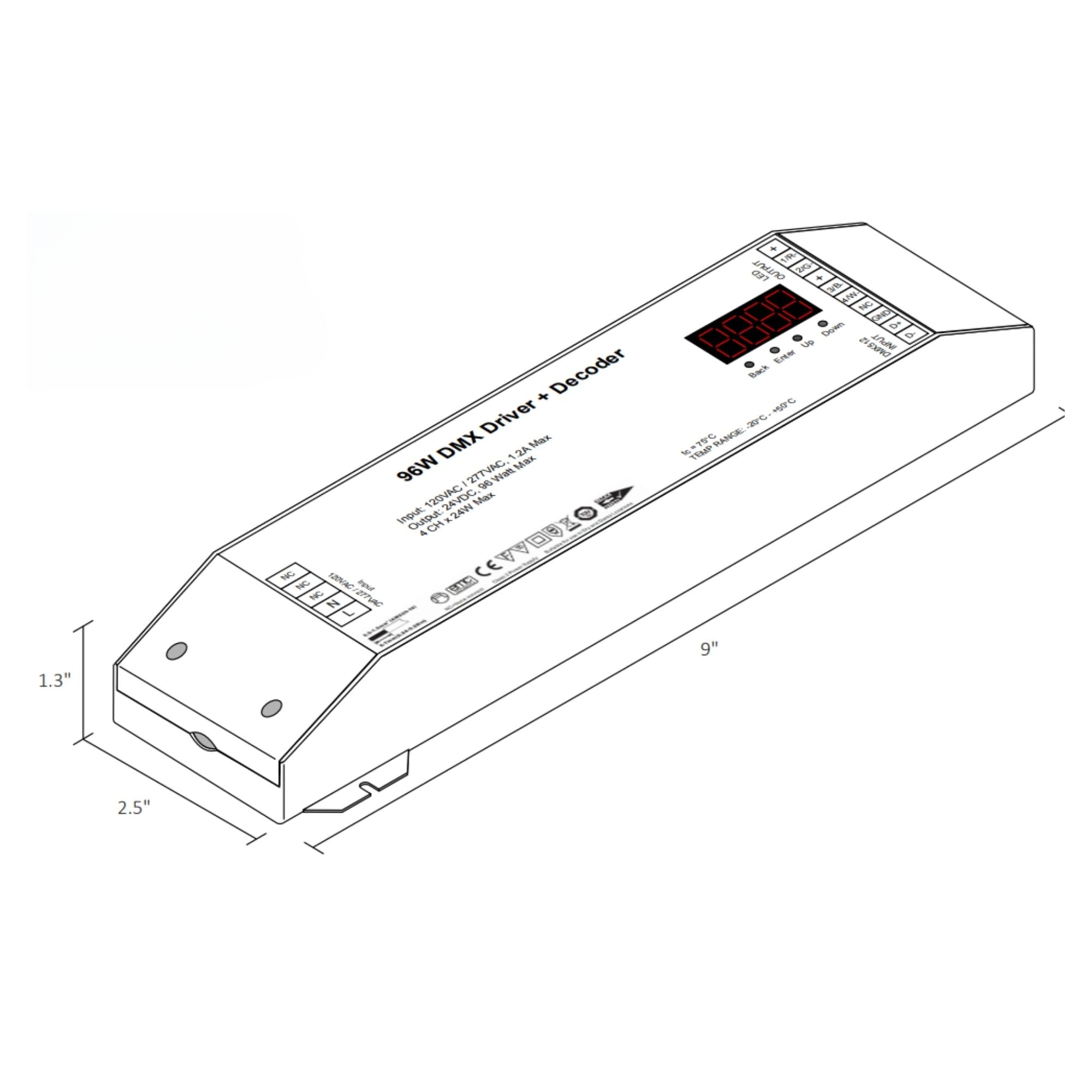

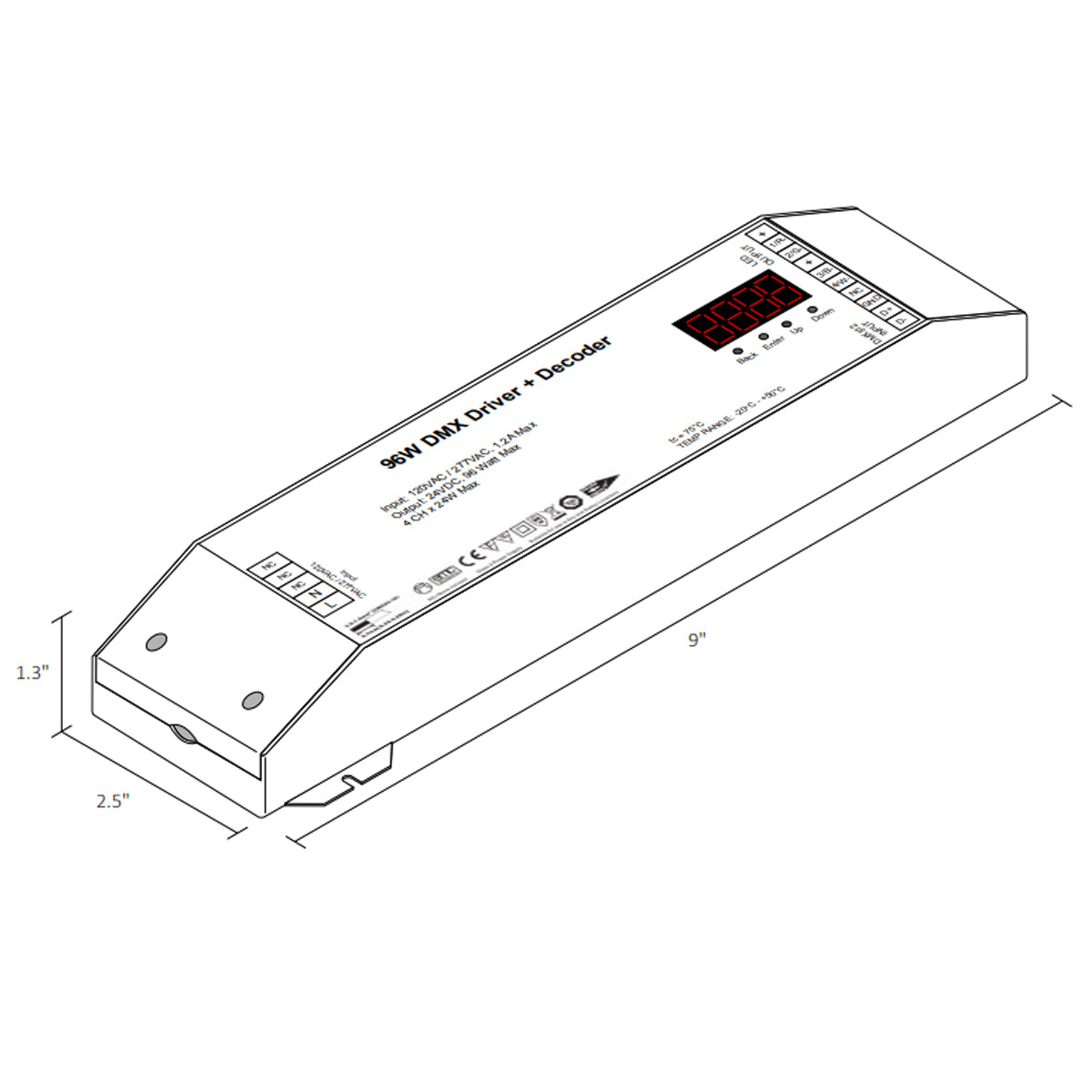

The driver features a compact design with dimensions of 9 in. L x 2.5 in. W x 1.3 in. H. It is designed for easy installation with an optional integrated junction box.
Dimming & Controls
Compatible with DMX dimming systems, this driver allows for precise lighting control. It operates within an input range of 120-277V and provides a stable 24V DC output.
Performance & Build
Equipped with short circuit, over-voltage, and thermal protection, the driver ensures reliable performance. It is IP20 rated for dry indoor environments and complies with Class 2 standards.
Typical Applications
- Commercial lighting installations
- Residential lighting projects
- Architectural lighting designs
- DMX-controlled environments
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming protocol does the DI-DMX-DCO-24V96W-277 support?
What dimming protocol does the DI-DMX-DCO-24V96W-277 support?
Is there a minimum load requirement for this driver?
Is there a minimum load requirement for this driver?
Does the driver include an integrated junction box?
Does the driver include an integrated junction box?
What input voltages are compatible with this driver?
What input voltages are compatible with this driver?
What is the IP rating of the DI-DMX-DCO-24V96W-277?
What is the IP rating of the DI-DMX-DCO-24V96W-277?
