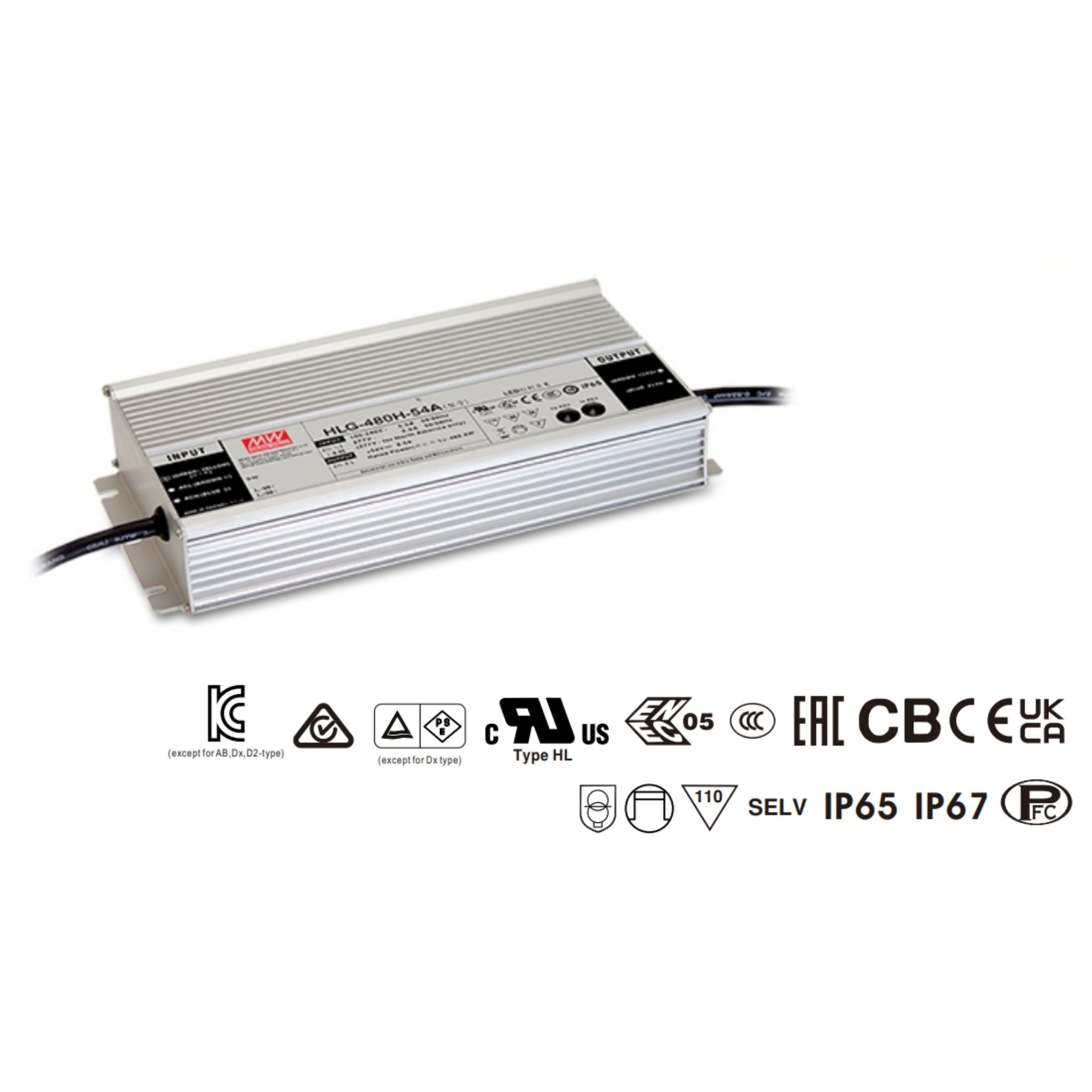

Diode LED HLG Series 480W 24VDC LED Driver Dimmable
In stock
About this item
About this item
- Output Power: 480W at 24VDC constant voltage.
- Dimming Protocol: Compatible with standard dimming systems for precise control.
- Input Voltage: Universal 120-277VAC for commercial and residential use.
- Enclosure: IP65 Wet Rated aluminum housing for outdoor durability.
- Protection: Integrated short circuit and over-voltage safety features.
We process payments securely and do not store credit card information.
Description
Description
Diode LED HLG Series 480W LED Driver — 24VDC
The Diode LED DI-CV-24V480W-277 is a high-capacity 480W LED Driver designed for demanding lighting projects. This dimmable Constant Voltage power supply provides a stable 24VDC output from a universal 120-277V input, featuring a rugged IP65 enclosure for versatile installations.
Key Features
- Power: 480W
- Output Voltage: 24VDC
- Input Voltage: 120-277VAC
- Dimming: Dimmable
- Minimum Load: 20 percent

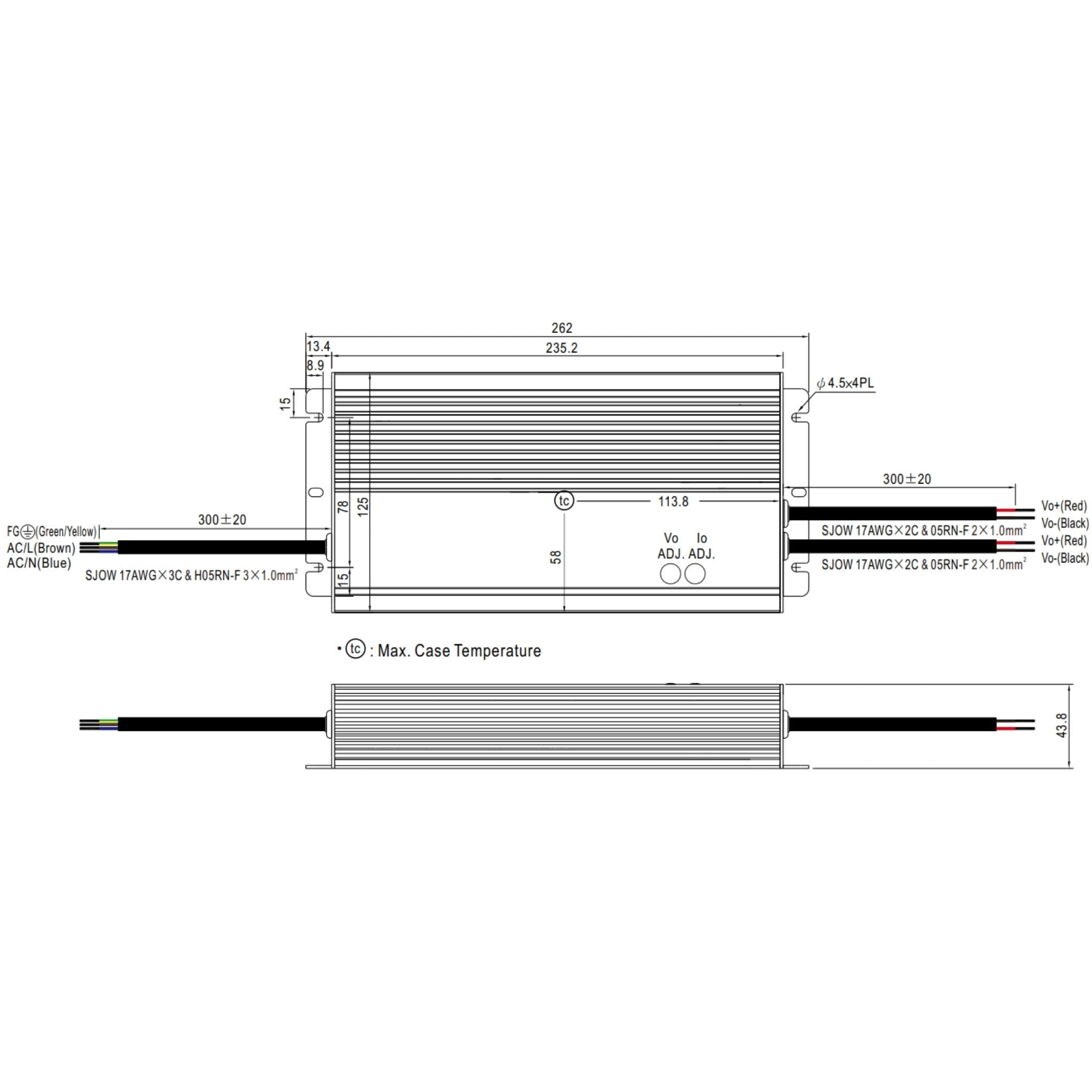

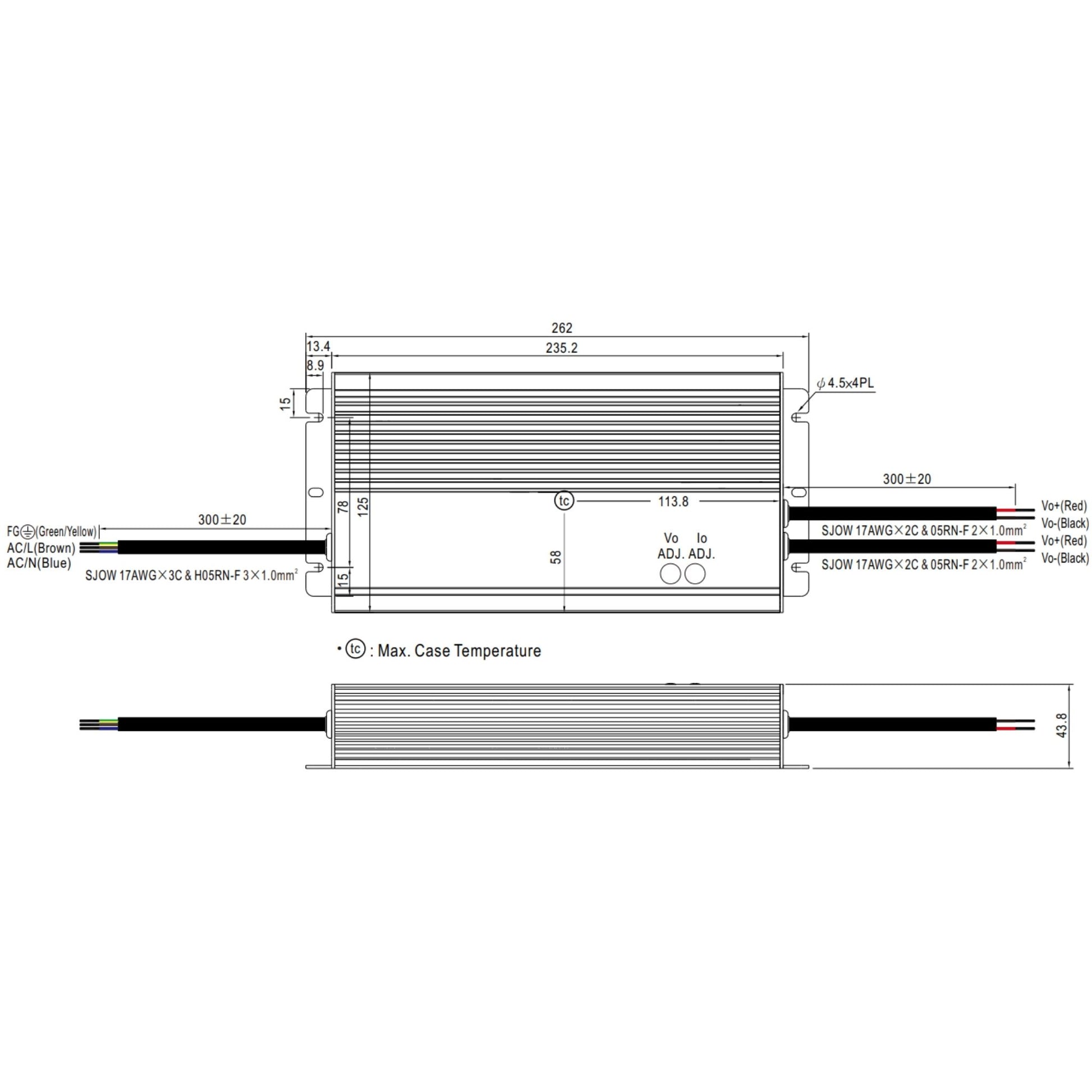

- Dimensions: 10.31 in. L x 4.92 in. W x 1.72 in. H
- Enclosure Type: IP65 Wet Rated Aluminum
- IP Rating: IP65
- Class 2: No
- Certifications: UL Listed
Physical Design & Installation
The unit features a robust aluminum housing designed for efficient heat dissipation and long-term durability. It is IP65 rated, making it suitable for wet locations, though it is a bare module design that requires a separate enclosure or mounting in a protected area if wiring compartments are needed.Dimming & Controls
This driver is compatible with various dimming systems to provide smooth light control. It operates on a 120-277V input and maintains a constant 24VDC output across the dimming range. For the best performance and to avoid flickering, a minimum load of 20 percent is recommended.Performance & Build
Built with comprehensive safety features, the driver includes short circuit, over-voltage, and over-temperature protection. It is IP65 rated for wet locations, ensuring reliable operation in harsh environments. Note that this 480W unit exceeds Class 2 limits.Typical Applications
- Outdoor architectural accents
- Large scale signage
- Commercial landscape lighting
- High-output linear LED strips
