Diode LED HLG 320W 24VDC LED Driver Non-Dimmable
In stock
About this item
About this item
- Output Voltage & Power: Provides a high-capacity 320W output at 24VDC Constant Voltage.
- Dimming Protocol: Non-dimmable design for reliable on/off operation in commercial settings.
- Input Voltage Range: Universal 120-277VAC input compatible with most electrical systems.
- Enclosure Rating: IP67 wet rated bare module housing for superior environmental protection.
- Safety Protection: Includes integrated short circuit, over-voltage, and thermal protection.
We process payments securely and do not store credit card information.
Description
Description

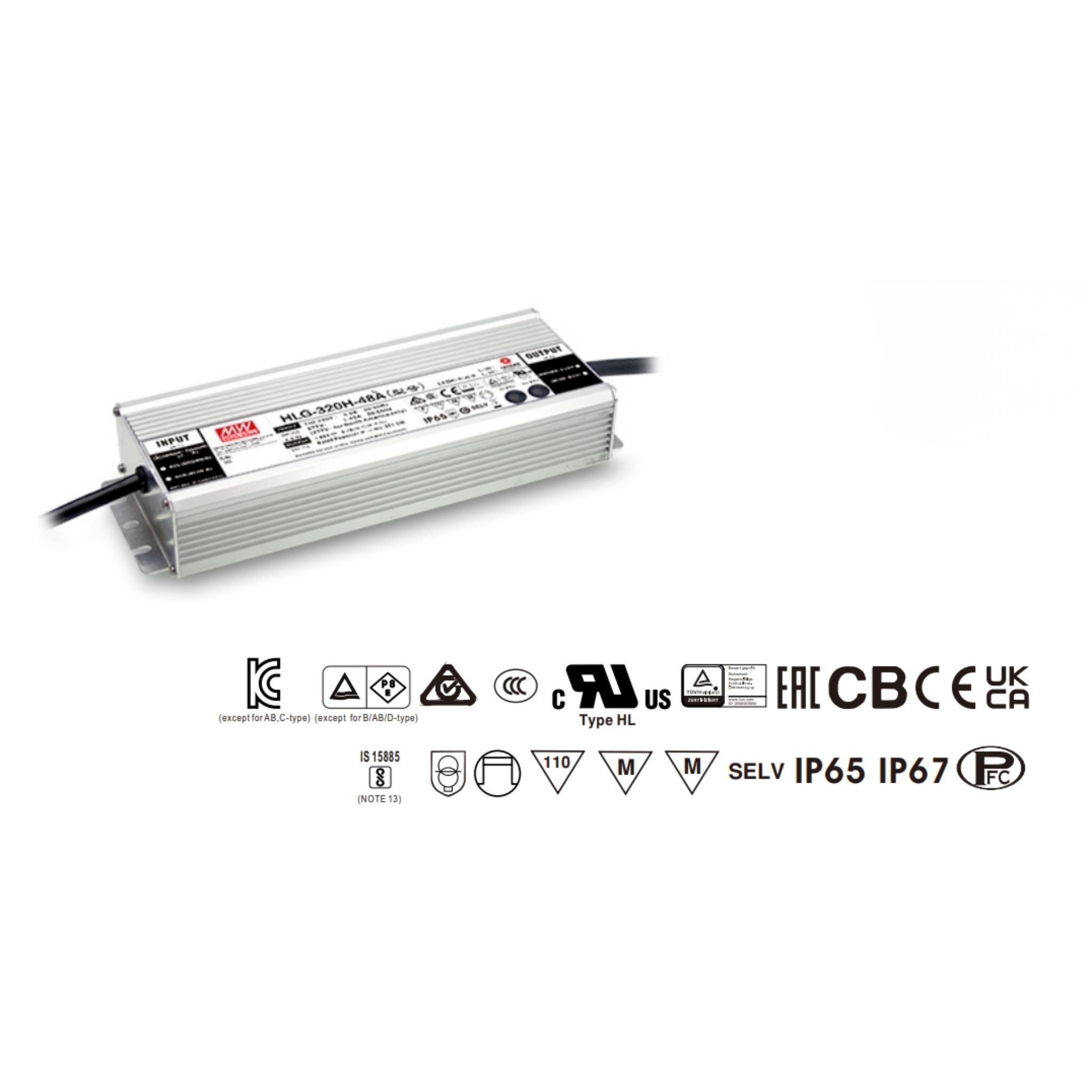

Diode LED HLG 320W LED Driver — 24VDC
The Diode LED DI-CV-24V320W-277 is a 320W LED Driver with 120-277V input and 24VDC output. This non-dimmable, IP67 wet rated power supply is a bare module unit designed for high-capacity Constant Voltage applications. It provides a stable power source for commercial and residential LED lighting systems requiring robust environmental protection.
Key Features
- Power Output: 320W
- Output Voltage: 24VDC
- Input Voltage: 120-277VAC
- Dimming Protocol: Non-Dimmable

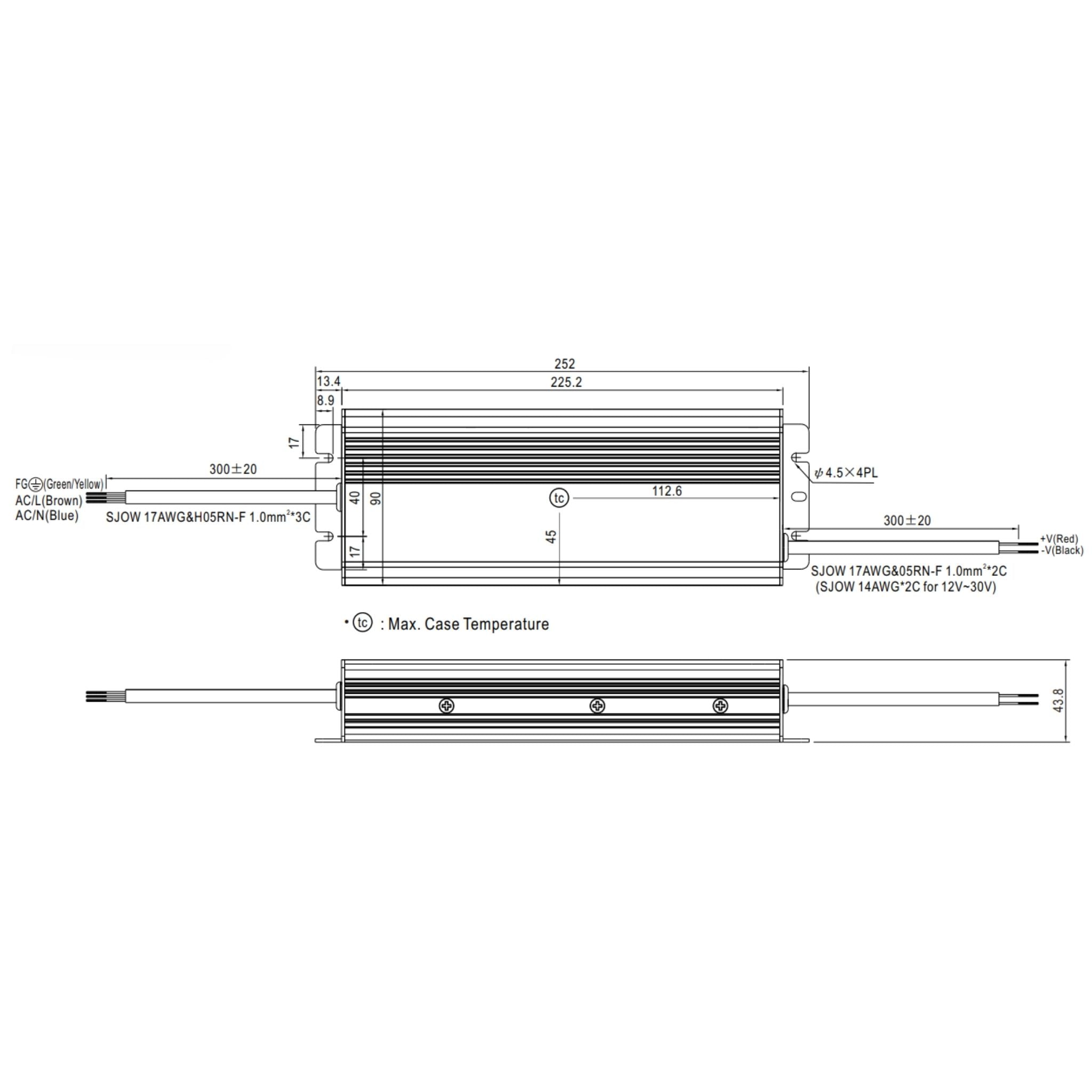

- Dimensions: 9.92 in. L x 3.54 in. W x 1.72 in. H
- Enclosure Type: IP67 Rated Bare Module
- Environment: Wet Location Rated
- Circuit Type: Constant Voltage
- Safety Features: Short Circuit and Over-Voltage Protection
- Certifications: UL Recognized and RoHS Compliant
Physical Design & Installation
This driver features a rugged, fully encapsulated metal housing designed for maximum heat dissipation and durability. As a bare module unit, it does not include an integrated junction box, making it ideal for installation within existing enclosures or remote mounting in protected areas. The IP67 rating ensures the internal components are protected against dust and water immersion.
Dimming & Controls
The DI-CV-24V320W-277 is a non-dimmable power supply intended for standard on/off switching applications. It operates at full brightness whenever power is applied. Because it is a constant voltage driver, it does not require a minimum load to maintain stable output voltage, allowing for flexible fixture loading up to the maximum 320W capacity.
Performance & Build
Engineered for high-demand environments, this driver includes comprehensive protection circuitry to prevent damage from short circuits, over-voltage, and thermal overloads. The universal 120-277V input range allows for seamless integration into various electrical infrastructures, while the 24VDC output ensures compatibility with a wide range of LED tapes and fixtures.
Typical Applications
- Outdoor architectural accent lighting
- Commercial signage and light boxes
- Large scale landscape LED installations
- Industrial task lighting
