Diode LED HLG 240W 24VDC LED Driver Non-Dimmable
In stock
About this item
About this item
- Output Power: Delivers a constant 24VDC output at 240W for high-capacity LED lighting systems.
- Non-Dimmable Performance: Engineered for consistent, flicker-free power delivery in non-dimming applications.
- Universal Input: Supports a wide range of input voltages from 120V to 277V for commercial and residential use.
- IP67 Rated Enclosure: Features a fully encapsulated bare module design suitable for wet locations and outdoor environments.
- Safety Protections: Includes built-in short circuit, over-voltage, and over-temperature protection for long-term reliability.
We process payments securely and do not store credit card information.
Description
Description

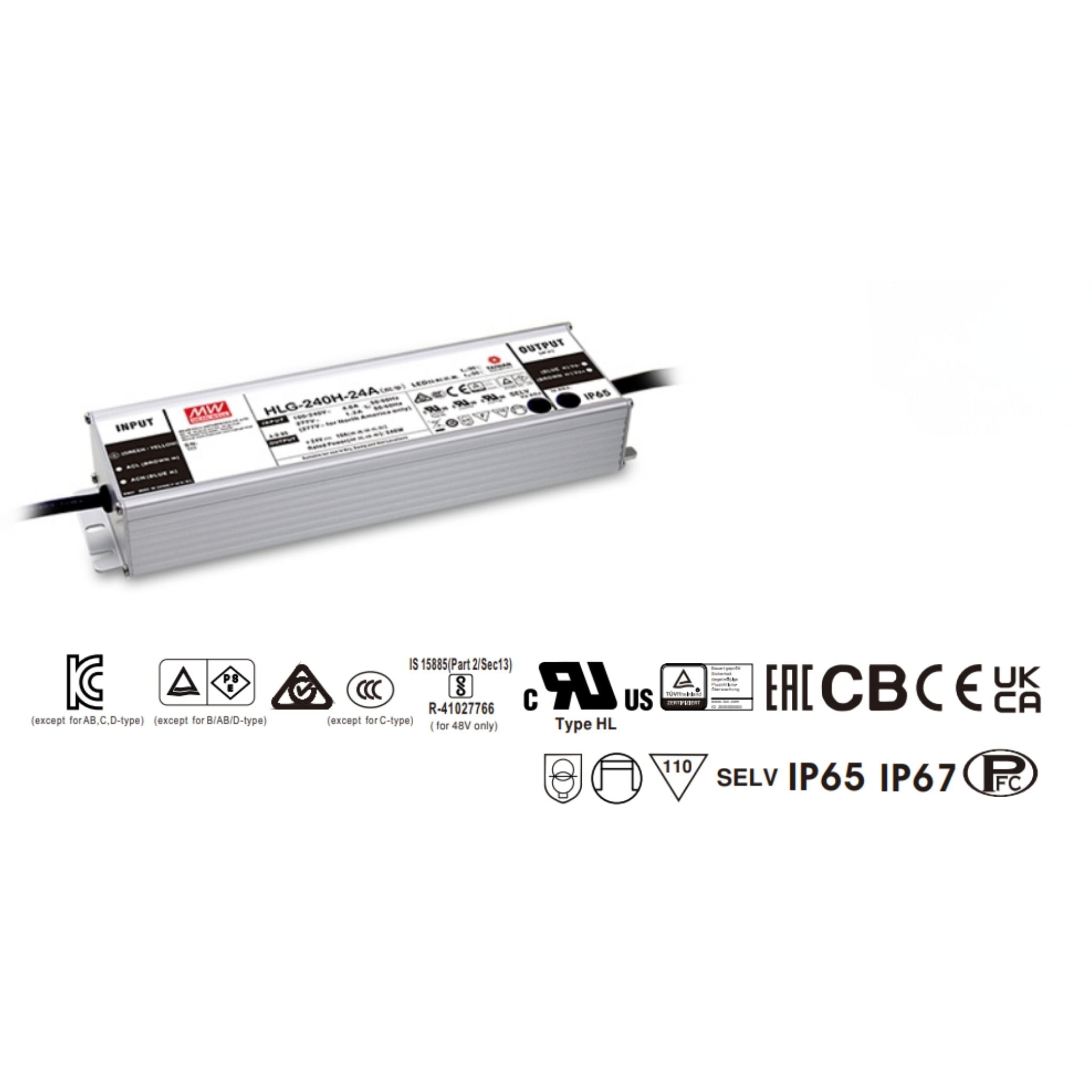

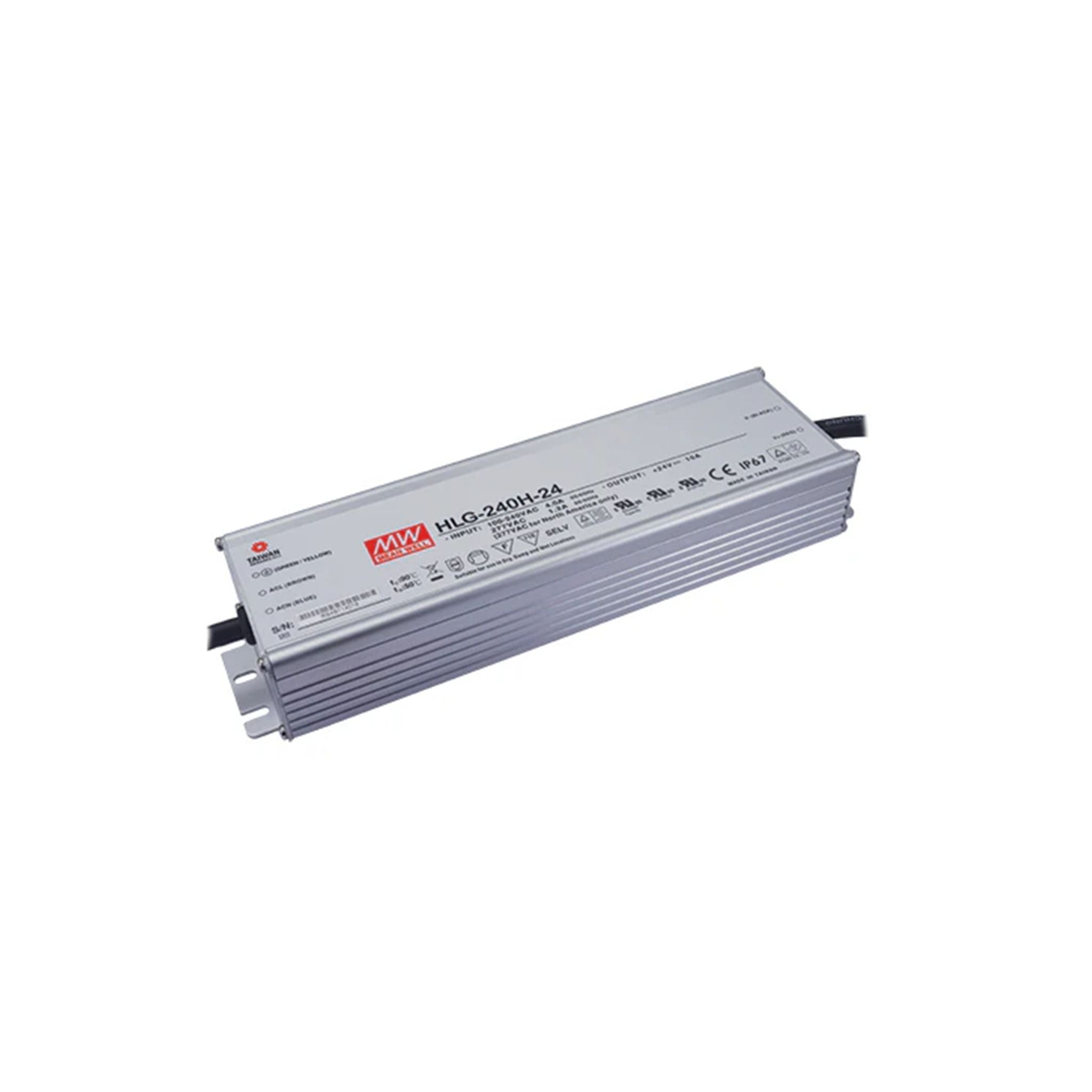

Diode LED HLG 240W LED Driver — 24VDC
The Diode LED DI-CV-24V240W-277 is a high-performance 240W LED Driver designed to provide a stable 24VDC Constant Voltage output. This non-dimmable power supply features a universal 120-277V input and a compact bare module design, making it ideal for large-scale outdoor and industrial lighting projects.
Key Features
- Power: 240W
- Input Voltage: 120-277V
- Output Voltage: 24VDC
- Dimming: Non-Dimmable

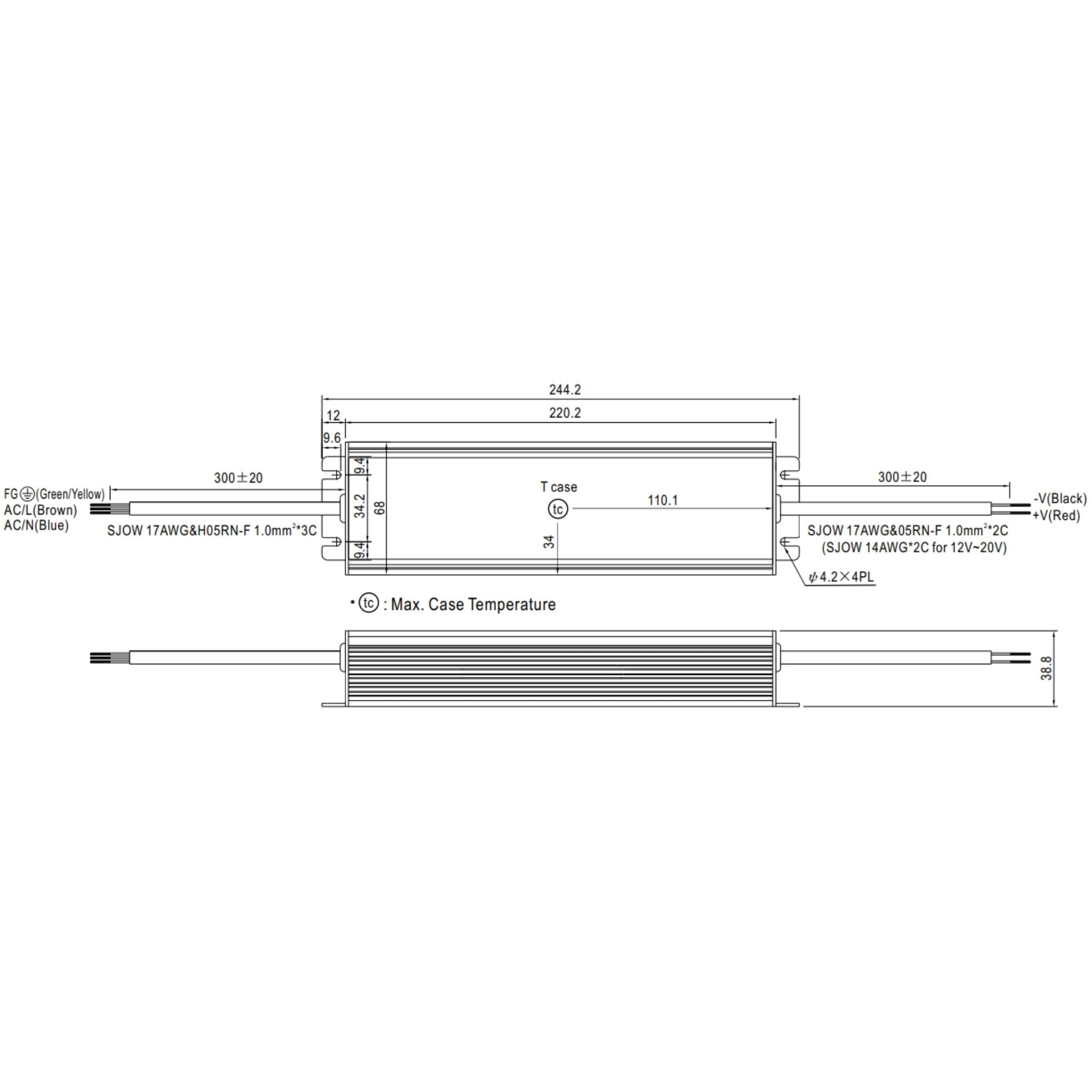

- Dimensions: 8.03 in. L x 2.67 in. W x 1.50 in. H
- Enclosure Type: Bare Module
- IP Rating: IP67 (Wet Rated)
- LED Compatible: Yes
- Certifications: UL Listed
Physical Design & Installation
Constructed with a durable, fully encapsulated housing, this driver is an IP67-rated bare module. It does not include an integrated junction box, requiring a separate enclosure for wiring connections in outdoor settings to maintain environmental protection.
Dimming & Controls
This unit is a non-dimmable driver designed for constant power applications. It operates on a universal input range of 120-277V AC, providing a fixed 24VDC output without the need for a minimum load for stability, ensuring consistent performance for high-wattage loads.
Performance & Build
Engineered for harsh environments, the driver includes comprehensive protection against short circuits, over-voltage, and thermal overloads. Its IP67 rating ensures protection against dust and water immersion, making it suitable for the most demanding installation sites.
Typical Applications
- Outdoor architectural lighting
- Commercial signage and light boxes
- Large-scale landscape LED installations
- Industrial task lighting
Specifications
Specifications
Dimensions
Documents
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the DI-CV-24V240W-277 dimmable?
Is the DI-CV-24V240W-277 dimmable?
Does this driver include an integrated junction box?
Does this driver include an integrated junction box?
What is the input voltage range for this Diode LED driver?
What is the input voltage range for this Diode LED driver?
Can this driver be used in outdoor or wet locations?
Can this driver be used in outdoor or wet locations?
Is there a minimum load requirement for this power supply?
Is there a minimum load requirement for this power supply?
