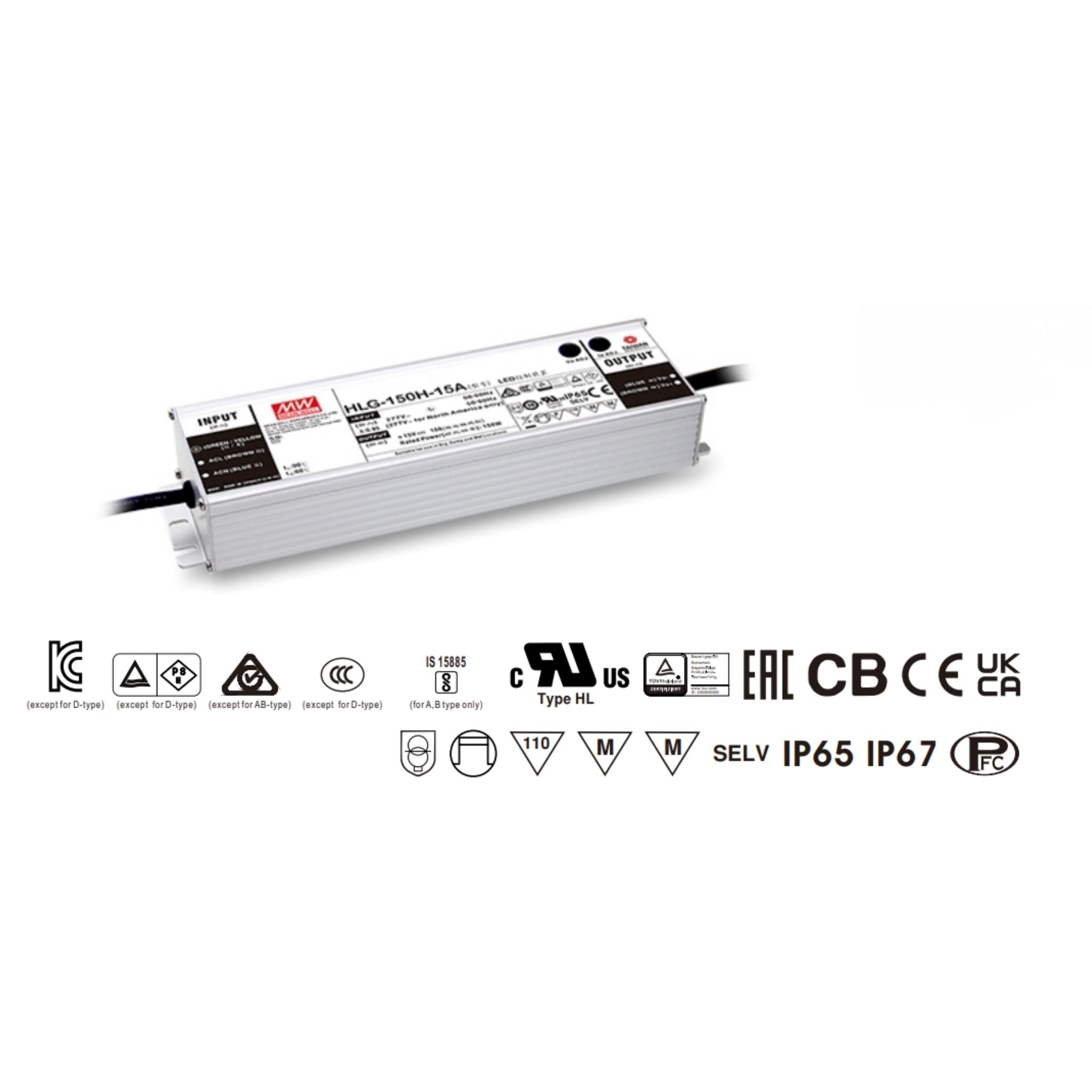

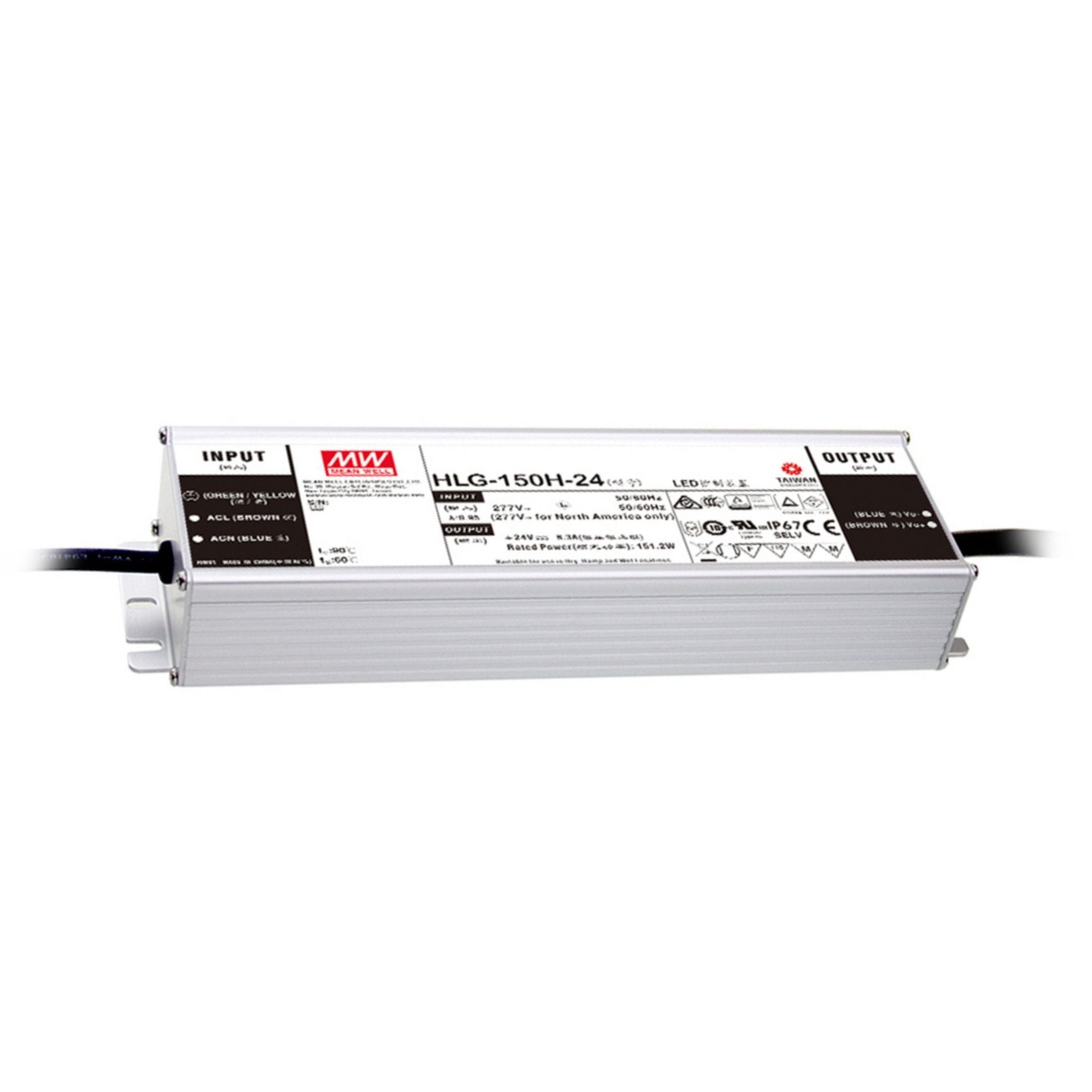

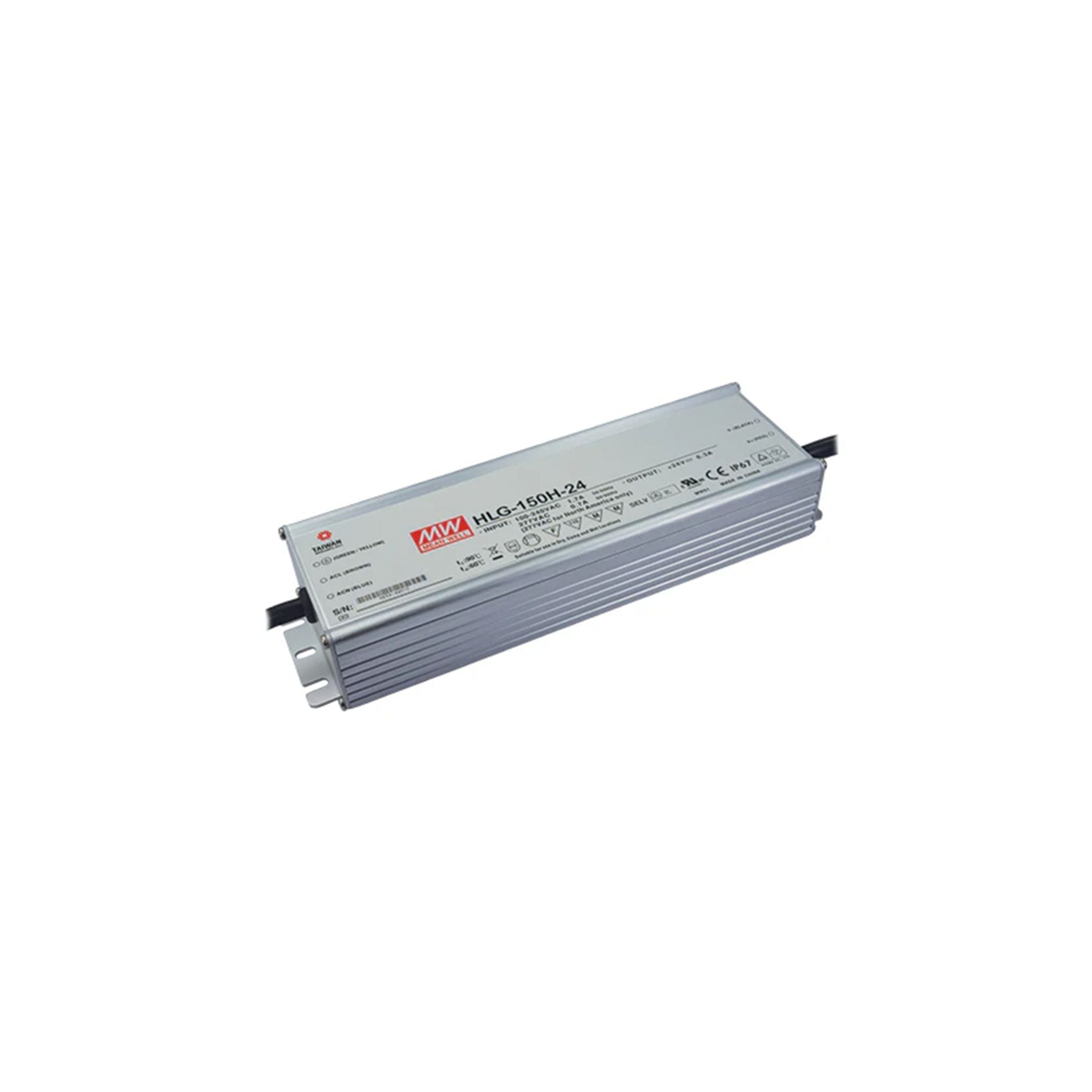

Diode LED HLG Series 150W 24VDC LED Driver Non-Dimmable
In stock
About this item
About this item
- Power Output: Delivers a consistent 150W at 24VDC constant voltage for LED systems.
- Dimming Protocol: Non-dimmable configuration designed for high-stability applications.
- Input Voltage: Universal 120-277VAC range accommodates various commercial and residential projects.
- Enclosure Type: IP67 rated bare module design suitable for wet location installations.
- Safety Features: Includes integrated short circuit, over-voltage, and thermal protection.
We process payments securely and do not store credit card information.
Description
Description
Diode LED HLG 150W LED Driver — 24VDC
The Diode LED DI-CV-24V150W-277 is a high-performance 150W LED Driver providing a stable 24VDC Constant Voltage output. This non-dimmable power supply supports a universal input of 120-277VAC and features an IP67 rated enclosure for wet location use. It is engineered to provide reliable power for low-voltage LED lighting systems in both indoor and outdoor environments.
Key Features
- Wattage: 150W
- Output Voltage: 24VDC
- Input Voltage: 120-277VAC
- Dimming: Non-Dimmable

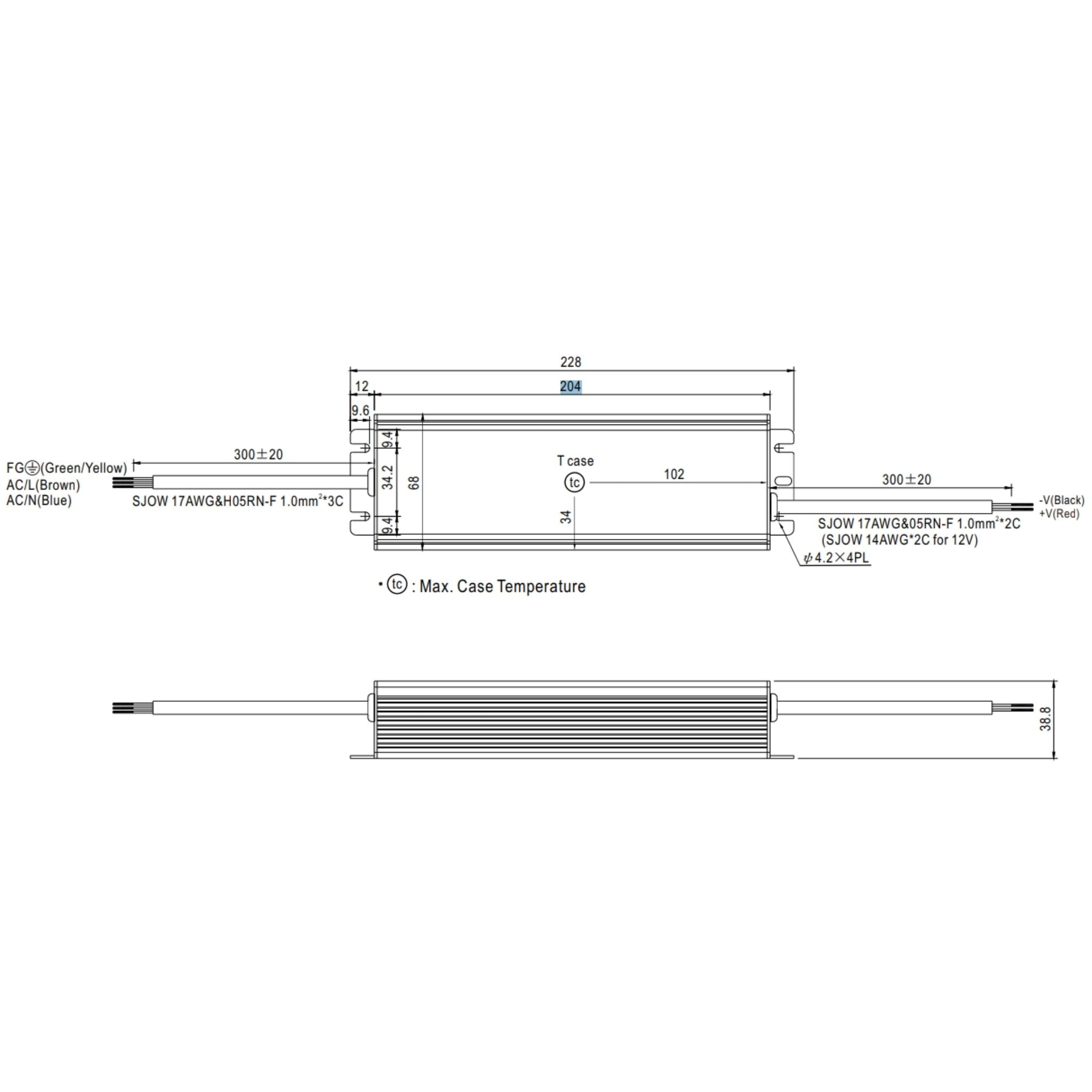

- Dimensions: 8.03 in. L x 2.67 in. W x 1.50 in. H
- Enclosure Type: Bare Module
- IP Rating: IP67 (Wet Rated)
- Operating Temp: -40 to 140 degrees F
- Protection: Short Circuit / Over-Voltage / Over-Temperature
- Certifications: UL Recognized
Physical Design & Installation
This driver features a compact bare module design with a rugged housing that is IP67 rated for protection against dust and water immersion. The slim profile allows for installation in tight spaces, though it does not include an integrated junction box, requiring external wiring compartments for code-compliant installation.
Dimming & Controls
The DI-CV-24V150W-277 is a non-dimmable driver. It is designed to provide a constant, flicker-free 24VDC output whenever power is applied. This makes it ideal for applications where dimming is not required or where control is handled on the low-voltage side of the circuit.
Performance & Build
Built for durability, this driver includes comprehensive protection circuitry to prevent damage from electrical faults. Its high IP67 rating ensures longevity in outdoor or high-moisture environments, maintaining a steady 150W load capacity across a wide temperature range.
Typical Applications
- Outdoor architectural accents
- Signage and backlighting
- Commercial landscape lighting
Specifications
Specifications
Dimensions
Documents
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the DI-CV-24V150W-277 dimmable?
Is the DI-CV-24V150W-277 dimmable?
What is the input voltage range for this driver?
What is the input voltage range for this driver?
Does this driver include an integrated junction box?
Does this driver include an integrated junction box?
Can this driver be used in outdoor wet locations?
Can this driver be used in outdoor wet locations?
What is the maximum wattage load for this unit?
What is the maximum wattage load for this unit?
