Diode LED Roll-On Classic Frosted Lens — 65.6 ft. | Compatible with Slim, Square & 45° Channels

The Diode LED DI-CPCHC-RLFR-65 is a 65.6 ft. (20 m) contractor roll of Classic Frosted Roll-On Lens designed for large-scale, field-cut installations across Diode LED SLIM, Square (SQ), and 45° LED tape light channels. This flexible lens rolls directly onto compatible channels, delivering smooth, even light diffusion that reduces hotspots and creates a clean, refined output — ideal for high-volume commercial, hospitality, and architectural lighting projects where continuous or extended lens runs are required.

Key Features

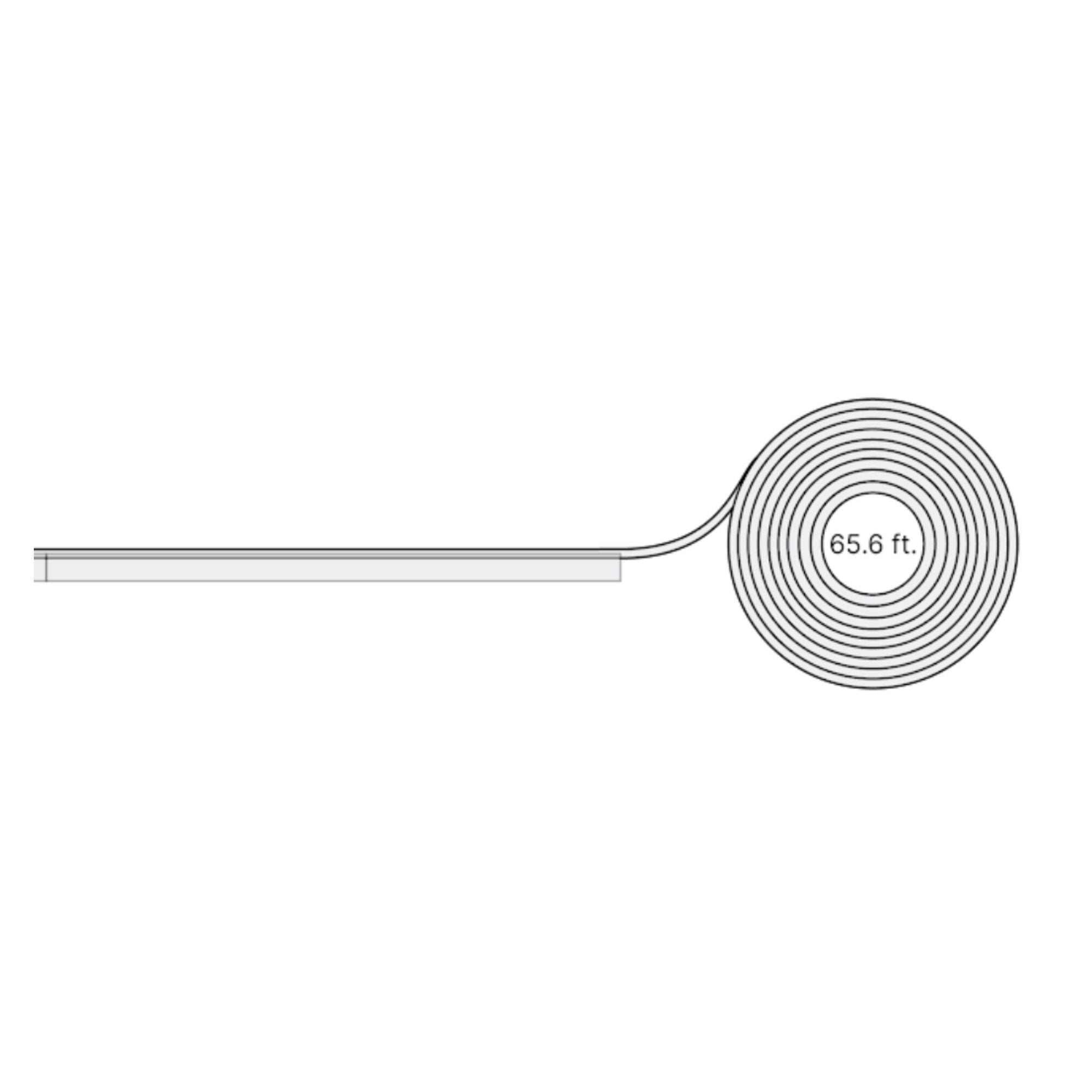

• Length: 65.6 ft. (20 m) contractor roll — cut to any required length on-site.
• Lens Type: Classic Frosted Roll-On Lens for smooth, even light diffusion.
• Compatibility: Designed for use with Diode LED SLIM, Square (SQ), and 45° profile channels.
• Light Loss: Approximately 20% light loss.
• CCT Shift: -40K color temperature shift.
• Beam Angle: 120°.
• IP Rating Shift: IP20 when installed.

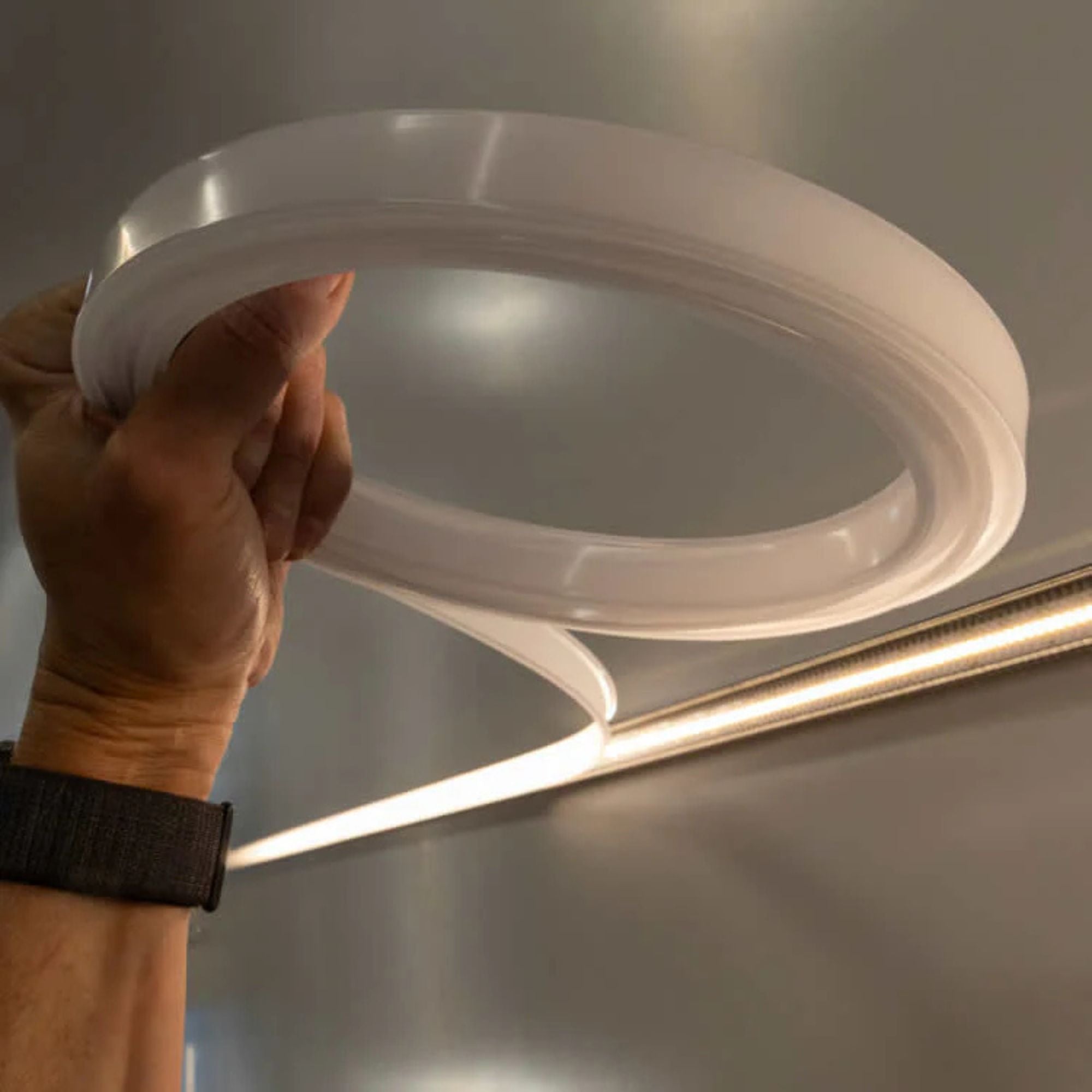

• Installation: Roll-on design for fast, tool-free field installation — no clips or fasteners required.
• Warranty: 5-Year Limited Warranty.

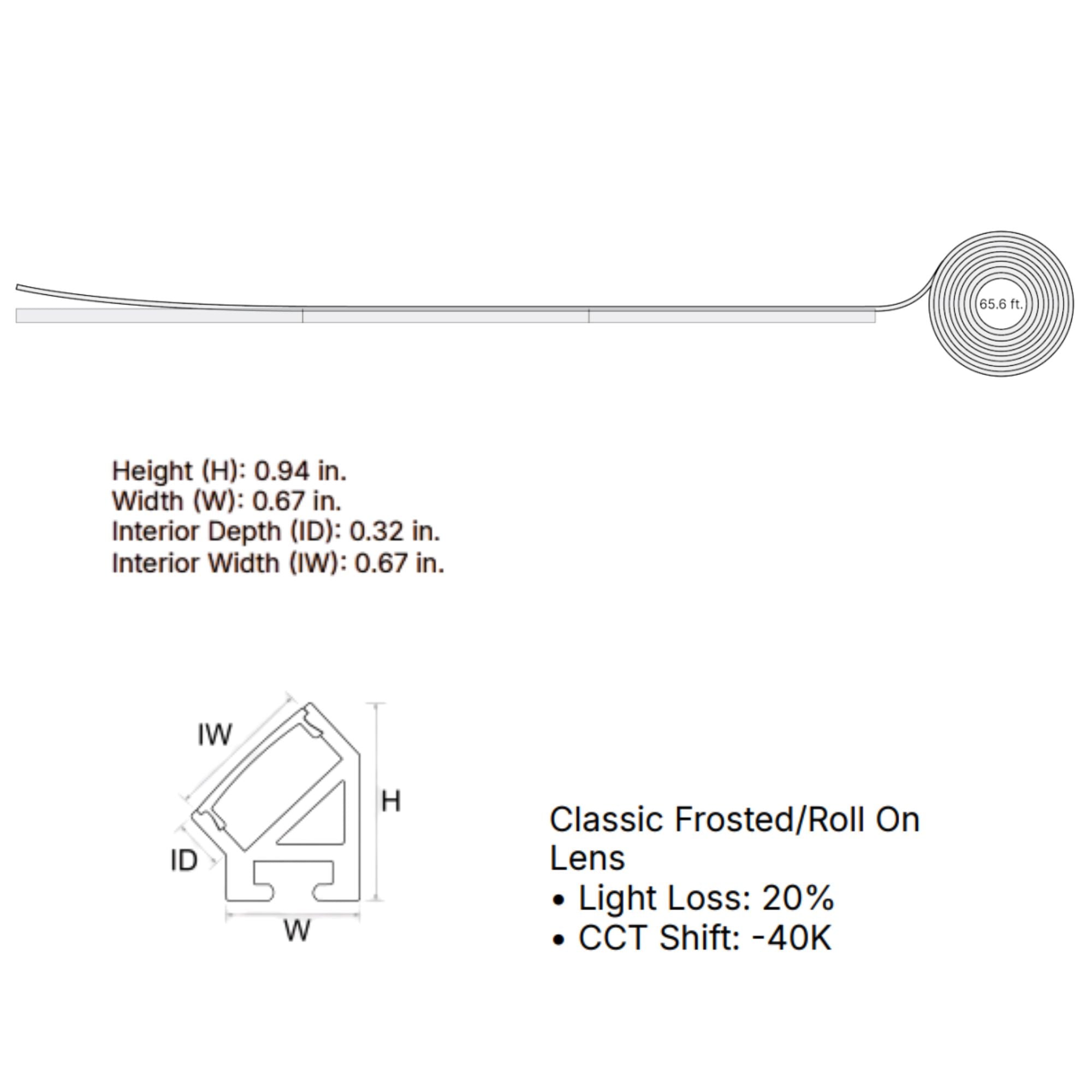

Lens & Light Performance

The Classic Frosted Roll-On Lens delivers approximately 20% light loss with a CCT shift of -40K, producing a smooth, softened output that reduces visible hotspots and glare across the channel run. The 120° beam angle ensures broad, even light distribution. Refer to the Diffusion Key in the product spec sheet for specific compatible tape light and channel pairings.

Contractor Roll Format

The 65.6 ft. roll format is engineered for large-scale projects and contractor-volume installations. The flexible roll-on lens can be cut to any custom length directly on-site, eliminating waste and simplifying installation across continuous or segmented channel runs of any size. Compatible with Diode LED SLIM, Square (SQ), and 45° channel profiles — including the CPCHB-45 series.

Compatible Channels

• Diode LED SLIM Series Channels
• Diode LED Square (SQ) Series Channels
• Diode LED 45° Series Channels (CPCHB-45)

Compatible Tape Lights

Refer to the Classic Frosted Lens Technical Data and Diffusion Key for a full list of compatible tape lights. Compatible series include BLAZE™, BLAZE™ MINI, BLAZE™ X, BLAZE™ Colors, STREAMLITE™, STREAMLITE™ ECO, STREAMLITE™ RGBW, STREAMLITE™ Tunable White, STREAMLITE™ Warm Dim, VALENT®, VALENT® MINI, VALENT® X, and DAZZLE® Pixel series.

Where This Lens Works Best

• Large-scale cove and wall-grazing accent lighting
• Extended under-shelf and cabinet lighting runs
• Hospitality, retail, and commercial display lighting
• Architectural millwork and trim lighting across long continuous runs
• High-volume contractor and multi-unit residential installations

What's Included

• 65.6 ft. (20 m) Classic Frosted Roll-On Lens roll

Technical Ratings

• Light Loss: ~20%
• CCT Shift: -40K
• Beam Angle: 120°
• IP Rating Shift: IP20
• Certifications: UL Listed (E469769 UL Listed 2108, UL 1598 / CSA 250.0-08, UL 8750, UL 879 / CAN/CSA-C22.2 no. 207-M89) when installed with compatible UL-listed tape light
• Warranty: 5-Year Limited Warranty
