Diode LED Roll-On Classic Frosted Lens — 16.4 ft. | Compatible with Slim, Square & 45° Channels

The Diode LED DI-CPCHC-RLFR-16 is a 16.4 ft. (5 m) roll of Classic Frosted Roll-On Lens designed for field-cut, custom-length installations across Diode LED SLIM, Square (SQ), and 45° LED tape light channels. This flexible lens rolls directly onto compatible channels, delivering smooth, even light diffusion that reduces hotspots and creates a clean, refined output — ideal for residential, hospitality, and commercial architectural lighting applications.

Key Features

• Length: 16.4 ft. (5 m) roll — cut to any required length on-site.
• Lens Type: Classic Frosted Roll-On Lens for smooth, even light diffusion.
• Compatibility: Designed for use with Diode LED SLIM, Square (SQ), and 45° profile channels.
• Light Loss: Approximately 20% light loss.
• CCT Shift: -40K color temperature shift.
• Beam Angle: 120°.
• IP Rating Shift: IP20 when installed.
• Installation: Roll-on design for fast, tool-free field installation — no clips or fasteners required.
• Warranty: 5-Year Limited Warranty.

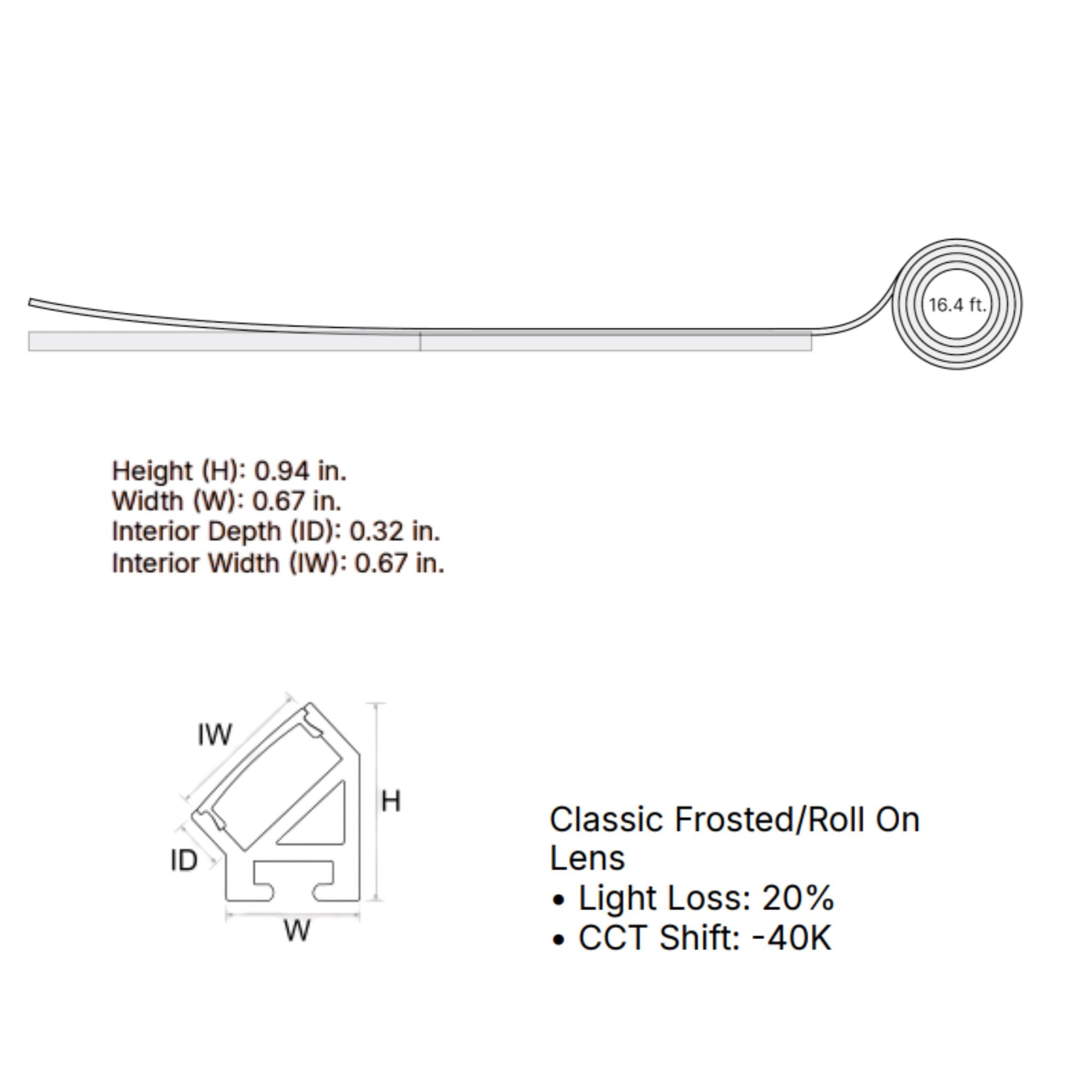

Lens & Light Performance

The Classic Frosted Roll-On Lens delivers approximately 20% light loss with a CCT shift of -40K, producing a smooth, softened output that reduces visible hotspots and glare across the channel run. The 120° beam angle ensures broad, even light distribution. Refer to the Diffusion Key in the product spec sheet for specific compatible tape light and channel pairings.

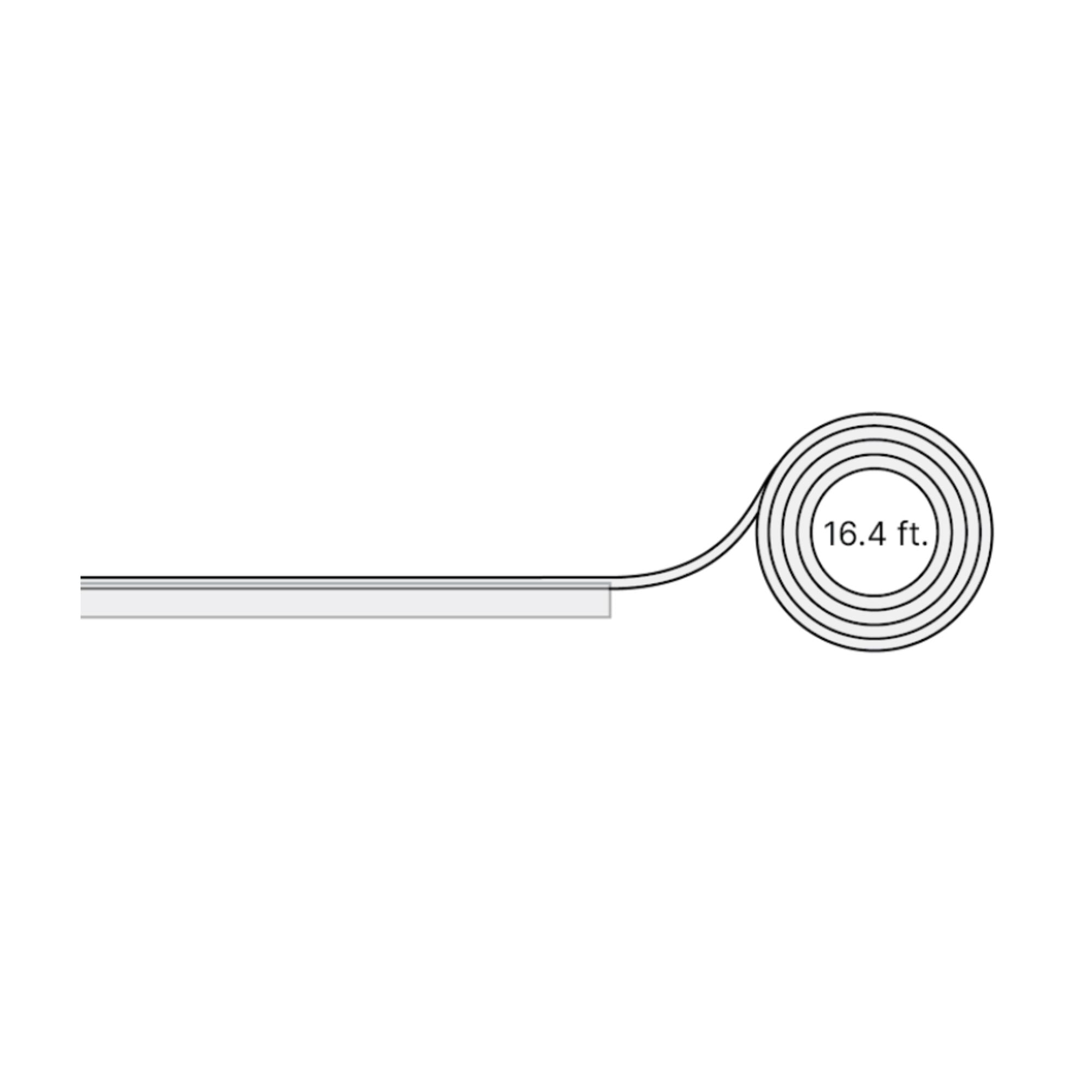

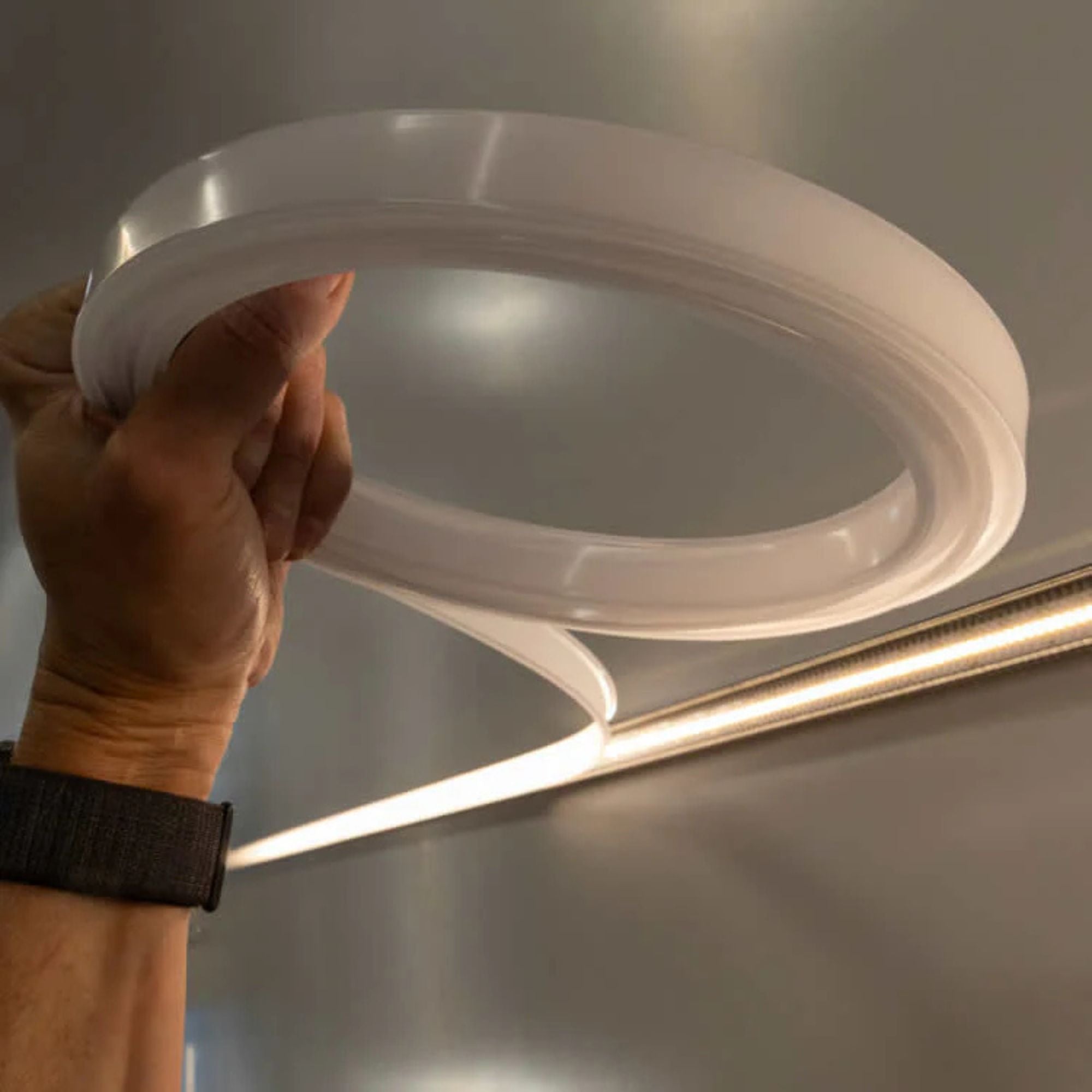

Roll-On Design

The flexible roll-on format allows the lens to be cut to any custom length directly on-site, eliminating waste and simplifying installation across continuous or segmented channel runs. Compatible with Diode LED SLIM, Square (SQ), and 45° channel profiles — including the CPCHB-45 series.

Compatible Channels

• Diode LED SLIM Series Channels
• Diode LED Square (SQ) Series Channels
• Diode LED 45° Series Channels (CPCHB-45)

Compatible Tape Lights

Refer to the Classic Frosted Lens Technical Data and Diffusion Key for a full list of compatible tape lights. Compatible series include BLAZE™, BLAZE™ MINI, BLAZE™ X, BLAZE™ Colors, STREAMLITE™, STREAMLITE™ ECO, STREAMLITE™ RGBW, STREAMLITE™ Tunable White, STREAMLITE™ Warm Dim, VALENT®, VALENT® MINI, VALENT® X, and DAZZLE® Pixel series.

Where This Lens Works Best

• Custom-length cove and wall-grazing accent lighting
• Under-shelf and cabinet lighting requiring field-cut lens
• Hospitality and retail display lighting
• Architectural millwork and trim lighting
• Commercial and residential interior applications

What's Included

• 16.4 ft. (5 m) Classic Frosted Roll-On Lens roll

Technical Ratings

• Light Loss: ~20%
• CCT Shift: -40K
• Beam Angle: 120°
• IP Rating Shift: IP20
• Certifications: UL Listed (E469769 UL Listed 2108, UL 1598 / CSA 250.0-08, UL 8750, UL 879 / CAN/CSA-C22.2 no. 207-M89) when installed with compatible UL-listed tape light
• Warranty: 5-Year Limited Warranty
