Diode LED 45-Series Under Cabinet Channel — White Finish & 45° Angled Profile | Pack of 10

The Diode LED DI-CPCHB-45-96W-10 is a contractor and commercial-grade bulk pack of 10 white 45-degree angled channels, each measuring 96 in. in length. Engineered for large-scale installations where a clean white finish is essential — from white shaker kitchens and hospitality millwork to retail display cases and architectural cove runs — this pack delivers consistent, professional-grade performance across every channel. The 45° angled profile directs light at a 120° beam angle, while the included Classic Frosted Lens diffuses tape light output for a smooth, even glow. Built from industrial-grade aluminum with a white finish that acts as a heat sink, cooling the tape light and extending its lifespan. UL Listed and backed by a 5-year limited warranty.

Key Features

• Pack Quantity: Includes 10 individual 96 in. channels for large-scale or commercial installations.
• Length: Each channel measures 96 in. (8 ft.) for extended coverage runs.

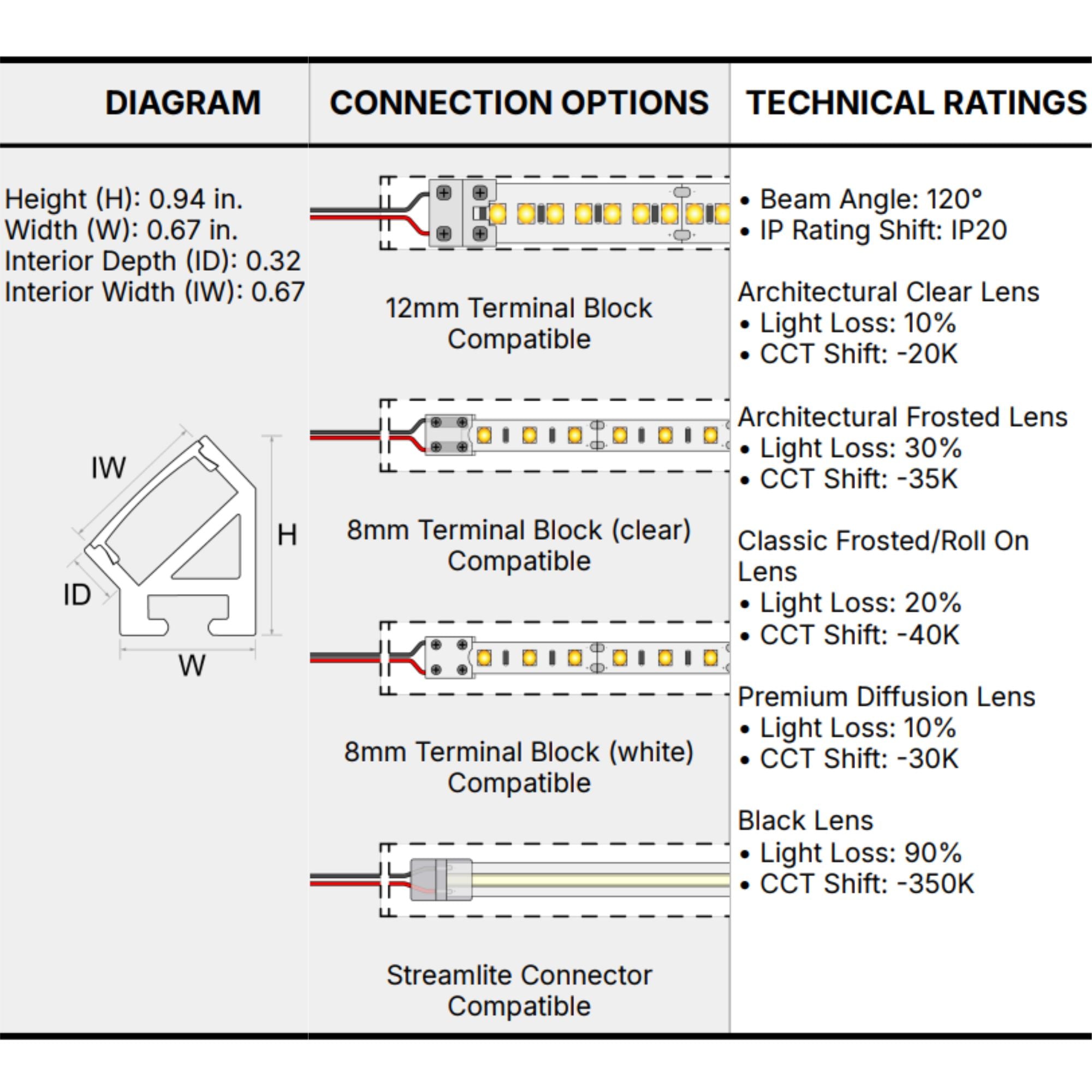

• Profile: 45° angled design — H: 0.94 in., W: 0.67 in., IW: 0.67 in., ID: 0.32 in.
• Material: Industrial-grade aluminum construction acts as a heat sink, cooling the LED tape light and prolonging its lifespan.
• Finish: White — also available in Aluminum and Black.
• Lens: Classic Frosted Lens included per channel — Light Loss: 20%, CCT Shift: -40K.
• Beam Angle: 120°.
• Location Rating: Suitable for indoor/damp or outdoor/wet locations, based on the tape light used.
• Tape Light Compatibility: Compatible with 12mm and 8mm terminal block tape lights and Streamlite connector tape lights.
• Mounting Options: Chromapath Surface Mount, Vertical Mount, Rotating Mount, and Hanging Mount.
• Certifications: UL Listed — E469769, UL 2108, UL 1598, CSA 250.0-08, UL 8750, UL 879, CAN/CSA-C22.2 no. 207-M89.
• Warranty: 5-year limited warranty.

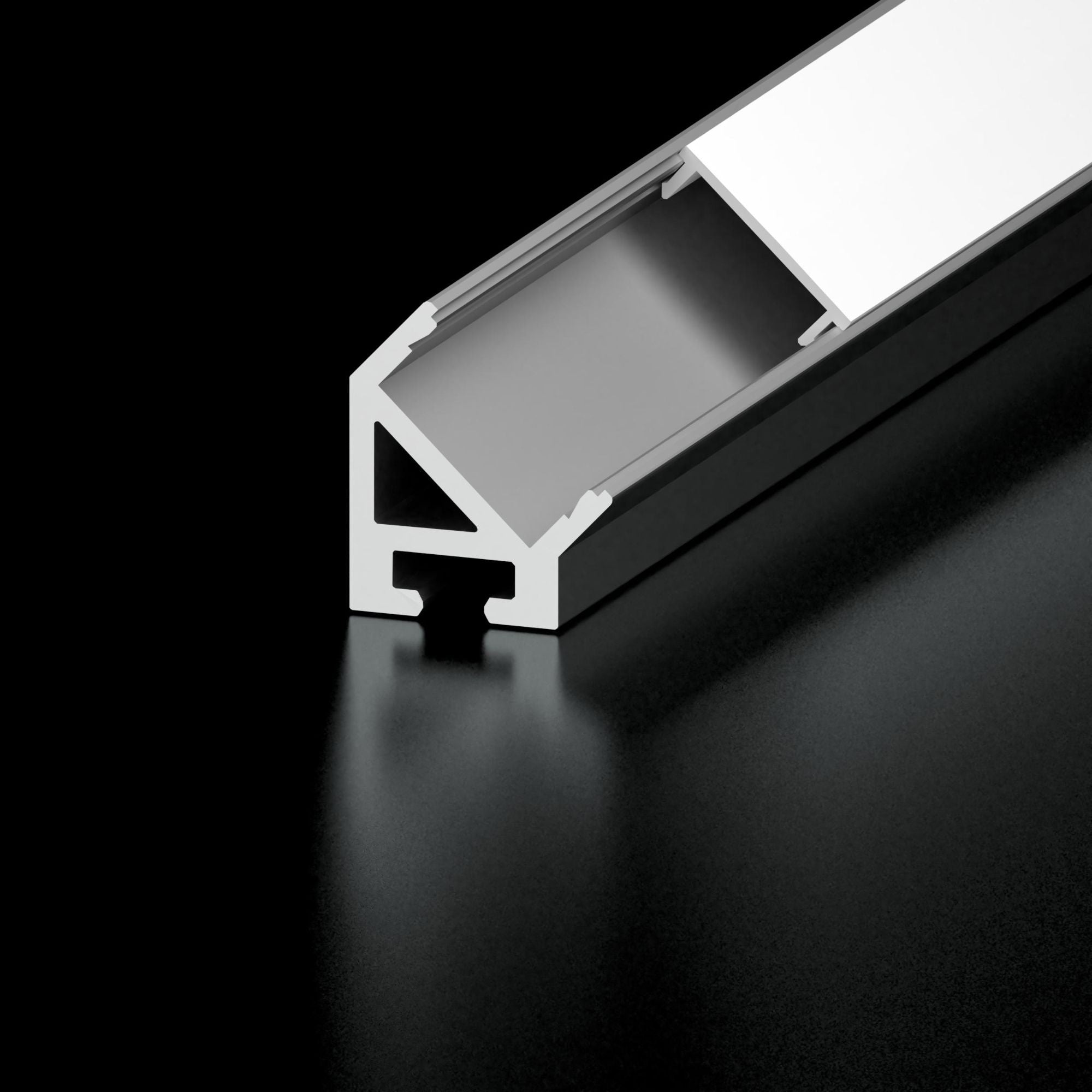

Core Design & Profile

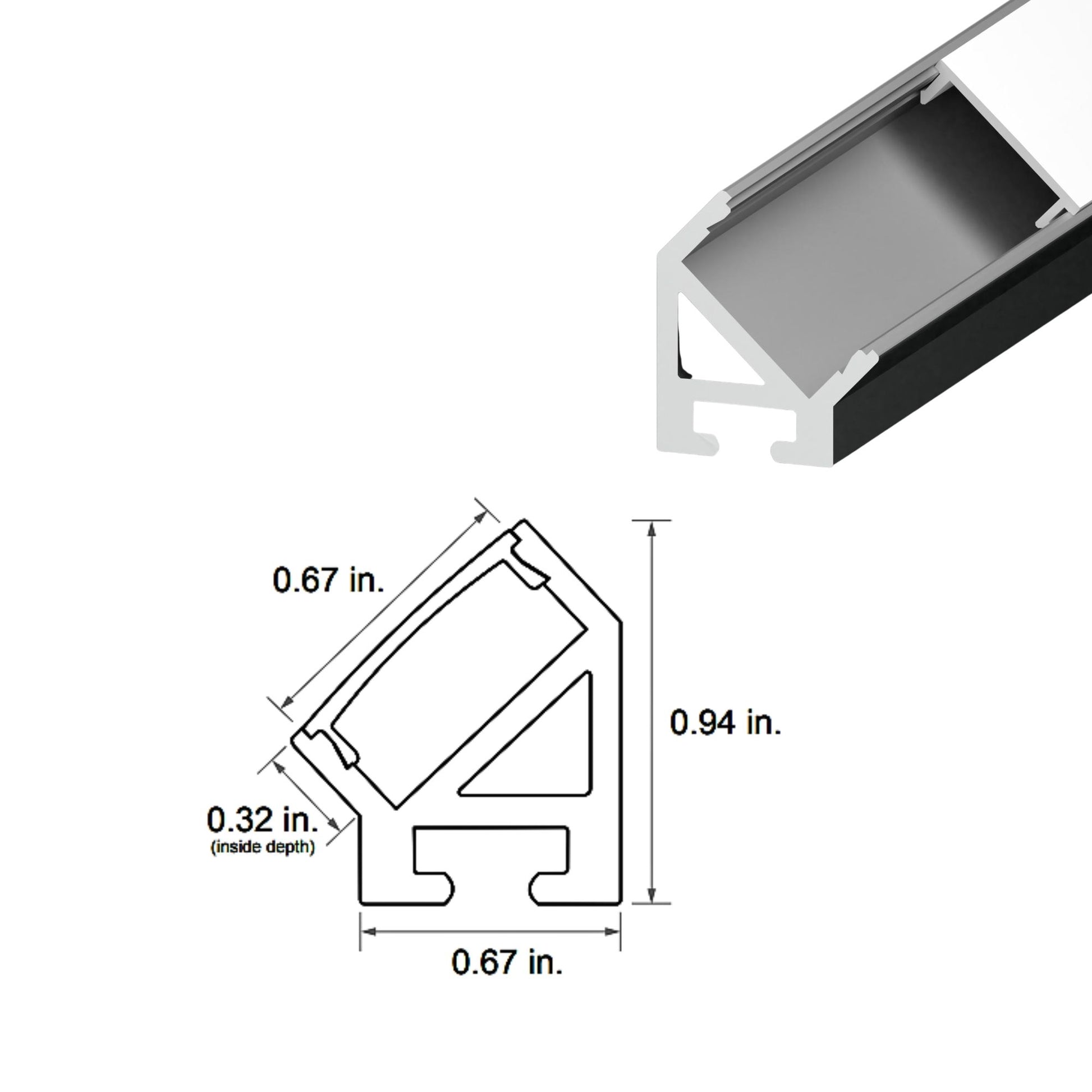

Each channel features a 45° angled profile measuring 0.94 in. in height and 0.67 in. in width, with an interior width of 0.67 in. and interior depth of 0.32 in. The white finish makes this pack the ideal choice for white shaker kitchens, bright living spaces, hospitality environments, and any installation where a clean, seamless look is the priority. Field and in-house cuttable to work with individual project specifications. Functions as a passive heat sink to protect your tape light investment. Location suitability (indoor/damp or outdoor/wet) is determined by the tape light engine used.

LED Illumination & Performance

The channels do not emit light on their own — they are engineered to house, protect, and optimize LED tape light performance. The 45° angled profile directs the beam at 120° for broad, even coverage. The Classic Frosted Lens reduces hot spots and provides a smooth, continuous light output. For dotless results, pair with high-density tape lights. Compatible with Architectural Frosted, Classic Frosted, Premium Diffusion, and Black lens options (sold separately).

Power, Wiring & Linkability

Each channel is compatible with 12mm terminal block, 8mm terminal block (clear and white), and Streamlite connector tape lights. Field-cuttable to fit custom installation lengths. Compatible with standard tape light power supplies, dimmers, and controllers. For extended runs, butt channels end-to-end for a seamless continuous installation.

Where This Pack Works Best

• White kitchen under-cabinet lighting installations
• Extended cove and accent lighting in hospitality and retail with white interiors
• Large residential projects requiring consistent white channel coverage

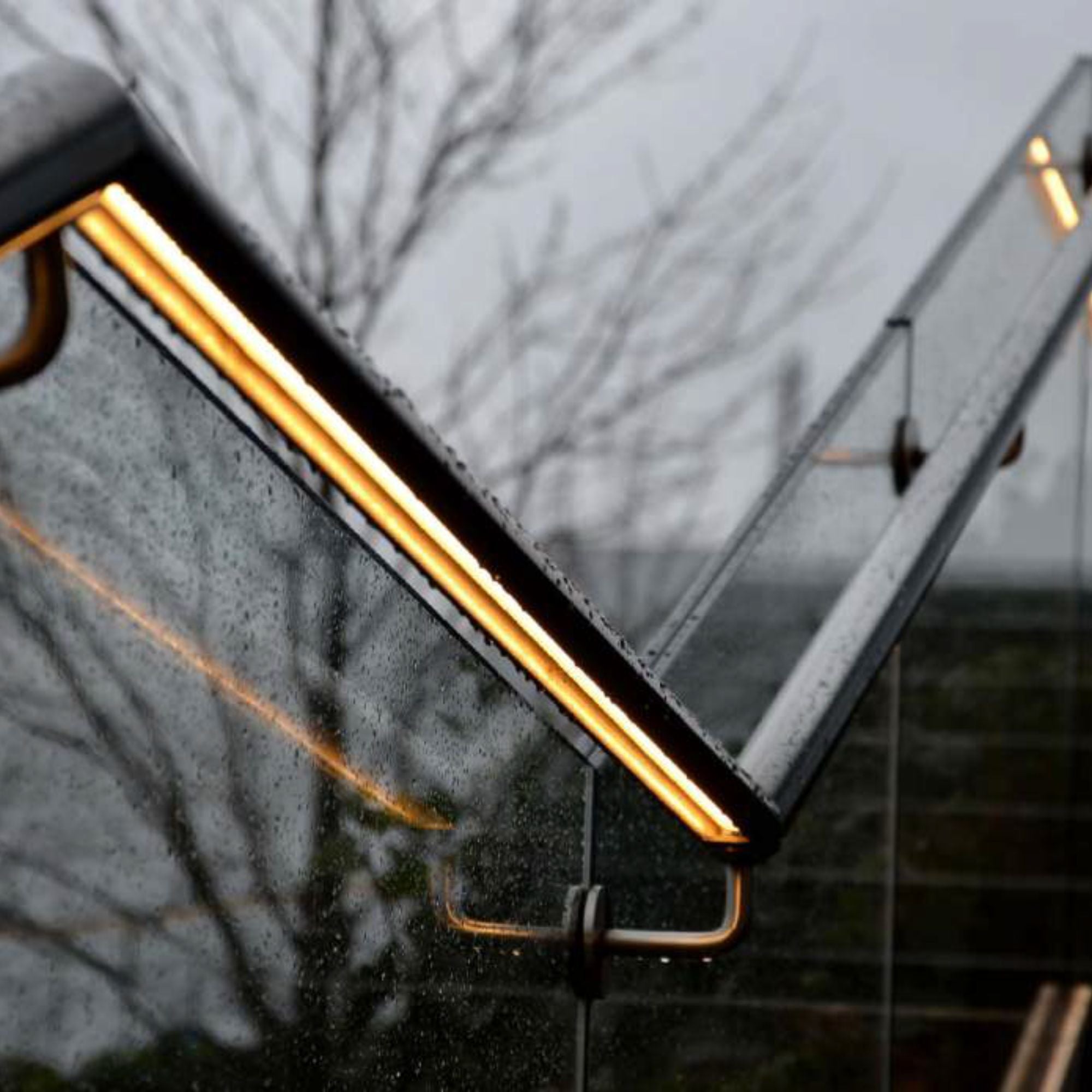

• Architectural and outdoor lighting applications (with wet-rated tape light)
• Contractor and wholesale bulk purchases for multi-room or multi-unit projects

What's Included (Per Channel)

• 96 in. white aluminum channel
• Classic Frosted Lens
• 2 open end caps
• 2 closed end caps
• 4 surface mounting clips

Pack contains 10 complete channel units, each with all accessories listed above.
