Diode LED 45-Series Under Cabinet Channel — Black Finish & 45° Angled Profile

The Diode LED DI-CPCHB-45-48B is a 48 in. black 45-degree angled under cabinet channel designed for modern, high-contrast LED tape light installations. The matte black finish integrates seamlessly into dark cabinetry, shelving, and architectural millwork, while the 45° angled profile directs light precisely at a 120° beam angle. The included Classic Frosted Lens diffuses tape light output for a smooth, even glow. Built from industrial-grade aluminum that acts as a heat sink — cooling the tape light and extending its lifespan — this channel is engineered for installations that demand both performance and style. UL Listed and backed by a 5-year limited warranty.

Key Features

• Length: 48 in. channel for standard under cabinet and accent lighting runs.
• Profile: 45° angled design — H: 0.94 in., W: 0.67 in., IW: 0.67 in., ID: 0.32 in.
• Material: Industrial-grade aluminum construction acts as a heat sink, cooling the LED tape light and prolonging its lifespan.
• Finish: Matte Black — also available in Aluminum and White.
• Lens: Classic Frosted Lens included — Light Loss: 20%, CCT Shift: -40K.
• Beam Angle: 120°.
• IP Rating: IP20 — suitable for dry and damp indoor locations.
• Tape Light Compatibility: Compatible with 12mm and 8mm terminal block tape lights and Streamlite connector tape lights.
• Mounting Options: Chromapath Surface Mount, Vertical Mount, Rotating Mount, and Hanging Mount.
• Certifications: UL Listed — E469769, UL 2108, UL 1598, CSA 250.0-08, UL 8750, UL 879, CAN/CSA-C22.2 no. 207-M89.
• Warranty: 5-year limited warranty.

Core Design & Profile

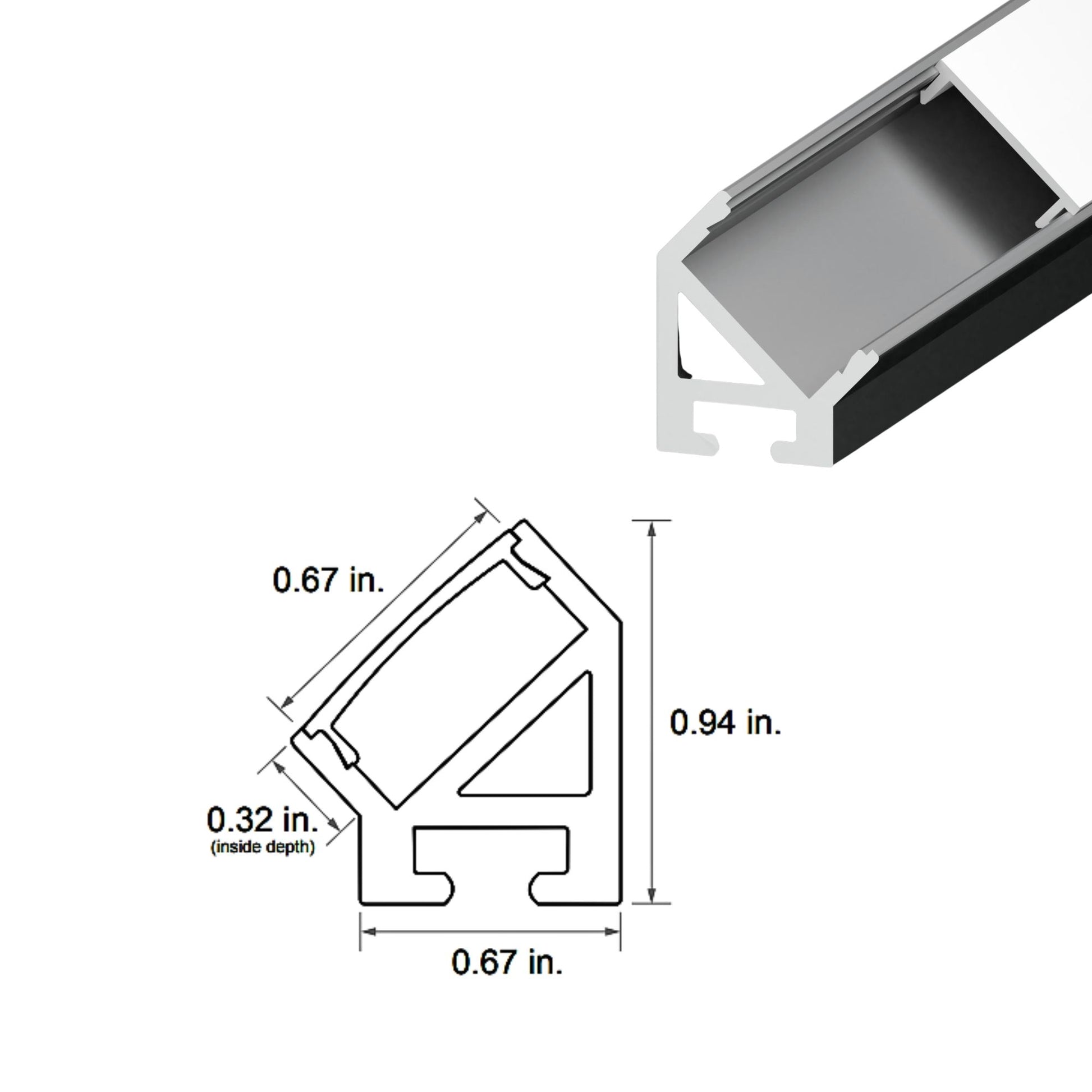

The 45° angled profile measures 0.94 in. in height and 0.67 in. in width, with an interior width of 0.67 in. and interior depth of 0.32 in. The matte black finish makes this channel the go-to choice for modern kitchens, hospitality bars, retail displays, and any installation where a bold, dark aesthetic is the design intent. The aluminum extrusion is field and in-house cuttable to work with individual project specifications, and functions as a passive heat sink to protect your tape light investment. The Classic Frosted Lens delivers a smooth, even output with a 20% light loss and -40K CCT shift.

LED Illumination & Performance

The DI-CPCHB-45-48B channel does not emit light on its own — it is engineered to house, protect, and optimize LED tape light performance. The 45° angled profile directs the beam at 120° for broad, even coverage. The Classic Frosted Lens reduces hot spots and provides a smooth light output. Compatible with Architectural Frosted, Classic Frosted, Premium Diffusion, and Black lens options (sold separately).

Power, Wiring & Linkability

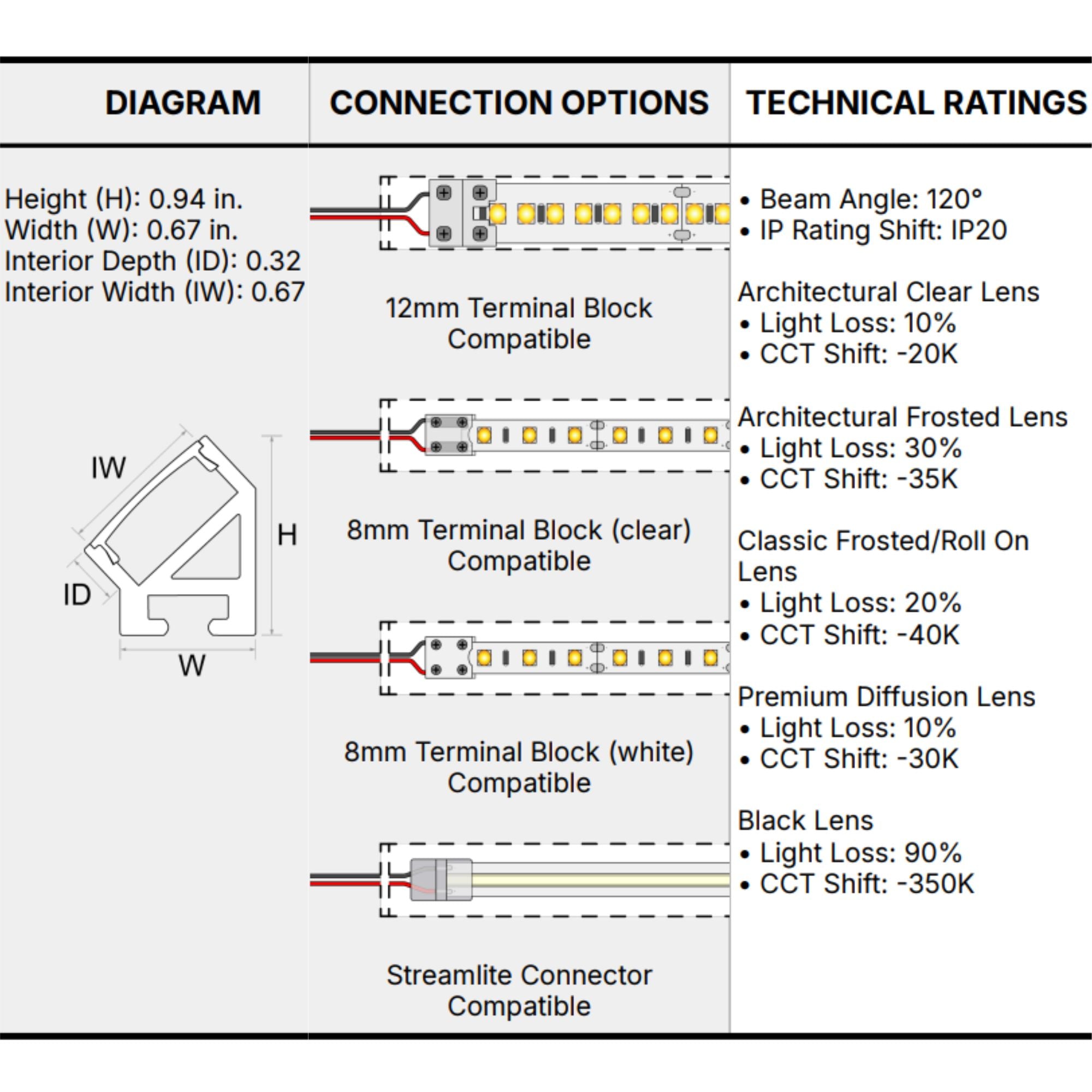

The channel is compatible with 12mm terminal block, 8mm terminal block (clear and white), and Streamlite connector tape lights. Field-cuttable to fit custom installation lengths. Compatible with standard tape light power supplies, dimmers, and controllers.

Where This Channel Works Best

• Dark-finish kitchen under cabinet lighting
• Hospitality bars, restaurants, and retail displays with modern aesthetics
• Cove and accent lighting in living areas with dark trim or millwork
• Closet and wardrobe lighting (NEC 410.16 approved)

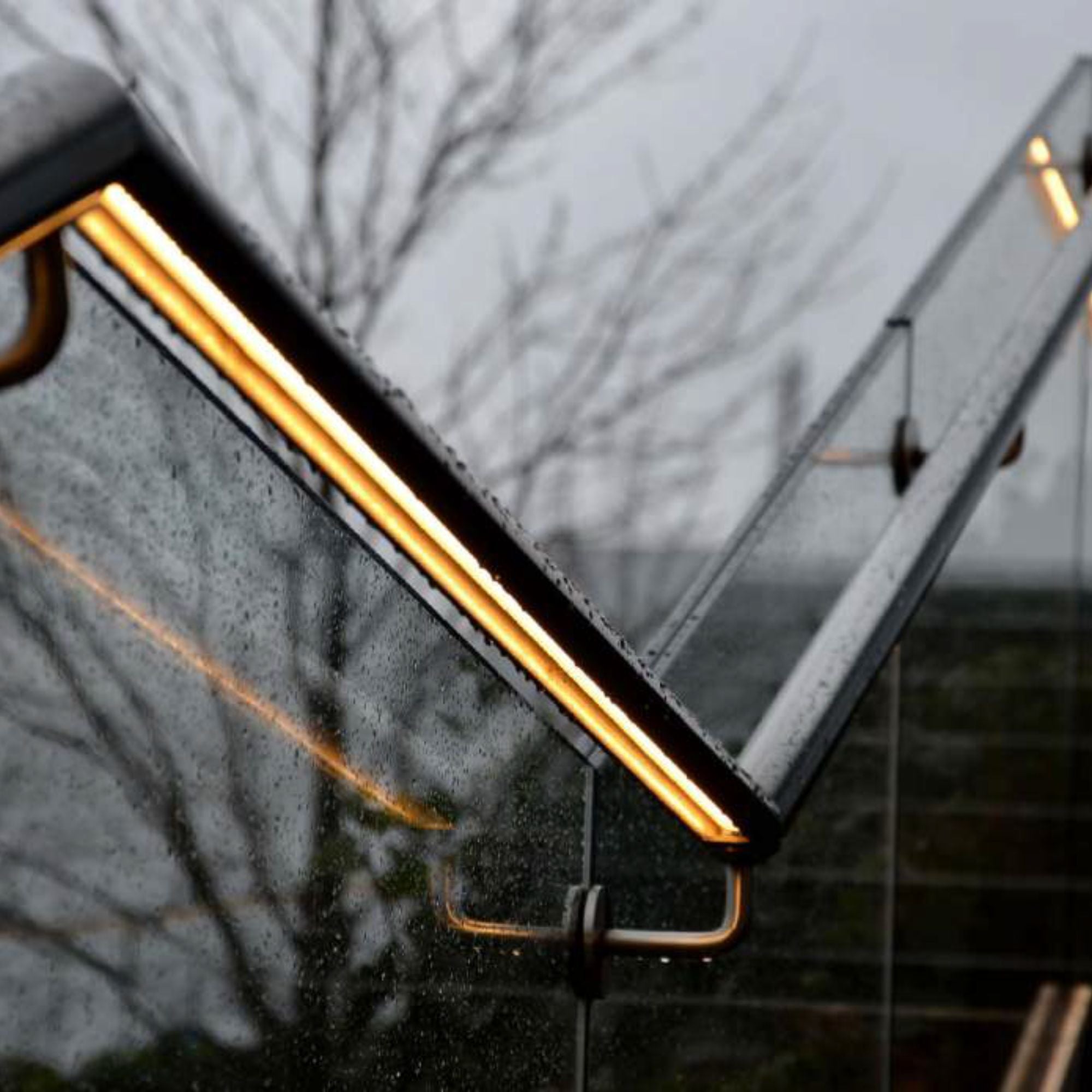

• Staircase, hallway, and architectural accent lighting

What's Included

• 48 in. black aluminum channel
• Classic Frosted Lens
• 1 open end cap
• 1 closed end cap
• 4 surface mounting clips
