Diode LED 45-Series Under Cabinet Channel — Aluminum & 45° Angled Profile

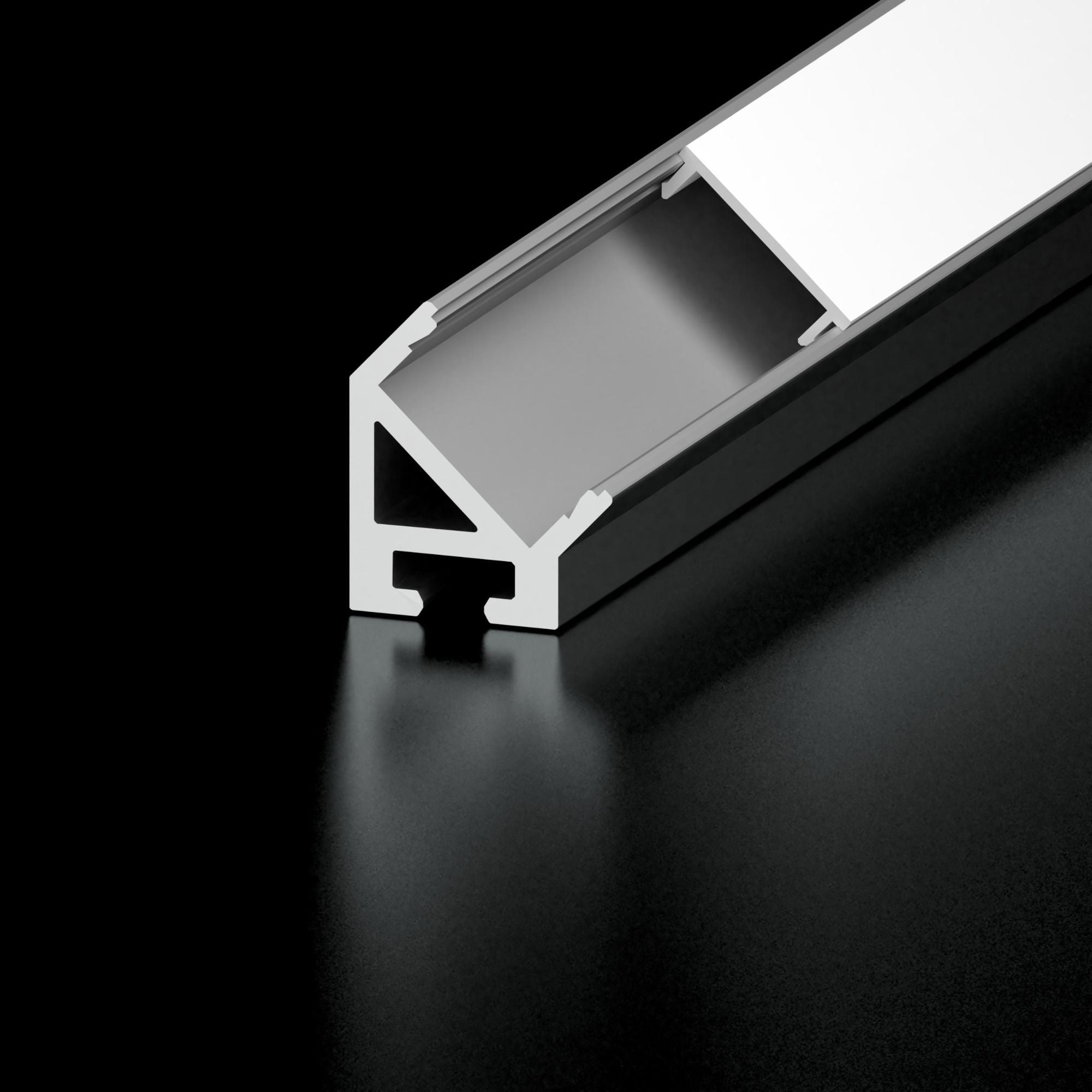

The Diode LED DI-CPCHB-45-48 is a 48 in. aluminum 45-degree angled under cabinet channel designed for versatile, professional LED tape light installations. The sturdy angled profile directs light precisely where it's needed, while the included Classic Frosted Lens diffuses tape light output for a smooth, even glow with minimal hot spots. Built from industrial-grade aluminum that acts as a heat sink — cooling the tape light and extending its lifespan — this channel is engineered for installations that demand both performance and longevity. UL Listed and backed by a 5-year limited warranty.

Key Features

• Length: 48 in. channel for standard under cabinet and accent lighting runs.

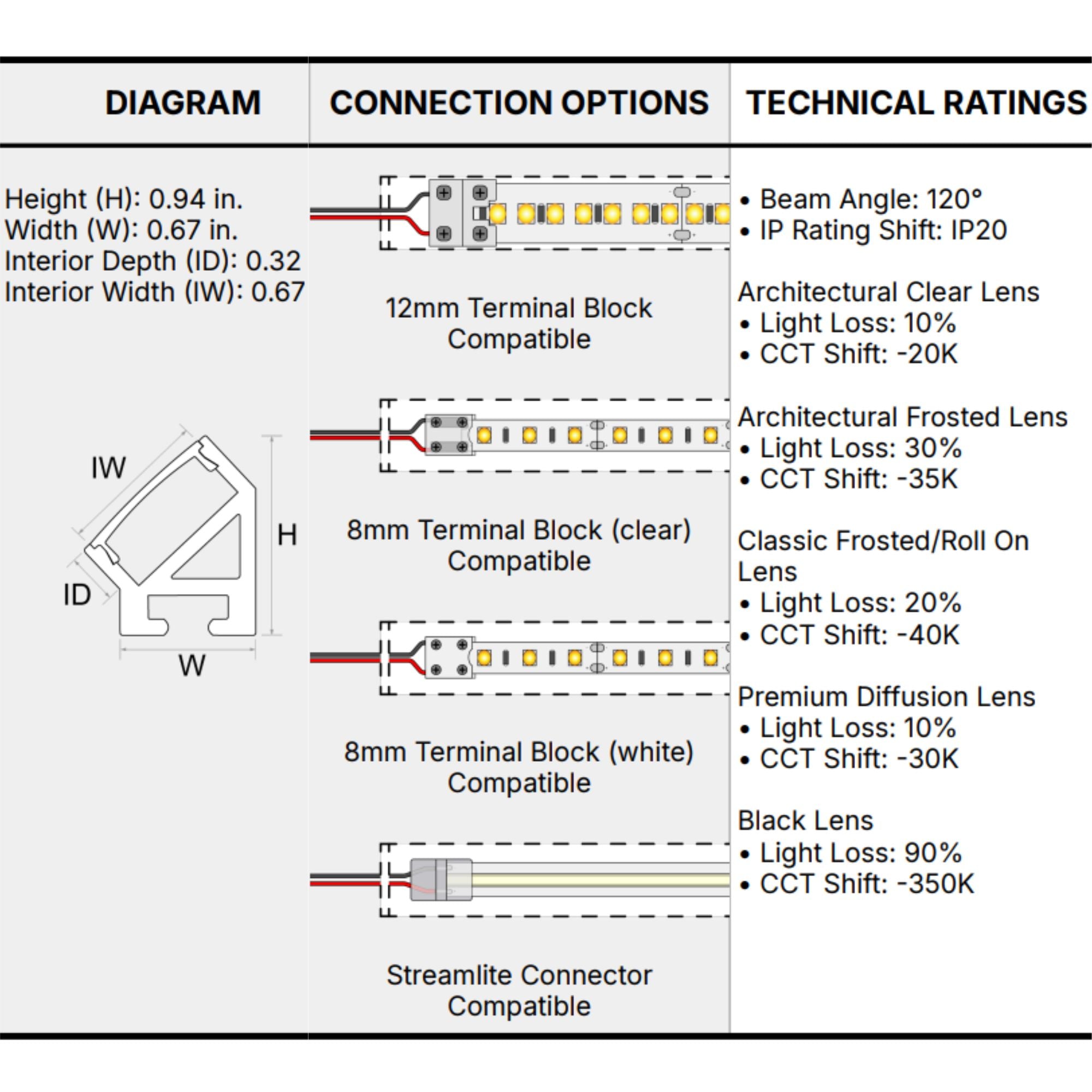

• Profile: 45° angled design — H: 0.94 in., W: 0.67 in., IW: 0.67 in., ID: 0.32 in.
• Material: Industrial-grade aluminum construction acts as a heat sink, cooling the LED tape light and prolonging its lifespan.
• Finish: Aluminum — also available in Black and White.
• Lens: Classic Frosted Lens included — Light Loss: 20%, CCT Shift: -40K.
• Beam Angle: 120°.
• IP Rating: IP20 — suitable for dry and damp indoor locations.
• Tape Light Compatibility: Compatible with 12mm and 8mm terminal block tape lights and Streamlite connector tape lights.
• Mounting Options: Chromapath Surface Mount, Vertical Mount, Rotating Mount, and Hanging Mount.
• Certifications: UL Listed — E469769, UL 2108, UL 1598, CSA 250.0-08, UL 8750, UL 879, CAN/CSA-C22.2 no. 207-M89.
• Warranty: 5-year limited warranty.

Core Design & Profile

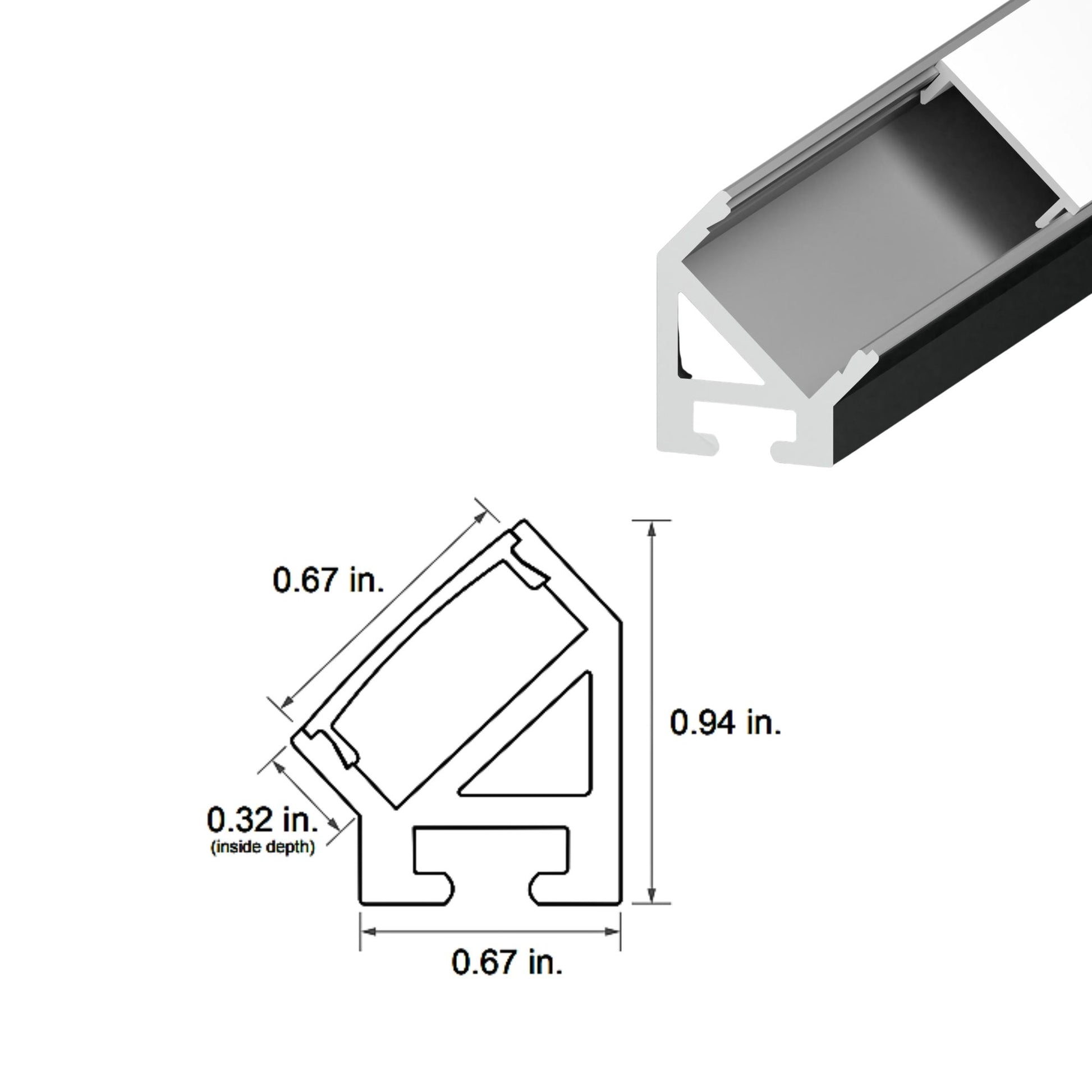

The 45° angled profile measures 0.94 in. in height and 0.67 in. in width, with an interior width of 0.67 in. and interior depth of 0.32 in. — purpose-built to angle light downward from under cabinets, shelving, or cove installations. The aluminum extrusion is field and in-house cuttable to work with individual project specifications, and functions as a passive heat sink to protect your tape light investment from heat degradation. The Classic Frosted Lens delivers a semi-diffused output with a 20% light loss and -40K CCT shift, ideal for applications where a soft, even glow is preferred over full runway diffusion.

LED Illumination & Performance

The DI-CPCHB-45-48 channel does not emit light on its own — it is engineered to house, protect, and optimize LED tape light performance. The 45° angled profile directs the beam at 120° for broad, even coverage. The Classic Frosted Lens reduces hot spots and provides a smooth light output. For dotless results, pair with high-density tape lights. Compatible with Architectural Frosted, Classic Frosted, Premium Diffusion, and Black lens options (sold separately).

Power, Wiring & Linkability

The channel is compatible with 12mm terminal block, 8mm terminal block (clear and white), and Streamlite connector tape lights. It does not include integrated wiring or linkability features. The channel is field-cuttable to fit custom installation lengths. Compatible with standard tape light power supplies, dimmers, and controllers.

Where This Channel Works Best

• Under cabinet lighting in kitchens and bathrooms
• Cove and accent lighting in living areas and hospitality spaces
• Retail display and commercial shelf lighting
• Closet and wardrobe lighting (NEC 410.16 approved)

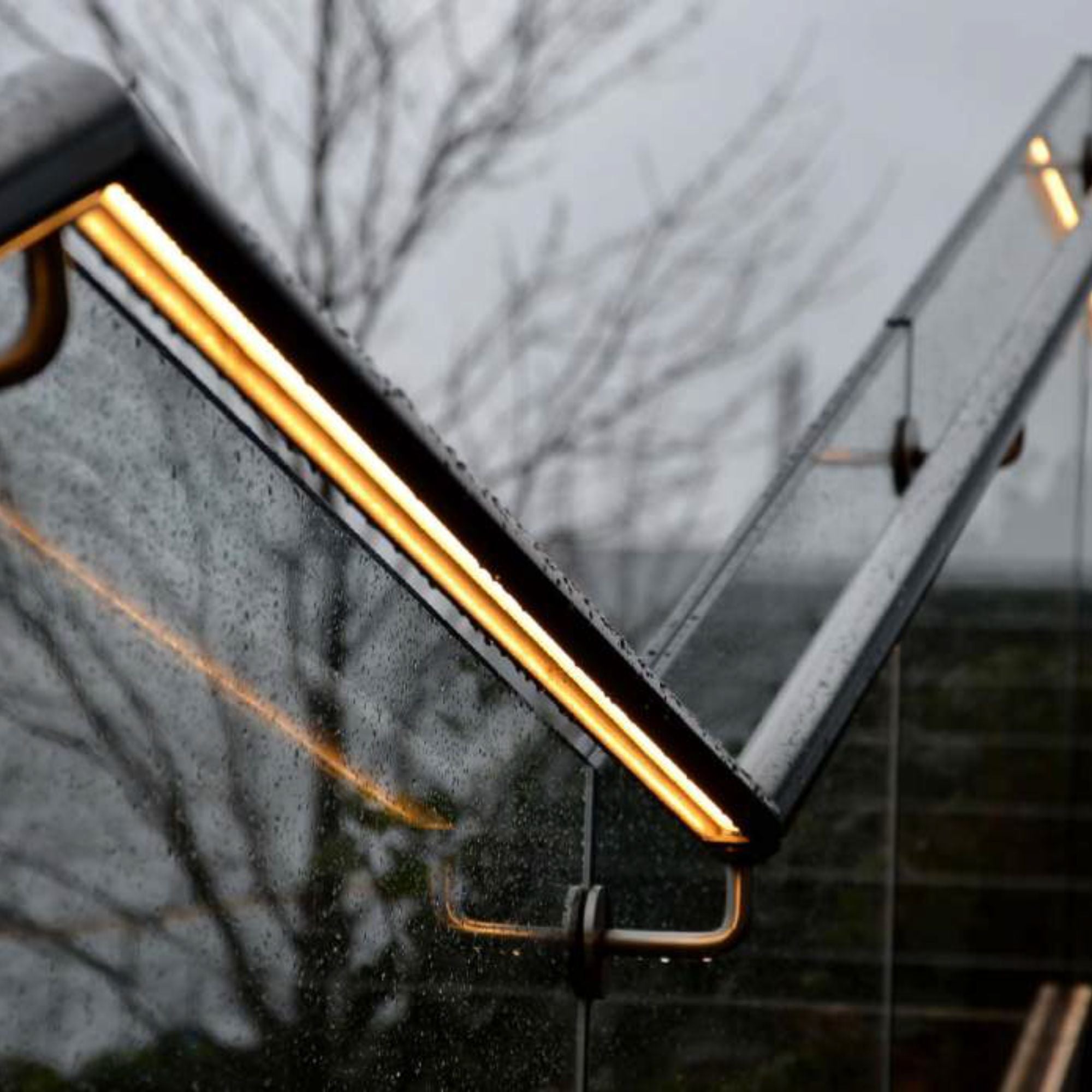

• Staircase, hallway, and millwork accent lighting

What's Included

• 48 in. aluminum channel
• Classic Frosted Lens
• 1 open end cap
• 1 closed end cap
• 4 surface mounting clips
