Diode LED 45° Channel Bundle | 48 in. & 96 in. | Aluminum, White & Black | Multiple Lens Options
Available in stock (200)
-
Estimated delivery: Jul 14 - Jul 20
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

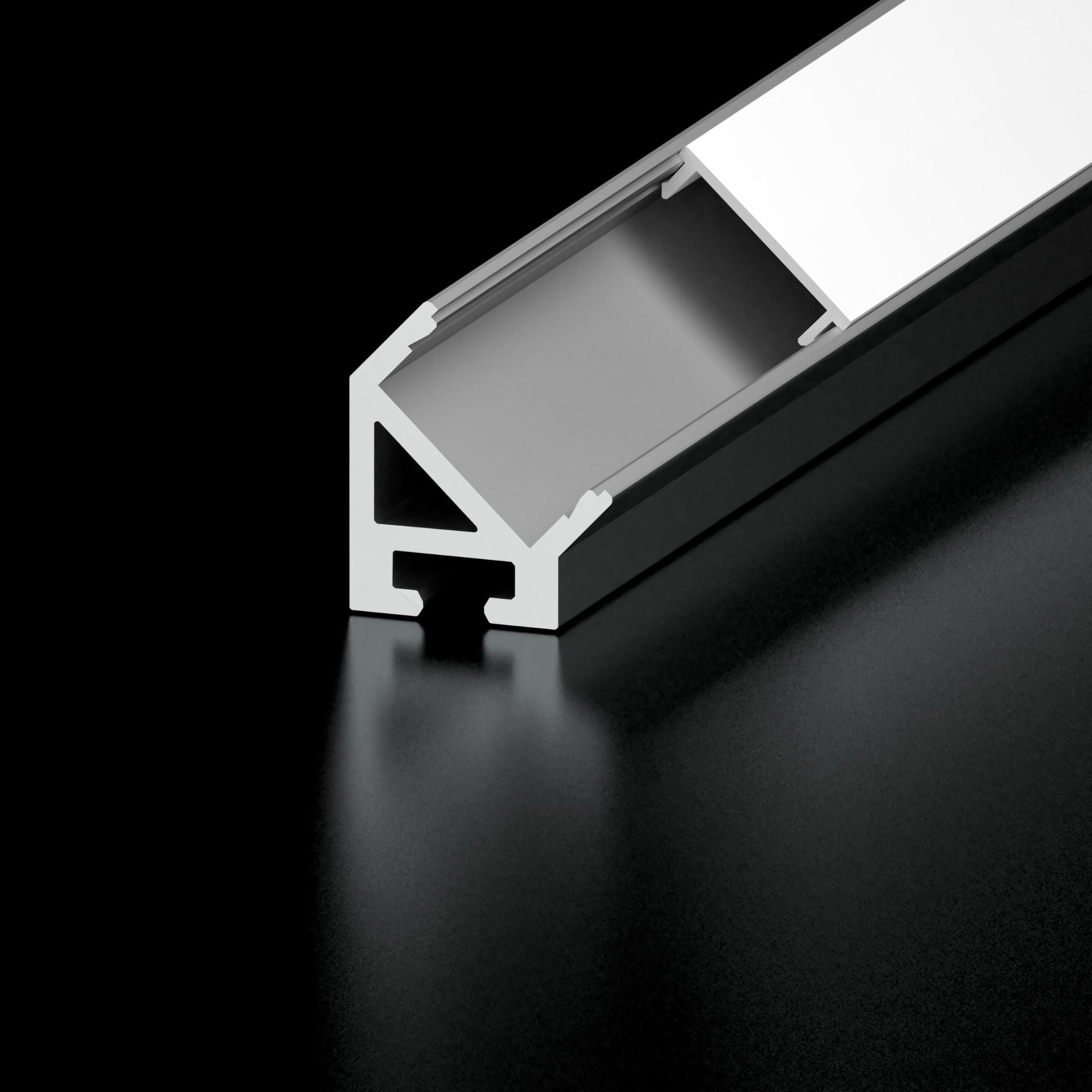

Diode LED 45° Channel Bundle — Available in 48 in. & 96 in. | Aluminum, White & Black | Multiple Lens Options
The Diode LED CPCHB-45 Series is a 45° angled channel bundle system engineered for architectural and accent lighting applications across residential, hospitality, and commercial environments. Built from industrial-grade aluminum extrusions, each channel features a sturdy angled profile that acts as a heat sink — cooling your LED tape light and extending its operational lifespan. Available in 48 in. single units and 96 in. contractor packs of 10, in three finishes and five lens options to match any design intent and light output requirement.
Available Lengths
- 48 in. — Single unit, ideal for individual runs and custom installations.
- 96 in. (Pack of 10) — Contractor pack for large-scale, high-volume projects.
Available Finishes

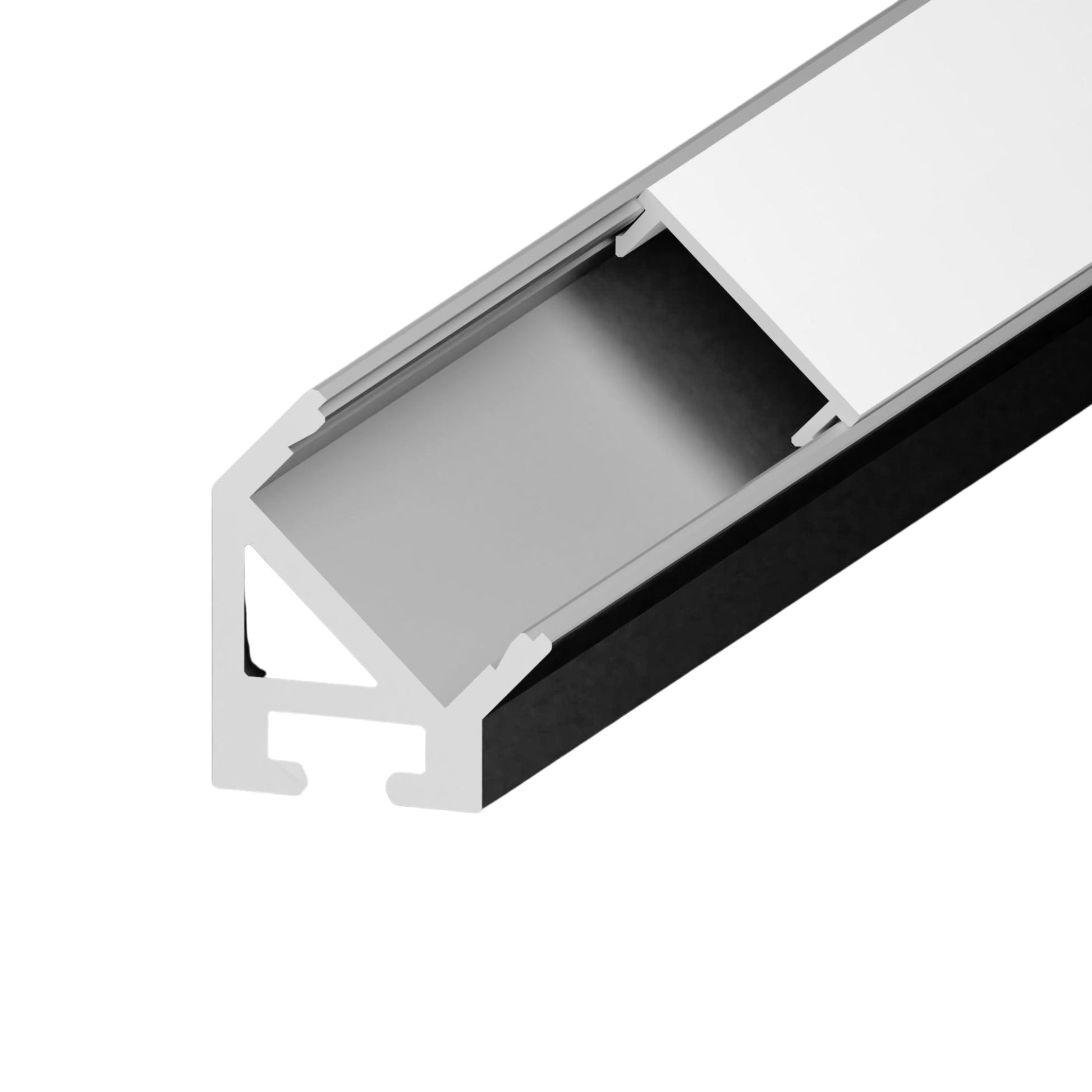

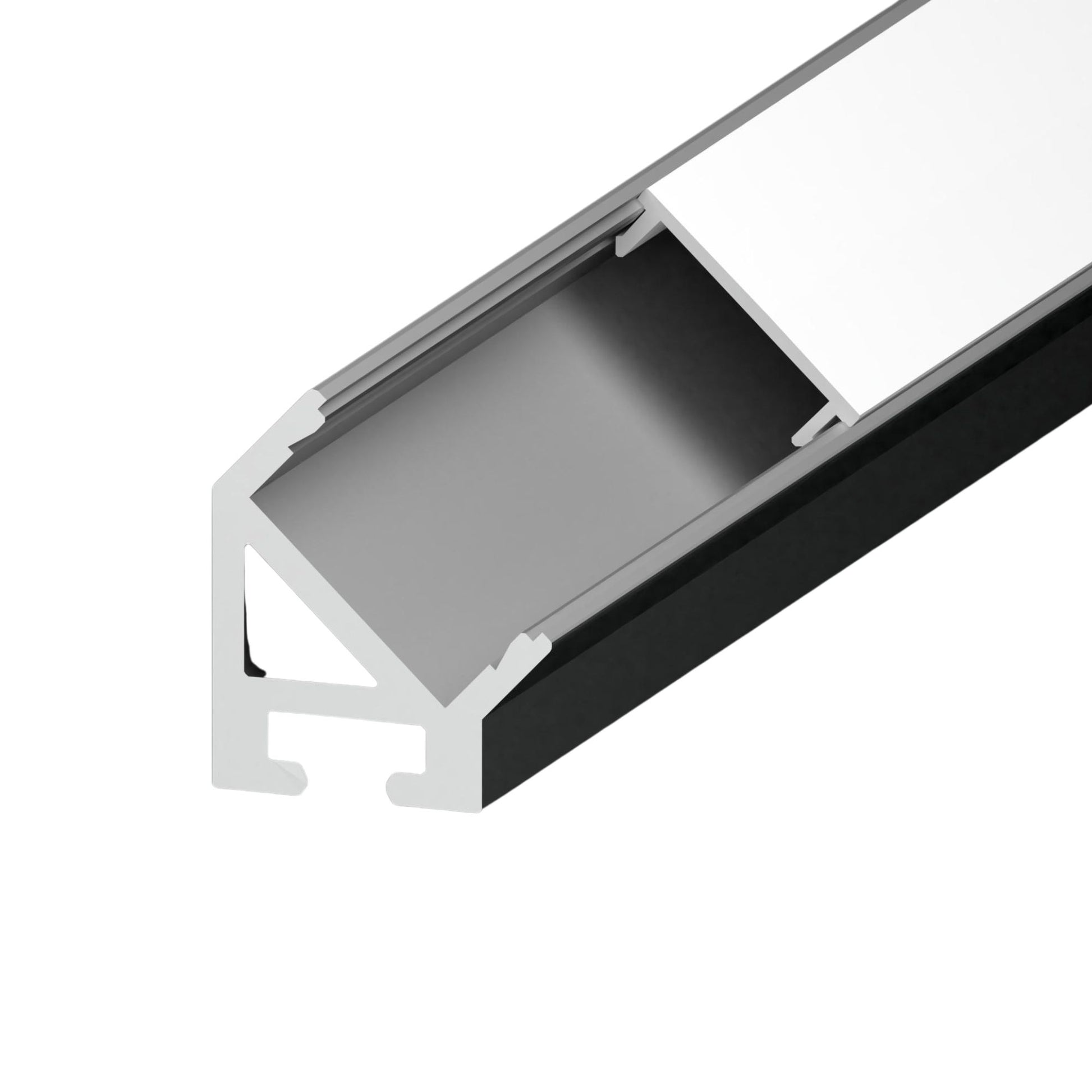

- Aluminum — Classic metallic finish for versatile, neutral installations.
- White (W) — Clean powder-coat finish for seamless integration into white ceilings, walls, and millwork.

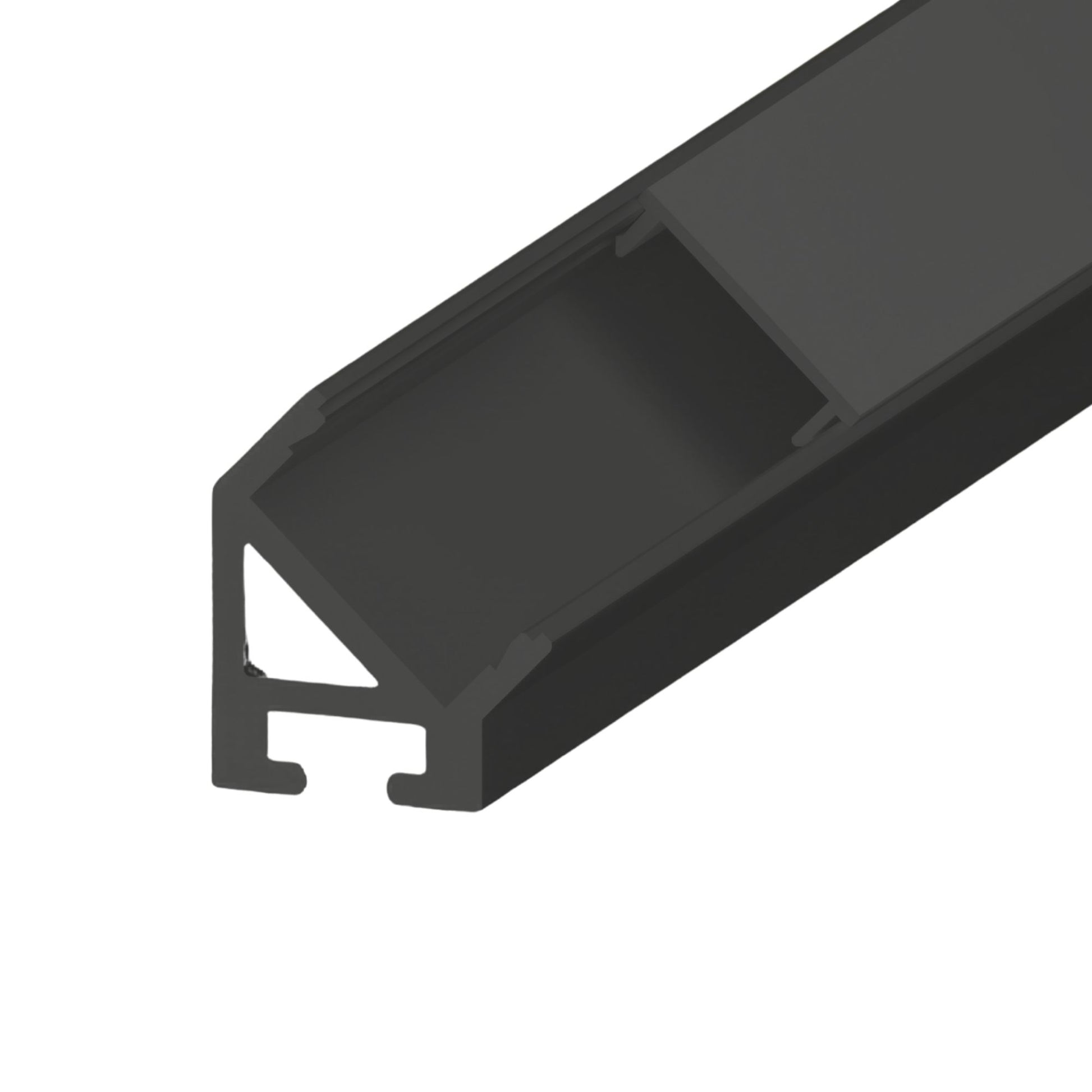

- Black (B) — Bold powder-coat finish for dark architectural environments or striking contrast applications.
Available Lens Options
- Classic Frosted Lens (CLT) — Smooth, even diffusion. Light loss: ~30% | CCT Shift: -35K | Beam Angle: 120°.
- Architectural Clear Lens (CLT) — Near-transparent output preserving natural color temperature. Light loss: ~10% | CCT Shift: -20K | Beam Angle: 120°.
- Architectural Frosted Lens (FRT) — Refined diffusion reducing hotspots and glare. Light loss: ~30% | CCT Shift: -35K | Beam Angle: 120°.
- Premium Diffusion Lens (PD) — Superior uniform diffusion with minimal light loss. Light loss: ~10% | CCT Shift: -30K | Beam Angle: 120°.
- Black Lens (BL) — Maximum glare suppression for fully concealed tape light source. Light loss: ~90% | CCT Shift: -350K | Beam Angle: 120°.
Core Design & Profile

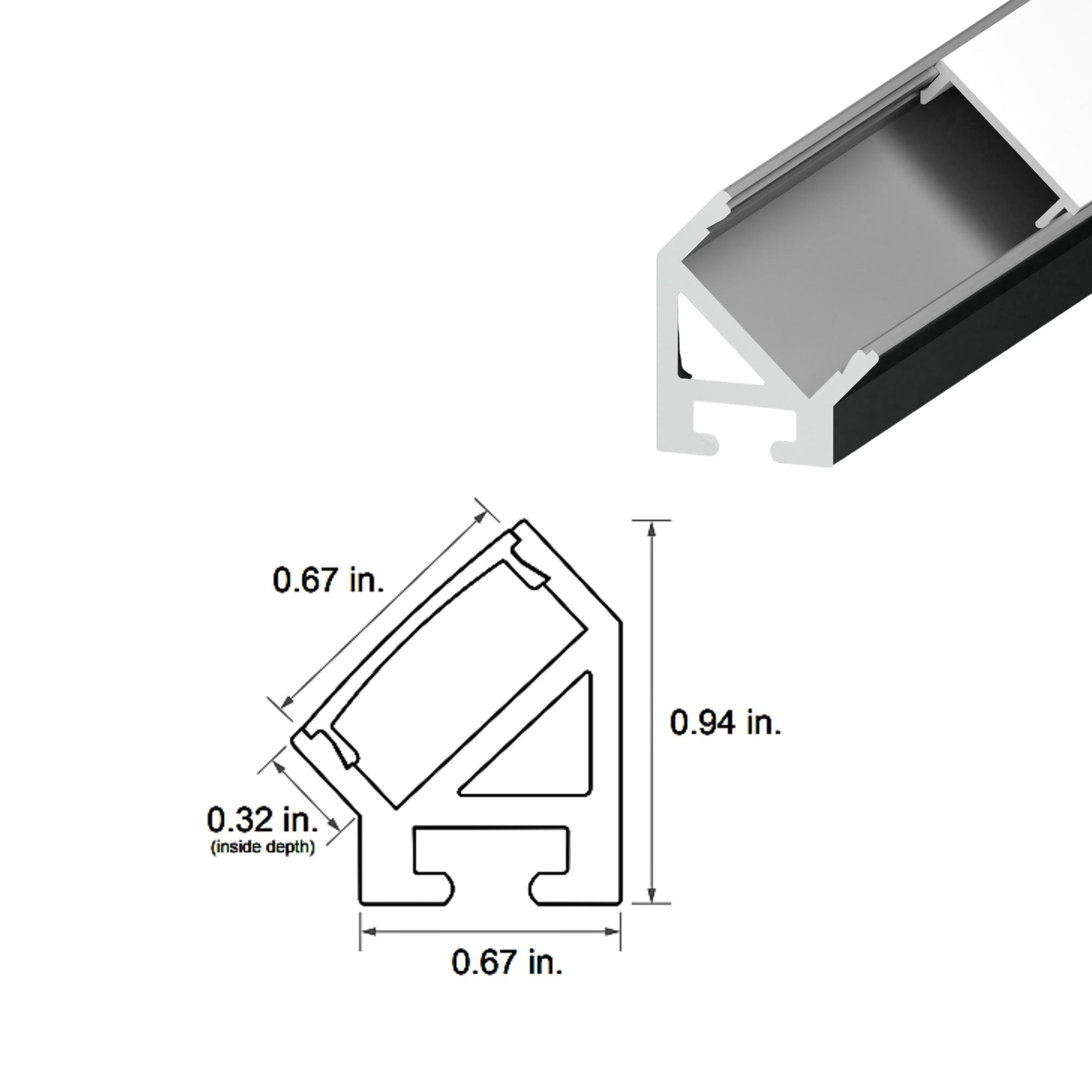

The 45° channel features a height of 0.94 in., width of 0.67 in., and interior depth of 0.32 in. Its angled profile is ideal for wall-grazing, cove lighting, under-shelf accent applications, and architectural millwork. The field-cuttable design allows on-site trimming to any required length. The aluminum construction acts as a passive heat sink, cooling the tape light to extend its lifespan and protect your LED investment from dust and debris.
Connection & Compatibility

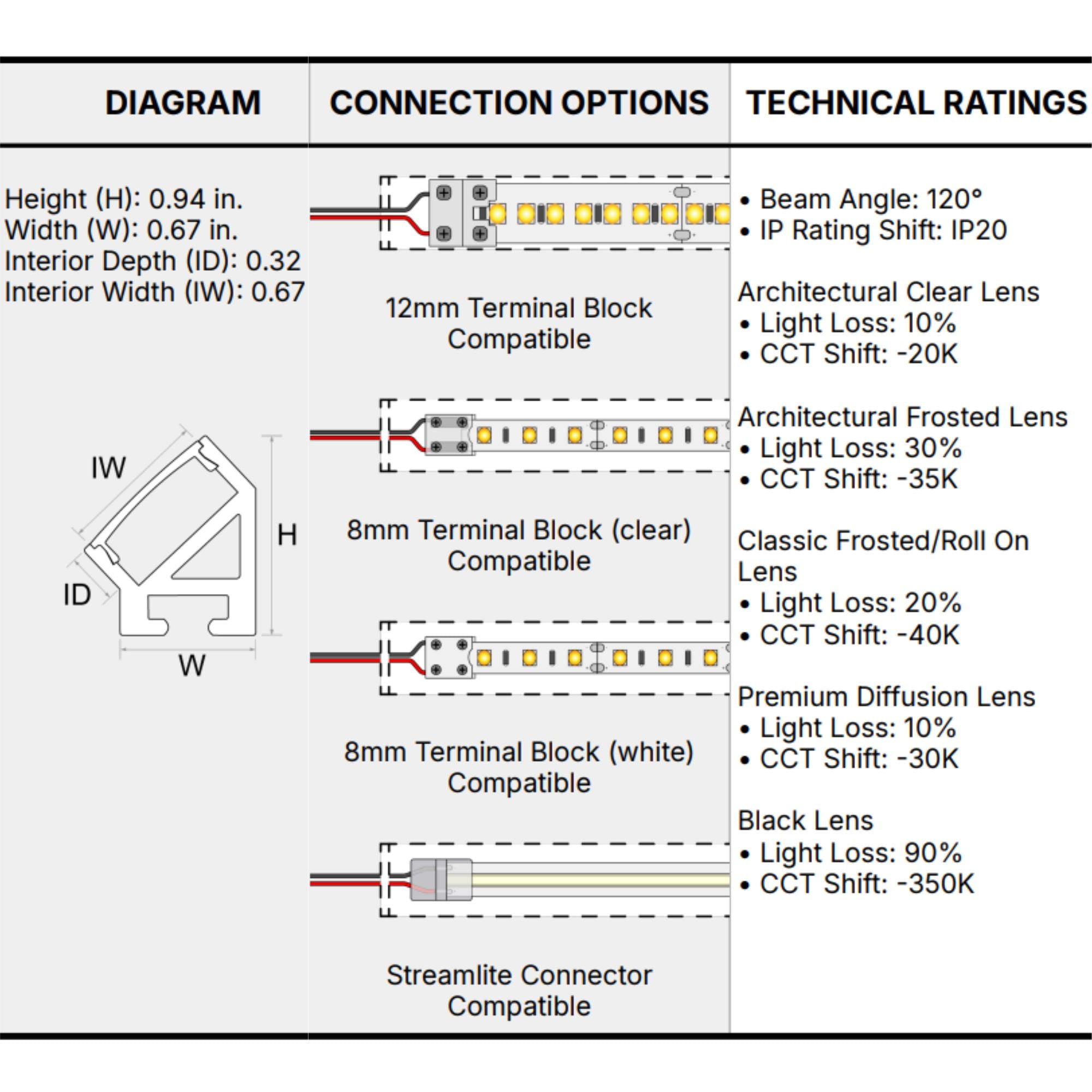

Compatible with 12mm Terminal Block connections and Streamlite Connectors. Works with both 8mm Terminal Block (clear and white) configurations. Suitable for use with a wide range of Diode LED tape lights including BLAZE™, BLAZE™ MINI, BLAZE™ X, BLAZE™ Colors, STREAMLITE™, STREAMLITE™ ECO, STREAMLITE™ RGBW, STREAMLITE™ Tunable White, STREAMLITE™ Warm Dim, VALENT®, VALENT® MINI, VALENT® X, and DAZZLE® Pixel series. Refer to the Diffusion Key for specific tape light and lens pairings.
Mounting Options
- Chromapath Surface Mount — 1 × 0.67 in. (H × W)
- Vertical Mount — 1 × 0.67 in. (H × W)
- Rotating Mount — 2.32 × 0.67 in. (H × W)
- Hanging Mount — 1.9 × 0.67 in. (H × W)
What's Included
- 48 in. units: Channel, lens, 4 mounting clips, 1 open end cap, 1 closed end cap.
- 96 in. Pack of 10: 10 × channel, lens, 4 mounting clips, 2 open end caps, 2 closed end caps per channel.
Technical Ratings
- IP Rating Shift: IP20 (with lens installed)
- Certifications: UL Listed (when installed with compatible UL-listed tape light)
- Warranty: 5-Year Limited Warranty
- Suitable for indoor/damp locations based on tape light used
Where This Channel Works Best

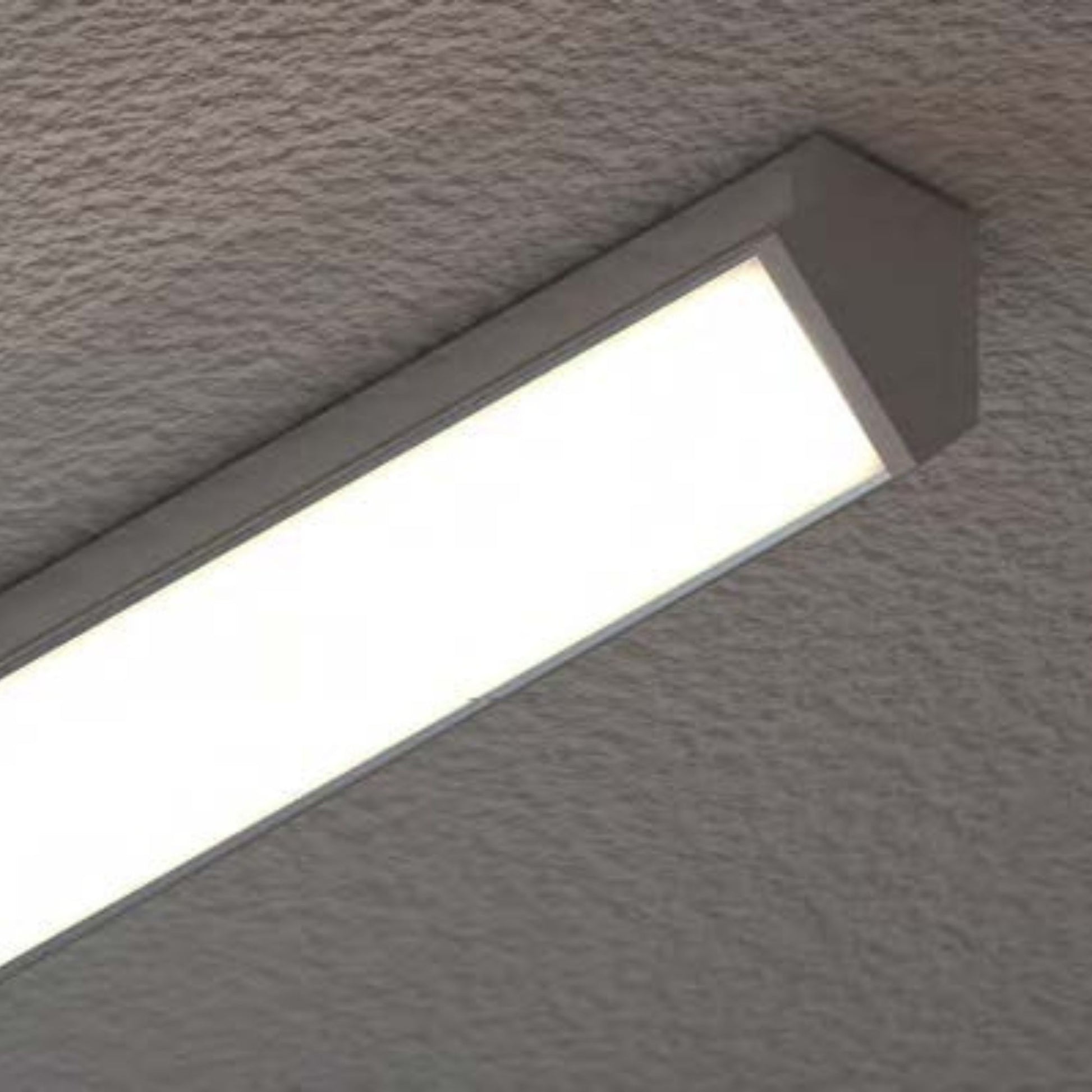

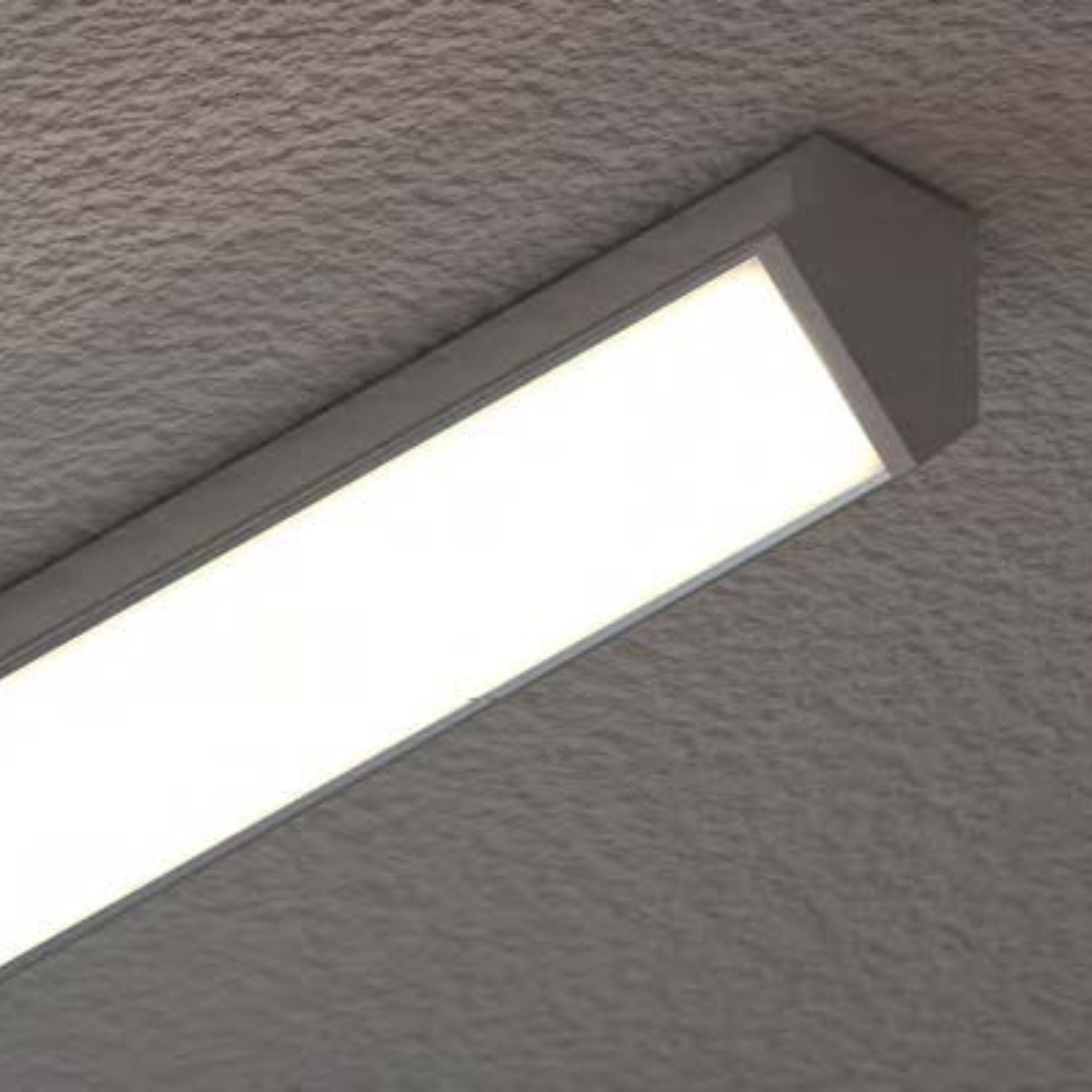

- Cove and wall-grazing architectural accent lighting
- Under-shelf and cabinet lighting
- Hospitality, restaurant, and retail display lighting

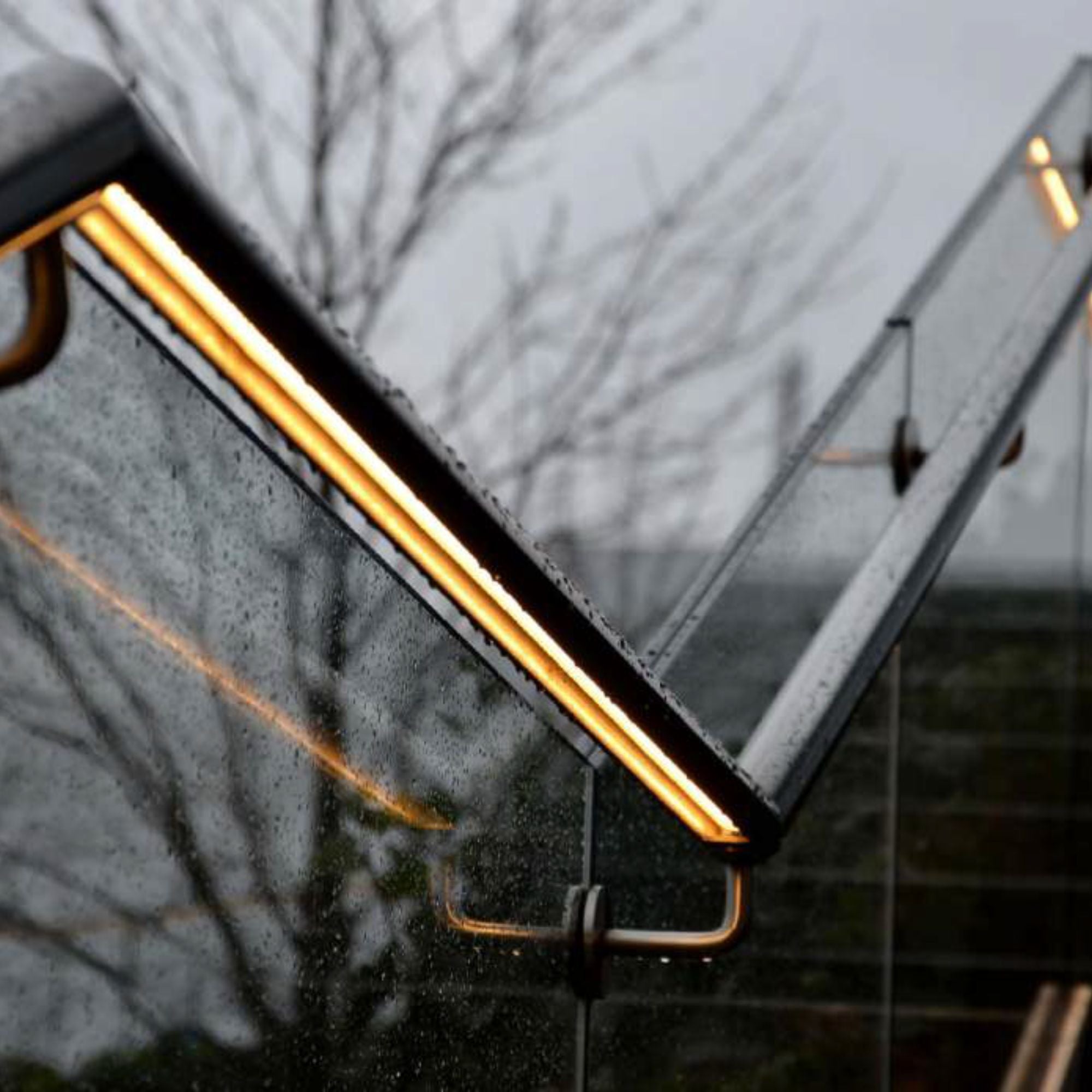

- Architectural millwork and trim lighting
- Commercial and high-volume residential installations
