Diode LED S-Series Channels Under Cabinet Channel — White Finish & Wet Rated | Pack of 10

The Diode LED DI-CHB-S45-96W-10 is a contractor and commercial-grade bulk pack of 10 white aluminum under cabinet channels, each measuring 96 in. in length. Engineered for large-scale installations where a clean white finish is essential — from white shaker kitchens and hospitality millwork to retail display cases and architectural cove runs — this pack delivers consistent, professional-grade performance across every channel. The rounded corner profile diffuses popular tape lights, creating a seamless dotless effect when paired with high-density tape lights. Wet rated and built from robust aluminum with a white powder-coat finish, these channels are designed to disappear into the installation while the light does the talking.

Key Features

• Pack Quantity: Includes 10 individual 96 in. channels for large-scale or commercial installations.
• Length: Each channel measures 96 in. (8 ft.) for extended coverage runs.
• Material: Made from high-quality aluminum for durability and long-lasting performance.
• Finish: White finish designed to blend seamlessly into white cabinetry, ceilings, and trim.
• Mounting: Rounded corner mount design for flexible, versatile installation.
• Wet Rated: Suitable for both indoor and outdoor wet locations.
• Included Accessories: Each channel comes with a frosted lens, end caps, mounting clips, and screws.
• Diffusion: Provides a dotless lighting effect when used with high-density tape lights.
• Warranty: Backed by a 3-year limited warranty.

Core Design & Profile

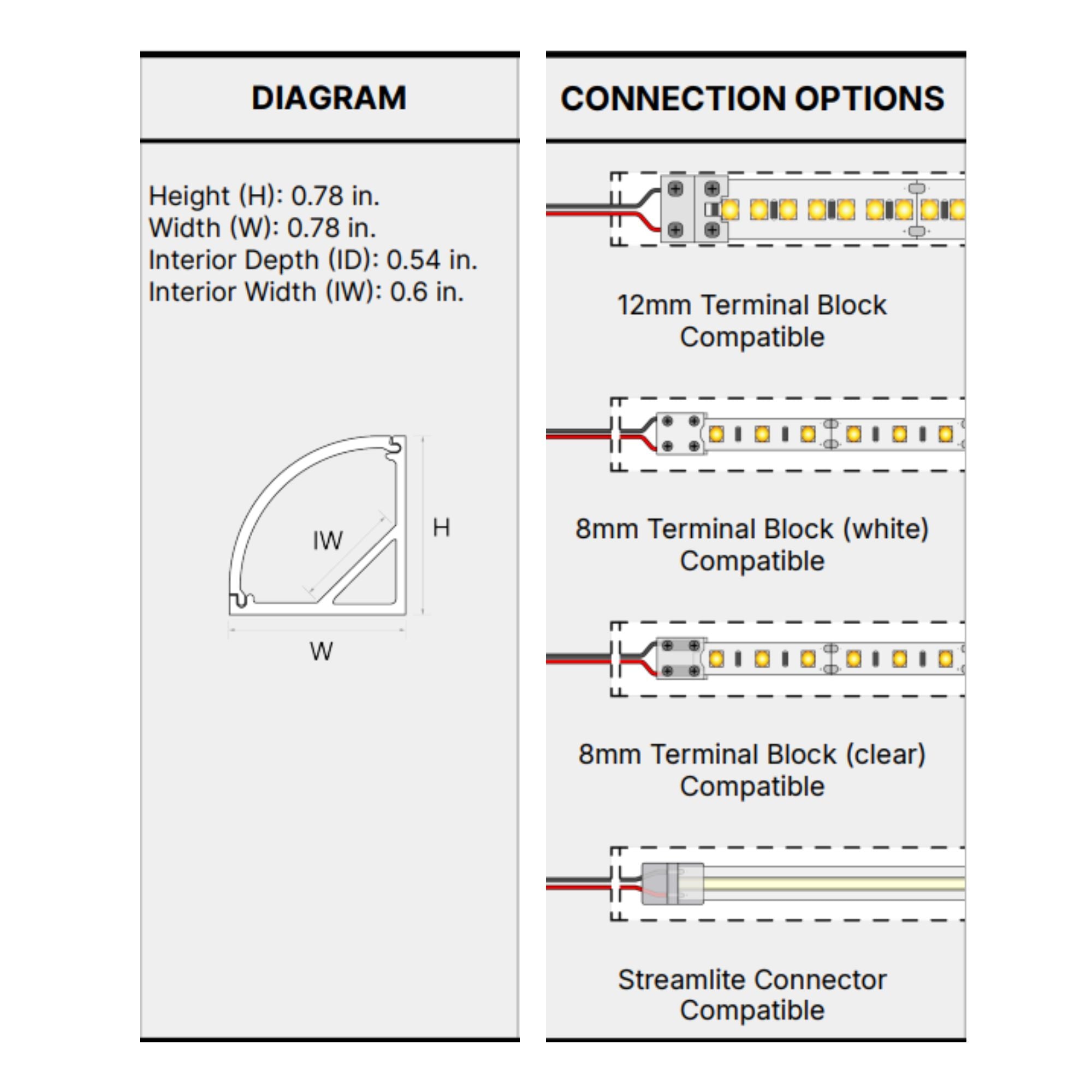

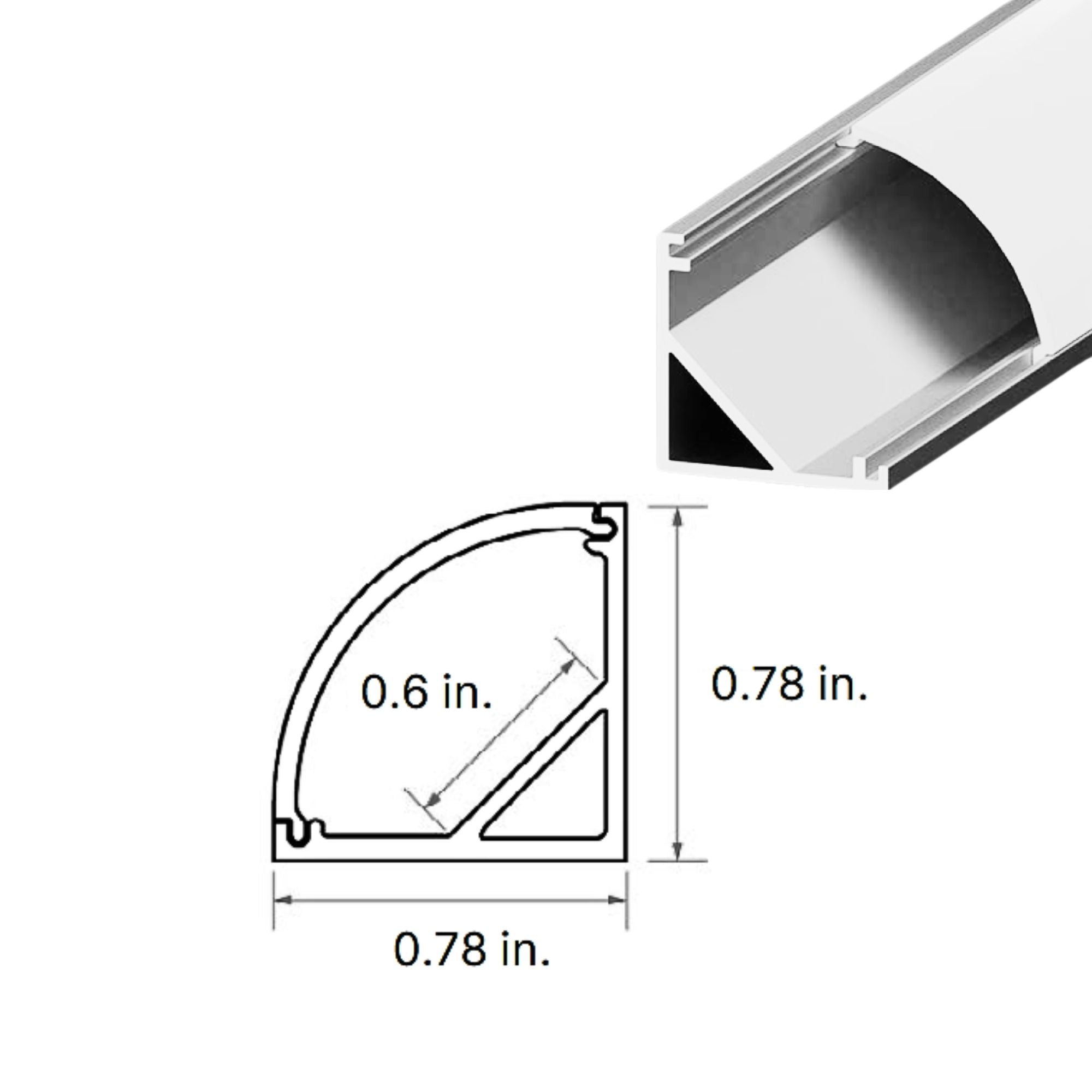

Each channel features a slim 0.78 in. × 0.78 in. profile with a rounded corner design, constructed from aluminum with a white finish and frosted lens for optimal light diffusion. The white finish integrates naturally into light-colored cabinetry, shelving, and architectural millwork, making it the go-to choice for clean, minimal installations. Wet rated for both indoor and outdoor applications.

LED Illumination & Performance

While the channels themselves do not emit light, they are precision-engineered to house and diffuse LED tape lights — eliminating hot spots and creating a smooth, continuous glow. For best results, pair with high-density tape lights (up to 12mm width) to achieve the signature dotless effect the S45 series is known for.

Power, Wiring & Linkability

Each channel is designed for straightforward installation using the included mounting clips and screws. No integrated wiring or linkability features — the channels focus on providing a robust, professional housing for your tape light runs. Compatible with standard tape light power supplies and controllers.

Where This Pack Works Best

• White kitchen under-cabinet lighting installations
• Extended cove and accent lighting runs in hospitality and retail with white interiors
• Large residential projects requiring consistent white channel coverage
• Outdoor wet-rated architectural lighting in light-colored environments
• Contractor and wholesale bulk purchases for multi-room or multi-unit projects

What's Included (Per Channel)

• 96 in. white aluminum channel
• Frosted lens
• 1 open end cap
• 1 closed end cap
• 2 mounting clips
• 2 mounting screws

Pack contains 10 complete channel units, each with all accessories listed above.
