Diode LED VALENT® X VLX5 Wet Location High Density LED Tape Light - 3500K Neutral White, 492 lm/ft, 16.4ft Reel, 24V, IP65
Diode LED VALENT® X VLX5 Wet Location High Density LED Tape Light - 3500K Neutral White, 492 lm/ft, 16.4ft Reel, 24V, IP65
4.6 W/ft • 30ft Max Run • 95 CRI • T24 • 12 Year Warranty • IP65 Rated
In stock
Highlights
Highlights
- 12 Years limited warranty
- Title 24 JA8 and RoHs Compliant
- cULus Listed for outdoor wet locations (IP65)
- Cuttable every 1.32 inches with 30 feet maximum run
- Dimmable with most 0-10V, ELV and TRIAC dimmers
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Overview
Overview
Precision-Engineered High Density Tape Light for Wet Locations (IP65)
VALENT® X Wet Location delivers up to 500+ lumens per foot with 95+ CRI / 90+ R9, engineered for demanding outdoor, marine, and wet environment applications where exceptional color rendering and uninterrupted linear illumination are essential. IP65-rated for wet locations. Backed by a 12-year limited warranty.
Technical Specifications
- Model: DI-24V-VLX5-35-W016 (3500K, 16.4 ft reel)
- Lumen Output: 492 lumens per foot
- Power Consumption: 4.6W per foot
- Color Temperature: 3500K neutral white
- CRI: 95+ for superior color accuracy
- R9 Value: 90+ for precision color rendering
- Voltage: 24VDC constant voltage
- Maximum Run Length: 30 ft.

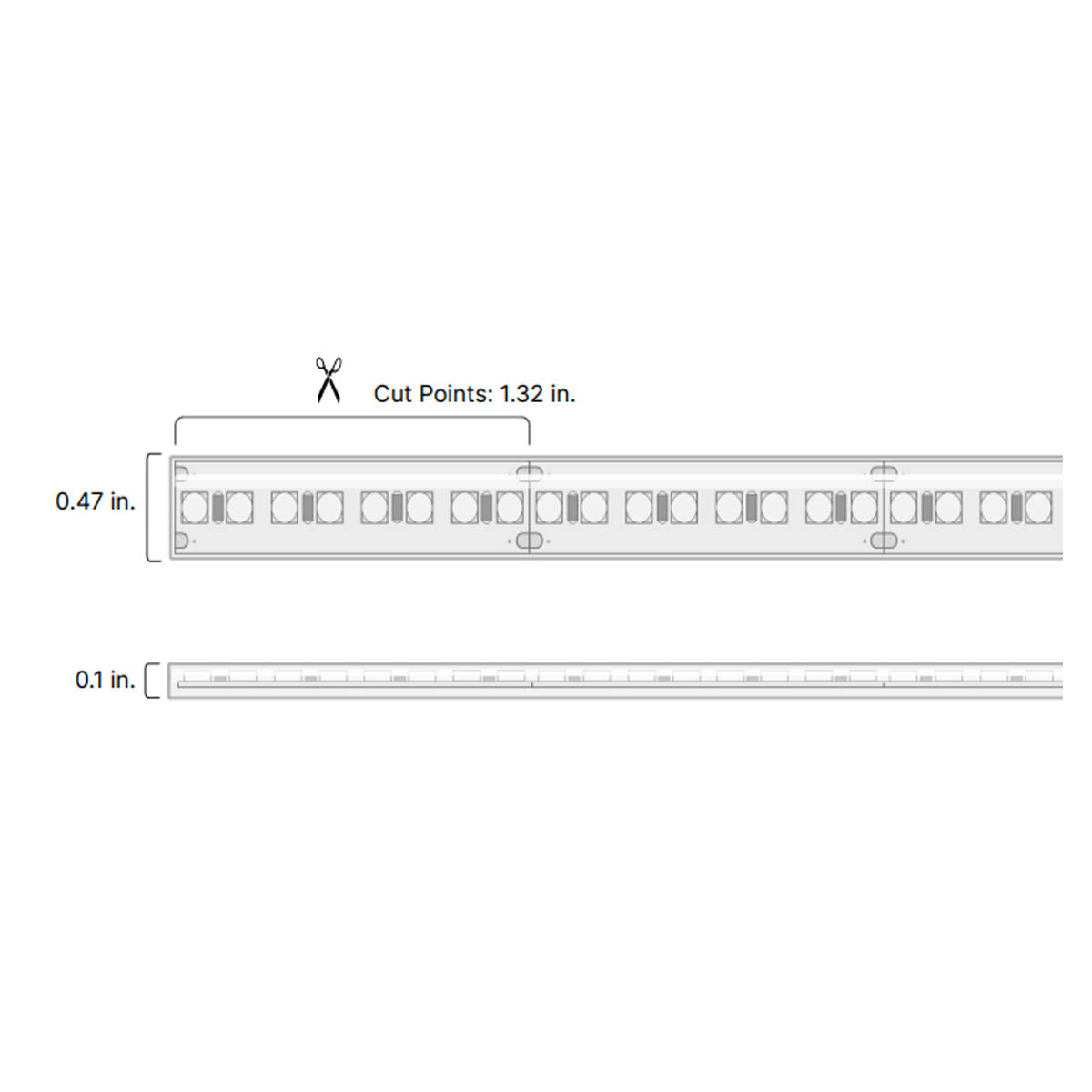

- Cut Points: 1.32 inch increments for precise field assembly
- IP Rating: IP65 for wet locations
- Dimming: Fully dimmable (0-100%) with compatible controls
Professional-Grade Features
- Dense LED Placement: Uninterrupted linear light output for seamless illumination
- High Output: Up to 500+ lumen outputs for demanding applications
- Precision Color Rendering: 95+ CRI with 90+ R9 value ensures accurate color representation
- Wet Location Rated: IP65 protection for outdoor, marine, and wet environment installations
- Ultra-High Lumen Output: Designed for contemporary linear light applications
- Flexible Cutting: 1.32 inch cuttable increments for precise field assembly
- Title 24 Compliant: Meets California high-efficacy lighting requirements (JA8-2016-2022-E)
- UL Listed: UL Listed 2108 Low Voltage Lighting System / UL 8750 certified
- 12-Year Limited Warranty: Industry-leading coverage (>50,000 hours L70 rated life)
Applications & Installation

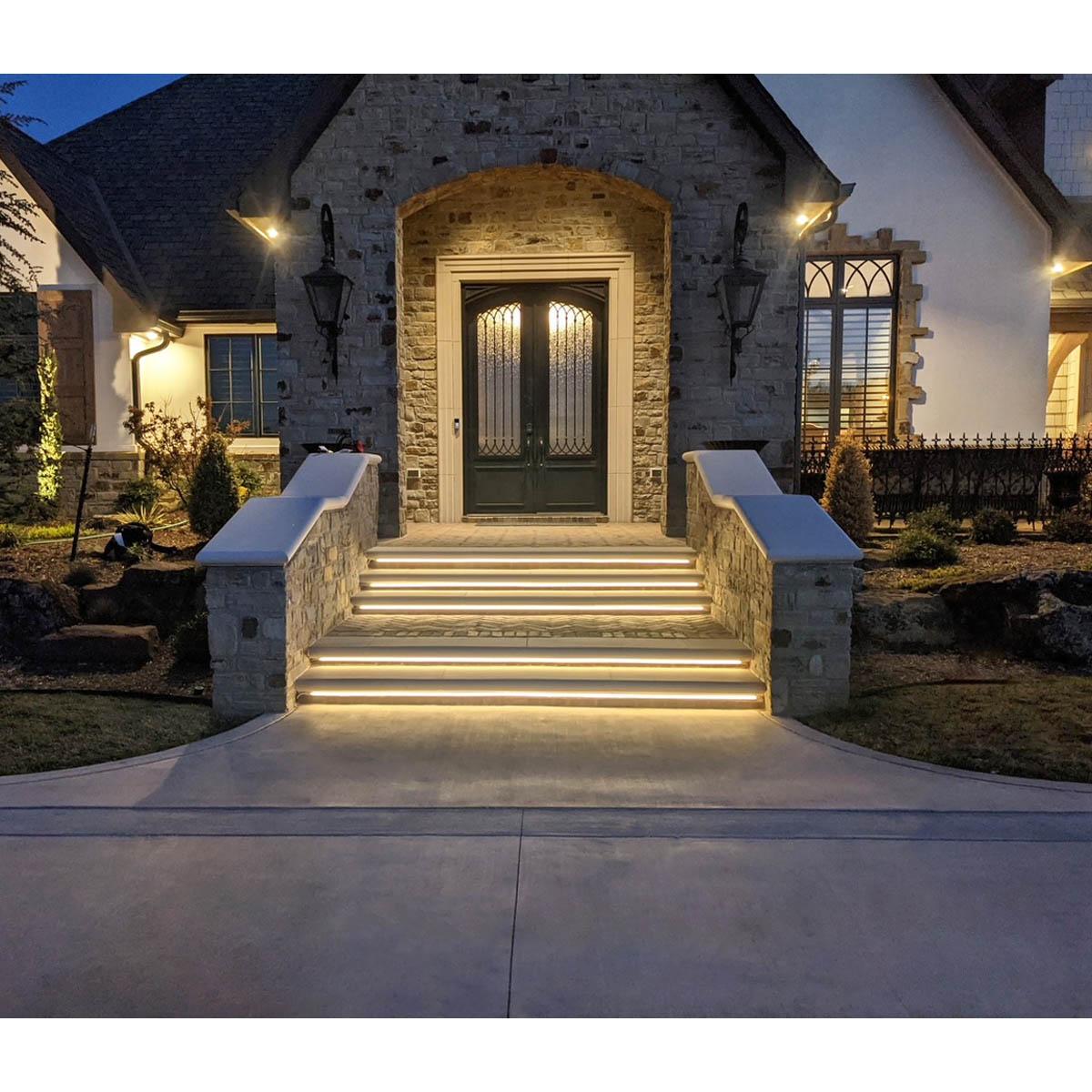

Ideal for outdoor cove lighting, wet location under-cabinet illumination, marine applications, pool areas, and architectural details where high-quality linear light is essential in wet environments.
Power Requirements: Requires a 24VDC constant-voltage LED driver (sold separately). Calculate total wattage: 4.6W/ft × total run length, then add 20% overhead for driver sizing.
Installation Requirements: Must be installed by qualified, licensed electrician per NEC 410.16.A.1.3 and 410.16.C.1.3.5. Use copper wiring rated for at least 176°F (80°C). Requires dedicated power feed from driver—do not extend beyond recommended maximum run length to prevent voltage drop.
Environmental & Safety
- Operating Temperature: -4°F to 176°F (-20°C to 80°C)
- Ambient Temperature: -4°F to 122°F (-20°C to 50°C)
- RoHS Compliant: Verification No. CANE2109091501
- CE & EMC Compliant: Verification No. GZEM14120068370SV
- Connections: 36 in. bare lead 20/2 AWG UL 2464 wire with strain relief
- IP Rating: IP65 - Protected against water jets and dust ingress
Note: This warranty does not include additional accessories. Complete warranty details available at manufacturer's website. Photometric and colorimetry data measured in accordance with IES LM-79-08 and IES LM-80-08 standards.
- 12 Years limited warranty
- Title 24 JA8 and RoHs Compliant
- cULus Listed for outdoor wet locations (IP65)
- Cuttable every 1.32 inches with 30 feet maximum run
- Dimmable with most 0-10V, ELV and TRIAC dimmers
