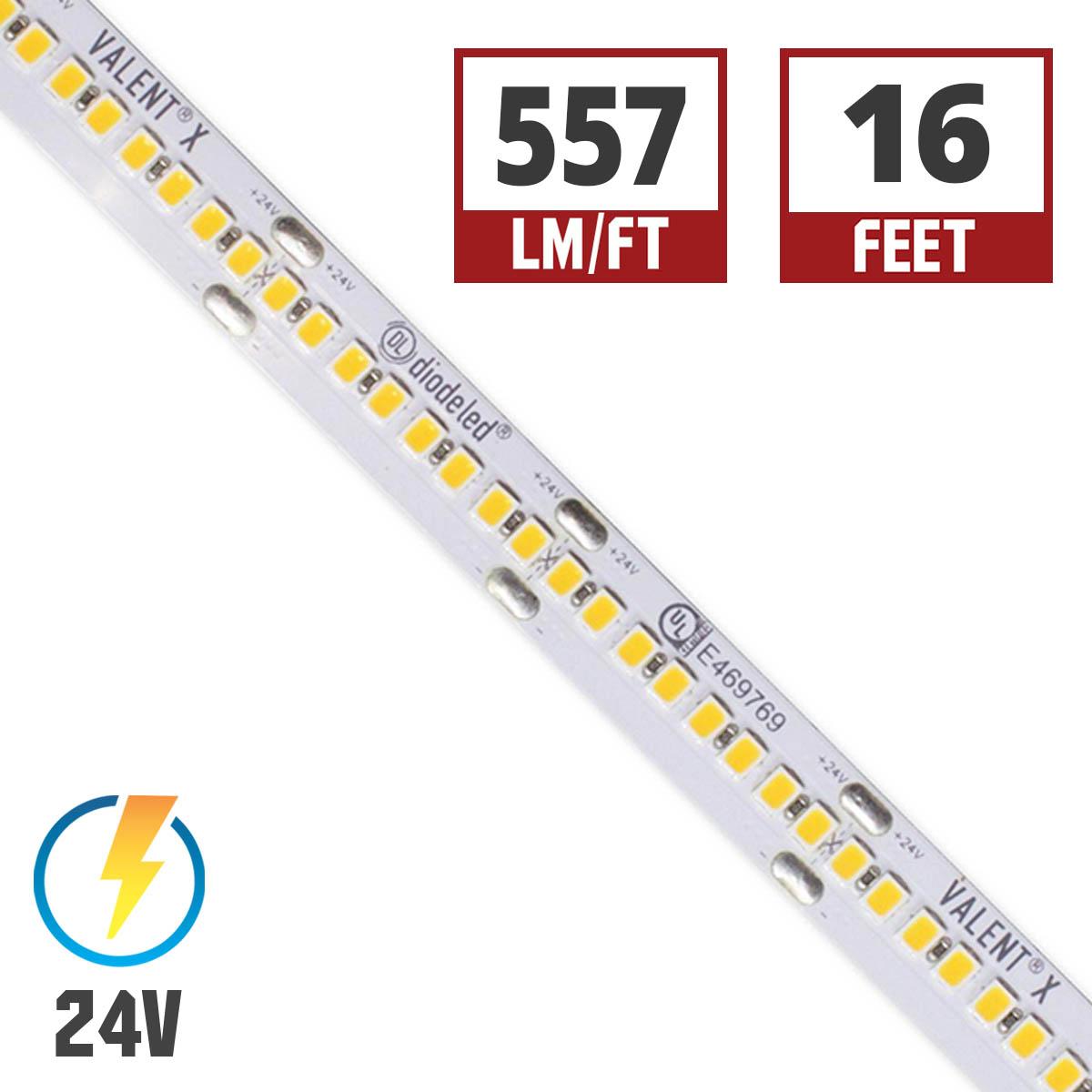

Diode LED VALENT X VLX5 High Density LED Tape Light - 3000K Soft White, 557 lm/ft, 16.4ft Reel, 24V
Diode LED VALENT X VLX5 High Density LED Tape Light - 3000K Soft White, 557 lm/ft, 16.4ft Reel, 24V
In stock
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- 12-Year Warranty: Backed by a long-term limited warranty, ensuring professional-grade reliability for years
- Elite Color & Power: Delivers high-output light at 4.6W per foot with a 95 CRI rating for museum-quality color accuracy
- Indoor Rated: cULus Listed for indoor damp areas (IP20)
- Cuttable every 1.32 inches with 30 feet maximum run
- Dimmable with most 0-10V, ELV and TRIAC dimmers
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

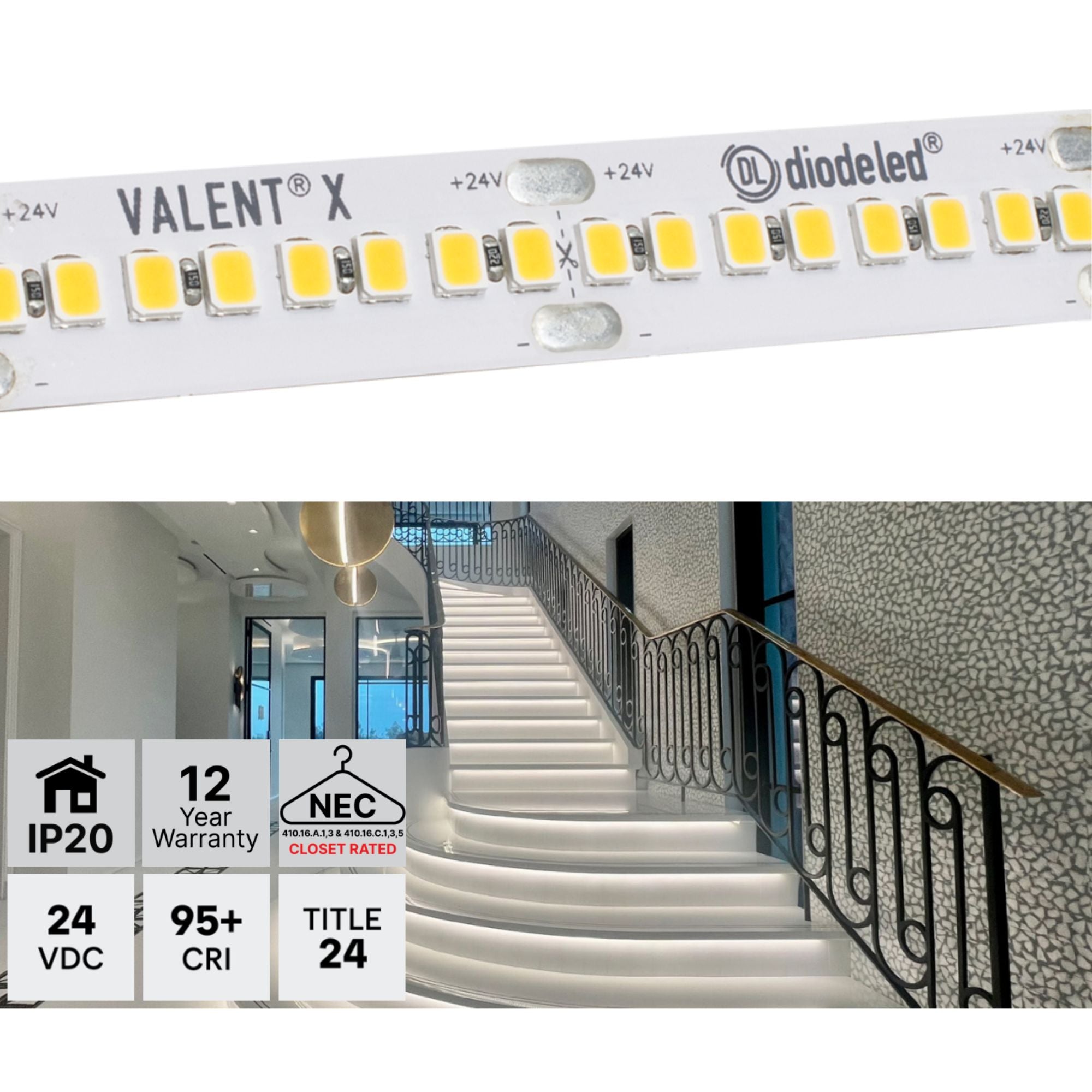

Precision-Engineered High Density Tape Light for Demanding Applications
VALENT® X delivers up to 500+ lumens per foot with 95+ CRI / 90+ R9, engineered for architectural, hospitality, and high-end retail environments where exceptional color rendering and uninterrupted linear illumination are essential. Backed by a 12-year limited warranty.
Technical Specifications
- Model: DI-24V-VLX5-30-016 (3000K, 16.4 ft reel)
- Lumen Output: 557 lumens per foot
- Power Consumption: 4.6W per foot
- Color Temperature: 3000K soft white
- CRI: 95+ for superior color accuracy
- R9 Value: 90+ for precision color rendering
- Voltage: 24VDC constant voltage
- Maximum Run Length: 30 ft.

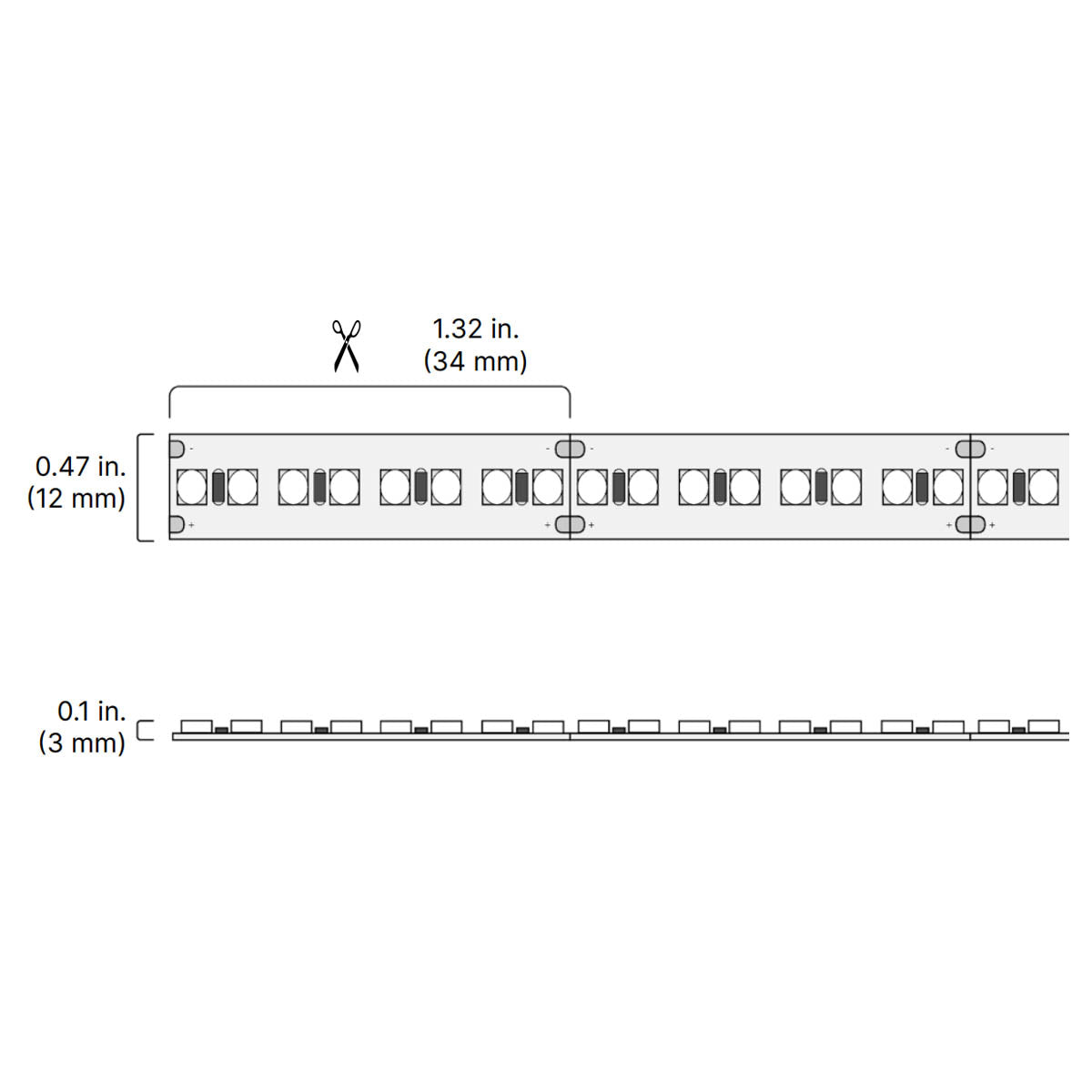

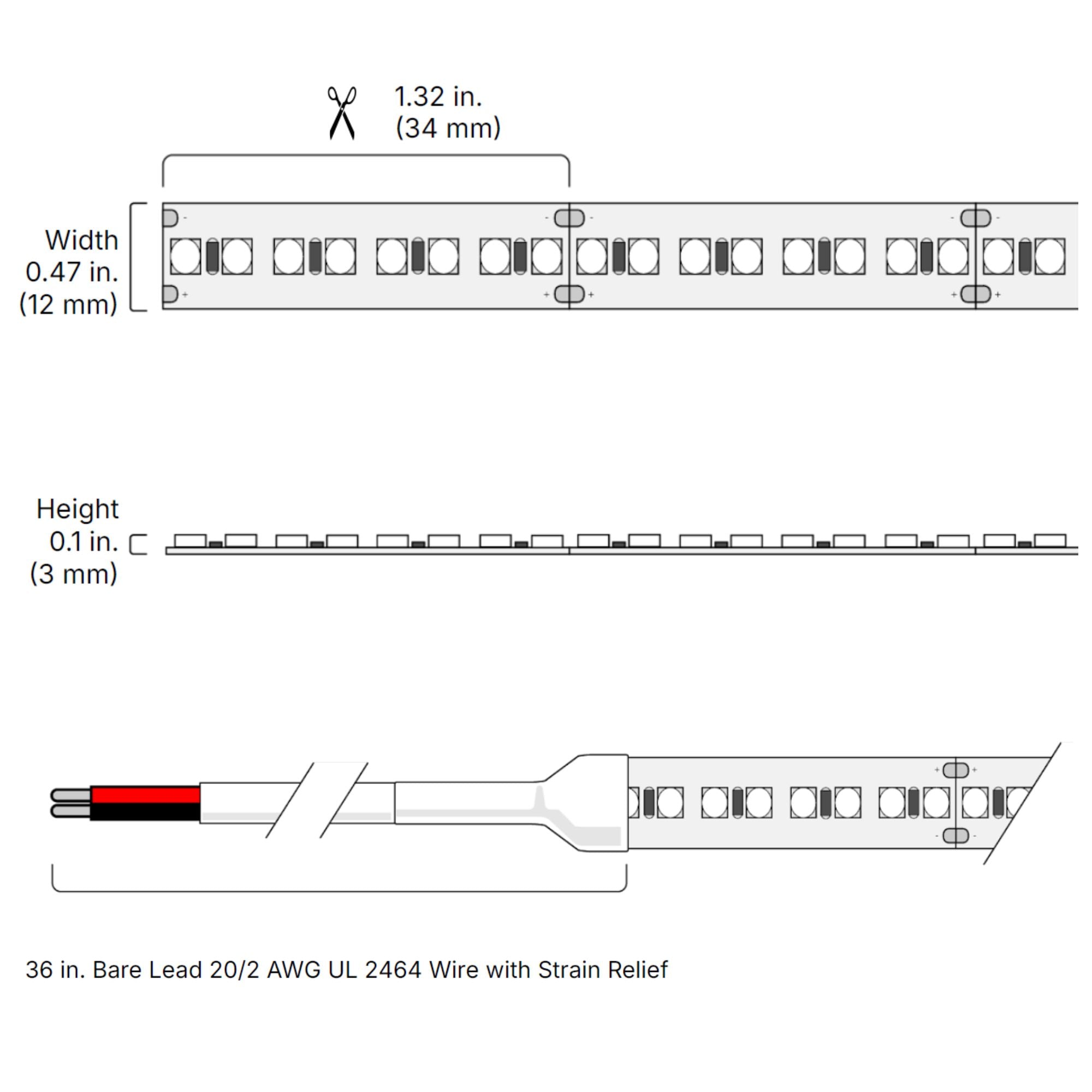

- Cut Points: 1.32 inch increments for precise field assembly
- IP Rating: IP20 for dry/damp locations
- Dimming: Fully dimmable (0-100%) with compatible controls
Professional-Grade Features

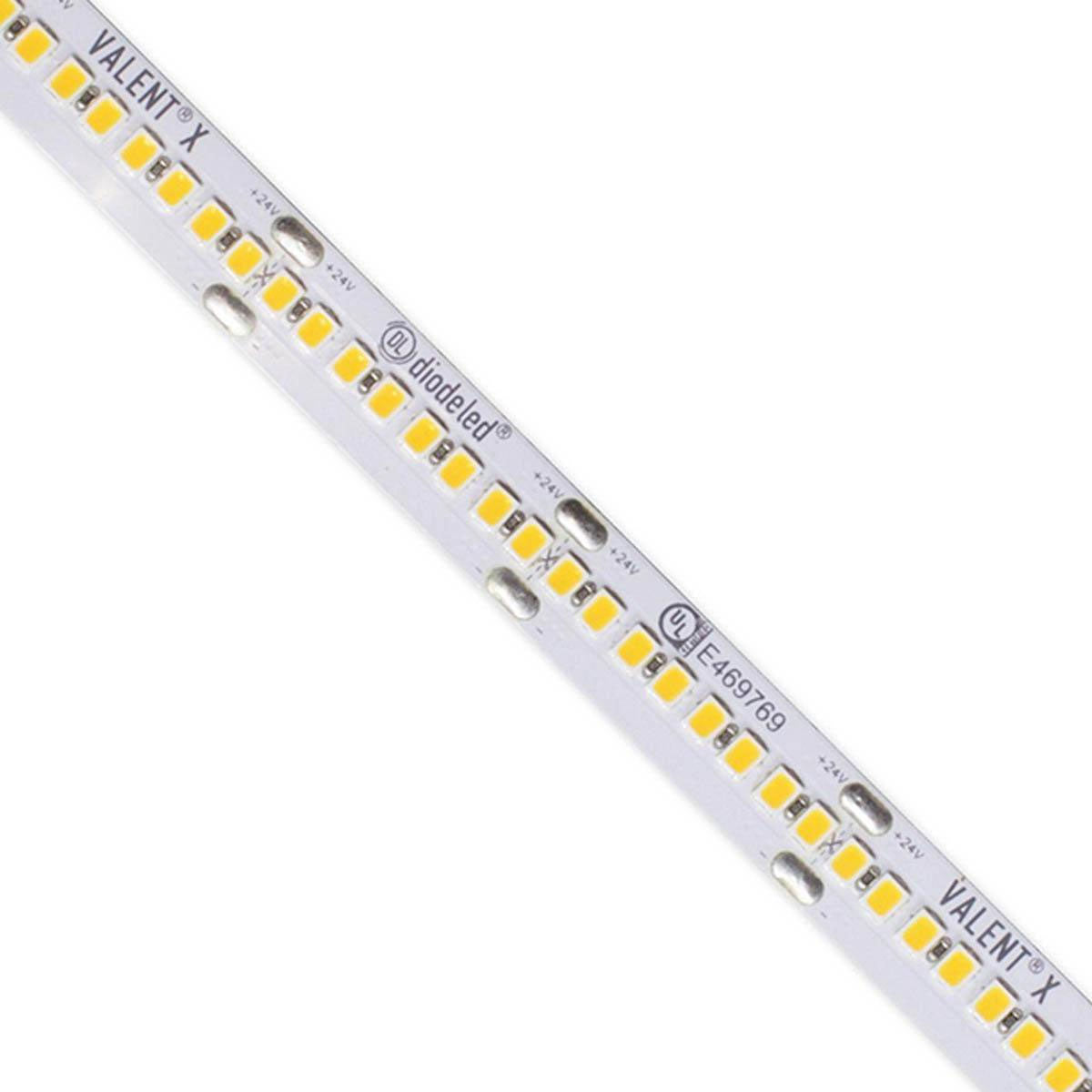

- Dense LED Placement: Uninterrupted linear light output for seamless illumination
- High Output: Up to 500+ lumen outputs for demanding applications
- Precision Color Rendering: 95+ CRI with 90+ R9 value ensures accurate color representation

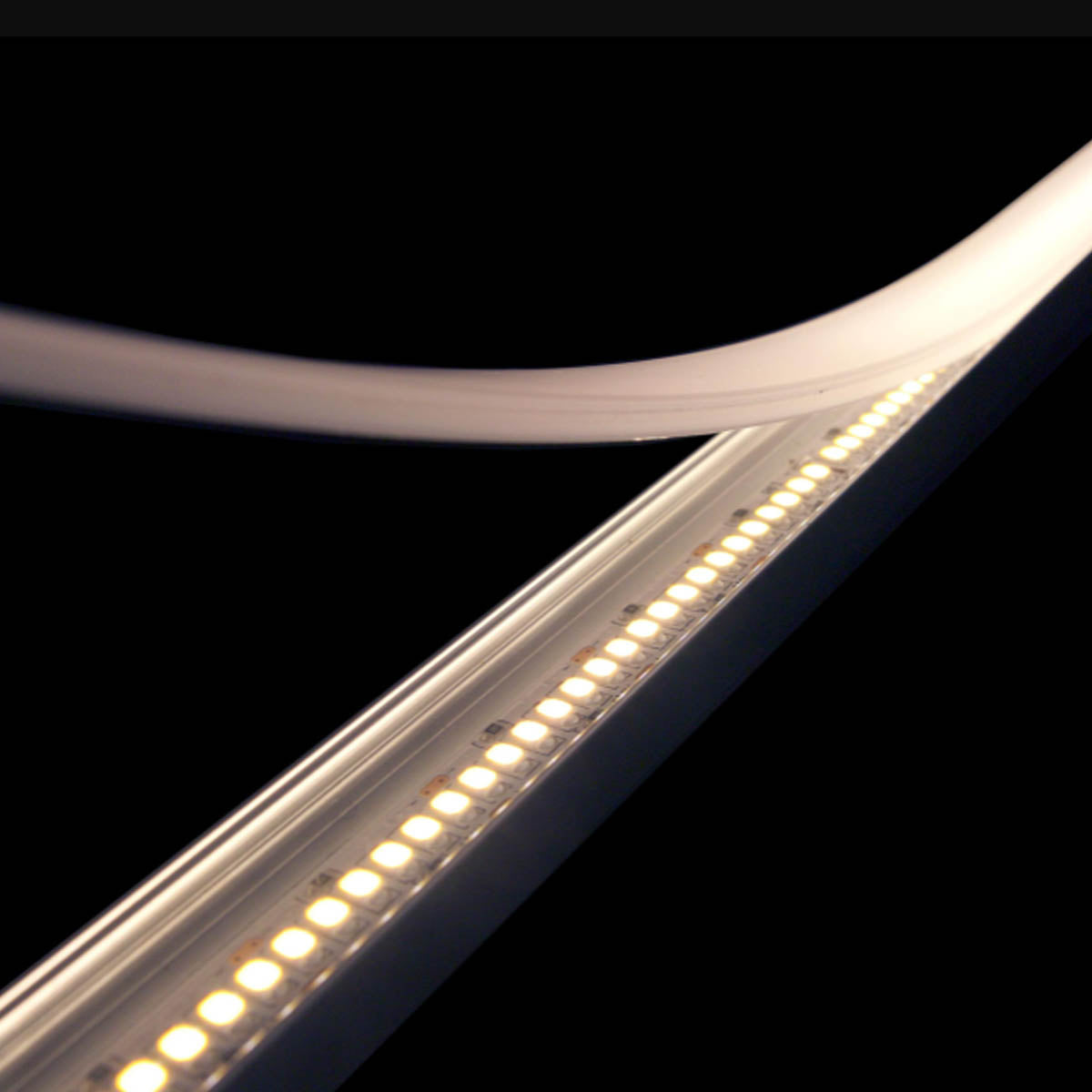

- No Extrusion Required: Channel (extrusion) not required for heat sink, simplifying installation
- Flexible Cutting: 1.32 inch cuttable increments for precise field assembly
- Title 24 Compliant: Meets California high-efficacy lighting requirements (JA8-2016-2022-E)
- UL Listed: UL Listed 2108 Low Voltage Lighting System / UL 8750 certified
- 12-Year Limited Warranty: Industry-leading coverage (>50,000 hours L70 rated life)
Applications & Installation

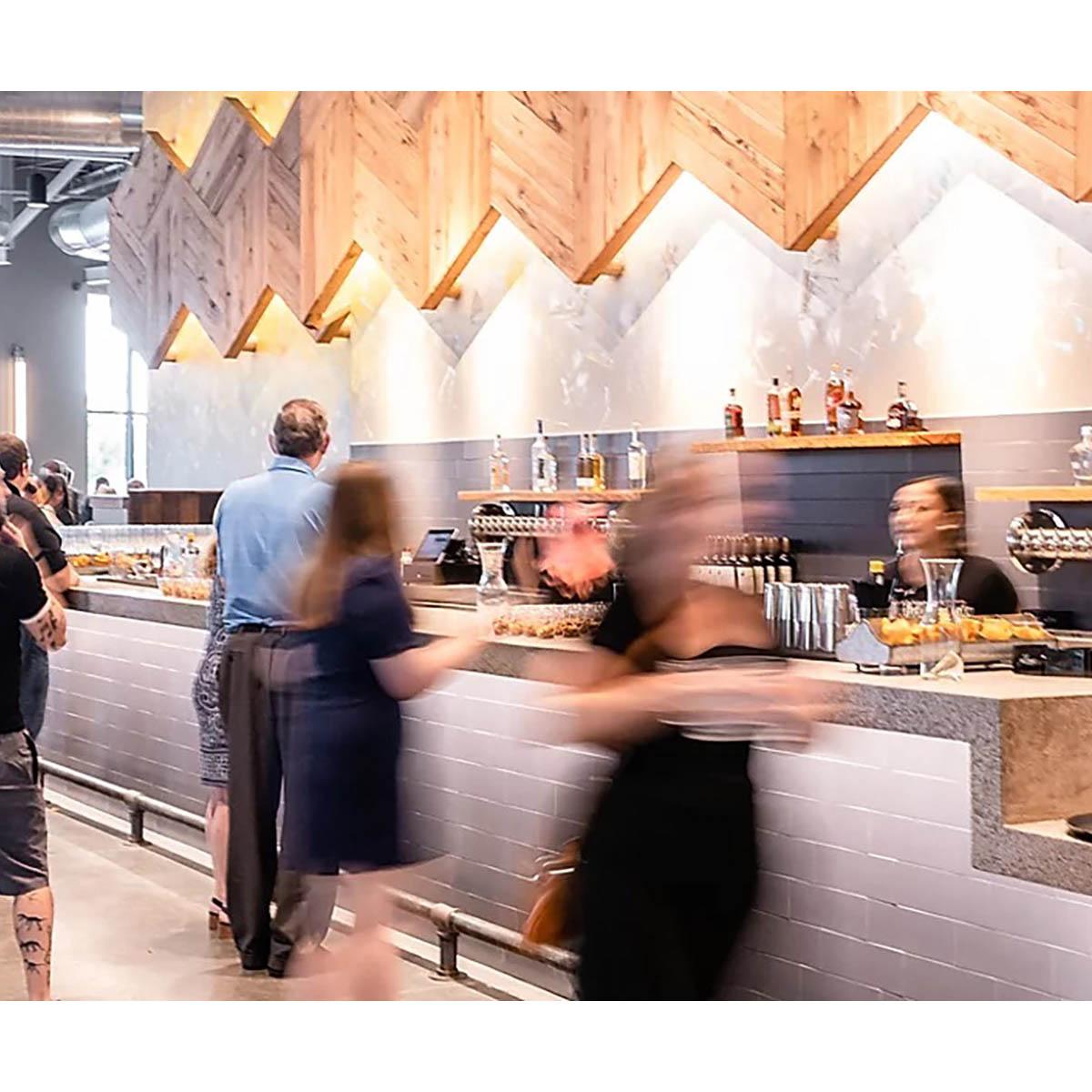

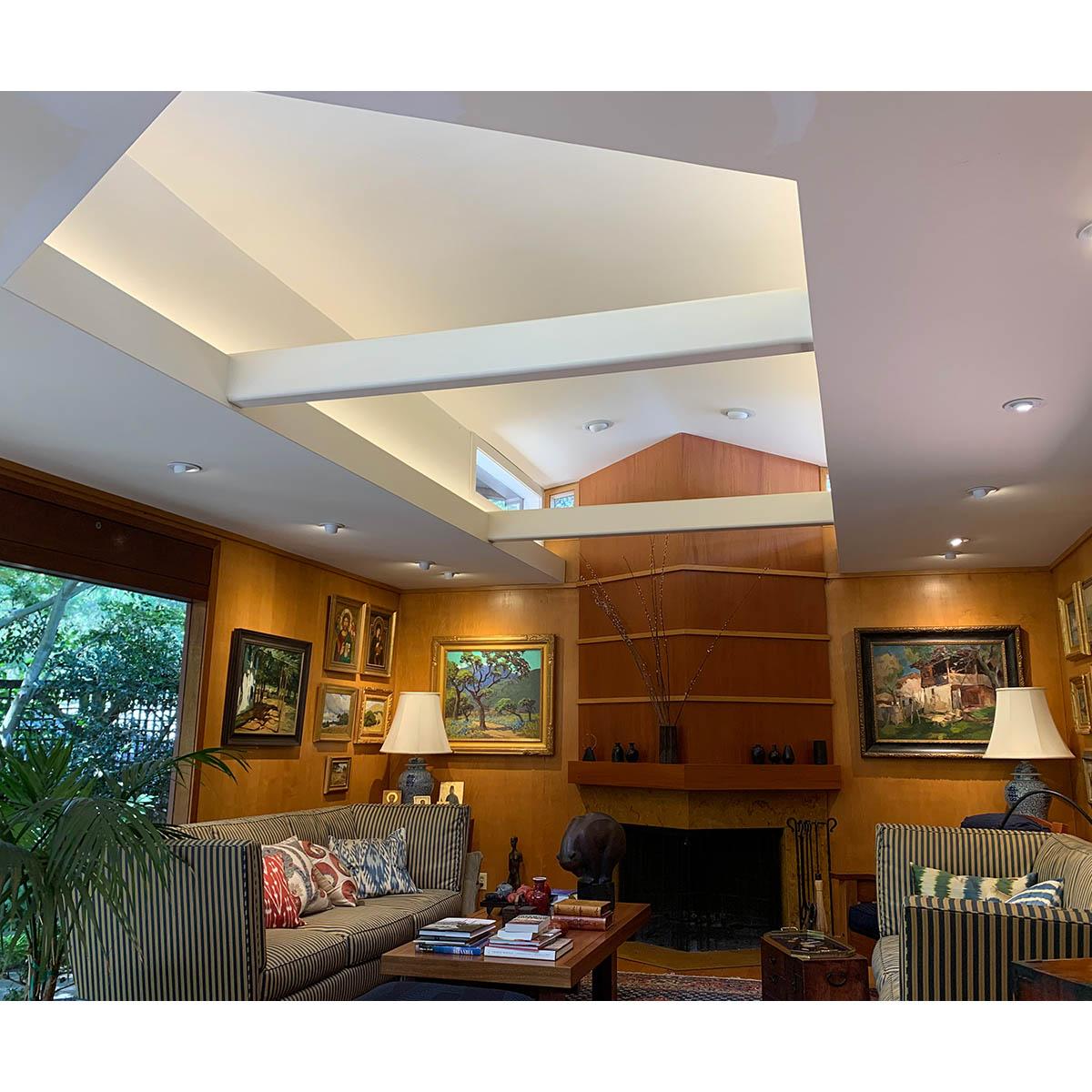

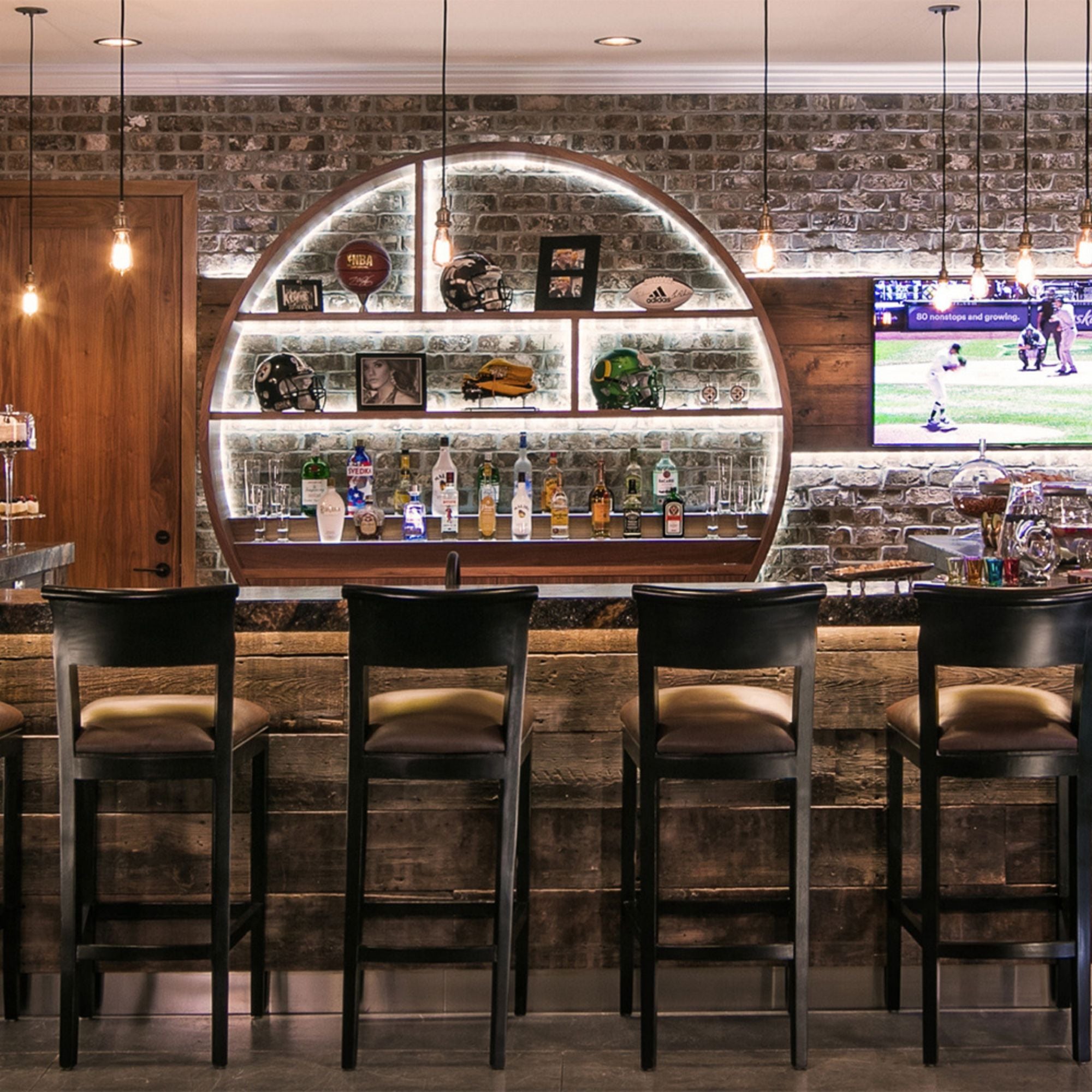

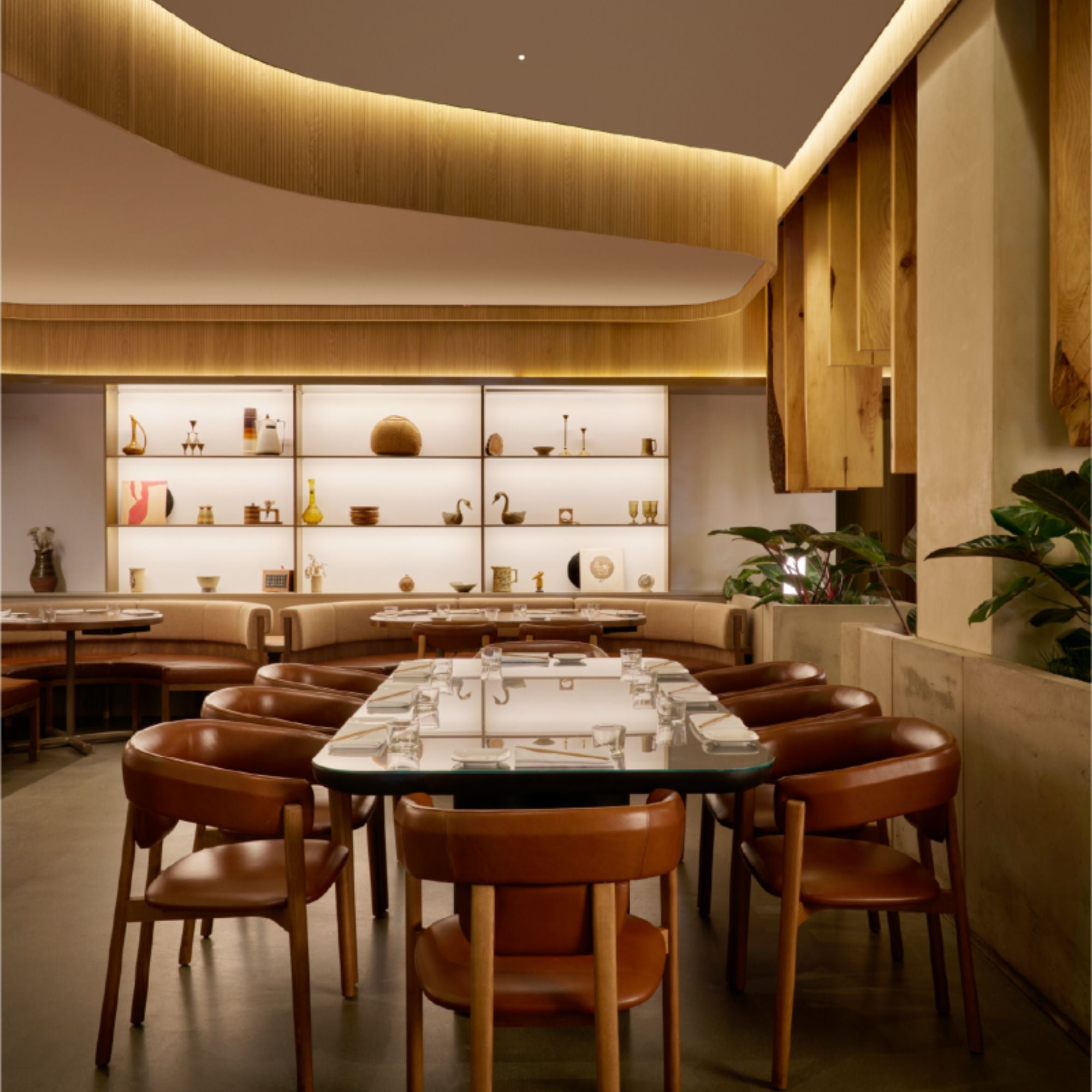

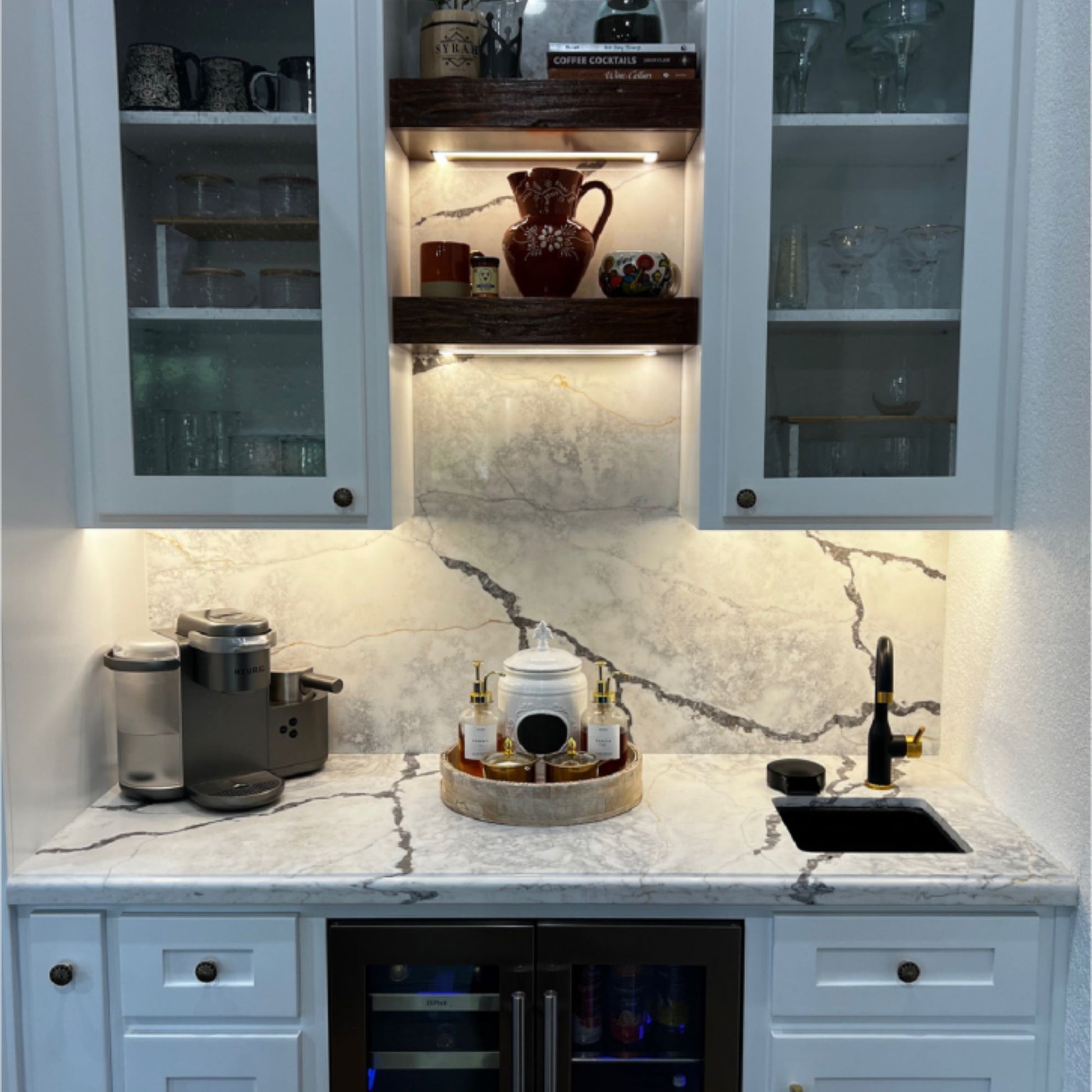

Ideal for cove lighting, under-cabinet illumination, accent lighting, and architectural details where high-quality linear light is essential.

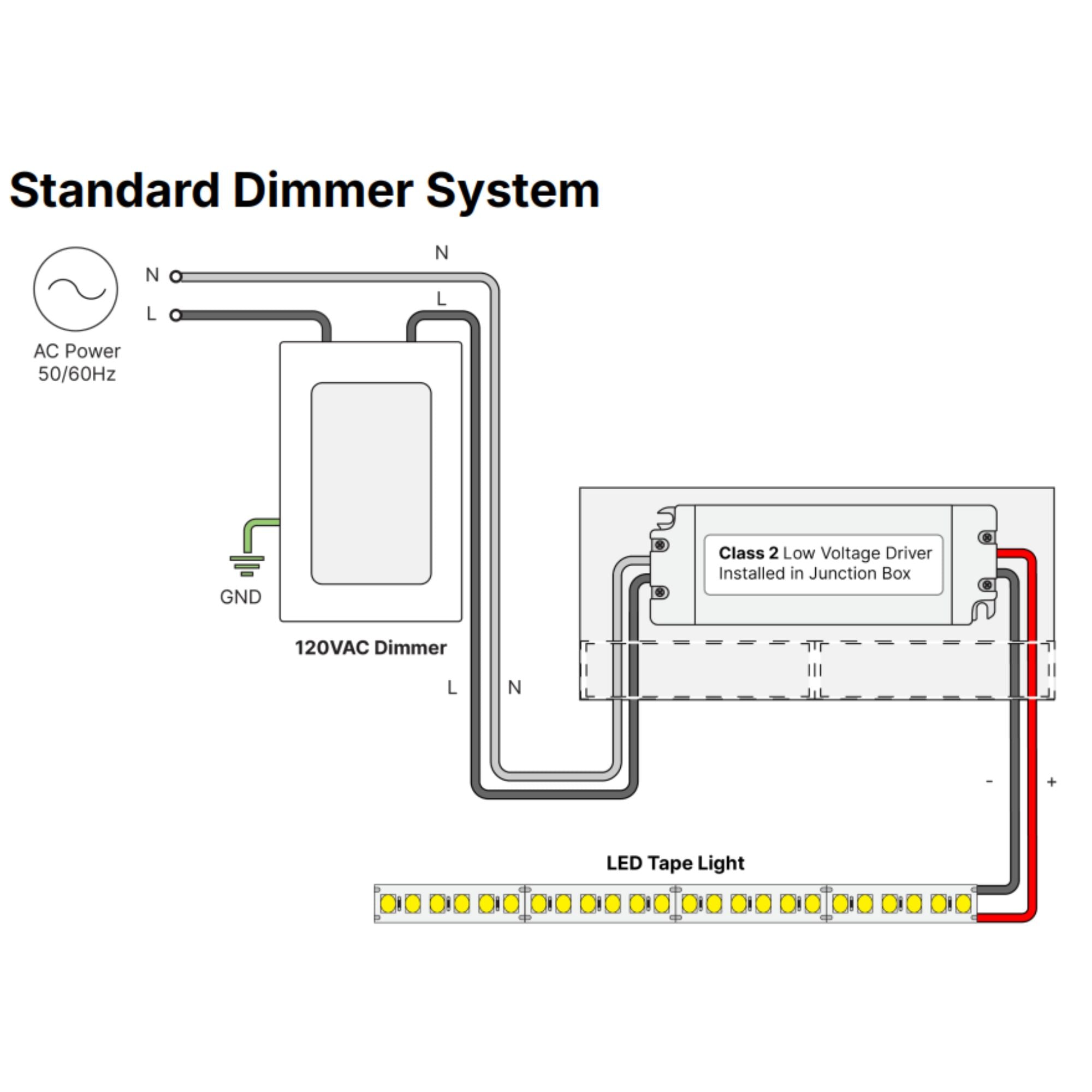

Power Requirements: Requires a 24VDC constant-voltage LED driver (sold separately). Calculate total wattage: 4.6W/ft × total run length, then add 20% overhead for driver sizing.
Installation Requirements: Must be installed by qualified, licensed electrician per NEC 410.16.A.1.3 and 410.16.C.1.3.5. Use copper wiring rated for at least 176°F (80°C). Requires dedicated power feed from driver—do not extend beyond recommended maximum run length to prevent voltage drop.
Environmental & Safety
- Operating Temperature: -4°F to 176°F (-20°C to 80°C)
- Ambient Temperature: -4°F to 122°F (-20°C to 50°C)
- RoHS Compliant: Verification No. CANE2109091501
- CE & EMC Compliant: Verification No. GEEM4R2008037054Y
- Connections: 36 AWG bare lead 20/2 wire with strain relief
Note: This warranty does not include additional accessories. Complete warranty details available at manufacturer's website. Photometric and colorimetry data measured in accordance with IES LM-79-08 and IES LM-80-08 standards.
