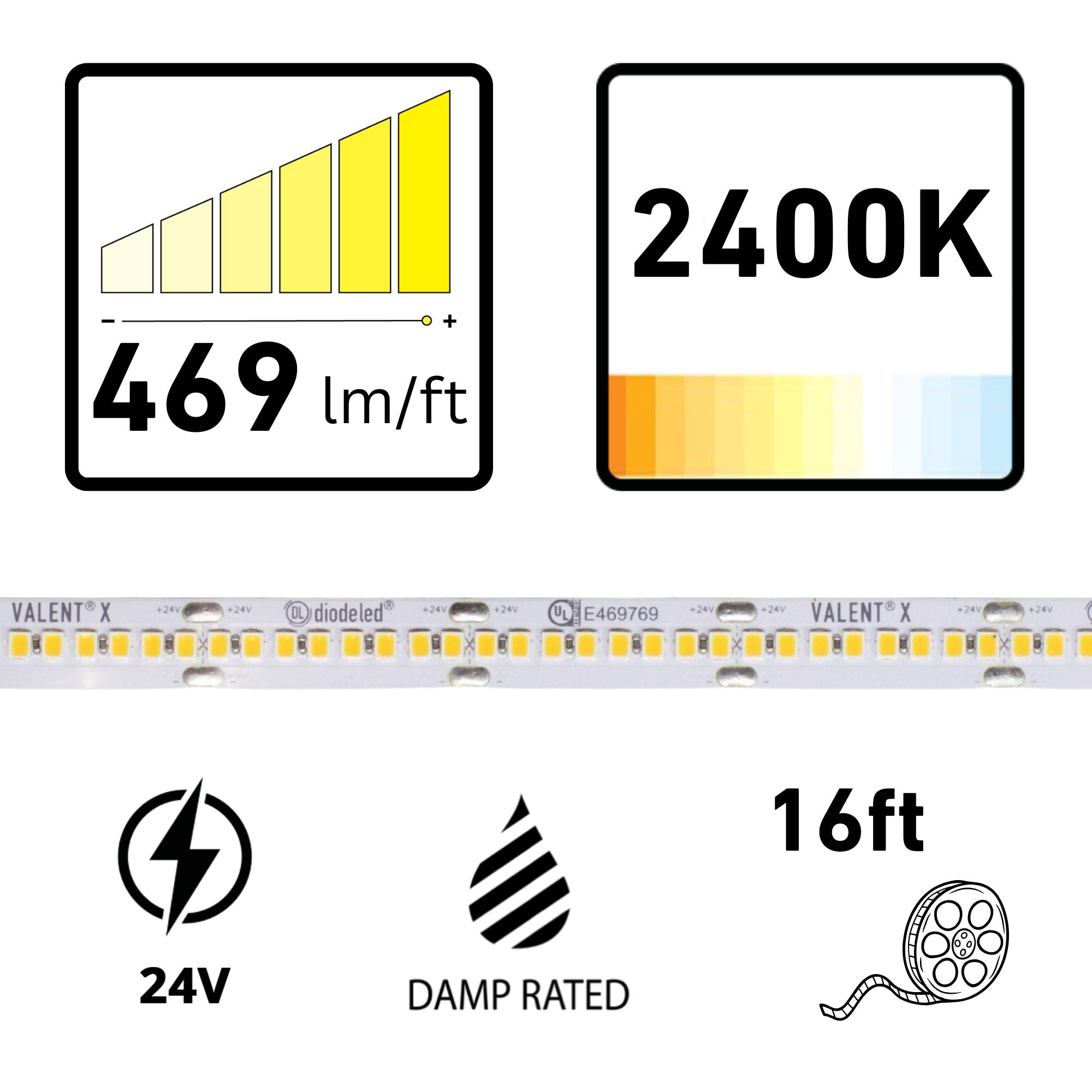

Diode LED VALENT X VLX5 High Density LED Tape Light - 2400K Warm Amber, 469 lm/ft, 16.4ft Reel, 24V

Precision-Engineered High Density Tape Light for Demanding Applications

VALENT® X delivers up to 500+ lumens per foot with 95+ CRI / 90+ R9, engineered for architectural, hospitality, and high-end retail environments where exceptional color rendering and uninterrupted linear illumination are essential. Backed by a 12-year limited warranty.

Technical Specifications

• Model: DI-24V-VLX5-24-016 (2400K, 16.4 ft reel)

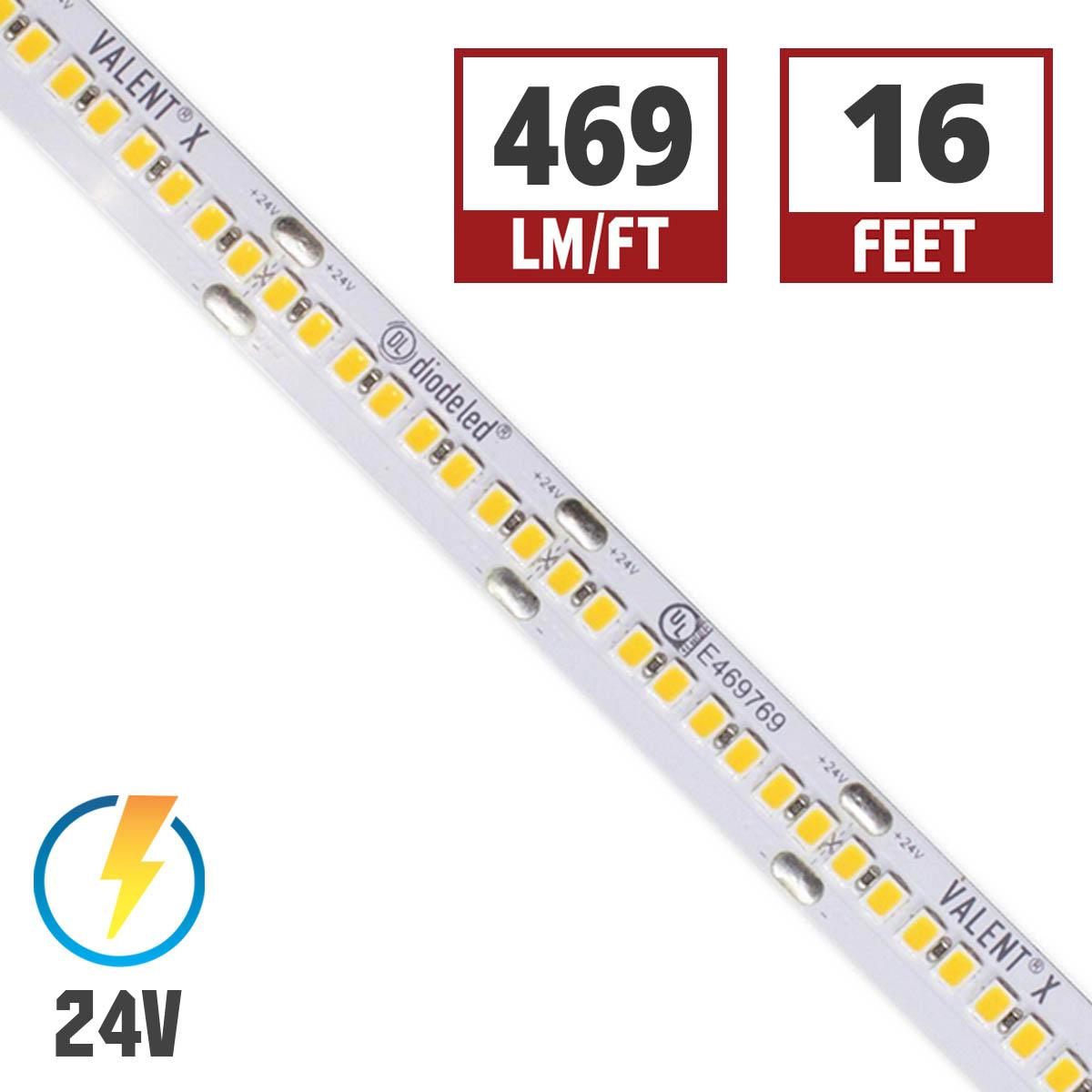

• Lumen Output: 469 lumens per foot
• Power Consumption: 4.6W per foot
• Color Temperature: 2400K warm amber
• CRI: 95+ for superior color accuracy
• R9 Value: 90+ for precision color rendering
• Voltage: 24VDC constant voltage
• Maximum Run Length: 30 ft.

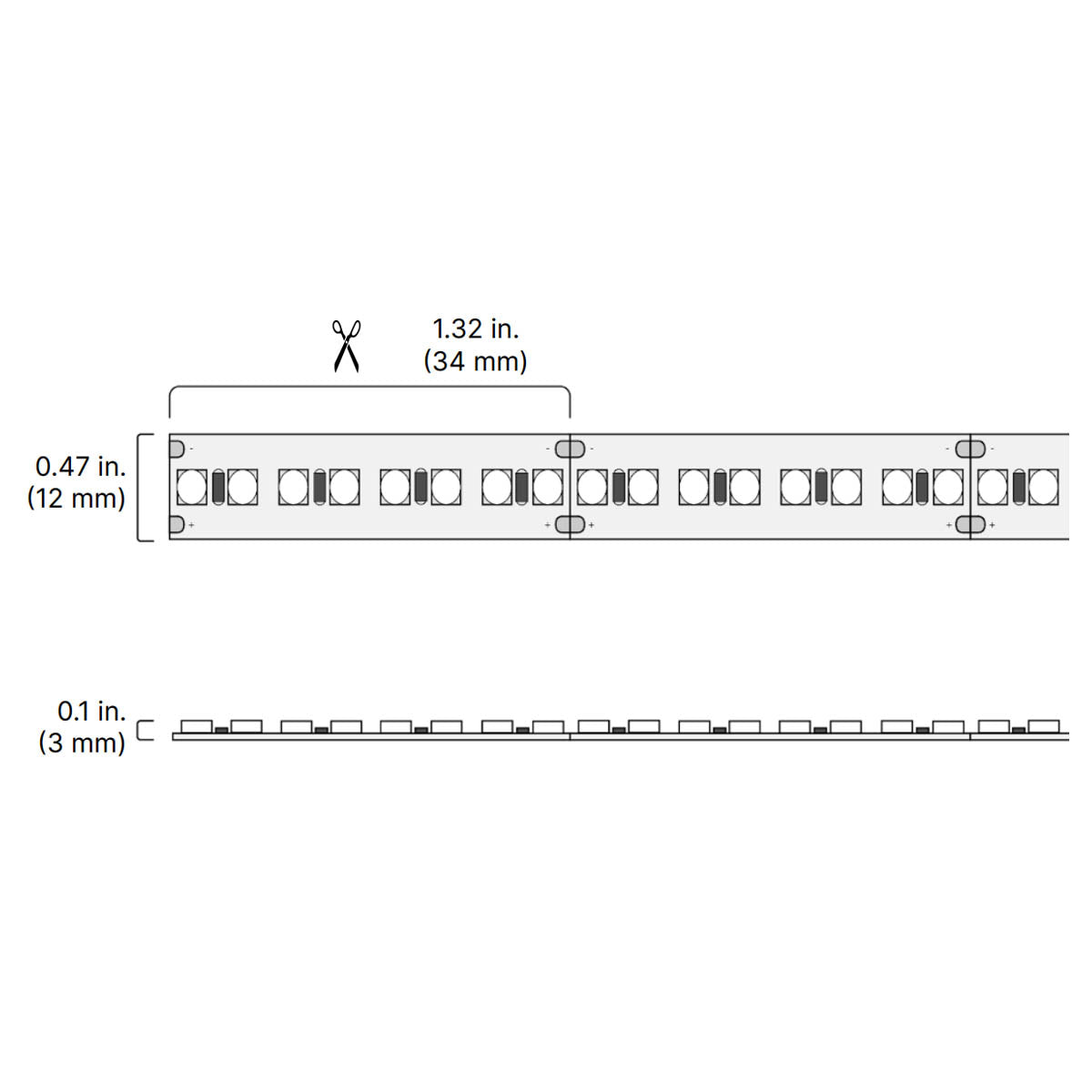

• Cut Points: 1.32 inch increments for precise field assembly
• IP Rating: IP20 for dry/damp locations
• Dimming: Fully dimmable (0-100%) with compatible controls

Professional-Grade Features

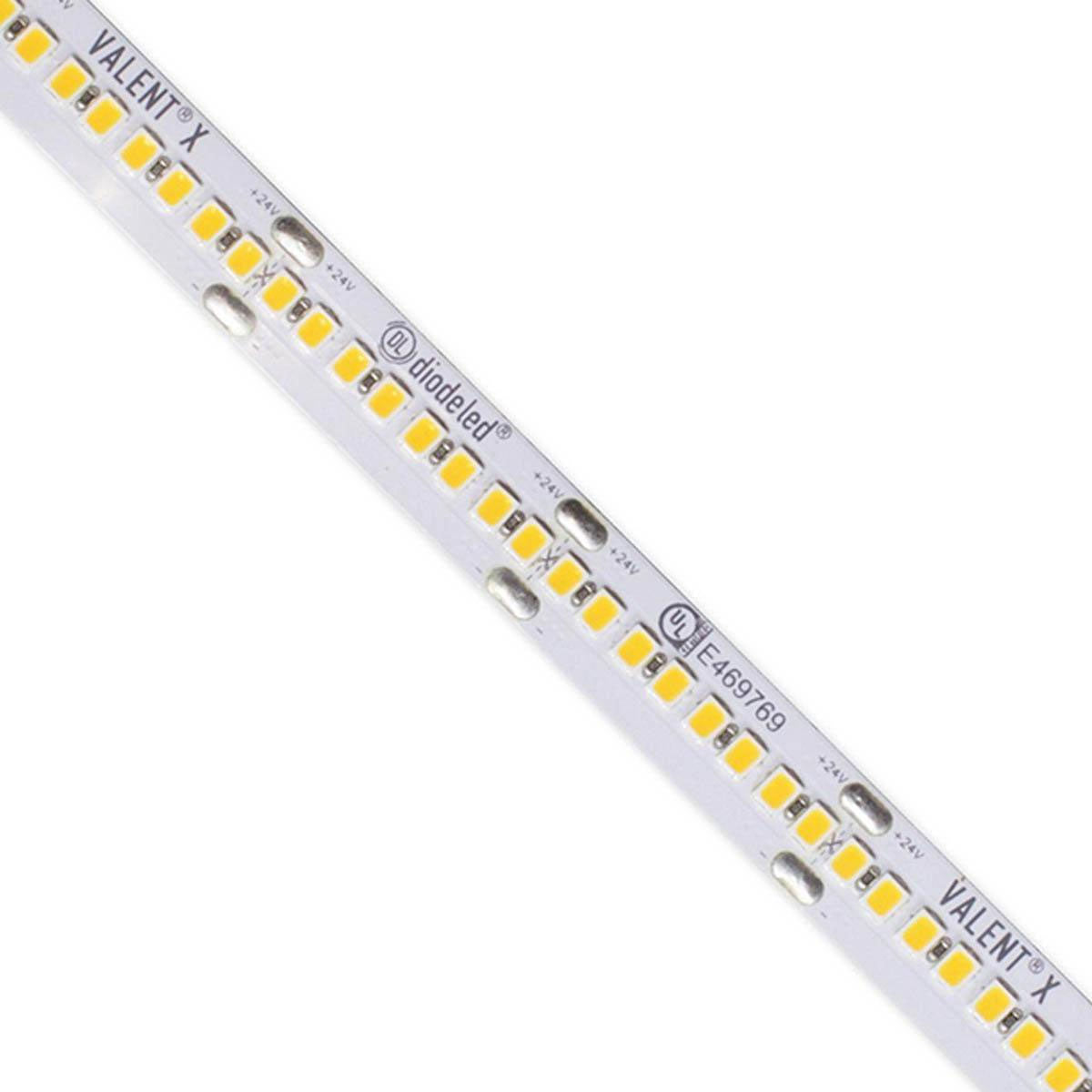

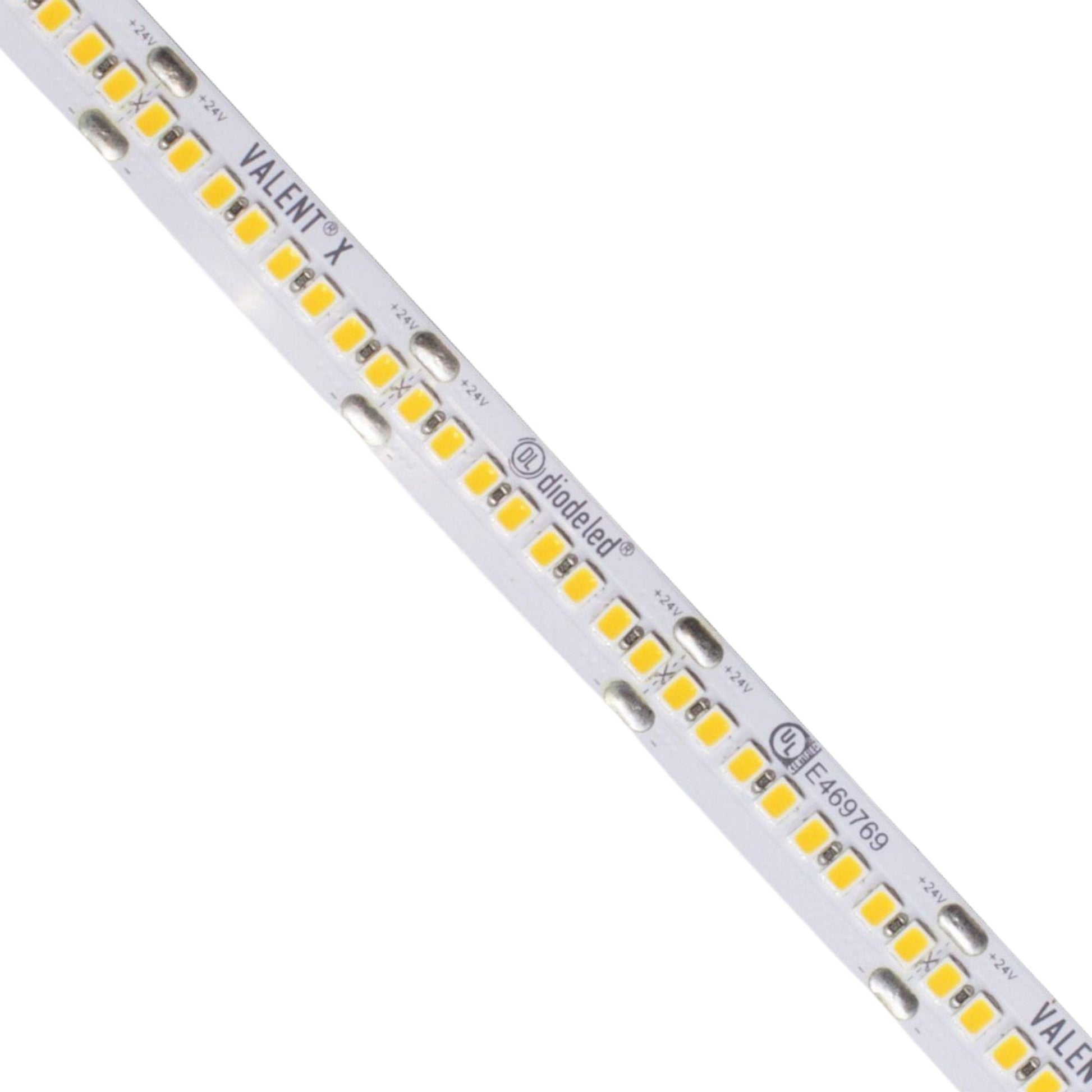

• Dense LED Placement: Uninterrupted linear light output for seamless illumination
• High Output: Up to 500+ lumen outputs for demanding applications
• Precision Color Rendering: 95+ CRI with 90+ R9 value ensures accurate color representation

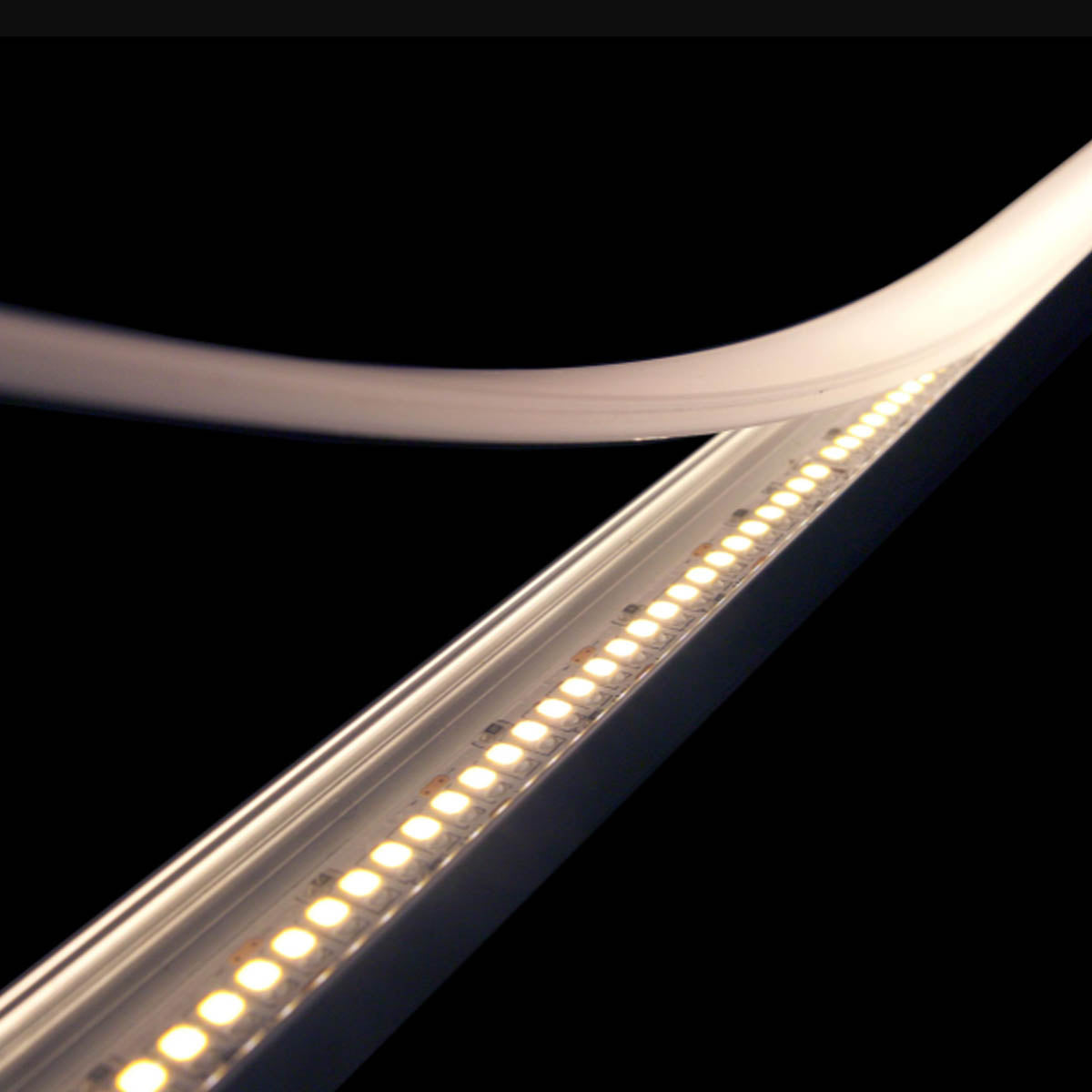

• No Extrusion Required: Channel (extrusion) not required for heat sink, simplifying installation
• Flexible Cutting: 1.32 inch cuttable increments for precise field assembly
• Title 24 Compliant: Meets California high-efficacy lighting requirements (JA8-2016-2022-E)
• UL Listed: UL Listed 2108 Low Voltage Lighting System / UL 8750 certified
• 12-Year Limited Warranty: Industry-leading coverage (>50,000 hours L70 rated life)

Applications & Installation

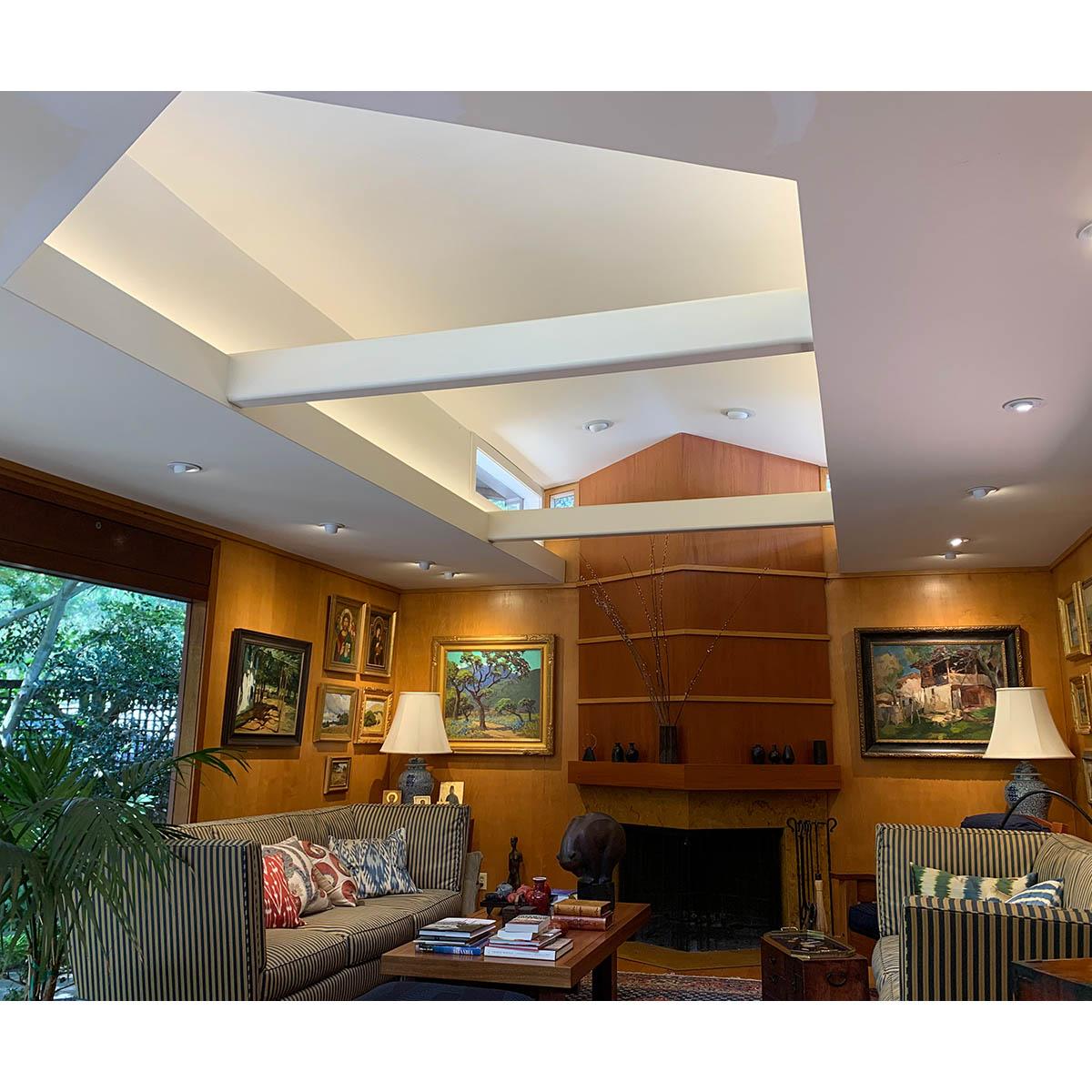

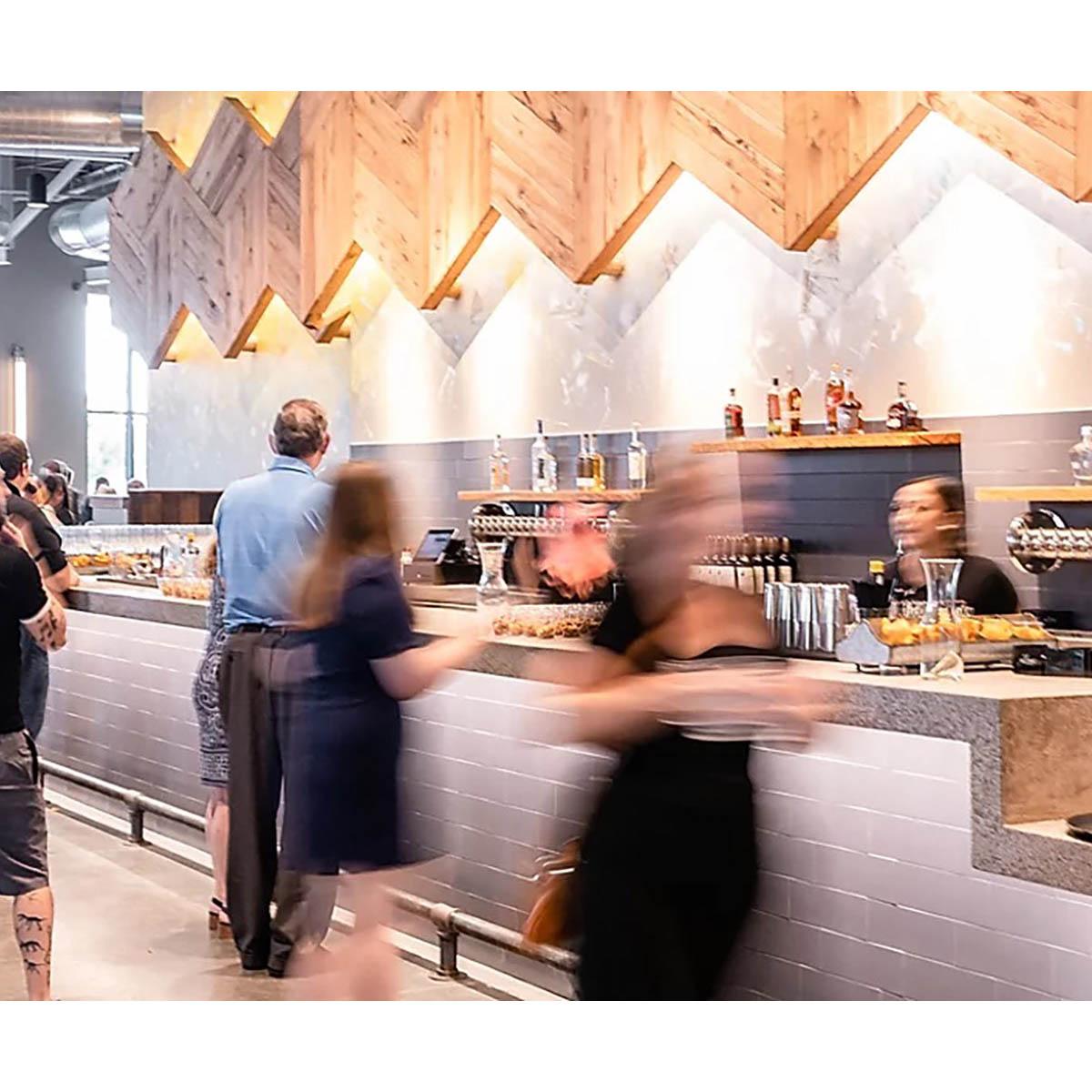

Ideal for cove lighting, under-cabinet illumination, accent lighting, and architectural details where high-quality linear light is essential.

Power Requirements: Requires a 24VDC constant-voltage LED driver (sold separately). Calculate total wattage: 4.6W/ft × total run length, then add 20% overhead for driver sizing.

Installation Requirements: Must be installed by qualified, licensed electrician per NEC 410.16.A.1.3 and 410.16.C.1.3.5. Use copper wiring rated for at least 176°F (80°C). Requires dedicated power feed from driver—do not extend beyond recommended maximum run length to prevent voltage drop.

Environmental & Safety

• Operating Temperature: -4°F to 176°F (-20°C to 80°C)
• Ambient Temperature: -4°F to 122°F (-20°C to 50°C)
• RoHS Compliant: Verification No. CANE2109091501
• CE & EMC Compliant: Verification No. GEEM4R2008037054Y
• Connections: 36 AWG bare lead 20/2 wire with strain relief

Note: This warranty does not include additional accessories. Complete warranty details available at manufacturer's website. Photometric and colorimetry data measured in accordance with IES LM-79-08 and IES LM-80-08 standards.
